Rosemount 5300 Level Transmitter Quick Start Guide

Download
Page 1
Quick Start Guide
00825-0100-4530, Rev HC

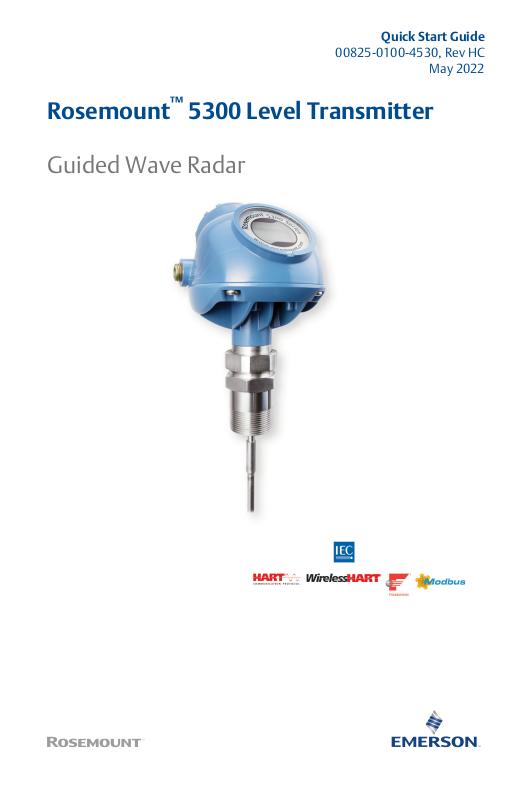

Rosemount™ 5300 Level Transmitter
Guided Wave Radar
May 2022
Page 2
Contents
Confirm system readiness (HART® only)....................................................................................... 5
Page 3

1 About this guide

This Quick Start Guide provides basic guidelines for the Rosemount 5300 Level Transmitter. Refer to the Rosemount 5300 Reference Manual for more instructions. The manual and this guide are also available electronically on
Emerson.com/Rosemount.
WARNING
Failure to follow safe installation and servicing guidelines could result in death or serious injury.
Ensure the transmitter is installed by qualified personnel and in accordance with applicable code of practice.
Use the equipment only as specified in this Quick Start Guide and the Reference Manual. Failure to do so may impair the protection provided by the equipment.
Any substitution of non-recognized parts may jeopardize safety. Repair (e.g. substitution of components) may also jeopardize safety and is not allowed under any circumstances.
WARNING
Explosions could result in death or serious injury.
Verify that the operating atmosphere of the transmitter is consistent with the appropriate hazardous locations certifications.
To prevent ignition of flammable or combustible atmospheres, disconnect power before servicing.
Before connecting a handheld communicator in an explosive atmosphere, ensure the instruments are installed in accordance with intrinsically safe or non-incendive field wiring practices.
To avoid process leaks, only use the O-ring designed to seal with the corresponding flange adapter.
Quick Start Guide 3
Page 4
WARNING
Electrical shock could cause death or serious injury.
Avoid contact with the leads and terminals. High voltage that may be present on leads can cause electrical shock.
Ensure the mains power to the transmitter is off and the lines to any other external power source are disconnected or not powered while wiring the transmitter.
Ground device on non-metallic tanks (e.g. fiberglass tanks) to prevent electrostatic charge build-up.
WARNING
Probes with non-conducting surfaces.
Probes covered with plastic and/or with plastic discs may generate an ignition-capable level of electrostatic charge under certain extreme conditions. Therefore, when the probe is used in a potentially explosive atmosphere, appropriate measures must be taken to prevent electrostatic discharge.
WARNING
Eliminate the risk of ESD discharge prior to dismounting the transmitter head from the probe.
Probes may generate an ignition-capable level of electrostatic charge under extreme conditions. During any type of installation or maintenance in a potentially explosive atmosphere, the responsible person should ensure that any ESD risks are eliminated before attempting to separate the probe from the transmitter head.
Page 5

2 Confirm system readiness (HART® only)

2.1 Confirm HART® revision capability

If using HART based control or asset management systems, confirm the HART capability of those systems prior to transmitter installation. Not all systems are capable of communicating with HART Revision 7 protocol.
Transmitters with a firmware version 2F0 or later can be configured for either HART Revision 5 or 7.

2.2 Confirm correct device driver

Procedure
• Verify that the latest Device Driver (DD/DTM™) is loaded on your systems
to ensure proper communication. See Table 2-1.
• Download the latest Device Driver from Emerson.com/DeviceInstallKits.
Table 2-1: Rosemount 5300 Device Revisions and Files
Firmware version
2F0 or later 7 4
2A2 - 2E0 5 3
(1)
Find Device Driver
HART® Universal Revision
5 3
Device Revision
(2)
(1) Firmware version is printed on the transmitter head label (e.g. SW 2E0), or
can be found in Rosemount Radar Master (select Device → Properties).
(2) Device revision is printed on the transmitter head label (e.g. HART Dev Rev
4).

2.3 Switch HART® revision mode

If the HART configuration tool is not capable of communicating with HART Revision 7, the device will load a generic menu with limited capability. To switch the HART revision mode from the generic menu:
Procedure
1. Locate the “Message” field.
2. In the Message field, enter HART5 or HART7 and then 27 trailing spaces.
Quick Start Guide 5
Page 6
$
&
%

3 Mount transmitter on tank

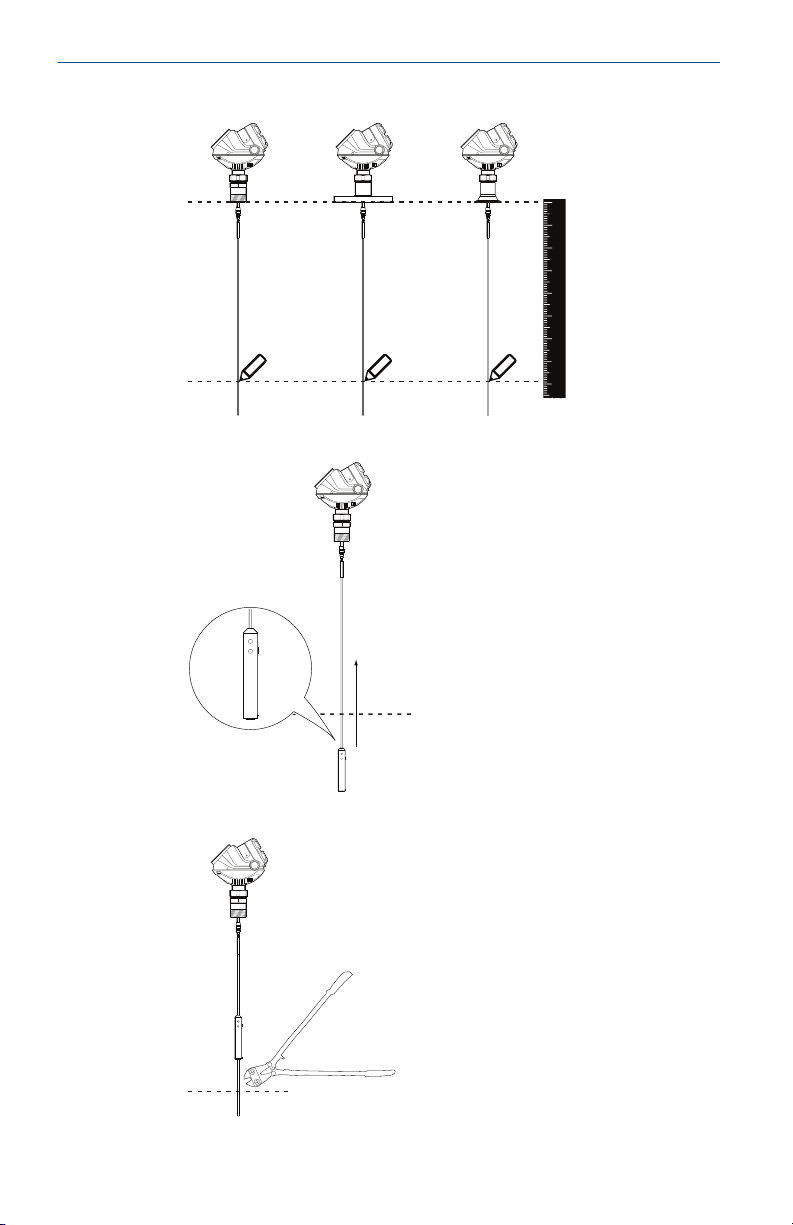

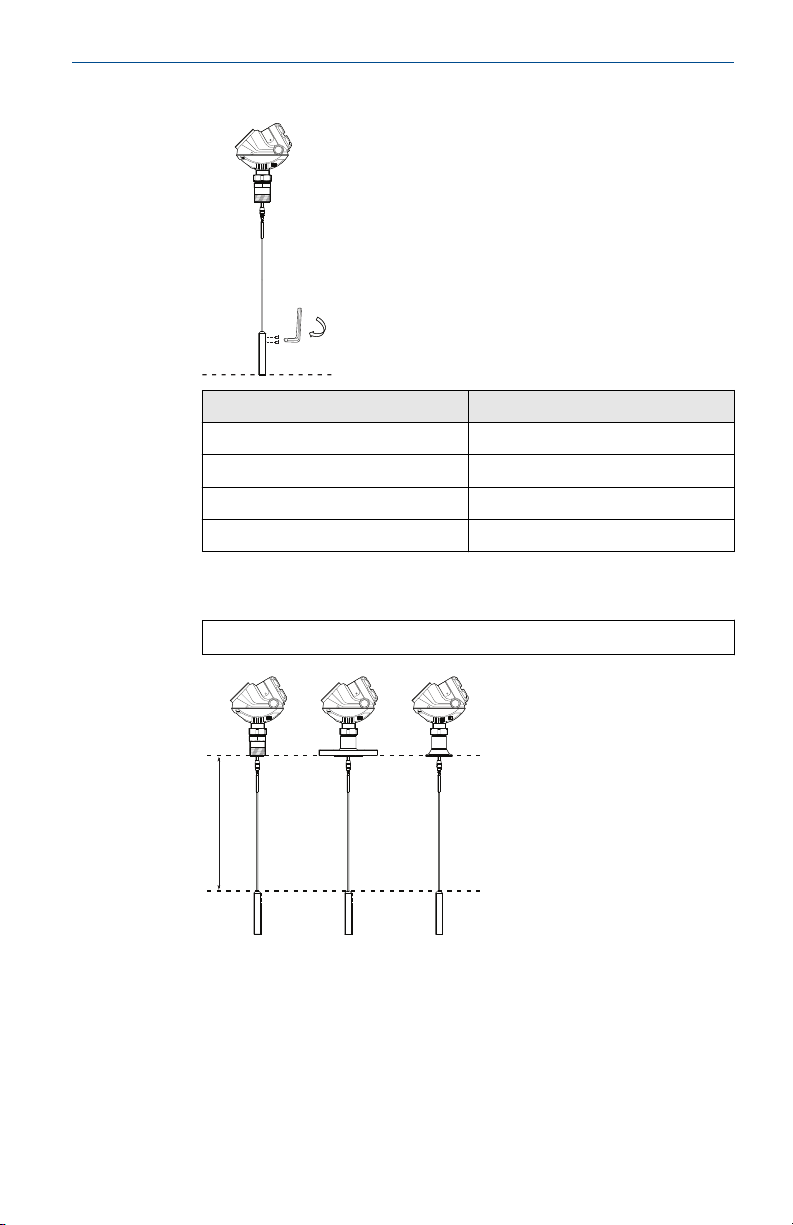

For flexible single lead probes ordered with weight unmounted (option code WU), refer to Adjust probe length before mounting the transmitter.

3.1 Threaded/Flange/Tri-Clamp® tank connection

Procedure
1. Seal and protect the threads.
Only for NPT threaded tank connection.
Use anti-seize paste or PTFE tape according to your site procedures.
2. Mount the device on tank.
A. NPT B. Flange C. Gasket
Page 7
&&
$%
Torque 30 ft-lb (40 Nm)
A. Tri-Clamp B. BSP/G C. Gasket
3. (Optional) Adjust display orientation.
4. Tighten the nut.
Quick Start Guide 7
Page 8
$
Torque 30 ft-lb (40 Nm)
55 mm

3.2 Install remote housing

Procedure
1. Carefully remove the transmitter.
2. Mount the probe on tank.
A. Gasket
3. Mount the remote connection on the probe.
Page 9
4X
A
B
3X
Torque 30 ft-lb (40 Nm)
55 mm
4. Mount the bracket to the pipe.
A. Horizontal pipe B. Vertical pipe
5. Fasten the housing support.
6. Mount the transmitter head.
Quick Start Guide 9
Page 10
4X
A
B
4X
3X

3.3 Bracket mounting

Procedure
1. Mount the bracket to the pipe/wall. On pipe:
A. Horizontal pipe B. Vertical pipe
On wall:
2. Mount the transmitter with probe to the bracket.
Page 11

4 Prepare the electrical connections

4.1 Cable gland/conduit

For explosion-proof/flameproof installations, only use cable glands or conduit entry devices certified explosion-proof or flameproof.

4.2 Power supply (Vdc)

Approval type HART
None 16-42.4 9-32 8-30 (max. rating)
Non-sparking/ energy limited
Intrinsically safe 16-30 9-30 N/A
FISCO N/A 9-17.5 N/A
Explosion-proof/ Flameproof
®
16-42.4 9-32 N/A
20-42.4 16-32 8-30 (max. rating)
FOUNDATION Fieldbus
™
RS-485 with
®
Modbus
Quick Start Guide 11
Page 12
+
­+
­+
-
$
%
&
'
)
(

4.3 4-20 mA/HART® communication

4.3.1 Wiring diagram

Figure 4-1: Wiring Diagram for 4-20 mA/HART
A. Handheld communicator B. Approved IS barrier (for Intrinsically Safe installations only) C. HART modem
D. Current meter
E. Load resistance (≥250 Ω) F. Power supply
Note
Rosemount 5300 Level Transmitters with flameproof/explosion-proof output have a built-in barrier; no external barrier needed.
®

4.3.2 Load limitations

For HART® communication, a minimum loop resistance of 250 Ω is required. Maximum loop resistance is determined by the voltage level of the external power supply, as given by the following diagrams:
Page 13











$
%
&












$
%
&

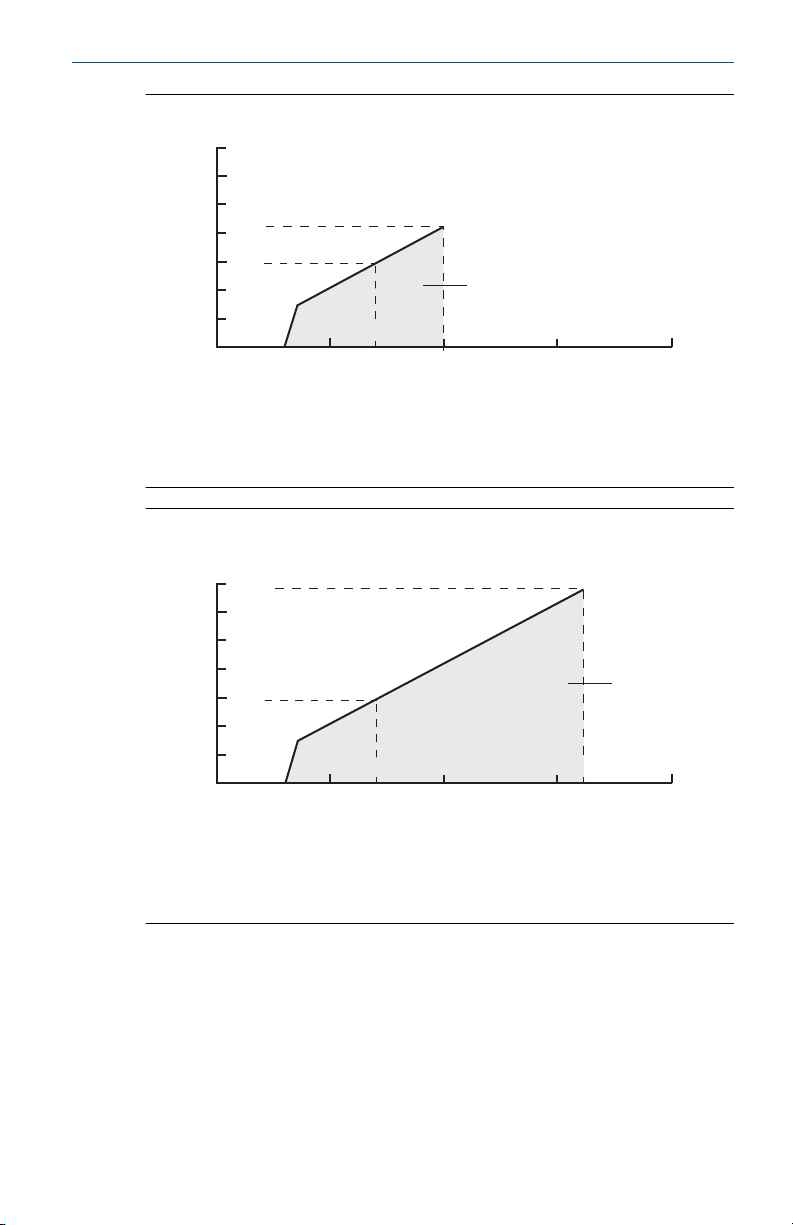

Figure 4-2: Intrinsically Safe Installations
A. Loop Resistance (Ohms) B. External Power Supply Voltage (Vdc) C. Operating region
Figure 4-3: Non-Hazardous and Non-Sparking/Energy Limited Installations
A. Loop Resistance (Ohms) B. External Power Supply Voltage (Vdc) C. Operating region
Quick Start Guide 13
Page 14













$
%
&
Figure 4-4: Explosion-Proof /Flameproof (Ex d) Installations
A. Loop Resistance (Ohms) B. External Power Supply Voltage (Vdc) C. Operating region
Note
For the Ex d case, the diagram is only valid if the load resistance is at the + side and if the - side is grounded, otherwise the maximum load resistance is limited to 435 Ω.
Page 15
+
-
+
-
+
-
$
%
&
'

4.4 FOUNDATION™ Fieldbus

4.4.1 Wiring diagram

Figure 4-5: Wiring Diagram for FOUNDATION Fieldbus
A. Handheld communicator B. Approved IS barrier (for Intrinsically Safe installations only) C. FOUNDATION Fieldbus modem
D. Power supply
Note
Rosemount 5300 Level Transmitters with flameproof/explosion-proof output have a built-in barrier; no external barrier needed.
4.5

RS-485 with Modbus® communication

See the Rosemount 5300 Reference Manual for details.

4.5.1 Power consumption

• < 0.5 W (with HART address=1)
• < 1.2 W (incl. four HART slaves)
Quick Start Guide 15
Page 16
-
+
$
%
&&
(
)
+
*
'

4.5.2 Wiring diagram

Figure 4-6: Wiring Diagram for RS-485 with Modbus
®
A. “A” line B. “B” line C. 120 Ω
D. RS-485 Bus
E. Power supply
F. HART ­G. HART + H. If it is the last transmitter on the bus, connect the 120 Ω termination
resistor.
Note
Rosemount 5300 Level Transmitters with Flameproof/Explosion-proof
4.6
output have a built-in barrier; no external barrier needed.

Grounding

Ensure grounding is done (including IS ground inside Terminal
(1)
compartment) according to Hazardous Locations Certifications, national and local electrical codes.
(1)
An external galvanic isolator is always recommended to be used for Flameproof/ Explosion-proof installations.
Page 17
%
$
&
Grounding is essential for Hazardous Location safety (even for Flameproof/ Explosion Proof versions). A ground cable with a cross-sectional area of ≥ 4 mm² must be used.
Note
Grounding the transmitter via threaded conduit connection may not provide sufficient ground.
Note
In the explosion-proof/flameproof version, the electronics is grounded via the transmitter housing. After installation and commissioning ensure that no ground currents exist due to high ground potential differences in the installation.
Transmitter housing grounding
The most effective transmitter housing grounding method is a direct connection to earth ground with minimal (< 1 Ω) impedance. There are two grounding screw connections provided (see Figure 4-7).

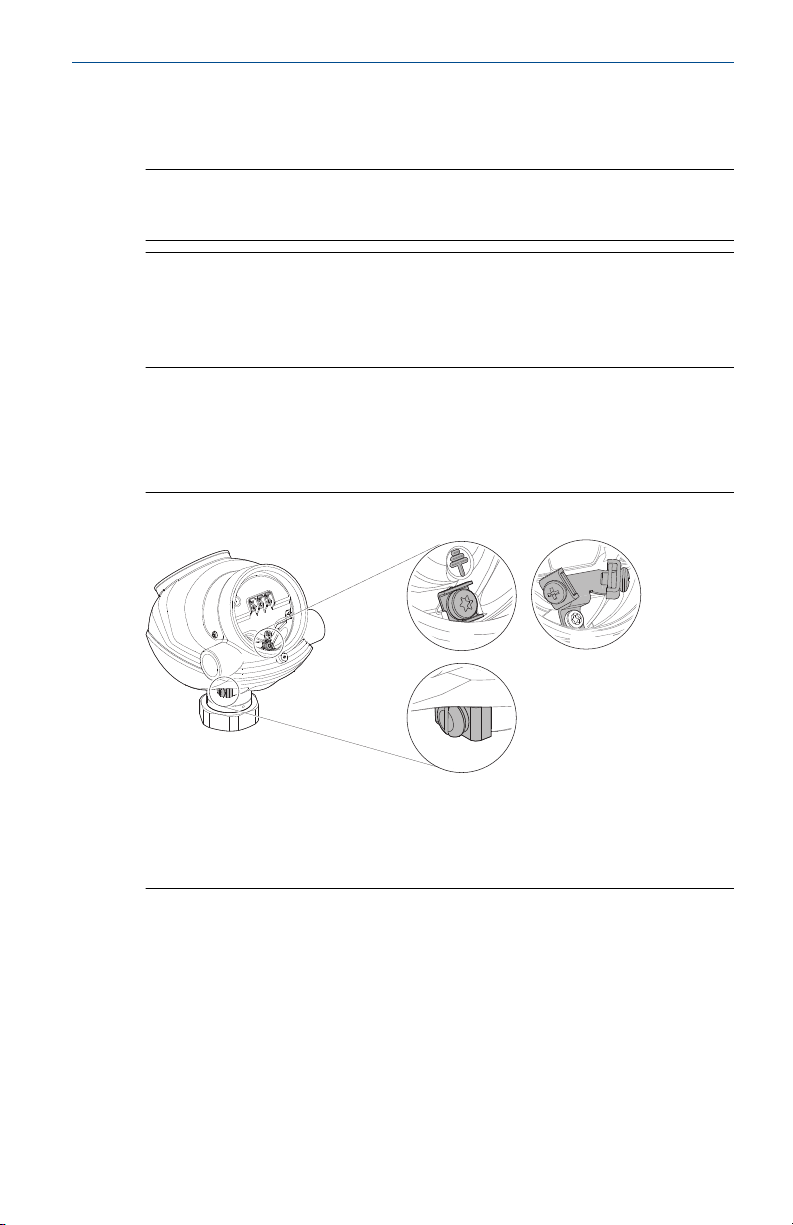

Figure 4-7: Ground Screws
A. Internal ground screw, torque 28 in-lb (3.2 Nm) B. Internal ground twin-screws for Hazardous locations certifications CSA/
Canada, torque 10 in-lb (1.2 Nm)
C. External ground screw, torque 36 in-lb (4.1 Nm)
Signal cable shield grounding
Ensure the instrument cable shield is:
• trimmed close and insulated from touching the transmitter housing.
• continuously connected throughout the segment.
• connected to a good earth ground at the power supply end.
Quick Start Guide 17
Page 18
$
%
%
&&
&
'
(
Figure 4-8: Cable Shield and Signal Wire Insulation
A. Insulate shield B. Minimize distance C. Trim shield and insulate
D. Connect shield back to the power supply ground
E. Signal cable insulation must extend into the interior of each separate
terminal
Page 19

5 Connect wiring and power up

Procedure
1. Confirm the power supply is switched off.
2. Remove the terminal block cover.
3. Remove the plastic plugs.
4. Pull the cable through the cable gland/conduit.
Adapters are required if M20 glands are used.
Quick Start Guide 19
Page 20
Torque 7 in-lb (0.8 Nm)
5. Connect the cable wires (see Figure 4-1, Figure 4-5, and Figure 4-6).
6. Ensure proper grounding (see Grounding).
7. Use the enclosed metal plug to seal any unused port.
Note
Apply PTFE tape or other sealant to the threads.
20 Rosemount 5300 Level Transmitter
Page 21

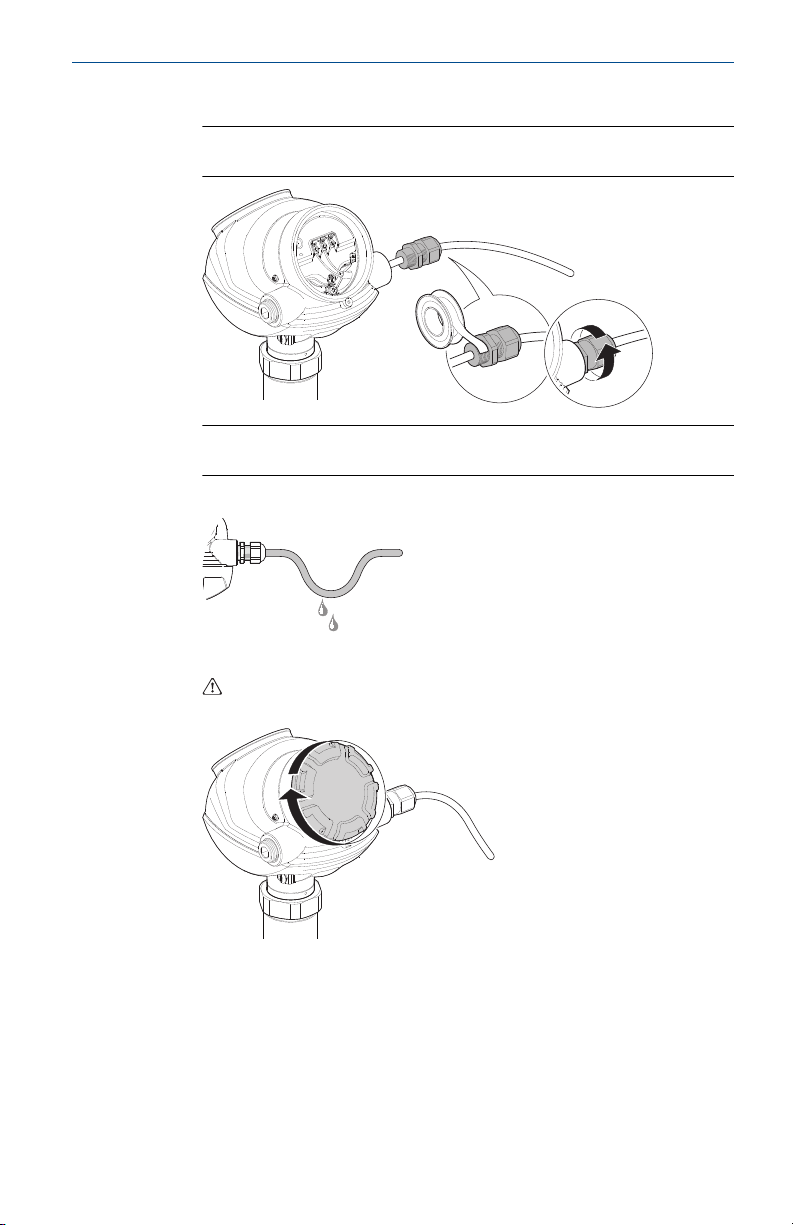

8. Tighten the cable gland.
Note
Apply PTFE tape or other sealant to the threads.
Note
Be sure to arrange the wiring with a drip loop.
9. Mount the cover making sure the cover is secure to meet explosion-proof requirements.
Quick Start Guide 21
Page 22

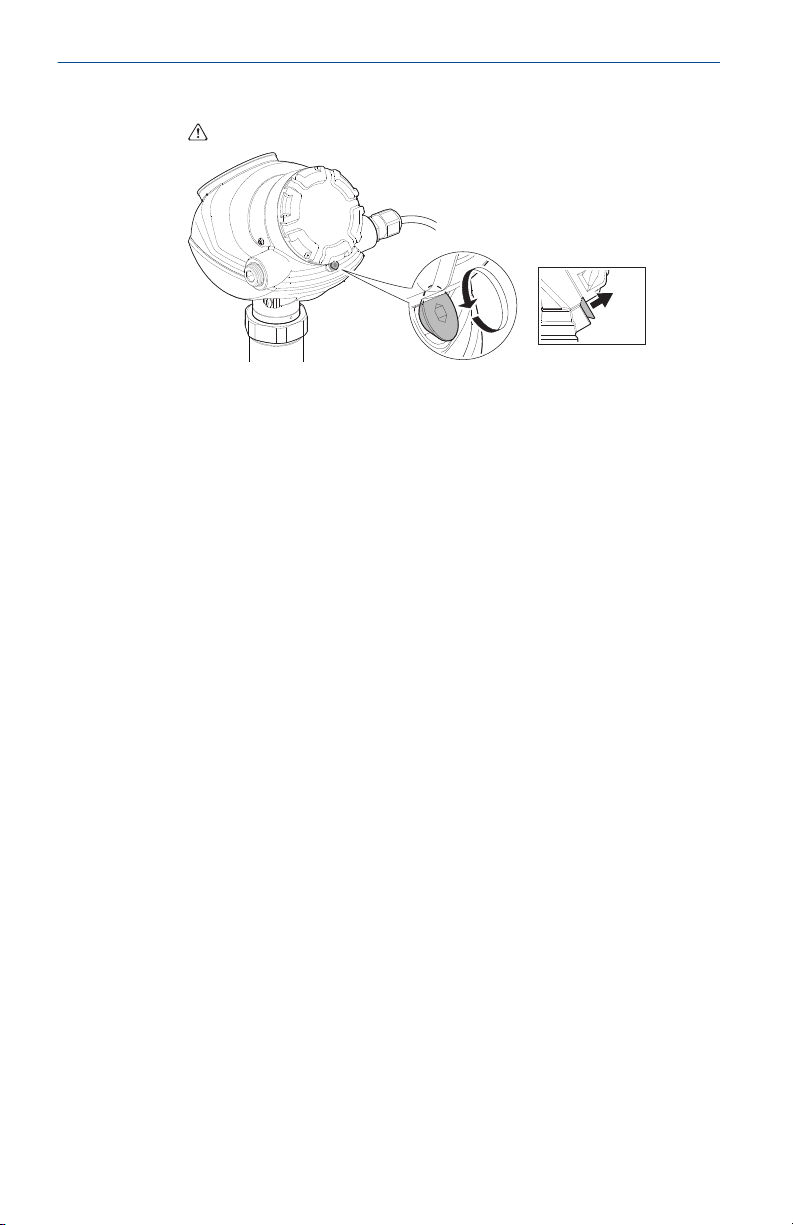

10. Turn the jam screw counterclockwise until it contacts the cover. Required for flameproof installations only.
11. Connect the power supply.
Page 23

6 Configure

Basic configuration can easily be done either with Rosemount Radar Master, a handheld communicator, AMS Device Manager, DeltaV™, or any other DD (Device Description) or DTM™ compatible host system. For advanced configuration features, Rosemount Radar Master is recommended.
Rosemount Radar Master is available here:
Emerson.com/RosemountRadarMaster.

6.1 Configure using Rosemount Radar Master

Procedure
1. Start Rosemount Radar Master.
2. Connect to the desired transmitter.

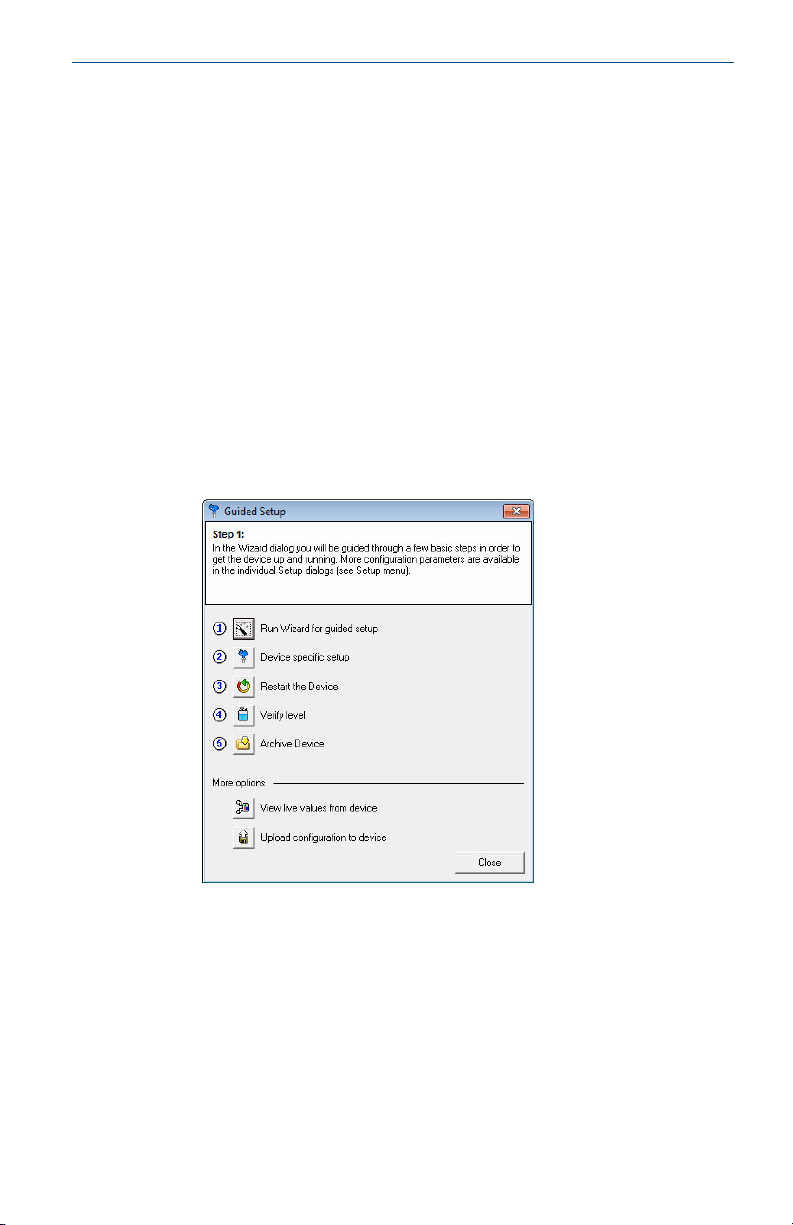

3. In the Guided Setup window, click Run Wizard for guided setup and follow the instructions.
4. In the Guided Setup window, continue with steps 2 to 5.
5. Click View live values from device to verify that the transmitter works correctly.
Quick Start Guide 23
Page 24

6.2 Configure using AMS Device Manager or handheld communicator

6.2.1 Connect to device using AMS Device Manager

Procedure
1. Start AMS Device Manager.
2. Select View → Device Connection View.
3. In the Device Connection View, double-click the modem icon.
4. Double-click the device icon.

6.2.2 Connect to device using a handheld communicator

Procedure
Turn on the handheld communicator and connect to the device.

6.2.3 Configure device Configure HART® devices

Procedure
1. Select Configure → Guided Setup.
2. Select Level Measurement Setup and follow the instructions.
3. Select Device Specific Setup.
4. Run Verify Level to check your level measurement.
5. (Optional) Select Volume Setup.
6. (Optional) Select Display Setup.
FOUNDATION™ Fieldbus
Procedure
1. Select Configure → Guided Setup.
2. Select Level Measurement Setup and follow the instructions.
3. (Optional) Select Volume Calculation Setup.
4. (Optional) Select Device Specific Setup.
5. (Recommended) Select Restart Measurement.
Page 25

6.3 FOUNDATION™ Fieldbus parameters

Table 6-1: FOUNDATION Fieldbus Parameters
Function Parameter
Probe type TRANSDUCER_1100 > PROBE_TYPE
Probe length TRANSDUCER_1100 > PROBE_LENGTH
Hold off distance/Upper null zone TRANSDUCER_1100 >
Tank height TRANSDUCER_1100 >
Mounting type TRANSDUCER_1100 > MOUNTING_TYPE
Pipe/chamber/nozzle inner diameter TRANSDUCER_1100 > PIPE_DIAMETER
Nozzle height TRANSDUCER_1100 > NOZZLE_HEIGHT
Measurement mode TRANSDUCER_1100 > MEAS_MODE
Product dielectric range
Upper product dielectric constant
Process condition (rapid level changes) TRANSDUCER_1100 >
Volume calculation method TRANSDUCER 1300 >
Tank diameter (only for ideal tank shapes)
Tank length/height (only for ideal tank shapes)
Volume offset TRANSDUCER_1300 >
(1)
GEOM_HOLD_OFF_DIST
GEOM_TANK_HEIGHT
TRANSDUCER 1100 > PRODUCT_DIELEC_RANGE
(2)
TRANSDUCER 1100 > UPPER_PRODUCT_DC
ENV_ENVIRONMENT
VOL_VOLUME_CALC_METHOD
TRANSDUCER 1300 > VOL_IDEAL_DIAMETER
TRANSDUCER_1300 > VOL_IDEAL_LENGTH
VOL_VOLUME_OFFSET
(1) Applicable to “Liquid Product Level” and “Solid Product Level” measurement
modes.
(2) Applicable to “Interface Level with submerged” and “Product Level and Interface
Level” measurement modes.
Quick Start Guide 25
Page 26

7 Safety Instrumented Systems (4-20 mA only)

For Safety Certified installations, refer to the Rosemount 5300 Safety
Manual.
Page 27
+
/
727
$

8 Adjust probe length

This section describes how to adjust the length of flexible single lead probes with weight unmounted (option code WU). For other probe types, refer to the Rosemount 5300 Reference Manual.
Procedure

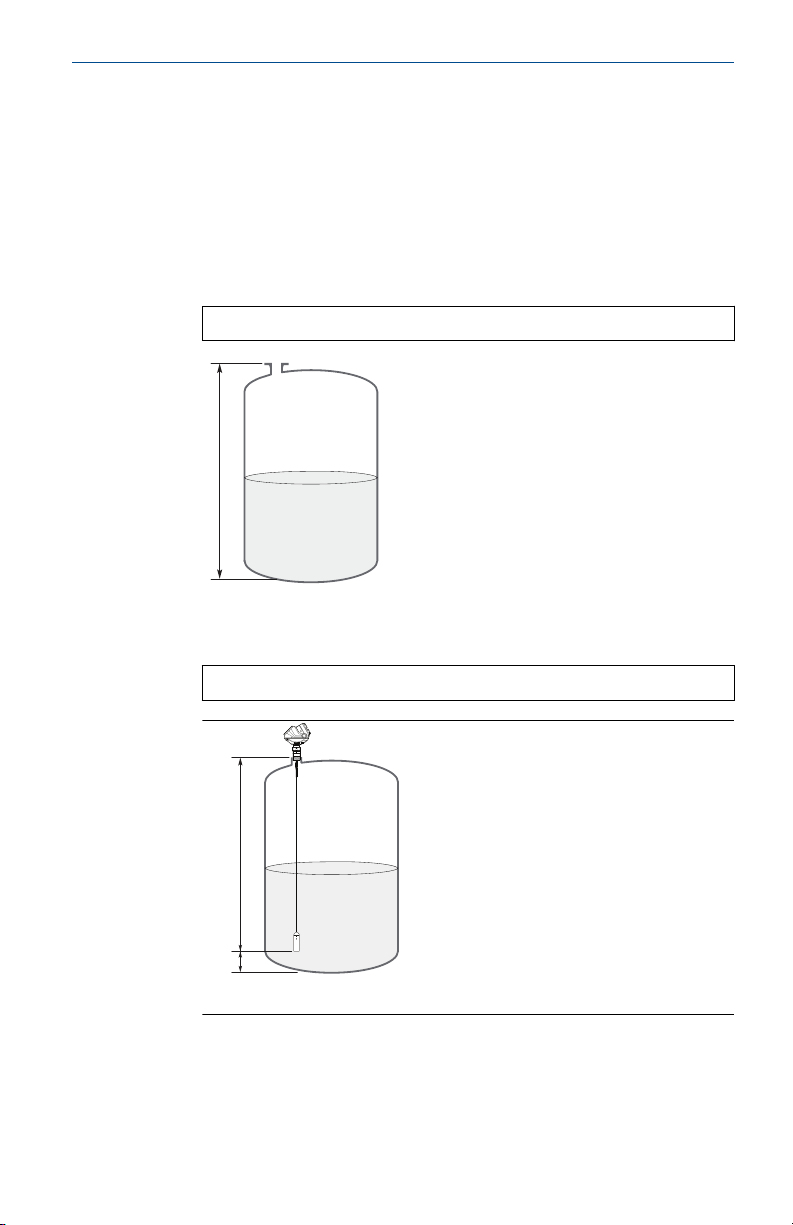

1. Measure tank height.
Tank height (H):
2. Calculate total probe length. Total probe length (L
) = Tank height (H) – 2 in. (5 cm)
TOT
Total probe length (L
TOT
):
A. 2 in. (5 cm) clearance
Quick Start Guide 27
Page 28
1 2
3
4
5
6
7
8
0
3. Mark where to cut the probe.
4. Slide the weight up.
5. Cut the probe at the mark.
Page 29
/
6. Fasten the weight.
Weight material Torque (Nm)
Stainless steel 5
Alloy C-276 2.5
Alloy 400 2.5
Duplex 2205 2.5
7. Update transmitter configuration to the new probe length.
Probe length (L):
Quick Start Guide 29
Page 30

9 Product certifications

Rev 11.6

9.1 European directive information

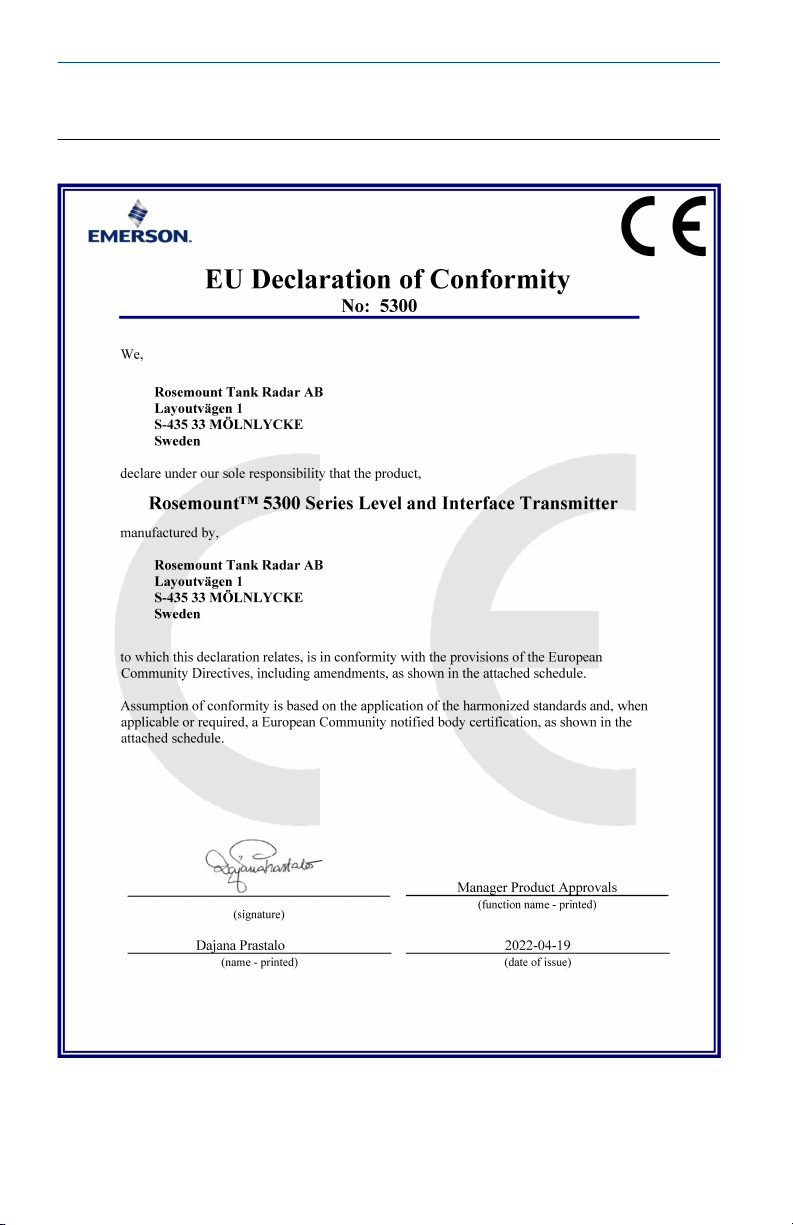

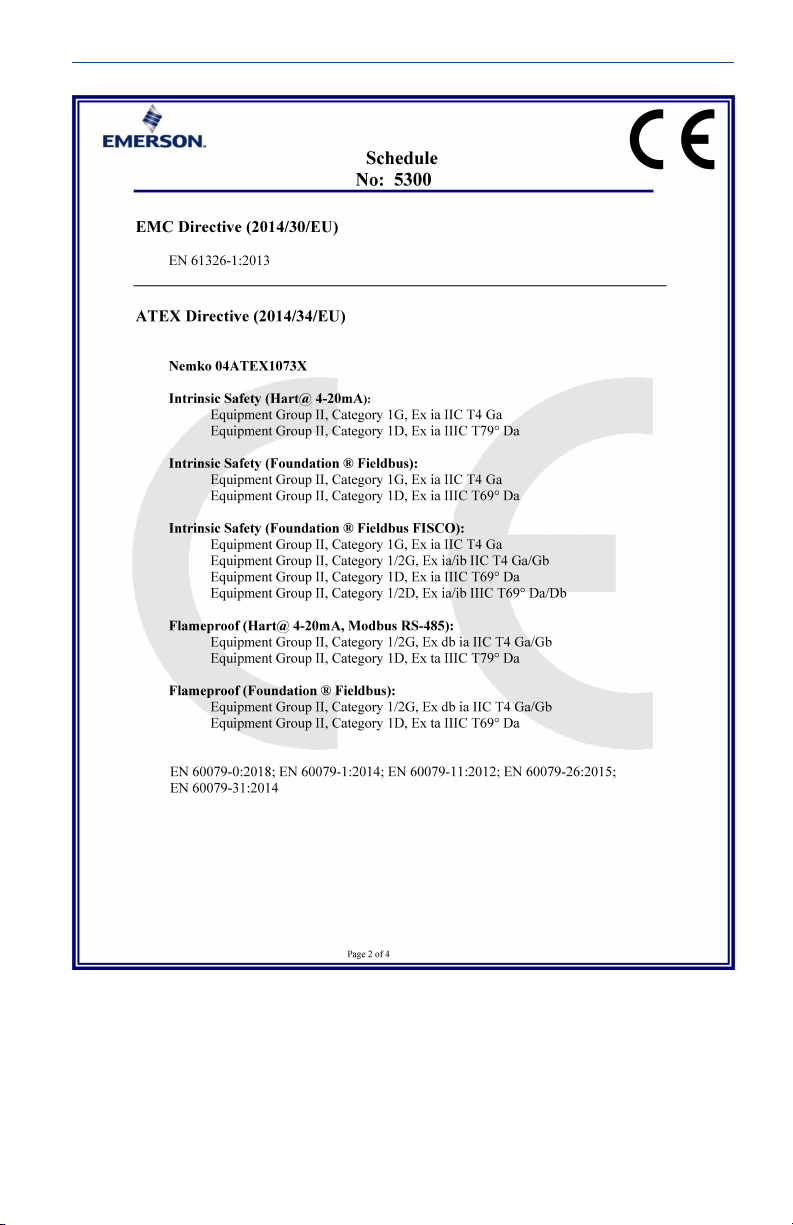

A copy of the EU Declaration of Conformity can be found in the section EU
Declaration of Conformity. The most recent revision of the EU Declaration of
Conformity can be found at Emerson.com/Rosemount.

9.2 Safety Instrumented Systems (SIS)

SIL 3 Capable: IEC 61508 certified for use in safety instrumented systems up to SIL 3 (Minimum requirement of single use (1oo1) for SIL 2 and redundant use (1oo2) for SIL 3).

9.3 Ordinary location certification

As standard, the transmitter has been examined and tested to determine that the design meets the basic electrical, mechanical, and fire protection requirements by a nationally recognized test laboratory (NRTL) as accredited by the Federal Occupational Safety and Health Administration (OSHA).

9.4 Installing equipment in North America

The US National Electrical Code® (NEC) and the Canadian Electrical Code (CEC) permit the use of Division marked equipment in Zones and Zone marked equipment in Divisions. The markings must be suitable for the area classification, gas, and temperature class. This information is clearly defined in the respective codes.
9.5

USA

9.5.1 E5 Explosionproof (XP), Dust-Ignitionproof (DIP)

Certificate
Standards
Markings
Special Conditions for Safe Use (X):
1. WARNING – Potential Electrostatic Charging Hazard – The enclosure contains non-metallic material. To prevent the risk for electrostatic
FM16US0444X
FM Class 3600 – 2022; FM Class 3610 – 2010; FM Class 3611 – 2004; FM Class 3615 – 2006; FM Class 3810 – 2005; ANSI/ISA 60079-0 – 2013; ANSI/ISA 60079-11 – 2012; ANSI/NEMA® 250 – 1991;
XP CL I, DIV 1, GP B, C, D; DIP CLII/III, DIV 1, GP E, F, G; T4; -50 °C ≤ Ta ≤ 60 °C (FIELDBUS) / 70 °C (HART); Type 4X
Page 31
sparking the plastic surface should only be cleaned with a damp cloth.
2. WARNING – The apparatus enclosure contains aluminum and is considered to constitute a potential risk of ignition by impact or friction. Care must be taken into account during installation and use to prevent impact or friction.
3. With the Operating Temperature and Pressure code P, the installer shall consider the effect of process temperature and ensure that the maximum specified ambient temperature of +70°C for HART (+60°C for Fieldbus) is not exceeded at process temperatures of up to +260°C (+500°F).

9.5.2 I5 Intrinsic Safety (IS), Nonincendive (NI)

Certificate
Standards
FM16US0444X
FM Class 3600 – 2022; FM Class 3610 – 2010; FM Class 3611 – 2004; FM Class 3615 – 2006; FM Class 3810 – 2005; ANSI/ISA 60079-0 – 2013; ANSI/ISA 60079-11 – 2012; ANSI/NEMA 250 – 1991;
Markings
IS CL I, II, III, DIV 1, GP A, B, C, D, E, F, G in accordance with control drawing 9240030-936; IS (Entity) CL I, Zone 0, AEx ia IIC T4 in accordance with control drawing 9240030-936, NI CL I, II, III DIV 2, GP A, B, C, D, F, G; T4;
-50 °C ≤ Ta ≤ 60 °C (FIELDBUS) / 70 °C (HART); Type 4X
Special Conditions for Safe Use (X):
1. WARNING – Potential Electrostatic Charging Hazard – The enclosure contains non-metallic material. To prevent the risk for electrostatic sparking the plastic surface should only be cleaned with a damp cloth.
2. WARNING – The apparatus enclosure contains aluminum and is considered to constitute a potential risk of ignition by impact or friction. Care must be taken into account during installation and use to prevent impact or friction.
3. With the Operating Temperature and Pressure code P, the installer shall consider the effect of process temperature and ensure that the maximum specified ambient temperature of +70°C for HART (+60°C for Fieldbus) is not exceeded at process temperatures of up to +260°C (+500°F).
Quick Start Guide 31
Page 32
Ui Ii Pi Ci Li
Entity parameters HART
Entity parameters Fieldbus
30 V 130 mA 1 W 7.26 nF 0
30 V 300 mA 1.3 W 0 0

9.5.3 IE FISCO

Certificate
Standards
FM16US0444X
FM Class 3600 – 2022; FM Class 3610 – 2010; FM Class 3611 – 2004; FM Class 3615 – 2006; FM Class 3810 – 2005; ANSI/ISA 60079-0 – 2013; ANSI/ISA 60079-11 – 2012; ANSI/NEMA 250 – 1991;
Markings
IS CL I, II, III, DIV 1, GP A, B, C, D, E, F, G; T4; in accordance with control drawing 9240030-936; IS CL I, Zone 0 AEx ia IIC T4 in accordance with control drawing 9240030-936; -50 °C ≤ Ta ≤ 60 °C; Type 4X
Special Conditions for Safe Use (X):
1. WARNING – Potential Electrostatic Charging Hazard – The enclosure contains non-metallic material. To prevent the risk for electrostatic sparking the plastic surface should only be cleaned with a damp cloth.
2. WARNING – The apparatus enclosure contains aluminum and is considered to constitute a potential risk of ignition by impact or friction. Care must be taken into account during installation and use to prevent impact or friction.
3. With the Operating Temperature and Pressure code P, the installer shall consider the effect of process temperature and ensure that the maximum specified ambient temperature of +70°C for HART (+60°C for Fieldbus) is not exceeded at process temperatures of up to +260°C (+500°F).
FISCO parameters 17.5 V 380 mA 5.32 W 0 0
Ui Ii Pi Ci Li
Page 33

9.6 Canada

9.6.1 E6 Explosionproof, Dust-Ignitionproof

Certificate
Standards
1514653
CSA C22.2 No.0-M91, CSA C22.2 No.25-1966, CSA C22.2 No.30-M1986, CSA C22.2 No.94-M91, CSA C22.2 No.142-M1987, CSA C22.2 157-92, CAN/CSA C22.2 No. 60529:05, ANSI/ISA 12.27.01-2003
Markings
Explosionproof CL I, DIV 1, GP B, C, D; Dust­Ignitionproof CL II, DIV 1, GP E, F, G and coal dust, CL III, DIV 1, Type 4X/IP66/IP67 Maximum Ambient Temperature +60 °C for Fieldbus and FISCO and +70 °C for HART

9.6.2 I6 Intrinsically Safe and Non-Incendive Systems

Certificate
Standards
Markings
1514653
CSA C22.2 No.0-M91, CSA C22.2 No.25-1966, CSA C22.2 No.30-M1986, CSA C22.2 No.94-M91, CSA C22.2 No.142-M1987, CSA C22.2 157-92, CAN/CSA C22.2 No. 60529:05, ANSI/ISA 12.27.01-2003
CL I, DIV 1, GP A, B, C, D, T4 see installation drawing 9240030-937; Non-Incendive Class III, DIV 1, Haz-loc CL I DIV 2, GP A, B, C, D, Maximum Ambient Temperature +60 °C for Fieldbus and FISCO and +70 °C for HART, T4, Type 4X/IP66/IP67, Maximum Working Pressure 5000 psi, Dual Seal.
Ui Ii Pi Ci Li
Entity parameters HART
Entity parameters Fieldbus
30 V 130 mA 1 W 7.26 nF 0
30 V 300 mA 1.3 W 0 0

9.6.3 IF FISCO

Certificate
Standards
Quick Start Guide 33
1514653
CSA C22.2 No.0-M91, CSA C22.2 No.25-1966, CSA C22.2 No.30-M1986, CSA C22.2 No.94-M91, CSA C22.2 No.142-M1987, CSA C22.2 157-92, CAN/CSA C22.2 No. 60529:05, ANSI/ISA 12.27.01-2003
Page 34
Markings
CL I, DIV 1, GP A, B, C, D, T4 see installation drawing 9240030-937; Non-Incendive Class III, DIV 1, Haz-loc CL I DIV 2, GP A, B, C, D, Maximum Ambient Temperature +60 °C, T4, Type 4X/IP66/IP67, Maximum Working Pressure 5000 psi, Dual Seal.
Ui Ii Pi Ci Li
FISCO parameters 17.5 V 380 mA 5.32 W 0 0

9.7 Europe

9.7.1 E1 ATEX Flameproof

Certificate
Standards
Markings
Special Conditions for Safe Use (X):
1. Potential ignition hazards by impact or friction need to be considered according to EN IEC 60079-0:2018 clause 8.3 (for EPL Ga and EPL Gb), and clause 8.4 (for EPL Da and EPL Db), when the transmitter enclosure and antennas exposed to the exterior atmosphere of the tank, is made with light metals containing aluminium or titanium. The end user shall determine the suitability with regard to avoid hazards from impact and friction.
Nemko 04ATEX1073X
EN IEC 60079-0:2018, EN 60079-1:2014, EN 60079-11:2012, EN 60079-26:2015, EN 60079-31:2014
(FIELDBUS) /+70 °C (HART)
(HART) Da -40 °C ≤ Ta ≤ +60 °C (FIELDBUS) /+70 °C (HART)
Um = 250 V
II 1/2G Ex db ia IIC T4 Ga/Gb, -55 °C ≤ Ta ≤ +60 °C
II 1D Ex ta IIIC T
69 °C (FIELDBUS) /T
200
200
79 °C
2. Parts of the sensor probes, for type 5300, are non-conducting material covering metal surfaces. The area of the non-conducting part exceeds the maximum permissible areas for Group III according to EN IEC 60079-0: 2018 clause 7.4.3 Therefore, when the probe is used in a potentially explosive atmosphere group III, EPL Da, appropriate measures must be taken to prevent electrostatic discharge.
3. The painted transmitter housing is non-conducting and exceeds the maximum permissible areas for Group III according to EN IEC 60079-0: 2018 clause 7.4:3.. Therefore, when the probe is used in a potentially dust explosive atmosphere group III, appropriate
Page 35
measures must be taken to prevent electrostatic discharge (i.e. only clean with a damp cloth).
4. 1/2” NPT threads need to be sealed for dust and water ingress protection, IP 66, IP 67 or “Ex t”. EPL Da or Db is required.

9.7.2 I1 ATEX Intrinsic Safety

Certificate
Standards
Nemko 04ATEX1073X
EN IEC 60079-0:2018, EN 60079-1:2014, EN 60079-11:2012, EN 60079-26:2015, EN 60079-31:2014
Markings
II 1G Ex ia IIC T4 Ga -55 °C ≤ Ta ≤ +60 °C
(FIELDBUS) /+70 °C (HART)
II 1D Ex ia IIIC T
200
69 °C/T
79 °C Da, -50 °C ≤ Ta ≤
200
+60 °C (FIELDBUS) /+70 °C (HART)
Special Conditions for Safe Use (X):
1. The intrinsically safe circuits do not withstand the 500V AC test as specified in EN 60079-11:2012 clause 6.3.13.
2. Potential ignition hazards by impact or friction need to be considered according to EN IEC 60079-0:2018 clause 8.3 (for EPL Ga and EPL Gb), and clause 8.4 (for EPL Da and EPL Db), when the transmitter enclosure and antennas exposed to the exterior atmosphere of the tank, is made with light metals containing aluminium or titanium. The end user shall determine the suitability with regard to avoid hazards from impact and friction.
3. Parts of the sensor probes, for type 5300, are non-conducting material covering metal surfaces. The area of the non-conducting part exceeds the maximum permissible areas for Group III according to EN IEC 60079-0: 2018 clause 7.4.3 Therefore, when the antenna is used in a potentially explosive atmosphere group III, EPL Da, appropriate measures must be taken to prevent electrostatic discharge.
4. The painted transmitter housing is non-conducting and exceeds the maximum permissible areas for Group III according to EN IEC 60079-0: 2018 clause 7.4:3. Therefore, when the probe is used in a potentially dust explosive atmosphere group III, appropriate measures must be taken to prevent electrostatic discharge (i.e. only clean with a damp cloth).
5. 1/2” NPT threads need to be sealed for dust and water ingress protection, IP 66, IP 67 or “Ex t”. EPL Da or Db is required.
Quick Start Guide 35
Page 36
Ui Ii Pi Ci Li
Entity parameters HART
Entity parameters Fieldbus
30 V 130 mA 1 W 7.26 nF 0
30 V 300 mA 1.5 W 4.95 nF 0

9.7.3 IA ATEX FISCO

Certificate
Standards
Nemko 04ATEX1073X
EN IEC 60079-0:2018, EN 60079-1:2014, EN 60079-11:2012, EN 60079-26:2015, EN 60079-31:2014
Markings
II 1G Ex ia IIC T4 Ga (-55 °C ≤ Ta ≤ +60 °C) or II 1/2G Ex ia/ib IIC T4 Ga/Gb (-55 °C ≤ Ta ≤ +60 °C) II 1D Ex ia IIIC T II 1D Ex ia/ib IIIC T
69 °C Da, (-50 °C ≤ Ta ≤ +60 °C)
200
69 °C Da/Db, (-50 °C ≤ Ta ≤ +60
200
°C)
Special Conditions for Safe Use (X):
1. The intrinsically safe circuits do not withstand the 500V AC test as specified in EN 60079-11:2012 clause 6.3.13.
2. Potential ignition hazards by impact or friction need to be considered according to EN IEC 60079-0:2018 clause 8.3 (for EPL Ga and EPL Gb), and clause 8.4 (for EPL Da and EPL Db), when the transmitter enclosure and antennas exposed to the exterior atmosphere of the tank, is made with light metals containing aluminium or titanium. The end user shall determine the suitability with regard to avoid hazards from impact and friction.
3. Parts of the sensor probes, for type 5300, are non-conducting material covering metal surfaces. The area of the non-conducting part exceeds the maximum permissible areas for Group III according to EN IEC 60079-0: 2018 clause 7.4.3 Therefore, when the antenna is used in a potentially explosive atmosphere group III, EPL Da, appropriate measures must be taken to prevent electrostatic discharge.
4. The painted transmitter housing is non-conducting and exceeds the maximum permissible areas for Group III according to EN IEC 60079-0: 2018 clause 7.4:3.. Therefore, when the probe is used in a potentially dust explosive atmosphere group III, appropriate measures must be taken to prevent electrostatic discharge (i.e. only clean with a damp cloth).
Page 37
5. The Ex ia version of model 5300 FISCO device may be supplied by an “Ex ib” FISCO power supply, when the power supply is certified with three separate safety current limiting devices and voltage limitation which meets the requirements for type Ex ia.
6. 1/2” NPT threads need to be sealed for dust and water ingress protection, IP 66, IP 67 or “Ex t”. EPL Da or Db is required.
Ui Ii Pi Ci Li
FISCO parameters 17.5 V 380 mA 5.32 W 4.95 nF <1 µH

9.7.4 N1 ATEX Increased Safety

Certificate
Standards
Nemko 10ATEX1072X
EN IEC 60079-0:2018, EN 60079-11:2012, EN 60079-7:2015, EN 60079-31:2014
Markings
-50 °C ≤ Ta ≤ +60 °C (FIELDBUS) /+70 °C (HART)
Special Conditions for Safe Use (X):
1. The transmitter circuits do not withstand 500V AC dielectric strength test according to EN 60079-11 clause 6.3.13 due to earth connected transient suppressing devices. Appropriate measures have to be considered by installation.
Safety parameters HART
Safety parameters Fieldbus

9.8 International

9.8.1 E7 IECEx Flameproof

II 3G Ex ec ic IIC T4 Gc II 3G Ex ic IIC T4 Gc II 3D Ex tc IIIC T69 °C (FIELDBUS) /T79 °C (HART) Dc
Ui Ii Pi Ci Li
42.4 V 23 mA 1 W 7.25 nF Negligible
32 V 21 mA 0.7 W 4.95 nF Negligible
Certificate
Standards
IECEx NEM 06.0001X
IEC 60079-0:2017, IEC 60079-1:2014-06, IEC 60079-11:2011, IEC 60079-26:2014, IEC 60079-31:2013
Markings
Quick Start Guide 37
Ex db ia IIC T4 Ga/Gb
Page 38
-55 °C ≤ Ta ≤ +60 °C (FIELDBUS) /+70 °C (HART) Ex ta IIIC T
69 °C (FIELDBUS) /T
200
79 °C (HART) Da
200
-40 °C ≤ Ta ≤ +60 °C (FIELDBUS) /+70 °C (HART) Um=250 VAC, IP66/IP67
Special Conditions for Safe Use (X):
1. Potential ignition hazards by impact or friction need to be considered according to IEC 60079-0:2017 clause 8.3 (for EPL Ga and EPL Gb), and clause 8.4 (for EPL Da and EPL Db), when the transmitter enclosure and antennas exposed to the exterior atmosphere of the tank, is made with light metals containing aluminium or titanium. The end user shall determine the suitability with regard to avoid hazards from impact and friction.
2. Parts of the sensor probes for type 5300 are non-conducting material covering metal surfaces and the area of the non-conducting part exceeds the maximum permissible areas for Group III according to IEC 60079-0: 2017 clause 7.4:3 Therefore, when the antenna is used in a potentially explosive atmosphere group III, EPL Da, appropriate measures must be taken to prevent electrostatic discharge.
3. The painted transmitter housing is non-conducting and exceeds the maximum permissible areas for Group III according to IEC 60079-0: 2017 clause 7.4:3. Therefore, when the probe is used in a potentially dust explosive atmosphere group III, appropriate measures must be taken to prevent electrostatic discharge (i.e. only clean with a damp cloth).
4. 1/2” NPT threads need to be sealed for dust and water ingress protection, IP 66, IP 67 or “Ex t”. EPL Da or Db is required.

9.8.2 I7 IECEx Intrinsic Safety

Certificate
Standards
Markings
Special Conditions for Safe Use (X):
1. The intrinsically safe circuits do not withstand the 500V AC test as specified in IEC 60079-11 clause 6.3.13.
IECEx NEM 06.0001X
IEC 60079-0:2017, IEC 60079-1:2014-06, IEC 60079-11:2011, IEC 60079-26:2014, IEC 60079-31:2013
Ex ia IIC T4 Ga
-55 °C ≤ Ta ≤ +60 °C (FIELDBUS) /+70 °C (HART) Ex ia IIIC T
200
69 °C/T
79 °C Da
200
-50 °C ≤ Ta ≤ +60 °C (FIELDBUS) /+70 °C (HART)
Page 39
2. Potential ignition hazards by impact or friction need to be considered according to IEC 60079-0:2017 clause 8.3 (for EPL Ga and EPL Gb), and clause 8.4 (for EPL Da and EPL Db), when the transmitter enclosure and antennas exposed to the exterior atmosphere of the tank, is made with light metals containing aluminium or titanium. The end user shall determine the suitability with regard to avoid hazards from impact and friction.
3. Parts of the sensor probes for type 5300 are non-conducting material covering metal surfaces and the area of the non-conducting part exceeds the maximum permissible areas for Group III according to IEC 60079-0: 2017 clause 7.4:3 Therefore, when the antenna is used in a potentially explosive atmosphere group III, EPL Da, appropriate measures must be taken to prevent electrostatic discharge.
4. The painted transmitter housing is non-conducting and exceeds the maximum permissible areas for Group III according to IEC 60079-0: 2017 clause 7.4:3. Therefore, when the probe is used in a potentially dust explosive atmosphere group III, appropriate measures must be taken to prevent electrostatic discharge (i.e. only clean with a damp cloth).
5. 1/2” NPT threads need to be sealed for dust and water ingress protection, IP 66, IP 67 or “Ex t”. EPL Da or Db is required.
Ui Ii Pi Ci Li
Entity parameters HART
Entity parameters Fieldbus
30 V 130 mA 1 W 0 µF Negligible
30 V 300 mA 1.5 W 4.95 nF Negligible

9.8.3 IG IECEx FISCO

Certificate
Standards
Markings
Special Conditions for Safe Use (X):
1. The intrinsically safe circuits do not withstand the 500V AC test as specified in IEC 60079-11 clause 6.3.13.
Quick Start Guide 39
IECEx NEM 06.0001X
IEC 60079-0:2017, IEC 60079-1:2014-06, IEC 60079-11:2011, IEC 60079-26:2014, IEC 60079-31:2013
Ex ia IIC T4 Ga (-55 °C ≤ Ta ≤ +60 °C) Ex ia/ib IIC T4 Ga/Gb (-55 °C ≤ Ta ≤ +60 °C) Ex ia IIIC T Ex ia/ib IIIC T
69 °C Da (-50 °C ≤ Ta ≤ +60 °C)
200
69 °C Da/Db (-50 °C ≤ Ta ≤ +60 °C)
200
Page 40
2. Potential ignition hazards by impact or friction need to be considered according to IEC 60079-0:2017 clause 8.3 (for EPL Ga and EPL Gb), and clause 8.4 (for EPL Da and EPL Db), when the transmitter enclosure and antennas exposed to the exterior atmosphere of the tank, is made with light metals containing aluminium or titanium. The end user shall determine the suitability with regard to avoid hazards from impact and friction.
3. Parts of the sensor probes for type 5300 are non-conducting material covering metal surfaces and the area of the non-conducting part exceeds the maximum permissible areas for Group III according to IEC 60079-0: 2017 clause 7.4:3 Therefore, when the antenna is used in a potentially explosive atmosphere group III, EPL Da, appropriate measures must be taken to prevent electrostatic discharge.
4. The painted transmitter housing is non-conducting and exceeds the maximum permissible areas for Group III according to IEC 60079-0: 2017 clause 7.4:3. Therefore, when the probe is used in a potentially dust explosive atmosphere group III, appropriate measures must be taken to prevent electrostatic discharge (i.e. only clean with a damp cloth).
5. The Ex ia version of model 5300 FISCO field device may be supplied by an [Ex ib] FISCO power supply when the power supply is certified with three separate safety current limiting devices and voltage limitation which meets the requirements for type Ex ia.
6. ½” NPT threads need to be sealed for dust and water ingress protection, IP 66, IP 67 or “Ex t”, EPL Da or Db is required.
FISCO parameters 17.5 V 380 mA 5.32 W 4.95 nF <1 µH
Ui Ii Pi Ci Li

9.8.4 N7 IECEx Increased Safety

Certificate
Standards
Markings
Special Conditions for Safe Use (X):
1. The transmitter circuits do not withstand 500V AC dielectric strength test according to EN 60079-11 clause 6.3.13 due to earth connected
IECEx NEM 10.0005X
IEC 60079-0:2017, IEC 60079-11:2011, IEC 60079-7:2017, IEC 60079-31:2013
Ex ec ic IIC T4 Gc Ex ic IIC T4 Gc Ex tc IIIC T69 °C (FIELDBUS) /T79 °C (HART) Dc
-50 °C ≤ Ta ≤ +60 °C (FIELDBUS) /+70 °C (HART)
Page 41
transient suppressing devices. Appropriate measures have to be considered by installation.
Ui Ii Pi Ci Li
Safety parameters HART
Safety parameters Fieldbus
42.4 V 23 mA 1 W 7.25 nF Negligible
32 V 21 mA 0.7 W 4.95 nF Negligible

9.9 Brazil

9.9.1 E2 INMETRO Flameproof

Certificate
Standards
UL-BR 17.0188X
ABNT NBR IEC 60079-0:2013, ABNT NBR IEC 60079-1:2016, ABNT NBR IEC 60079-11:2013, ABNT NBR IEC 60079-26:2016, ABNT NBR IEC 60079-31:2014
Markings
Ex db ia IIC T4 Ga/Gb (-55 °C ≤ T Ex ta IIIC T69 °C/T79 °C Da (-40 °C ≤ T
°C) Um=250 Vac, IP66/67
Special Conditions for Safe Use (X):
1. See certificate for Specific Conditions.

9.9.2 I2 INMETRO Intrinsic Safety

Certificate
Standards
Markings
Special Conditions for Safe Use (X):
1. See certificate for Specific Conditions.
UL-BR 17.0188X
ABNT NBR IEC 60079-0:2013 , ABNT NBR IEC 60079-11:2013, ABNT NBR IEC 60079-26:2016, ABNT NBR IEC 60079-31:2014
Ex ia IIC T4 Ga (- 55 °C ≤ T Ex ia IIIC T69 °C/T79 °C Da (- 50 °C ≤ T
°C)
≤ +60 °C /+70 °C)
amb
amb
≤ +60 °C /+70 °C)
amb
amb
≤ +60 °C /+70
≤ +60 °C /+70
Entity parameters HART
Quick Start Guide 41
Ui Ii Pi Ci Li
30 V
130 mA 1.0 W 7.26 nF Negligible
dc
Page 42
Ui Ii Pi Ci Li
Entity parameters Fieldbus
30 V
300 mA 1.5 W 4.95 nF Negligible
dc

9.9.3 IB INMETRO FISCO

Certificate
Standards
UL-BR 17.0188X
ABNT NBR IEC 60079-0:2013, ABNT NBR IEC 60079-11:2013, ABNT NBR IEC 60079-26:2016, ABNT NBR IEC 60079-31:2014
Markings
Ex ia IIC T4 Ga (- 55 °C ≤ T Ex ia/ib IIC T4 Ga/Gb (- 55 °C ≤ T Ex ia IIIC T69 °C Da (- 50 °C ≤ T Ex ia/ib IIIC T69 °C Da/Db (- 50 °C ≤ T
Special Conditions for Safe Use (X):
1. See certificate for Specific Conditions.
Ui Ii Pi Ci Li
FISCO parameters 17.5 Vdc380 mA 5.32 W 4.95 nF <1 µH

9.10 China

9.10.1 E3 China Flameproof

Certificate
Standards
Markings
GYJ20.1621X
GB 3836.1/2/4/20-2010, GB 12476.1/5-2013, GB
12476.4-2010
Ex d ia IIC T4 Ga/Gb (-55 °C ≤ Ta ≤ +60 °C/+70 °C) Ex tD A20 IP 66/67 T69 °C /T79 °C (-40 °C ≤ Ta ≤ +60
°C/+70 °C)
≤ +60 °C)
amb
amb
≤ +60 °C)
amb
≤ +60 °C)
≤ +60 °C)
amb
Special Conditions for Safe Use (X):
1. See certificate for Specific Conditions.

9.10.2 I3 China Intrinsic Safety

Certificate
Standards
GYJ20.1621X
GB 3836.1/2/4/20-2010, GB 12476.1/5-2013, GB
12476.4-2010
Page 43
Markings
Special Conditions for Safe Use (X):
1. See certificate for Specific Conditions.
Ui Ii Pi Ci Li
Entity parameters HART
Entity parameters Fieldbus

9.10.3 IC China FISCO

Certificate
Standards
Markings
Special Conditions for Safe Use (X):
1. See certificate for Specific Conditions.
Ex ia IIC T4 Ga (-55 °C ≤ Ta ≤ +60 °C/+70 °C) Ex iaD 20 T69 °C /T79 °C (-50 °C ≤ Ta ≤ +60 °C/+70 °C)
30 V 130 mA 1 W 7.26 nF 0 mH
30 V 300 mA 1.5 W 4.95 nF 0 mH
GYJ20.1621X
GB 3836.1/2/4/20-2010, GB 12476.4/5-2013, GB
12476.1-2010
Ex ia IIC T4 Ga (-55 °C ≤ Ta ≤ +60 °C) Ex ia/ib IIC T4 Ga/Gb (-55 °C ≤ Ta ≤ +60 °C) Ex iaD 20 T69 (-50 °C ≤ Ta ≤ +60 °C) Ex iaD/ibD 20/21 T69 °C (-50 °C ≤ Ta ≤ +60 °C)
FISCO parameters 17.5 V 380 mA 5.32 W 4.95 nF <0.001 mH
Ui Ii Pi Ci Li

9.10.4 N3 China Type N

Certificate
Standards
Markings
Special Conditions for Safe Use (X):
1. See certificate for Specific Conditions.
Quick Start Guide 43
GYJ18.1331X
GB 3836.1-2010, GB 3836.4-2010, GB 3836.8-2014
Ex nA ic IIC T4 Gc (-50 °C ≤ Ta ≤ +60 °C/+70 °C) Ex ic IIC T4 Gc (-50 °C ≤ Ta ≤ +60 °C/+70 °C)
Page 44
Ui Ii Pi Ci Li
Safety parameters HART
Safety parameters Fieldbus
42.4 V 23 mA 1 W 7.25 nF Negligible
32 V 21 mA 0.7 W 4.95 nF Negligible

9.11 Technical Regulations Customs Union (EAC)

TR CU 020/2011 “Electromagnetic Compatibility of Technical Products” TR CU 032/2013 “On safety of equipment and vessels under pressure”
Certificate
ЕАЭC RU С-US.АД07.В.00770/19
TR CU 012/2011 “On safety of equipment intended for use in explosive atmospheres”

9.11.1 EM Technical Regulations Customs Union (EAC) Flameproof

Certificate
Markings
Special Conditions for Safe Use (X):
1. See certificate for Specific Conditions.
ЕАЭС RU C-SE.EX01.B.0086/19
Ga/Gb Ex db ia IIC T4….T1 X, (-55 °C ≤ Ta ≤ +60 °C/+70 °C)
Ex ta IIIC T69 °C/T79 °C Da X (-40 °C ≤ Ta ≤ +60 °C/+70 °C)

9.11.2 IM Technical Regulations Customs Union (EAC) Intrinsic Safety

Certificate
Markings
Special Conditions for Safe Use (X):
1. See certificate for Specific Conditions.
ЕАЭС RU C-SE.EX01.B.0086/19
0Ex ia IIC T4...T1 Ga X, (-55 °C ≤ Ta ≤ +60 °C/+70 °C) Ex ia IIIC T69 °C/T79 °C Da X, (-50 °C ≤ Ta ≤ +60 °C/+70
°C)
Entity parameters HART
Entity parameters Fieldbus
Ui Ii Pi Ci Li
30 V 130 mA 1 W 7.26 nF 0 mH
30 V 300 mA 1.5 W 4.95 nF 0 mH
Page 45

9.11.3 IN Technical Regulations Customs Union (EAC) FISCO

Certificate
Markings
Special Conditions for Safe Use (X):
1. See certificate for Specific Conditions.
Ui Ii Pi Ci Li
FISCO parameters 17.5 V 380 mA 5.32 W 4.95 nF 0 mH
ЕАЭС RU C-SE.EX01.B.0086/19
0Ex ia IIC T4...T1 Ga X, (-55 °C ≤ Ta ≤ +60 °C) Ga/Gb Ex ia/ib IIC T4…T1 X, (-55 °C ≤ Ta ≤ +60 °C) Ex ia IIIC T69 °C Da X, (-50 °C ≤ Ta ≤ +60 °C) Ex ia/ib IIIC T69 °C Da/Db X, (-50 °C ≤ Ta ≤ +60 °C)

9.12 Japan

9.12.1 E4 Flameproof

Certificate
Markings
Special Conditions for Safe Use (X):
1. See certificate for Specific Conditions.
9.13

Republic of Korea

9.13.1 EP Flameproof HART

CML 17JPN1334X
Ex db ia IIC T4 Ga/Gb (-55 °C ≤ Ta ≤ +60 °C/+70 °C)
Certificate
Markings
Special Conditions for Safe Use (X):
1. See certificate for Specific Conditions.
KTL 15-KB4BO-0297X, 13-KB4BO-0019X
Ex d ia IIC T4 Ga/Gb

9.13.2 EP Flameproof Fieldbus

Certificate
Markings
Special Conditions for Safe Use (X):
1. See certificate for Specific Conditions.
Quick Start Guide 45
KTL 12-KB4BO-0179X
Ex d ia IIC T4
Page 46

9.14 India

9.14.1 Flameproof, Intrinsically Safe

Certificate
Markings
Special Conditions for Safe Use (X):
1. See certificate for Specific Conditions.
P392482/1
Ex db ia IIC T4 Ga /Gb Ex ia IIC T4 Ga

9.15 United Arab Emirates

9.15.1 Flame-proof

Certificate
Markings

9.15.2 Intrinsic Safety

Certificate
Markings

9.15.3 FISCO

Certificate
Markings

9.15.4 Increased Safety

20-11-28736/Q20-11-001012
Same as IECEx (E7)
20-11-28736/Q20-11-001012
Same as IECEx (I7)
20-11-28736/Q20-11-001012
Same as IECEx (IG)
Certificate
Markings
20-11-28736/Q20-11-001012
Same as IECEx (N7)

9.16 Ukraine

9.16.1 Flameproof, Intrinsically Safe

Certificate
Markings
Special Conditions for Safe Use (X):
1. See certificate for Specific Conditions.
UA.TR.047.C.0352-13
0 Ex ia IIC T4 X, 1 Ex d ia IIC T4 X
Page 47

9.17 Uzbekistan

9.17.1 Safety (import)

Certificate
UZ.SMT.01.342.2017121

9.18 Combinations

KA
KB
KC
KD
KE
KF
KG
KH
KI
KJ
KK
KL
Combination of E1, E5 and E6
Combination of E1, E5 and E7
Combination of E1, E6 and E7
Combination of E5, E6 and E7
Combination of I1, I5 and I6
Combination of I1, I5 and I7
Combination of I1, I6 and I7
Combination of I5, I6 and I7
Combination of IA, IE and IF
Combination of IA, IE and IG
Combination of IA, IF and IG
Combination of IE, IF and IG
(2)
(2)
(2)
(2)
(2)
(2)
(2)
(2)
(2)

9.19 Additional certifications

9.19.1 SBS American Bureau of Shipping (ABS) Type Approval

Certificate
Intended Use
21-2136361-PDA
For use on ABS Classed Vessels and Offshore Facilities in accordance with ABS rules and International Standards.
Note
Housing material A, Aluminum, is not to be used on open decks.

9.19.2 SBV Bureau Veritas (BV) Type Approval

Certificate
Requirements
(2)
The combinations do not come with Dual Seal.
Quick Start Guide 47
22378_C0 BV
Bureau Veritas rules for classification of steel ships. EC Code: 41SB
Page 48
Application
Class Notations: AUT-UMS, AUT-CCS, AUT-PORT and AUT-IMS.
Note
Housing material A, Aluminum, is not to be used on open decks.

9.19.3 SDN Det Norske Veritas Germanischer Lloyd (DNV GL) Type Approval

Certificate
Intended Use
Table 9-1: Application
Location classes
Temperature D
Humidity B
Vibration A
EMC B
Enclosure C
Note
Housing material A, Aluminum, is not to be used on open decks.
TAA000020G
DNV GL rules for classification – Ships, offshore units, and high speed and light craft

9.19.4 SKR Korean Register (KR) Type Approval

Certificate
Requirements
CPH05152-AE001
Pt. 6, Ch. 2, Art. 301 of the Rules for Classification of Steel Ships.
Note
Housing material A, Aluminum, is not to be used on open decks.

9.19.5 SLL Lloyds Register (LR) Type Approval

Certificate
Application
Note
Housing material A, Aluminum, is not to be used on open decks.
LR2002854TA
Marine applications for use in environmental categories ENV1, ENV2, ENV3 and ENV5.
Page 49

9.19.6 SNK Nippon Kaiji Kyokai (NK) Type Approval

Certificate
Requirements
Note
Housing material A, Aluminum, is not to be used on open decks.
TA20555M
Ch.7, Pt. 6, and Ch. 4, Pt. 7 of “Guidance for the Approval and Type Approval of Materials and Equipment for Marine Use” and the relevant Society’s Rules

9.19.7 SRS Russian Maritime Register of Shipping (RS) Type Approval

Certificate
Rules
Note
Housing material A, Aluminum, is not to be used on open decks.
21.10002.262
Part XV of the Rules for the Classification and Construction of Sea-going Ships 2020, Part XIV of the Rules for the Classification, Construction and Equipment of Mobile Offshore Drilling Units (MODU) and Fixed Offshore Platforms of (FOP), 2018 Part IV, section 12 of the Rules for Technical Supervision During Construction of ships and Manufacture of Materials and Products for Ships, 2020.

9.19.8 U1 Overfill prevention

Certificate
Application
Z-65.16-476
TÜV tested and approved by DIBt for overfill prevention according to the German WHG regulations.

9.19.9 J1 Canadian Registration Number (CRN)

Alberta (ABSA): 0F18507.2, British Columbia (TSBC): 0F6710.1, Manitoba (ITS): 0H6938.4, New Brunswick: 0F1290.97, New Foundland and Labrador: 0F1290.90, Northwest Territories: 0F1290.9T, Nova Scotia: 0F1290.98, Nunavut: 0F1290.9N, Ontario (TSSA): 0F19892.5, Prince Edward Island: 0F1290.9, Quebec (RdBdQ): 0F04826.6, Saskatchewan (TSASK): 0F1870.3, Yukon: 0F1290.9Y

9.19.10 J8 EN Boiler (European Boiler Approval in accordance with EN 12952-11 and EN 12953-9)

Note
Suitable for use as a level sensor part of a limiting device in accordance with EN 12952-11 and EN 12953-9.
Quick Start Guide 49
Page 50

9.19.11 QT Safety-certified to IEC 61508:2010 with certificate of FMEDA data

Certificate
exida ROS 13-06-005 C001 R2.2

9.19.12 Suitable for intended use

Compliant with NAMUR NE 95, version 22.01.2013 “Basic Principles of Homologation”

9.20 Pattern Approval

GOST Belarus
Certificate
GOST Kazakhstan
Certificate
GOST Russia
Certificate
GOST Uzbekistan
Certificate
No. 10263
No. 15466
SE.C.29.010.A No.51062/1
02.7101

9.21 Conduit plugs and adapters

IECEx Flameproof and Increased Safety
Certificate
Standards
Markings
ATEX Flameproof and Increased Safety
Certificate
Standards
Markings
IECEX UL 18.0016X
IEC 60079-0:2017, IEC 60079-1:2014-06, IEC 60079-7:2017, IEC 60079-31:2013
Ex db eb IIC Gb; Ex ta IIIC Da
DEMKO 18 ATEX 1986X
EN IEC 60079-0:2018, EN 60079-1:2014, EN 60079-7: 2015 +A1:2018, EN 60079-31:2014
II 2 G Ex db eb IIC Gb; II 1 D Ex ta IIIC Da;
Page 51
Table 9-2: Conduit Plug Thread Sizes
Thread Identification mark
M20x1.5-6g M20
½ - 14 NPT ½ NPT
Table 9-3: Thread Adapter Thread Sizes
Male thread Identification mark
M20 x 1.5 – 6g M20
½- 14 NPT ½ - 14 NPT
Female thread Identification mark
M20 x 1.5 – 6H M20
½ - 14 NPT ½ - 14 NPT
Specific Conditions for Safe Use (X):
1. The Blanking Elements shall not be used with an adapter.
2. Only one adapter shall be used with any single cable entry on the associated equipment.
3. It is the end user’s responsibility to ensure that the ingress protection rating is maintained at the interface of the equipment and the blanking element/adapter.
4. Suitability of the temperature of the devices is to be determined during end-use with suitably rated equipment.
5. The Ex Blanking Elements have been evaluated for use in an ambient temperature range of -60 °C to +125 °C
Quick Start Guide 51
Page 52

9.22 Installation drawings

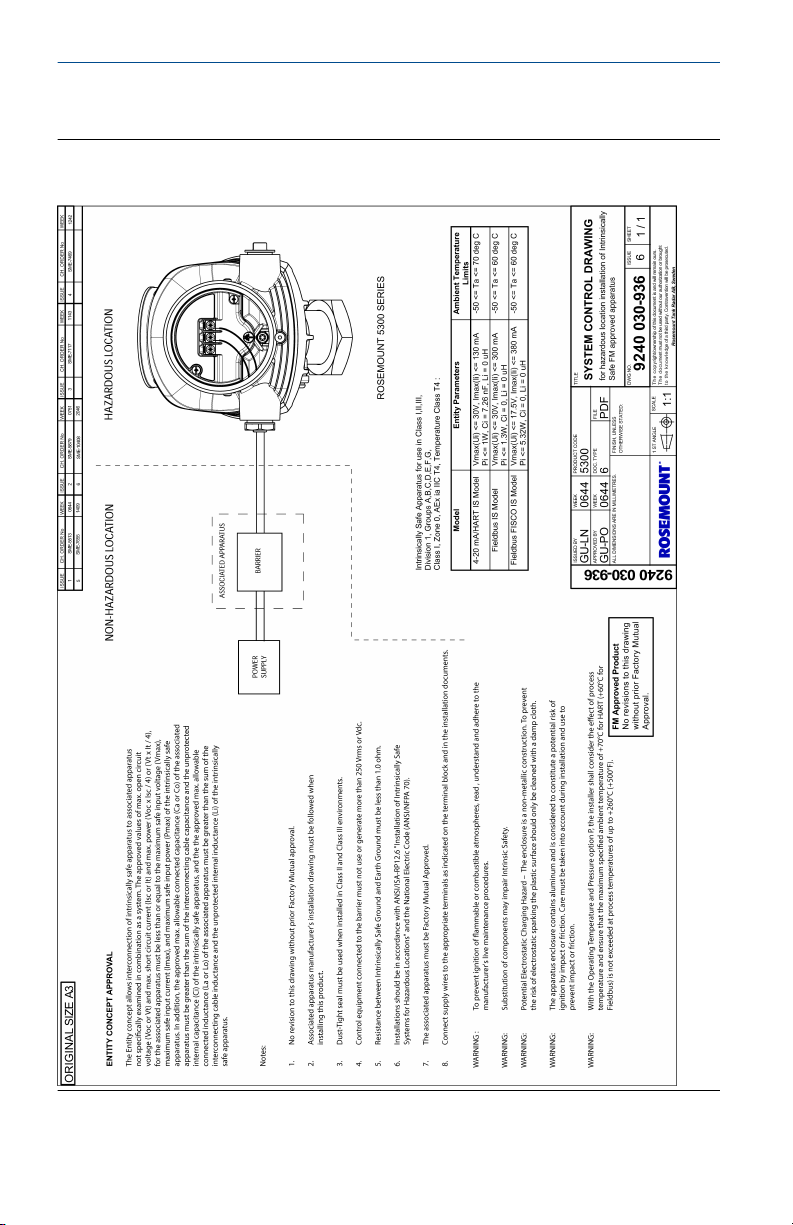

Figure 9-1: 9240030-936 - System Control Drawing for Hazardous Location Installation of Intrinsically Safe FM Approved Apparatus
Page 53

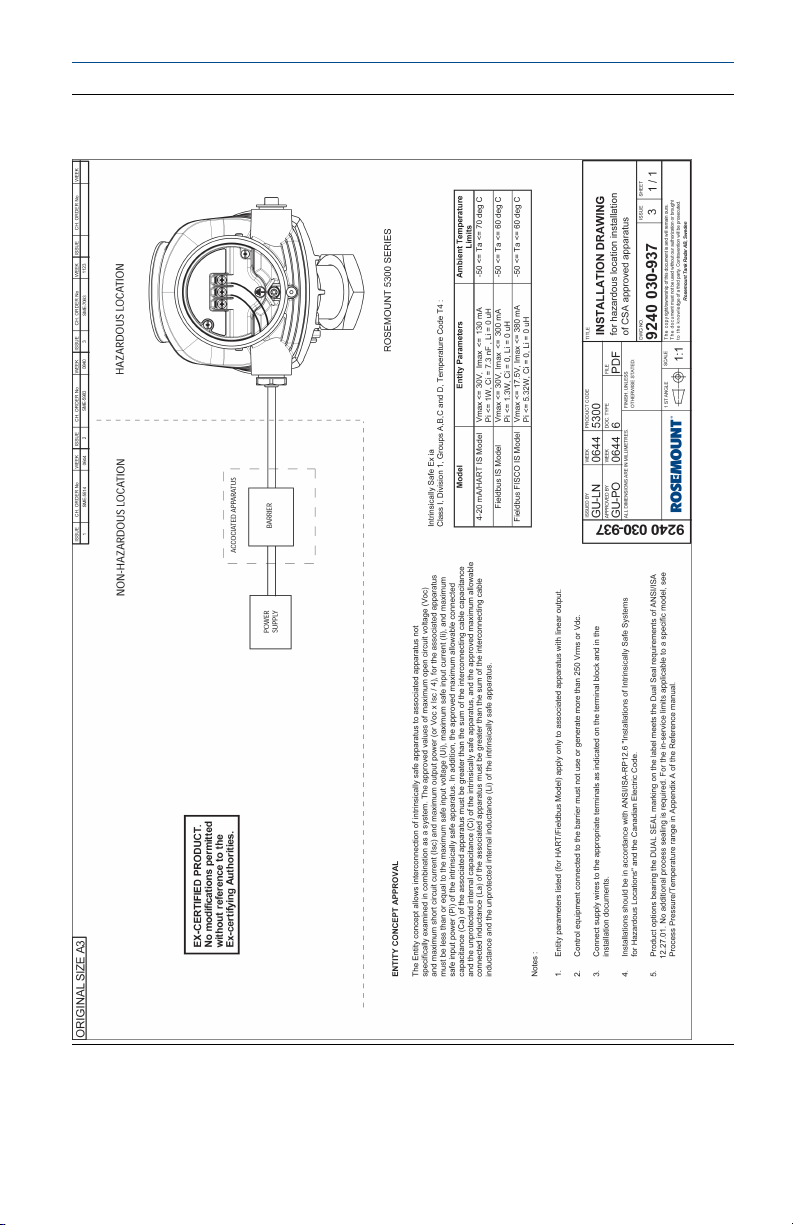

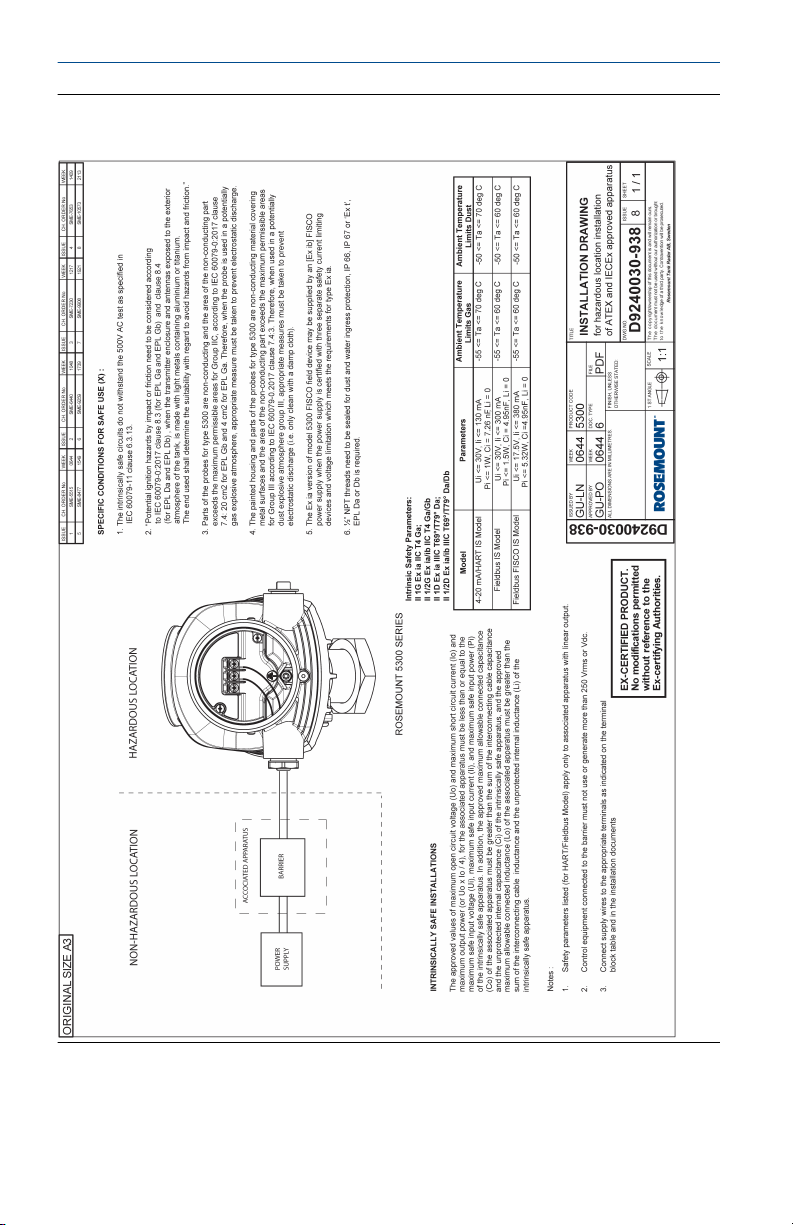

Figure 9-2: 9240030-937 - Installation Drawing for Hazardous Location Installation of Intrinsically Safe CSA Approved Apparatus
Quick Start Guide 53
Page 54
Figure 9-3: D9240030-938 - Installation Drawing for Hazardous Location Installation of Intrinsically Safe ATEX and IECEx Approved Apparatus
Page 55

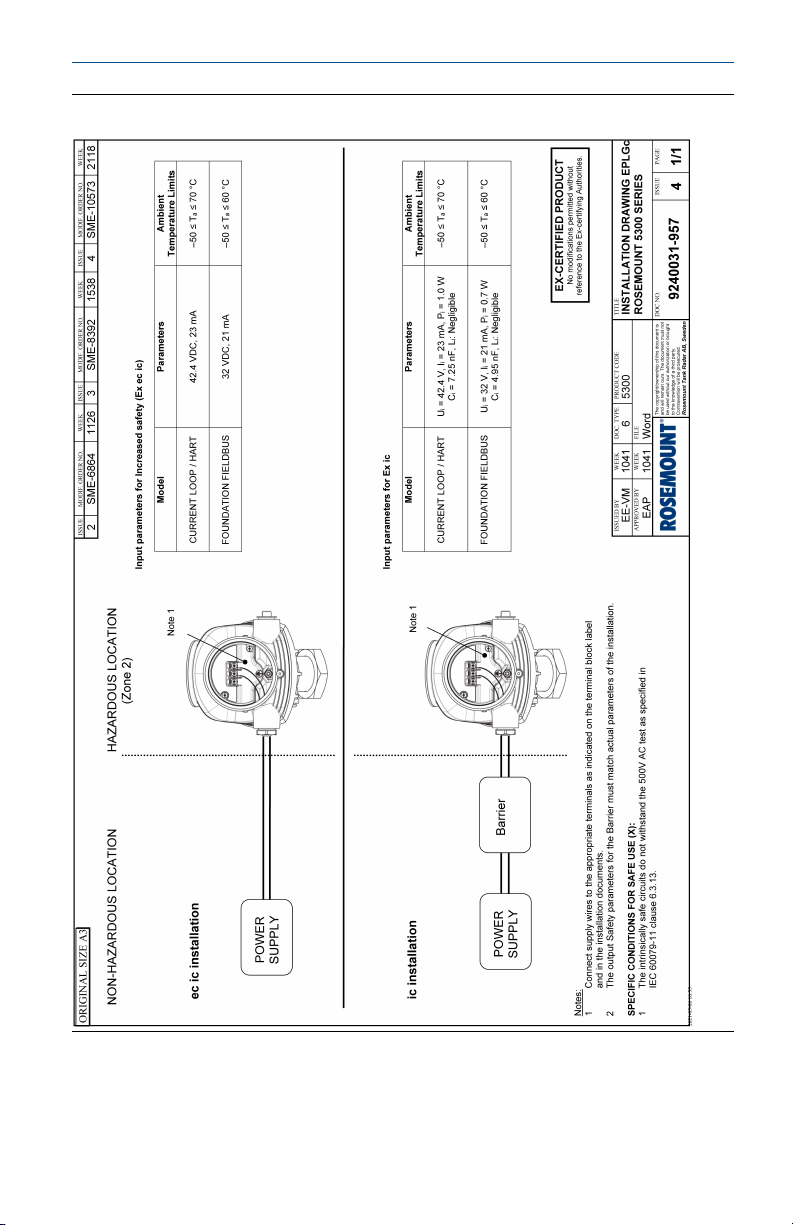

Figure 9-4: 9240031-957 - Installation Drawing Exn
Quick Start Guide 55
Page 56

9.23 EU Declaration of Conformity

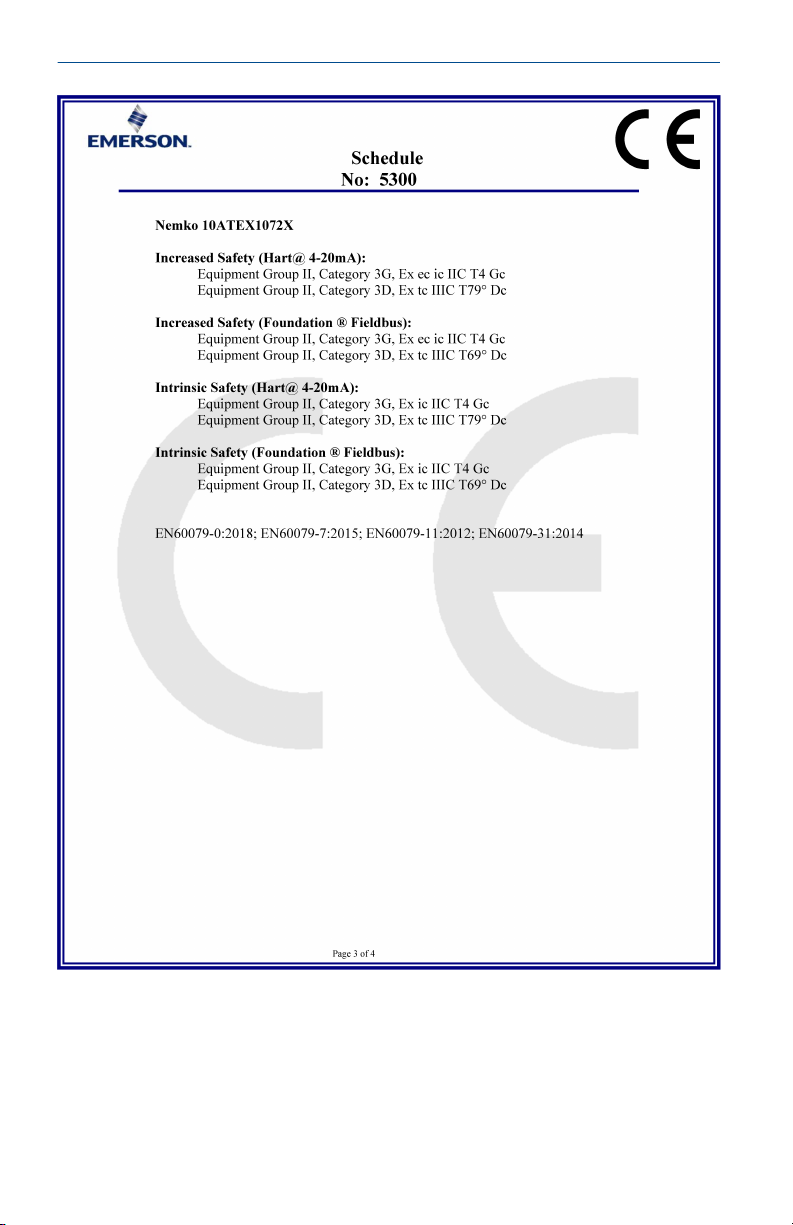

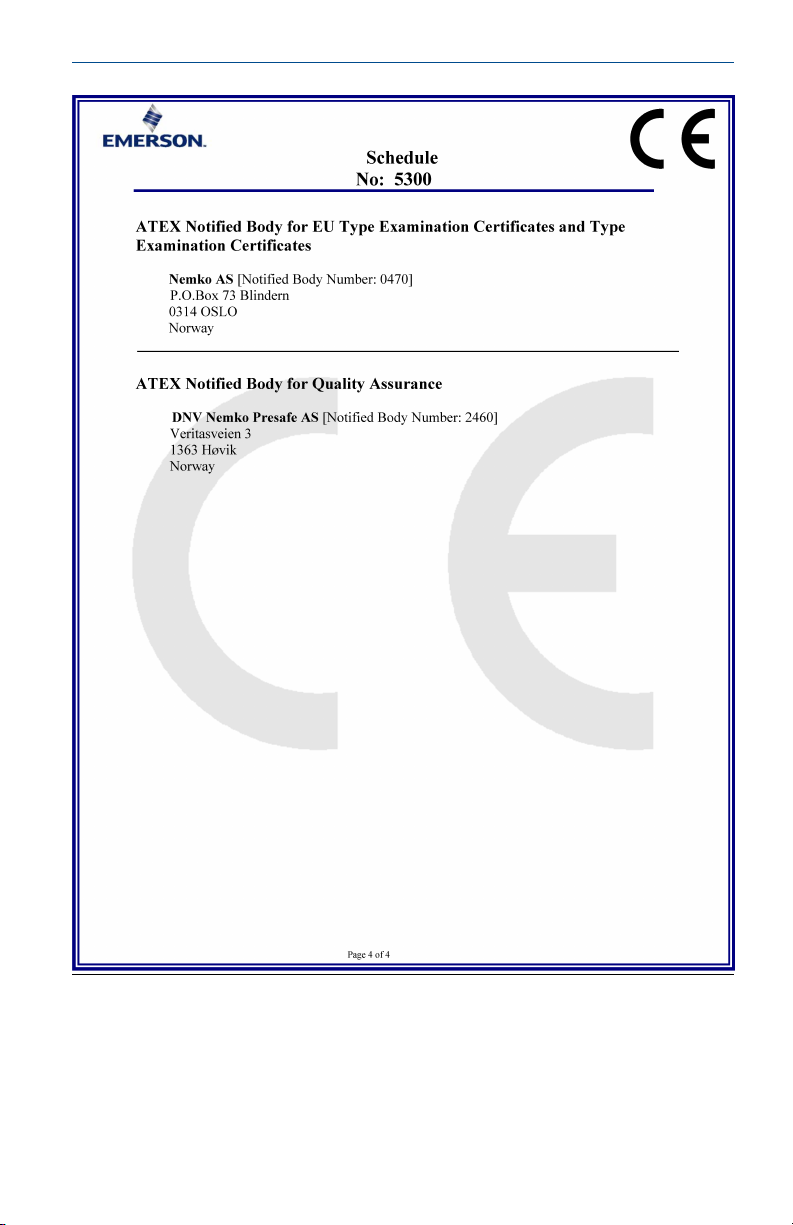

Figure 9-5: EU Declaration of Conformity
Page 57
Quick Start Guide 57
Page 58
Page 59
Quick Start Guide 59
Page 60

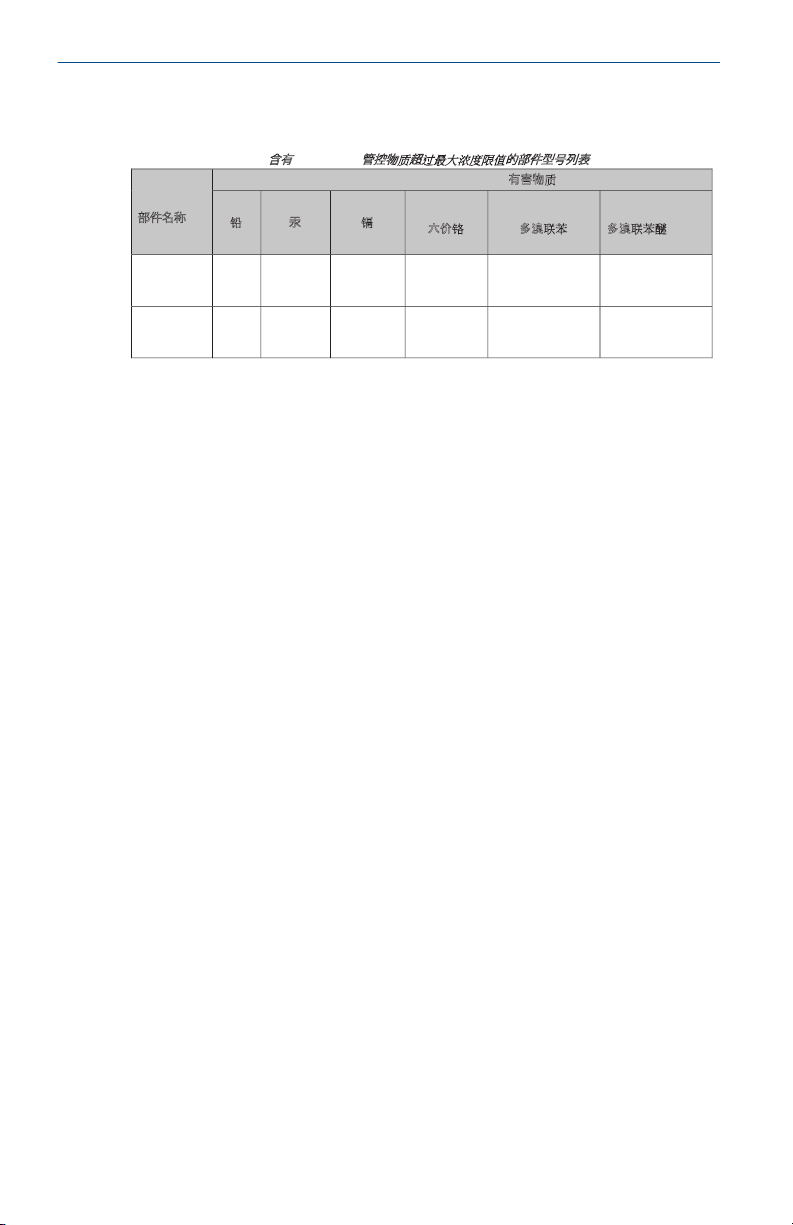

List of Model Parts with China RoHS Concentration above MCVs
含有
China RoHS
管控物峐超彯㚨⣏㳻⹎旸ῤ的部件型号列表
Part Name
部件名称
Hazardous Substances / 有害物峐
Lead
摭
(Pb)
Mercury
汞
(Hg)
Cadmium
擱
(Cd)
Hexavalent
Chromium
භ௴撔
(Cr +6)
Polybrominated
biphenyls
ከ⁏俼劗
(PBB)
Polybrominated diphenyl ethers
ከ⁏俼劗慂(PBDE)
Electronics
Assembly
䓝⫸乬ẞ
X O O O O O
Housing
Assembly
壳体乬ẞ
O O O O O O
This table is proposed in accordance with the provision of SJ/T11364
本表格系依据
SJ/T11364
的奬⭂侴⇞ἄį
O: Indicate that said hazardous substance in all of the homogeneous materials for this part is below the limit requirement of GB/T 26572. O:
意󰶃宍悐ẞ䘬㇨㚱⛯峐㛸㕁󰵶宍㚱⭛䈑峐䘬⏓慷⛯ỶḶ
GB/T 26572
所奬⭂䘬旸慷天㯪į
X: Indicate that said hazardous substance contained in at least one of the homogeneous materials used for this part is above the limit requirement of GB/T 26572. X:
意󰶃⛐宍悐ẞ㇨ἧ䓐䘬㇨㚱⛯峐㛸㕁慴炻军⮹㚱ᶨ䰣⛯峐㛸㕁󰵶宍㚱⭛䈑峐䘬⏓慷檀Ḷ
GB/T 26572
所奬⭂䘬旸慷天㯪į

9.24 China RoHS

Page 61
Quick Start Guide 61
Page 62
Page 63
Quick Start Guide 63
Page 64
*00825-0100-4530*
00825-0100-4530, Rev. HC
Quick Start Guide
May 2022
For more information:
©
2022 Emerson. All rights reserved.
Emerson Terms and Conditions of Sale are available upon request. The Emerson logo is a trademark and service mark of Emerson Electric Co. Rosemount is a mark of one of the Emerson family of companies. All other marks are the property of their respective owners.
Emerson.com
Loading...
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
