Rosemount 499ACL-02 Total Chlorine Sensor Quick Start Guide

Rosemount™ 499ACL-02

Total Chlorine Sensor

Quick Start Guide

00825-0200-3499, Rev AB

November 2019

Quick Start Guide November 2019

Safety information

CAUTION

Sensor/process application compatibility

The wetted sensor materials may not be compatible with process composition and operating
conditions.

Application compatibility is entirely the operator's responsibility.

CAUTION

Equipment damage

Do not exceed pressure and temperature specifications

Pressure: 65 psig (549 kPa abs) max.
Temperature: 32 to 122 °F (0 to 50 °C)

WARNING

Physical access

Unauthorized personnel may potentially cause significant damage to and/or misconfiguration of end
users’ equipment. This could be intentional or unintentional and needs to be protected against.

Physical security is an important part of any security program and fundamental to protecting your
system. Restrict physical access by unauthorized personnel to protect end users’ assets. This is true for
all systems used within the facility.

Contents

First steps.....................................................................................................................................3

Install........................................................................................................................................... 5

Wire............................................................................................................................................. 6

Calibrate.................................................................................................................................... 11

Maintenance.............................................................................................................................. 12

Accessories................................................................................................................................ 14

2 Emerson.com/Rosemount

November 2019 Quick Start Guide

1 First steps

1.1 Unpack and inspect

Procedure

1. Inspect the shipping container. If it is damaged, contact the shipper
immediately for instructions.

2. If there is no apparent damage, unpack the container. Be sure all
items shown on the packing list are present. If items are missing,
notify Emerson immediately.

1.2 Product description

Figure 1-1: Rosemount 499ACL-02 Sensor Parts

A. Membrane retainer
B. Membrane assembly
C. O-ring

D. Cathode

E. Electrolyte fill plug (wrap with pipe tape)
F. Pressure equalizing port

G. Sensor cable (integral cable shown)

1.3

Table 1-1: Sensor Specifications

Physical characteristics Specifications

Pressure 0 to 65 psig (101 to 549 kPa abs)

Temperature (operating) 32 to 122 °F (0 to 50 °C)

Process connection 1-in. male national pipe thread (MNPT)

Wetted parts Noryl®, Viton®, and silicone

Quick Start Guide 3

Specifications

Quick Start Guide November 2019

Table 1-1: Sensor Specifications (continued)

Physical characteristics Specifications

Cathode Gold

Linearity 2% (typical)

4 Emerson.com/Rosemount

November 2019 Quick Start Guide

2 Install

The sensor is intended for use only in the Rosemount TCL sample
conditioning system for total chlorine. Consult the instruction manual for
the Rosemount TCL sample conditioning system for more information.

Quick Start Guide 5

Quick Start Guide November 2019

3 Wire

NOTICE

For additional wiring information on this product, including sensor
combinations not shown here, please refer to the Liquid Transmitter Wiring

Diagrams.

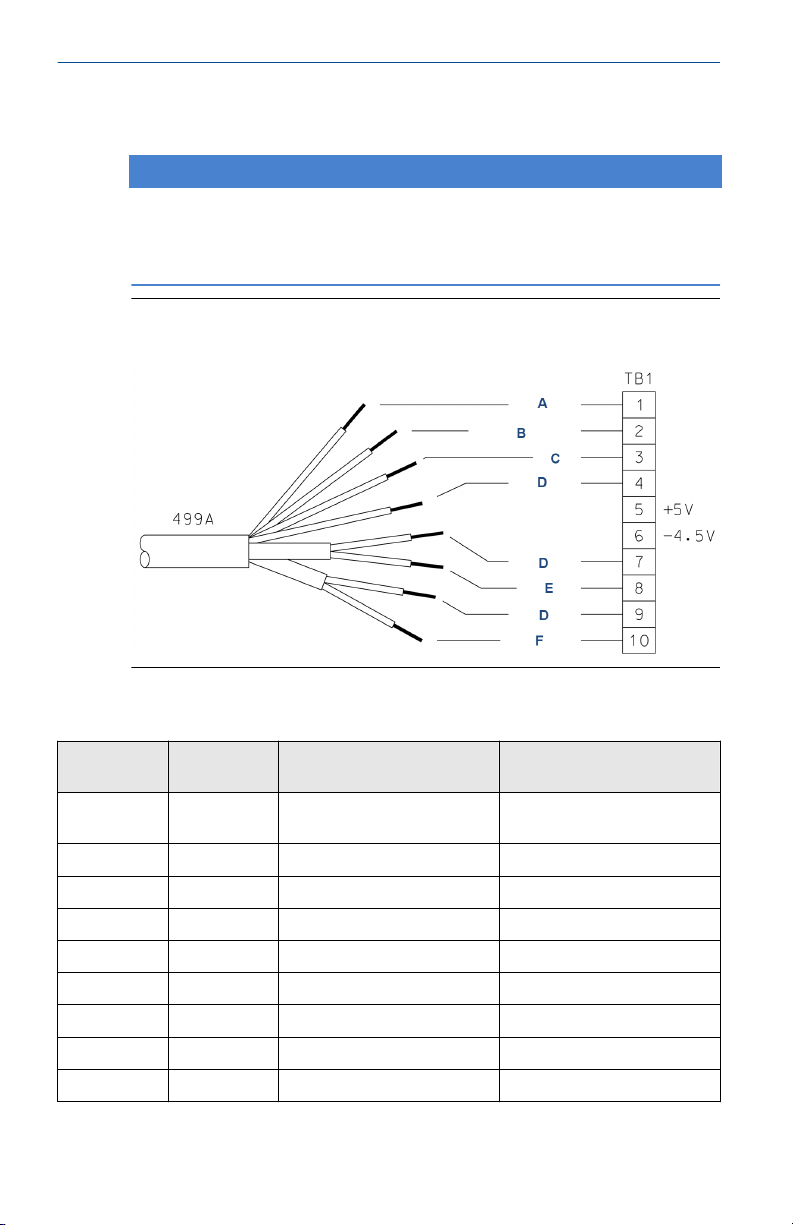

Figure 3-1: Rosemount 499ACL-02 Sensor Wiring to Rosemount 1056
and 56 Transmitters

Table 3-1: Rosemount 499ACL-02 Sensor Wiring to Rosemount 1056 and 56
Transmitters

Terminal
number

1 A White Resistance temperature

2 B White/red RTD sense

3 C Red RTD in

4 D Clear RTD shield

5 N/A N/A +5 V out

6 N/A N/A -4.5 V out

7 D Clear Anode shield

8 E Gray Anode

9 D Clear Cathode shield

6 Emerson.com/Rosemount

Letter Wire color Description

device (RTD) return

November 2019 Quick Start Guide

Table 3-1: Rosemount 499ACL-02 Sensor Wiring to Rosemount 1056 and 56
Transmitters (continued)

Terminal
number

10 F Orange Cathode

Letter Wire color Description

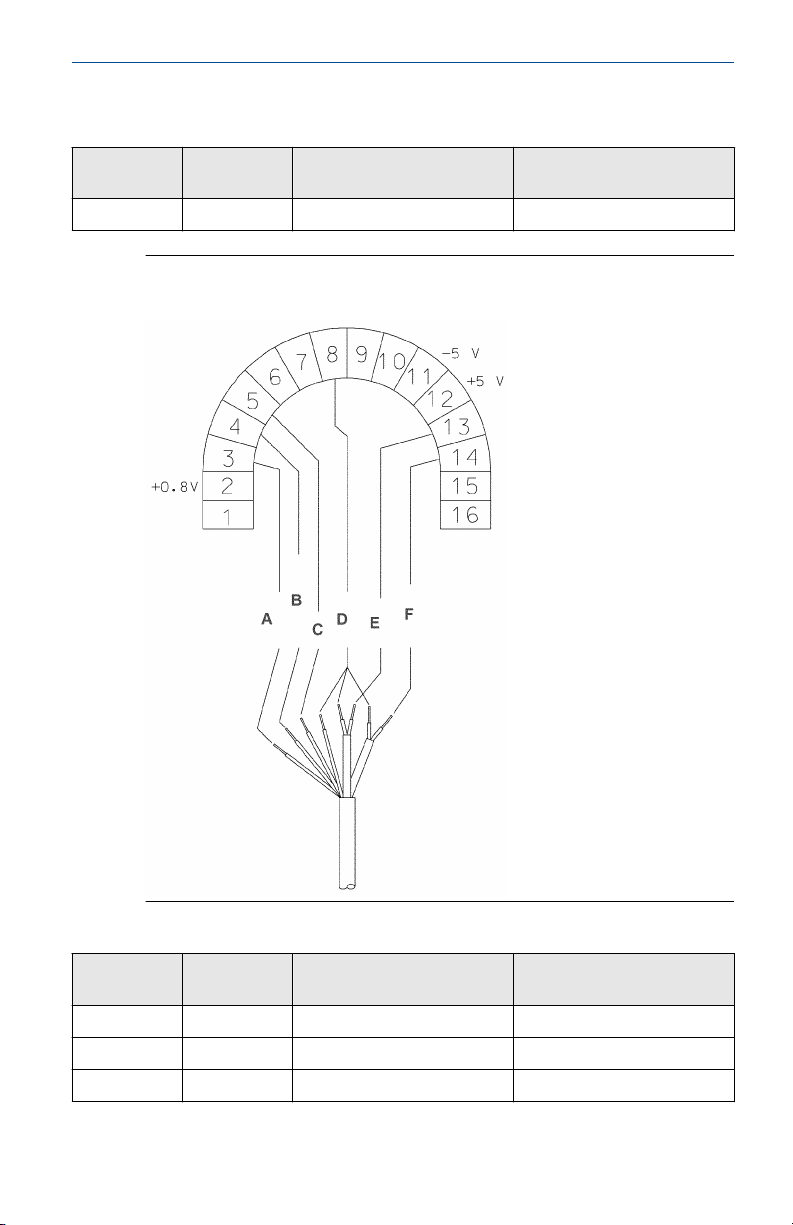

Figure 3-2: Rosemount 499ACL-02 Sensor Wiring to Rosemount 5081
Transmitter

Table 3-2: Rosemount 499ACL-02 Sensor Wiring to Rosemount 5081 Transmitter

Terminal
number

1 N/A N/A N/A

2 N/A N/A +0.8 V

3 A White RTD return

Quick Start Guide 7

Letter Wire color Description

Quick Start Guide November 2019

Table 3-2: Rosemount 499ACL-02 Sensor Wiring to Rosemount 5081 Transmitter

(continued)

Terminal
number

4 B White/red RTD sense

5 C Red RTD in

6 N/A N/A Reference guard

7 N/A N/A Reference in

8 D Clear Solution ground

9 N/A N/A pH guard

10 N/A N/A pH in

11 N/A N/A -5 V

12 N/A N/A +5 V

13 E Gray Anode

14 F Orange Cathode

15 N/A N/A HART®/FOUNDATION™ Fieldbus

16 N/A N/A HART/FOUNDATION Fieldbus (+)

Letter Wire color Description

(-)

8 Emerson.com/Rosemount

November 2019 Quick Start Guide

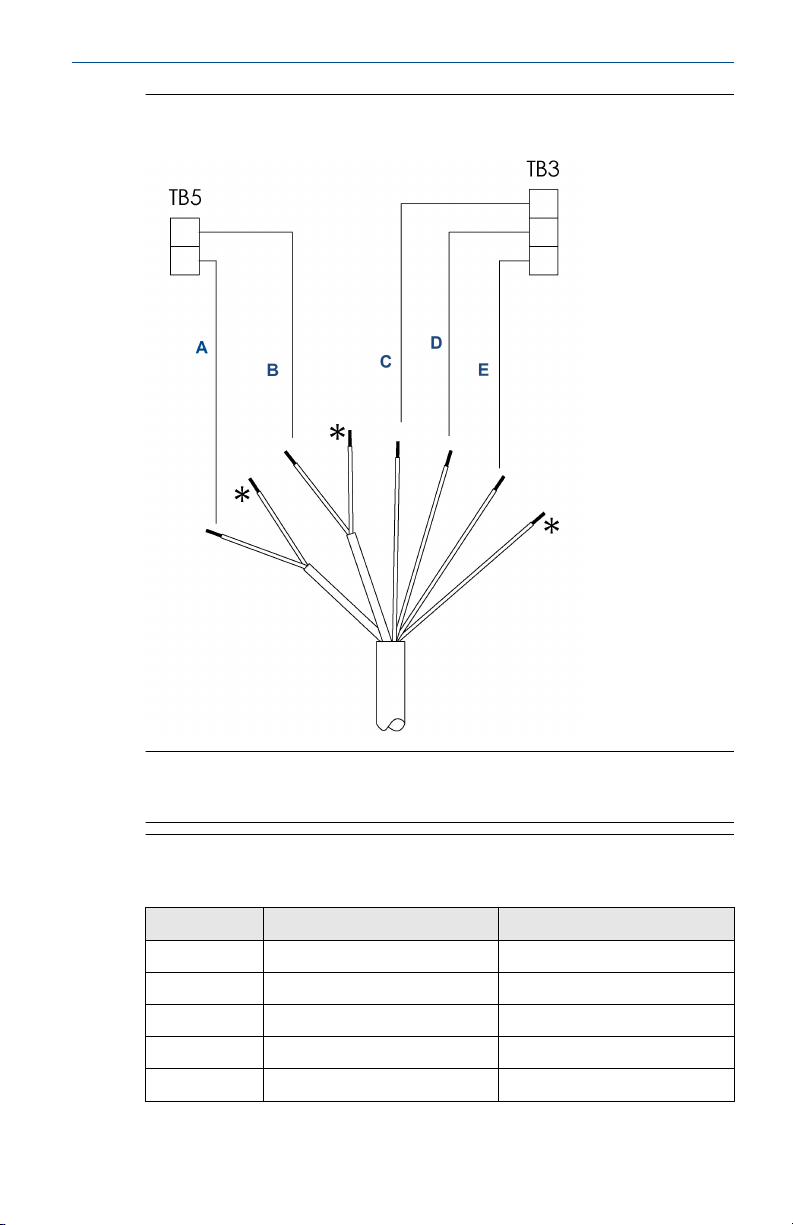

Figure 3-3: Rosemount 499ACL-02 Sensor Wiring to Rosemount 1066
Transmitter

Note

Connect clear shield wires to solution ground terminal on TB 2. Use wire nut
and pigtail if necessary.

Table 3-3: Rosemount 499ACL-02 Wiring to Rosemount 1066
Transmitter

Letter Color Terminal description

A Orange Cathode

B Gray Anode

C White Return

D White/red Sense

E Red RTD in

Quick Start Guide 9

Quick Start Guide November 2019

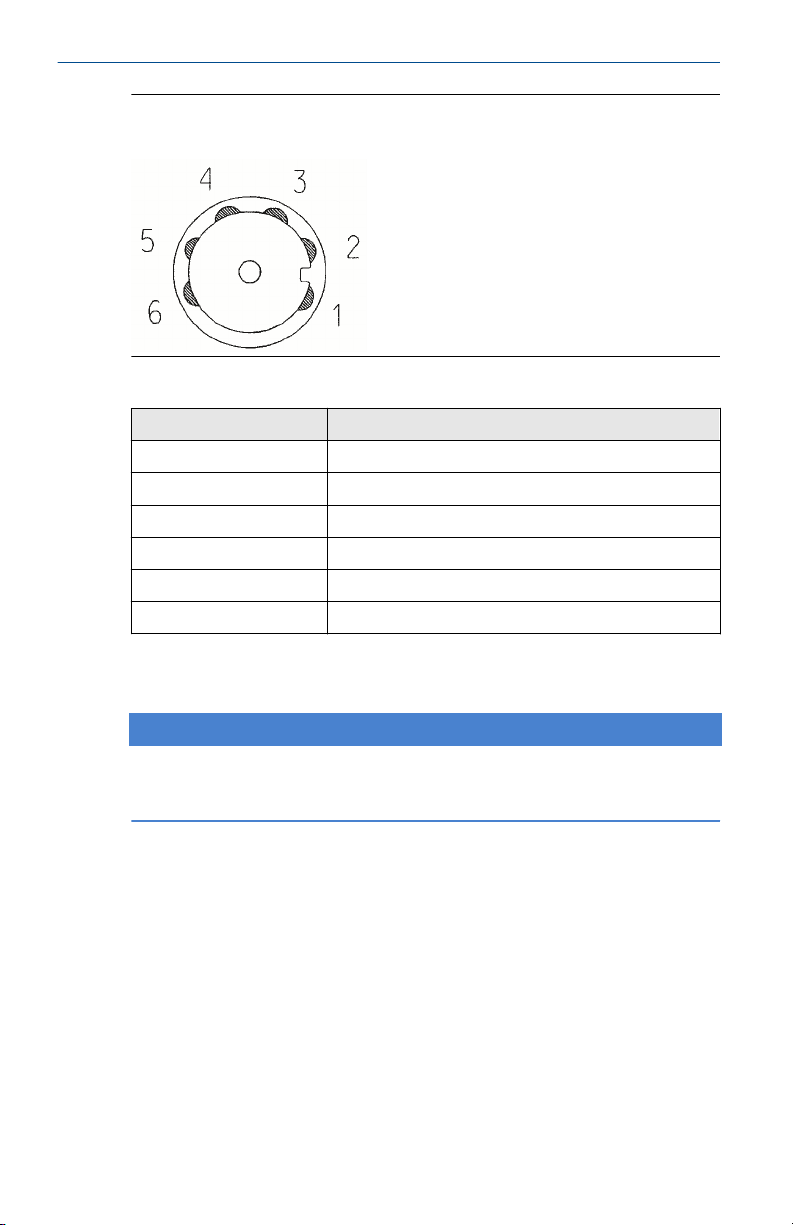

Figure 3-4: Rosemount 499ACL-02-01-54-VP Sensor Pin-out Diagram
(Top View of Connector End of Sensor)

Table 3-4: Pin-out Diagram

Terminal number Description

1 Cathode

2 N/A

3 RTD sense

4 Anode

5 RTD return

6 RTD in

When making a connection through a junction box (PN 23550-00), wire
point-to-point.

NOTICE

Use a wire nut and pigtail (included) when connecting several wires to the
same terminal.

10 Emerson.com/Rosemount

November 2019 Quick Start Guide

4 Calibrate

4.1 Zero point calibration

The sample conditioning system converts total chlorine into iodine, which
the Rosemount 499ACL-02 sensor measures. Even in the absence of iodine,
the Rosemount 499ACL-02 sensor generates a small signal called the zero
current. Failure to correct for the zero current can produce a bias,
particularly if the total chlorine concentration is small (<0.2 ppm). Zero the
sensor when it is first placed in service and every time the fill solution is
changed.

To zero the sensor:

Procedure

1. Pour a cup of deionized or bottled water.

2. Place the sensor in the water.

3. Wait until the sensor current has reached a stable low value (at least
two hours).

4. Follow the transmitter prompts for zeroing the sensor.

The zero current should be between -10 and +50 nA. For more information,
refer to the transmitter manual.

4.2 Full scale calibration

Because stable dilute chlorine standards are not available, the sensor must
be calibrated against the results of a laboratory test run on a grab sample of
the process liquid.

Procedure

1. Place the sensor in the flow cell inside the TCL.

2. Start the sample and reagent flow.

3. Adjust the concentration so that it is near the upper end of the
operating range.

4. Wait for the readings to stabilize.

5. Follow the transmitter prompts to complete the calibration.

6. After calibration, go to the Diagnostics menu and check the
sensitivity.

The sensitivity should be between 900 and 1,200 nA/ppm. For more
information, refer to the Rosemount TCL manual.

Quick Start Guide 11

Quick Start Guide November 2019

5 Maintenance

When used in clean water, the total chlorine sensor requires little
maintenance. Generally, the sensor needs maintenance when the response
becomes sluggish or noisy or when readings drift following calibration.
Maintenance frequency is best determined by experience. Sensors used in
dirty water require more frequent maintenance and calibration. However, if
experience shows that the sensor is holding calibration and not drifting
appreciably between calibration intervals, the maintenance interval can be
extended.

WARNING

Pressurized spray injury

Before removing the sensor, be absolutely certain that the process pressure
is reduced to 0 psig and the process temperature is lowered to a safe level!

5.1 Cleaning the membrane

Keep the membrane clean. Clean the membrane with water sprayed from a
wash bottle. Use a soft tissue to gently wipe the membrane.

5.2 Replacing the electrolyte solution and membrane

WARNING

Harmful substance

Fill solution may cause irritation. May be harmful if swallowed.

Read and follow the instructions.

Procedure

1. Unscrew the membrane retainer.

2. Remove the membrane assembly and O-ring.
See Figure 1-1.

3. Hold the sensor over a container with the cathode pointing down.

4. Remove the fill plug.

5. Allow the electrolyte solution to drain out.

6. Remove the old pipe tape from the plug.

7. Wrap the plug with one or two turns of pipe tape..

8. Prepare a new membrane.

12 Emerson.com/Rosemount

November 2019 Quick Start Guide

a) Hold the membrane assembly with the cup formed by the

membrane and membrane holder pointing up.

b) Fill the cup with electrolyte solution.

9. Hold the sensor at about a 45 degree angle with the cathode end
pointing up.

10. Add electrolyte solution through the fill hole until the liquid
overflows.

11. Tap the sensor near the threads to release trapped air bubbles.

12. Add more electrolyte solution if necessary.

13. Place the fill plug in the electrolyte port and begin screwing it in.

14. After several threads have engaged, rotate the sensor so that the
cathode is pointing up and continue tightening the fill plug.

Do not overtighten.

15. Place a new O-ring in the groove around the cathode post.

16. Cover the holes at the base of the cathode stem with several drops of
electrolyte solution.

17. Insert a small blunt probe, like a toothpick with the end cut off,
through the pressure equalizing port.

See Figure 1-1.

CAUTION

Equipment damage

A sharp probe may puncture the bladder and destroy the sensor.

Do not use a sharp probe.

18. Gently press the probe against the bladder several times to force
liquid through the holes at the base of the cathode stem. Keep
pressing the bladder until no air bubbles can be seen leaving the
holes.

Be sure the holes remain covered with electrolyte solution.

19. Place a drop of electrolyte solution on the cathode; then place the
membrane assembly over the cathode.

20. Screw the membrane retainer in place.
The sensor may require several hours operating at the polarizing

voltage to equilibrate after the electrolyte solution has been
replenished.

Quick Start Guide 13

Quick Start Guide November 2019

6 Accessories

Part # Description

33523-00 Electrolyte fill plug

9550094 O-ring, Viton 2-014

33521-00 Membrane retainer

23501-02 Total chlorine membrane assembly: includes one

23502-02 Total chlorine membrane kit: includes three membrane

9210438 Total chlorine sensor fill solution, 4 oz (120 mL)

membrane assembly and one O-ring

assemblies and three O-rings

14 Emerson.com/Rosemount

November 2019 Quick Start Guide

Quick Start Guide 15

GLOBAL HEADQUARTERS

6021 Innovation Blvd.
Shakopee, MN 55379

[phone]
[phone]
[e-mail]

*00825-0200-3499*

Quick Start Guide

00825-0200-3499, Rev. AB

November 2019

NORTH AMERICA

Emerson Automation Solutions
8200 Market Blvd
Chanhassen, MN 55317

Toll Free [phone]
F [phone]
[e-mail]

MIDDLE EAST AND AFRICA

Emerson Automation Solutions
Emerson FZE
Jebel Ali Free Zone
Dubai, United Arab Emirates, P.O. Box
17033

[phone]
[phone]
[e-mail]

Linkedin.com/company/Emerson-

Automation-Solutions

twitter.com/rosemount_news

Facebook.com/Rosemount

youtube.com/RosemountMeasurement

EUROPE

Emerson Automation Solutions
Neuhofstrasse 19a PO Box 1046
CH-6340 Baar
Switzerland

[phone]
[phone]
[e-mail]

ASIA-PACIFIC

Emerson Automation Solutions
1 Pandan Crescent
Singapore 128461
Republic of Singapore

[phone]
[phone]
[e-mail]

©

2019 Emerson. All rights reserved.

The Emerson logo is a trademark and service
mark of Emerson Electric Co. Rosemount is a
mark of one of the Emerson family of companies.
All other marks are the property of their
respective owners.
