Rosemount 485 Annubar Flanged Assembly Quick Start Guide

Quick Start Guide

00825-0100-4809, Rev DC

Rosemount™ 485 Annubar™ Flanged
Assembly

June 2016

Quick Start Guide

June 2016

NOTICE

This guide provides basic guidelines for Rosemount 485 Annubar. It does not provide instructions for
configuration, diagnostics, maintenance, service, troubleshooting, Explosion-proof, Flameproof, or
Intrinsically Safe (I.S.) installations. Refer to Rosemount 485 Annubar Reference Manual
instruction. This manual is also available electronically on Emerso nProcess.com/Rosemount

If the Rosemount Annubar was ordered assembled to a Rosemount Pressure Transmitter, see the following
Quick Start Guides for information on configuration and hazardous locations certifications:

 Rosemount 3051S Series Pressure Transmitter and Rosemount 3051SF Series Flowmeter Quick Start

Guide.

 Rosemount 3051S MultiVariable Transmitter and Rosemount 3051SF Series Flowmeter MultiVariable

Tra ns mi tte r Quick Start Guide

 Rosemount 3051 Pressure Transmitter and Rosemount 3051CF Series Flowmeter Transmitter Quick

Start Guide.

 Rosemount 2051 Pressure Transmitter and Rosemount 2051CF Series Flowmeter Transmitter Quick

Start Guide.

Process leaks may cause harm or result in death. To avoid process leaks, only use gaskets designed to seal
with the corresponding flange and o-rings to seal process connections. Flowing medium may cause the
Rosemount 485 Annubar assembly to become hot and could result in burns.

.

for more

.

Contents

Location and orientation. . . . . . . . . . . . . . . . . . . 4

Drill sensor holes . . . . . . . . . . . . . . . . . . . . . . . . . 8

Assemble and check fit-up . . . . . . . . . . . . . . . . . 9

Weld mounting hardware. . . . . . . . . . . . . . . . 11

2

Insert the Rosemount Annubar Sensor. . . . . . 12

Mount the transmitter. . . . . . . . . . . . . . . . . . . . 12

Product certifications . . . . . . . . . . . . . . . . . . . . 18

June 2016

Quick Start Guide

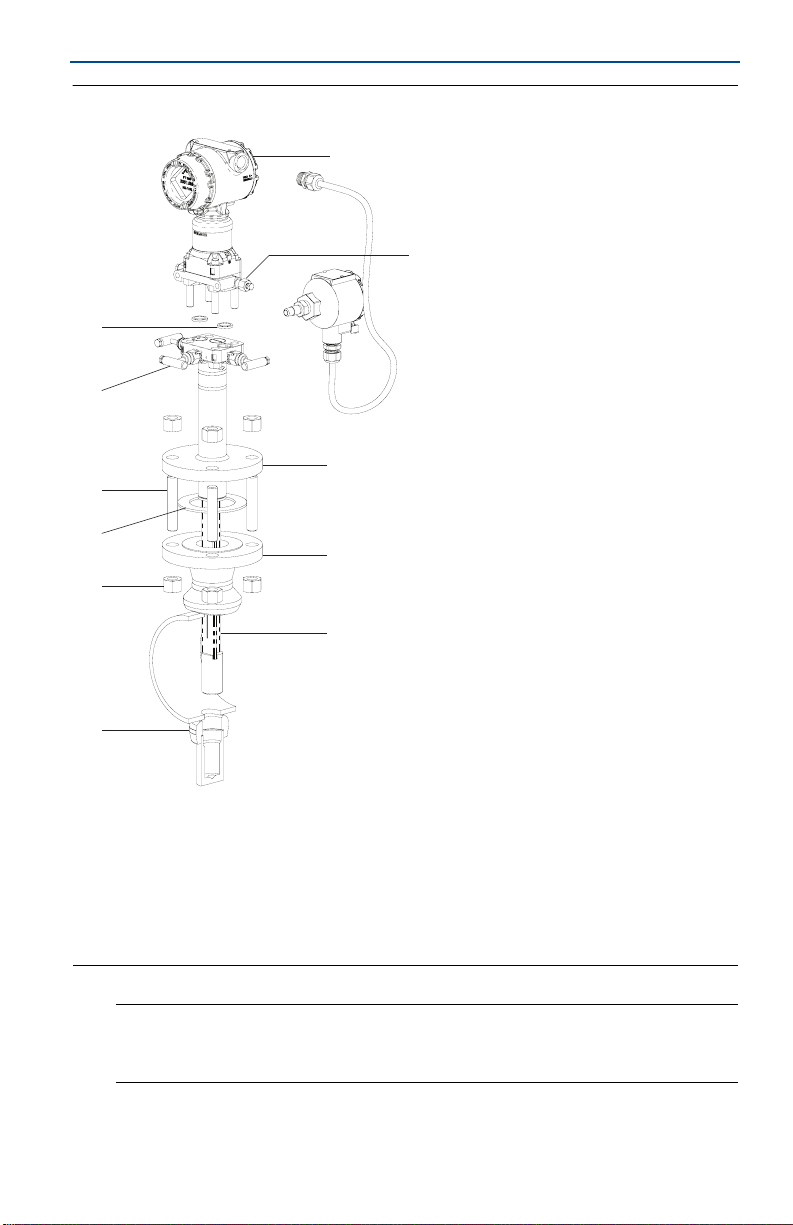

Figure 1. Rosemount 485 Annubar Flange Assembly Exploded View

G

H

A

B

I

C

D

J

E

K

(1)

F

A. 2⫻ O-rings
B. Direct mount transmitter connection with valves
C. Studs
D. Gasket
E. Nuts
F. Opposite side support

Note

Use an appropriate pipe sealing compound rated for the service temperature on all
threaded connections.

1. Transmitter and housing are shown for clarity purposes – only supplied if ordered.

G. Transmitter
H. Coplanar flange with drain vents
I. Sensor flange
J. Mounting flange assembly
K. Rosemount 485 Annubar Sensor

3

Quick Start Guide

1.0 Location and orientation

Correct orientation and straight run requirements must be met for accurate and
repeatable flow measurements. Refer to Table 1 for minimum pipe diameter
distances from upstream disturbances.

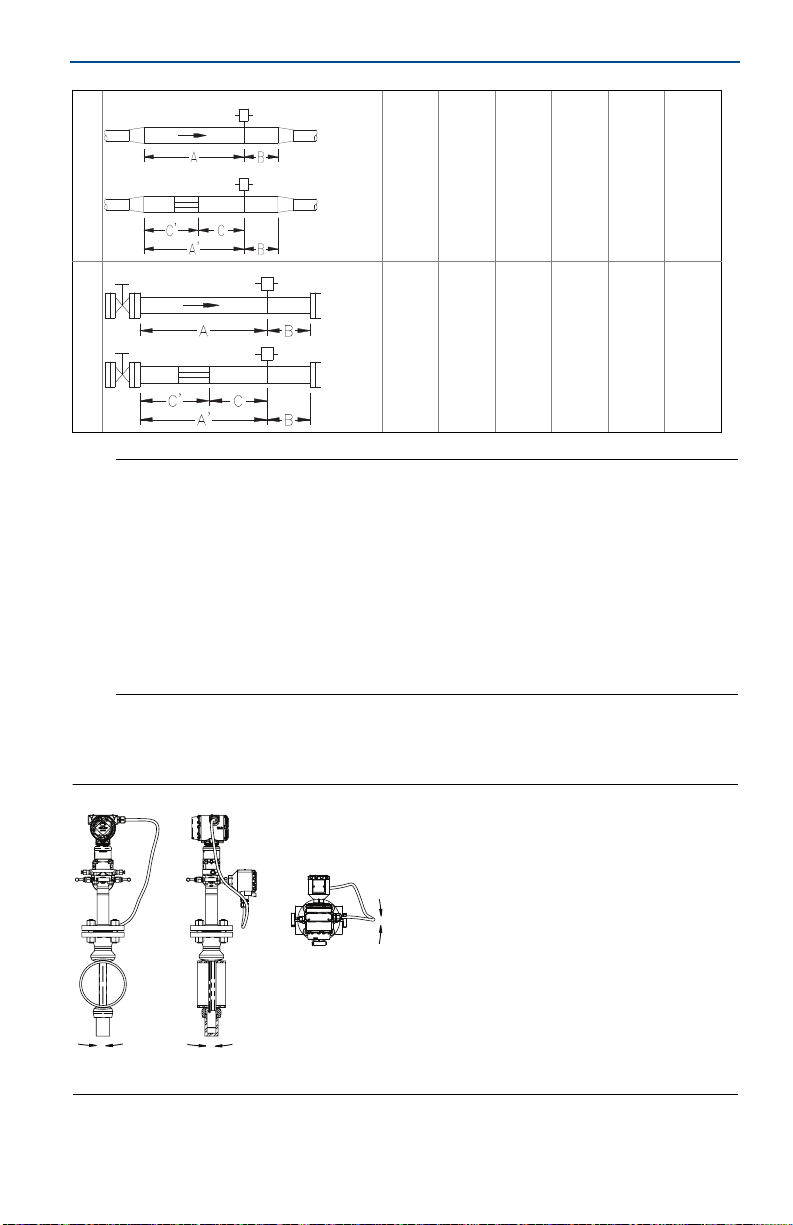

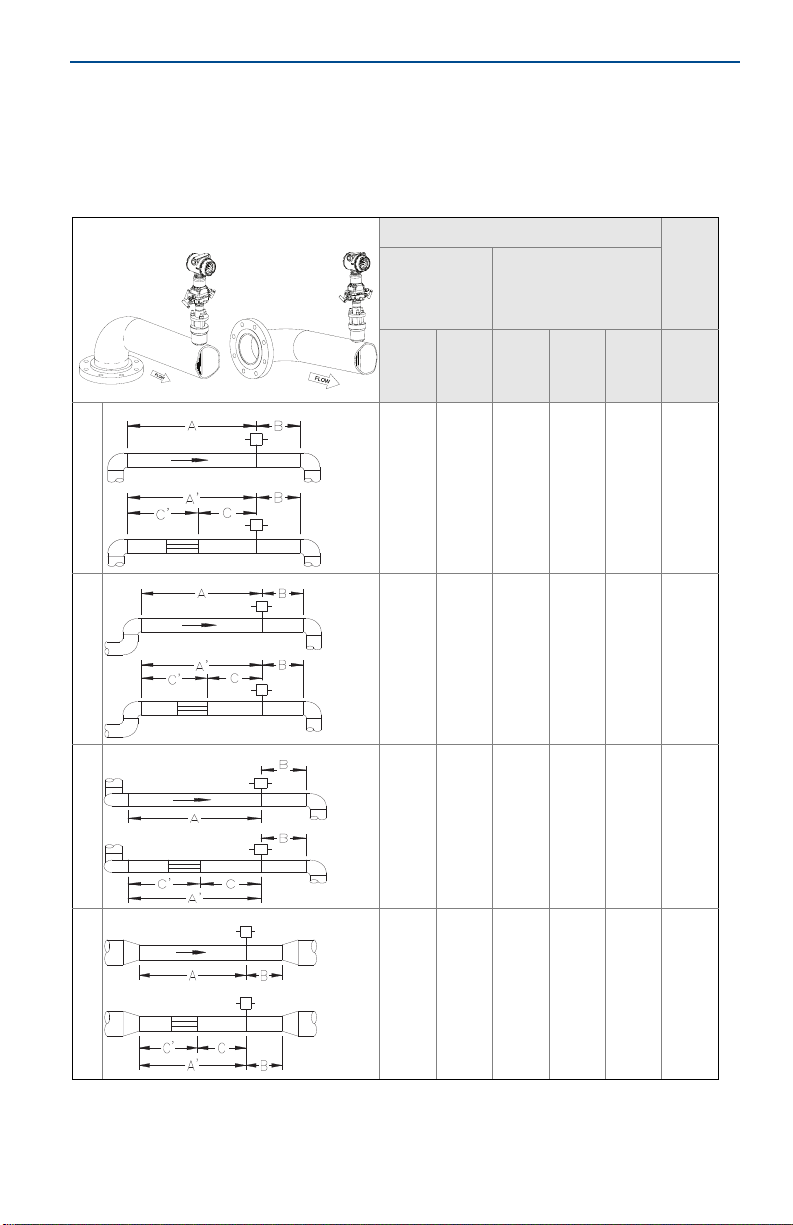

Table 1. Straight Run Requirements

In plane____________Out of plane Upstream pipe diameters

June 2016

Without

straightening

vanes

In

Out of

plane

plane

A

8

1

N/A10N/A

11

2

N/A16N/A

23

3

With straightening

vanes

A’ C C’ B

A

N/A8N/A4N/A

N/A8N/A4N/A

N/A8N/A4N/A

Downstream

pipe diameters

4

4

4

4

4

4

4

N/A28N/A

12

4

N/A12N/A

N/A8N/A4N/A

4

4

4

4

4

4

June 2016

±3°

±3°±3°

Quick Start Guide

18

5

N/A18N/A

30

6

N/A30N/A

N/A8N/A4N/A

4

N/A8N/A4N/A

4

Note

 Consult the factory for instructions regarding use in square or rectangular

ducts.

 “In plane A” means the sensor is in the same plane as the elbow. “Out of plane

A” means the sensor is perpendicular to the plane of the elbow.

 If proper lengths of straight run are not available, position the mounting such

that 80% of the run is upstream and 20% is downstream.

 Use straightening vanes to reduce the required straight run length.
 Row 6 in Ta bl e 1 applies to gate, globe, plug, and other throttling valves that

are partially opened, as well as control valves.

4

4

4

4

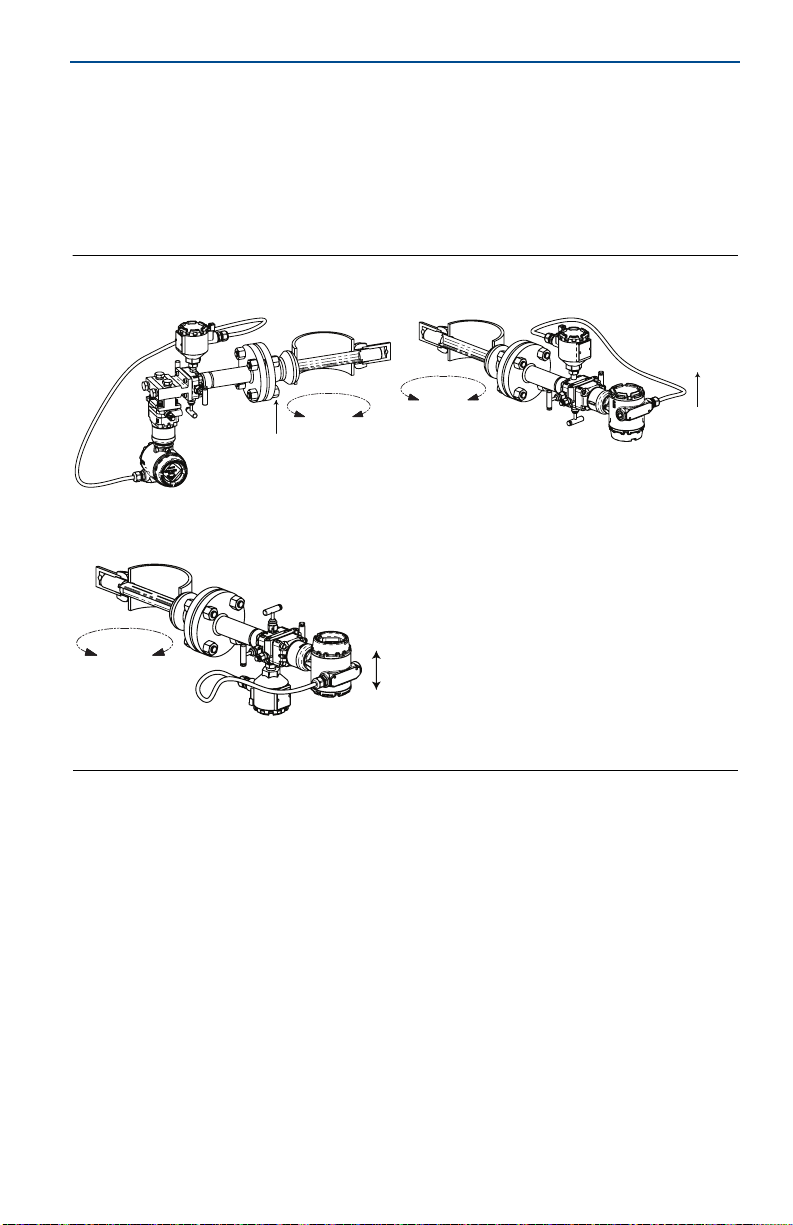

1.1 Misalignment

Rosemount 485 Annubar installation allows for a maximum misalignment of 3°.

Figure 2. Misalignment

5

Quick Start Guide

±45°

±45°

30°

Recommended
zone 30°

Recommended

zone 30°

45°

45°

Recommended
zone 90°

30°

45° 45°

Recommended
zone 30°

Recommended
zone 30°

1.2 Horizontal orientation

For proper venting and draining, the sensor should be located in the upper half of
the pipe for air and gas applications. For liquid and steam applications, the sensor
should be located in the bottom half of the pipe. The maximum temperature for a
direct mounted transmitter is 500 °F (260 °C).

Figure 3. Horizontal Orientation

Liquid and steam Gas

June 2016

Note

For steam applications with DP readings between 0.75 and 2 inH2O in horizontal pipes, it is
recommended to install the primary element/flowmeter mounting above the pipe.

6

Top mounting for steam

June 2016

360°

Flow

Quick Start Guide

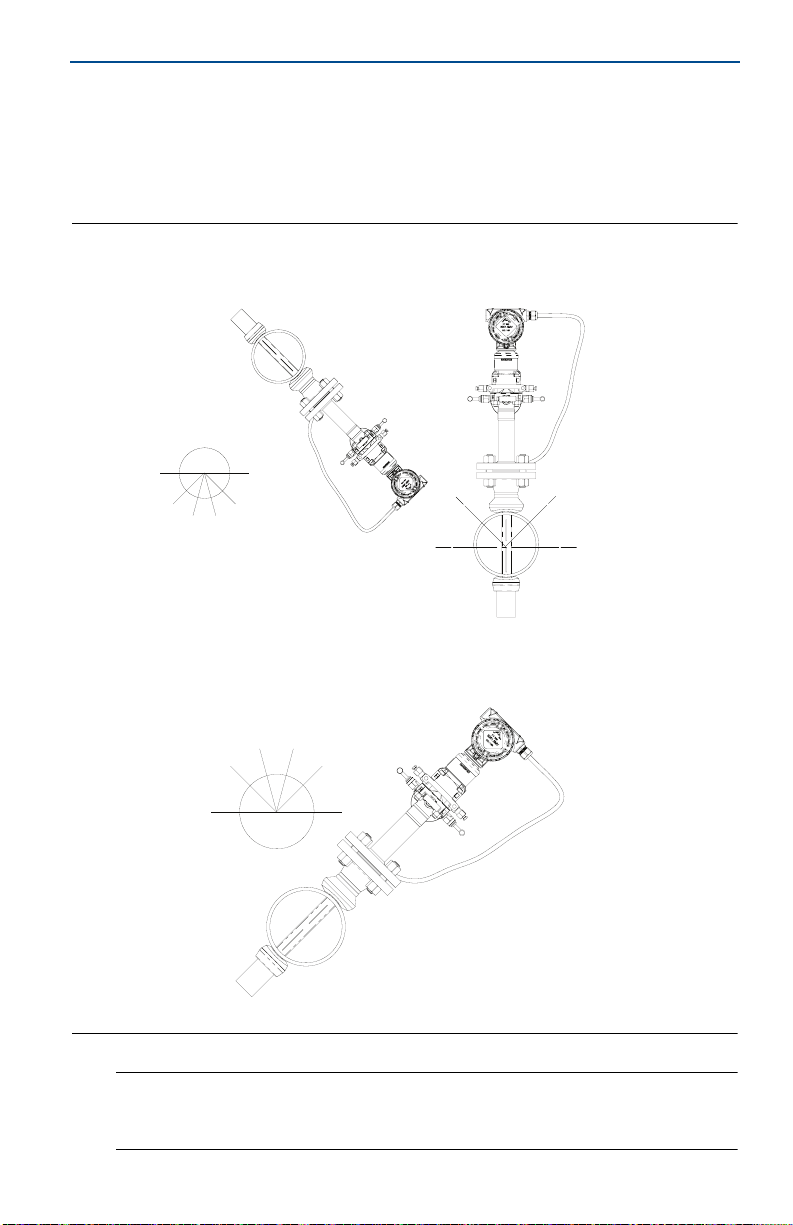

1.3 Vertical orientation

The sensor can be installed in any position around the circumference of the pipe,
provided the vents are positioned properly for bleeding or venting. Optimal
results for liquid or steam are obtained when flow is up. For steam applications, a
90° spacer will be added to provide water legs to ensure the transmitter stays
within temperature limits. The maximum temperature for a direct mounted
transmitter is 500 °F (260 °C).

Figure 4. Vertical Orientation

Steam Liquid

Gas

Flow

360°

360°

Flow

7

Quick Start Guide

P/N: 28-109001-922 Rev. AC

Drill to Hole Size

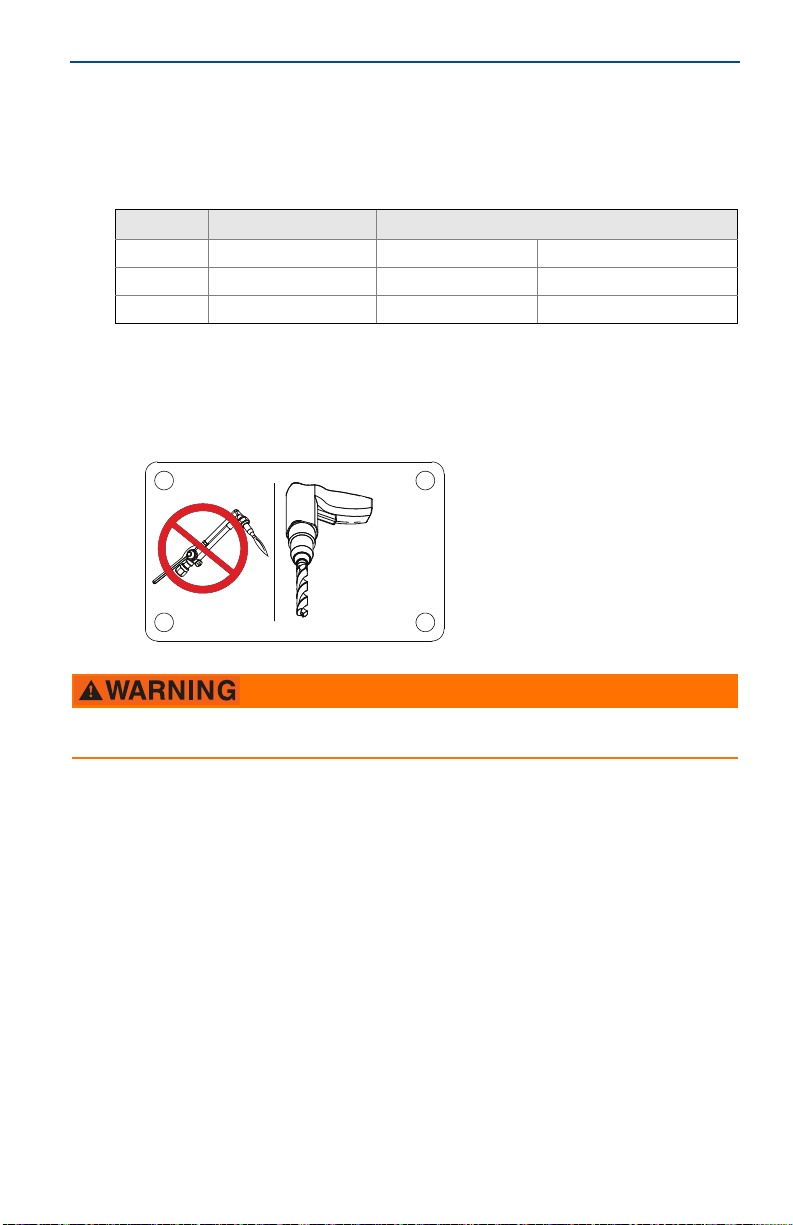

2.0 Drill sensor holes

1. Determine the sensor size based on the probe width (see Tab l e 2 ).

Table 2. Sensor Size/Hole Diameter Chart

Sensor size Sensor width Hole diameter

1 0.590-in. (14,99 mm)

2 1.060-in. (26,92 mm) 15/16-in. (34 mm) +1/16-in. (1,6 mm) – 0.00

3 1.935-in. (49,15 mm) 21/2-in. (64 mm) +1/16-in. (1,6 mm) – 0.00

2. Depressurize and drain the pipe.

3. Select the location to drill the hole.

4. Determine the diameter of the hole to be drilled according to the
specifications in Ta bl e 2 . Drill the mounting hole into the pipe with a hole saw
or drill. DO NOT TORCH CUT THE HOLE.

3

/4-in. (19 mm) +1/32-in (0,8 mm) – 0.00

June 2016

When drilling the mounting hole(s), Emerson™ Process Management recommends the use of a magnetic drill
or pipe clamping fixture to safely drill the hole. Use appropriate personal protective equipment and
procedures when drilling and welding.

8

June 2016

Drill the appropriate diameter hole
through the pipe wall.

Quick Start Guide

5. Although it is not commonly selected, if an opposite-side support model is
supplied, a second identically sized hole must be drilled opposite the first hole
so that the sensor can pass completely through the pipe. (To determine if you
have an opposite-side support model, measure the distance from the tip to
the first slot or hole. If the distance is greater than 1-in. (25,4 mm), it is the
opposite-side support model.) To drill the second hole, follow these steps:

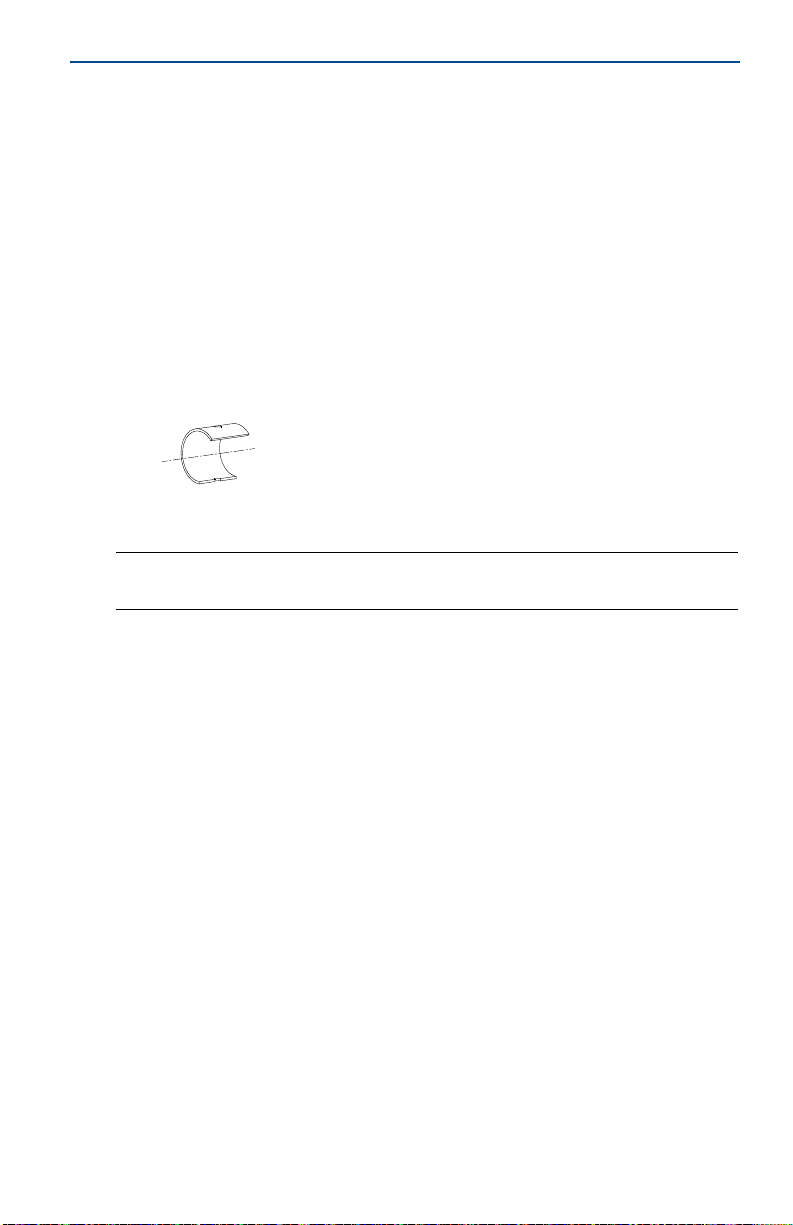

a. Measure the pipe circumference with a pipe tape, soft wire, or string. (For

the most accurate measurement the pipe tape needs to be perpendicular to
the axis of flow.)

b. Divide the measured circumference by two to determine the location of the

second hole.

c. Re-wrap the pipe tape, soft wire, or string from the center of the first hole.

Then, using the number calculated in step b, mark the center of what will
become the second hole.

d. Using the diameter determined in step 4, drill the hole into the pipe with a

hole saw or drill. DO NOT TORCH CUT THE HOLE.

Note

Drill the hole 180° from the first hole for opposite- side support models.

6. Deburr the drilled holes on the inside of the pipe.

3.0 Assemble and check fit-up

For accurate measurement, use the following steps to ensure that Ports A and B
are equal distances from the inside walls of the pipe.

1. Assemble the Rosemount 485 to the mounting hardware with the gaskets and
bolts.

2. Hand tighten the bolts just enough to hold the position of the sensor centered
in the mounting hardware.

3. Measure the distance from the high point of the butt weld branch connection
to the first sensing hole, port B, then subtract

4. Measure the distance from the end of the transferred length in step 3 to the
last sensing hole, port A.

5. Compare the numbers obtained in steps 3 and 4.

Small discrepancies can be compensated for with the fit-up of the mounting
hardware. Large discrepancies may cause installation problems or error.

1

/16-in (1,6 mm).

9

Quick Start Guide

A

B

C

D

E

June 2016

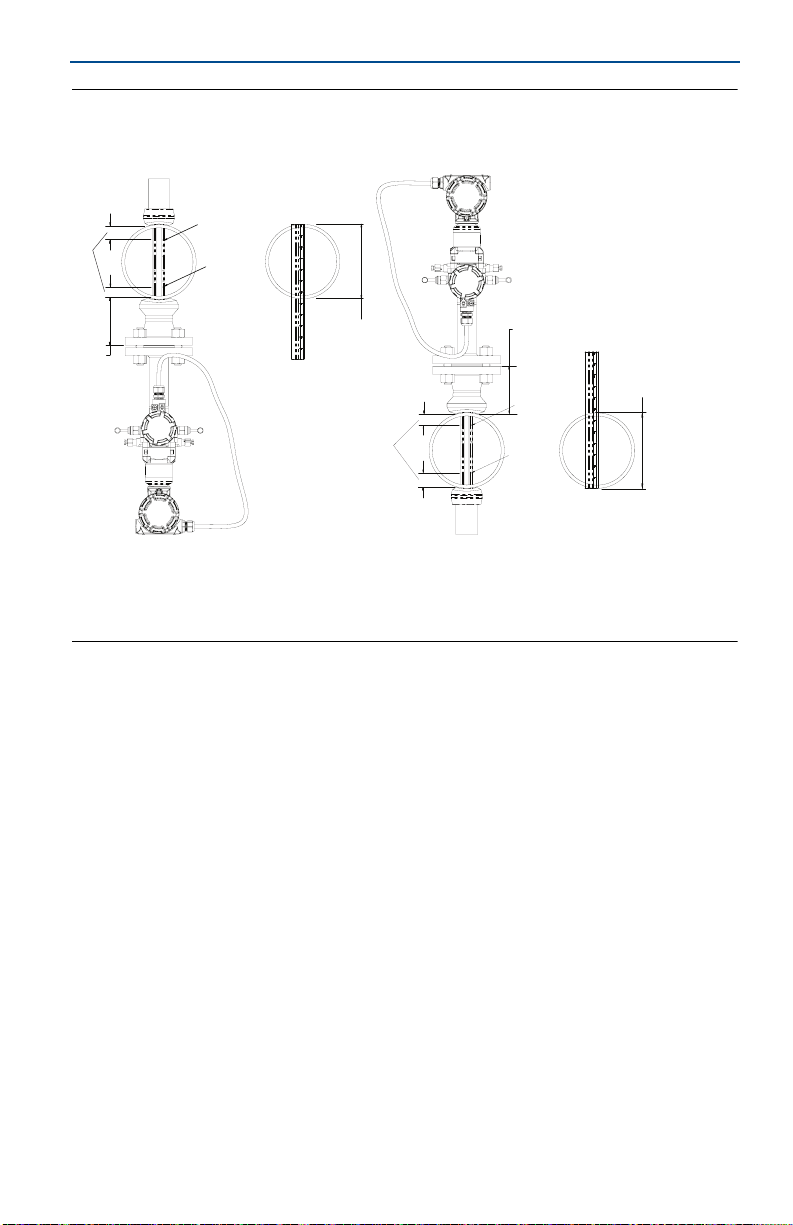

Figure 5. Fit-up Check for Rosemount 485 Annubar with Opposite-Side Support

Liquid or steam Gas

D

E

A. The same with 1/8-in. (3 mm)
B. Port A

C

A

B

D. Outer Diameter to Flange (ODF)
E. Pipe outside diameter

C. Port B

10

June 2016

ODF

A

Quick Start Guide

4.0 Weld mounting hardware

1. Center the flanged assembly over the mounting hole, gap 1/16-in. (1,6 mm),
and measure the distance from the outer diameter of the pipe to the face of
the flange. Compare this to Ta bl e 3 and adjust the gap as necessary.

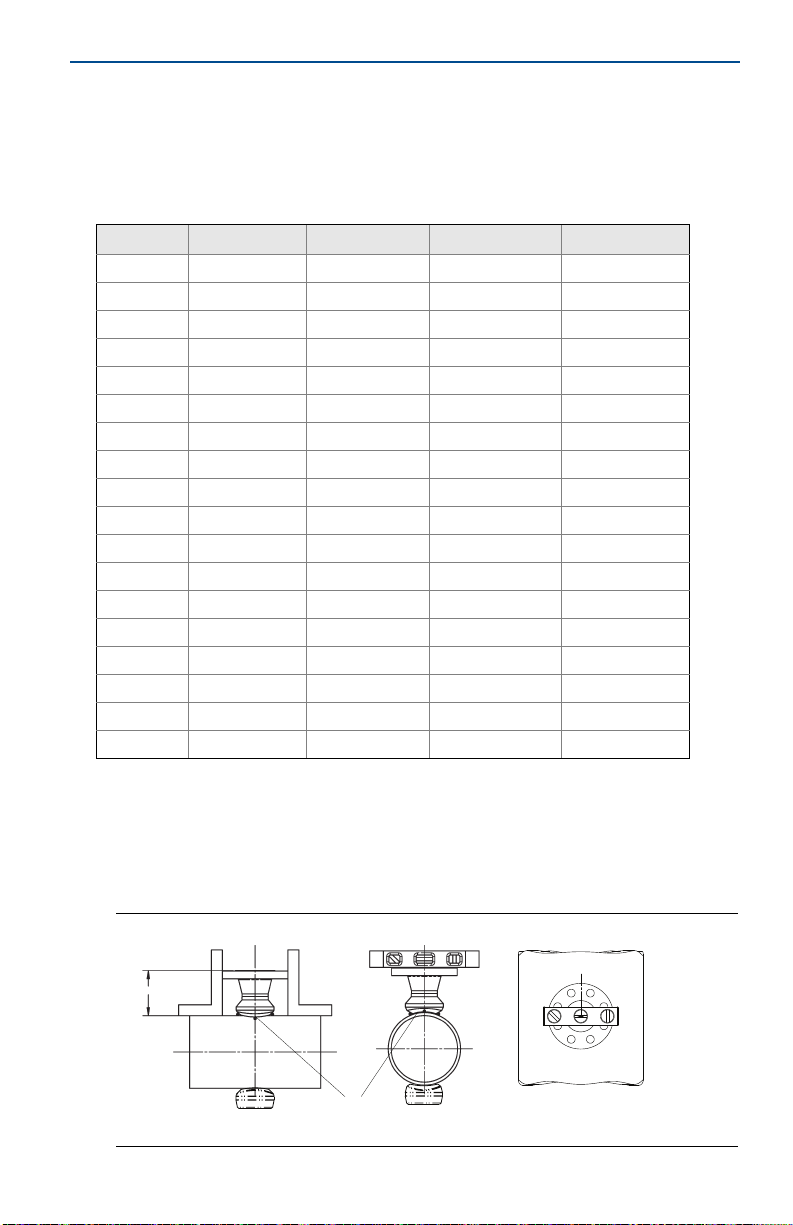

Table 3. Flange Sizes and ODF per Sensor Size

Sensor size Flange size ODF (in. [mm]) Size ODF (in. [mm])

1 11/2-in. 150# 3.88 (98,5) DN40 PN16 3.09 (78,6)

1 11/2-in. 300# 4.13 (104,9) DN40 PN40 3.21 (81,6)

1 11/2-in. 600# 4.44 (112,7) DN40 PN100 3.88 (98,6)

1 11/2-in. 900# 4.94 (125,4) N/A N/A

1 11/2-in. 1500# 4.94 (125,4) N/A N/A

1 11/2-in. 2500# 6.76 (171,6) N/A N/A

2 2.0-in. 150# 4.13 (104,8) DN50 PN16 3.40 (86,3)

2 2.0-in. 300# 4.38 (111,2) DN50 PN40 3.51 (89,3)

2 2.0-in. 600# 4.76 (120,8) DN50 PN100 4.30 (109,3)

2 2.0-in. 900# 5.88 (149,2) N/A N/A

2 2.0-in. 1500# 5.88 (149,2) N/A N/A

2 3.0-in. 2500# 9.87 (250,7) N/A N/A

3 3.0-in. 150# 4.63 (117,5) DN80 PN16 3.84 (97,6)

3 3.0-in. 300# 5.00 (126,9) DN80 PN40 4.16 (105,6)

3 3.0-in. 600# 5.38 (136,6) DN80 PN100 4.95 (125,6)

3 4.0-in. 900# 8.19 (208,0) N/A N/A

3 4.0-in. 1500# 8.56 (217,5) N/A N/A

3 4.0-in. 2500# 11.19 (284,2) N/A N/A

1

2. Place four

/4-in. (6 mm) tack welds at 90° increments. Check alignment of the
mounting both parallel and perpendicular to the axis of flow (see Figure6). If
alignment of the mounting is within tolerances, finish weld per local codes. If
alignment is outside of specified tolerance, make adjustments prior to making
the finish weld.

Figure 6. Alignment

A. Tack welds

11

Quick Start Guide

June 2016

3. If opposite-side support is being used, center the fitting for the opposite side
support over the opposite side hole, gap

1

/4-in. (6 mm) tack welds at 90° increments. Insert the sensor into the
mounting hardware. Verify that the tip of the sensor is centered in the
opposite side fitting and the plug will fit around sensor. Finish weld per local
codes. If alignment of the sensor does not allow enough clearance to insert
the opposite side plug, make the necessary adjustments prior to making the
finish weld.

4. To avoid serious burns, allow the mounting hardware to cool before
continuing.

1

/16-in. (1,6 mm), and place four

5.0 Insert the Rosemount Annubar Sensor

1. Align the flow arrow on the head with the direction of flow. Assemble the bar
to the mounting flange using a gasket, bolts, and nuts.

2. Tighten the nuts in a cross pattern to allow even compression of the gasket.

3. If opposite side support is threaded, apply an appropriate thread sealing
compound to the support plug threads and tighten until no leakage occurs.

4. If opposite side support is a socket weld fitting, insert the plug into the
socket-weld outlet fitting until the parts contact. Retract the plug 1/16-in.
(1,6 mm) remove the Rosemount Annubar Sensor and apply fillet weld per
local codes.

6.0 Mount the transmitter

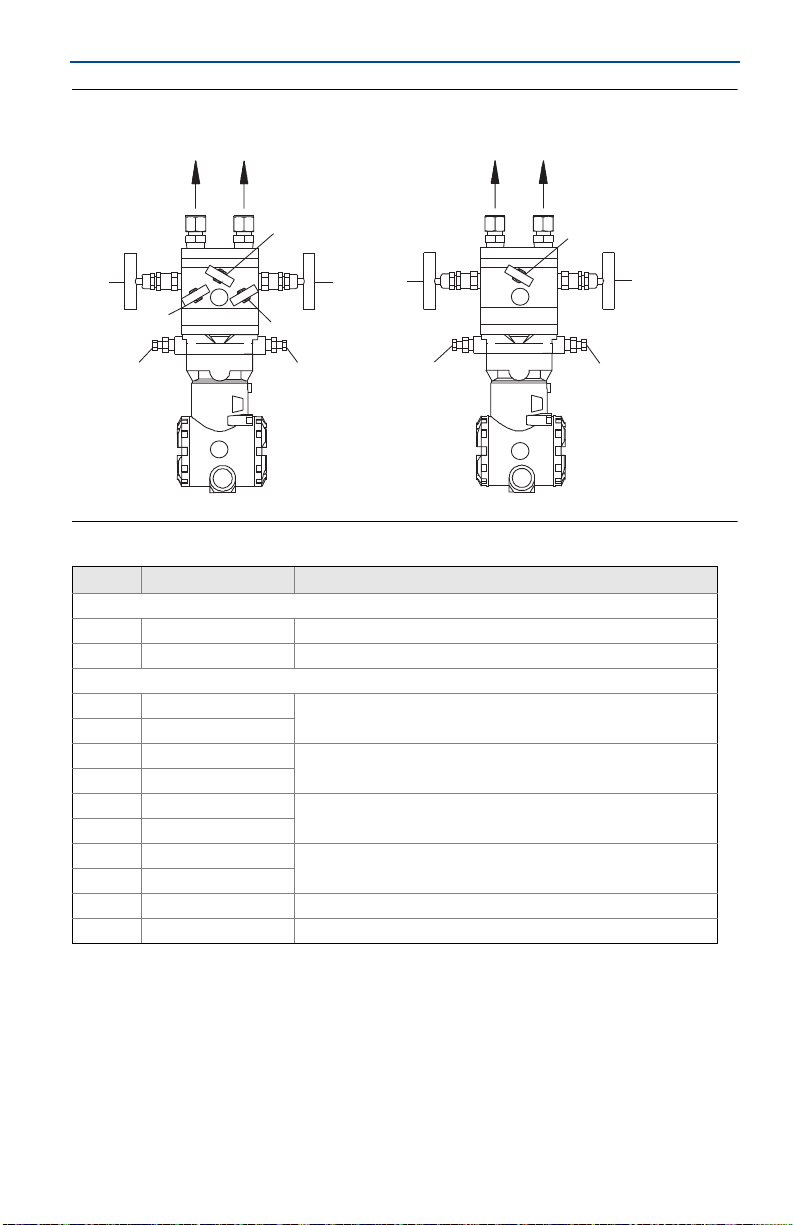

6.1 Transmitter mounting, direct mount head with valves

It is not necessary to retract the Rosemount Annubar when direct mounting a
transmitter with valves.

1. Place PTFE O-rings into grooves on the Rosemount Annubar head.

2. Align the high side of the transmitter to the high side of the sensor (“Hi” is
stamped on the side of the head) and install.

3. Tighten the nuts in a cross pattern to 384 in-lb (43 N-m).

12

June 2016

Quick Start Guide

6.2 Transmitter mounting with remote mount head

Temperatures in excess of 250 °F (121 °C) at the sensor module diaphragms will
damage the transmitter. Remote mounted transmitters are connected to the
sensor by means of impulse piping, which allows process temperatures to
decrease to a point where the transmitter is no longer vulnerable.

Different impulse piping arrangements are used depending on the process fluid
and must be rated for continuous operation at the pipeline design pressure and
temperature. A minimum of
with a wall thickness of at least 0.035-in. (0,9 mm) is recommended including and
under 600# ANSI (DN50 PN100). Above 600# ANSI (DN50 PN100), stainless steel

1

tubing with

/16-in. wall thickness.Threaded pipe fittings are not recommended
because they create voids where air can become entrapped and create leakage
points.

The following restrictions and recommendations apply to impulse piping
location:

1. Impulse piping that runs horizontally must slope at least one inch per foot

(83 mm/m).

- Slope downward (toward the transmitter) for liquid and steam applications.

- Slope upward (toward the transmitter) for gas applications.

2. Outdoor installations for liquid, saturated gas, or steam may require insulation

and heat tracing to prevent freezing.

3. An instrument manifold is recommended for all installations. Manifolds allow

an operator to equalize the pressures prior to zeroing and isolates the process
fluid from the electronics.

1

/2-in. (12 mm) outer diameter stainless steel tubing

13

Quick Start Guide

Figure 7. Valve Identification for 5-Valve and 3-Valve Manifolds

5-valve manifold 3-valve manifold

June 2016

To PH To PL

To PH

MV

MH

MEH

DVH

2

MEL

DVL

1

Table 4. Description of Impulse Valves and Components

Name Description Purpose

Components

1 Transmitter Reads Differential Pressure

2 Manifold Isolates and equalizes electronics

Manifold and impulse valves

(1)

PH Primary sensor

PL Primary sensor

DVH Drain/ vent valve

DVL Drain/ vent valve

MH Manifold

ML Manifold

MEH Manifold equalizer

MEL Manifold equalizer

ME Manifold equalizer Allows high and low side pressure to equalize

MV Manifold vent valve Vents process fluid

(2)

(1)

(2)

High and low side pressure process connections.

(1)

Drains (for gas service) or vents (for liquid or steam service) the DP
sensor diaphragms

(2)

Isolates high side or low side pressure from the process

(1)

Allows high and low pressure side access to the vent valve, or for
isolating the process fluid

(2)

ML

MH

2

DVH

1

To PL

ME

ML

DVL

1. High pressure

2. Low pressure

14

June 2016

Quick Start Guide

6.3 Recommended installations for remote mount transmitters

Gas service

Secure the transmitter above the sensor to prevent condensable liquids from
collecting in the impulse piping and the DP cell.

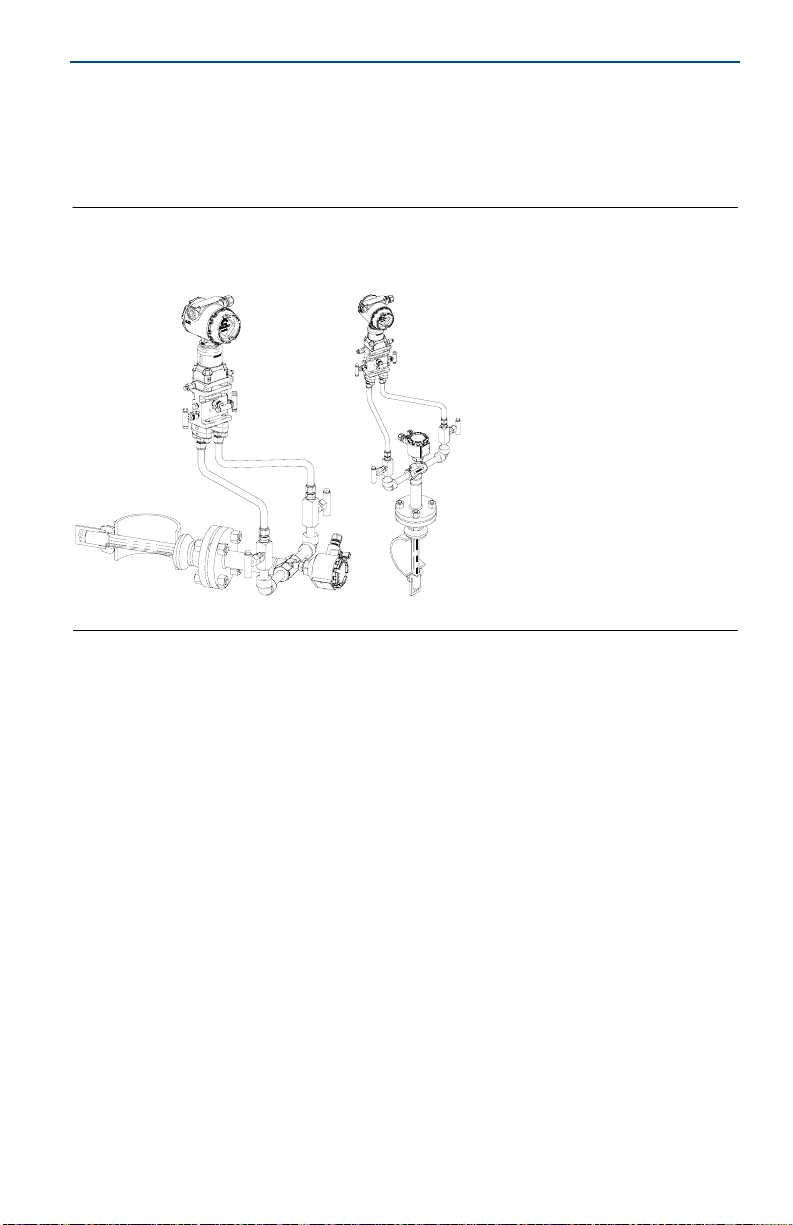

Figure 8. Gas Service

Vertical gas Horizontal gas

15

Quick Start Guide

Steam or liquid service

Mount the transmitter below the process piping, adjust 10 to 15 degree above
direct vertical down. Route the impulse piping down to the transmitter and fill the
system with water through the two cross fittings.

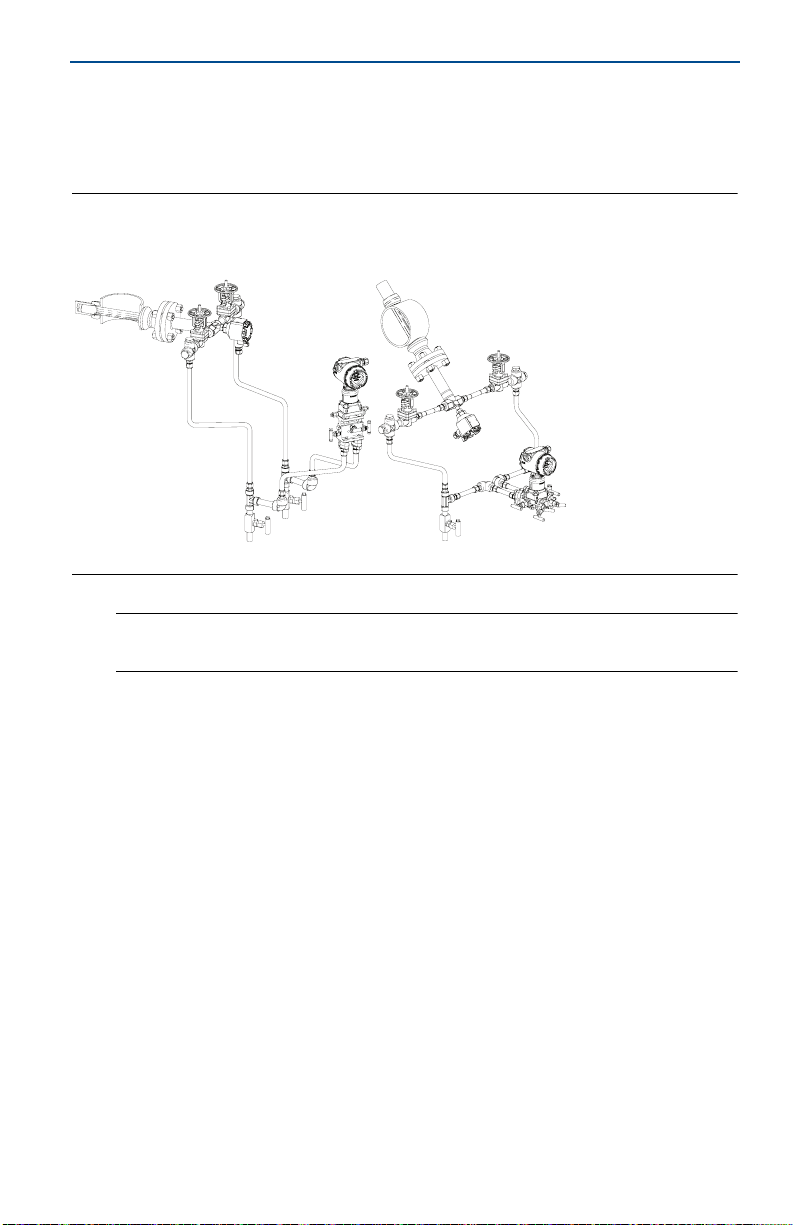

Figure 9. Steam or Liquid Service

Vertical steam and liquid Horizontal steam and liquid

June 2016

Note

Ensure the drain legs are long enough to capture the dirt particles and sediment.

16

June 2016

Quick Start Guide

Top mounting for steam service

This orientation can be used for steam at any temperature. However, it is required
for installations above 600 °F (315 °C). For remote mount installations the
impulse piping should slope up slightly from the instrument connections on the
Rosemount Annubar to the cross fittings allowing condensate to drain back into
the pipe. From the cross fittings, the impulse piping should be routed downward
to the transmitter and the drain legs. The transmitter should be located below the
instrument connections of the Rosemount Annubar. Depending on the
environmental conditions, it may be necessary to insulate the mounting
hardware.

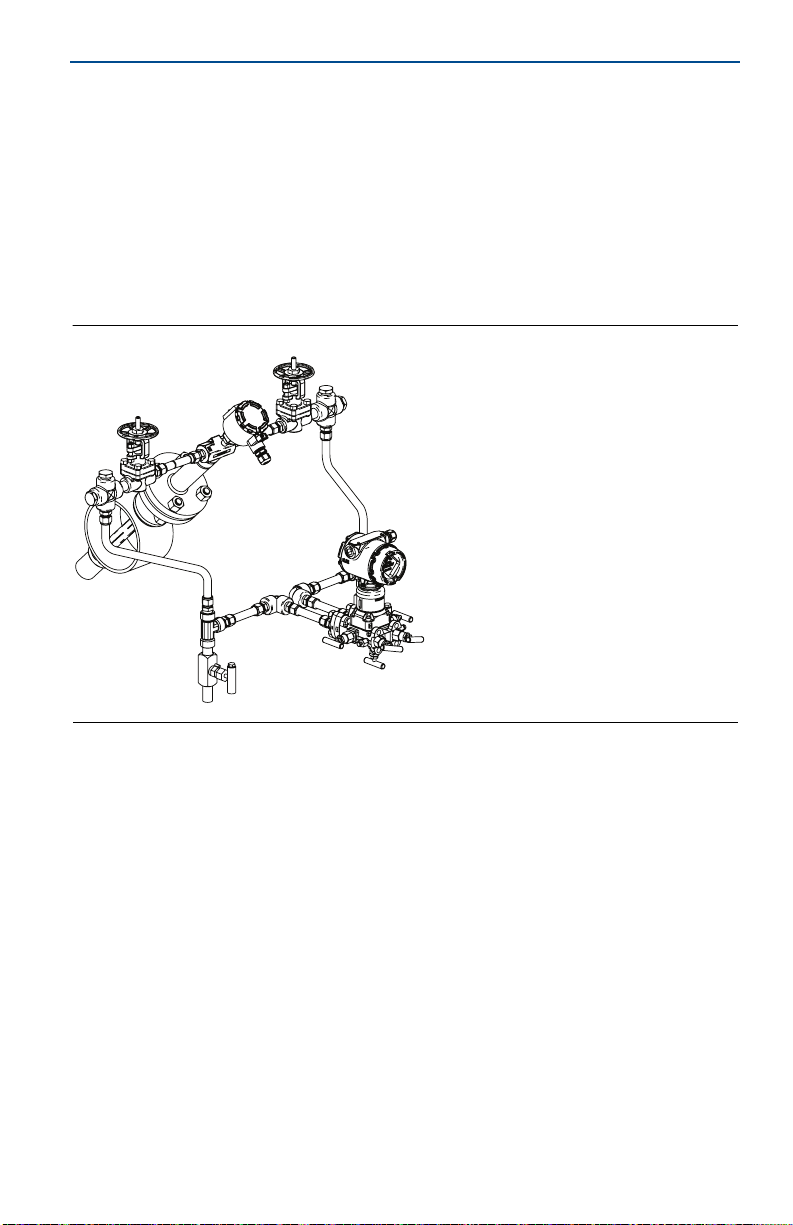

Figure 10. Horizontal Top Mounting for Steam

17

Quick Start Guide

7.0 Product certifications

7.1 Approved Manufacturing Locations

Rosemount Inc. – Shakopee, Minnesota USA

Rosemount DP Flow Design and Operations – Boulder, Colorado USA

Emerson Process Management GmbH & Co. OHG – Wessling, Germany

Emerson Process Management Asia Pacific Private Limited – Singapore

Emerson Beijing Instrument Co., Ltd – Beijing, China

7.2 European Directive Information

The EC declaration of conformity for all applicable European directives for this
product can be found on the Rosemount website at

www2.EmersonProcess.com/en-us/brands/Rosemount/pages/index.aspx

A hard copy may be obtained by contacting our local sales office.

European Pressure Equipment Directive (PED) (97/23/EC)

Rosemount 485 Annubar — Refer to EC declaration of conformity for conformity
assessment

Pressure Transmitter — See appropriate Pressure Transmitter QSG

7.3 Hazardous Locations Certifications

For information regarding the transmitter product certification, see the
appropriate transmitter QSG:

 Rosemount 3051S Series Pressure Transmitter and Rosemount 3051SF Series

Flowmeter Quick Start Guide.

 Rosemount 3051S MultiVariable Transmitter and Rosemount 3051SF Series

Flowmeter MultiVariable Transmitter Quick Start Guide

 Rosemount 3051 Pressure Transmitter and Rosemount 3051CF Series

Flowmeter Transmitter Quick Start Guide.

 Rosemount 2051 Pressure Transmitter and Rosemount 2051CF Series

Flowmeter Transmitter Quick Start Guide

.

.

June 2016

.

18

June 2016

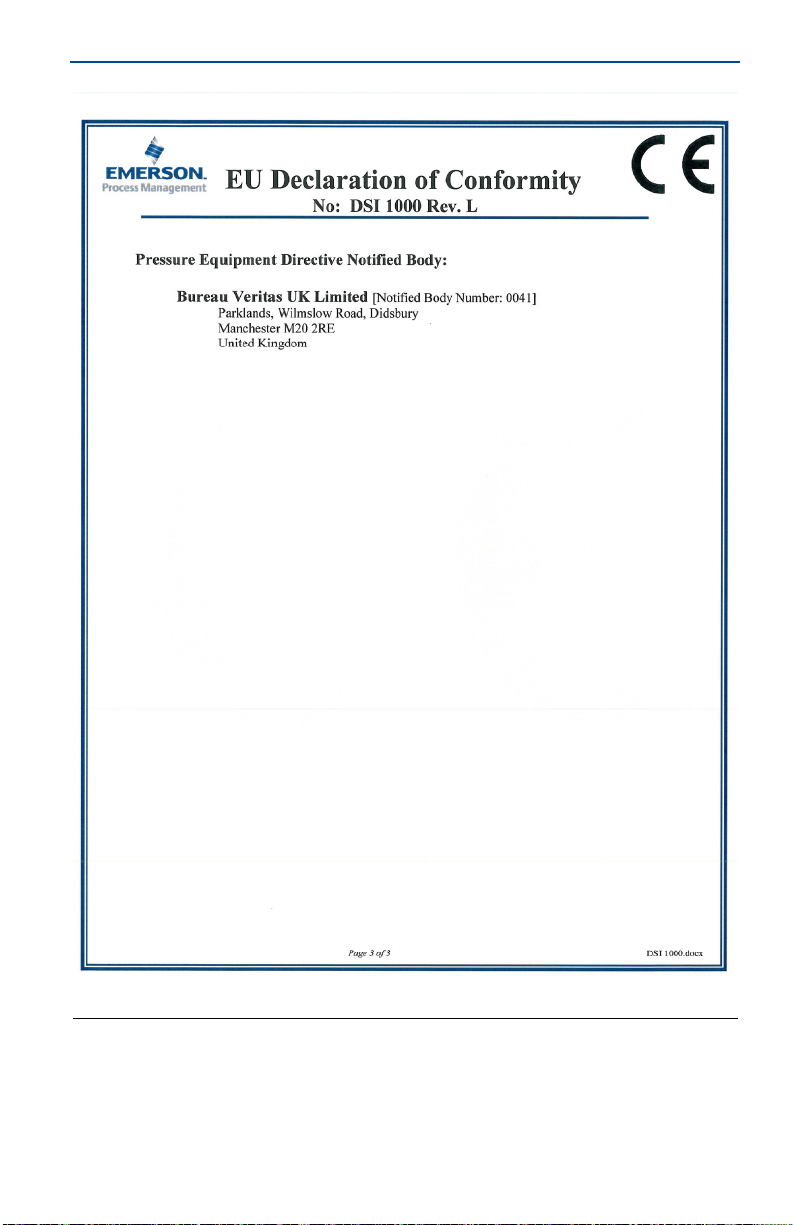

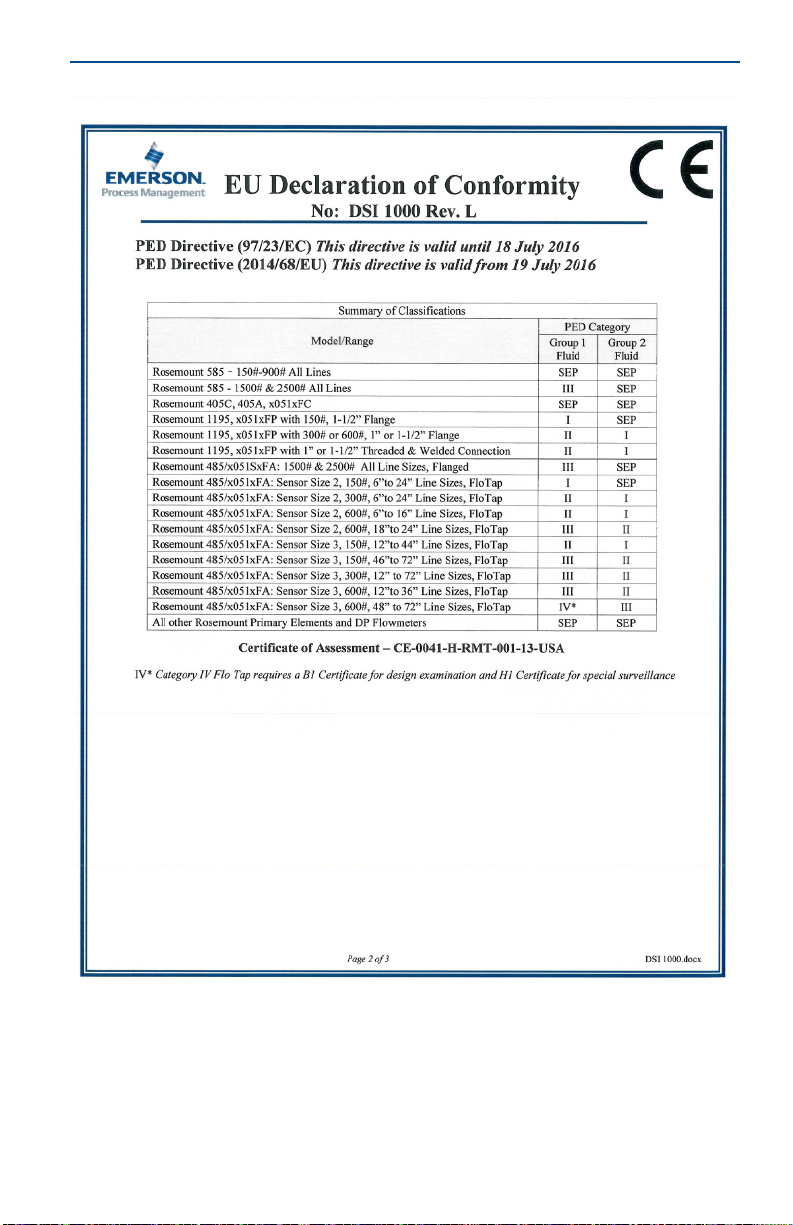

Figure 11. Rosemount Primary Element Declaration of Conformity

Quick Start Guide

19

Quick Start Guide

June 2016

20

June 2016

Quick Start Guide

21

Quick Start Guide

表表格

1B: 含有China RoHS

管控物峐超彯㚨⣏㳻⹎旸ῤ的部件型号列表

Rosemount 485

Table 1B: List of Rosemount 485 Parts with China RoHS Concentration above MCVs

部件名称

Part Name

有害物峐ġİġHazardous Substances

摭

Lead
(Pb)

汞

Mercury

(Hg)

擱

Cadmium

(Cd)

六价撔

Hexavalent

Chromium

(Cr +6)

多ⓤ俼劗

Polybrominated

biphenyls

(PBB)

多ⓤ俼劗慂

Polybrominated

diphenyl ethers

多ⓤ俼劗慂

(PBDE)

䬍ࡦ⑙ᓖՐ
ᝏಘཆ༣㓴

Ԧ

Aluminum

RTD

Housing

Assembly

O O O X O O

本表格系依据

SJ/T11364

的奬⭂侴⇞ἄįġ

This table is proposed in accordance with the provision of SJ/T11364
O:

意󰶃宍悐ẞ䘬㇨㚱⛯峐㛸㕁󰵶宍㚱⭛䈑峐䘬⏓慷⛯ỶḶ

GB/T 26572

所奬⭂䘬旸慷天㯪įġ

O: Indicate that said hazardous substance in all of the homogeneous materials for this part is below the limit requirement of
GB/T 26572.
X:

意󰶃⛐宍悐ẞ㇨ἧ䓐䘬㇨㚱⛯峐㛸㕁慴炻军⮹㚱ᶨ䰣⛯峐㛸㕁󰵶宍㚱⭛䈑峐䘬⏓慷檀Ḷ

GB/T 26572

所奬⭂䘬旸慷天㯪įġ

X: Indicate that said hazardous substance contained in at least one of the homogeneous materials used for this part is above
the limit requirement of GB/T 26572.

к䘠⭣᰾ӵ䘲⭘Ҿ䘹ᤙ䬍ࡦཆ༣㓴ԦⲴӗ૱DŽަԆᡰᴹᐞ঻⍱䟿а⅑ݳԦⲴ㓴ԦᡰᴹⲴ China RoHS ㇑᧗⢙䍘⎃
ᓖ൷վҾ GB/T 26572 ᡰ㿴ᇊⲴ䲀䟿㾱≲DŽޣҾᐞ঻⍱䟿䇑䘱ಘ㓴ԦⲴ㇑᧗⢙䍘⎃ᓖⲴ⭣᰾ˈ䈧৲ⴻ䘱ಘⲴᘛ
䙏ᆹ㻵ᤷইDŽ

The disclosure above applies to units supplied with aluminum connection heads. No other components supplied
with DP Flow primary elements contain any restricted substances. Please consult the transmitter Quick Start
Guide (QIG) for disclosure information on transmitter components.

June 2016

22

June 2016

Quick Start Guide

23

Global Headquarters

Emerson Process Management

6021 Innovation Blvd.
Shakopee, MN 55379, USA

[phone] or [phone]
[phone]
[e-mail]

North America Regional Office

Emerson Process Management

8200 Market Blvd.
Chanhassen, MN 55317, USA

[phone] or [phone]
[phone]
[e-mail]

Latin America Regional Office

Emerson Process Management

1300 Concord Terrace, Suite 400
Sunrise, FL 33323, USA

[phone]
[phone]
[e-mail]

Europe Regional Office

Emerson Process Management Europe GmbH

Neuhofstrasse 19a P.O. Box 1046
CH 6340 Baar
Switzerland

[phone]
[phone]
[e-mail]

Asia Pacific Regional Office

Emerson Process Management Asia Pacific Pte Ltd

1 Pandan Crescent
Singapore 128461

[phone]
[phone]
[e-mail]

Middle East and Africa Regional Office

Emerson Process Management

Emerson FZE P.O. Box 17033,
Jebel Ali Free Zone - South 2
Dubai, United Arab Emi rates

[phone]
[phone]

[e-mail]

*00825-0100-4809*

Quick Start Guide

00825-0100-4809, Rev DC

Linkedin.com/company/Emerson-Process-Management

Twitter.com/Rosemount_News

Facebook.com/Rosemount

Youtube.com/us er/RosemountMeasur ement

Google.com/+RosemountMeasurement

Standard Terms and Conditions of Sale can be found at

www.Emerson.com/en-us/pages/Terms-of-Use.aspx

The Emerson logo is a trademark and service mark of Emerson
Electric Co.
Annubar, Rosemount and Rosemount logotype are trademarks of
Emerson Process Management.
All other marks are the property of their respective owners.
© 2016 Emerson Process Management. All rights reserved.

June 2016
