Rosemount™ 3051S Electronic Remote
Sensor (ERS)™ System

with HART® Protocol

Quick Start Guide February 2019

Safety messages

NOTICE

This guide provides basic guidelines for the Rosemount™ 3051S ERS System. It does not provide
instructions for diagnostics, maintenance, service, or troubleshooting. Refer to the Rosemount 3051S
ERS Reference Manual for more instruction. This document is also available electronically on

Emerson.com/Rosemount.

WARNING

Explosions could result in death or serious injury.

Installation of device in an explosive environment must be in accordance with appropriate local,
national, and international standards, codes, and practices.

Review the Rosemount 3051S/3051SFx/3051S-ERS Product Certifications section of this guide for any
restrictions associated with a safe installation.

• Before connecting a handheld communicator in an explosive atmosphere, make sure the

instruments in the loop are installed in accordance with intrinsically safe or non-incendive field
wiring practices.

• In an explosion-proof/flameproof installation, do not remove the transmitter covers when power

is applied to the unit.

Process leaks could result in death or serious injury.

• Install and tighten process connectors before applying pressure.

Electrical shock could cause death or serious injury.

• Avoid contact with the leads and terminals. High voltage that may be present on leads can cause

electrical shock.

Conduit/cable entries

• Unless marked, the conduit/cable entries in the transmitter housing use a ½–14 NPT thread form.

Entries marked “M20” are M20 × 1.5 thread form. On devices with multiple conduit entries, all
entries will have the same thread form. Only use plugs, adapters, glands, or conduit with a
compatible thread form when closing these entries.

Contents

Identify system components..........................3

Sensor mounting........................................... 4

Consider housing rotation..............................9

Set the switches........................................... 10

Connect wiring and power up...................... 11

2 Rosemount 3051S ERS

Verify configuration..................................... 18

Calibrate the system.................................... 20

Rosemount 3051S/3051SFx/3051S-ERS

Product Certifications.................................. 21

February 2019 Quick Start Guide

1 Identify system components

A complete Rosemount ERS system contains two sensors. One is mounted on
the high-pressure (PHI) process connection, and the other is mounted on the
low-pressure (PLO) process connection. An optional remote display and
interface may also be included (not pictured) if ordered.

Procedure

1. Look at the wire-on tag on the Rosemount 3051S sensor to identify
whether it is configured as the PHI or PLO sensor.

2. Note
For new installations or applications, the second Rosemount 3051S
ERS sensor may have been shipped in a separate box.

If servicing or replacing part of an existing Rosemount 3051S ERS
system, the other sensor may already be installed.

Locate the second sensor that will be used in the Rosemount 3051S
ERS system.

Quick Start Guide 3

P sensor

HI

P sensor

LO

P sensor

HI

P sensor

LO

Pressure drop

Quick Start Guide February 2019

2 Sensor mounting

Mount the PHI and PLO sensors at the correct process connections for the
application. This section shows some common installations.

Vertical installation

In a vertical installation such as on a vessel or distillation column, the P
sensor should be installed at the bottom process connection. The PLO sensor
should be installed at the top process connection.

HI

Horizontal installation

In a horizontal installation, the PHI sensor should be installed at the upstream
process connection. The PLO sensor should be installed downstream.

4 Rosemount 3051S ERS

February 2019 Quick Start Guide

2.1 Mounting brackets

Figure 2-1: Mounting Bracket – Coplanar Flange

Panel mount Pipe mount

Figure 2-2: Mounting Brackets – Traditional Flange

Panel mount Pipe mount

Figure 2-3: Mounting Brackets – In-line

Panel mount

Quick Start Guide 5

Pipe mount

A

4 × 1.75-in. (44 mm)

C

4

× 1.50-in. (38 mm)

B

4 × 2.88-in. (73 mm)

4 × 1.75-in. (44 mm)

4 × 1.75-in. (44 mm)

Quick Start Guide February 2019

2.2 Bolt installation

If the installation requires assembly of a process flange, manifold, or flange
adapters, follow these assembly guidelines to ensure a tight seal for optimal
performance characteristics of the Rosemount™ 3051S ERS System. Only use
bolts supplied with the transmitter or sold by Emerson™ as spare parts. Figure

2-4 illustrates common transmitter assemblies with the bolt length required

for proper transmitter assembly.

Figure 2-4: Common Transmitter Assemblies

A. Transmitter with coplanar flange

B. Transmitter with coplanar flange and flange adapters

C. Transmitter with traditional flange and flange adapters

Bolts are typically carbon steel or stainless steel. Confirm the material by
viewing the marking on the head of the bolt and referencing Table 2-1. If bolt
material is not shown in Table 2-1, contact your local Emerson representative
for more information.

6 Rosemount 3051S ERS

A
B

C

D

B7M

316

316

316

SW

316

STM

316

R

B8M

February 2019 Quick Start Guide

Note

Carbon steel bolts do not require lubrication. Stainless steel bolts are coated
with a lubricant to ease installation, however no additional lubricant should be
applied when installing either type of bolt.

Procedure

1. Finger-tighten the bolts.

2. Torque the bolts to the initial torque value using a crossing pattern.
See Table 2-1 for initial torque value.

3. Torque the bolts to the final torque value using the same crossing
pattern. See Table 2-1 for final torque value.

4. Verify that the flange bolts are protruding through the module isolator
plate before applying pressure (See Figure 2-5).

Figure 2-5: Module Isolator Plate

A. Bolt
B. Sensor module isolator plate
C. Coplanar flange

D. Flange adapters

Table 2-1: Torque Values for the Flange and Flange Adapter Bolts

Bolt material Head markings Initial

torque

Carbon Steel (CS)

Stainless Steel (SST)

300 in-lb 650 in-lb

150 in-lb 300 in-lb

Quick Start Guide 7

Final
torque

Quick Start Guide February 2019

2.3 O-rings with flange adapters

WARNING

Use only the O-rings included with the flange adapter for this sensor. Failure
to install proper fitting flange adapter O-rings may cause process leaks, which
can result in death or serious injury.
When removing flanges or adapters, visually inspect the PTFE O-rings. Replace
them if there are any signs of damage such as nicks or cuts. If replacing O­rings, re-torque the flange bolts after installation to compensate for seating of
the PTFE O-ring.

8 Rosemount 3051S ERS

A

A

February 2019 Quick Start Guide

3 Consider housing rotation

To improve field access to wiring or to better view the optional LCD display:

Procedure

1. Loosen the housing rotation set screw.

2. Turn the housing up to 180° left or right of its original (as shipped)
position.

3. Retighten the housing rotation set screw.

Figure 3-1: Plantweb Housing

A. Housing rotation set screw (3/32-in.)

Figure 3-2: Junction Box Housing

A. Housing rotation set screw (3/32-in.)

Note

Do not rotate the housing on each transmitter more than 180° without
first performing a disassembly procedure (see Rosemount 3051S ERS

Reference Manual for more information). Over-rotation may sever the

electrical connection between the sensor module and feature board
electronics.

Quick Start Guide 9

A

B

Quick Start Guide February 2019

4 Set the switches

Prerequisites

If the sensor is equipped with alarm and security hardware switches, verify the
desired configuration (default: alarm = HI, security = OFF).

Procedure

1. If the sensor is installed, secure the loop and remove power.

2. Remove the housing cover opposite the field terminals side. Do not
remove the housing cover in explosive environments.

3. Slide the security and alarm switches into the preferred positions by
using a small screwdriver.

Figure 4-1: Transmitter Switch Configuration

A. Security switch
B. Alarm switch

4. Reinstall the housing cover so that metal contacts metal to meet
explosion-proof requirements.

10 Rosemount 3051S ERS

February 2019 Quick Start Guide

5 Connect wiring and power up

The system can be wired in a variety of configurations, depending on the
hardware that was ordered.

5 Standard system

Procedure

1. Remove the housing cover labeled “Field Terminals” on both sensors.

2. Using the communication cable (if ordered) or an equivalent 4-wire
shielded assembly per the specifications detailed below, connect the
1, 2, A, and B terminals between the two sensors per Figure 5-1.

3. Connect the system to the control loop by connecting the + and ­PWR/COMM terminals to the positive and negative leads, respectively.

4. Plug and seal all unused conduit connections.

5. If applicable, install wiring with a drip loop. Arrange the drip loop so
the bottom is lower than the conduit connections on the transmitter
housings.

6. Reinstall and tighten the housing covers on both sensors so that metal
contacts metal to meet explosion-proof requirements.

5.1 System with remote display and interface

Procedure

1. Remove the housing cover labeled “Field Terminals” on both sensors
and the remote housing.

2. Using the communication cable (if ordered) or an equivalent 4-wire
shielded assembly per the specifications detailed below, connect the
1, 2, A, and B terminals between the two sensors and remote housing
in a “tree” (Figure 5-2) or “daisy-chain” (Figure 5-3) configuration.

3. Connect the system to the control loop by connecting the + and ­PWR/COMM terminals on the remote housing to the positive and
negative leads, respectively.

4. Plug and seal all unused conduit connections.

5. If applicable, install wiring with a drip loop. Arrange the drip loop so
that the bottom is lower than the conduit connections on the
transmitter housings.

6. Reinstall and tighten all housing covers so that metal contacts metal to
meet explosion-proof requirements.

Quick Start Guide 11

Quick Start Guide February 2019

5.2 Wiring diagrams

Figure 5-1, Figure 5-2, and Figure 5-3 show the wiring connections necessary

to power a Rosemount 3051S ERS System and enable communications with a
handheld communicator.

Note

The wiring connection between the sensors (and remote housing if
applicable) must be made directly. An intrinsically safe barrier or other high­impedance device will cause the system to malfunction if placed between any
of the sensors.

Cable specifications

Cable type

Cable length

Cable
capacitance

Cable outside
diameter (O.D.)

Recommend Madison AWM Style 2549 cable. Other
comparable cable may be used as long as it has
independent dual twisted shielded pair wires with an
outer shield. The power wires (pin terminals 1 and 2)
must be 22 AWG minimum and the communication
wires (pin terminals A and B) must be 24 AWG minimum.

Up to 150 ft (45,7 m) depending upon cable capacitance.

The capacitance between the communication terminals
(pin terminals A and B) as wired must be less than 5000
picofarads total. This allows up to 50 picofarads per ft
(0,3 m) for a 100 ft (31 m) cable.

0.270-in. (6,86 mm)

12 Rosemount 3051S ERS

TEST

PWR/
COMM

+

_

_

1

2

A B

WIRE TO ERS PRIMARY

1

2

A

B

WIRE TO
ERS
SECONDARY

A

B

C

February 2019 Quick Start Guide

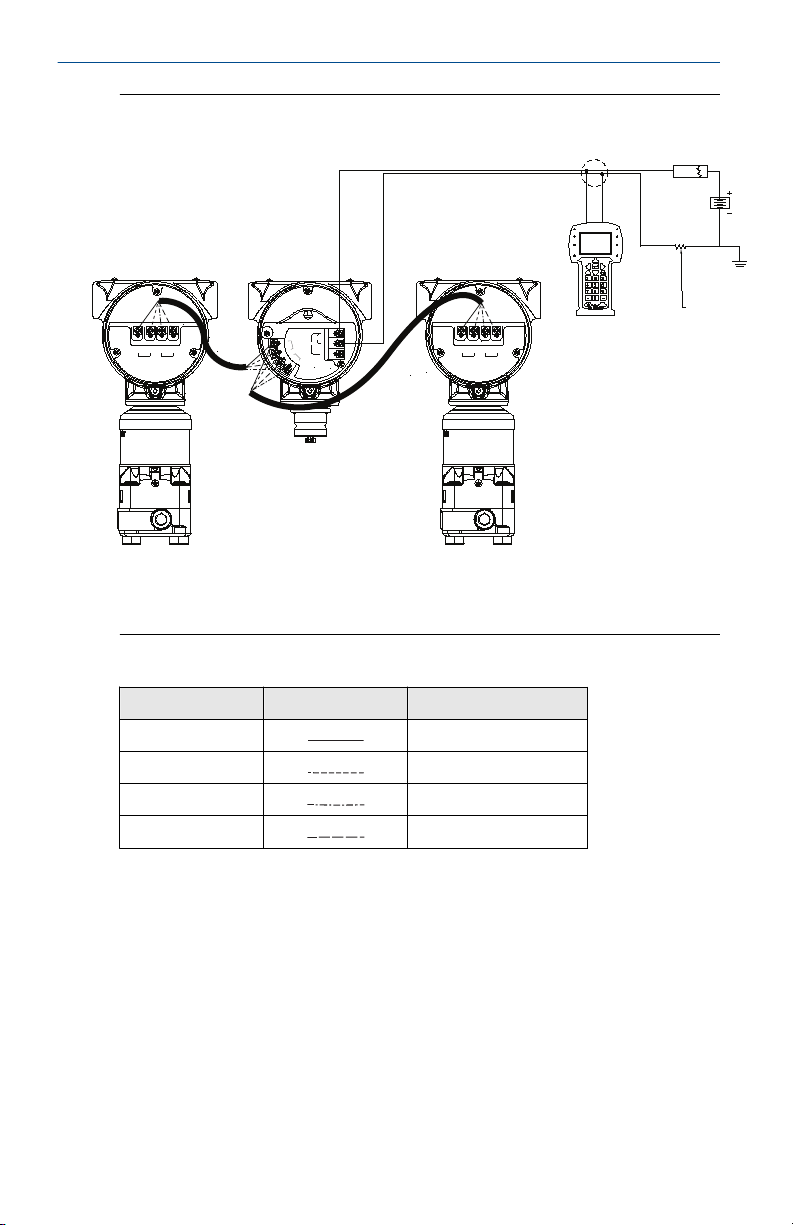

Figure 5-1: Wiring Diagram for Standard System

A. Power supply
B. 250Ω Resistor needed for HART communications
C. Handheld communicator

Table 5-1: Wiring Legend

Wire color Drawing symbol Terminal connection

Red 1

Black 2

White A

Blue B

Quick Start Guide 13

TEST

PWR/
COMM

+
_

_

1

2 A B

WIRE TO ERS PRIMARY

1

2 A B

WIRE TO ERS PRIMARY

1

2

A

B

WIRE TO
ERS
SECONDARY

C

B

A

Quick Start Guide February 2019

Figure 5-2: Wiring Diagram for System with Remote Display in “Tree”
Configuration

A. Power supply

B. 250Ω Resistor needed for HART communications

C. Handheld communicator

Table 5-2: Wiring Legend

Wire color Drawing symbol Terminal connection

Red 1

Black 2

White A

Blue B

14 Rosemount 3051S ERS

TEST

PWR/
COMM

+
_

_

1

2 A B

1

2

A

B

WIRE TO ERS PRIMARY

1

2

A

B

WIRE TO
ERS
SECONDARY

WIRE TO ERS PRIMARY

C

B

A

February 2019 Quick Start Guide

Figure 5-3: Wiring Diagram for System with Remote Display in “Daisy­Chain” Configuration

A. Power supply
B. 250Ω Resistor needed for HART communications
C. Handheld communicator

Table 5-3: Wiring Legend

Wire color Drawing symbol Terminal connection

Red 1

Black 2

White A

Blue B

5.3 Shield grounding

Connect the shield from the communication cable assembly to each housing
case as shown for the applicable wiring configuration in Figure 5-4.

Quick Start Guide 15

A

A

1

2

A B

WIRE TO ERS PRIMARY

1

2

A

B

WIRE TO
ERS
SECONDARY

A

1

2 A B

WIRE TO ERS PRIMARY

1

2 A B

WIRE TO ERS PRIMARY

1

2

A

B

WIRE TO
ERS
SECONDARY

1

2

A

B

WIRE TO
ERS
SECONDARY

1

2 A B

WIRE TO ERS PRIMARY

1

2 A B

WIRE TO ERS PRIMARY

Quick Start Guide February 2019

Figure 5-4: Shield Grounding

5.4

A. Cable shield

Power supply

The DC power supply should provide power with less than two percent ripple.
The total resistance load is the sum of the resistance of the two signal leads
and the load resistance of the controller, indicator, intrinsic safety barriers,
and related components.

Load limitation

If supply voltage ≤ 16.74
Vdc,

If supply voltage > 16.74
Vdc,

16 Rosemount 3051S ERS

Maximum loop resistance = 277.8 × (Power
supply voltage – 16.0)

Maximum loop resistance = 43.5 × (Power
supply voltage – 12.0)

1322

Load (Ohms)

206

0

16 16.74 42.4

Voltage (Vdc)

Operating

Region

February 2019 Quick Start Guide

Quick Start Guide 17

Quick Start Guide February 2019

6 Verify configuration

As part of the basic commissioning process of the system, the parameters in

Table 6-1 should be verified/configured with a HART-compliant master (see
Figure 5-1, Figure 5-2, and Figure 5-3 for connecting a handheld

communicator)

Table 6-1: Basic Configuration HART Fast Key Sequence

Function Fast Key sequence

Device Tagging

Tag 2, 1, 1, 1, 1

Long Tag 2, 1, 1, 1, 2

Descriptor 2, 1, 1, 1, 3

Message 2, 1, 1, 1, 4

Units of Measure

PLO Pressure 2, 1, 1, 2, 1, 1

PLO Module Temperature 2, 1, 1, 2, 1, 2

System DP 2, 1, 1, 2, 1, 3

PHI Module Temperature 2, 1, 1, 2, 1, 4

PHI Pressure 2, 1, 1, 2, 1, 5

Damping

PLO Pressure 2, 1, 1, 2, 2, 1

System DP 2, 1, 1, 2, 2, 2

PHI Pressure 2, 1, 1, 2, 2, 3

Variable Mapping

Primary Variable 2, 1, 1, 3, 1

2nd Variable 2, 1, 1, 3, 2

3rd Variable 2, 1, 1, 3, 3

4th Variable 2, 1, 1, 3, 4

Analog Output

Primary Variable 2, 1, 1, 4, 1

Upper Range Value 2, 1, 1, 4, 2

Lower Range Value 2, 1, 1, 4, 3

Alarm and Saturation Levels 2, 1, 1, 5

18 Rosemount 3051S ERS

February 2019 Quick Start Guide

The items in Table 6-2 are considered “optional” and can be configured as
necessary:

Table 6-2: Optional Configuration HART Fast Key Sequence

Function Fast Key sequence

Device Display 2, 1, 3

Burst Mode

Burst Mode 2, 1, 4, 1

Burst Option 2, 1, 4, 2

Scaled Variable

Linear (2-point) Scaled Variable 2, 1, 5, 1

Non-Linear (Multi-point) Scaled
Variable

Change Module Assignments

View Module 1 Assignment 2, 1, 6, 1

View Module 2 Assignment 2, 1, 6, 2

Set Module 1 = PHI, Module 2 = P

Set Module 1 = PLO, Module 2 = PHI2, 1, 6, 4

View Device Topology 2, 1, 6, 5

LO

2, 1, 5, 2

2, 1, 6, 3

Quick Start Guide 19

Quick Start Guide February 2019

7 Calibrate the system

Each sensor is shipped fully calibrated per request or with the factory default
of full scale. After the system has been installed and wired, either a zero trim
or a lower sensor trim should be performed on each sensor to compensate for
installation effects.

• A zero sensor trim should be performed after installing a gage sensor. A

zero sensor trim should not be performed on an absolute sensor or on a
gage sensor that is at line pressure.

• A lower sensor trim should be performed after installing an absolute

sensor or a gage sensor that is at line pressure.

Additionally, a “System DP Zero” trim should be performed to establish a
zero-based DP reading. The “System DP Zero” trim should be performed after
a zero/lower trim has been performed on each sensor.

The steps outlined below detail the procedures for the sensor trims and the
“System DP Zero” trim.

7.1 System calibration

Procedure

1. Equalize or vent both sensors and connect a handheld communicator

as shown in Figure 5-1, Figure 5-2, and Figure 5-3.

2. Input the following Fast Key sequence on the handheld communicator

to trim each sensor and the DP reading. Follow the commands
prompted by the handheld communicator.

Table 7-1: ERS Calibration HART Fast Key Sequence

Function Fast Key sequence

P-Hi Sensor Zero Trim 3, 4, 3, 1, 3

P-Hi Sensor Lower Trim 3, 4, 3, 1, 2

P-Lo Sensor Zero Trim 3, 4, 4, 1, 3

P-Lo Sensor Lower Trim 3, 4, 4, 1, 2

System DP Zero Trim 3, 4, 2, 1, 3

Postrequisites

The “System DP Zero Trim” should be performed after the P-Hi and P-Lo
sensor trims. Refer to the Rosemount 3051S ERS Reference Manual for the
recommended calibration procedure for performing a sensor trim at line
pressure.

20 Rosemount 3051S ERS

February 2019 Quick Start Guide

8 Rosemount 3051S/3051SFx/3051S-ERS Product

Certifications

Rev 2.2

European Directive Information

A copy of the EU Declaration of Conformity can be found at the end of the
Quick Start Guide. The most recent revision of the EU Declaration of
Conformity can be found at Emerson.com/Rosemount.

Ordinary Location Certification

As standard, the transmitter has been examined and tested to determine that
the design meets the basic electrical, mechanical, and fire protection
requirements by a nationally recognized test laboratory (NRTL) as accredited
by the Federal Occupational Safety and Health Administration (OSHA).

Installing Equipment in North America

The US National Electrical Code® (NEC) and the Canadian Electrical Code (CEC)
permit the use of Division marked equipment in Zones and Zone marked
equipment in Divisions. The markings must be suitable for the area
classification, gas, and temperature class. This information is clearly defined in
the respective codes.

8.1 USA

8.1.1 E5 US Explosionproof (XP) and Dust-Ignitionproof (DIP)

Certificate

Standards

Markings

8.1.2 I5 US Intrinsic Safety (IS) and Nonincendive (NI)

Certificate

Standards

Markings

Quick Start Guide 21

FM16US0090

FM Class 3600 - 2011, FM Class 3615 - 2006, FM Class 3616 ­2011, FM Class 3810 - 2005, ANSI/NEMA 250 - 2003

XP CL I, DIV 1, GP B, C, D; DIP CL II, DIV 1, GP E, F, G; CL III; T5(–
50 °C ≤ Ta ≤ +85 °C); Factory Sealed; Type 4X

FM16US0089X

FM Class 3600 - 2011, FM Class 3610 - 2010, FM Class 3611 ­2004, FM Class 3810 - 2005, NEMA® 250 - 2003

IS CL I, DIV 1, GP A, B, C, D; CL II, DIV 1, GP E, F, G; Class III; Class
1, Zone 0 AEx ia IIC T4; NI CL 1, DIV 2, GP A, B, C, D; T4(–50 °C ≤
Ta ≤ +70 °C) [HART]; T4(–50 °C ≤ Ta ≤ +60 °C) [Fieldbus]; when
connected per Rosemount drawing 03151-1006; Type 4X

Quick Start Guide February 2019

Special Condition for Safe Use:

1. The Model 3051S/3051S-ERS Pressure Transmitter contains aluminum

and is considered to constitute a potential risk of ignition by impact or
friction. Care must be taken into account during installation and use to
prevent impact and friction.

Note

Transmitters marked with NI CL 1, DIV 2 can be installed in Division 2 locations
using general Division 2 wiring methods or Nonincendive Field Wiring (NIFW).
See Drawing 03151-1006.

8.1.3 IE US FISCO Intrinsically Safe

8.2

Certificate

Standards

Markings

Special Condition for Safe Use:

1. The Rosemount 3051S/3051S-ERS Pressure Transmitter contains

Canada

FM16US0089X

FM Class 3600 - 2011, FM Class 3610 - 2010, FM Class 3611 ­2004, FM Class 3810 - 2005, NEMA 250 - 2003

IS CL I, DIV 1, GP A, B, C, D; T4(–50 °C ≤ Ta ≤ +60 °C); when
connected per Rosemount drawing 03151-1006; Type 4X

aluminum and is considered to constitute a potential risk of ignition by
impact or friction. Care must be taken into account during installation
and use to prevent impact and friction.

8.2.1 E6 Canada Explosionproof, Dust-Ignitionproof, and Division 2

Certificate

Standards

Markings

1143113

CAN/CSA C22.2 No. 0-10, CSA Std C22.2 No. 25-1966, CSA Std
C22.2 No. 30-M1986, CAN/CSA C22.2 No. 94-M91, CSA Std
C22.2 No. 142-M1987, CSA Std C22.2 No. 213-M1987,
ANSI/ISA 12.27.01-2003, CSA Std C22.2 No. 60529:05

Explosionproof Class I, Division 1, Groups B, C, D; Dust­Ignitionproof Class II, Division 1, Groups E, F, G; Class III; suitable
for Class I, Zone 1, Group IIB+H2, T5; suitable for Class I,
Division 2, Groups A, B, C, D; suitable for Class I, Zone 2, Group
IIC, T5; when connected per Rosemount drawing 03151-1013;
Type 4X

8.2.2 I6 Canada Intrinsically Safe

Certificate

22 Rosemount 3051S ERS

1143113

February 2019 Quick Start Guide

Standards

CAN/CSA C22.2 No. 0-10, CSA Std C22.2 No. 25-1966, CSA Std
C22.2 No. 30-M1986, CAN/CSA C22.2 No. 94-M91, CSA Std
C22.2 No. 142-M1987, CSA Std C22.2 No. 157-92, ANSI/ISA

12.27.01-2003, CSA Std C22.2 No. 60529:05

Markings

Intrinsically Safe Class I, Division 1; Groups A, B, C, D; suitable
for Class 1, Zone 0, IIC, T3C; when connected per Rosemount
drawing 03151-1016 [3051S] 03151-1313 [ERS]; Type 4X

8.2.3 IF Canada FISCO

Certificate

Standards

Markings

1143113

CAN/CSA C22.2 No. 0-10, CSA Std C22.2 No. 30-M1986,
CAN/CSA C22.2 No. 94-M91, CSA Std C22.2 No. 142-M1987,
CSA Std C22.2 No. 157-92, ANSI/ISA 12.27.01-2003, CSA Std
C22.2 No. 60529:05

FISCO Intrinsically Safe Class I, Division 1; Groups A, B, C, D;
suitable for Class 1, Zone 0, IIC, T3C; when connected per
Rosemount drawing 03151-1016 [3051S] 03151-1313 [ERS];
Type 4X

8.3 Europe

8.3.1 E1 ATEX Flameproof

Certificate

Standards

Markings

KEMA 00ATEX2143X

EN 60079-0:2012+A11:2013, EN 60079-1:2014, EN
60079-26:2015

II 1/2 G Ex db IIC T6…T4 Ga/Gb, T6(–60 °C ≤ Ta ≤ +70 °C), T5/

T4(–60 °C ≤ Ta ≤ +80 °C)

Table 8-1: Process Temperature

Temperature class Process temperature

T6 –60 °C to +70 °C

T5 –60 °C to +80 °C

T4 –60 °C to +120 °C

Special Conditions for Safe Use (X):

1. This device contains a thin wall diaphragm less than 1 mm thickness
that forms a boundary between Category 1 (process connection) and
Category 2 (all other parts of the equipment). The model code and
datasheet are to be consulted for details of the diaphragm material.
Installation, maintenance and use shall take into account the

Quick Start Guide 23

Quick Start Guide February 2019

environmental conditions to which the diaphragm will be subjected.
The manufacturer's instructions for installation and maintenance shall
be followed in detail to assure safety during its expected lifetime.

2. Flameproof joints are not intended for repair.

3. Non-standard paint options may cause risk from electrostatic
discharge. Avoid installations that could cause electrostatic build-up
on painted surfaces, and only clean the painted surfaces with a damp
cloth. If paint is ordered through a special option code, contact the
manufacturer for more information.

4. Appropriate cable, glands and plugs need to be suitable for a
temperature of 5 °C greater than maximum specified temperature for
location where installed.

8.3.2 I1 ATEX Intrinsic Safety

Certificate

Standards

Markings

BAS01ATEX1303X

EN 60079-0: 2012+A11:2013, EN 60079-11: 2012

II 1 G Ex ia IIC T4 Ga, T4(–60 °C ≤ Ta ≤ +70 °C)

Table 8-2: Input Parameters

U

SuperModule 30 V 300 mA 1.0 W 30 nF 0

3051S...A; 3051SF…A;
3051SAL…C

3051S…F; 3051SF…F 30 V 300 mA 1.3 W 0 0

3051S …A…M7, M8, or
M9; 3051SF …A…M7,
M8, or M9;

3051SAL…C… M7, M8,
or M9

3051SAL or 3051SAM 30 V 300 mA 1.0 W 12 nF 33 µH

3051SAL…M7, M8, or
M9 3051SAM…M7,
M8, or M9

RTD Option for 3051SF 5 V 500 mA 0.63 W N/A N/A

i

30 V 300 mA 1.0 W 12 nF 0

30 V 300 mA 1.0 W 12 nF 60 µH

30 V 300 mA 1.0 W 12 nF 93 µH

I

i

P

i

C

i

L

i

Special Conditions for Safe Use (X):

1. The Model 3051S Transmitters fitted with transient protection are not
capable of withstanding the 500V test as defined in Clause 6.3.13 f EN
60079-11:2012. This must be taken into account during installation.

24 Rosemount 3051S ERS

February 2019 Quick Start Guide

2. The terminal pins of the Model 3051S SuperModule must be provided
with a degree of protection of at least IP20 in accordance with IEC/EN

60529.

3. The Model 3051S enclosure may be made of aluminum alloy and given
a protective polyurethane paint finish; however, care should be taken
to protect it from impact or abrasion if located in a zone 0 area.

8.3.3 IA ATEX FISCO

Certificate

Standards

Markings

BAS01ATEX1303X

EN 60079-0: 2012+A11:2013, EN 60079-11: 2012

II 1 G Ex ia IIC T4 Ga, T4(–60 °C ≤ Ta ≤ +70 °C)

Table 8-3: Input Parameters

Parameter FISCO

Voltage U

Current I

Power P

Capacitance C

Inductance L

i

i

i

i

i

17.5 V

380 mA

5.32 W

0

0

Special Conditions for Safe Use (X):

1. The Model 3051S Transmitters fitted with transient protection are not
capable of withstanding the 500 V test as defined in Clause 6.3.13 of
EN 60079-11:2012. This must be taken into account during
installation.

2. The terminal pins of the Model 3051S SuperModule must be provided
with a degree of protection of at least IP20 in accordance with IEC/EN

60529.

3. The Model 3051S enclosure may be made of aluminum alloy and given
a protective polyurethane paint finish; however, care should be taken
to protect it from impact or abrasion if located in a zone 0 area.

8.3.4 ND ATEX Dust

Certificate

Standards

Markings

Quick Start Guide 25

BAS01ATEX1374X

EN 60079-0: 2012+A11:2013, EN 60079-31: 2009

II 1 D Ex ta IIIC T105 °C T

V

= 42.4 V

max

95 °C Da, (–20 °C ≤ T a ≤ +85 °C),

500

Quick Start Guide February 2019

Special Conditions for Safe Use (X):

1. Cable entries must be used which maintain the ingress protection of
the enclosure to at least IP66.

2. Unused cable entries must be filled with suitable blanking plugs which
maintain the ingress protection of the enclosure to at least IP66.

3. Cable entries and blanking plugs must be suitable for the ambient
temperature range of the apparatus and capable of withstanding a 7J
impact test.

4. The SuperModule(s) must be securely screwed in place to maintain the
ingress protection of the enclosure(s).

8.3.5 N1 ATEX Type n

Certificate

Standards

Markings

BAS01ATEX3304X

EN 60079-0: 2012+A11:2013, EN 60079-15: 2010

II 3 G Ex nA IIC T5 Gc, (–40 °C ≤ Ta ≤ +85 °C), V

Special Condition for Safe Use (X):

1. The equipment is not capable of withstanding the 500 V insulation test
required by clause 6.5 of EN 60079-15:2010. This must be taken into
account when installing the equipment.

Note

RTD Assembly is not included with the 3051SFx Type n Approval.

8.4

International

8.4.1 E7 IECEx Flameproof and Dust

Certificate

Standards

Markings

Table 8-4: Process Temperature

Temperature class Process temperature

T6 –60 °C to +70 °C

T5 –60 °C to +80 °C

T4 –60 °C to +120 °C

IECEx KEM 08.0010X (Flameproof)

IEC 60079-0:2011, IEC 60079-1:2014, IEC 60079-26:2014

Ex db IIC T6…T4 Ga/Gb, T6(–60 °C ≤ Ta ≤ +70 °C), T5/T4(–60 °C
≤ Ta ≤ +80 °C)

max

= 45 V

26 Rosemount 3051S ERS

February 2019 Quick Start Guide

Special Conditions for Safe Use (X):

1. This device contains a thin wall diaphragm less than 1 mm thickness
that forms a boundary between EPL Ga (process connection) and EPL
Gb (all other parts of the equipment). The model code and datasheet
are to be consulted for details of the diaphragm material. Installation,
maintenance and use shall take into account the environmental
conditions to which the diaphragm will be subjected. The
manufacturer's instructions for installation and maintenance shall be
followed in detail to assure safety during its expected lifetime.

2. Flameproof joints are not intended for repair.

3. Non-standard paint options may cause risk from electrostatic
discharge. Avoid installations that could cause electrostatic buildup on
painted surfaces, and only clean the painted surfaces with a damp
cloth. If paint is ordered through a special option code, contact the
manufacturer for more information.

4. Appropriate cable, glands and plugs need to be suitable for a
temperature of 5 °C greater than maximum specified temperature for
location where installed.

Certificate IECEx BAS 09.0014X (Dust)

Standards IEC 60079-0:2011, IEC 60079-31:2008

Markings Ex ta IIIC T105 °C T50095 °C Da, (–20 °C ≤ Ta ≤ +85 °C),

V

= 42.4 V

max

Special Conditions for Safe Use (X):

1. Cable entries must be used which maintain the ingress protection of
the enclosure to at least IP66.

2. Unused cable entries must be filled with suitable blanking plugs which
maintain the ingress protection of the enclosure to at least IP66.

3. Cable entries and blanking plugs must be suitable for the ambient
temperature range of the apparatus and capable of withstanding a 7J
impact test.

4. The 3051S- SuperModule must be securely screwed in place to
maintain the ingress protection of the enclosure.

8.4.2 I7 IECEx Intrinsic Safety

Certificate

Standards

Markings

Quick Start Guide 27

IECEx BAS 04.0017X

IEC 60079-0: 2011, IEC 60079-11: 2011

Ex ia IIC T4 Ga, T4(–60 °C ≤ Ta ≤ +70 °C)

Quick Start Guide February 2019

Table 8-5: Input Parameters

U

SuperModule 30 V 300 mA 1.0 W 30 nF 0

3051S...A; 3051SF…A;
3051SAL…C

3051S…F; 3051SF…F 30 V 300 mA 1.3 W 0 0

3051S …A…M7, M8, or
M9; 3051SF …A…M7,
M8, or M9;

3051SAL…C… M7, M8,
or M9

3051SAL or 3051SAM 30 V 300 mA 1.0 W 12 nF 33 µH

3051SAL…M7, M8, or
M9 3051SAM…M7,
M8, or M9

RTD Option for 3051SF 5 V 500 mA 0.63 W N/A N/A

i

30 V 300 mA 1.0 W 12 nF 0

30 V 300 mA 1.0 W 12 nF 60 µH

30 V 300 mA 1.0 W 12 nF 93 µH

I

i

P

i

C

i

L

i

Special Conditions for Safe Use (X):

1. The Model 3051S Transmitters fitted with transient protection are not
capable of withstanding the 500 V test as defined in Clause 6.3.13 of
EN 60079-11:2012. This must be taken into account during
installation.

2. The terminal pins of the Model 3051S SuperModule must be provided
with a degree of protection of at least IP20 in accordance with IEC/EN

60529.

3. The Model 3051S enclosure may be made of aluminum alloy and given
a protective polyurethane paint finish; however, care should be taken
to protect it from impact or abrasion if located in a zone 0 area.

8.4.3 I7 IECEx Intrinsic Safety - Group I - Mining (I7 with Special A0259)

Certificate

Standards

Markings

Table 8-6: Input Parameters

U

SuperModule 30 V 300 mA 1.0 W 30 nF 0

28 Rosemount 3051S ERS

IECEx TSA 14.0019X

IEC 60079-0: 2011, IEC 60079-11: 2011

Ex ia I Ma (–60 °C ≤ Ta ≤ +70 °C)

i

I

i

P

i

C

i

L

i

February 2019 Quick Start Guide

Table 8-6: Input Parameters (continued)

U

3051S...A; 3051SF…A;
3051SAL…C

3051S…F; 3051SF…F 30 V 300 mA 1.3 W 0 0

3051S …A…M7, M8, or
M9; 3051SF …A…M7,
M8, or M9;

3051SAL…C… M7, M8,
or M9

3051SAL or 3051SAM 30 V 300 mA 1.0 W 12 nF 33 µH

3051SAL…M7, M8, or
M9 3051SAM…M7,
M8, or M9

RTD Option for 3051SF 5 V 500 mA 0.63 W N/A N/A

i

30 V 300 mA 1.0 W 12 nF 0

30 V 300 mA 1.0 W 12 nF 60 µH

30 V 300 mA 1.0 W 12 nF 93 µH

I

i

P

i

C

i

L

i

Special Conditions for Safe Use (X):

1. If the apparatus is fitted with optional 90 V transient suppressor, it is
not capable of withstanding the 500 V insulation test required by
Clause 6.3.13 of IEC60079-11. This must be taken into account when
installing the apparatus.

2. It is a condition of safe use that the above input parameters shall be
taken into account during installation.

3. It is a condition of manufacture that only the apparatus fitted with
housing, covers and sensor module housing made out of stainless
steel are used in Group I applications.

8.4.4 IG IECEx FISCO

Certificate

Standards

Markings

Table 8-7: Input Parameters

Parameter FISCO

Voltage U

Current I

Power P

Capacitance C

Quick Start Guide 29

i

i

i

IECEx BAS 04.0017X

IEC 60079-0: 2011, IEC 60079-11: 2011

Ex ia IIC T4 Ga, T4(–60 °C ≤ Ta ≤ +70 °C)

17.5 V

380 mA

5.32 W

i

0

Quick Start Guide February 2019

Table 8-7: Input Parameters (continued)

Inductance L

i

0

Special Conditions for Safe Use (X):

1. The Model 3051S Transmitters fitted with transient protection are not
capable of withstanding the 500 V test as defined in Clause 6.3.13 of
EN 60079-11:2012. This must be taken into account during
installation.

2. The terminal pins of the Model 3051S SuperModule must be provided
with a degree of protection of at least IP20 in accordance with IEC/EN

60529.

3. The Model 3051S enclosure may be made of aluminum alloy and given
a protective polyurethane paint finish; however, care should be taken
to protect it from impact or abrasion if located in a zone 0 area.

8.4.5 IG IECEx Intrinsic Safety - Group I - Mining (IG with Special A0259)

Certificate

Standards

Markings

Table 8-8: Input Parameters

Parameter FISCO

Voltage U

Current I

Power P

Capacitance C

Inductance L

IECEx TSA 04.0019X

IEC 60079-0: 2011, IEC 60079-11: 2011

FISCO FIELD DEVICE Ex ia I Ma , (–60 °C ≤ Ta ≤ +70 °C)

i

i

i

i

i

17.5 V

380 mA

5.32 W

0

0

Special Conditions for Safe Use (X):

1. If the apparatus is fitted with optional 90 V transient suppressor, it is
not capable of withstanding the 500 V insulation test required by
Clause 6.3.13 of IEC60079-11. This must be taken into account when
installing the apparatus.

2. It is a condition of safe use that the above input parameters shall be
taken into account during installation.

3. It is a condition of manufacture that only the apparatus fitted with
housing, covers and sensor module housing made out of stainless
steel are used in Group I applications.

30 Rosemount 3051S ERS

February 2019 Quick Start Guide

8.4.6 N7 IECEx Type n

Certificate

Standards

Markings

Special Condition for Safe Use (X):

1. The equipment is not capable of withstanding the 500 V insulation test
required by clause 6.5 of EN 60079-15:2010. This must be taken into
account when installing the equipment.

IECEx BAS 04.0018X

IEC 60079-0: 2011, IEC 60079-15: 2010

Ex nA IIC T5 Gc,(–40 °C ≤ Ta ≤ +85 °C)

8.5 Brazil

8.5.1 E2 INMETRO Flameproof

Certificate

Standards

Markings

Special Conditions for Safe Use (X):

1. The device contains a thin wall diaphragm less than 1mm thick that

UL-BR15.0393X

ABNT NBR IEC 60079-0:2008 + Corrigendum 1:2011, ABNT NBR
IEC 60079-1:2009 + Corrigendum 1:2011, ABNT NBR IEC
60079-26:2008 + Corrigendum 1: 2008

Ex db IIC T* Ga/Gb, T6(–60 °C ≤ Ta ≤ +70 °C), T5/T4(–60 °C ≤ Ta ≤
+80 °C), IP66

forms a boundary between zone 0 (process connection) and zone 1 (all
other parts of the equipment).The model code and datasheet are to be
consulted for details of the diaphragm material. Installation,
maintenance, and use shall take into account the environmental
conditions to which the diaphragm will be subjected. The
manufacturer's instructions for maintenance shall be followed in detail
to assure safety during its expected lifetime.

2. Flameproof joints are not intended for repair.

3. Non-standard paint options may cause risk from electrostatic
discharge. Avoid installations that could cause electrostatic buildup on
painted surfaces, and only clean the painted surfaces with a damp
cloth. If paint is ordered through a special option code, contact the
manufacturer for more information.

8.5.2 I2/IB INMETRO Intrinsic Safety/FISCO

Certificate

Standards

Quick Start Guide 31

UL-BR 15.0392X

ABNT NBR IEC 60079-0:2013, ABNT NBR IEC 60079-11:2013

Quick Start Guide February 2019

Markings

Ex ia IIC T4 Ga (–60 °C ≤ Ta ≤ +70 °C), IP66

Special Conditions for Safe Use (X):

1. The surface resistivity of the antenna is greater than 1 GΩ. To avoid
electrostatic charge buildup, it must not be rubbed or cleaned with
solvents or a dry cloth.

2. The Model 701PBKKF Power Module may be replaced in a hazardous
area. The Power Module has a surface resistivity greater than 1 GΩ and
must be properly installed in the wireless device enclosure. Care must
be taken during transportation to and from the point of installation to
prevent electrostatic charge buildup.

3. The 3051S enclosure may be made of aluminium alloy and given a
protective polyurethane paint finish; however, care should be taken to
protect it from impact or abrasion if located in areas that requires EPL
Ga.

Table 8-9: Input Parameters

U

SuperModule 30 V 300 mA 1.0 W 30 nF 0

3051S...A; 3051SF…A;
3051SAL…C

3051S…F; 3051SF…F 30 V 300 mA 1.3 W 0 0

3051S…F…IB;
3051SF…F…IB

3051S …A…M7, M8, or
M9; 3051SF …A…M7,
M8, or M9;

3051SAL…C… M7, M8,
or M9

3051SAL or 3051SAM 30 V 300 mA 1.0 W 12 nF 33 µH

3051SAL… M7, M8, or
M9 3051SAM… M7,
M8, or M9

RTD Option for 3051SF 5 V 500 mA 0.63 W N/A N/A

i

30 V 300 mA 1.0 W 12 nF 0

17.5 V 380mA 5.32W 0 0

30 V 300 mA 1.0 W 12 nF 60 µH

30 V 300 mA 1.0 W 12 nF 93 µH

I

i

P

i

C

i

L

i

8.6 China

8.6.1 E3 China Flameproof and Dust Ignition-proof

Certificate

32 Rosemount 3051S ERS

3051S: GYJ16.1249X
3051SFx: GYJ16.1466X

February 2019 Quick Start Guide

3051S-ERS: GJY15.1406X

Standards

3051S: GB3836.1-2010, GB3836.2-2010, GB3836.20-2010,
GB12476.1-2013, GB12476.5-2013

3051SFx: GB3836.1-2010, GB3836.2-2010, GB3836.20-2010,
GB12476.1-2013, GB 12476.5-2013

3051S-ERS: GB3836.1-2010, GB3836.2-2010, GB3836.20-2010

Markings

3051S: Ex d IIC T6…T4; Ex tD A20 T105 °C T

95 °C; IP66

500

3051SFx: Ex d IIC T4~T6 Ga/Gb; Ex tD A20 IP66 T105 °CT

500

95

°C; IP66
3051S-ERS: Ex d IIC T4~T6 Ga/Gb

8.6.2 I3 China Intrinsic Safety

Certificate

3051S: GYJ16.1250X[Mfg USA, China, Singapore]
3051SFx: GYJ16.1465X [Mfg USA, China, Singapore]
3051S-ERS: GYJ16.1248X [Mfg USA, China, Singapore]

Standards

3051S: GB3836.1-2010, GB3836.4-2010, GB3836.20-2010
3051SFx: GB3836.1/4-2010, GB3836.20-2010,

GB12476.1-2013, GB12476.5-2013
3051S-ERS: GB3836.1-2010, GB3836.4-2010, GB3836.20-2010

Markings

3051S: Ex ia IIC T4 Ga
3051SFx: Ex ia IIC T4 Ga, Ex tD A20 IP66 T105 °CT

500

95 °C

3051S-ERS: Ex ia IIC T4 Ga

8.6.3 N3 China Type n

Certificate

Markings

3051S, 3051SHP: GYJ17.1354X
3051SFX: GYJ17.1355X

Ex nA IIC T5 Gc

8.7 EAC - Belarus, Kazakhstan, Russia

8.7.1 EM Technical Regulation Customs Union (EAC) Flameproof and Dust Ignition-proof

Certificate

Markings

RU C-US.AA87.B.00378

Ga/Gb Ex d IIC T6…T4 X
Ex tb IIIC T105 °C T
Ex ta IIIC T105 °C T

95 °C Db X

500

95 °C Da X

500

Quick Start Guide 33

Quick Start Guide February 2019

8.7.2 IM Technical Regulation Customs Union (EAC) Intrinsic Safety

Certificate

Markings

RU C-US.AA87.B.00378

0Ex ia IIC T4 Ga X

8.7.3 IN Technical Regulation Customs Union (EAC) Intrinsic Safety

Certificate:

Markings:

RU C-US.AA87.B.00378

0Ex ia IIC T4 Ga X

8.8 Japan

8.8.1 E4 Japan Flameproof

Certificate

Markings

Temperature class Ambient temperature Process temperature

T6 -40 °C to +70 °C -60 °C to +70 °C

Special Conditions for Safe Use:

1. This device contains a thin wall diaphragm less than 1mm thickness

TC15682, TC15683, TC15684, TC15685, TC15686, TC15687,
TC15688, TC15689, TC15690, TC17099, TC17100, TC17101,
TC17102, TC18876

3051ERS: TC20215, TC20216, TC20217, TC20218, TC20219,
TC20220, TC20221

Ex d IIC T6 Ga/Gb

that forms a boundary between EPL Ga (process connection) and EPL
Gb (all other parts of the equipment). The model code and datasheet
are to be consulted for details of the diaphragm material. Installation,
maintenance, and use shall consider the environmental conditions to
which the diaphragm will be subjected. The manufacturer’s
instructions fr installation and maintenance shall be followed in detail
to assure safety during its expected lifetime.

2. Flameproof joints are not intended for repair.

3. Non-standard paint options may cause risk from electrostatic
discharge. Avoid installations that could cause electrostatic build-up
on painted surfaces, and only clean the painted surfaces with a damp
cloth. If paint is ordered through a special option code, contact the
manufacturer for more information.

34 Rosemount 3051S ERS

February 2019 Quick Start Guide

8.9 Republic of Korea

8.9.1 EP Republic of Korea Flameproof

Certificate

Markings

12-KB4BO-0180X [Mfg USA], 11-KB4BO-0068X [Mfg
Singapore]

Ex d IIC T6...T4

8.9.2 IP Republic of Korea Intrinsic Safety

Certificate

Markings

12-KB4BO-0202X [HART - Mfg USA],12-KB4BO-0204X [Fieldbus

- Mfg USA], 12-KB4BO-0203X [HART - Mfg Singapore], 13­KB4BO-0296X [Fieldbus - Mfg Singapore]

Ex ia IIC T4

8.10 Combinations

K1

K2

K5

K6

K7

KA

KB

KC

KD

KG

KM

KP

Combination of E1, I1, N1, and ND

Combination of E2 and I2

Combination of E5 and I5

Combination of E6 and I6

Combination of E7, I7, and N7

Combination of E1, I1, E6, and I6

Combination of E5, I5, E6, and I6

Combination of E1, I1, E5, and I5

Combination of E1, I1, E5, I5, E6, and I6

Combination of IA, IE, IF, and IG

Combination of EM and IM

Combination of EP and IP

8.11 Additional Certifications

8.11.1 SBS American Bureau of Shipping (ABS) Type Approval

Certificate

Intended Use

Quick Start Guide 35

17-RJ1679518-PDA

Measure gauge or absolute pressure of liquid, gas or vapor
applications on ABS classed vessels, marine, and offshore
installations.

Quick Start Guide February 2019

8.11.2 SBV Bureau Veritas (BV) Type Approval

Certificate

Requirements

Application

31910 BV

Bureau Veritas Rules for the Classification of Steel Ships

Class Notations: AUT-UMS, AUT-CCS, AUT-PORT and AUT­IMS.

8.11.3 SDN Det Norske Veritas (DNV) Type Approval

Certificate

Intended Use

Application

Location classes

Type 3051S

Temperature D

Humidity B

Vibration A

EMC A

Enclosure D/IP66/IP68

TAA00000K9

Det Norske Veritas' Rules for Classification of Ships, High
Speed & Light Craft, and Det Norske Veritas' Offshore
Standards

8.11.4 SLL Lloyds Register (LR) Type Approval

Certificate

Application

11/60002

Environmental categories ENV1, ENV2, ENV3, and ENV5

8.11.5 D3 Custody Transfer - Measurement Canada Accuracy Approval [3051S Only]

Certificate

36 Rosemount 3051S ERS

AG-0501, AV-2380C

February 2019 Quick Start Guide

8.12 Declaration of Conformity

Quick Start Guide 37

Quick Start Guide February 2019

38 Rosemount 3051S ERS

February 2019 Quick Start Guide

Quick Start Guide 39

Quick Start Guide February 2019

40 Rosemount 3051S ERS

ᴹ

China RoHS

㇑᧗⢙䍘䎵䗷ᴰབྷ⎃ᓖ䲀٬Ⲵ䜘Ԧරࡇ㺘

Rosemount 3051SAL/3051SAM

List of Rosemount 3051SAL/3051SAM Parts with China RoHS Concentration above MCVs

䜘Ԧ〠

Part Name



ᴹᇣ⢙䍘

/ Hazardous Substances



䫵

Lead

(Pb)

⊎

Mercury

(Hg)

䭹

Cadmium

(Cd)

ޝԧ䬜

Hexavalent

Chromium

(Cr +6)

ཊⓤ㚄㤟

Polybrominated

biphenyls

(PBB)

ཊⓤ㚄㤟䟊

Polybrominated

diphenyl ethers

(PBDE)

⭥ᆀ㓴Ԧ

Electronics

Assembly

X O O O O O

༣փ㓴Ԧ

Housing

Assembly

X O O X O O

Րᝏಘ㓴Ԧ

Sensor

Assembly

X O O X O O

ᵜ㺘Ṭ㌫׍ᦞ

SJ/T11364

Ⲵ㿴ᇊ㘼ࡦ֌

This table is proposed in accordance with the provision of SJ/T11364.

O:

᜿Ѫ䈕䜘ԦⲴᡰᴹ൷䍘ᶀᯉѝ䈕ᴹᇣ⢙䍘Ⲵ䟿൷վҾ

GB/T 26572

ᡰ㿴ᇊⲴ䲀䟿㾱≲

O: Indicate that said hazardous substance in all of the homogeneous materials for this part is below the limit requirement of
GB/T 26572.

X:

᜿Ѫ൘䈕䜘Ԧᡰ֯⭘Ⲵᡰᴹ൷䍘ᶀᯉ䟼ˈ㠣ቁᴹа㊫൷䍘ᶀᯉѝ䈕ᴹᇣ⢙䍘Ⲵ䟿儈Ҿ

GB/T 26572

ᡰ㿴ᇊⲴ䲀䟿㾱≲

X: Indicate that said hazardous substance contained in at least one of the homogeneous materials used for this part is above
the limit requirement of GB/T 26572.

February 2019 Quick Start Guide

8.13 China RoHS

Figure 8-1: China RoHS

Quick Start Guide 41

Quick Start Guide February 2019

42 Rosemount 3051S ERS

February 2019 Quick Start Guide

Quick Start Guide 43

*00825-0100-4804*

00825-0100-4804, Rev. BD

Quick Start Guide

February 2019

Global Headquarters

Emerson Automation Solutions
6021 Innovation Blvd.
Shakopee, MN 55379, USA

[phone] or [phone]
[phone]
[e-mail]

Latin America Regional Office

Emerson Automation Solutions
1300 Concord Terrace, Suite 400
Sunrise, FL 33323, USA

[phone]
[phone]
[e-mail]

Asia Pacific Regional Office

Emerson Automation Solutions
1 Pandan Crescent
Singapore 128461

[phone]
[phone]
[e-mail]

North America Regional Office

Emerson Automation Solutions
8200 Market Blvd.
Chanhassen, MN 55317, USA

[phone] or [phone]
[phone]
[e-mail]

Europe Regional Office

Emerson Automation Solutions Europe
GmbH
Neuhofstrasse 19a P.O. Box 1046
CH 6340 Baar
Switzerland

[phone]
[phone]
[e-mail]

Middle East and Africa Regional Office

Emerson Automation Solutions
Emerson FZE P.O. Box 17033
Jebel Ali Free Zone - South 2
Dubai, United Arab Emirates

[phone]
[phone]
[e-mail]

Linkedin.com/company/Emerson-

Automation-Solutions

Twitter.com/Rosemount_News

Facebook.com/Rosemount

Youtube.com/user/

RosemountMeasurement

Google.com/+RosemountMeasurement

©

2019 Emerson. All rights reserved.

Emerson Terms and Conditions of Sale are
available upon request. The Emerson logo is a
trademark and service mark of Emerson Electric
Co. Rosemount is mark of one of the Emerson
family of companies. All other marks are the
property of their respective owners.
