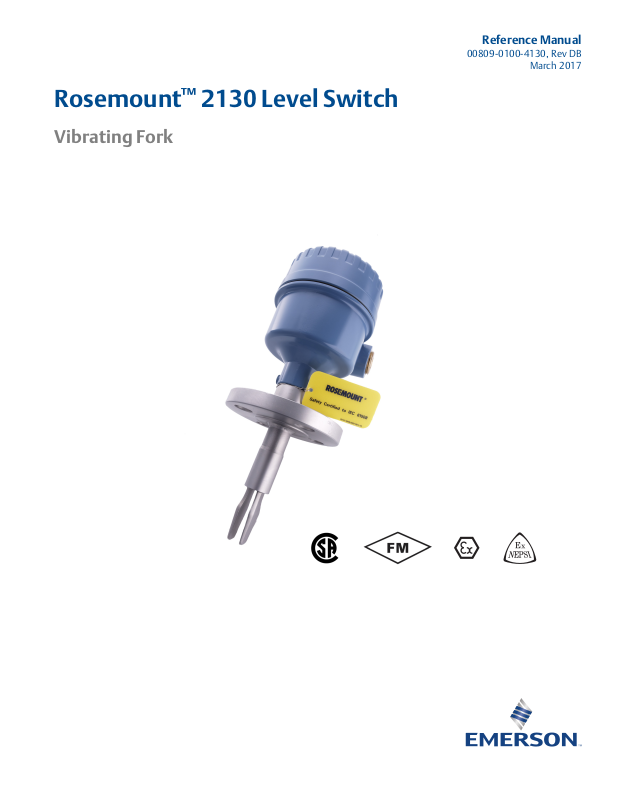

Rosemount™ 2130 Level Switch
Vibrating Fork
Reference Manual
00809-0100-4130, Rev DB
March 2017
NOTICE
00809-0100-4130, Rev DB
Rosemount™ 2130 Level Switch Vibrating Fork
Read this manual before working with the product. For personal and system safety, and for optimum product performance, make sure you thoroughly understand the contents before installing, using, or maintaining this product.
For technical assistance, contacts are listed below:
Customer Central
Technical support, quoting, and order-related questions. Americas 1 800 999 9307 Europe +41 (0) 41 768 6111 Middle east +971 4 811 8100 Asia +65 6777 8211
North American Response Center
Equipment service needs. 1-800-654-7768 (24 hours — includes Canada) Outside of these areas, contact your local Emerson
representative.
Title Page
March 2017
Title Page
The products described in this document are NOT designed for nuclear-qualified applications. Using non-nuclear qualified products in applications that require nuclear-qualified hardware or
products may cause inaccurate readings. For information on Rosemount nuclear-qualified products, contact your local Emerson sales
representative.
i
Title Page
March 2017
Reference Manual
00809-0100-4130, Rev DB
Failure to follow these installation guidelines could result in death or serious injury.
Make sure only qualified personnel perform the installation.Use the Rosemount 2130 Level Switch (“level switch”) only as specified in this manual.
Failure to do so may impair the protection provided by the equipment.
The weight of the level switch with a heavy flange and extended fork length may exceed
37 lb. (18 kg). A risk assessment is required to be done before carrying, lifting, and installing the level switch.
Explosions could result in death or serious injury.
Do not remove the level switch cover in explosive atmospheres when the circuit is alive.The level switch cover must be fully engaged and locked to meet explosion-proof
requirements.
Verify the operating environment of the level switch is consistent with the appropriate
hazardous locations certifications.
Review Appendix B: Product Certifications for special conditions and safety instructions
associated with a hazardous location installation.
Electrical shock can result in death or serious injury.
If the level switch is installed in a high-voltage environment and a fault or installation error
occurs, high voltage may be present on the sensor leads and terminals.
Use extreme caution when making contact with the leads and terminals.Make sure the main power to the level switch is off and the lines to any other external power
source are disconnected or not powered while wiring the level switch.
Ensure the wiring is suitable for the electrical current and the insulation is suitable for the
voltage, temperature, and environment.
External surfaces may be hot.
Care must be taken to avoid possible burns. The flange and process seal may also be hot at
high process temperatures. Allow to cool before servicing.
Process leaks could result in death or serious injury.
Install and tighten process connection before applying pressure.Do not attempt to loosen the process connection while the level switch is in service.Make sure that the level switch is handled carefully. If the process seal is damaged, gas might
escape from the tank.
Any substitution of non-recognized parts may jeopardize safety and is under no circumstances allowed.
Unauthorized changes to the product are strictly prohibited as they may unintentionally and
unpredictably alter performance and jeopardize safety.
Unauthorized changes that interfere with the integrity of the welds or flanges, such as
making additional perforations, compromise product integrity and safety. Equipment ratings and certifications are no longer valid on any products that have been damaged or modified without the prior written permission of Emerson. Any continued use of product that has been damaged or modified without the written authorization is at the customer’s sole risk and expense.
ii
Title Page
Reference Manual
00809-0100-4130, Rev DB

Contents

1Section 1: Introduction
Contents
March 2017
1.1 Using this manual . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
1.1.1 The sections in this manual. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
1.1.2 Definitions and abbreviations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
1.2 Models covered . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
1.3 Level switch overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
1.3.1 Features list . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
1.3.2 Measurement principle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
1.3.3 Short fork technology . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
1.3.4 Special features. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
1.4 Product recycling and disposal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
2Section 2: Installation
2.1 Safety messages. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
2.2 Considerations before installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
2.2.1 Safety considerations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
2.2.2 Environmental considerations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
2.2.3 Application considerations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
2.2.4 Installation considerations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
2.2.5 Installation recommendations. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
2.2.6 Installation examples . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
2.3 Installation procedures. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
2.3.1 Mechanical. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
2.3.2 Correct fork alignment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
2.3.3 Tightening the threaded level switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
2.3.4 Insulation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
2.4 Setting the mode switch and switching time delay. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
2.5 LED indication. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
2.6 Operating mode. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
2.7 Electrical installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
2.7.1 Direct load switching electronics cassette. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Contents
2.7.2 PNP/PLC electronics cassette . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
2.7.3 DPCO relay electronics cassette . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
2.7.4 Fault and alarm relays (2 x SPCO) electronics cassette . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
2.7.5 NAMUR electronics cassette . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
2.7.6 8/16 mA electronics cassette . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
iii
Contents
March 2017
Reference Manual
00809-0100-4130, Rev DB
2.7.7 Fault condition detected (self-check mode only) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
3Section 3: Service and Troubleshooting
3.1 Safety messages. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
3.2 Magnetic test point . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
3.3 Inspection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
3.4 Maintenance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
3.5 Spare parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
3.6 Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
3.7 Service support. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
3.8 Replacement and calibration of electronic cassettes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
3.8.1 Replacement sequence. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
3.8.2 Calibration sequence . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
4Section A: Reference Data
A.1 Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
A.1.1 General . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
A.1.2 Mechanical. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
A.1.3 Functional . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
A.1.4 Performance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
A.1.5 Electrical. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
A.2 Dimensional drawings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
A.3 Ordering information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
A.3.1 Spare parts and accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
5Section B: Product Certifications
B.1 European directive information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51
B.2 NAMUR approval. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51
B.3 Overfill approval. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51
B.4 Marine approvals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51
B.5 Drinking water approval . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51
B.6 Ordinary location certifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51
B.7 Safety Integrity Level (SIL) certification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
B.8 Canadian Registration Number. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
B.9 Hazardous locations certifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
B.9.1 American and Canadian approvals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
B.9.2 European approvals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59
B.9.3 International approvals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59
iv
Contents
00809-0100-4130, Rev DB

Section 1 Introduction

1.1 Using this manual

1.1.1 The sections in this manual
Introduction
March 2017
The sections in this manual provide information on installing, operating, and maintaining the Rosemount
Section 2: Installation contains mechanical and electrical installation instructions.Section 3: Service and Troubleshooting covers basic maintenance guidelines and troubleshooting
techniques for the most common operating problems.
Section A: Reference Data supplies reference and specification data as well as ordering information.Section B: Product Certificationscontains safety approval information and approval drawings.
2130 Level Switch – Vibrating Fork. The sections are organized as follows:
1.1.2 Definitions and abbreviations
The following definitions are used in this manual:
(1)
Dry
(1)
Wet
Fault The fork frequency is outside the normal frequency band
Normal mode
Enhanced mode
1. The switching point does vary with different liquid densities (see Figure 2-3 on page 10).
The Rosemount 2130 fork (sensor) is submerged to a depth of less than 0.5 in. (13 mm)
The Rosemount2130 fork (sensor) is submerged to a depth of greater than 0.5 in. (13 mm)
The operating mode in which the Rosemount 2130 considers a 0 Hz fork frequency to represent a wet condition (and not a fault)
The operating mode in which the Rosemount 2130 considers a 0 Hz fork frequency to represent a fault condition

1.2 Models covered

All models of the Rosemount 2130 Level Switch -- Vibrating Fork are covered in this manual.

1.3 Level switch overview

1.3.1 Features list
The Rosemount 2130, version with 2130***E in the model number, is designed for operating in high
process temperatures of –94 to 500 °F (–70 to 260 °C)
Rosemount 2130, version with 2130***M in the model number, is designed for operating in
mid-range process temperatures of –40 to 356 °F (–40 to 180 °C)
Based on vibrating short fork technology, the level switch is suitable for many liquid applicationsVirtually unaffected by flow, bubbles, turbulence, foam, vibration, solids content, coating products,
liquid properties, and product variations
Introduction
1
Introduction
B
H
F
I
G
C, D, E
A
March 2017
Reference Manual
00809-0100-4130, Rev DB
Electronic self-checking and condition monitoring.
A ‘heartbeat’ LED indicates its operating state.
The LED also flashes when the switch output is ‘off’ and is constantly lit when 'on'
‘Fast drip’ fork design gives quicker response time, especially with viscous liquids. Rapid wet-to-dry and
dry-to-wet time setting for highly responsive switching
Adjustable switching delay prevents false switching in turbulent or splashing applicationsMagnetic test-point for easy functional testNo moving parts or crevices for virtually no maintenanceNo need for calibration and requires minimum installation proceduresEasy terminal access and electrical protections (see “Electrical” on page 41)Short fork length with extensions up to 157.5 in. (4 m)General area, explosion-proof/flameproof and intrinsically safe options
SIL 2 suitable (see “Ordering information” on page 46)
This combination of features makes the Rosemount 2130 Level Switch an ideal choice for a wide variety of challenging applications in the chemical, power generation, and oil and gas industries.
See Figure 1-2 on page 3 for application examples.
Figure 1-1. Rosemount 2130 Features
A. Electronics cassettes: Direct Load, DPCO Relay, Fault + Alarm (2 x SPCO) Relays, PLC/PNP, NAMUR, or 8/16 mA
®
B. NEMA C. Short fork length with extensions up to 157.5 in. (4 m) D. Wetted material in 316/316L stainless steel, solid Alloy C and Alloy C-276,
E. ‘Fast drip’ fork design F. Threaded, flanged, or Tri Clamp connections G. Thermal tube in 316/316L stainless steel (2130***E version only) H. Two cable/conduit entries I. Magnetic test point
Type 4X (IP66/67) housings in aluminum or 316 stainless steel
or ECTFE co-polymer coated 316/316L stainless steel
2
Introduction
00809-0100-4130, Rev DB
Figure 1-2. Rosemount 2130 Application Examples
Introduction
March 2017
Overfill protection
Spillage caused by overfilling can be hazardous to people and the environment, resulting in lost product and potentially high clean up costs.
High and low level alarm
Maximum and minimum level detection in tanks containing different types of liquids are ideal applications. The Rosemount 2130 is robust and operates continuously across the process temperature range of –94 to 500 °F (–70 to 260 °C) and operating pressures of up to 1450 psig (100 barg), making it perfect for use as a high or low level alarm. It is common practice to have an indep endent high level alarm switch as a backup to an installed level device in case of primary failure.
Pump control (limit detection)
Batch processing tanks often contain stirrers and agitators to ensure mixing and product ‘fluidity’. The standard user selectable time delay, from 0.3 to 30 seconds, virtually eliminates the risk of false
switching from splashing.
Pump protection or empty pipe detection
With the fork projecting only 2 in. (50 mm) (dependent on connection type), the Rosemount 2130 can be installed in small diameter pipes. Short forks mean minimum intrusion on the wetside and allow for simple, low cost installation at any angle into pipes or tanks. By selecting the option of direct load switching or relay electronics, the Rosemount 2130 is ideal for reliable pump control and can be used to protect against pumps running dry.
High temperature applications
The 2130***E version is designed for high temperatures and is suitable for continuous operation within the process temperature range of –94 to 500 °F (–70 to 260 °C).
Wireless applications
The advent of wireless communications allows process plant managers to save up to 90% on installation cost compared with wired technologies. More data can be collected at central locations than has ever been possible before. The Rosemount 2130 can be used with a Rosemount 702 Wireless Discrete Transmitter to enable these benefits for your applications.
Hygienic applications
With the highly polished forks option providing a surface finish (Ra) better than 0.4 μm, the Rosemount 2130 meets the most stringent hygienic requirements used in food and beverage, and pharmaceutical applications. It is robust enough to easily withstand CIP (Clean In Place) and SIP (Steam In Place) cleaning routines.
Introduction
3
Introduction
March 2017
1.3.2 Measurement principle
The level switch is designed using the principle of a tuning fork. A piezo-electric crystal oscillates the forks at their natural frequency. Changes to this frequency are continuously monitored. The frequency of the vibrating fork sensor changes depending on the medium in which it is immersed. The denser the liquid, the lower the frequency.
When used as a low level alarm, the liquid in the tank or pipe drains down past the fork, causing a change of natural frequency that is detected by the electronics and switches the output state.
When the level switch is used as a high level alarm, the liquid rises in the tank or pipe making contact with the fork and causing the output state to switch.
1.3.3 Short fork technology
The natural frequency (~1400 Hz) of the fork avoids interference from plant vibration that may cause false switching. This allows for minimum intrusion into the tank or pipe through the use of a short fork. Using short fork technology, the Rosemount 2130 Level Switch can be used in almost all liquid applications. Extensive research has maximized the operational effectiveness of the fork design, making it suitable for most liquids including coating liquids, aerated liquids, and slurries.
Reference Manual
00809-0100-4130, Rev DB
1.3.4 Special features
Instrument health monitor and continuous self-check
The Rosemount 2130 Level Switch continuously performs instrument health diagnostics to self-check the condition of the fork and sensor. These diagnostics can detect damage to the forks including corrosion, internal or external damage to the forks, and breakages to the internal wiring. Any of these conditions will trigger the 'heartbeat' LED to pulse intermittently, followed by safe handling of the electrical load.
Heartbeat LED
The Rosemount 2130 has a ‘heartbeat’ LED that indicates its operating state. The LED flashes when the switch output is ‘off’ and is constantly lit when 'on'.
Fork design
The “fast drip” fork design draws liquid away from the fork tips when mounted horizontally, and together with a short switching delay, allows the Rosemount 2130 to react quickly and with greater sensitivity to density variations.
Mode switch and adjustable time delay
A mode switch allows the Rosemount 2130 to be set to switch from wet to dry (typically for low level alarm) or from dry to wet (typically for high level alarm). There is also a user-selectable time delay (0.3, 1, 3, 10, or 30 s) to virtually eliminate the risk of false switching in turbulent or splashing applications.
Magnetic test point
A magnetic test-point is located on the side of the housing, allowing the user to perform a functional test of the Rosemount 2130 and the system connected to it. Holding a magnet to the test-point causes the output to change state.
Electrical hook-up
The terminal blocks extend above the housing and give easy terminal access. Electrical protections make electrical hook-up safe and easy (see “Electrical” on page 41).
4
Introduction
00809-0100-4130, Rev DB

1.4 Product recycling and disposal

Recycling of equipment and packaging should be taken into consideration. The product and packaging should be disposed of in accordance with local and national legislation.
Introduction
March 2017
Introduction
5
Introduction
March 2017
Reference Manual
00809-0100-4130, Rev DB
6
Introduction
00809-0100-4130, Rev DB

Section 2 Installation

Safety messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 7
Considerations before installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 8
Installation procedures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 16
Setting the mode switch and switching time delay . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 20
LED indication . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 21
Operating mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 22
Electrical installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 23

2.1 Safety messages

Procedures and instructions in this manual may require special precautions to ensure the safety of the personnel performing the operations. Information that raises potential safety issues is indicated by a
caution symbol ( ). The external hot surface symbol ( ) is used when a surface is hot and care must be taken to avoid possible burns. If there is a risk of an electrical shock, the ( ) symbol is used. Refer to the safety messages listed at the beginning of each section before performing an operation preceded by this symbol.
Installation
March 2017
Failure to follow these installation guidelines could result in death or serious injury.
Make sure only qualified personnel perform the installation.Use the Rosemount 2130 Level Switch (“level switch”) only as specified in this manual.
Failure to do so may impair the protection provided by the equipment.
The weight of the level switch with a heavy flange and extended fork length may exceed
37 lb. (18 kg). A risk assessment is required to be done before carrying, lifting, and installing the level switch.
Explosions could result in death or serious injury.
Do not remove the level switch cover in explosive atmospheres when the circuit is alive.The level switch cover must be fully engaged and locked to meet explosion-proof requirements.Verify the operating environment of the level switch is consistent with the appropriate hazardous
locations certifications.
Review Appendix B: Product Certifications for special conditions and safety instructions
associated with a hazardous location installation.
Electrical shock can result in death or serious injury.
If the level switch is installed in a high-voltage environment and a fault or installation error occurs,
high voltage may be present on the sensor leads and terminals.
Use extreme caution when making contact with the leads and terminals.Make sure the main power to the level switch is off and the lines to any other external power
source are disconnected or not powered while wiring the level switch.
Ensure the wiring is suitable for the electrical current and the insulation is suitable for the voltage,
temperature, and environment.
Installation
7
Installation
March 2017
External surfaces may be hot.
Care must be taken to avoid possible burns. The flange and process seal may also be hot at high
process temperatures. Allow to cool before servicing.
Process leaks could result in death or serious injury.
Install and tighten process connection before applying pressure.Do not attempt to loosen the process connection while the level switch is in service.Make sure that the level switch is handled carefully. If the process seal is damaged, gas might escape
from the tank.

2.2 Considerations before installation

Important Emerson is not in a position to evaluate or guarantee the compatibility of the process fluid or other process parameters with the product, options, configuration or materials of construction selected.
Reference Manual
00809-0100-4130, Rev DB
2.2.1 Safety considerations
Safety instructions and control drawings specific to hazardous area installations are in
Appendix B: Product Certifications, and there are safety instructions in the Rosemount 2120 Quick Start Guide (see Emerson.com/Rosemount. The safety instructions also include general safety information.
2.2.2 Environmental considerations
The Rosemount 2130 Level Switch (“level switch”) is available as Intrinsically Safe (IS) or explo­sion-proof/flameproof versions for hazardous area installations. There are also ordinary location versions for unclassified, safe areas. Approvals are listed in Appendix B: Product Certifications.
This level switch is designed for detecting liquids in open or closed tank, and pipe installations. It is weatherproof and protected against the ingress of dust, but must be protected from flooding. Avoid installing the level switch near heat sources.
Figure 2-1. Environmental Considerations
OKOK
8
Installation
OK
00809-0100-4130, Rev DB
2.2.3 Application considerations
For most liquids, including coating, aerated liquids and slurries, the function is virtually unaffected by flow, turbulence, bubbles, foam, vibration, solid particles, build-up, or properties of the liquid.
The 2130***E version of the level switch operates in high process temperatures of –94 to 500 °F (–70 to 260 °C).
The 2130***M version of the level switch operates in mid-range process temperatures of –40 to 356 °F (–40 to 180 °C).
The level switch can be mounted in an open or closed tank, or pipe. There is a wide range of threaded, flanged, and Tri Clamp process connections.
Important There should be no risk of ‘bridging’ the forks (see Figure 2-2). Examples of media that can create ‘bridging’ of forks are dense paper slurries and bitumen.
Figure 2-2. Avoid Product Build-up
Installation
March 2017
Installation
Application guidelines
Ensure the process is operating within the level switch operating temperature and pressure ranges
(see “Specifications” on page 39).
Ensure the liquid viscosity is within the recommended viscosity range
(see “Specifications” on page 39).
Check that the liquid density is higher than 37.5 lb/ft
when ordered with the Low Density Range option (see “Specifications” on page 39).
Liquid density affects the switching point e.g. dry-to-wet (see Figure 2-3 on page 10)Check for risk of build-up on the forks.
Avoid situations where drying and coating products may create excessive build-up. Problems may occur if the product coats and then dries, causing caking.
Check the solids content in the liquid.
3
(600 kg/m3), or above 31.2 lb/ft3 (500 kg/m3)
9
Installation
SP
HYSP
0.1 in.
(2.5 mm)
0.5 in.
(13 mm)
0.5 in.
(13 mm)
March 2017
Reference Manual
00809-0100-4130, Rev DB
As a guideline, the maximum solid particle diameter in the liquid is 0.2 in. (5 mm). Extra consideration is needed when dealing with particles bigger than 0.2 in. (5 mm). Consult the factory for advice.
In almost all cases, the level switch is insensitive to foams (i.e. does not see the foam).
However, on rare occasions, some very dense foams may be seen as liquid. Known examples of this are found in ice-cream and orange juice manufacturing.
Figure 2-3. Switching Points
10
SP. Switchpoint (H20) HY. Switching Hysteresis
Note
When mounted vertically, a low density media has a switching point closer to the process connection. A high density media has a switching point closer to fork tip.
Installation
00809-0100-4130, Rev DB
2.2.4 Installation considerations
For dimensional drawings, see “Dimensional drawings” on page 42.
Device identification
To identify the Rosemount 2130 Level Switch version, look at the labels on the housing and on the electronics cassette inside the housing. See “Product Certifications” on page 51 for approval information.
Allow adequate space outside tank or pipe
Mount the level switch so that it is removable. Clearance of 1.2 in. (30 mm) is required for cover removal. Ensure there is sufficient room for electrical connections.
The housing cannot be rotated. Ensure there is sufficient room for electrical connections.
Fit the cover correctly
Ensure that the housing O-ring is sitting evenly and then tighten the housing cover to form a good seal. Always use Emerson O-rings.
Installation
March 2017
Grounding
Always ground the housing in accordance with national and local electrical codes.
The most effective grounding method for the housing is a direct connection to earth ground with minimal impedance. Housings with NPT conduit entries do not have an earth ground point and must use the fork earth.
Do not modify the level switch
Do not change the level switch fork in any way (Figure 2-4).
Figure 2-4. Do Not Modify the Rosemount 2130
Installation
11
Installation
OK OK
March 2017
Reference Manual
00809-0100-4130, Rev DB
How to handle the level switch
Handle the level switch with great care (Figure 2-5).
The weight of a level switch with a heavy flange and extended fork length may exceed 37 lb. (18 kg). A risk assessment is required to be done before carrying, lifting, and installing the level switch.
Use both hands to carry the high temperature versions (2130***E) and extended length versions (2130***M) of the level switch. Do not hold using the forks.
For hygienic applications, the level switch must be hygienically cleaned before installation and handled in strict accordance with hygienic standards.
Figure 2-5. Handling the Rosemount 2130
2.2.5 Installation recommendations
Test the system by using the magnetic test-point (see “Magnetic test point” on page 32).Avoid installing near to liquid entering the tank at the fill point.Avoid heavy splashing on the forks. Increasing the time delay reduces accidental switching.Ensure that the forks do not come into contact with the tank wall, any internal fittings, or obstructions.Allow for a sufficient distance between product build-up and fork (see Figure 2-2 on page 9).Ensure the installation does not create tank crevices around the forks where liquid may collect.
This can happen with high viscosity and high density liquids.
Extra consideration is needed if the plant vibration is close to the 1400 Hz operating frequency
of the level switch.
Supporting the extended fork avoids long fork length vibration
(see Figure 2-6 on page 13 or Figure 2-7 on page 14, depending on installation).
12
Installation
3.28 ft. (1.0 m)
3.28 ft. (1.0 m)
Maximum
3.28 ft. (1.0 m)
3.28 ft
(1.0 m)
3.28 ft
(1.0 m)
Maximum
3.28 ft. (1.0 m)
00809-0100-4130, Rev DB
Figure 2-6. Required Supports for Extended Fork (Standard)
Installation
March 2017
OK
OK
OK
Installation
OK
13
Installation
2.3 ft.
(0.7 m)
0.65 ft. (0.2 m)
Maximum
1.3 ft.
(0.4 m)
2.3 ft.
(0.7 m)
2.3 ft.
(0.7 m)
Maximum
1.3 ft.
(0.4 m)
0.65 ft.
(0.2 m)
2.3 ft.
(0.7 m)
2.3 ft.
(0.7 m)
2.3 ft.
(0.7 m)
March 2017
Reference Manual
00809-0100-4130, Rev DB
Figure 2-7. Required Supports for Extended Fork (Marine GL Approval)
OK
OK
OK
14
OK
Installation
A
B
A
B
B
B
B
A
A
A
A
B
B
A
00809-0100-4130, Rev DB
2.2.6 Installation examples
Figure 2-8. High and Low Level Alarms
A. Dry B. Wet
Figure 2-9. Pump Control or Overfill Protection
Installation
March 2017
A. Dry B. Wet
Figure 2-10. Pump or Empty Pipe Protection
A. Dry B. Wet
Installation
15
Installation
A
C
B
D
E
F
March 2017

2.3 Installation procedures

2.3.1 Mechanical
Sealing
Figure 2-11. Sealing
Reference Manual
00809-0100-4130, Rev DB
A. PTFE B. NPT or BSPT (R) thread C. Gasket D. BSPP (G) thread E. Tri Clamp F. The Tri Clamp seal is supplied as an as accessory kit (see “Spare parts and accessories” on page 49)
16
Installation
A
B
C
OK
00809-0100-4130, Rev DB
2.3.2 Correct fork alignment
Ensure the fork is correctly aligned by using the notches and grooves as indicated in Figure 2-12.
Figure 2-12. Correct Fork Alignment
Installation
March 2017
A. Alignment groove on standard length Rosemount 2130 B. Alignment notch on flanged Rosemount 2130 C. Alignment notch on extended length Rosemount 2130
Pipe installation
Figure 2-13. Pipe Installation
Note
The housing/enclosure cannot be rotated.
Installation
17
Installation
March 2017
Reference Manual
00809-0100-4130, Rev DB
Tank installation
Figure 2-14. Tank Installation
OKOK
OK
18
OK OK
OK
Note
The housing/enclosure cannot be rotated.
Installation
OK
D
C
C
OK
A
A
B
E
B
2130***E
2130***E
2130***M
00809-0100-4130, Rev DB
2.3.3 Tightening the threaded level switch
Figure 2-15. Tightening the Threaded Rosemount 2130
Installation
March 2017
2.3.4 Insulation
Figure 2-16. Insulation
A. 2.1 in. (55 mm) B. ROCKWOOL C. 3.9 in. (100 mm) clearance all around D. 5.9 in. (150 mm) E. ROCKWOOL
®
surrounds the Rosemount 2130
Installation
19
Installation
OPERATION MODE
Dry On Mode
Dry Wet
Wet On Mode
Dry Wet
Dry On Wet On
Seconds Delay
0.3 0.3
3
30
10
1
3
30
10
1
12
3
OUT
+
-
4
PLC/PNP
Isolate Supply Before Removing
B
A
Dry On Wet On
Seconds Delay
0.3 0.3
3
30
10
1
3
30
10
1
A
Dry On Wet On
Seconds Delay
0.3 0.3
30
10
3
30
10
1
3
1
A
March 2017
Reference Manual
00809-0100-4130, Rev DB

2.4 Setting the mode switch and switching time delay

1. Select “Dry on” or “Wet on” mode.
2. Select 0.3, 1, 3, 10, or 30 seconds for the delay before switching output state.
Note
There is a five second delay when changing mode or time delay. The small cut-out on the mode switch indicates the selected mode and time delay. Recommended installation for high level is “Dry on” (Figure 2-18) and for low level it is “Wet on” (Figure 2-19). Do not install in the normally ‘off’ state.
Figure 2-17. Top-down View: Example Cassette Inside Housing
A. LED B. Mode switch/time delay
Figure 2-18. “Dry On” Mode, One Second Time Delay (Typical for High Level Applications)
A. Mode “Dry on” and one second delay
Figure 2-19. “Wet On” Mode, One Second Time Delay (Typical for Low Level Applications)
20
A. Mode “Wet On” and one second delay
Installation
00809-0100-4130, Rev DB

2.5 LED indication

Table 2-1. LED Indication for Operating Modes
Installation
March 2017
LED
colors
Red Normal
Yellow Self-Check
1. See “Operating mode” on page 22.
Operating
modes
(1)
Description of mode
When the LED is red and flashing, it indicates the 2130 may be uncalibrated, successfully calibrated, has an electrical load problem, or has an internal PCB fault. See the table below for further information.
When the LED is yellow and flashing, it indicates the same as Normal mode, but also indicates there could be external damage to forks, corroded forks, or internal sensor damage. See the table below for further information.
Table 2-2. LED Indication for Switch Status
LED flash rate Switch status
Continuous
1 every 1/2
second and
every third flash
is missing
1 every second
internal wire damage; internal sensor damage
Output state is on
External damage to forks; corroded forks;
(1)
(Self-Check mode only)
Output state is off
1 every 2
seconds
1 every 4
seconds
2 times every
second
3 times every
second
Off
1. See “Fault condition detected (self-check mode only)” on page 30.
Uncalibrated – Refer to “Replacement and calibration of electronic cassettes”
Load fault; load current too high; load short circuit
Indication of successful calibration
Internal PCB fault (microprocessor, ROM, or RAM)
– Refer to “Product recycling and disposal” on page 5
on page 35
Problem (e.g. supply)
Installation
21
Installation
Dry On Wet On
Seconds Delay
0.3 0.3
3
30
10
1
3
30
10
1
Dry On Wet On
Seconds Delay
0.3 0.3
3
30
10
1
3
30
10
1
Dry On Wet On
Seconds Delay
0.3 0.3
3
30
10
1
3
30
10
1
10 seconds
< 3
seconds
10 seconds
< 3
seconds
March 2017

2.6 Operating mode

Note
For SIL 2 compliance, self-check mode must be enabled. See also “Safety Integrity Level (SIL) certification option” on page 48.
Selecting self-check operating mode
Figure 2-20. Selecting Self-check Operating Mode
Reference Manual
00809-0100-4130, Rev DB
When the self-check mode is operating, the ‘heartbeat’ LED color is yellow.
Selecting normal operating mode
Figure 2-21. Selecting Normal Operating Mode
Dry On Wet On
0.3 0.3 1
3
10
30
Seconds Delay
1
3
10
30
When the normal mode is operating, the ‘heartbeat’ LED color is red.
Dry On Wet On
0.3 0.3 1
3
10
30
Seconds Dela y
1
3
10 30
Dry On Wet On
0.3 0.3 1
3
10
30
Secon ds De lay
1
3
10 30
Installation
22
Direct Load Switching
WARNING
Isolate Supply Before Removing
OPERATION MODE
Dry On Mode
Dry Wet
Wet On Mode
Dry Wet
Dry On Wet On
Seconds Delay
0.3 0.3
3
30
10
1
3
30
10
1
123
LINE
LOAD
PE
(Ground)
Neutral
Live
0V
Fuse 2A(T)
R
I
L
R = External load (must be fitted )
U = 20 - 264 V ~ (ac) (50 /60Hz ) I
OFF
< 4
mA at 20 °C (24 - 230 Vac)
I
OFF
< 6
mA at -40 to 80 °C (20 - 264 Vac)
I
L
=
20 - 500
mA
U = 20 - 60 V (dc)) I
OFF
< 4 mA
IL =
20 - 500 mA
DPST
+V
= 5 A, 40 ms (inrush)
IPK
= 5 A, 40 ms (inrush)
IPK
00809-0100-4130, Rev DB

2.7 Electrical installation

Before use, check that suitable cable glands and blanking plugs are fitted and fully tightened.
Isolate supply before connecting the switch or removing the electronics.
The Protective Earth (PE) terminal must be connected to an external earthing system.
Note
When replacing a cassette, it is essential to re-calibrate. Refer to “Replacement and calibration of electronic cassettes” on page 35.
2.7.1 Direct load switching electronics cassette
Figure 2-22. Direct Load Switching (Two-wire, Red Label)
Installation
March 2017
Installation
Note
A DPST (Double Pole, Single Throw) on/off switch must be installed to safely disconnect the power supply. Fit the DPST switch as close as possible to the Rosemount 2130. Keep the DPST switch free of obstructions. Label the DPST switch to indicate it is the supply disconnection device for the Rosemount 2130.
Relay Connection Warning
The Rosemount 2130 requires a minimum current to operate (I output is ‘off’. If selecting a relay to wire in series with the Rosemount 2130, ensure the drop-out voltage of the relay is greater than the voltage generated across the relay coil when I
), which continues to flow when the
OFF
flows through it.
OFF
23
Installation
Dry On Wet On
Seconds Delay
0.3 0.3
3
30
10
1
3
30
10
1
Dry On Wet On
Seconds Delay
0.3 0.3
30
10
3
30
10
1
3
1
U
N L
0V
+V
Fuse 2A(T)
I
L
12V
DPST
Fuse 2A(T)
N L
0V
+V
I
L
<4mA
DPST
Fuse
2A(T)
N L
0V
+V
I
L
<4mA
DPST
March 2017
Reference Manual
00809-0100-4130, Rev DB
High level, dry = on Low level, wet = on
= Load off
=Load on
LED on continuously
LED flashes every second
U
12V
I
L
Fuse 2A(T)
DPST
N L
+V
0V
LED on continuously
LED flashes every second
24
Installation
OUT
-
+
PLC
+
I/P
U
<3V
I
L
OUT
-
+
+
U
<3V
I
L
Fuse
1A(T)
R
OUT
-
+
+
U
<3V
I
L
Fuse 1A(T)
R
OUT
-
+
+
I
L
Fuse 1A(T)
R
< 100 A
00809-0100-4130, Rev DB
2.7.2 PNP/PLC electronics cassette
Figure 2-23. PNP Output for Load and Direct PLC Switching (Three-wire, Yellow Label)
Installation
March 2017
12
PE
(Ground)
+
+V
-
OUT
3
4
Fuse 2A(T)
0VO/P
OPERATION MODE
Dry On Mode
Dry Wet
Dry Wet
Wet On Mode
U = 20 - 60 V (dc)
I < 4 mA + I
L
Dry On Wet On
0.3 0.3 1
3
10
30
Seconds Delay
I
L (MAX
IPK
= 5 A, 40 ms (inrush)
U
OUT(ON)
U
OUT(ON)
I
L (OFF)
PLC/PNP
Isolate Supply Before Removing
1
3
10 30
= 0 - 500 mA
)
= U - 2.5 Vac (20 °C) = U - 2.75 Vac (-40 to 80 °C)
< 100A
High level, dry = on Low level, wet = on
Dry On Wet On
0.3 0.3 1
3
10
30
Seconds Delay
1
3
10 30
Dry On Wet On
0.3 0.3 1
3
10
30
Seconds Delay
1
3
10 30
= Load off
=Load on
Installation
PLC (positive input)PNP dc
LED on continuously
OUT
OUT
-
+
U
<3V
I
L
I/P
+
PLC
Fuse 1A(T)
+
<100 A
+
+
< 100 A
OUT
OUT
-
I
L
I/P
PLC
-
R
I
L
+
<100 A
+
-
I
L
I/P
PLC
+
LED flashes every second
LED on continuously
LED flashes every second
25
Installation
Dry On Wet On
Seconds Delay
0.3 0.3
30
10
3
30
10
1
3
1
NC NOC
March 2017
2.7.3 DPCO relay electronics cassette
Figure 2-24. DPCO Relay (Dark Green Label)
Reference Manual
00809-0100-4130, Rev DB
(Ground)
Warni ng
LN
123
Fuse 0.5 (T)PE
N
Live
+V
0V
OPERATION MODE
Seconds Delay
Dry On
Wet On
0.3 0. 3 1 3
10
30
Dry Wet
1
3
10
30
Wet
DPST
U = 20...264 V ~ (ac)
(50/60 Hz)
I < 6 mA
U = 20...60 V (dc) I < 6 mA
Dry O n
Dry
Wet O n
Isolate Supply Before Removing
NOCNC
45
C
NC NO
Resistive Lo ad cos φ = 1 ;
L/R = 0 ms
I
= 5 A
MAX
ac:
U
= 250 V
MAX
P
= 1250 VA
MAX
dc:
= 30 V
U
MAX
P
= 240 W
MAX
6
NC
789
Induct ive Load cos φ = 0.4 ;
L/R = 7 ms
I
MAX
ac:
U
MAX
P
MAX
dc:
U
P
C
= 3.5 A
= 250 V
= 875 VA
= 30 V
MAX
= 170 W
MAX
NOCNC
RELAY
NO
Note
A DPST (Double Pole, Single Throw) on/off switch must be installed to safely disconnect the power supply. Fit the DPST switch as close as possible to the Rosemount 2130. Keep the DPST switch free of obstructions. Label the DPST switch to indicate it is the supply disconnection device for the Rosemount 2130.
High level, dry = on Low level, wet = on
Dry On Wet On
0.3 0.3 1
3
10
30
Seconds Delay
NC NOC
NC NOC
LED on continuously
26
1
3
10 30
NC NOC
LED flashes every second
NC NOC
NC NOC
LED on continuously
NC NOC
NC NOC
LED flashes every second
Installation
Dry On Wet On
Seconds Delay
0.3 0.3
30
10
3
30
10
1
3
1
(=No alarm)
(=No fault)
(=Alarm) (=No fault)
(=No alarm)
(=No fault)
NC NOC
(=Alarm) (=No fault)
00809-0100-4130, Rev DB
2.7.4 Fault and alarm relays (2 x SPCO) electronics cassette
Figure 2-25. SPCO Fault and Alarm Relays (Light Green Label)
Installation
March 2017
(Ground)
WARNING
LN
123
Fuse 0.5 (T)PE
N
Live
0V
OPERATION MODE
Seconds Delay
Dry On
Wet On
0.3 0. 3 1 3
10
30
DPST
U = 20...264 V ~ (ac)
I < 6 mA
U = 20...60 V (dc)
+V
I < 6 mA
Dry Wet
1
3
10
Dry
30
Wet
(50/60 Hz)
Dry O n
Wet O n
NC NO
Isolate Supp ly
Alarm Fault
Before Removing
NOCNC
45
C
Resistive Lo ad cos φ = 1 ;
L/R = 0 ms
I
= 5 A
MAX
ac:
U
= 250 V
MAX
P
= 1250 VA
MAX
dc:
U
= 30 V
MAX
P
= 240 W
MAX
6
NC
789
C
Induct ive Load
cos φ = 0.4 ; L/R = 7 ms
I
= 3.5 A
MAX
ac:
U
= 250 V
MAX
P
= 875 VA
MAX
dc:
= 30 V
U
MAX
P
= 170 W
MAX
NOCNC
FAULT RELAY
NO
Note
A DPST (Double Pole, Single Throw) on/off switch must be installed to safely disconnect the power supply. Fit the DPST switch as close as possible to the Rosemount 2130. Keep the DPST switch free of obstructions. Label the DPST switch to indicate it is the supply disconnection device for the Rosemount 2130.
NC NOC
NC NOC
LED on continuously
High level, dry = on Low level, wet = on
Dry On Wet On
0.3 0.3 1
3
10
30
Seconds Delay
1
3
10 30
NC NOC
NC NOC
LED flashes every second
NC NOC
NC NOC
LED on continuously
LED flashes every second
NC NOC
Installation
27
Installation
OPERATION MODE
Dry On Mode
Dry Wet
Wet On Mode
Dry Wet
Dry On Wet On
Seconds Delay
0.3 0.3
3
30
10
1
3
30
10
1
12
+-
EN 50227 / NAMUR
ION= 2.2 ... 2.5 mA I
OFF
I
FAULT
= 0.8 ... 1.0 mA
+
-
A certified intrinsically safe isolating amplifier to IEC 60947-5-6
Ex
Ex
8V dc
< 1.0 mA
Dry On Wet On
Seconds Delay
0.3 0.3
3
30
10
1
3
30
10
1
March 2017
2.7.5 NAMUR electronics cassette
Figure 2-26. NAMUR (Light Blue Label)
Reference Manual
00809-0100-4130, Rev DB
Note
This electronics cassette is suitable for Intrinsically Safe applications and requires a certified isolating barrier. See “Product Certifications” on page 51 for Intrinsically Safe approvals.
This electronics cassette is also suitable for non-hazardous (safe) area applications. It can only be interchanged with the 8/16 mA cassette.
Do not exceed 8 Vdc.
High level, dry = on Low level, wet = on
Dry On Wet On
0.3 0.3
1
3
10
30
Seconds Delay
-
+
-
+
-
+
1
3
10
30
-
+
28
LED on continuously
>2.2 mA
<1.0 mA
LED flashes every second
>2.2 mA
LED on continuously
<1.0 mA
LED flashes every second
Installation
+
Dry On Wet On
Seconds Delay
0.3 0.3
3
30
10
1
3
30
10
1
+
> 15 mA
+
< 8.5 mA
+
> 15 mA
+
00809-0100-4130, Rev DB
2.7.6 8/16 mA electronics cassette
Figure 2-27. 8/16 mA (Dark Blue Label)
OPERATION MODE
Dry On WetOn
0.3 0.3 1
3
10
30
Seconds Delay
Ex
12
PE
(Ground)
Dry On Mode
Dry Wet
Wet Dry
I
ON
I
OFF
I
FAULT
Wet OnMode
15 ... 17 mA
=
7.5 ... 8.5 mA
=
< 3.7 mA
3
1
3
10 30
8/16 mA
24 Vdc Nominal
U
=
Installation
March 2017
-
Ex
-
Drives 4-20 mA Analog Input
+
A certified intrinsically safe barrier must be used to meet IS requirements
+
Note
This electronics cassette is suitable for Intrinsically Safe applications and requires a certified isolating barrier. See “Product Certifications” on page 51 for Intrinsically Safe approvals.
This
electronics cassette is also suitable for non-hazardous (safe) area applications.
In this case, U = 11 - 36 V (dc) and it can only be interchanged with a NAMUR cassette.
High level, dry = on Low level, wet = on
Dry On Wet On
0.3 0.3 1
3
10
30
Seconds Delay
1
3
10
30
Installation
< 8.5 mA
LED on continuously
LED flashes every second
LED on continuously
LED flashes every second
29
Installation
Fuse 2A(T)
N L
0V
+V
I
L
<4mA
DPST
(=Fault)
(=Fault)
OUT
-
+
+
I
L
Fuse
1A(T)
R
< 100 A
(=Fault)
(=Fault)
(=Fault)
+
< 3.7 mA
(=Fault)
(=No alarm)
Alarm Relay
(=Fault)
Fault Relay
=Load on
= Load off
March 2017
2.7.7 Fault condition detected (self-check mode only)
When a fault condition is detected in the self-check operating mode, the ‘heartbeat’ LED flashes once every half a second. The output from the level switch will then be as follows:
Table 2-3. Output When Fault Condition Detected
Direct Load PLC PNP dc
OUT
<100 A
I/P
-
I
L
PLC
+
+
Reference Manual
00809-0100-4130, Rev DB
DPCO relay NAMUR 8/16 mA
-
+
NC NOC
<1.0 mA
Fault and alarm (2 x SPCO) relays
NC NOC
NC NOC
Note
See “LED indication” on page 21 for causes of other LED flashing rates.
30
Installation
Service and Troubleshooting
00809-0100-4130, Rev DB

Section 3 Service and Troubleshooting

Safety messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 31
Magnetic test point . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 32
Inspection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 32
Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 33
Spare parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 33
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 34
Service support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 34
Replacement and calibration of electronic cassettes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 35

3.1 Safety messages

Procedures and instructions in this manual may require special precautions to ensure the safety of the personnel performing the operations. Information that raises potential safety issues is indicated by a
caution symbol ( ). The external hot surface symbol ( ) is used when a surface is hot and care must be taken to avoid possible burns. If there is a risk of an electrical shock, the ( ) symbol is used. Refer to the safety messages listed at the beginning of each section before performing an operation preceded by this symbol.
March 2017
Failure to follow these installation guidelines could result in death or serious injury.
Make sure only qualified personnel perform the installation.Use the Rosemount 2130 Level Switch (“level switch”) only as specified in this manual.
Failure to do so may impair the protection provided by the equipment.
The weight of the level switch with a heavy flange and extended fork length may exceed
37 lb. (18 kg). A risk assessment is required to be done before carrying, lifting, and installing the level switch.
Explosions could result in death or serious injury.
Do not remove the level switch cover in explosive atmospheres when the circuit is alive.The level switch cover must be fully engaged and locked to meet explosion-proof requirements.Verify the operating environment of the level switch is consistent with the appropriate hazardous
locations certifications.
Review Appendix B: Product Certifications for special conditions and safety instructions
associated with a hazardous location installation.
Process leaks could result in death or serious injury.
Install and tighten process connection before applying pressure.Do not attempt to loosen the process connection while the level switch is in service.Make sure that the level switch is handled carefully. If the process seal is damaged, gas might
escape from the tank.
Service and Troubleshooting
31
Service and Troubleshooting
Output off
Output off
Output on
Output on
No magnet
Magnet
March 2017
Electrical shock can result in death or serious injury.
If the level switch is installed in a high-voltage environment and a fault or installation error occurs,
high voltage may be present on the sensor leads and terminals.
Use extreme caution when making contact with the leads and terminals.Make sure the main power to the level switch is off and the lines to any other external power source
are disconnected or not powered while wiring the level switch.
Ensure the wiring is suitable for the electrical current and the insulation is suitable for the voltage,
temperature, and environment.
External surfaces may be hot.
Care must be taken to avoid possible burns. The flange and process seal may also be hot at high
process temperatures. Allow to cool before servicing.

3.2 Magnetic test point

Reference Manual
00809-0100-4130, Rev DB
A magnetic test-point is on the side of the housing (Figure 3-1), allowing a functional test of the Rosemount 2130 Level Switch. By touching a magnet on the target, the output will change state for as long as the magnet is held there.
Figure 3-1. Magnetic Test Point
TP

3.3 Inspection

TP
S
N
TP
S
N
32
Visually examine the Rosemount 2130 Level Switch for damage. If it is damaged, do not use.Ensure the housing cover, cable glands, and blanking plugs are fitted securely.Fit a suitably rated blanking plug where required.Ensure the LED flash rate is once every second or continually on.
If anything else is demonstrated, see “LED indication” on page 21.
Service and Troubleshooting
OK
00809-0100-4130, Rev DB
Figure 3-2. Visually Examine the Rosemount 2130

3.4 Maintenance

Service and Troubleshooting
March 2017
Figure 3-3. Maintenance
OK
Note
Only use a soft brush for cleaning.

3.5 Spare parts

See “Spare parts and accessories” on page 49.
Service and Troubleshooting
33
Service and Troubleshooting
March 2017

3.6 Troubleshooting

If there is a malfunction, see Table 3-1 for information on possible causes.
Table 3-1. Troubleshooting Chart
Fault Symptom/Indication Action/Solution
Reference Manual
00809-0100-4130, Rev DB
No LED; no power Check the power supply; (check the load on direct
LED flashing See “LED indication” on page 21
Does not switch
Fork is damaged Replace the Rosemount 2130
Thick encrustation
on the fork
5 second delay when changing
mode/delay
Incorrect switching
Dry = On, Wet = On
set incorrectly
Turbulence Set a longer switching time delay
Excessive electrical noise Suppress the cause of the interference
Faulty switching
Cassette has been fitted from
another Rosemount 2130

3.7 Service support

load switching electronics)
Clean the fork with care
This is normal – wait 5 seconds
Set the correct mode on the electronics cassette
Fit the factory supplied cassette
and then calibrate. (See “Replacement and calibration of electronic
cassettes” on page 35)
34
To expedite the return process outside of the United States, contact the nearest Emerson representative.
Within the United States, call the Emerson Instrument and Valves Response Center using the 1 800 654 7768 toll-free number. This center, available 24 hours a day, will assist you with any needed information or materials.
The center will ask for product model and serial numbers, and will provide a Return Material Authorization (RMA) number. The center will also ask for the process material to which the product was last exposed.
Individuals who handle products exposed to a hazardous substance can avoid injury if they are informed of, and understand, the hazard. If the product being returned was exposed to a hazardous substance as defined by OSHA, a copy of the required Material Safety Data Sheet (MSDS) for each hazardous substance identified must be included with the returned goods.
Service and Troubleshooting
OPERATION MODE
Dry On Mode
Dry Wet
Wet On Mode
Dry Wet
Dry On Wet On
Seconds Delay
0.3 0.3
3
30
10
1
3
30
10
1
12
3
OUT
+
-
4
PLC/PNP
Isolate Supply Before Removing
00809-0100-4130, Rev DB
Service and Troubleshooting
March 2017

3.8 Replacement and calibration of electronic cassettes

When replacing a damaged or faulty electronic cassette, calibrate the replacement cassette to the operating frequency of the fork assembly.
This section describes what is required for calibration. Calibration sequence steps 3 to 13 are time dependent and must be carried out within the noted times. The purpose of the time dependency and switching sequence is to prevent an accidental calibration from occurring.
If this replacement is taking place in a hazardous area, only qualified personnel should perform the replacement. All work in hazardous areas must be carried out in accordance with the local code. For general hazardous area requirements of this equipment, see Appendix B: Product Certifications.
Calibration of the device is complex and it may take several attempts before calibration is successful.
3.8.1 Replacement sequence
On Intrinsically Safe (I.S.) approved versions of the Rosemount 2130 Level Switch, it is recommended that replacement and calibration be performed in a non-hazardous (safe) area.
Note
Intrinsically Safe approved cassettes can only be replaced with the same type of IS cassette. Non-I.S. cassette types can be interchanged with other non-I.S. cassettes, but a new label must be fitted
and the original part number transferred to the new label. Before starting the replacement and calibration procedure, ensure that any controlled process will not be
adversely affected.
To replace the cassette
1. Isolate and disconnect the power to the Rosemount 2130 Level Switch, and insulate the ends of the wires. On units with a relay cassette, there may be more than one power source
2. Remove the cover and disconnect the wires, noting any connections (Figure 3-4) and the exact mode switch position (Figure 3-5) on the cassette to be replaced.
3. Remove and retain the two fixing screws from the base of the cassette and unplug the cassette.
4. Plug in the replacement cassette, replace the screws, reconnect the wires, and set the mode switch to “Wet On” with a one second delay (Figure 3-6).
5. Reconnect the power to the unit.
Figure 3-4. Example of Installed Cassette
Service and Troubleshooting
35
Service and Troubleshooting
Dry On Wet On
Seconds Delay
0.3 0.3
3
30
10
1
3
30
10
1
March 2017
Figure 3-5. Mode Switch Setting (Existing Cassette)
Figure 3-6. Mode Switch Setting (Replacement Cassette)
Reference Manual
00809-0100-4130, Rev DB
This is an example of how the existing cassette may look. Here, the mode switch is set to “Dry On” with a one second delay.
Take note of the actual setting.
SETTING IS: ____________________________________
Dry On Wet On
0.3 0.3 1
3
10
30
Seconds Delay
Set the mode switch of the new cassette to “Wet On” with a one second delay.
1
3
10 30
36
Service and Troubleshooting
00809-0100-4130, Rev DB
3.8.2 Calibration sequence
To calibrate the cassette
1. Ensure that the forks are dry, and the mode switch is set to “Wet On” with the time delay set to 1 second (Figure 3-6).
2. Check that the LED is flashing at a rate of one flash per second. Proceed to step 8 if it is on continuously.
3. Apply a magnet to the test-point (as shown on page 32).
4. After a one second delay, the LED will be lit continuously.
5. Within one second, rotate the mode switch two steps clockwise.
6. After a two second delay, the LED will go out.
7. Within three seconds, rotate the mode switch two steps counter-clockwise. Proceed to step 13.
8. Apply a magnet to the test-point (as shown on page 32).
9. After a one second delay, the LED will flash at a rate of one flash per second.
Service and Troubleshooting
March 2017
10.Within one second, rotate the mode switch two steps clockwise.
11.After a two second delay, the LED will go out (stop flashing).
12.Within three seconds, rotate the mode switch two steps counter-clockwise.
13.After a two second delay, the LED should flash twice per second.
14.If the LED is flashing twice per second, the calibration has occurred correctly. Remove the magnet from the test-point. After a one second delay, the unit will return to normal operation. Proceed to step 17.
15.If the LED is flashing once per second or it is on continuously, the calibration has failed. Remove the magnet from the test-point, wait ten seconds, and repeat from step 2.
16.If the LED stays off after the two second delay of step 13, the sensor is not working correctly. Check that the forks are clean and dry. Also, verify there is nothing jamming or touching the sensor. If no fault is found with the sensor, the entire unit should be returned for repair (see “Product recycling and disposal” on page 5).
17.Set the mode switch to the original setting noted in Figure 3-5 and wait five seconds.
18.Replace the cover and check that the system works.
Service and Troubleshooting
37
Service and Troubleshooting
March 2017
Reference Manual
00809-0100-4130, Rev DB
38
Service and Troubleshooting
Reference Manual
00809-0100-4130, Rev DB

Appendix A Reference Data

Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 39
Dimensional drawings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 42
Ordering information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 46
Reference Data
March 2017

A.1 Specifications

A.1.1 General
Product
Rosemount 2130 Level Switch
Measuring principle
Vibrating Fork
Applications
Most liquids including coating liquids, aerated liquids, and slurries
A.1.2 Mechanical
Housing / Enclosure
Table A-1. Housing / Enclosure Specification
Housing code
Housing material
Rotational No No No No
Housing paint
LED window
Conduit entry
Ingress protection
Connections
Threaded, Tri Clamp, and flanged process connections. See Table A-7 on page 46 for a complete list.
Extended lengths
Table A-2. Minimum Extended Lengths
Process connection Minimum extended length
3
/4–in. threaded 3.8 in. (95 mm)
1–in. threaded 3.7 in. (94 mm)
Flanged 3.5 in. (89 mm)
Tri Clamp 4.1 in. (105 mm)
A-2 A-9 S-2 S-9
Aluminum Alloy
ASTM B85 A360.0
Polyurethane Paint Not Applicable
None None
M20
IP66/67 to EN60529,
3
/4-in. ANPT M20
NEMA 4X
316C12
Stainless Steel
3
/4-in. ANPT
IP66/67 to EN60529,
NEMA 4X
The maximum extended length is 157.5 in. (4000 mm) except for the ECTFE co-polymer coating and polished process connection options which have a maximum length of 59.1 in. (1500 mm) and
39.4 in. (1000 mm) respectively.
Material selection
Emerson provides a variety of Rosemount product with various product options and configurations including materials of construction that can be expected to perform well in a wide range of applications. The Rosemount product information presented is intended as a guide for the purchaser to make an appropriate selection for the application. It is the purchaser’s sole responsibility to make a careful analysis of all process parameters (such as all chemical components, temperature, pressure, flow rate, abrasives, contaminants, etc.), when specifying product, materials, options and components for the particular application.
Emerson is not in a position to evaluate or guarantee the compatibility of the process fluid or other process parameters with the product, options, configuration or materials of construction selected.
Process connection materials
316/316L Stainless Steel (1.4401/1.4404 dual certified).
Alloy C (UNS N10002) and Alloy C-276 (UNS N10276) – available only for flanged, and BSPT and NPT threaded process
3
connections (
/4- and 1-in. BSPT (R) and 3/4- and 1-in. NPT).
ECTFE co-polymer coated 316/316L stainless steel (1.4401/1.4404 dual certified) – only available for a flanged Rosemount 2130.
Gasket material for
3
/4- and 1-in. BSPP (G) is non-asbestos BS7531
Grade X carbon fiber with rubber binder.
A.1.3 Functional
Maximum operating altitude
6562 ft. (2000 m)
Maximum operating pressure
The final rating depends on the type of process connection.
Threaded connection: see Figure A-1 for operating pressures.
Reference Data
39
Reference Manual
1450 (100)
885 (61)
-14.5 (-1.0)
-94
(-70)
68
(20)
500
(260)
Process Temperature °F (°C)
Process Pressure psig (bar g)
32 (0)
32 (0)
2130***E
1450 (100)
1073 (74)
-14.5 (-1.0)
-40
(-40)
68
(20)
356
(180)
Process Temperature °F (°C)
Process Pressure psig (bar g)
32 (0)
32 (0)
2130***M
176 (80)
176
(80)
-40 (-40)
-94
(-70)
500
(260)
Process Temperature °F (°C)
Ambient Temperature °F (°C)
149 (65)
32 (0)
32
(0)
2130***E
176 (80)
176
(80)
-40 (-40)
-40
(-40)
356
(180)
Process Temperature °F (°C)
Ambient Temperature °F (°C)
122 (50)
32 (0)
32
(0)
2130***M
00809-0100-4130, Rev DB
Reference Data
March 2017
Clamp glands 02120-2000-0001 and 02120-2000-0002 (page 49) limit the maximum pressure to 18.85 psig (1.3 bar g).
Tri Clamp connection: 435 psig (30 bar g)Flanged Connection: See Figure A-1 or Table A-3 (whichever
gives the lowest pressure).
Figure A-1. Process Pressure
Minimum and maximum operating temperatures
See Figure A-2 for operating temperatures.Clamp glands 02120-2000-0001 and 02120-2000-0002
(page 49) limit the maximum temperature to 257 °F (125 °C).
The ambient temperature for a 8/16 mA cassette is limited to
158 °F (70 °C) in potentially explosive dust atmospheres.
Figure A-2. Operating Temperatures
Table A-3. Maximum Flange Pressure Rating
Standard Class/Rating
ASME B16.5 Class 150 275 psig
ASME B16.5 Class 300 720 psig
ASME B16.5 Class 600 1440 psig
EN 1092-1 PN 10/16 16 barg
EN 1092-1 PN 25/40 40 barg
EN 1092-1 PN 63 63 barg
EN 1092-1 PN 100 100 barg
1. At 100 °F (38 °C), the pressure rating decreases with an increasing process
2. At 122 °F (50 °C), the pressure rating decreases with an increasing process
40
temperature.
temperature.
Stainless steel flanges
(1)
(1)
(1)
(2)
(2)
(2)
(2)
A.1.4 Performance
Hysteresis (water)
0.1 in. (± 2.5 mm)
Switching point (water)
0.5 in. (13 mm) from tip of fork (if vertical installation) or from edge of fork (if horizontal installation) – this will vary with different liquid densities
Liquid density requirement
Minimum standard density is 37.5 lb/ft3 (600 kg/m3).
Minimum density is 31.2 lb/ft Low Density Range option.
3
(500 kg/m3) when ordered with the
Reference Data
Reference Data
March 2017
Reference Manual
00809-0100-4130, Rev DB
Liquid viscosity range
Up to 10000 cP (centiPoise) when operating in the Normal mode.
Up to 1000 cP (centiPoise) when operating in Self-check mode.
Solids content and coating
The maximum recommended diameter of solid particles in the liquid is 0.2 in. (5 mm) when used in normal mode only. For coating products, avoid bridging of forks.
Switching delay
There is a user-selectable 0.3, 1, 3, 10, 30 seconds delay for dry-to-wet and wet-to-dry switching.
CIP (Clean In Place) and SIP (Steam In Place) cleaning
Withstands cleaning routines up to 275 °F (135 °C).
NACE
NACE compliance to MR0175 / ISO 15156 or MR0103, depending on the option code selected for the model number.
Operating modes
Table A-4. Operating Modes
Fault conditions detected
PCB Control Circuit Corruption Yes Yes
External Damage to Fork No Yes
Internal Wire Disconnect/Break No Yes
Internal Damage to Sensor No Yes
Excessive Corrosion No Yes
Over-temperature No Yes
Normal mode
(Red LED)
Self-check mode
(Yellow LED)
Magnetic test point
A magnetic test point is located on the side of the housing, allowing a functional test of the Rosemount 2130 and a system connected to it. By holding a magnet to the target, the output changes state for as long as the magnet is held there.
Terminal connection (wire diameter)
Minimum 26 AWG and maximum 14 AWG (0.13 to 2.5 mm2). Note national regulations.
Conduit plugs/cable gland
Conduit entries for explosion-proof areas are shipped with one Exd plug (loose in bag) and two dust caps fitted. Use suitably rated cable glands. Unused conduit entries must be sealed with a suitably rated blanking plug. Local codes and regulations must be complied with.
Grounding
The Rosemount 2130 should always be grounded, either through the terminals or using the external ground connection provided.
A.1.5 Electrical
Switching mode
User-selectable switching mode (Dry = on or Wet = on)
Protection
Polarity insensitive – on Direct Load and Relay electronics
Over-current protection – on Direct Load and PNP/PLC electronics
Short-circuit protection – on Direct Load and PNP/PLC electronics
Load-missing protection – on Direct Load and PNP/PLC electronics
Surge protection (to IEC61326) – Available on all versions of the Rosemount 2130
Reference Data
41
Reference Manual
B
0.5 (13)
switchpoint (when
mounted horizontally)
0.5 (13) switchpoint (when mounted vertically)
13.7
(348)
4.7 (120)
1.7 (44)
A
2.8
(70)
Allow 1.2 (30)
to remove cover
2130***E
2130***M
Allow 1.2 (30)
to remove cover
4.7 (120)
7.1
(182)
2.7
(69)
1.7 (44)
0.5 (13) switchpoint (when mounted vertically)
0.5 (13)
switchpoint (when
mounted horizontally)
B
A
C
D
C D
00809-0100-4130, Rev DB

A.2 Dimensional drawings

Figure A-3. 3/4- and 1-in. Threaded Mounting (Standard Length)
Reference Data
March 2017
A. Cable entry M20 x 1.5 or 3/4-in. ANPT B. Aluminum or stainless steel housing C. 1.575 (40) A/F hexagon D.
Note
Dimensions are in inches (millimeters). For hygienic Rosemount 2130 dimensions, see Type 1 drawing downloads on Emerson.com/Rosemount.
3
/4-in. or 1-in. thread
42
Reference Data
Reference Data
B
D
E(M)
1.7 (44)
A
0.5 (13) switchpoint
(when mounted horizontally)
0.5 (13) switchpoint (when mounted vertically)
14.5
(368)
4.7 (120)
Allow 1.2 (30)
to remove cover
Ø1.1 (28) for 1-in. thread Ø0.9 (23) for
3
/4-in. thread
2130***E
4.7 (120)
B
A
Allow 1.2 (30)
to remove cover
8.0
(202)
C
D
Ø1.1 (28) for 1-in. thread Ø0.9 (23) for
3
/4-in. thread
0.5 (13) switchpoint (when mounted vertically)
0.5 (13)
switchpoint (when
mounted horizontally)
1.7 (44)
2130***M
E(M)
C
March 2017
Figure A-4. 3/4- and 1-in. Thread Mounting (Extended Length)
Reference Manual
00809-0100-4130, Rev DB
A. Cable entry M20 x 1.5 or 3/4-in. ANPT C. 1.575 (40) A/F hexagon B. Aluminum or stainless steel housing D.
Note
Dimensions are in inches (millimeters). For hygienic Rosemount 2130 dimensions, see Type 1 drawing downloads on Emerson.com/Rosemount.
Table A-5. Fork Length for Threaded Rosemount 2130
connection
3
1. Maximum extended length of fork with hand-polished option is 39.4 in. (1000 mm).
Reference Data
/4-in. thread 1.73 in. (44 mm) 3.75 in. (95 mm) 157.5 in. (4000 mm)
1-in. thread 1.73 in. (44 mm) 3.74 in. (94 mm) 157.5 in. (4000 mm)
Process
3
Standard length
Fork Length code A
/4-in. or 1-in. thread
Minimum length
Fork Length code E (M)
Fork Length code E (M)
Maximum length
(1)
43
Reference Manual
B
12.9
(328)
A
1.7 (44)
4.0
(102)
0.5 (13)
switchpoint
(when mounted horizontally)
Ø1.1 (28) for 1
1
/2-in. or larger flange; Ø0.9 (23) for up to 1-in. flange; Ø0.95 (24) for 1-in. coated flange
0.5 (13) switchpoint (when mounted vertically)
4.7 (120)
Allow 1.2 (30)
to remove cover
2130***E
2130***M
4.7 (120)
B
A
Allow 1.2 (30)
to remove cover
7.3
(185)
4.0
(102)
1.7 (44)
0.5 (13)
Switchpoint (when
mounted horizontally)
0.5 (13) switchpoint (when mounted vertically)
Ø1.1 (28) for 1
1
/2 -in. or larger flange; Ø0.9 (23) for up to 1-in. flange; Ø0.95 (24) for 1-in. coated flange
00809-0100-4130, Rev DB
Figure A-5. Flange Mounting (Standard Length)
Reference Data
March 2017
A. Cable entry M20 x 1.5 or 3/4-in. ANPT B. Aluminum or stainless steel housing
Note
Dimensions are in inches (millimeters).
44
Reference Data
Reference Data
B
A
1.7 (44)
12.9
(328)
E(M)
0.5 (13)
switchpoint
(when mounted horizontally)
Ø1.1 (28) for 1
1
/2-in. or larger flange; Ø0.9 (23) for up to 1-in. flange; Ø0.95 (24) for 1-in. coated flange
0.5 (13) switchpoint (when mounted vertically)
4.7 (120)
Allow 1.2 (30)
to remove cover
4.7 (120)
B
A
Allow 1.2 (30)
to remove cover
0.5 (13)
switchpoint
(when mounted horizontally)
0.5 (13) switchpoint (when mounted vertically)
Ø1.1 (28) for 1
1
/2-in. or larger flange; Ø0.9 (23) for up to 1-in. flange; Ø0.95 (24) for 1-in. coated flange
E(M)
7.3
(185)
2130***E
2130***M
1.7 (44)
March 2017
Figure A-6. Flange Mounting (Extended Length)
Reference Manual
00809-0100-4130, Rev DB
A. Cable Entry M20x1.5 or 3/4-in. ANPT B. Aluminum or stainless steel Housing
Note
Dimensions are in inches (millimeters).
Table A-6. Fork Length for Flanged Rosemount 2130
Material
Stainless steel 4.0 in. (102 mm) 3.5 in. (89 mm) 157.5 in. (4000 mm)
ECTFE co-polymer coated 4.0 in. (102 mm) 3.5 in. (89 mm) 59.1 in. (1500 mm)
1. Maximum extended length of fork with hand-polished option is 39.4 in. (1000 mm).
Standard length
fork length code H
Minimum length
fork length code E(M)
Maximum length
fork length code E(M)
(1)
Reference Data
45
Reference Manual
00809-0100-4130, Rev DB
Reference Data
March 2017

A.3 Ordering information

Specification and selection of product materials, options, or components must be made by the purchaser of the equipment. See page 39 for more information on material selection.
Table A-7. Rosemount 2130 Ordering Information
The starred options () represent the most common options and should be selected for best delivery. The non-starred offerings are subject to
additional delivery lead time.
Model Product description
2130 Enhanced Vibrating Fork Liquid Level Switch
Output
L Direct Load Switching (Mains 2-wire) 20 to 264 Vac, 50/60 Hz, 20 to 60 Vdc, Self-checking
P PNP/PLC Low Voltage (3-wire) 20 to 60 Vdc, Self-checking
D Relay (DPCO), 20 to 264 Vac, 50/60 Hz, 20 to 60 Vdc, Self-checking
(Fault and Alarm Relays version is available by selecting D and adding “R2264” to the end of the model number)
N NAMUR, 8 Vdc, Self-checking
M 8/16 mA, Self-checking
Housing material
A Aluminum
S Stainless Steel
Conduit entry / cable threads Product certifications
9
2 M20 NA, E1, E2, E3, E7, I1, I2, I3, I5, I6, I7
Operating temperature
M Mid-Range: –40 °F (–40 °C)...356 °F (180 °C)
E High: –94 °F (–70 °C)...500 °F (260 °C)
Materials of construction: process connection / fork
S 316/316L Stainless Steel (1.4401/1.4404)
(2)(3)(4)
F
(5)
H
Process connection size
9
1 1 in. / 25 mm (DN25)
2 2 in. / 50 mm (DN50)
5 11/2 in. / 40 mm (DN40)
3 3 in. / 80 mm (DN80)
4 4 in. / 100 mm (DN100)
7 21/2 in. / 65 mm (DN65)
Process connection rating
AA ASME B16.5 Class 150 flange
AB ASME B16.5 Class 300 flange
AC ASME B16.5 Class 600 flange
DA EN1092-1 PN 10/16 flange
3
/4-in. ANPT NA, E5, E6,G5, G6, I1, I2, I3, I5, I6, I7
(1)
ECTFE Copolymer, Coated 316/316L Stainless Steel (1.4401/1.4404)
Alloy C (UNS N10002), Alloy C-276 (UNS N10276), solid
(6)
3
/4 in. / 19 mm
(6)
46
Reference Data
Reference Data
March 2017
Reference Manual
00809-0100-4130, Rev DB
Table A-7. Rosemount 2130 Ordering Information
The starred options () represent the most common options and should be selected for best delivery. The non-starred offerings are subject to
additional delivery lead time.
DB EN1092-1 PN 25/40 flange
DC EN1092-1 PN 63 flange
DD EN1092-1 PN 100 flange
NN For use with non-flange process connection type
Process connection type
(6)
R Raised Face (RF) Flange
B BSPT (R) Thread
G BSPP (G) Thread
N NPT Thread
P BSPP (G) O-ring
C Tri-Clover Clamp
Fork length
Process connection
A Standard length 1.7-in. (44 mm) All except flanged models
(3)
H
(7)
E
(7)
M
Standard length flange 4.0-in. (102 mm) All flanged models
Extended, customer specified length in tenths of inches All except connection 1-NN-P
Extended, customer specified length in millimeters All except connection 1-NN-P
Specific extended fork length
0000 Factory default length (only if Fork Length A or H is selected)
(7)
XXXX
Specific customer specified length in tenths of inches, or millimeters (XXX.X inches or XXXX mm)
Surface finish Process connection
1 Standard surface finish All
(8) (9)
2
Hand polished (Ra < 0.4 μm) P or C
Product certifications Output Conduit entry/cable threads
(10)
NA
G5
G6
(11)
(12)(13)
No Hazardous Locations Certifications All models All models
FM Ordinary Locations (unclassified, safe area) All models
CSA Ordinary Locations (unclassified, safe area) All models
3
/4-in. ANPT models only
3
/4-in. ANPT models only
E1 ATEX Flameproof All models M20 models only
E2 INMETRO Flameproof All except Fault Relays M20 models only
E3 NEPSI Explosion-proof All models M20 models only
E5
E6
(11)
(12)(13)
FM Explosion-proof All models
CSA Explosion-proof All models
3
/4-in. ANPT models only
3
/4-in. ANPT models only
E7 IECEx Explosion-proof All models M20 models only
EM Technical Regulation Customs Union (EAC) Flameproof All models All models
I1 ATEX Intrinsic Safety NAMUR or 8/16 mA All models
I2 INMETRO Intrinsic Safety NAMUR or 8/16 mA All models
I3 NEPSI Intrinsic Safety NAMUR or 8/16 mA All models
I5 FM Intrinsic Safety NAMUR or 8/16 mA All models
(13)
I6
CSA Intrinsic Safety NAMUR or 8/16 mA All models
I7 IECEx Intrinsic Safety NAMUR or 8/16 mA All models
Reference Data
47
Reference Manual
00809-0100-4130, Rev DB
Reference Data
March 2017
Table A-7. Rosemount 2130 Ordering Information
The starred options () represent the most common options and should be selected for best delivery. The non-starred offerings are subject to
additional delivery lead time.
IM Technical Regulation Customs Union (EAC) Intrinsic Safety NAMUR or 8/16 mA All models
Typical model number: 2130 L A 2 E S 9 NN B A 0000 1 NA
Options (include with the selected model number)
Calibration data certification
Q4 Certificate of functional test
Material traceability certification
(2)(3)
Q8 Material traceability certification per EN 10204 3.1
Material certification
(2)(3)
Q15 NACE MR0175 / ISO 15156
Q25 NACE MR0103
Safety certifications
(14)
QS Prior-use certificate of FMEDA data
QT Safety certificate to IEC61508
Special procedures
(15)
P1 Hydrostatic testing with certificate
Low liquid density range
LD Low density liquids – minimum density is 31.2 lb/ft3 (500 kg/m3)
Example of options included with the model number: 2130 L A 2 E S 9 NN B A 0000 1 NA Q8
1. Flanges are dual certified 316 and 316L Stainless Steel (1.4401 and 1.4404).
2. Only available for wetted parts.
3. Option is not available for hand polished wet side as standard.
4. Only available for a flanged Rosemount 2130. Also, the Operating Temperature code M must be selected (mid-range) and the maximum process temperature must be below 302 °F (150 °C).
5. Only available for BSPT and NPT threaded process connection codes 9-NN-B, 9-NN-N, 1-NN-B, and 1-NN-N as standard, other upon request.
6. Other process connections available upon request.
7. Example Fork Length code E1181 is 118.1 inches. Code M3000 is 3000 millimeters. See “Extended lengths” on page 39 for minimum and maximum extended lengths.
8. Not available with Material of Construction Process / Fork option code H.
9. Hand-polished for hygienic connections to better than 0.4 m Ra such that there are no pits, folds, crevices or cracks discernible to the naked eye (i.e. no features larger than 75 micrometers based on resolving 1/60 degree at a distance of 250 mm).
10. Includes the Technical Regulation Customs Union (EAC) ordinary location mark.
11. See Appendix B: Product Certifications. E5 includes G5 requirements. G5 is for use in unclassified, safe area locations only.
12. See Appendix B: Product Certifications. E6 includes G6 requirements. G6 is for use in unclassified, safe area locations only.
13. The requirements of CRN are met when a Rosemount 2130 CSA approved vibrating fork level switch (with Product Certifications code G6, E6, or I6) is conf igured wi th stainless steel wetted parts and either NPT threaded or ASME B16.5 2-in. to 4-in. flanged process connections.
14. Not available for Direct Load switching electronics.
15. Option limited to units with extended lengths up to 59.1-in. (1500 mm). Option not available for ECTFE coating.
Safety Integrity Level (SIL) certification option
The Rosemount 2130 is SIL2-certified. The Rosemount 2130 has been independently certified to IEC 61508 as required by IEC 61511. Certification was conducted by Exida.
If required, add “QT” to the end of the model number. For example, 2130 L A 2 E S 9 NN B A 0000 1 NA Q8 QT (Note that you can have one or more OPTIONS codes at the end of the model number).
Visit the Rosemount 2130 web page for additional information.
48
Reference Data
Reference Data
1.54 (39)
1.30 (34)
0.08 (2)
1.26 (32)
1.04
(26.5)
0.08 (2)
1.20
(30.5)
1-in.
BSPP
2.36 (60)
0.18
(4.5)
1.54 (39)
1-in.
11/2-in.
BSPP
P
max
= 1.3 barg
T
max
= 257°F (125°C)
1-in.
11/2-in.
NPT
P
max
= 1.3 barg
T
max
= 257 °F (125 °C)
March 2017
Reference Manual
00809-0100-4130, Rev DB
Overfill approval option
The Rosemount 2130 has been TÜV-tested and approved for overfill protection according to the German DIBt/WHG regulations.
This option is not selectable in the ordering information table. If required, add “R2259” to the end of the model number. For example, 2130 L A 2 E S 9 NN B A 0000 1 NA Q8 R2259 (Note that you can have one or more OPTIONS codes added at the end of the model number).
A.3.1 Spare parts and accessories
Part number Spares and accessories Part number Spares and accessories
02100-1000-0001
02100-1010-0001
Seal for 1-in. BSPP (G1A). Material: Non-asbestos BS7531 grade X carbon fiber with rubber binder
Adaptor boss 1-in. BSPP to 11/2-in. (38mm) Tri Clamp. Material: 316 SST fitting. FPM/FKM ‘O’ ring
2-in. (51-mm) Tri Clamp kit including vessel fitting, clamp ring, seal. Material: 316 SST, NBR Nitrile
Seal for 3/4-in. BSPP (G3/4A) Material: Non-asbestos BS7531 grade X carbon fiber with rubber binder.
02100-1040-0001
Adjustable clamp gland for 1-in. extended lengths. Note: It is not explosion-proof. Material: 316 SST, (Si) Silicone rubber seal
02120-2000-0001
Adjustable clamp gland for 1-in. extended lengths. Note: It is not explosion-proof. Material: 316 SST, (Si) Silicone rubber seal
02100-1020-0001
02120-2000-0002
02100-1030-0001 Telescopic test magnet
Quick Release kit (includes 2-in. Tri Clamp,
(1)
02100-1060-0001
seal, and quick release device for 2-in. NPT process connection)
Replacement cassettes
(2)(3)
Replacement cassette for electronic type
02130-7000-0001 Direct load switching (Red) Code L
02130-7000-0002 PNP/PLC low voltage (Yellow) Code P
02130-7000-0003 NAMUR current switching (Light Blue) Code N
02130-7000-0004 DPCO Relay (Dark Green) Code D
02130-7000-0005 Direct load switching, low density range selection (Red) Code L (for units with option LD)
02130-7000-0006 PNP/PLC low voltage, low density range selection (Yellow) Code P (for units with option LD)
Reference Data
49
Reference Manual
00809-0100-4130, Rev DB
Part number Spares and accessories Part number Spares and accessories
02130-7000-0007 NAMUR current switching, low density range selection (Light Blue) Code N (for units with option LD)
02130-7000-0008 DPCO Relay, low density range selection (Dark Green) Code D (for units with option LD)
02130-7000-0009 8/16 mA (Dark Blue) Code M
02130-7000-0010 8/16 mA, low density range selection (Dark Blue) Code M (for units with option LD)
02130-7000-0011 Fault and Alarm Relays (2 x SPCO) (Light Green) Code F
02130-7000-0012 Same as 02130-7000-011 but with Low density range selection Code F (for units with LD option)
1. The Quick Release kit is a set of accessories requiring a Rosemount 2130 with the 2-in. Tri Clamp option and an existing 2-in. NPT process connection on the vessel. For additional information, see the Quick Release kit – Quick Start Guide
2. Check the Electronic Type and Product Certification sections in Table A-7 on page 46 for availability conditions.
3. Intrinsically Safe approved cassettes can only be replaced with the same t ype of IS ca ssette. No n-I.S. cas sette typ es can be interchanged with other no n-I.S. cassettes, but the new label must be fitted and the original part number transferred to the new label.
.
Reference Data
March 2017
50
Reference Data
Product Certifications
March 2017

Appendix B Product Certifications

European directive information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 51
European directive information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 51
Overfill approval . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 51
Marine approvals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 51
Drinking water approval . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 51
Marine approvals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 51
NAMUR approval . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 51
Ordinary location certifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 51
Safety Integrity Level (SIL) certification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 52
Canadian Registration Number . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 52
Hazardous locations certifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 52
Reference Manual
00809-0100-4130, Rev DB

B.1 European directive information

The EC declaration of conformity for all applicable European directives for this product can be found at
Emerson.com/Rosemount
.

B.2 NAMUR approval

NAMUR NE95 type test report available upon request. Complies with NAMUR NE21

B.3 Overfill approval

Certificate number: Z-65.11-519.
TÜV-tested and approved for overfill protection according to the German DIBt/WHG regulations. Certified under safety devices for tanks and piping related to water pollution control.

B.4 Marine approvals

ABS – American Bureau of Shipping
GL – Germanischer Lloyd
SRS – Russian Maritime Registered Shipping (RMRS)
Note
The GL approval is not available for a Rosemount 2130 with the Fault and Alarm Relays electronics cassette fitted.

B.5 Drinking water approval

Rosemount Measurement Ltd., Slough, UK confirms that the wetted parts of the Rosemount type 2130 vibrating level switches are suitable and approved for use in potable water.
The wetted parts of the vibrating level switches executed in: stainless steel (option code S) and alloy C / alloy C-276 (option code H) with flanged (option code R), NPT thread (option code N), BSPT(R) thread (option code B) or Tri Clamp (option code C) process connections, are in accordance with the requirements of DVGW*- Worksheet W270.The materials used are classified as toxicologically and microbiologically safe.

B.6 Ordinary location certifications

FM ordinary location certification
G5 Project ID: 3021776
The switch has been examined and tested to determine that the design meets basic electrical, mechanical, and fire protection requirements by FM, a nationally recognized testing laboratory (NRTL) as accredited by the Federal Occupational Safety and Health Administration (OSHA).
CSA ordinary location certification
G6 Certificate Number 06 CSA 1805769
The switch has been examined and tested to determine that the design meets basic electrical, mechanical, and fire protection requirements by CSA, a nationally recognized testing laboratory as accredited by the Standards Council of Canada (SCC). Single Seal
Product Certifications
51
00809-0100-4130, Rev DB
Product Certifications
March 2017
B.7 Safety Integrity Level (SIL)
certification
The Rosemount 2130 is SIL2-certified. It has been independently certified to IEC 61508 as required by IEC 61511. Certification was conducted by Exida.
A detailed Failure Modes, Effects and Diagnostics Analysis (FMEDA) report for the Rosemount 2130 is available from Emerson. This report details all failure rates and failure modes as well as expected lifetime. The FMEDA report is available from the Document and Drawings tab on the Rosemount 2130 web page documents including the FMEDA report, ce rtificate, and Functional Safety Manual.
. There are SIL

B.8 Canadian Registration Number

Certificate Number CRN 0F04227.2C
The requirements of CRN are met when a Rosemount 2130 CSA-approved vibrating fork level switch (with Product Certification codes G6, E6, or I6) is configured with stainless steel wetted parts and either a NPT threaded or ASME B16.5 2-in. to 8-in. flanged process connection.

B.9 Hazardous locations certifications

B.9.1 American and Canadian approvals
Factory Mutual (FM) explosion-proof approval
E5 Project ID: 3012658
Explosion-proof for Class I, Div. 1, Groups A, B, C, and D Temperature Class: T6 Enclosure: Type 4X (See also Instructions specific to hazardous area installations
(E5 and E6) ).
Canadian Standards Association (CSA) explosion-proof approval
E6 Project ID: 1786345
Explosion-proof for Class I, Div. 1, Groups A, B, C, and D Temperature Class: T6 Enclosure: Type 4X Single Seal See also Instructions specific to hazardous area installations
(E5 and E6) .
Instructions specific to hazardous area installations (E5 and E6)
The following instructions apply to equipment covered by CSA and FM explosion-proof approvals:
1. The equipment may be used with flammable gases and vapors with apparatus Class 1, Div 1, Groups A, B, C and D.
2. CSA and FM explosion-proof approved versions of the 2130***E are certified for use in ambient temperatures of –58 to 167 °F (–50 to 75 °C), and with a maximum process temperature of 500 °F (260 °C).
CSA and FM explosion-proof approved versions of the 2130***M are certified for use in ambient temperatures of –40 to 167 °F (–40 to 75 °C), and with a maximum process temperature of 356 °F (180 °C).
3. Installation of this equipment shall be carried out by suitably trained personnel, in accordance with the applicable code of practice.
4. Inspection and maintenance of this equipment shall be carried out by suitably trained personnel, in accordance with the applicable code of practice.
5. The user should not repair this equipment.
6. The certification of this equipment relies upon the following construction materials:
Body:
Aluminum alloy (ASTM B85 360.0) or 316 stainless steel
Cover:
Aluminum alloy (ASTM B85 360.0) or 316 stainless steel
Probe:
316 stainless steel, or alloy C276 (UNS N10276) and alloy C (UNS N10002)
Probe Filling: Perlite Cover Seal: Silicone
7. If the equipment is likely to come into contact with aggressive substances, it is the responsibility of the user to take suitable precautions that prevent it from being adversely affected, thus ensuring that the type of protection is not compromised.
Aggressive Substances – e.g. acidic liquids or gases that may attack metals or solvents that may affect polymeric materials.
Suitable Precautions – e.g. regular checks as part of routine inspections or establishing from the material’s data sheet that it is resistant to specific chemicals.
The metallic alloy used for the enclosure material may be at the accessible surface of this equipment; in the event of rare accidents, ignition sources due to impact and friction sparks could occur. This shall be considered when the Rosemount 2130 is installed in locations that specifically require Class 1, Div 1 equipment.
Model numbers covered: 2130**9E***********E5***,2130**9E***********E6*** 2130**9M***********E5***,2130**9M***********E6*** (“*” indicates options in construction, function and materials – see
Table A.3 on page 46)
52
8. It is the responsibility of the user to ensure:
a. The voltage and current limits for this equipment are
not exceeded.
b. That the joint requirements between the probe
(switch) and the vessel tank are compatible with the process media.
Product Certifications
Product Certifications
March 2017
Reference Manual
00809-0100-4130, Rev DB
c. That the joint tightness is correct for the joint material
used.
d. That only suitably certified cable entry devices will be
utilized when connecting this equipment.
e. That any unused cable entries are sealed with suitably
certified stopping plugs.
9. The probe fork is subjected to small vibration stresses as part of its normal function. As this provides a partition wall, it is recommended that the fork should be inspected every two years for signs of defects.
10. Technical data: a. Coding: Class 1, Div 1, Groups A, B, C, and D
b. Temperature: See Table B-1 or Table B-2 c. Pressure: Must not exceed the rating of the
coupling/flange fitted.
d. For electrical details and pressure ratings, refer to
“Specifications” on page 39.
e. Year of manufacture: Printed on product label.
Table B-1. High temperature Rosemount 2130
2130**9E***********E5***, 2130**9E***********E6***:
Temperature
classes
T6, T5, T4, T3, T2, T1 75 °C 80 °C T5, T4, T3, T2, T1 74 °C 95 °C T4, T3, T2, T1 73 °C 125 °C T3, T2, T1 69 °C 185 °C T2, T1 65 °C 260 °C
Minimum ambient air temperature (Ta) = –50 °C Minimum process temperature (Tp) = –70 °C
Maximum
ambient air
temperature (Ta)
Maximum
process
temperature (Tp)
Table B-2. Medium temperature Rosemount 2130
2130**9M***********E5***, 2130**9M***********E6***:
Temperature
classes
T6, T5, T4, T3, T2, T1 75 °C 75 °C T5, T4, T3, T2, T1 70 °C 90 °C T4, T3, T2, T1 65 °C 125 °C T3, T2, T1 50 °C 180 °C
Minimum ambient air temperature (Ta) = –40 °C Minimum process temperature (Tp) = –40 °C
Maximum
ambient air
temperature (Ta)
Maximum
process
temperature (Tp)
11. Cable selection: a. It is the responsibility of the user to ensure that
suitably temperature rated cable is used.
Table B-3 below is a guide to selection.
Table B-3. Cable Selection (E5 and E6)
T Class Cable Temperature Rating
T6 Above 185 °F (85 °C) T5 Above 212 °F (100 °C) T4 Above 275 °F (135 °C) T3 Above 320 °F (160 °C)
Note
A certified isolating amplifier to IEC 60947-5-6 is required for intrinsic safety if the NAMUR electronics is used in a hazardous area installation (see below). A certified intrinsically safe barrier is required for intrinsic safety if the 8/16 mA electronics is used in a hazardous area installation (see below).
Factory Mutual (FM) intrinsically safe and non-incendive approvals
I5 Project ID: 3011456
Intrinsically Safe for Class I, Div. 1, Groups A, B, C, and D Class I, Zone 0, AEx ia IIC Non-incendive for Class I, Div. 2, Groups A, B, C, and D Class I, Zone 2, IIC Temperature Code: T5 (See Control Drawings)
Control Drawing: 71097/1154 (with NAMUR electronics) (Figure B-1 on page 55) Vmax=15 V, Imax=32 mA, Pi=0.1 W, Ci=211 nF, Li=0.06 mH
Control Drawing: 71097/1314 (with 8/16 mA electronics) (Figure B-2 on page 56) Vmax=30 V, Imax=93 mA, Pi=0.65 W, Ci=12 nF, Li=0.035 mH
See also“Instructions for hazardous (classified loc.) area
installations (I5 and I6)” on page 54.
Canadian Standards Association (CSA) intrinsically safe and non-incendive approvals
I6 Certificate Number: 06 CSA 1786345
Intrinsically Safe for Class I, Div. 1, Groups A, B, C, and D Class I, Zone 0, Ex ia IIC Non-incendive for Class I, Div. 2, Groups A, B, C, and D Temperature Code: T5 (See Control Drawings) Single Seal
Control Drawing: 71097/1179 (with NAMUR electronics) (Figure B-3 on page 57) Vmax=15 V, Imax=32 mA, Pi=0.1 W, Ci=211 nF, Li=0.06 mH
Control Drawing: 71097/1315 (with 8/16 mA electronics) (Figure B-4 on page 58) Vmax=30 V, Imax=93 mA, Pi=0.65 W, Ci=12 nF, Li=0.035 mH
See also “Instructions for hazardous (classified loc.) area
installations (I5 and I6)” on page 54.
Product Certifications
53
00809-0100-4130, Rev DB
Product Certifications
March 2017
Instructions for hazardous (classified loc.) area installations (I5 and I6)
Model numbers covered: 2130N**************I5***, 2130N**************I6*** 2130M**************I5***, 2130M**************I6*** (“*” indicates options in construction, function and materials – see
Table A.3 on page 46)
The following instructions apply to equipment covered by CSA and FM intrinsically safe and non-incendive approvals:
1. The Intrinsically Safe approved Rosemount 2130 may be used in hazardous locations with flammable gases and vapors Class 1 Division 1 Groups A, B, C, and D, and Class 1 Zone 0 Group IIC when installed in accordance with control drawings:
71097/1154 (Figure B-1 on page 55) 71097/1314 (Figure B-2 on page 56) 71097/1179 (Figure B-3 on page 57) 71097/1315 (Figure B-4 on page 58)
2. The Non-incendive approved Rosemount 2130 may be used in hazardous locations with flammable gases and vapors Class 1 Division 2 Groups A, B, C, and D when installed in accordance with control drawings:
71097/1154 (Figure B-1 on page 55) 71097/1314 (Figure B-2 on page 56) 71097/1179 (Figure B-3 on page 57) 71097/1315 (Figure B-4 on page 58)
3. The apparatus electronics is only certified for use in ambient temperatures in the range of –50 to +80 °C. It should not be used outside this range. However, the switch may be located in the process medium which may be at a higher temperature than the electronics but must not be higher than the Temperature Class for the respective process gas/medium.
4. It is a condition of the approval that the temperature of the electronics is in the range of –58 to +176 °F (–50 to +80 °C). It must not be used outside this range. It will be necessary to limit the external ambient temperature if the process temperature is high.
5. Suitably trained personnel shall carry out installation in accordance with the applicable code of practice.
6. The user should not repair this equipment.
7. If the equipment is likely to come into contact with aggressive substances, it is the responsibility of the user to take suitable precautions that prevent it from being adversely affected, thus ensuring that the type of protection is not compromised.
Aggressive Substances – e.g. acidic liquids or gases that may attack metals or solvents that may affect polymeric materials.
Suitable Precautions – e.g. regular checks as part of routine inspections or establishing from the material’s data sheet that it is resistant to specific chemicals.
8. If the enclosure is made of an alloy or plastic material, the following precautions must be observed:
a. The metallic alloy used for the enclosure material may
be at the accessible surface of this equipment; in the event of rare accidents, ignition sources due to impact and friction sparks could occur.
b. Under certain extreme circumstances, the
non-metallic parts incorporated in the enclosure of the Rosemount 2130 may generate an ignition-capable level of electrostatic charge. Therefore, when they are used for applications that specifically require group II equipment, the Rosemount 2130 shall not be installed in a location where the external conditions are conducive to the build-up of electrostatic charge on such surfaces. Additionally, the Rosemount 2130 shall only be cleaned with a damp cloth.
9. Technical Data
a. I.S. approval: Class 1 Division 1 Groups A, B, C, and D;
Class 1 Zone 0 AEx ia IIC Non-incendive approval: Class 1 Division 2 Groups A, B, C, and D; Class I, Zone 2, IIC
b. Input parameters:
Rosemount 2130 with NAMUR electronics: Vmax=15 V, Imax=32 mA, Pi=0.1 W, Ci=211 nF,
Li=0.06 mH Rosemount 2130 with 8/16 mA electronics: Vmax=30 V, Imax=93 mA, Pi=0.65 W, Ci=12 nF,
Li=0.035 mH
c. Temperature:
See Control Drawings: 71097/1154 (Figure B-1 on page 55)
71097/1314 (Figure B-2 on page 56) 71097/1179 (Figure B-3 on page 57) 71097/1315 (Figure B-4 on page 58)
d. Materials: See “Specifications” on page 39. e. Year of manufacture: Printed on product label.
54
Product Certifications
Product Certifications
INTERNAL INDUCTANCE (Li) 0.06mH
80°C
XX
mb
25 X
0
1:1
6.3
ACAD
FM INTRINSICALLY SAFE
CONTROL DRAWING 2120/2130
71097/1154
10
1/1
10 MOB-02714
41
PRELIMINARY
CERTIFIED PRODUCT.
ALTERATIONS TO THIS
DOCUMENT MUST BE APPROVED
BEFORE IMPLEMENTATION
A
March 2017
Figure B-1. FM Intrinsically Safe Control Drawing (NAMUR Electronics)
Reference Manual
00809-0100-4130, Rev DB
80°C
115°C
Temperature (Tp)
Maximum Process
80°C
77°C
Temperature (Ta)
Maximum Ambient Air
T5, T4, T3, T2, T1
T4, T3, T2, T1
Temperature Classes
60°C
115°C
Temperature (Tp)
Maximum Process
60°C
Temperature (Ta)
Maximum Ambient Air
2120***C*I***, 2120***K*I*** 2130N**E***********I5**
T5, T4, T3, T2, T1
T4, T3, T2, T1
Temperature Classes
185°C
71°C
Minimum Process Temperature (Tp) = -70°C
Minimum Ambient Air Temperature (Ta) = -50°C
T3, T2, T1
T2, T1 65°C 260°C
150°C
50°C
Minimum Process Temperature (Tp) = -40°C
Minimum Ambient Air Temperature (Ta) = -40°C
T3, T2, T1
80°C
115°C
180°C
Temperature (Tp)
Maximum Process
80°C
69°C
50°C
Temperature (Ta)
Maximum Ambient Air
2130N**M***********I5**
T5, T4, T3, T2, T1
T4, T3, T2, T1
T3, T2, T1
Temperature Classes
ASSOCIATED APPARATUS
NON-HAZARDOUS LOCATION
FROM NOR CONTAIN UNDER
IT MUST NOT BE SUPPLIED
UNSPECIFIED EXCEPT THAT
NON-HAZARDOUS LOCATION
ISOLATOR WITH ENTITY
OF A MULTI-CHANNEL
ISOLATOR OR ONE CHANNEL
APPROVED SINGLE CHANNEL
CABLE SEE NOTE 5
Minimum Process Temperature (Tp) = -40°C
Minimum Ambient Air Temperature (Ta) = -50°C
250V RMS OR 250V DC.
TO GROUND IN EXCESS OF
POTENTIAL WITH RESPECT
CONDITIONS A SOURCE OF
NORMAL OR ABNORMAL
REQUIRED WHEN A GALVANIC ISOLATOR
AN I.S. SAFETY EARTH IS NOT
SEE NOTE 3.
CONCEPT PARAMETERS
EARTH
SCREEN
CLI ZN0,1
UNIT ENTITY CONCEPT PARAMETERS CLI DIV1
MAXIMUM INPUT VOLTAGE (Ui) 15V
DESCRIPTION VALUE
TABLE 1
POINT ONLY OR NOT AT ALL.
IF FITTED MAY BE EARTHED AT ONE
IS USED. IN THIS CASE THE SCREEN
NONINCENDIVE FIELD WIRING PARAMETERS
INTERNAL CAPACITANCE (Ci) 211nF
MAXIMUM INPUT POWER (Pi) 0.1W
MAXIMUM INPUT CURRENT (Ii) 32mA
DESCRIPTION VALUE
MAXIMUM INPUT VOLTAGE (Vmax) 15V
INTERNAL CAPACITANCE (Ci) 211nF
INTERNAL INDUCTANCE (Li) 0.06mH
INTRINSICALLY SAFE APPARATUS
Product Certifications
TERMINAL 1
2120*****I***
2130N**************I5**
TYPE: 2120/2130
LOOP POWERED TRANSMITTER
CLASS I, ZONES 0,1 & 2, GROUPS IIA, IIB, IIC.
CLASS I, DIVISION 1 & 2, GROUPS A, B, C, D.
HAZARDOUS LOCATION.
TERMINAL 2
CONCEPT PARAMETERS.
SEE TABLE 1 FOR ENTITY
2120 : 00809-0100-4030
2130 : 00809-0100-4130
CAPACITANCE (Ci ) AND INDUCTANCE (Li ) MUST NOT EXCEED THE ALLOWED
5. CABLE CAPACITANCE AND INDUCTANCE PLUS THE I.S. APPARATUS UNPROTECTED
4. FOR FURTHER INFORMATION REFER TO MANUAL:
INTRINSICALLY SAFE APPARATUS INCLUDING ALL THE CABLE.
APPARATUS, ARE GREATER THAN THE TOTAL VALUES Ci AND Li OF ALL THE
SAFE APPARATUS AND THE APPROVED VALUES OF Co AND Lo OF THE ASSOCIATED
ARE LESS THAN OR EQUAL TO Ui (Vmax ) AND Ii (Imax ) OF THE INTRINSICALLY
APPROVED VALUES OF Uo (Voc ) AND Io (Ioc ) OF THE ASSOCIATED APPARATUS
APPARATUS NOT SPECIFICALLY EXAMINED IN COMBINATION AS A SYSTEM WHEN THE
3. THE ENTITY CONCEPT ALLOWS INTERCONNECTION OF INTRINSICALLY SAFE
OF THE APPARATUS FOR 1 MINUTE.
WITHSTANDING AN A.C. TEST VOLTAGE OF 500V RMS TO GROUND OR THE FRAME
2. THE ELECTRICAL CIRCUIT IN THE HAZARDOUS LOCATION MUST BE CAPABLE OF
INTRINSICALLY SAFE CIRCUITS.
AND 505, AND ISA RP12.6 RECOMMENDED PRACTICE FOR INSTALLATION OF
1. INSTALLATION OF EQUIPMENT TO BE IN ACCORDANCE WITH NEC ARTICLES 504
NOTES:-
INSTALLATION OF EQUIPMENT TO BE IN ACCORDANCE WITH NEC ARTICLES 501 & 505.
CAPACITANCE (Co ) AND INDUCTANCE (Lo ) INDICATED ON THE ASSOCIATED APPARATUS.
7. NON-INCENDIVE:-
6. SUBSTITUTION OF COMPONENTS MAY IMPAIR INTRINSIC SAFETY.
NON-INCENDIVE FIELD WIRING SHALL BE PERMITTED USING ANY OF THE WIRING METHODS
PERMITTED FOR UNCLASSIFIED LOCATION
55
INTERNAL INDUCTANCE (Li) 0.035mH
INTERNAL CAPACITANCE (Ci) 12nF
MAXIMUM INPUT POWER (Pi) 0.65W
MAXIMUM INPUT CURRENT (Ii) 93mA
MAXIMUM INPUT VOLTAGE (Ui) 30V
DESCRIPTION VALUE
TABLE 1
CLASS I, ZONES 0,1 & 2, GROUPS IIA, IIB, IIC.
CLASS I, DIVISION 1 & 2, GROUPS A, B, C, D.
HAZARDOUS LOCATION.
INTRINSICALLY SAFE APPARATUS
DESCRIPTION VALUE
MAXIMUM INPUT VOLTAGE (Vmax) 30V
INTERNAL CAPACITANCE (Ci) 12nF
INTERNAL INDUCTANCE (Li) 0.035mH
UNIT ENTITY CONCEPT PARAMETERS CLI DIV1
CLI ZN0,1
NONINCENDIVE FIELD WIRING PARAMETERS
T5, T4, T3, T2, T1
T4, T3, T2, T1
T3, T2, T1
Temperature Classes
80°C
XX
GP 38 X
0
1:1
6.3
ACAD
FM INTRINSICALLY SAFE
CONTROL DRAWING 2120/2130
71097/1314
3
1/1
3
MOB-02714 41
A
PRELIMINARY
8/16mA
CERTIFIED PRODUCT.
ALTERATIONS TO THIS
DOCUMENT MUST BE APPROVED
BEFORE IMPLEMENTATION
00809-0100-4130, Rev DB
Figure B-2. FM Intrinsically Safe Control Drawing (8/16 mA Electronics)
Product Certifications
March 2017
80°C
115°C
185°C
Temperature (Tp)
Maximum Process
80°C
115°C
180°C
Temperature (Tp)
Maximum Process
80°C
77°C
71°C
Temperature (Ta)
Maximum Ambient Air
Minimum Process Temperature (Tp) = -70°C
Minimum Ambient Air Temperature (Ta) = -50°C
T5, T4, T3, T2, T1
T4, T3, T2, T1
T3, T2, T1
Temperature Classes
Maximum Process
2120***H*I*** 2130M**E***********I5**
Maximum Ambient Air
T2, T1 65°C 260°C
60°C
115°C
150°C
Temperature (Tp)
60°C
50°C
Temperature (Ta)
Minimum Process Temperature (Tp) = -40°C
Minimum Ambient Air Temperature (Ta) = -40°C
80°C
69°C
50°C
Temperature (Ta)
Maximum Ambient Air
2130M**M***********I5**
Minimum Ambient Air Temperature (Ta) = -50°C
T5, T4, T3, T2, T1
T4, T3, T2, T1
T3, T2, T1
Temperature Classes
ASSOCIATED APPARATUS
NON-HAZARDOUS LOCATION
CONDITIONS A SOURCE OF
NORMAL OR ABNORMAL
FROM NOR CONTAIN UNDER
IT MUST NOT BE SUPPLIED
UNSPECIFIED EXCEPT THAT
NON-HAZARDOUS LOCATION
SEE NOTE 3 & NOTE 7
CONCEPT PARAMETERS
ISOLATOR WITH ENTITY
OF A MULTI-CHANNEL
ISOLATOR OR ONE CHANNEL
APPROVED SINGLE CHANNEL
CABLE SEE NOTE 5
Minimum Process Temperature (Tp) = -40°C
250V RMS OR 250V DC.
TO GROUND IN EXCESS OF
POTENTIAL WITH RESPECT
IS USED. IN THIS CASE THE SCREEN
REQUIRED WHEN A GALVANIC ISOLATOR
AN I.S. SAFETY EARTH IS NOT
EARTH
SCREEN
POINT ONLY OR NOT AT ALL.
IF FITTED MAY BE EARTHED AT ONE
56
TERMINAL 1
TERMINAL 2
2120*****I***
2130M**************I5**
CONCEPT PARAMETERS.
SEE TABLE 1 FOR ENTITY
TYPE: 2120/2130
LOOP POWERED TRANSMITTER
APPARATUS NOT SPECIFICALLY EXAMINED IN COMBINATION AS A SYSTEM WHEN THE
APPROVED VALUES OF Uo (Voc ) AND Io (Ioc ) OF THE ASSOCIATED APPARATUS
ARE LESS THAN OR EQUAL TO Ui (Vmax ) AND Ii (Imax ) OF THE INTRINSICALLY
AND 505, AND ISA RP12.6 RECOMMENDED PRACTICE FOR INSTALLATION OF
WITHSTANDING AN A.C. TEST VOLTAGE OF 500V RMS TO GROUND OR THE FRAME
2. THE ELECTRICAL CIRCUIT IN THE HAZARDOUS LOCATION MUST BE CAPABLE OF
NOTES:
OF THE APPARATUS FOR 1 MINUTE.
INTRINSICALLY SAFE CIRCUITS.
1. INSTALLATION OF EQUIPMENT TO BE IN ACCORDANCE WITH NEC ARTICLES 504
APPARATUS, ARE GREATER THAN THE TOTAL VALUES Ci AND Li OF ALL THE
4. FOR FURTHER INFORMATION REFER TO MANUAL:
2120 : 00809-0100-4030
3. THE ENTITY CONCEPT ALLOWS INTERCONNECTION OF INTRINSICALLY SAFE
2130 : 00809-0100-4130
SAFE APPARATUS AND THE APPROVED VALUES OF Co AND Lo OF THE ASSOCIATED
5. CABLE CAPACITANCE AND INDUCTANCE PLUS THE I.S. APPARATUS UNPROTECTED
CAPACITANCE (Ci ) AND INDUCTANCE (Li ) MUST NOT EXCEED THE ALLOWED
CAPACITANCE (Co ) AND INDUCTANCE (Lo ) INDICATED ON THE ASSOCIATED APPARATUS.
6. SUBSTITUTION OF COMPONENTS MAY IMPAIR INTRINSIC SAFETY.
INTRINSICALLY SAFE APPARATUS INCLUDING ALL THE CABLE.
7. NON-INCENDIVE:-
THE ISOLATOR CAN BE REPLACED BY A REGULATED POWER SOURCE
NON-INCENDIVE FIELD WIRING SHALL BE PERMITTED USING ANY OF THE WIRING METHODS
PERMITTED FOR UNCLASSIFIED LOCATION
INSTALLATION OF EQUIPMENT TO BE IN ACCORDANCE WITH NEC ARTICLES 501 & 505.
Product Certifications
Product Certifications
March 2017
Figure B-3. CSA Intrinsically Safe Control Drawing (NAMUR Electronics)
Reference Manual
00809-0100-4130, Rev DB
Product Certifications
57
00809-0100-4130, Rev DB
Figure B-4. CSA Intrinsically Safe Control Drawing (8/16 mA Electronics)
Product Certifications
March 2017
58
Product Certifications
Product Certifications
March 2017
Reference Manual
00809-0100-4130, Rev DB
B.9.2 European approvals
Note
A certified isolating amplifier to IEC 60947-5-6 is required for intrinsic safety approvals if the NAMUR electronics is used in a hazardous area installation (see below). A certified intrinsically safe barrier is required for intrinsic safety if the 8/16 mA electronics is used in a hazardous area installation (see below).
ATEX flameproof and dust proof approval
E1 Certificate: Sira 05ATEX1129X
Flameproof and dust proof: ATEX Marking II 1/2 G D Ex db IIC T6...T2 Ga/Gb Ex tb IIIC T85 °C...T265 °C Db
See also “Instructions specific to hazardous area installations
(E1 and E7)” on page 62.
ATEX intrinsically safe approval
I1 Certificate: Sira 05ATEX2130X
Intrinsic Safety for gas and dust atmospheres: ATEX Marking II 1 G D Ex ia IIC T5...T2 Ga Ex ia IIIC T85 °C...T265 °C Da
(See also “Instructions specific to hazardous area installations
(I1 and I7)” on page 60.
B.9.3 International approvals
Note
A certified isolating amplifier to IEC 60947-5-6 is required for intrinsic safety approvals if the NAMUR electronics is used in a hazardous area installation (see below). A certified intrinsically safe barrier is required for intrinsic safety if the 8/16 mA electronics is used in a hazardous area installation (see below).
INMETRO flameproof and dust proof approval
E2 Certificate Number: TÜV 12.1285 X
Flameproof and dust proof: Ex d IIC T6 to T2 Ga/Gb, Ex tb IIIC T85 °C to T265 °C Db
INMETRO intrinsically safe approval
I2 Certificate Number: TÜV 12.1391 X
Intrinsic Safety for gas and dust atmospheres: Ex ia IIC T* Ga, Ex ia IIIC T* Da (* See table in the certificate) Ta* (* See table in the certificate)
Security parameters
NAMUR: Ui = 15 V / Ii = 32 mA / Pi = 0,1 W / Ci = 12 nF / Li = 0,06 mH
8/16 mA: Ui = 30 V / Ii = 93 mA / Pi = 0,65 W / Ci = 12 nF / Li = 0,035 mH
Safe use special condition
Non-metallic parts of the equipment casing can generate electrostatic charges under extreme conditions. The equipment should only be cleaned with a damp cloth.
National Supervision and Inspection Centre for Explosion Protection and Safety Instrumentation (NEPSI) flameproof approval
E3 Certificate: GYJ101373
Flameproof and dust proof: Ex d IIC T6~T2 DIP A21 T
See “Instructions specific to hazardous area installations (E3)”
on page 64.
National Supervision and Inspection Centre for Explosion Protection and Safety Instrumentation (NEPSI) intrinsically safe approval
I3 Certificate: GYJ101372X
Intrinsic Safety (NAMUR electronics): Ex ia IIC T5~T2 Ui=15 V, Ii=32 mA, Pi=0.1 W, Ci=12 nF, Li=0.06 mH
See “Instructions specific to hazardous area installations (I3)”
on page 63.
International Electrotechnical Commission (IEC) flameproof and dust proof approval
E7 Certificate: IECEx SIR 06.0051X
Flameproof and dust proof: Ex db IIC T6...T2 Ga/Gb Ex tb IIIC T85 °C...T265 °C Db See “Instructions specific to hazardous area installations (E1
and E7)” on page 62.
International Electrotechnical Commission (IEC) intrinsically safe and dust approval
I7 Certificate: IECEx SIR 06.0070X
Intrinsically Safe for gas and dust atmospheres: Ex ia IIC T5...T2 Ga Ex ia IIIC T85 °C...T265 °C Da
See “Instructions specific to hazardous area installations (I1
and I7)” on page 60.
Technical Regulation Customs Union (EAC) flameproof approval
EM Certificate: RU C-GB.AB72.B.01385
(M20 conduit entry/cable thread only) Markings for 2130***M:
1Exd IIC T6 X (-40 °C Ta +75 °C); 1Exd IIC T5 X (-40 °C Ta +70 °C); 1Exd IIC T4 X (-40 °C Ta +65 °C); 1Exd IIC T3 X (-40 °C Ta +50 °C)
(T85 °C ~ 265 °C) IP6X
A
Product Certifications
59
00809-0100-4130, Rev DB
Product Certifications
March 2017
Markings for 2130***E: 1Exd IIC T6 X (-40 °C Ta +75 °C); 1Exd IIC T5 X (-40 °C Ta +74 °C); 1Exd IIC T4 X (-40 °C Ta +73 °C); 1Exd IIC T3 X (-40 °C Ta  +69 °C); 1Exd IIC T2 X (-40 °C Ta +65 °C)
See certificate for special conditions for safe use (X)
Technical Regulation Customs Union (EAC) intrinsically safe approval
IM Certificate: RU C-GB.AB72.B.01385
(NAMUR and 8/16 mA electronics only) Markings for 2130***M:
0Exia IIC T5 X (-50 °C Ta +80 °C); 0Exia IIC T4 X (-50 °C Ta +69 °C); 0Exia IIC T3 X (-50 °C Ta +50 °C)
Markings for 2130***E: 0Exia IIC T5 X (-50 °C Ta +80 °C); 0Exia IIC T4 X (-50 °C Ta +77 °C); 0Exia IIC T3 X (-50 °C Ta +71 °C); 0Exia IIC T2 X (-50 °C Ta +65 °C)
See certificate for special conditions for safe use (X)
Instructions specific to hazardous area installations (I1 and I7)
Model numbers covered: 2130M**E***********I1****, 2130M**M***********I1****, 2130M**E***********I7****, 2130M**M***********I7****, 2130N**E***********I1****, 2130N**M***********I1****, 2130N**E***********I7****, 2130N**M***********I7**** (“*” indicates options in construction, function and materials – see
Table A.3 on page 46)
The following instructions apply to the equipment covered by certificates Sira 05ATEX2130X and IECEx SIR 06.0070X:
1. The Intrinsically Safe (I.S.) approved version of the 2130 may be used in a hazardous area with explosive gases and vapors with apparatus groups IIC, IIB, and IIA, and with temperature classes T1, T2, T3, T4, and T5 [IECEx: in Zone 0, 1, and 2].
The temperature class of the installation will be determined from the higher of the process or ambient temperature.
2. The equipment may be used in a hazardous area with explosive dusts with apparatus groups IIIC, IIIB, and IIIA [IECEx: in Zones 20, 21, and 22]. The maximum surface temperature of the installation will be determined from the higher of the process or ambient temperature.
3. It is a special condition of the certification that the temperature of the electronics housing is in the range of –50 to 80 °C. It must not be used outside this range.
It will be necessary to limit the external ambient temperature if the process temperature is high. (See “Technical Data” below).
4. Suitably trained personnel shall carry out installation in accordance with the applicable code of practice.
5. The user should not repair this equipment.
6. If the equipment is likely to come into contact with aggressive substances, it is the responsibility of the user to take suitable precautions that prevent it from being adversely affected, thus ensuring that the type of protection is not compromised.
Aggressive substances: e.g. acidic liquids or gases that may attack metals or solvents that affect polymeric materials.
Suitable precautions: e.g. regular checks as part of routine inspections or establishing from the material’s data sheet that it is resistant to specific chemicals.
7. The Rosemount 2130 meets the requirements of clause 6.3.12 (Isolation of circuits from earth or frame) in EN 60079-11 (IEC 60079-11).
8. Technical Data
a. Coding:
ATEX: II 1 G D, Ex ia IIC T5...T2 Ga, Ex ia IIIC T85 °C...265 °C Da
IECEx: Ex ia IIC T5...T2 Ga, Ex ia IIIC T85 °C...265 °C Da
b. Temperature:
See Table B-4 or Table B-5 (NAMUR electronics). See Table B-6 or Table B-7 (8/16 mA electronics)
c. Input parameters:
Rosemount 2130 with NAMUR electronics: Vmax=15 V, Imax=32 mA, Pi=0.1 W, Ci=12 nF,
Li=0.06 mH Rosemount 2130 with 8/16 mA electronics: Vmax=30 V, Imax=93 mA, Pi=0.65 W, Ci=12 nF,
Li=0.035 mH
d. Materials: see “Specifications” on page 39. e. Year of manufacture: printed on the product label.
Table B-4. High-temperature Rosemount 2130N (I1/I7)
2130N**E***********I1****, 2130N**E***********I7****:
Gas (Ga) and Dust (Da)
Temperature
Classes
T5, T4, T3, T2, T1 T85 °C 80 °C 80 °C T4, T3, T2, T1 T120 °C 77 °C 115 °C T3, T2, T1 T190 °C 71 °C 185 °C T2, T1 T265 °C 65 °C 260 °C
Maximum
Surface
Temp. (T)
Maximum
Ambient Air
Temp. (Ta)
Maximum
Process
Temp. (Tp)
60
Product Certifications
Product Certifications
March 2017
Reference Manual
00809-0100-4130, Rev DB
Minimum ambient air temperature (Ta) = –50 °C Minimum process temperature (Tp) = –70 °C
Table B-5. Mid-temperature Rosemount 2130N (I1/I7)
2130N**M***********I1**** and 2130N**M***********I7****:
Gas (Ga) and Dust (Da)
Temperature
Classes
T5, T4, T3, T2, T1 T85 °C 80 °C 80 °C T4, T3, T2, T1 T120 °C 69 °C 115 °C T3, T2, T1 T185 °C 50 °C 180 °C
Minimum ambient air temperature (Ta) = –50 °C Minimum process temperature (Tp) = –40 °C
Maximum
Surface
Temp. (T)
Maximum
Ambient Air
Temp. (Ta)
Maximum
Process
Temp. (Tp)
Table B-6. High-temperature Rosemount 2130M (I1/I7)
2130M**E***********I1**** and 2130M**E***********I7****:
Gas (Ga)
Temperature
Classes
T5, T4, T3, T2, T1 80 °C 80 °C T4, T3, T2, T1 77 °C 115 °C T3, T2, T1 71 °C 185 °C T2, T1 65 °C 260 °C
Maximum
Ambient Air
Temperature (Ta)
Maximum
Process
Temperature (Tp)
Dust (Da)
Temperature
Classes
T5, T4, T3, T2, T1 T85 °C 70 °C 80 °C T4, T3, T2, T1 T120 °C 70 °C 115 °C T3, T2, T1 T190 °C 70 °C 185 °C T2, T1 T265 °C 65 °C 260 °C
Minimum ambient air temperature (Ta) = –50 °C Minimum process temperature (Tp) = –70 °C
Maximum
Surface
Temp. (T)
Maximum
Ambient Air
Temp. (Ta)
Maximum
Process
Temp. (Tp)
Table B-7. Mid-temperature Rosemount 2130M (I1/I7)
2130M**M***********I1**** and 2130M**M***********I7****:
Gas (Ga)
Temperature
Classes
T5, T4, T3, T2, T1 80 °C 80 °C T4, T3, T2, T1 69 °C 115 °C T3, T2, T1 50 °C 180 °C
Maximum
Ambient Air
Temp. (Ta)
Maximum
Process
Temp. (Tp)
Dust (Da)
Temperature
Classes
T5, T4, T3, T2, T1 T85 °C 70 °C 80 °C T4, T3, T2, T1 T120 °C 69 °C 115 °C T3, T2, T1 T185 °C 50 °C 180 °C
Minimum ambient air temperature (Ta) = –50 °C Minimum process temperature (Tp) = –40 °C
9. Special conditions of use:
a. If the enclosure is made of an alloy or plastic material,
the following precautions must be observed: (i) The metallic alloy used for the enclosure material
may be at the accessible surface of this equipment; in the event of rare accidents, ignition sources due to
impact and friction sparks could occur. This shall be considered when the Rosemount 2130 is being installed in locations that specifically require Equipment Protection Level Ga or Da [ATEX: group II, category 1G or 1D equipment] [IECEx: in Zone 0 or 20 locations].
(ii) Under certain extreme circumstances, the non-metallic parts incorporated in the enclosure of the Rosemount 2130 may generate an ignition-capable level of electrostatic charge. Therefore, when they are used for applications that specifically require Equipment Protection Level Ga or Da [ATEX:group II, category 1G or 1D equipment] [IECEx: in Zone 0 or 20 locations], the Rosemount 2130 shall not be installed in a location where the external conditions are conducive to the build-up of electrostatic charge on such surfaces. Additionally, the Rosemount 2130 shall only be cleaned with a damp cloth.
b. Ensure the ambient air temperature (Ta) and the
process temperature (Tp) are within the range detailed above for the T class of the specific explosive gases or vapors present.
Maximum
Surface
Temp. (T)
Maximum
Ambient Air
Temp. (Ta)
Maximum
Process
Temp. (Tp)
Product Certifications
61
00809-0100-4130, Rev DB
Product Certifications
March 2017
c. Ensure the ambient air temperature (Ta) and the
process temperature (Tp) are within the range detailed above for the maximum surface temperature of the specific explosive dusts present.
10. Manufacturer Rosemount Measurement Limited, 158 Edinburgh Avenue,
Slough, Berkshire, SL1 4UE, United Kingdom.
Instructions specific to hazardous area installations (E1 and E7)
The following instructions apply to the Rosemount 2130 covered by certificates Sira 05ATEX1129X and IECEx SIR 06.0051X:
1. The equipment may be used with flammable gases and vapors with apparatus groups IIA, IIB, and IIC, and with temperature classes T1, T2, T3, T4, T5, and T6. The temperature class of the installation will be determined from the higher of the process or ambient temperature.
2. The equipment may be used in a hazardous area with explosive dusts with apparatus groups IIIC, IIIB, and IIIA.
The maximum surface temperature of the installation will be determined from the higher of the process or ambient temperature.
3. The equipment is suitable for installation across the boundary between an area that specifically requires Equipment Protection Level Gb or Db (Zone 1 or 21). The probe forks (and extension tube) only to be installed in Zone 0.
4. The equipment has not been assessed as a safety related device as referred to by Directive 94/9/EC (2014/3/EU) Annex II, clause 1.5.
5. Installation of this equipment shall be carried out by suitably trained personnel, in accordance with the applicable code of practice.
6. Inspection and maintenance of this equipment shall be carried out by suitably trained personnel, in accordance with the applicable code of practice.
7. The user should not repair this equipment. Repair or modification of flame paths is not permitted.
8. The certification of this equipment relies upon the following materials used in its construction:
Housing and cover: Aluminum alloy (ASTM B85 360.0) or stainless steel 316L
Probe (partitional wall): Stainless steel 316L or 316/316L, or Alloy C276 (UNS N10276) and Alloy C (UNS N10002 or N30002)
Probe filling: Perlite Cover seal: Silicone
9. If the equipment is likely to come into contact with aggressive substances, it is the responsibility of the user to take suitable precautions that prevent it from being adversely affected, thus ensuring that the type of protection is not compromised.
Aggressive substances: e.g. acidic liquids or gases that may attack metals, or solvents that may affect polymeric materials.
Suitable precautions: e.g. regular checks as part of routine inspections or establishing from the material’s data sheet that it is resistant to specific chemicals.
10. It is the responsibility of the user to ensure: a. The voltage and current limits for this equipment are
not exceeded.
b. That the joint requirements between the probe and
the vessel tank are compatible with the process media.
c. That the joint tightness is correct for the joint material
used.
d. That only suitably certified cable entry devices will be
utilized when connecting this equipment.
e. That any unused cable entries are sealed with suitably
certified stopping plugs.
11. The probe fork is subjected to small vibration stresses as part
of its normal function. As this provides a partition wall, it is recommended that the fork should be inspected every 2 years for signs of defects.
12. Technical data: a. Coding:
ATEX: II 1/2 G D, Ex db IIC T6...T2 Ga/Gb Ex tb IIIC T85 °C to T265 °C Db
IECEx: Ex db IIC T6...T2 Ga/Gb Ex tb IIIC T85 °C...T265 °C Db
b. Temperature: See Table B-8 or Table B-9. c. Pressure: must not exceed the rating of the
coupling/flange fitted.
d. For electrical details and pressure ratings, see
“Specifications” on page 39.
e. Year of manufacture: printed on the product label.
13. Special conditions of use a. The user is to ensure the probe assembly is installed in
such a way to prevent any damage due to impact or ignition source due to friction.
b. Under certain extreme conditions, a non-standard
paint on the enclosure of the Rosemount 2130 may generate an ignition-capable level of electrostatic charge, Therefore, the Rosemount 2130 shall not be installed in a location where the external conditions are conducive to the build-up of electrostatic charge on such surfaces. Additionally, the Rosemount 2130 shall only be cleaned with a damp cloth.
c. The user is to ensure the ambient air temperature (Ta)
and the process temperature (Tp) are within the range detailed above for the T class of the specific flammable gases or vapors present.
62
Product Certifications
Product Certifications
March 2017
d. The user is to ensure the ambient air temperature (Ta)
and the process temperature (Tp) are within the range detailed above for the maximum surface temperature of the specific flammable dusts present.
Table B-8. High-temperature Rosemount 2130
2130*A2E***********E1****, 2130*S2E***********E1****, 2130*A2E***********E7****, 2130*S2E***********E7****:
Temperature
classes
T6, T5, T4, T3, T2, T1 T85 °C 75 °C 80 °C T5, T4, T3, T2, T1 T100 °C 74 °C 95 °C T4, T3, T2, T1 T120 °C 73 °C 115 °C T3, T2, T1 T190 °C 69 °C 185 °C T2, T1 T265 °C 65 °C 260 °C
Minimum ambient air temperature (Ta) = –40 °C Minimum process temperature (Tp) = –70 °C
Maximum
surface
temp. (T)
Table B-9. Mid-range Temperature Rosemount 2130
2130*A2M***********E1****, 2130*S2M***********E1****, 2130*A2M***********E7****, 2130*S2M***********E7****:
Temperature
classes
T6, T5, T4, T3, T2, T1 T85 °C 75 °C 75 °C T5, T4, T3, T2, T1 T100 °C 70 °C 90 °C T4, T3, T2, T1 T135 °C 65 °C 125 °C T3, T2, T1 T190 °C 50 °C 180 °C
Maximum
surface
temp. (T)
Maximum
ambient air
temp. (Ta)
Maximum
ambient Air
temp. (Ta)
Maximum
process
temp. (Tp)
Maximum
process
temp. (Tp)
Reference Manual
00809-0100-4130, Rev DB
Table B-10. Cable Selection Guide (E1/E7)
T class Cable temperature rating
T6 Above 85 °C T5 Above 100 °C T4 Above 135 °C T3 Above 160 °C
Instructions specific to hazardous area installations (I3)
The 2130N*** Vibrating Fork Liquid Level Sensor (hereinafter, Level Switch in this section), manufactured by Rosemount Measurement Limited, Emerson Automated Solutions Asia Pacific Pte Ltd., and Rosemount Inc., has been certified by the National Supervision and Inspection Center for Explosion Protection and Safety of Instrumentation (NEPSI). The Level Switch accords with GB 3836.1-2000 and GB 3836.4-2000 standards.
Ex marking: Ex ia IIC T5~T2
Certificate: GYJ101372X
Special Conditions For Safe Use:
1. The “X” in the certificate number denotes specific conditions of use:
a. When the Level Switch is used with process mediums
in excess of 80 °C, then the internal electronics temperature shall not exceed this value.
b. The metallic alloy used for the enclosure material may
generate a spark if it is subject to friction or an impact.
c. To avoid an electrostatic charge, the non-metallic
parts incorporated in the Level Switch enclosure shall only be cleaned with a damp cloth.
2. The relationship between temperature class, ambient temperature range, and process temperature range is as follows:
Table B-11. 2130N**M
Minimum ambient air temperature (Ta) = –40 °C Minimum process temperature (Tp) = –40 °C
14. Cable selection a. It is the responsibility of the user to ensure that
suitably temperature rated cable is used. Note that the cable entry temperature may exceed 70 °C.
Table B-10 is a guide to selection.
Product Certifications
T code
T5 –50 to 80 °C –40 to 80 °C
T4 –50 to 69 °C –40 to 115 °C
T3 –50 to 50 °C –40 to 180 °C
Ambient
temperature
Process
temperature
63
00809-0100-4130, Rev DB
Product Certifications
March 2017
Table B-12. 2130N**E
T code
T5 –50 to 80 °C –70 to 85 °C
T4 –50 to 77 °C –70 to 115 °C
T3 –50 to 71 °C –70 to 185 °C
T2 –50 to 65 °C –70 to 260 °C
3. Safety parameters: Ui:15 V, Ii:32 mA, Pi:100 mW, Ci:12 nF, Li:60 μH
4. The Level Switch should be used with Ex-certified associated apparatus to establish an explosion protection system that can be used in explosive gas atmospheres. Wiring and terminal connections should comply with instructions in the manuals of the Level Switch and associated apparatus.
5. The cables between the Level Switch and associated apparatus should be shielded (screened). The cable screen has to be grounded reliably in a non-hazardous area.
6. Associated apparatus should be installed in a safe location. During installation, operation, and maintenance, the instruction manual should be strictly observed.
7. End users are not permitted to change any components inside. (See “Product recycling and disposal” on page 5 for contact information).
8. During installation, use, and maintenance of the Level Switch, the following standards are to be observed:
a. GB3836.13-1997
“Electrical apparatus for explosive gas atmosphere Part 13: Repair and overhaul for apparatus used in explosive gas atmosphere”.
b. GB3836.15-2000
“Electrical apparatus for explosive gas atmosphere Part 15: Electrical installations in hazardous area (other than mines)”.
c. GB3836.16-2006
“Electrical apparatus for explosive gas atmosphere Part 16: Inspection and maintenance of electrical installation (other than mines)”.
d. GB50257-1996
“Code for construction and acceptance of electric device for explosion atmospheres and fire hazard electrical equipment installation engineering”.
Ambient
temperature
Process
temperature
Instructions specific to hazardous area installations (E3)
The 2130**2* Vibrating Fork Liquid Level Sensor (hereinafter, Level Switch in this section), manufactured by Rosemount Measurement Limited, Emerson Automated Solutions Asia Pacific Pte Ltd., and Rosemount Inc., has been certified by the National Supervision and Inspection Center for Explosion Protection and Safety of Instrumentation (NEPSI). The Level Switch accords with GB 3836.1-2000, GB 3836.2-2000, and GB 12476.1-2000 standards.
Ex marking: Ex d IIC T6~T2, DIP A21 T
Certificate: GYJ101373
Special Conditions For Safe Use:
1. The relationship between temperature class, ambient temperature range, and process temperature range is as follows:
(T85 °C ~ 265 °C) IP6X
A
Table B-13. 2130***M
T code (T dust)
T6 (T85 °C) –40 to 75 °C –40 to 75 °C
T5 (T100 °C) –40 to 70 °C –40 to 90 °C
T4 (T135 °C) –40 to 65 °C –40 to 125 °C
T3 (T160 °C) –40 to 50 °C –40 to 180 °C
Ambient
temperature
Process
temperature
Table B-14. 2130***E
T code
T6 (T85 °C) –40 to 75 °C –70 to 80 °C
T5 (T100 °C) –40 to 74 °C –70 to 95 °C
T4 (T120 °C) –40 to 73 °C –70 to 115 °C
T3 (T190 °C) –40 to 69 °C –70 to 185 °C
T2 (T265 °C) –40 to 65 °C –70 to 260 °C
2. The earth connection facility on the enclosure should be connected reliably.
3. During installation in a hazardous location, cable glands, conduits, and blanking plugs certified by state-appointed inspection bodies (for Ex d IIC DIP A21 T should be used.
Ambient
temperature
Process
temperature
IP6X protection)
A
64
4. During installation, use, and maintenance in explosive gas atmospheres, observe the warning “Do not open when energized”. During installation, use, and maintenance in an explosive dust atmosphere, observe the warning “Do not open when an explosive dust atmosphere is present”.
Product Certifications
Product Certifications
March 2017
5. End users are not permitted to change any components inside. (See “Product recycling and disposal” on page 5 for contact information).
6. Maintenance should be done in a non-hazardous location.
7. During installation, use, and maintenance of the Level Switch, the following standards are to be observed:
a. GB3836.13-1997
“Electrical apparatus for explosive gas atmosphere Part 13: Repair and overhaul for apparatus used in explosive gas atmosphere”.
b. GB3836.15-2000
“Electrical apparatus for explosive gas atmosphere Part 15: Electrical installations in hazardous area (other than mines)”.
c. GB3836.16-2006
“Electrical apparatus for explosive gas atmosphere Part 16: Inspection and maintenance of electrical installation (other than mines)”.
d. GB50257-1996
“Code for construction and acceptance of electric device for explosion atmospheres and fire hazard electrical equipment installation engineering”.
e. GB15577-1995
“Safe regulation for explosive dust atmospheres”.
f. GB12476.2-2006
“Electrical apparatus protected for use in the presence of combustible dust – Part 1-2: Electrical apparatus protected by enclosures and surface temperature limitation –Selection, installation, and maintenance”.
Reference Manual
00809-0100-4130, Rev DB
Product Certifications
65
00809-0100-4130, Rev DB
Product Certifications
March 2017
66
Product Certifications
Global Headquarters
Emerson Automation Solutions
6021 Innovation Blvd. Shakopee, MN 55379, USA
+1 800 999 9307 or +1 952 906 8888 +1 952 949 700 R
FQ.RMD-RCC@Emerson.com
1
North America Regional Office
Emerson Automation Solutions
8200 Market Blvd. Chanhassen, MN 55317, USA
+1 800 999 9307 or +1 952 906 8888 +1 952 949 7001 RMT-NA.RCCRFQ@Emerson.com
Latin America Regional Office
Emerson Automation Solutions
1300 Concord Terrace, Suite 400 Sunrise, FL 33323, USA
+1 954 846 5030 +1 954 846 5121 RFQ.RMD-RCC@Emerson.com
Reference Manual
00809-0100-4130, Rev DB
March 2017
Europe Regional Office
Emerson Automation Solutions Europe GmbH
Neuhofstrasse 19a P.O. Box 1046 CH 6340 Baar Switzerland
+41 (0) 41 768 6111 +41 (0) 41 76 R
FQ.RMD-RCC@Emerson.com
8 6300
Asia Pacific Regional Office
Emerson Automation Solutions Asia Pacific Pte Ltd
1 Pandan Crescent Singapore 128461
+65 6777 8211 +65 6777 094 E
nquiries@AP.Emerson.com
7
Middle East and Africa Regional Office
Emerson Automation Solutions
Emerson FZE P.O. Box 17033 Jebel Ali Free Zone - South 2 Dubai, United Arab Emirates
+971 4 8118100 +971 4 88654 R
FQ.RMTMEA@Emerson.com
65
Linkedin.com/company/Emerson-Automation-Solutions
Twitter.com/Rosemount_News
Facebook.com/Rosemount
Youtube.com/user/RosemountMeasurement
Google.com/+RosemountMeasurement
Standard Terms and Conditions of Sale can be found at:
www.Emerson.com/en-us/Terms-of-Use
The Emerson logo is a trademark and service mark of Emerson Electric Co. Rosemount and Rosemount logotype are trademarks of Emerson. NEMA is the registered trademark and service mark of the National Electrical Manufacturers Association ROCKWOOL is a registered trademark of ROCKWOOL. All other marks are the property of their respective owners. © 2017 Emerson. All rights reserved.
Loading...
