Rosemount 1408H Level Transmitter Quick Start Guide

Rosemount™ 1408H
Level Transmitter

Non-Contacting Radar

Quick Start Guide

00825-0100-4480, Rev AD

May 2022

1 About this guide

This Quick Start Guide provides basic guidelines for the Rosemount
1408H Level Transmitter. Refer to the 1408H Reference Manual for
more instructions.

1.1 Safety messages

WARNING

Failure to follow safe installation and servicing guidelines could
result in death or serious injury.

Ensure the transmitter is installed by qualified personnel and in
accordance with applicable code of practice.

Use the equipment only as specified in this Quick Start Guide and the
Reference Manual. Failure to do so may impair the protection
provided by the equipment.

Repair, e.g. substitution of components, etc. may jeopardize safety
and is under no circumstances allowed.

WARNING

Process leaks could result in death or serious injury.

Handle the transmitter carefully.

Install and tighten process connectors before applying pressure.

Do not attempt to loosen or remove process connectors while the
transmitter is in service.

2

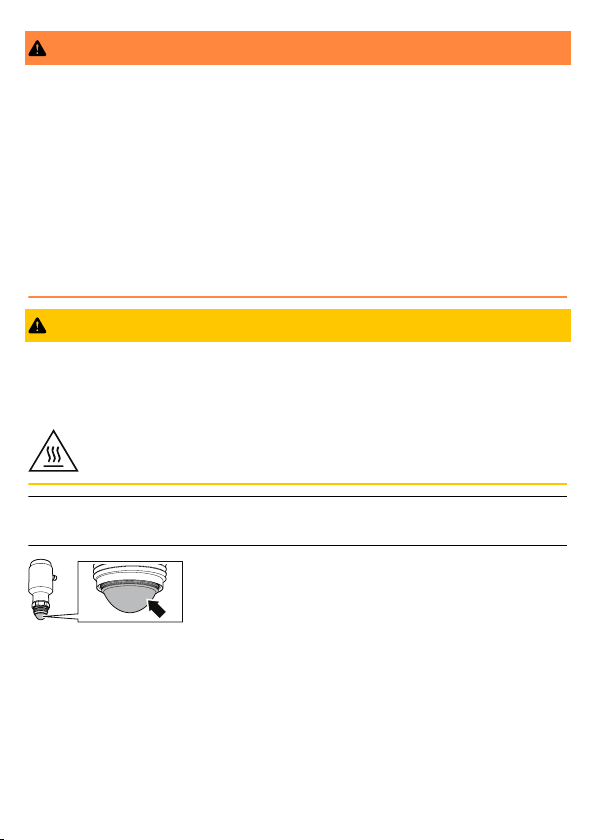

WARNING

Physical access

Unauthorized personnel may potentially cause significant damage to
and/or misconfiguration of end users’ equipment. This could be
intentional or unintentional and needs to be protected against.

Physical security is an important part of any security program and
fundamental to protecting your system. Restrict physical access by
unauthorized personnel to protect end users’ assets. This is true for all
systems used within the facility.

CAUTION

Hot surfaces

The transmitter and process seal may be hot at high process
temperatures. Allow to cool before servicing.

Note

Be careful not to scratch or otherwise damage the PTFE sealing.

3

2 Cleaning the transmitter

Procedure

If needed, clean the wetted parts of the transmitter.
Use a damp cloth and a mild cleaning agent suitable for the media and

wetted parts of the transmitter.

Note

Be careful not to scratch any of the surfaces.

4

3 Installing on a tank

3.1 Mount the Tri Clamp version

Procedure

Place a suitable gasket on top of the tank flange.

1.

2. Lower the transmitter into the nozzle.

3. Tighten the clamp to the recommended torque (see the
manufacturer’s instruction manual).

5

3.2 Mount the dairy coupling (DIN 11851)

Procedure

1.

Place a suitable gasket on top of the tank flange.

2. Lower the transmitter into the nozzle.

3. Tighten the lock nut to the recommended torque (see the
manufacturer’s instruction manual).

6

3.3 Mount the VARIVENT® version

Procedure

1.

Mount a suitable O-ring on the adapter.

2. Lower the transmitter into the nozzle.

3. Tighten the clamp to the recommended torque (see the
manufacturer’s instruction manual).

7

3.4 Mount on a threaded connection

39 mm

Torque 310 in-lb (35 N-m)

Procedure

1.

Apply lubricating paste on the transmitter thread.

Note

The paste must be approved for the application and
compatible with the elastomers used.

2. Mount the transmitter on the tank.

8

3.4.1 Thread engagement length

A A

Refer to Figure 3-1 for the required thread engagement length at the
customer G1 process connection.

Figure 3-1: Thread Engagement Length

A. 0.35 to 0.63 in. (9 to 16 mm)

9

4 Bracket mounting

0.28 (7)

0.43 (11)

1.97
(50)

Ø 0.28 (7)

30°

T30

4.1 Bracket hole pattern

Figure 4-1: Hole Pattern

Dimensions are in inches (millimeters).

4.2 Mount the bracket

Procedure

1. Mount the bracket on the wall/ceiling or other flat surface.

10

2. Ensure the adjustable holder is directed toward the ground.

90°

T30

3. Apply lubricating paste on the transmitter thread.

Note

The paste must be approved for the application and
compatible with the elastomers used.

11

4. Secure the transmitter to the bracket.

46 mm

12

5 Prepare the electrical connections

4

1

3

2BNW

H

BK

BU

1

4

2

3

OUT2

L+

L

OUT1/IO-Link

5.1 Connector type

M12 (A-coded)

Power supply

5.2

The transmitter operates on 18-30 Vdc at the transmitter terminals.

5.3 Outputs

The transmitter provides two configurable outputs:

Output 1

Output 2

Digital output / IO-Link mode

Digital output or active 4-20 mA analog output

5.4 Internal power consumption

< 2 W (normal operation at 24 Vdc, no outputs)

< 3.6 W (normal operation at 24 Vdc, digital and analog outputs
active)

5.5

Wiring diagram

Figure 5-1: Connection

13

Table 5-1: Pin Assignment

2: OUT2
4: OUT1

4

1

3

2BNWH

BK

BU

L+

L

A

2: O

UT2

4: OUT1

4

1

3

2BNW

H

BK

BU

L+

L

C

2: O

UT2

4: OUT1

4

1

3

2BNWH

BK

BU

L+

L

D

4

1

3

2BNWH

BK

BU

L+

L

2: OUT2
4: OUT1

B

Pin Wire color

1 BN Brown L+ 24 V

2 WH White OUT2 Digital output or active 4-20 mA

3 BU Blue L- 0 V

4 BK Black OUT1/IO-Link Digital output or IO-Link mode

(1)

According to IEC 60947-5-2.

(1)

Signal

analog output

Figure 5-2: Example Circuits

A. 2 x Digital output PnP
B. 2 x Digital output NpN

14

C. 1 x Digital output PnP / 1 x Analog output

D. 1 x Digital output NpN / 1 x Analog output

6 Power up transmitter

Procedure

Verify the power supply is disconnected.

1.

2. Insert the M12 connector and screw tight.
See the manufacturer’s instruction manual for recommended

torque.

3. Connect the power supply.

15

7 Connect the transmitter to the IO-Link

IO-Link devices can be set using an IO-Link USB Communicator,
through the IO-Link master, or via the PLC.

Procedure

Start the configuration software and connect the transmitter.

Figure 7-1: Connection via the IO-Link USB Communicator

Figure 7-2: Connection via the IO-Link Master

Figure 7-3: Connection via the PLC

16

8 Get started with your preferred configuration tool

8.1 IO-Link configuration tools

Examples:

• Rosemount IO-Link Assistant (available as accessory)

• FDT® frame applications, e.g. PACT

8.2 Rosemount IO-Link Assistant

8.2.1 Get the latest IODD files

The Rosemount IO-Link Assistant software checks and lets you
download the latest IODDs for your device catalog.

Prerequisites

For an online update, an internet connection is required.

Procedure

1. Click the

2.

In the
check box for the devices to be installed/updated.

Alternatively, browse to an already downloaded IODD zip file,
and select Open.

3. Select OK.

icon.

Vendor list, select Rosemount Inc., and then select the

ware

8.3 FDT®/DTM framework

8.3.1 Download the IODD file

Procedure

1. Download the IODD from the IODDFinder portal at

Ioddfinder.io-link.com.

2. Unzip the IODD package.

17

8.3.2 Integrate IODDs into an FDT®/DTM framework

An IODD DTM Interpreter is required to integrate IODDs into an
FDT/DTM environment (e.g PACTware).

Prerequisites

The IODD DTM Interpreter is usually included in the FDT/DTM
software installation package. It can also be downloaded from

Emerson.com/Rosemount1408H.

Procedure

1.

Start the

2. Select Add IODD.

IODD DTM Interpreter software.

3. Browse to the IODD file (.xml) and select Open.

4. Start the configuration tool and update the device catalog.

Need help?

If the new DTM is not added automatically at start-up, then
select

View → Device Catalog → Update Device Catalog.

18

9 Perform the basic setup

A

B

C

9.1 Set the engineering units

Procedure

Under Menu, select Parameter → Basic Setup.

1.

2. In the Engineering Units list, select Metric or Imperial.

3. Select Write to device.

9.2 Enter the reference height

Procedure

1. Under Menu, select Parameter → Basic Setup.

2. Enter the Reference Height.

3. Select Write to device.

9.2.1 Reference height

Distance between the Device Reference Point and Zero Level.

Figure 9-1: Reference Height

A. Device Reference Point
B. Reference Height
C. Zero Level

19

9.3 Configure the analog output

The transmitter can be set to output the level as a 4-20 mA signal.

Procedure

1.

2. In the OUT2 Configuration list, select Analog Output 4-20 mA.

3. Select OUT2 → Analog Output 2.

4. Enter the desired Upper Range Value (20 mA).

5. Enter the desired Lower Range Value (4 mA).

6. In the Alarm Mode list, select Low Alarm or High Alarm.

7. Select Write to device.

Menu, select Parameter → Basic Setup.

Under

9.4 Configure the digital output

The transmitter can be set to output a switching signal for high and
low level limits (using the same pin).

Procedure

1. Under Menu, select Parameter → Basic Setup.

2. In the OUT1 Configuration or OUT2 Configuration list, select
Digital Output Normally Open.

3. In the Digital Outputs P-n list, select PnP or nPn.

4. Select Digital Output 1 or Digital Output 2.

5. Set the alarm parameters as desired.

6. Select Write to device.

20

10 Product certifications

Rev 2.2

10.1 European directive information

A copy of the EU Declaration of Conformity can be found at the end of
the document. The most recent revision of the EU Declaration of
Conformity can be found at

10.2 UK regulation information

A copy of the UKCA Declaration of Conformity can be found at the
end of the document. The most recent revision of the UKCA
Declaration of Conformity can be found at Emerson.com/Rosemount.

10.3 Ordinary location certification

As standard, the transmitter has been examined and tested to
determine that the design meets the basic electrical, mechanical, and
fire protection requirements by a nationally recognized test
laboratory (NRTL) as accredited by the Federal Occupational Safety
and Health Administration (OSHA).

Emerson.com/Rosemount.

Certificate

Standards

The device may only be powered by a power supply unit with a limited
energy electric circuit max. 30 Vdc output in accordance with CAN/
CSA-C22.2 No. 61010-1-12 / UL Std. No. 61010-1 (3rd Edition)
chapter 6.3.1/6.3.2 and 9.4 or class 2 according to CSA 223/UL 1310.

21

80031621

CAN/CSA-C22.2 No. 61010-1-12,
UL Std. No. 61010-1

10.4 Environmental conditions

Table 10-1: Environmental Conditions (Ordinary Location and Low
Voltage Directive (LVD))

Type Description

Location Indoor or outdoor use

Maximum altitude 6562 ft. (2000 m)

Ambient temperature -40 to 176 °F (-40 to 80 °C)

Installation category DC supplied

Electrical supply 18-30 Vdc, 3.6 W

Mains supply voltage fluctuations Safe at 18-30 Vdc ±10%

Pollution degree 2

(1)

Outdoor use not part of Ordinary Location certification.

(1)

10.5 Telecommunication compliance

Measurement principle

Frequency Modulated Continuous Wave (FMCW), 80 GHz

Maximum output power

3 dBm (2 mW)

Frequency range

77 to 81 GHz

TLPR (Tank Level Probing Radar)

TLPR (Tank Level Probing Radar) equipment are devices for
measurement of level in a closed space only (i.e metallic or reinforced
concrete or fiberglass tanks, or similar enclosure structures made of

22

comparable attenuating material). Rosemount 1408H is TLPR device.
Hardware Version Identification Number (HVIN) is 1408T.

10.6

FCC

Note: This equipment has been tested and found to comply with the
limits for a Class B digital device, pursuant to part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment
generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If
this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and
on, the user is encouraged to try to correct the interference by one or
more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from

that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

FCC ID

10.7

This device complies with Industry Canada’s licence-exempt RSS
standard. Operation is subject to the following conditions:

23

K8C1408T

IC

1. This device may not cause harmful interference.

2.

This device must accept any interference received, including
interference that may cause undesired operation.

3. The installation of the TLPR device shall be done by trained
installers in strict compliance with the manufacturer’s
instructions.

4. The use of this device is on a “no-interference, no-protection”
basis. That is, the user shall accept operations of high-powered
radar in the same frequency band which may interfere with or
damage this device. However, devices found to interfere with
primary licensing operations will be required to be removed at
the user’s expense.

5.

This device shall be installed and operated in a completely
enclosed container to prevent RF emissions, which can
otherwise interfere with aeronautical navigation.

6. The installer/user of this device shall ensure that it is at least 10
km from the Dominion Astrophysical Radio Observatory
(DRAO) near Penticton, British Columbia. The coordinates of
the DRAO are latitude 49°19′15″N and longitude 119°37′12″
W. For devices not meeting this 10 km separation (e.g., those
in the Okanagan Valley, British Columbia,) the installer/user
must coordinate with, and obtain the written concurrence of,
the Director of the DRAO before the equipment can be
installed or operated. The Director of the DRAO may be
contacted at 250-497-2300 (tel.) or 250-497-2355 (fax).
(Alternatively, the Manager, Regulatory Standards, Industry
Canada, may be contacted.)

Le présent appareil est conforme aux CNR d'Industrie Canada
applicables aux appareils radio exempts de licence. L'exploitation est
autorisée aux conditions suivantes:

1. l'appareil ne doit pas produire de brouillage.

2. l'appareil doit accepter tout brouillage radioélectrique subi,
même si le brouillage est susceptible d'en compromettre le
fonctionnement.

24

3. L’installation d’un dispositif TLPR doit être effectuée par des
installateurs qualifiés, en pleine conformité avec les
instructions du fabricant.

4. Ce dispositif ne peut être exploité qu'en régime de non­brouillage et de non-protection, c'est-à-dire que l'utilisateur
doit accepter que des radars de haute puissance de la même
bande de fréquences puissent brouiller ce dispositif ou même
l'endommager. D'autre part, les capteurs de niveau qui
perturbent une exploitation autorisée par licence de
fonctionnement principal doivent être enlevés aux frais de leur
utilisateur.

5.

Un dispositif visé comme TLPR doit être installé et exploité
dans un réservoir entièrement fermé afin de prévenir les
rayonnements RF qui pourraient autrement perturber la
navigation aéronautique.

6. La personne qui installe/utilise ce capteur de niveau doit
s'assurer qu'il se trouve à au moins 10 km de l'Observatoire
fédéral de radioastrophysique (OFR) de Penticton en
Colombie-Britannique. Les coordonnées de l'OFR sont: latitude
N 49° 19′ 15″, longitude O 119° 37′ 12″. La personne qui
installe/utilise un dispositif ne pouvant respecter cette
distance de 10 km (p. ex. dans la vallée de l'Okanagan
[Colombie-Britannique]) doit se concerter avec le directeur de
l'OFR afin d’obtenir de sa part une autorisation écrite avant
que l'équipement ne puisse être installé ou mis en marche. Le
directeur de l'OFR peut être contacté au 250-497-2300 (tél.)
ou au 250-497-2355 (fax). (Le Directeur des Normes
réglementaires d'Industrie Canada peut également être
contacté).

Certificate

25

2827A-1408T

10.8 Radio Equipment Directive (RED) 2014/53/EU and Radio Equipment Regulations S.I. 2017/1206

Rosemount 1408H complies with ETSI EN 302 372 (TLPR) and
EN 62311.

TLPR (Tank Level Probing Radar)

The device must be installed in closed tanks. Install according to
requirements in ETSI EN 302 372 (Annex E).

Performance under the influence of an interferer signal

For the receiver test that covers the influence of an interferer signal to
the device, the performance criterion has at least the following level
of performance according to ETSI TS 103 361 [6].

• Performance criterion: measurement value variation Δd over time

during a distance measurement

• Level of performance: Δd ≤ ± 2 mm

10.9

Radio/EMC Republic of Korea

Registration number

10.10

Rosemount 1408H complies with the requirements of the relevant
ACMA Standards made under the Radiocommunications Act 1992
and the Telecommunications Act 1997 and the relevant Standards
made under The New Zealand Radio Communication Act 1989.

Radio/EMC Australia and New Zealand

R-R-Rtr-1408

10.11 Canadian Registration Number (CRN)

Transmitter without adapter

Registrations

26

Alberta (ABSA): 0F21418.2
British Columbia (TSBC): 0F7358.1

Manitoba (ITS): 0F21418.24
New Brunswick: 0F21418.27
Newfoundland and Labrador: 0F21418.20
Northwest Territories: 0F21418.2T
Nova Scotia: 0F21418.28
Nunavut: 0F21418.2N
Ontario (TSSA): 0F23714.5
Prince Edward Island: 0F21418.29
Québec (RBQ): 0F05457.6
Saskatchewan (TSASK): 0F2113.3
Yukon: 0F21418.2Y

Hygienic adapters

Option code CA (part FB-1001), C2 (part FB-1002), WD (part FB-1041)

Registration

All provinces except Alberta: 0F15548

The hygienic adapters are registered for a max temperature of 248 °F
(120 °C).

10.12 Hygienic certificates and approvals

10.12.1

Certificate
Authorization
Number

Standard

27

3-A

®

3626

3-A Sanitary Standards for Number 74-07
(Sensors and Sensor Fittings and Connections)

10.12.2 EHEDG

Certificate
Number

Certification
Type

10.12.3 Other hygienic approvals

The process wetted components comply with:

• FDA 21 CFR 110, subpart C

• EC 1935/2004

• TSE/BSE Free

10.12.4

To conform with applicable hygienic standards and food and
beverage legislation and regulations, the Rosemount 1408H must be:

• Installed in a closed tank.

• Installed with hygienic adapter and O-ring.

It is the responsibility of the user to ensure that:

• The materials listed in

• The installation of the transmitter is drainable and cleanable.

• The joint/clamping between the transmitter and the nozzle is

• For the application a suitable M12 connector is used and with

• The product contact surfaces are not scratched.

Instructions for hygienic installations

the media and cleaning/sanitizing processes.

compatible with the tank pressure and media.

appropriate ingress protection.

EHEDG-C2200003

EL CLASS I

Table 10-2 and Table 10-3 are suitable for

28

3-A® installations only

It is the responsibility of the user to ensure that:

• The hygienic adapter is 3-A certified and approved for use with the

transmitter.

• The fittings and connections comply with the requirements of 3-A

Sanitary Standard 63-.

• Correct gasket variants are used on the “product contact side”,

and that they are made of 3-A compliant product contact
material.

• The 3-A specific nozzle height limits are kept to ensure

cleanability. See Reference Manual for nozzle requirements.

EHEDG installations only

It is the responsibility of the user to ensure that:

• The hygienic adapter is EHEDG certified and approved for use with

the transmitter.

• The seals/gaskets used conform to the EHEDG Position Paper

“Easy cleanable pipe couplings and process connections”. Note
that a special gasket is required for Tri Clamp connections, as
specified in the EHEDG Position Paper.

• The installation of the transmitter is drainable in accordance with

EHEDG Doc. 8 "Hygienic Design Principles" and is evaluated for
cleanability according to EHEDG Doc. 2.

• The EHEDG specific nozzle height limits are kept to ensure

cleanability. See Reference Manual for nozzle requirements.

Materials of construction

The hygienic approvals and certificates of the transmitter rely upon
the following materials used in its construction:

29

Table 10-2: Product Contact Surfaces

Item Material Compliant with

PTFE sealing PTFE fluoropolymer 21 CFR 177.1550

EC 10/2011
TSE/BSE Free
USP<87>
USP<88> Class VI

Hygienic adapter Stainless steel 300

Hygienic adapter

(1)

O-ring

(1)

Only the EPDM O-ring is EHEDG approved.

series

EPDM or FKM 21 CFR 177.2600

TSE/BSE Free

TSE/BSE Free
USP<87>
USP<88> Class VI

Table 10-3: Nonproduct Contact Surfaces

Item Material

Housing Stainless steel 300 series

Bushing Stainless steel 300 series

Plug Stainless steel 300 series

Adapter seal FKM

Electrical connector Contact pins in gold plated brass

Housing in plastics (PA)
Seal in FKM

Clean-In-Place (CIP)

Withstands cleaning routines up to 194 °F (90 °C)

30

Steam-In-Place (SIP)

Withstands cleaning routines up to 284 °F (140 °C)

31

10.13 EU Declaration of Conformity

Figure 10-1: EU Declaration of Conformity

32

33

10.14 UKCA Declaration of Conformity

Figure 10-2: UKCA Declaration of Conformity

34

35

10.15 China RoHS

36

37

38

39

*00825-0100-4480*

Quick Start Guide

00825-0100-4480, Rev. AD

May 2022

For more information:

©

2022 Emerson. All rights reserved.

Emerson Terms and Conditions of Sale are
available upon request. The Emerson logo is
a trademark and service mark of Emerson
Electric Co. Rosemount is a mark of one of
the Emerson family of companies. All other
marks are the property of their respective
owners.

Emerson.com
