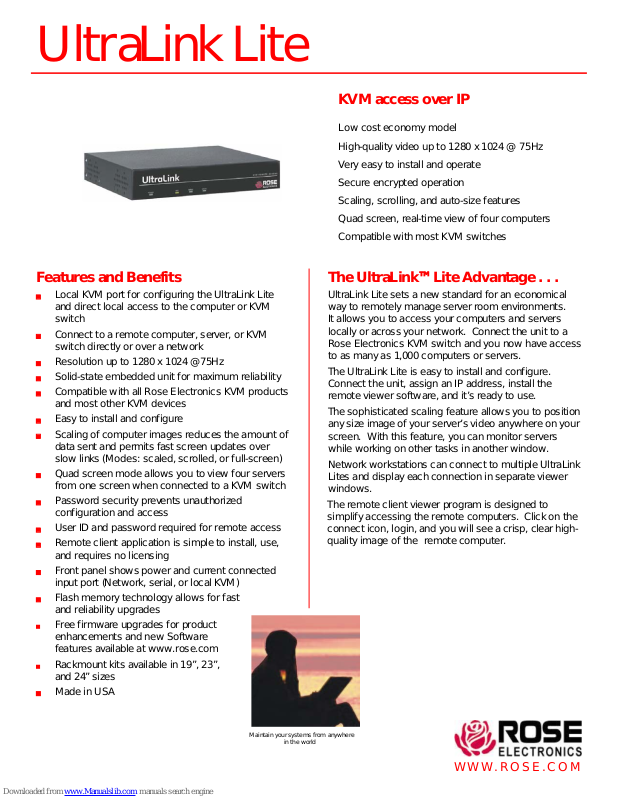

UltraLink Lite
Features and Benefits
J Local KVM port for configuring the UltraLink Lite
and direct local access to the computer or KVM
switch
J Connect to a remote computer, server, or KVM
switch directly or over a network
J Resolution up to 1280 x 1024 @75Hz
J Solid-state embedded unit for maximum reliability
J Compatible with all Rose Electronics KVM products
and most other KVM devices
J Easy to install and configure
J Scaling of computer images reduces the amount of
data sent and permits fast screen updates over
slow links (Modes: scaled, scrolled, or full-screen)
J Quad screen mode allows you to view four servers
from one screen when connected to a KVM switch
J Password security prevents unauthorized
configuration and access
J User ID and password required for remote access
J Remote client application is simple to install, use,
and requires no licensing
J Front panel shows power and current connected
input port (Network, serial, or local KVM)
J Flash memory technology allows for fast
and reliability upgrades
J Free firmware upgrades for product
enhancements and new Software
features available at www.rose.com
J Rackmount kits available in 19”, 23”,
and 24” sizes
J Made in USA
KVM access over IP
Low cost economy model
High-quality video up to 1280 x 1024 @ 75Hz
Very easy to install and operate
Secure encrypted operation
Scaling, scrolling, and auto-size features
Quad screen, real-time view of four computers
Compatible with most KVM switches
The UltraLink™ Lite Advantage . . .
UltraLink Lite sets a new standard for an economical
way to remotely manage server room environments.
It allows you to access your computers and servers
locally or across your network. Connect the unit to a
Rose Electronics KVM switch and you now have access
to as many as 1,000 computers or servers.
The UltraLink Lite is easy to install and configure.
Connect the unit, assign an IP address, install the
remote viewer software, and it’s ready to use.
The sophisticated scaling feature allows you to position
any size image of your server’s video anywhere on your
screen. With this feature, you can monitor servers
while working on other tasks in another window.
Network workstations can connect to multiple UltraLink
Lites and display each connection in separate viewer
windows.
The remote client viewer program is designed to
simplify accessing the remote computers. Click on the
connect icon, login, and you will see a crisp, clear highquality image of the remote computer.
Maintain your systems from anywhere
in the world
WWW.ROSE.COM
Page 2

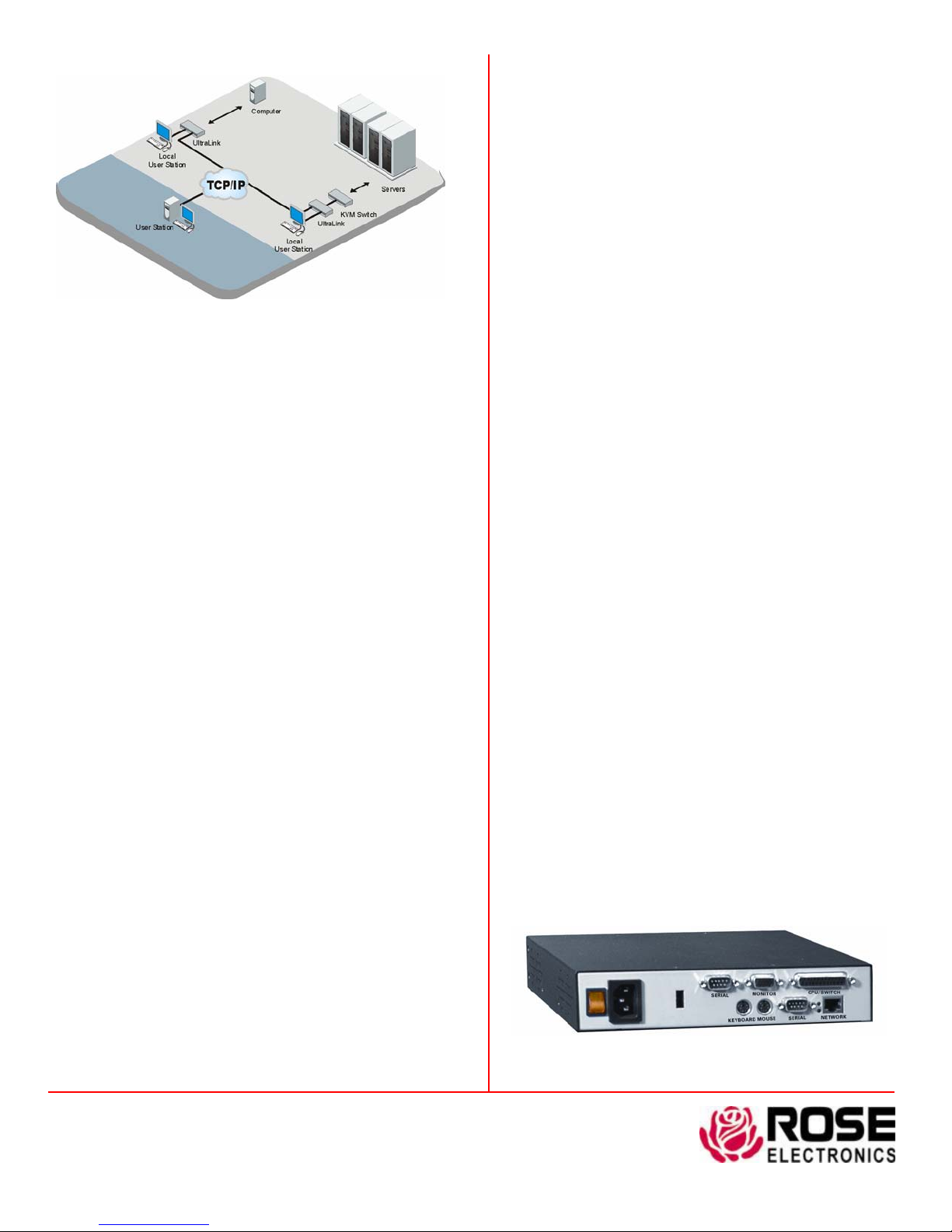

Typical Application
Introduction The UltraLink Lite is a versatile and powerful product
that extends the range of access to your computers and servers to
anywhere in the world. Its advanced design makes it compatible with
most KVM switches and computers.
Installation The UltraLink Lite is very easy to install and configure.
Just connect the unit to your network, a local KVM station, and a
computer or KVM switch. Next, assign an IP address to the unit and
you’re done. Next, run the remote client viewer program on a network
workstation. Enter the assigned IP address and other configuration
parameters, save it, and the workstation is ready to access the UltraLink
Lite.
Operation All access to the UltraLink Lite is through the remote
client viewer. Drop-down menus provide a selection list of multipl e
UltraLink locations that can be connected to. Once connected, you will
see the computer’s video and have complete control over that
computer.
Viewer windowing The remote client viewer can be adjusted to
any size. This feature allows you to place a scaled viewer’s image in the
corner of your screen and monitor a server while working on o ther tasks
in another window or multiple viewer windows to monitor multiple
remote locations.
Security The UltraLink Lite is designed with the highest regard for
security. Remote access requires a user ID and password. All
transmissions to and from the viewer and UltraLink Lite are encrypted
with the latest SSL technology. Login, time-out, and lock out for
repeated attempts to enter the password, add to the security of the
system.
Quad screen mode With the UltraLink Lite connected to a KVM
switch, you can view four servers at one time. The four conn ected
servers are viewed in real time and are automatically scaled to fit their
assigned quadrant in the viewer screen.
Color modes and resolution Full 16-bit color video is supported.
You can view the video in black and white, gray scale, co lor, or use
progressive color rendering.
Mouse cursor The UltraLink Lite uses a one-mouse cursor system
in a very intuitive style to access the remote connection or an
application on your desktop.
Video resolution Unlike other products, the UltraLink Lite
automatically adjusts to the connected computers video. It
supports a video resolution up to 1280 x 1024 which allows you
to access the standard Sun computers resolutions.
Flash memory
continuing features and support, UltraLink Lite contains flash
memory. We provide free lifetime firmware upgrades from our
web site at www.rose.com.
To support the latest devices and provide
Part Numbers
UL-LV3 Low-cost Single access unit
RM-UMnn Rack mount kit for UL-LV3
(nn = 19”, 23”, or 24”)
CAB-CXVSMM005 5’ UltraLink Lite to KVM switch cable
(provided)
CAB-CX0606C005 5’ UltraLink Lite to CPU cable (provided)
Specifications
Model Width Depth Height Weight Dimensions
UL-LV3 8.90
Power Auto Switching, 90 - 240 VAC, 130 watts
Connectors Power: IEC 320 standard receptacle
Local KVM: Video - HD15F
Keyboard - MD6F
Mouse - MD6F
Switch or computer : DB25F
Ethernet port: RJ45
Serial port: DB9M
Video bandwidth 150Mhz
Chassis Electro galvanized steel, black powder coated
(top cover)
Controls Power On / Off Switch
Indicators LEDs: Power, Net, Serial, Local, Ethernet link,
10/100MB Ethernet speed
Environmental 0°- 45°C / 32°- 113°F,
5 - 80% non-condensing RH
Approvals FCC, UL, cUL, TUV, CE, VCCI
22.6
8.40
21.3
1.75 in
4.40 cm
4.10 lbs
1.86 kg
Phone: 281-933-7673 E-mail: [email protected]
10707 Stancliff Rd. Houston, TX 77099
Rose Electronics – Europe: +49 (0)2454 969442 Rose Electronics – Asia: +65 6324 2322
DS-ULL-1.8 Copyright 2004 Rose Electronics. All rights reserved
Rear View - UL-LV3 connectors
