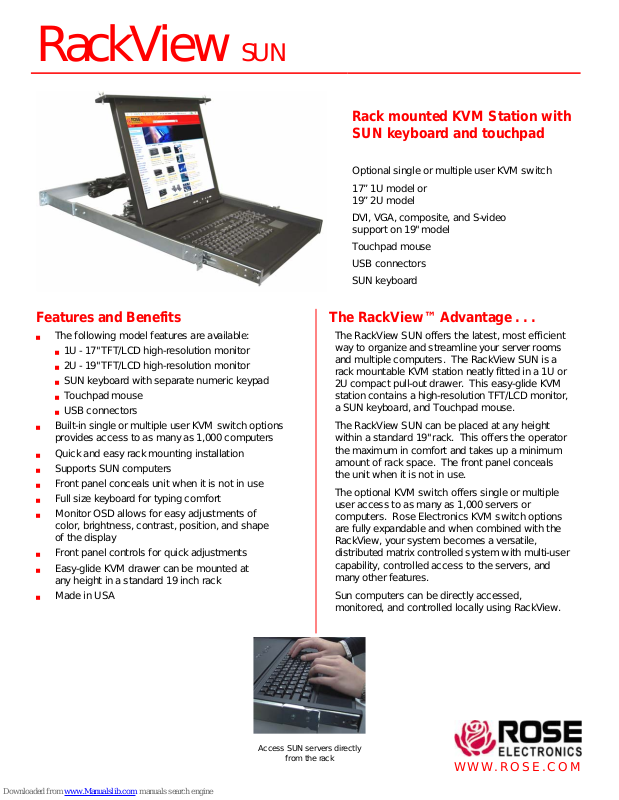

Page 1

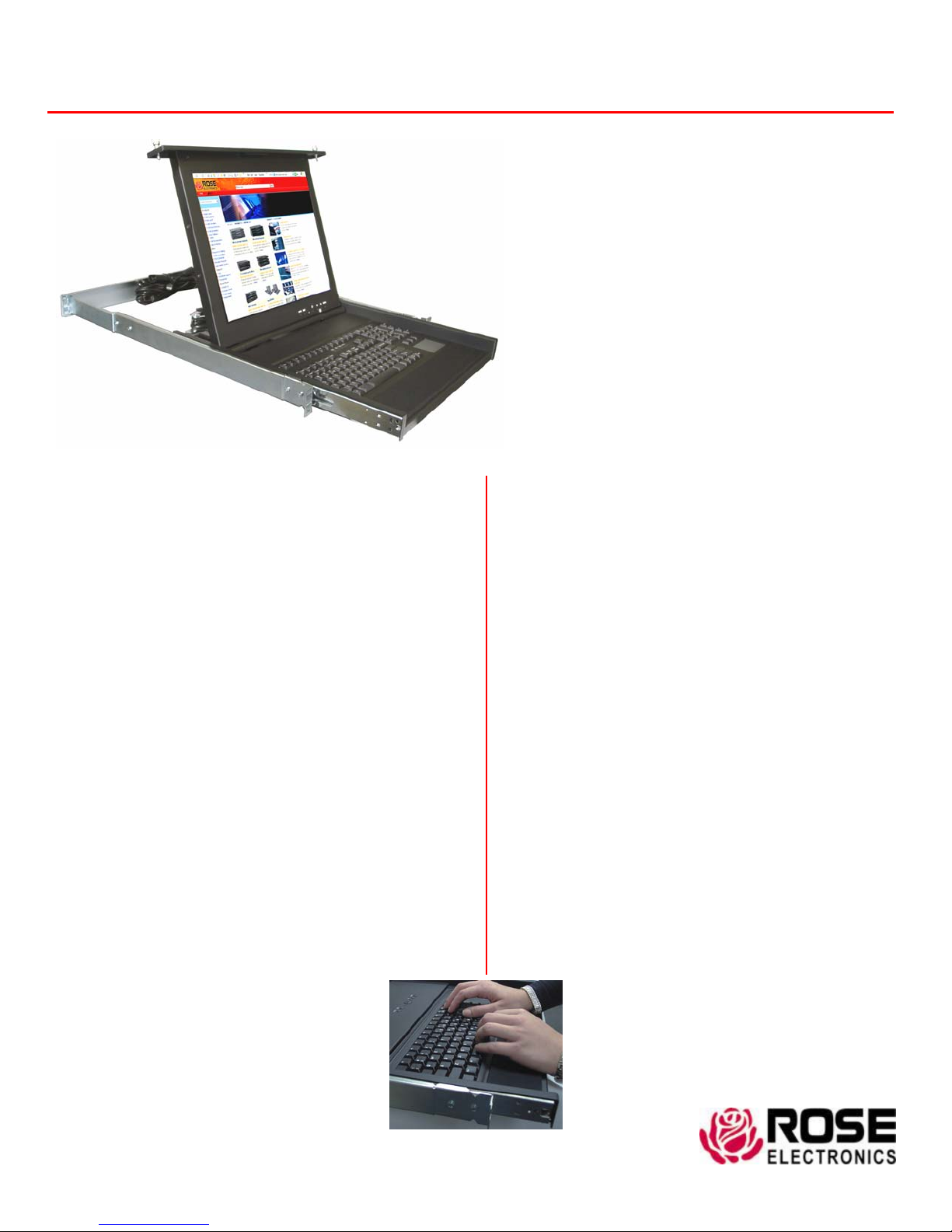

RackView SUN
Rack mounted KVM Station with
SUN keyboard and touchpad
Optional single or multiple user KVM switch
17” 1U model or
19” 2U model
DVI, VGA, composite, and S-video
support on 19" model
Touchpad mouse
USB connectors
SUN keyboard
Features and Benefits
J The following model features are available:
J 1U - 17" TFT/LCD high-resolution monitor
J 2U - 19" TFT/LCD high-resolution monitor
J SUN keyboard with separate numeric keypad
J Touchpad mouse
J USB connectors
J Built-in single or multiple user KVM switch options
provides access to as many as 1,000 computers
J Quick and easy rack mounting installation
J Supports SUN computers
J Front panel conceals unit when it is not in use
J Full size keyboard for typing comfort
J Monitor OSD allows for easy adjustments of
color, brightness, contrast, position, and shape
of the display
J Front panel controls for quick adjustments
J Easy-glide KVM drawer can be mounted at
any height in a standard 19 inch rack
J Made in USA
The RackView™ Advantage . . .
The RackView SUN offers the latest, most efficient
way to organize and streamline your server rooms
and multiple computers. The RackView SUN is a
rack mountable KVM station neatly fitted in a 1U or
2U compact pull-out drawer. This easy-glide KVM
station contains a high-resolution TFT/LCD monitor,
a SUN keyboard, and Touchpad mouse.
The RackView SUN can be placed at any height
within a standard 19" rack. This offers the operator
the maximum in comfort and takes up a minimum
amount of rack space. The front panel conceals
the unit when it is not in use.
The optional KVM switch offers single or multiple
user access to as many as 1,000 servers or
computers. Rose Electronics KVM switch options
are fully expandable and when combined with the
RackView, your system becomes a versatile,
distributed matrix controlled system with multi-user
capability, controlled access to the servers, and
many other features.
Sun computers can be directly accessed,
monitored, and controlled locally using RackView.
Access SUN servers directly
from the rack
WWW.ROSE.COM
Page 2

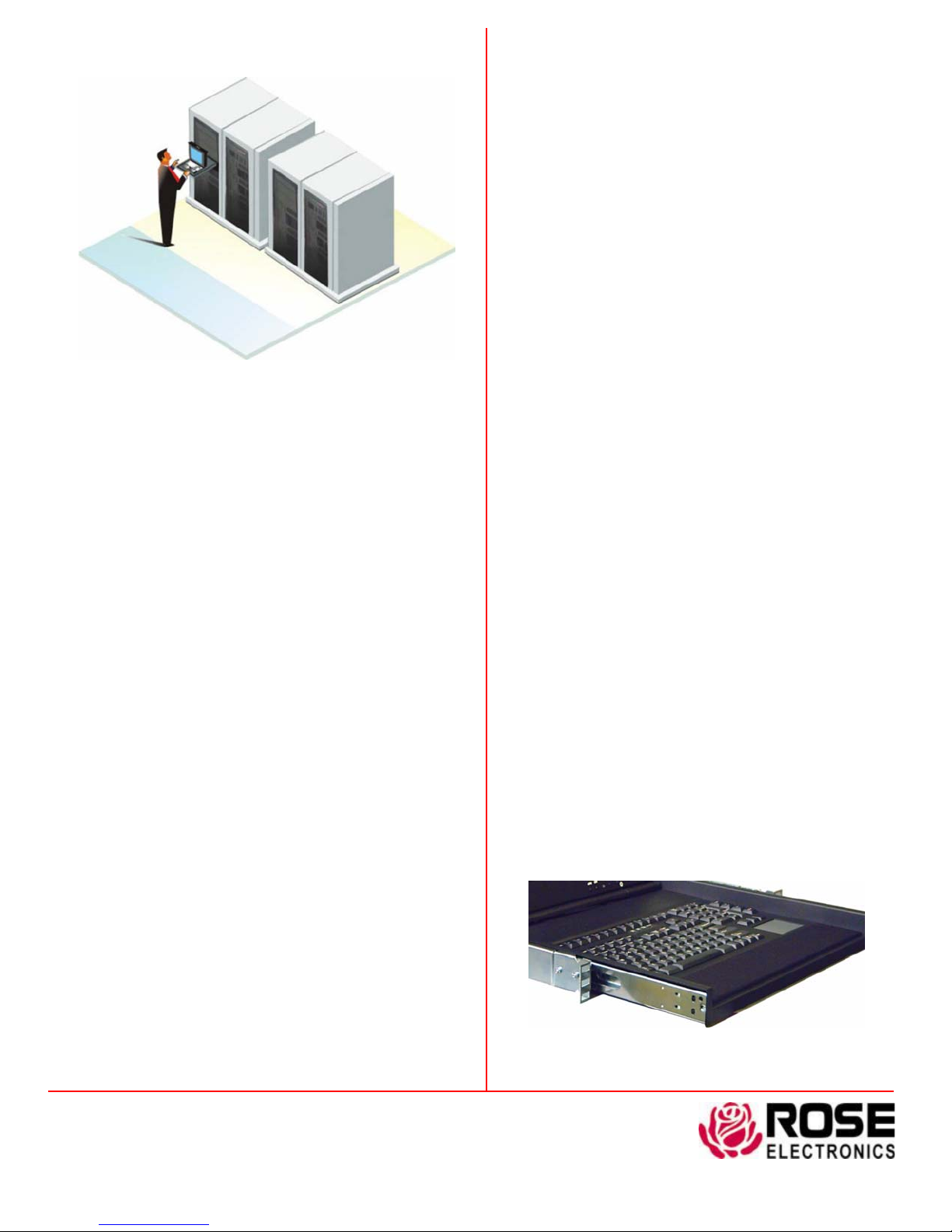

Typical Application
Introduction The RackView SUN is the perfect addition
for controlling your SUN systems. It mounts easily at any
height in a standard 19" rack. It takes up 85% less space
than a standard keyboard, monitor, and mouse and slides
easily into the rack and out of site when it's not in use.
The optional built-in KVM switch capability offers the
added convenience of complete access to as many as
1,000 servers or computers. Adding a multi-user KVM
switch allows server management to be performed locally
from RackView or remotely from multiple KVM
workstations.
Installation RackView SUN is very easy to install. Simply
adjust the rack rail length to the depth of your rack, slide
the unit through the rack and secure the rack mount
brackets to the rack rails.
Front Panel The monitor's front panel has easy access
switches which set the brightness, contrast, and invoke
the On-Screen-Display. The OSD provides for an easy way
to adjust all the monitors' parameters.
Keyboard The RackView's tactile keyboard is a full size
SUN keyboard with a separate numeric keypad. The
keyboard has USB connectors.
Mouse The RackView SUN has a high-resolution
Touchpad with USB connectors.
Monitor The high resolution, static free, TFT/LCD color
monitor provides a crisp, clear image with resolutions up
to 1280 x 1024 @ 75Hz.
Options The RackView SUN can be ordered with an
optional KVM switch. It is recommended that the KVM
switch be a 1U high, 1 x 4, 1 x 8, 2 x 4, or a 2 x 8 model.
Part Numbers
RV1-CKVT17/SU 17" LCD, SUN KB, touchpad, USB
RV2-CKVT19/SU 19” LCD, SUN KB, Clamshell
Specifications
Dimensions Depth Weight
(1U model) 28.5” – 39.0” 41 lbs
(2U model) 29.0” – 41.5” 46 lbs
Resolution: 1280 x 1024 @ 75Hz
Colors: 16.7 million
Controls: Front panel
Adjustments: On-Screen-Display
Keyboard: Full size SUN keyboard with
separate numeric keypad
Mouse: Touchpad
Connectors:
Video HD15F
Keyboard: USB
Mouse USB
Power 100-240 VAC 50/60 Hz in /
adapter +12VDC, 5A out
Environmental 32°F - 122°F (0°- 50° C),
20%-80% non-condensing RH
Phone: 281-933-7673 E-mail: [email protected]
10707 Stancliff Rd. Houston, TX 77099
Rose Electronics – Europe: +49 (0)2454 969442 Rose Electronics – Asia: +65 6324 2322
DS-RVSUN 2.1 Copyright 2004 Rose Electronics. All rights reserved
Full size SUN keyboard with integrated Touchpad
WWW.ROSE.COM
