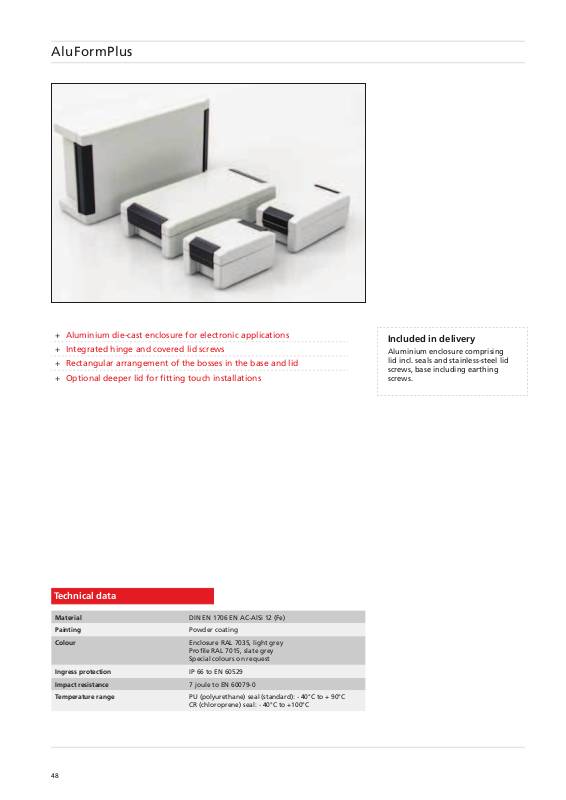

Page 1
48
Included in delivery
Aluminium enclosure comprising
lid incl. seals and stainless-steel lid
screws, base including earthing
screws.

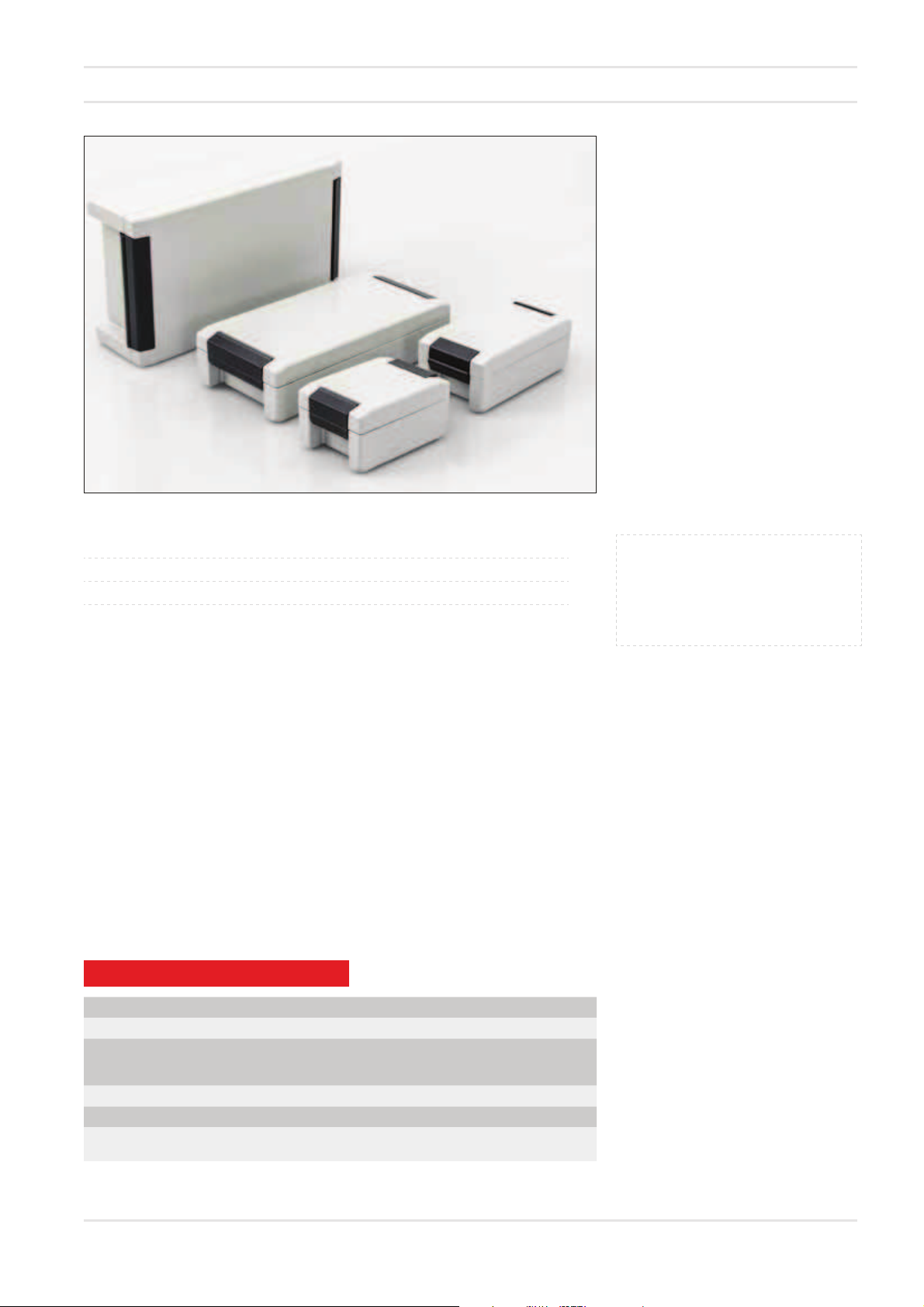

+ Aluminium die-cast enclosure for electronic applications
+ Integrated hinge and covered lid screws
+ Rectangular arrangement of the bosses in the base and lid
+ Optional deeper lid for fitting touch installations
Material DIN EN 1706 EN AC-AlSi 12 (Fe)
Painting Powder coating
Colour Enclosure RAL 7035, light grey
Profile RAL 7015, slate grey
Special colours on request
Ingress protection IP 66 to EN 60529
Impact resistance 7 joule to EN 60079-0
Temperature range PU (polyurethane) seal (standard): - 40°C to + 90°C
CR (chloroprene) seal: - 40°C to +100°C
Technical data
AluFormPlus

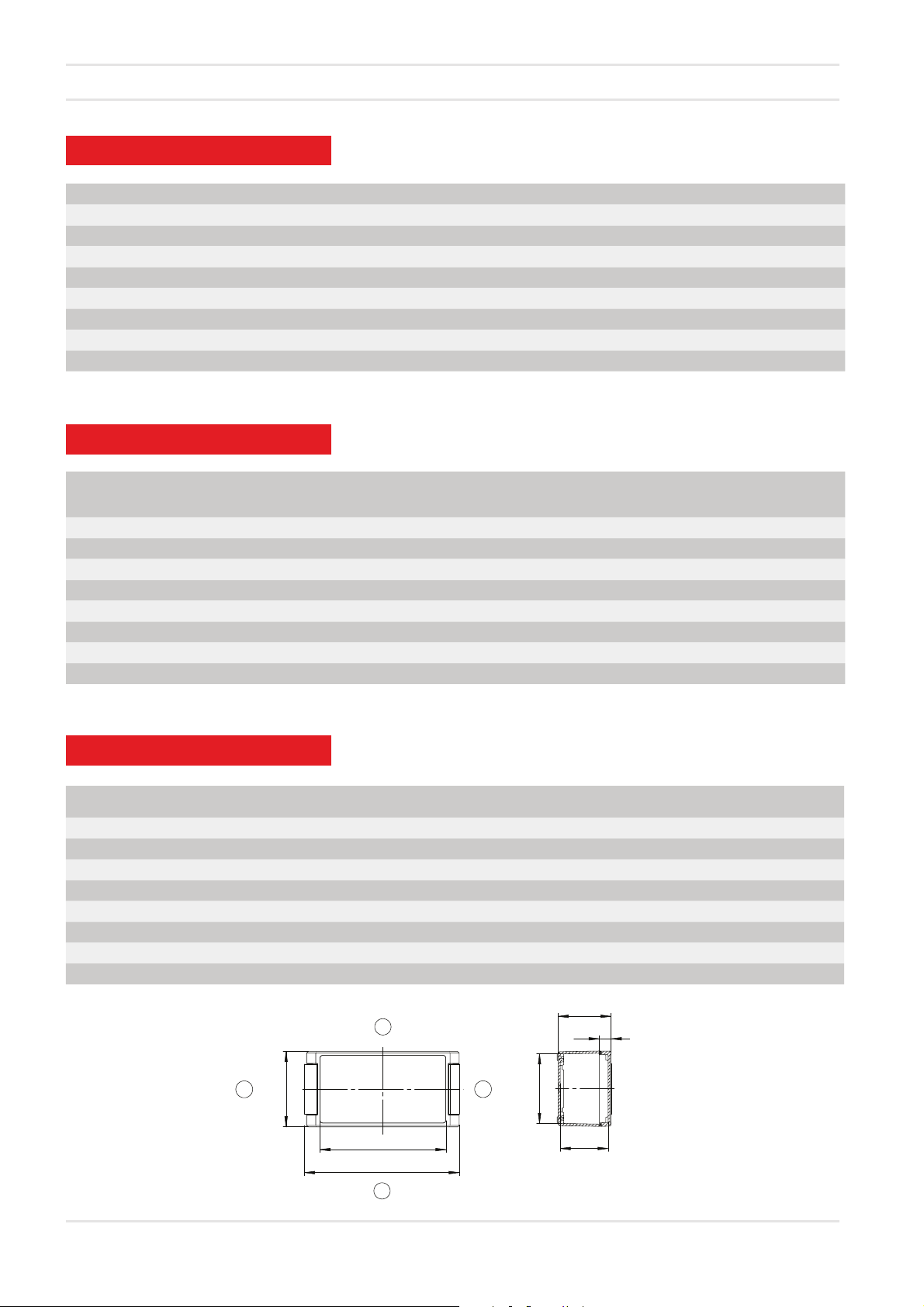

Page 2
49
Order No. Type H x W x D (mm)
64.0 9 1 2 06 AFP 6405 86 x 121 x 60
64.0 9 1 6 06 AFP 6410 86 x 159 x 60
64.0 9 2 0 06 AFP 6415 86 x 199 x 60
64.1 3 1 6 09 AFP 6420 128 x 159 x 90
64.1 3 2 6 06 AFP 6425 128 x 259 x 60
64.1 3 2 6 09 AFP 6430 128 x 259 x 90
64.1 7 3 0 06 AFP 6435 173 x 299 x 60
64.1 7 3 0 09 AFP 6440 173 x 299 x 90
Product range
Accessories
Dimensions in detail
Order No. DIN rail
for terminals
TS 15 / TS 35
Mounting
plate
EMC
screening
Silicone seal
to +130°C
SWB
corrosion
protection
64.0 9 1 2 06
• • • • •
64.0 9 1 6 06
• • • • •
64.0 9 2 0 06
• • • • •
64.1 3 1 6 09
• • • • •
64.1 3 2 6 06
• • • • •
64.1 3 2 6 09
• • • • •
64.1 7 3 0 06
• • • • •
64.1 7 3 0 09
• • • • •
Order No. h (mm) w (mm) d (mm) h1 (mm) w1 (mm) d1 (mm)
64.0 9 1 2 06
86 121 60 77,5 77.5 51.5
64.0 9 1 6 06
86 159 60 77,5 115.5 51.5
64.0 9 2 0 06
86 199 60 77,5 155.5 81.5
64.1 3 1 6 09
128 159 90 118,5 114.5 51.5
64.1 3 2 6 06
128 259 60 119,5 215.5 51.5
64.1 3 2 6 09
128 259 90 118,5 214.5 81.5
64.1 7 3 0 06
173 299 60 164,5 255.5 51.5
64.1 7 3 0 09
173 299 90 164,5 254.5 81.5
A
B
D
C
w1
d1
20
d
h1
h
w
AluFormPlus
Page 3
50
AluFormPlus

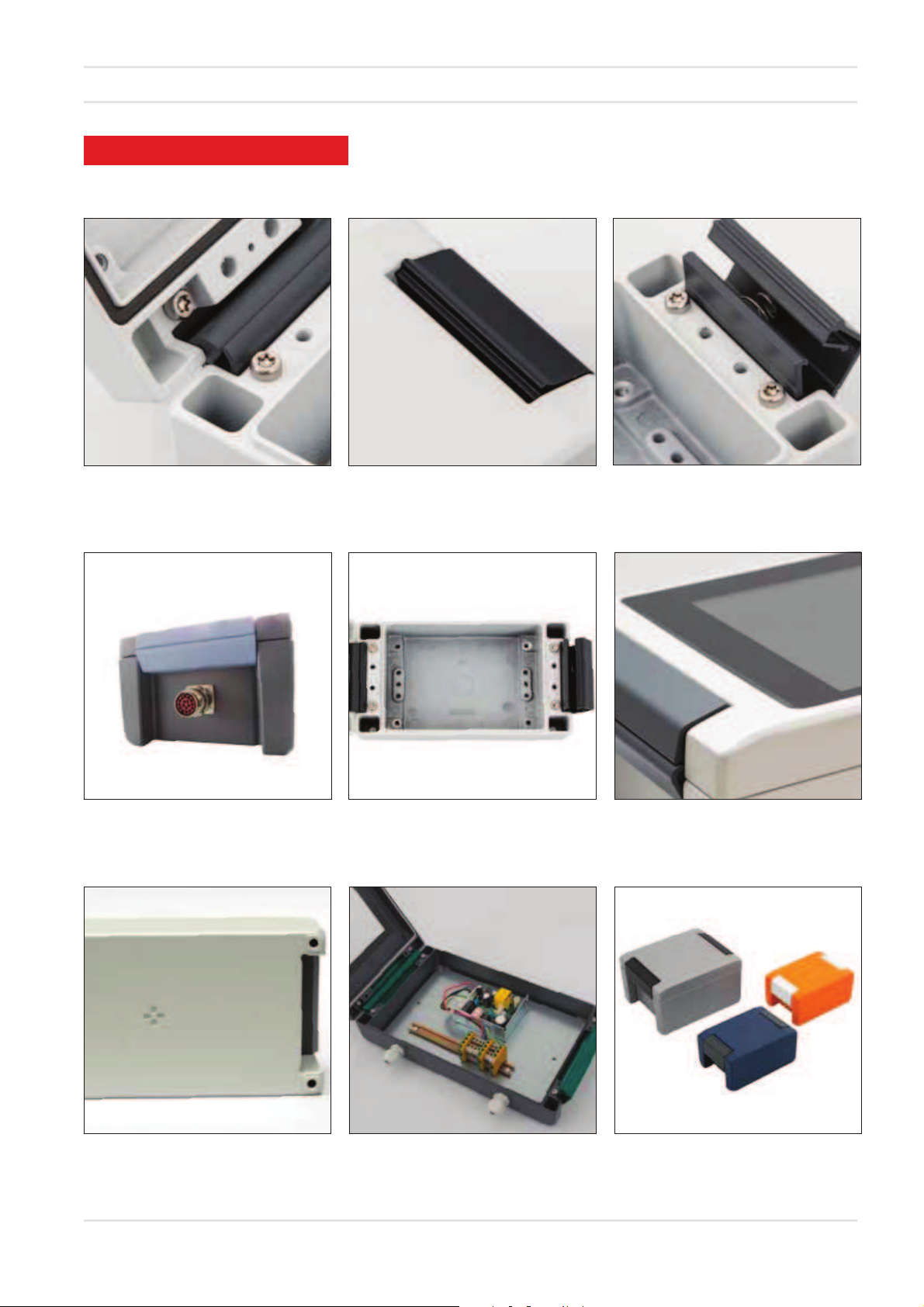

Profiles can be opened without tools and provide free access to 2 lid screws.
Mechanical processing of the makes it possible
to fit membrane keypads or touch displays.
Covered lid screws with
designer aluminium profiles.
A rectangular arrangement of the bosses and
lateral fixing fins facilitate optimal installation
of components.
Integrated hinge – a lid that cannot be lost is essential for applications in the electronics area!
A closed internal space offers protection
for your electronics.
Individual colours of enclosure and
profile covers support your CI concept.
AluFormPlus – Features
Sensitives fixtures are provided with extra
protection in the deepened frontal areas.
The base has a moulded-on insertion opening
for a pressure compensation membrane.
