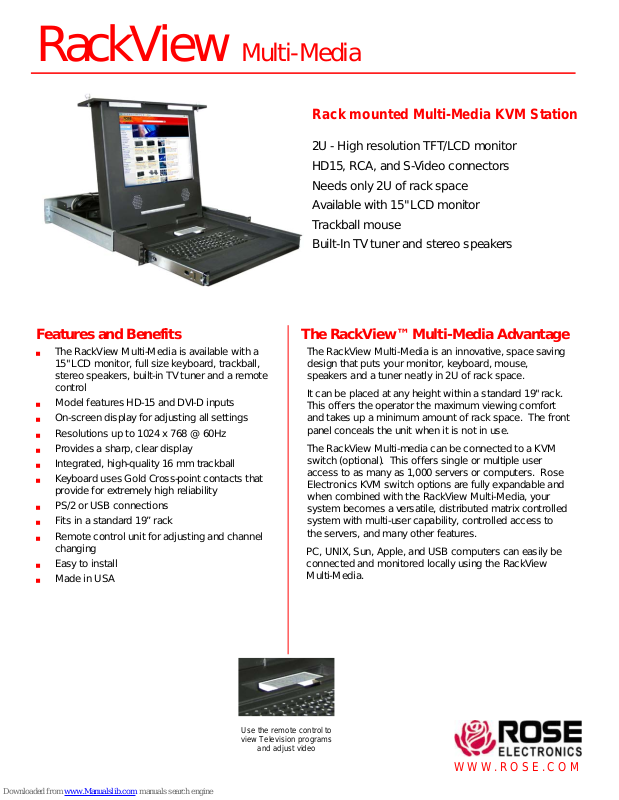

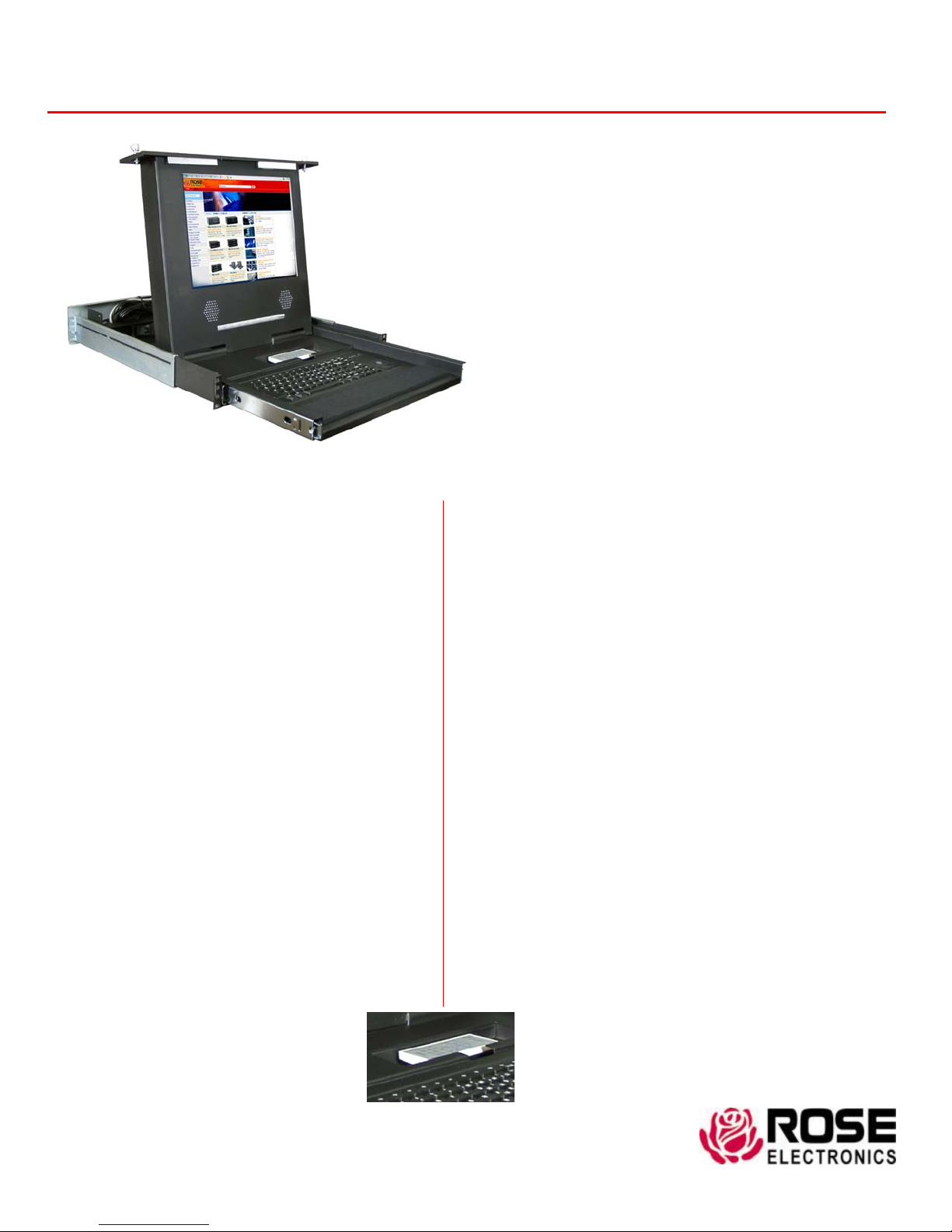

Page 1
RackView Multi-Media
Rack mounted Multi-Media KVM Station
2U - High resolution TFT/LCD monitor
HD15, RCA, and S-Video connectors
Needs only 2U of rack space
Available with 15" LCD monitor
Trackball mouse
Built-In TV tuner and stereo speakers
Features and Benefits
J The RackView Multi-Media is available with a
15" LCD monitor, full size keyboard, trackball,
stereo speakers, built-in TV tuner and a remote
control
J Model features HD-15 and DVI-D inputs
J On-screen display for adjusting all settings
J Resolutions up to 1024 x 768 @ 60Hz
J Provides a sharp, clear display
J Integrated, high-quality 16 mm trackball
J Keyboard uses Gold Cross-point contacts that
provide for extremely high reliability
J PS/2 or USB connections
J Fits in a standard 19” rack
J Remote control unit for adjusting and channel
changing
J Easy to install
J Made in USA
The RackView™ Multi-Media Advantage
The RackView Multi-Media is an innovative, space saving
design that puts your monitor, keyboard, mouse,
speakers and a tuner neatly in 2U of rack space.
It can be placed at any height within a standard 19" rack.
This offers the operator the maximum viewing comfort
and takes up a minimum amount of rack space. The front
panel conceals the unit when it is not in use.
The RackView Multi-media can be connected to a KVM
switch (optional). This offers single or multiple user
access to as many as 1,000 servers or computers. Rose
Electronics KVM switch options are fully expandable and
when combined with the RackView Multi-Media, your
system becomes a versatile, distributed matrix controlled
system with multi-user capability, controlled access to
the servers, and many other features.
PC, UNIX, Sun, Apple, and USB computers can easily be
connected and monitored locally using the RackView
Multi-Media.
Use the remote control to
view Television programs
and adjust video
WWW.ROSE.COM
Page 2
Typical Application
Introduction The RackView is the perfect addition to your
server room. It mounts easily at any height in a standard
19" rack. It slides easily into the rack and out of site when
not in use. The RackView Multi-media features a tuner
with built-in antenna connection. It also has stereo
speakers with volume control and a remote control for
using/adjusting the tuner features.
The optional built-in KVM switch capability offers the
added convenience of complete access to as many as
1,000 servers or computers. Adding a multi-user KVM
switch allows server management to be performed locally
from RackView or remotely from multiple KVM
workstations.
Installation RackView is very easy to install. Simply adjust
the rack rail length to the depth of your rack, slide the unit
through the rack and secure the rack mount brackets to
the rack rails.
Monitor The monitor is a high resolution TFT/LCD
monitor with front panel controls for adjusting brightness
and contrast. The on-screen display menu provides
adjustments for contrast, brightness, OSD position,
clock/phase, and mode
Part Numbers
RV2-KVM15/AV. 2U Rack Mounted KVM station with
speakers and tuner
Specifications
Dimensions: H X W X D Weight
RV2-KVM15/AV
3.5 X 19.0 X 22.5-43.0 (in)
8.9 X 48.3 X 59.7-122.7 (cm)
47.0 lbs
21.3 kg
Resolution: 1024 x 768 @ 60Hz
Colors: 16.7 million
Controls: Front panel
Adjustments: On-Screen
Display: 15” TFT/LCD
Brightness 200cd/m2 (typical)
Pitch 0.3075mm x 0.3.75mm
Power EPA Energy Star, VESA DPMS
Keyboard: High quality gold cross-point contacts
Keystrokes tactile
Lifecycles 20,000,000 cycles per switch
134,000 MTBF
Mouse: Trackball
Size 16mm ball
Resolution 20-6400 DPI
Tracking 500mm/Sec
Connectors:
Video HD15 / DVI-D
Keyboard PS/2
Mouse PS/2
Environmental:
Temp. 32°F - 122°F (0°- 50° C),
Humidity 20%-85% non-condensing RH
Approvals: FCC, CE, UL, VCCI
Options The RackView can be ordered with an optional
KVM switch. The switch must be mounted separately in
the rack.
Phone: 281-933-7673 E-mail: [email protected]
10707 Stancliff Rd. Houston, TX 77099
Rose Electronics – Europe: +49 (0)2454 969442 Rose Electronics – Asia: +65 6324 2322
DS-RVMM 1.5 Copyright 2004 Rose Electronics. All rights reserv ed
WWW.ROSE.COM
