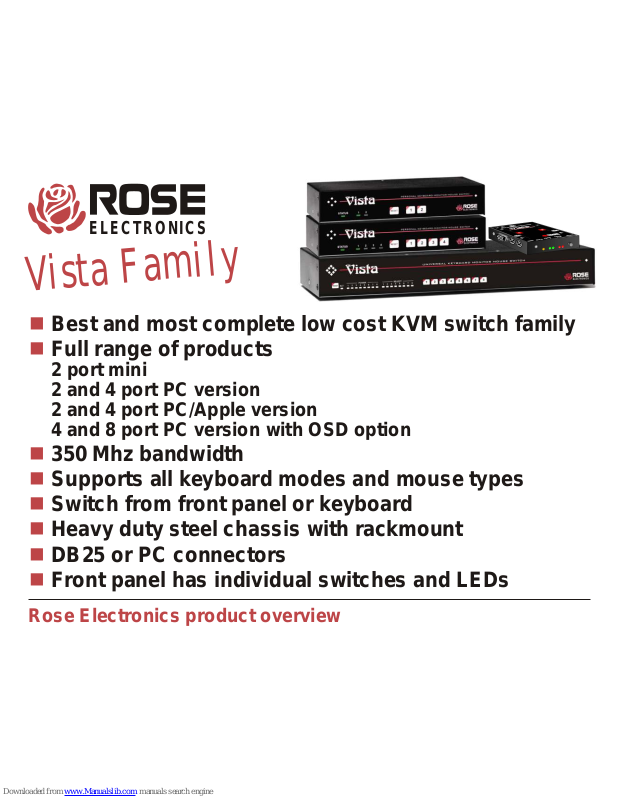

Page 1
ELECTRONICS
Vista Family
Rose Electronics product overview
n
n
n
n
n
n
n
n
Best and most complete low cost KVM switch family
Full range of products
2 port mini
2 and 4 port PC version
2 and 4 port PC/Apple version
4 and 8 port PC version with OSD option
350 Mhz bandwidth
Supports all keyboard modes and mouse types
Switch from front panel or keyboard
Heavy duty steel chassis with rackmount
DB25 or PC connectors
Front panel has individual switches and LEDs
Page 2
Vista Mini
Rose Electronics product overview
ELECTRONICS
n
n
n
n
n
n
n
n
n
n
n
Low cost switch for two PCs to one KVM
Perfect for desktop in home or office
Small size .8” high by 3.2” wide by 4.2” deep
Ultra-high resolution video
Switches stereo audio with very low distortion
Available with DB25 connectors or PC connectors
Supports wheel mouse, converts PS/2 to serial mouse
Switch from keyboard or front panel
LEDs show status, power, and computer select
Steel chassis
Self powered
Page 3
Vista PC 2/4
Rose Electronics product overview
ELECTRONICS
n
n
n
n
n
n
n
n
n
n
n
T
wo or four PCs to one KVM
Perfect for desktop or computer rack
Small size 1.75” high by 8.8” wide by 3.4” deep
Steel chassis is rack-mountable
Ultra-high resolution video
A
vailable with DB25 connectors or PC connectors
Mouse type can be serial, PS/2, or PS/2 wheel
Supports wheel mouse, converts PS/2 to serial mouse
Switch from keyboard or front panel
LEDs show status, power, and computer select
Self powered
Page 4
Vista PC-Apple 2/4
Rose Electronics product overview
ELECTRONICS
n
n
n
n
n
n
n
n
n
n
n
T
wo or four PC or Apples to one KVM
Perfect for desktop or computer rack
Each port programmable as PC or Apple
Small size 1.75” high by 8.8” wide by 3.4” deep
Steel chassis is rack-mountable
Ultra-high resolution video
DB25 connectors and PC keyboard only
Supports wheel mouse, converts PS/2 to serial mouse
Supports Apple power key
Switch from keyboard or front panel
LEDs show status, power, and computer select
Page 5
Vista 4/8
Rose Electronics product overview
ELECTRONICS
n
n
n
n
n
n
n
n
n
n
Up to eight PCs to one KVM
Perfect for computer rack or server room
Optional OSD with security and many features
Steel chassis rack-mountable for 19”, 23” & 24” racks
Very high resolution video
A
vailable with DB25 connectors or PC connectors
Supports wheel mouse, converts PS/2 to serial mouse
Switch from keyboard or front panel
LEDs show status, power, and computer select
Self powered or optional external power
Page 6
Vista front and back
Rose Electronics product overview
ELECTRONICS
Model KVL-4PC 4-port PC connectors add /OV for OSD option
Model KVL-4U 4-port DB25 connectors add /OV for OSD option
Model KVL-8U 8-port with DB25 connectors add /OV for OSD option Model KVM-4UPM 4-port DB25 connectors for PC/Apple
Model KVM-2UPM 2-port DB25 connectors for PC/Apple
Model KVM-4UPA 4-port DB25 connectors
Model KVM-2UPA 2-port DB25 connectors
Model KVT-2PC
2-port PC connectors
with audio
Model KVM-4UPC 4-port PC connectors
Model KVT-2U
2-port DB25 connectors
with audio
Model KVM-2UPC 2-port PC connectors
Model KVL-8PC 8-port PC connectors add /OV for OSD option
