Rose electronics EE2-2X4U, EE2-1X8U/E, EE2-2X16U, EE2-2X16U/E, EE2-2X4U/E Product Overview

Ultra

M

atr

i

x

fami

l

y

Rose Electronics product overview

ELECTRONICS

n
n

n

n

n

n

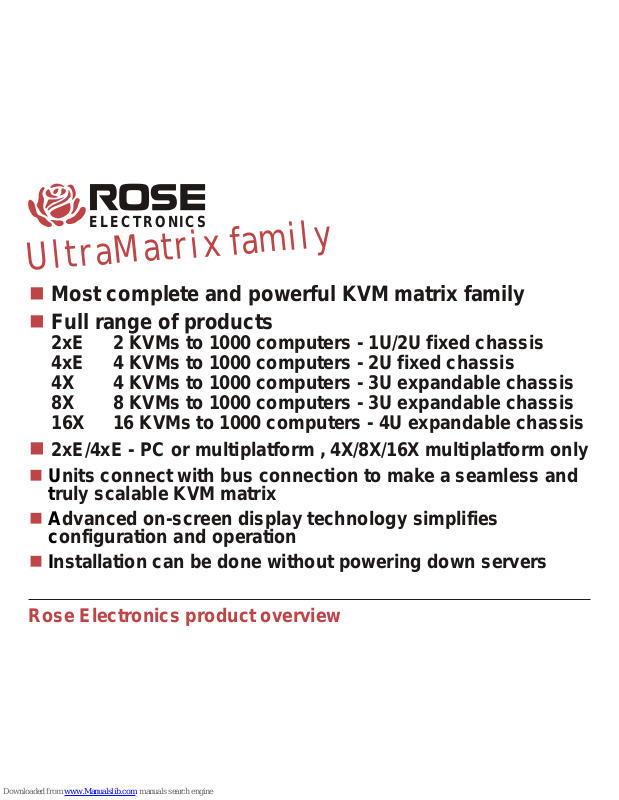

Most complete and powerful KVM matrix family
Full range of products

2xE 2 KVMs to 1000 computers - 1U/2U fixed chassis
4xE

4 KVMs to 1000 computers - 2U fixed chassis
4X 4 KVMs to 1000 computers - 3U expandable chassis
8X 8 KVMs to 1000 computers - 3U expandable chassis
16X

16 KVMs to 1000 computers - 4U expandable chassis

2xE/4xE - PC or multiplatform , 4X/8X/16X multiplatform only

nits connect with bus connection to make a seamless and

ruly scalable KVM matrix

dvanced on-screen display technology simplifies

onfiguration and operation

nstallation can be done without powering down servers

U
t

A
c

I

U

l

t

ra

M

a

t

ri

x

fam

i

ly

Rose Electronics product overview

ELECTRONICS

n

n

n

n
n

n

n

n
n

Multiplatform supports PC, Sun, IBM, HP, DEC, SGI, Unix,
Linux, and other computers

Security system with user ID and password prevents
unauthorized configuration and access

Add additional KVMs for local access

Lifetime free flash upgrade

tatus screen shows inter-box communication, system

connections, computer power, and other information
On-screen display informs you of connect and disconnect

status with user friendly messages
Multi-lingual on-screen display - English, French, German,

Spanish, Italian (April 2000)
RS232 serial support to be added as free upgrade (April 2000)
Switch any KVM to and computer from serial port

S

UltraMatrix

2xE

n
n
n
n

n

n
n
n
n
n
n

Access up to 1000 computers from 2 KVMs
Models available are 2 x 4, 2 x 8, and 2 x 16
PC or multi-platform
Optional bus expansion makes a seamless and truly

scalable KVM matrix switch
Front panel LEDs show which computers are powered on

and selected
2 X 4 and 2 x 8 are in 1 U chassis
2 X 16 is in 2 U chassis
Fully compatible with all other UltraMatrix family members
Heavy duty steel chassis
Rack mountable for 19”, 23”, and 24” racks
Integrated auto-switching power supply

Rose Electronics product overview

ELECTRONICS

UltraMatrix 2xE

2 x 4 PC or multi-platform with optional expansion card

2 x 8 PC or multi-platform with optional expansion card

2 x 16 PC or multi-platform with optional expansion card

Rose Electronics product overview

ELECTRONICS

UltraMatrix

4xE

n
n
n
n

n

n
n
n
n
n

Access up to 1000 computers from 4 KVMs
Models available are 4 x 8 and 4 x 16
PC or multi-platform
Optional bus expansion makes a seamless and truly

scalable KVM matrix switch
Front panel LEDs show which computers are powered on

and selected
4 x 8 and 4 x 16 are in 2U chassis
Fully compatible with all other UltraMatrix family members
Heavy duty steel chassis
Rack mountable for 19”, 23”, and 24” racks
Integrated auto-switching power supply

Rose Electronics product overview

ELECTRONICS

UltraMatrix 4xE

Rose Electronics product overview

ELECTRONICS

4 x 8 PC or multi-platform with optional expansion card

4 x 16 PC or multi-platform with optional expansion card

UltraMatrix

4x

Rose Electronics product overview

ELECTRONICS

n
n

n

n

n
n
n
n
n

Access up to 1000 computers from 4 KVMs
Plug-in cards make the system easy to expand and

maintain
Multi-platform supports PC, Sun, IBM, HP, DEC, SGI, Unix,

Linux, and other computers
Optional bus expansion makes a seamless and truly

scalable KVM matrix switch
5-card chassis is 3U high
Fully compatible with all other UltraMatrix family members
Heavy duty steel chassis
Rack mountable for 19”, 23”, and 24” racks
Integrated auto-switching power supply

UltraMatrix

4x

CPU 4 CPU 3 CPU 2 CPU 1 KVM Serial

CPU 4 CPU 3 CPU 2 CPU 1 Serial

OUT-1OUT-2 IN-1IN-2

Fully populated 4x 16
UltraMatrix unit with expansion

Plug-in card for 4 CPUs and 1 KVM

Plug-in card for 4 CPUs

Plug-in card for expansion

Rose Electronics product overview

ELECTRONICS

UltraMatrix

8x

Rose Electronics product overview

ELECTRONICS

n
n

n

n

n
n
n
n
n

Access up to 1000 computers from 8 KVMs
Plug-in cards make the system easy to expand and

maintain
Multi-platform supports PC, Sun, IBM, HP, DEC, SGI, Unix,

Linux, and other computers
Optional bus expansion makes a seamless and truly

scalable KVM matrix switch
5-card chassis is 3U high
Fully compatible with all other UltraMatrix family members
Heavy duty steel chassis
Rack mountable for 19”, 23”, and 24” racks
Integrated auto-switching power supply

CPU 4 CPU 3 CPU 2 CPU 1 KVM Serial

CPU 4 CPU 3 CPU 2 CPU 1 Serial

OUT-1OUT-2 IN-1IN-2OUT-3OUT-4 IN-3IN-4

Fully populated 4x16 with 8x expansion
needs second box to have all eight KVMs

Plug-in card for 4 CPUs and 1 KVM

Plug-in card for 4 CPUs

Plug-in card for expansion

UltraMatrix

8x

Rose Electronics product overview

ELECTRONICS

UltraMatrix

16x

Rose Electronics product overview

ELECTRONICS

n
n

n

n

n
n
n
n
n

Access up to 1000 computers from 16 KVMs
Plug-in cards make the system easy to expand and

maintain
Multi-platform supports PC, Sun, IBM, HP, DEC, SGI, Unix,

Linux, and other computers
Optional bus expansion makes a seamless and truly

scalable KVM matrix switch
6-card chassis is 4U high
Fully compatible with all other UltraMatrix family members
Heavy duty steel chassis
Rack mountable for 19”, 23”, and 24” racks
Integrated auto-switching power supply

UltraMatrix

16x

CPU 4 CPU 3 CPU 2 CPU 1 KVM Serial

CPU 4 CPU 3 CPU 2 CPU 1 Serial

OUT-1OUT-2 IN-1IN-2

OUT-5OUT-6 IN-5IN-6

OUT-3

OUT-7

OUT-4

OUT-8

IN-3

IN-7

IN-4

IN-8

Plug-in card for 4 CPUs and 1 KVM

Plug-in card for 4 CPUs

Plug-in card for expansion

Plug-in card for expansion

Fully populated
4x16 with 8x expansion
needs four boxes to
have all 16 KVMs
