Page 1
CrystalView Extreme
IN S TAL LATION AND
MANUAL
LAN Extender
OPERATIONS
Part Number CRK-1DTXT-EX45/A1
10707 Stancliff Road Phone: (281) 933-7673
Houston, Texas 77099 WWW.ROSE.COM
Page 2
Limited Warranty
Rose Electronics warrants the CrystalView Extreme to be in good working order for one year from the
date of purchase from Rose Electronics or an authorized dealer. Shoul d this product fail to be in good
working order at any time during this one-year warranty period, Rose Electronics will, at its option,
repair or replace the Unit as set forth below. Repair parts and replacement units will be either
reconditioned or new. All replaced parts become the property of Rose Electronics . This limited
warranty does not include service to repair damage to the Unit resulting from accident, disaster,
abuse, or unauthorized modification of the Unit, including static discharge and power surges.
Limited Warranty service may be obtained by delivering this unit during the one-year warranty period
to Rose Electronics or an authorized repair center providing a proof of purchase date. If this Unit is
delivered by mail, you agree to insure the Unit or assume t he risk of los s or damage in tr ansit, to
prepay shipping charges to the warranty service location, and to use the original ship ping con tain er or
its equivalent. You must call for a return authorization number first. Under no circumstances will a unit
be accepted without a return authorization number. Contact an authorized repair center or Rose
Electronics for further information.
ALL EXPRESS AND IMPLIED WARRANTIES FOR THIS PRODUCT INCLUDING THE
WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULA R P URPOS E, ARE
LIMITED IN DURATION TO A PERIOD OF ONE YEAR FROM THE DATE OF PURCHASE, AND NO
WARRANTIES, WHETHER EXPRESS OR IMPLIED, WILL APPLY AFTER THIS PERIOD. SOME
STATES DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS, SO
THE ABOVE LIMITATION MAY NOT APPLY TO YOU.
IF THIS PRODUCT IS NOT IN GOOD WORKING ORDER AS WARRANTED ABOVE, YOUR SOLE
REMEDY SHALL BE REPLACEMENT OR REPAIR AS PROVIDED ABOVE. IN NO EVENT WILL
ROSE ELECTRONICS BE LIABLE TO YOU FOR ANY DAMAGES INCLUDING ANY LOST
PROFITS, LOST SAVINGS OR OTHER INCIDENTAL OR CONSEQUENTIAL DAMAGES ARISING
OUT OF THE USE OF OR THE INABILITY TO USE SUCH PRODUCT, EVEN IF ROSE
ELECTRONICS OR AN AUTHORIZED DEALER HAS BEEN ADVISED OF THE POSSIBILITY OF
SUCH DAMAGES, OR FOR ANY CLAIM BY ANY OTHER PARTY.
SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR
CONSEQUENTIAL DAMAGES FOR CONSUMER PRODUCTS, SO THE ABOVE MAY NOT APPLY
TO YOU. THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS AND YOU MAY ALSO HAVE
OTHER RIGHTS WHICH MAY VARY FROM STATE TO STATE.
NOTE: This equipment has been test ed and found t o c omply with the limits fo r a C lass B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference when the equipment is operated in a commercial environment.
This equipment generates, uses, and can radiate radio frequency energy and, if not installed and
used in accordance with the instruction manual, may ca use harmful interfere nce to radio
communications. Ope ration of t h is equipment i n a resident ial area is likely to cause harmful
interference in which case the user will be required to correct the interference at his own expense.
IBM, AT, and PS/2 are tr ademarks of Internatio nal Busines s M achines Corp. Microsoft and Micr o soft
Windows are registered trademarks of Microsoft Corp. Any other trademarks mentioned in this
manual are acknowledged to be the property of the trademark owner.
Copyright Rose Electronics 2011. All rights reserved.
No part of this manual may be reproduced, stored in a retrieval system, or transcribed in any form or any
means, electronic or mechanical, including photocopying and recording, without the prior written permission
of Rose Electronics.
Rose Electronics Part # MAN-CRVEXT4
Printed In the United States of America – Revision 1.3
Page 3
FCC/IC STATEMENTS, EU DECLAR ATION OF CONF ORMITY
FCC Radio Frequency Interference
This device complies with Part 15 of the FCC rules; operation is subject to
the following two conditions:
1. This device may not cause harmful interference
2. This device must accept any interference received, including
interference that may cause undesired operation.
CE Statement
This product meets European Standard EMC EN-55022:2006 + A1:2007
Class A, EN 61000-3-2:2006 + A2(2009), EN 610 00-3-3:2008, and EN
55024:1998 + A1(2001) + A2(2003).
IC Statement
This Class A digital apparatus complies with Canadian ICES-003.
Page 4
Table of Contents
Contents Page #
Disclaimer ...................................................................................................... 1
System Introduction ....................................................................................... 1
Features ......................................................................................................... 2
Package Contents ......................................................................................... 3
Additional Installation Items ........................................................................... 3
Rose Electronics web site.............................................................................. 3
Product Registration ...................................................................................... 3
System Overview ........................................................................................... 4
Models ........................................................................................................... 5
Transmitter - Front Panel ........................................................................... 6
Transmitter - Rear panel Connectors ......................................................... 6
Receiver - Front Panel ............................................................................... 7
Receiver - Rear Panel ................................................................................ 7
System Installation ......................................................................................... 8
Transmitter installation ............................................................................... 8
Receiver installation ................................................................................... 9
Installation Verification ............................................................................... 9
Connecting USB Devices ......................................................................... 10
System Operation ........................................................................................ 10
System Troubleshooting .............................................................................. 11
Product Safety ............................................................................................. 13
Maintenance and Repair.............................................................................. 14
Technical Support ........................................................................................ 14
Figures Page #
Figure 1. Models ............................................................................................ 5
Figure 2. Typical Installation .......................................................................... 8
Tables Page #
Table 1. Transmitter Indicators/Connectors .................................................. 6
Table 2. Receiver Indicators / Connectors .................................................... 7
Appendices Page #
Appendix A – General Specifications .......................................................... 15
Appendix B – Compatibility .......................................................................... 16
Appendix C – Pairing Transmitter and Receiver ......................................... 17
Page 5
INTRODUCTION
Disclaimer
While every precaution has been taken in the preparation of this manual, the
manufacturer assumes no responsibility for errors or omissions. Neither
does the manufacturer assume any liability for damages resulting from the
use of the information contained herein. The manufacturer reserves the
right to change the specifications, functions, or circuitry of the product
without notice.
The manufacturer cannot accept liability for damages due to misuse of the
product or other circumstances outside the manufacturer’s control. The
manufacturer will not be responsible for any loss, damage, or injury arising
directly or indirectly from the use of this product.
System Introduction
Thank you for choosing the CrystalView Extreme extender from Rose
Electronics for your remote accessing needs. The CrystalView Extreme
system consists of a Transmitter unit and a Receiver unit. The Transmitter
unit connects to your corporate LAN and to your computer’s DVI-D and USB
Type A connectors using the provided DVI and USB cables. The Receiver
unit also connects to your corporate LAN and to your remote workstation.
This allows you to access your computer from any location on your LAN.
The Transmitter and Receiver are paired at the factory and only
communicate with each other. If the Transmitter needs to be paired to a
different Receiver or a Receiver paired to a different Transmitter, see
Attachment C for instructions.
The CrystalView Extreme extender supports all USB 2.0 devices. It is
ideal for use in industrial control areas, digital signage, connecting LAN
cameras for security systems, USB device printing, scanning and
storage.
If additional USB devices are needed, you can add up to 4 USB hubs to
the three port Receiver model and connect up to 13 USB devices.
The CrystalView Extreme supports all major operating systems including
Windows
USB printers, scanners, web cameras, USB hard drives, flash drives, MP3
players and more can easily be connected to the Receiver unit.
®
, MAC®, and Linux
®
CrystalView Extreme Installation and Operations Manual 1
Page 6
Features
Supports HD video with resolutions up to 1680 x 1050
Supports USB 2.0 (high-speed / 480 Mb/s),
USB 2.0 and 1.1 (Full-speed / 12 Mb/s, and
USB 2.0 and 1.1 (Low-speed / 1.5 Mb/s
Extend your workstation to any locatio n on your corp or ate LAN or a
point-to-point connection between the transmitter and receiver units.
Point-to Point max CATx cable length of 330 feet (100M).
3-USB port available on the Receiver unit
Standard USB hubs can be used to increase the maximum number of
connected USB devices to 13 and 4 USB hubs.
Up to 500 mA of power is available at each USB port on the Receiver
for powering high-power USB devices
Plug-and-Play instal lat ion , no config ur ati on or set-up needed.
Support multiple systems on a LAN. (up to 30 on a 1Gbps LAN)
The Transmitter can locate the paired Receiver anywhere within the
network.
Operates on a network connection of 100Mbps or 1Gbps.
Operates through Ethernet switches.
Installation consists of:
1. Connecting the Receiver to your DVI monitor, USB keyboard and
mouse, speakers and USB device(s)
2. Connect the Transmitter to your computer’s DVI video port and
USB port.
3. Connect the Transmitter and Receiver to your network using
standard CAT5 cable
4. Apply power and the installation is complete.
The Transmitter unit requires a +5VDC power adapter (included).
The Receiver unit requires a +24VDC power adapter (included).
2 CrystalView Extreme Installation and Operations Manual
Page 7
Package Contents
Transmitter unit
Receiver unit
5V, 3A power adapter (Transmitter)
24V, 1A power adapter (Receiver)
USB Type A to Type B cable (6 ft)
DVI cable (male to male- 5 ft)
Product Manual
Additional Installation Items
Computer with DVI-D/DVI-I outp ut
USB 1.1 or 2.0 host computer
2-CAT5 UTP cable (Transmitter & Receiver to network)
or 1 CAT5 cable (Transmitter to Receiver – Point-To-Point)
USB 1.1 or 2.0 compatible devices
Rose Electronics web site
Visit our web site at www.rose.com for additional information on the
CrystalView Extreme and other products offered by Rose Electronics that
are designed for data center applications, classroom environments, digital
wall/signage displays, industrial / military systems, and many other access
and switching applications.
Product Registration
Take advantage of the following when you register your Rose Electronics
products online at www.rose. com/htm/online-registrationform.htm.
Rose Electronics standard warranty Plus . . . .
Free Lifetime Firmware Updates
Free Lifetime Technical Support
30 day Money Back Guarantee
Priority “First-In-Line” Status for Technical Support
CrystalView Extreme Installation and Operations Manual 3
Page 8
OVERVIEW
System Overview

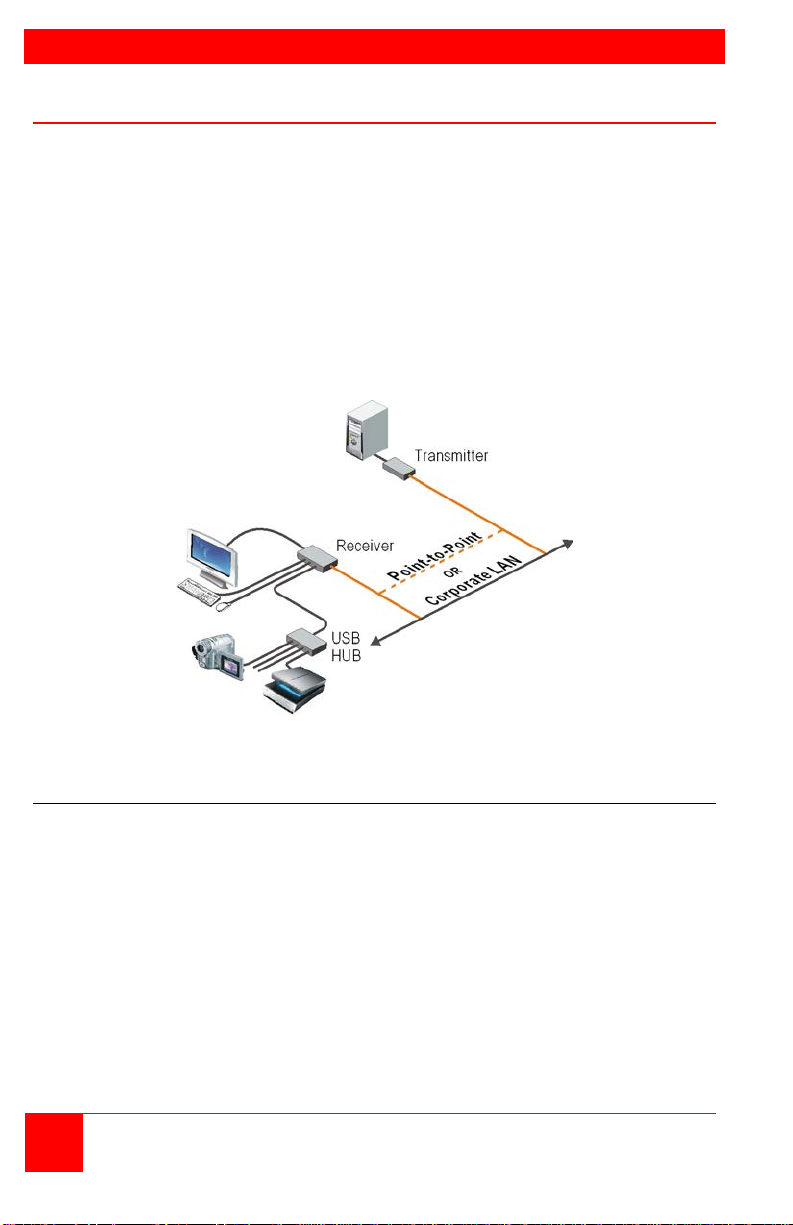

The CrystalView Extreme is a very versatile and flexible system that can be
easily and quickly installed. You can position your computer anywhere on
your LAN and access it over your network from anywher e you insta ll the
matched Receiver. The Transmitter unit will locate the Receiver unit within
the network by the MAC address. Once found, you will have full control of
the computer over your LAN. The CrystalView Extreme system supports HD
video and USB 1.1 and 2.0. You can control and use a USB keyboard, USB
mouse, webcam, flash drive, USB speakers, microphone and other
compatible USB devices.
The CrystalView Extreme can also be used as a KVM extender. The
transmitter unit can be directly connected to the receiver unit via standard
CATx cable. If you install the CrystalView Extreme units in a point-to-point
configuration and not through a network, the maximum CAT5 cable length in
this configuration is 330 feet (100m).
The versatility of the CrystalView Extreme makes it ideal for security,
medical, signage, and industrial applications where access to the computer
is over your LAN. Multiple systems can be connected to your LAN and all
accessed simultaneously with no interference (up to 30 systems on a 1Gbps
LAN).
The Receiver unit has 3 USB Type A connectors. These are usually
connected to a USB mouse, USB keyboard, and a USB HUB. The
CrystalView Extreme supports up to 13 USB devices and 4 HUB levels at
USB speeds up to 480 Mb/s.
The CrystalView Extreme can be installed using your existing network
cabling or the Transmitter can be directly connected to the Receiver unit
using industry standard CAT5 or better cable for a point-to-point connection.
4 CrystalView Extreme Installation and Operations Manual
Page 9

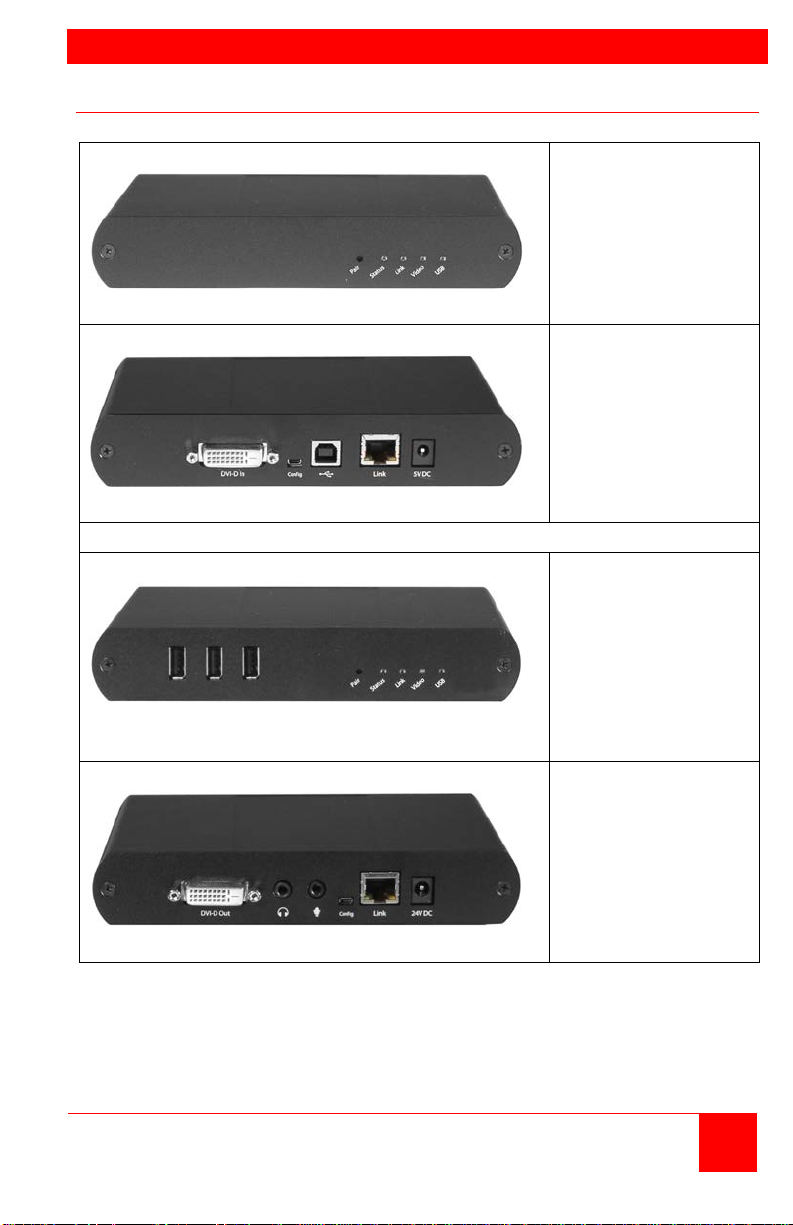

MODELS
Transmitter – Front View
Indicators
Transmitter – Rear View
Connectors
Receiver – Front View
Indicators
Receiver – Rear View
Connectors
Models
Pair
Status
Link
Video
USB
DVI-D In
Config
USB Type B
Link
Power (+5V / 3A)
Pair
Status
Link
Video
USB
Connectors
USB Type A (3)
Figure 1. Models
CrystalView Extreme Installation and Operations Manual 5
DVI-D Out
Headphone Out
Microphone In
Config
Link
Power (+24V / 1A)
Page 10
Indicator
Description
Pair (Button)
Reserved – (See Appendix C)
Status
(Green LED)
On = Ready / Off = No power /
Blinking = being configured
Link
(Green LED)
On = Valid Link between Transmitter and Receiver
Off = No Link
Video
On = Valid Link between the Transmitter and host
Blinking Amber = Invalid resolution detected
USB
On = Properly enumerated on host computer
or more USB ports
Connector
Description
DVI-D In
DVI-D Video Input from Host computer (Supplied)
Config
Reserved for company use only
USB Type B
USB input from Host computer (Supplied)
Link (RJ45)
Connection for a CAT5 or better cable to the
Receiver unit
Power
+5V, 3A power adapter (Supplied)
Transmitter - Front Panel
(Green/Amber LED)
(Green/Amber LED)
Transmitter - Rear panel Connectors
computer
Off = No Link
Blinking = Video is being transmitted between the
Transmitter and Receiver
Amber = No video source detected
Off = No Link
Blinking = USB data being transmitted between the
Transmitter and Receiver
Amber = No connection to the host computer
Blinking Amber = Over current condition on one
Table 1. Transmitter Indicators/Connectors
6 CrystalView Extreme Installation and Operations Manual
Page 11
Connectors
Description
USB Type A
Connection (3) for remote USB devices
Indicator
Description
Pair (Button)
Reserved – (See Appendix C)
Status
(Green LED)
On = Ready / Off = No Link
Blinking = being configured
Link
(Green LED)
On = Valid Link between Transmitter and Receiver
Off = No Link
Video
On = Valid Link between the Receiver and the
Blinking Amber = Invalid resolution detected
USB
On = Properly enumerated on host computer
or more USB ports
Connector
Description
DVI-D Out
DVI-D Video connector to the monitor
Headphone out
Connects to a 3.5mm headphone cable
Microphone In
Connects to a 3.5mm microphone cable
Config
Reserved for company use only
Link (RJ45)
Connection for a CAT5 or better cable to the
Transmitter unit
Power
+24V, 1A power adapter (Supplied)
Receiver - Front Panel
(Green/Amber LED)
(Green/Amber LED)
Receiver - Rear Panel
monitor
Off = No Link
Blinking = Video is being transmitted between the
Transmitter and Receiver
Amber = No video source detected
Off = No Link
Blinking = USB data being transmitted between the
Transmitter and Receiver
Amber = No connection to the host computer
Blinking Amber = Over current condition on one
Table 2. Receiver Indicators / Connectors
CrystalView Extreme Installation and Operations Manual 7
Page 12
INSTALLATION
System Installation
Before installing the CrystalView Extreme, pre-plan the layout of the
computer, the Transmitter, the Receiver, and the equipment that will be
connected to the Receiver. The Transmitter and Receiver units should be in
a location that is easily accessible to your corporate LAN ports.
The Transmitter and Receiver units communicate over your LAN using the
assigned MAC address. Ensure that your corporate LAN will allow the MAC
addresses to properly route over the network.
The CrystalView Extreme can also be connected in a “Point-To-Point”
configuration. This is easily done by connecting a CAT5* cable (330 ft /
100m) directly from the Transmitter’s RJ45 port to the Receiver’s RJ45 port.
Figure 2. Typical Installation
Transmitter installation
(Refer to Figure 2)
1. Locate the Transmitter unit near the computer.
2. Connect the supplied USB Type A/B cable to the Transmitter unit’s USB
Type B port and to an available USB (1.1 or 2.0) Type A port on the
computer.
3. Connect the supplied DVI cable to the Transmitter unit’s DVI-D port and
to the DVI port on the computer.
4. Connect a CAT5* cable (not supplied) from the Transmitter’s RJ45 port
to a corporate LAN (RJ45) connector.
5. Connect the supplied 5V, 3A power adapter to an AC outlet and to the
Transmitter’s power port.
8 CrystalView Extreme Installation and Operations Manual
Page 13
Receiver installation
(Refer to Figure 2)
1. Locate the Receiver unit near the monitor and USB devices.
2. Connect a DVI monitor cable to the DVI-D out connector on the
Receiver’s rear panel.
3. Connect your USB and Audio devices to the 3 USB Type A ports on the
front panel of the Receiver. Normally these USB ports are connected to
a USB keyboard, USB mouse, and a USB Hub.
4. Connect a CAT5* cable (not supplied) from the Receiver’s RJ45 port to a
corporate LAN (RJ45) connector.
5. Connect the supplied 24V, 1A power adapter to an AC outlet and to the
Receiver’s power port.
* CAT5 cable – It is recommended that only CAT5 or better, UTP cabling be
used to connect the Transmitter and Receiver units to the
corporate LAN and through the network. The CAT5 cabling
must have straight-thr o ugh conduc tor s with no cros sov er s
and terminated with 8 conductor RJ45 connectors at each
end. The maximum CAT5 cable length for a point-to-point
configuration is 330 feet (100 meters).
Installation Verification
The Status, Link, Video, and USB LEDs on the Transmitter and Receiver
units will provide information regarding the installation, cabling, video, and
other items. Verify that the LEDs are registering properly.
(Refer to Table 2 and Table 3)
If the Link LED is off, your network may not allow the CrystalView Extreme
to pass the MAC address of the units through your network. Check this with
your network administrator. It could also mean that the cabling is not
installed or connected properly or the cabling is defective.
The Status LED should be solid green. If it is blinking the system is not
ready.
Verify that none of the LEDs are amber. This indicates that there is a
problem with the Video or USB.
If your computer operating system is Windows XP, Vista, or Windows 7,
confirm that the CMEDIA Audio Device has been installed correctly. To
check this, open the Device Manager and expand the “Universal Serial Bus
Controller” section by clicking on the + sign. If the CMEDIA device has been
installed correctly you will see “USB PNP Audio Device” in the listing of
installed USB devices.
CrystalView Extreme Installation and Operations Manual 9
Page 14
Connecting USB Devices
Up to 13 USB 1.1 or 2.0 devices can be connected to the Receiver unit
using USB Hubs. Normally the three USB Type A connectors on the
Receiver are connected to a USB Keyboard, USB mouse, and a USB Hub.
Installing your USB devices is no different than installing them when
connected to a computer.
1. Install the USB device according to the manufactures procedure and
any required software to operate the USB device
2. Connect the USB device to the Receiver’s USB ports or a HUB port
3. Verify that the operating system has recognized the USB device and, if
needed, installed the proper drivers to operate the USB device
4. Test the USB device
Each USB Type A port on the Receiver unit can supply up to 500ma to a
USB device or USB Hub. When connecting additional USB devices through
a USB Hub, consider the total current needed to operate all of the USB
devices. If the total power is greater than 500ma, use a powered Hub to
supplement the power to the devices.
The CrystalView Extreme is compatible with a wide variety or graphic cards,
monitors, USB devices, and operating systems. See Appendix B for a list of
tested devices.
System Operation
The operation of the CrystalView Extreme is no different than operating your
computer with your keyboard, monitor, mouse, and USB devices directly
connected to it. The only difference is the computer can be located
anywhere on your network. Applications can be executed, files opened,
edited, and saved, upgrades can be performed and normal system
operations can be performed as if you were directly connected to your
computer.
10 CrystalView Extreme Installation and Operations Manual
Page 15
TROUBLESHOOTING
System Troubleshooting
All LEDs on the Transmitter or Receiver are off
Check the DC power adapter connection to the Unit
Verify there is power at the power source
Link LED on the Transmitter and Receiver are off
Check the CAT5 Link connections on the Computer, Transmitter,
Receiver, and the network information outlets
Install a short CAT5 patch cable directly from the Transmitter to the
Receiver unit. If the Link LEDs illuminate a solid green, this indicates
that the network cabling is defective or the LAN needs to be configured
to allow the units to communicate over the network.
USB LED on the Transmitter is amber, Link LED is on
Transmitter not properly connected to the computer
Host computer is not powered on or does not support USB Hubs
USB cable defective
1. Disconnect all USB devices from the Receiver unit
2. Disconnect the Transmitter from the computer
3. Disconnect the power adapter s from the Transmitter and Receiver
4. Reconnect the power adapters to the Transmitter and Receiver
5. Connect all USB devices to the Receiver
6. Reconnect the Transmitter to the computer
If the USB LED is still off, contact Technical support
Video LED blinking amber and the monitor is black
Host computer resolution is not compatible with the CrystalView Extreme
units.
1. Disconnect all USB devices from the Receiver
2. Disconnect the Transmitter from the computer
3. Disconnect the power adapter from the Transmitter and Receiver
4. Reconnect the power adapter to the Transmitter and Receiver
5. Connect all USB devices to the Receiver unit
6. Connect the Transmitter to the computer
If the USB LED is still off, contact Technical Support
CrystalView Extreme Installation and Operations Manual 11
Page 16
No Audio
Verify that the CMEDIA device is installed on the host computer
(See Installation Verification)
Verify that the CMEDIA PNP Audio Device is selected as the default
audio device. If not, select it as the default.
1. If the CMEDIA device is enumerated on the host computer as an
unknown device, most likely there is a driver conflict. Uninstall all USB
device drives.
2. If the CMEDIA device is enumerated as a PNP Audio Device but no
audio perform the following:
a. In windows: Open the Control Panel and select Sound or Sound
and Audio Devices, Select USB Audio Devices, set USB Audio
devices as default player.
b. In Mac OS X: Open the System settings, select Sound, select USB
PNP Audio Devices, set USB PNP devices as the default.
c. In Linux Ubuntu: go to System, Preferences, and select Sound.
Click on the Input tab and select “USB_PnP_Sound Device Analog
Mono or Stereo”.
Microphone or Headphone not operating
Audio (CMEDIA) not enumerated on the host computer
Audio cables not fully inserted
Microphone and Headphone connections reversed
Video and/or USB performance is not satisfactory
High amount of network traffic, reduce the number of CrystalView
Extreme units on the network or reduce the network traffic.
Graphic/video settings do not list the specific resolution
Up to date video drivers are not installed
Resolution is not supported (See Appendix B)
The CrystalView Extreme Transmitter and Receiver indicators will provide
information about the operation, connectivity and data transmission.
Observe these indicators and refer Table 1 and Table 2 for a description of
the indicator states.
12 CrystalView Extreme Installation and Operations Manual
Page 17
SAFETY
Product Safety
The CrystalView Extreme extender has been tested for conformance to
safety regulations and requirements, and has been certified for international
use. Like all electronic equipment, the CrystalView Extreme should be used
with care. To protect yourself from possible injury and to minimize the risk
of damage to the Unit, read and follow these safety instructions.
Follow all instructions and warnings marked on this Unit.
Except where explained in this manual, do not attempt to service this
Unit yourself.
Do not use this Unit near water.
Assure that the placement of this Unit is on a stable surface or rack
mounted.
Provide proper ventilation and air circulation.
Keep power cord and connection cables clear of obstructions that might
cause damage to them.
Use only power cords, power adapter and connection cables designed
for this Unit.
Use only a grounded (three-wire) electrical outlet.
Use only the power adapter provide d w ith the Cr ysta lVi e w Extreme.
Keep objects that might damage this Unit and liquids that may spill, clear
from this Unit. Liquids and foreign objects might come in contact with
voltage points that could create a risk of fire or electrical shock.
Operate this Unit only when the cover is in place.
Do not use liquid or aerosol cleaners to clean this Unit. Always unplug
this Unit from its electrical outlet before cleaning.
Unplug this Unit from the electrical outlet and refer servicing to a
qualified service center if any of the following conditions occur:
The power cord or connection cables are damaged or frayed.
The Unit has been exposed to any liquids.
The Unit does not operate normally when all operating instructions
have been followed.
The Unit has been dropped or the case has been damaged.
The Unit exhibits a distinct change in performance, indicating a need
for service.
CrystalView Extreme Installation and Operations Manual 13
Page 18
SERVICE AND SUPPORT
Maintenance and Repair
This Unit does not contain any internal user-serviceable parts. In the event
a Unit needs repair or maintenance, you must first obtain a Return
Authorization (RA) number from Rose Electronics or an authorized repair
center. This Return Authorization number must appear on the outside of the
shipping container. See Limited Warranty for more information.
When returning a Unit, it should be double-packed in the original container
or equivalent, insured and shipped to:
Rose Electronics
Attn: RA__________
10707 Stancliff Road
Houston, Texas 77099 USA
Technical Support
If you are experiencing problems, or need as sis tanc e i n setting up,
configuring or operating your product, consult the appropriate sections of
this manual. If, however, you require additional information or assistance,
please contact the Rose Electronics Technical Support Department at:
Technical Support hours are from: 8:00 am to 6:00 pm CST (USA), Monday
through Friday.
Please report any malfunctions in the operation of this Unit or any
discrepancies in this manual to the Rose Electronics Technical Support
Department.
14 CrystalView Extreme Installation and Operations Manual
Page 19
APPENDICES
CrystalView Extreme
CRK-1DTXT-EX45/A1 Kit
Distance
USB Device Support
USB Hub Support
USB Devices Supported
Receiver USB port power
Transmitter Data
Receiver Data
Operating Temp
Storage Temp
Operating Humidity
Storage Humidity
ESD rating
Regulatory Testing
Appendix A – General Specifications
Part numbers
Full Speed (12Mb/s, USB 2.0 & 1.1)
Low Speed (1.5Mb/s, USB 20. & 1.1)
Extreme in any single chain
USB connector 1 x USB Type B
Link connector 1 x RJ45F
Dimensions 4.4 in x 6.9 in x 1.18 in
(112 mm x 175 mm x 30 mm)
Video connector DVI-D (24 pin female)
USB connector 3 x USB Type A
Link connector 1 x RJ45F
Audio connector 2 x 3.5mm (Mic In / Headphone Our)
Dimensions 4.4 in x 6.9 in x 1.18 in
(112 mm x 175 mm x 30 mm)
330 feet (100m) Point-to-point
High-Speed (480Mb/s, USB 2.0)
Up to 4 USB hubs plus one CrystalView
A maximum of 13 USB devices
500 mA at each port (3)
Video connector DVI-D (24 pin female)
0 to 50 C
-20 to 70 C
20% to 80% non-condensing
10% to 90% non-condensing
EMC EN-6100-4-2 4kV Contact, 8kV Air
FCC Part 15 Class A, CE, ICE20030 Class A
CrystalView Extreme Installation and Operations Manual 15
Page 20
Monitors
Discrete Graphics Cards
Resolutions Supported @ 60Hz
Host Operating Systems
Peripherals
Appendix B – Compatibility
The CrystalView Extreme is compatible with many graphic cards, monitors, mice,
keyboards, monitors, and USB devices. With so many variations of keyboards,
mice, and USB devices, Rose Electronics can not guarantee that all peripherals will
function properly.
• Samsung • Dell • HP
• Viewsonic • Acer • BENQ
• ASUS
• NVIDIA ION • ATI Radeon HD 2000 Series and Above
• Matrox P-Series • Intel GMA 950 and GMA HD
• NVIDIA Quadro Series • ATI FireGL/FirePro Series
• NVIDIA GeForce Mobility 9000 • NVIDIA Geforce 6000 Series and Above
• 640 x 480 (4:3) • 1280 x 768 (5:3) • 1366 x 768 (16:9)
• 800 x 600 (4:3) • 1280 x 800 (16:10) • 1440 x 900 (16:10)
• 1024 x 768 (4:3) • 1280 x 1024 (5:4) • 1680 x 1050 (16:10)
• 1280 x 720 (16:9) • 1360 x 768 (16:9)
• Windows 7 (32 bit & 64 bit) • Windows XP (32 bit & 64 bit)
• Windows Vista (32 bit & 64 bit) • Linux
• Mac OS X (Leopard/Snow Leopard)
• Keyboard • Mouse
• Mass Storage Device • Speakers
• Printer/Scanner • DAQs
• Web Camera
16 CrystalView Extreme Installation and Operations Manual
Page 21
Appendix C – Pairing Transmitter and Receiver
The CrystalView Extreme Transmitter and Receiver are paired at the factory
to allow communication between them over your LAN. No additional
configuration is normally needed. If the Transmitter or Receiver unit needs
to be paired to another Transmitter or Receiver, perform the below steps to
pair the Transmitter and Receiver units.
1. Disconnect the Transmitter from the host computer and network.
2. Disconnect the Receiver from the network.
3. Hold the pair button on the front panel of the Transmitter down
continuously for 10 seconds. This will clear the MAC address and
halt operations for the Transmitter. The Link LED will be solid
amber.
4. Hold the pair button on the front panel of the Receiver down
continuously for 10 seconds. This will clear the MAC address and
halt operations for the Receiver. The Link LED will be solid amber.
5. Connect the Transmitter directly to the Receiver using a CAT5 patch
cable.
6. If power has been removed, re-connect the provided power
adapters to the Transmitter and Receiver and apply power to both.
7. Hold the pair button on the front panel of the Transmitter down
continuously for 3 to 5 seconds. The unit will exchange pairing
records with the Receiver unit. The LINK LED will flash green
during the 3 seconds pairing procedure. After a successful pairing,
the LINK LED will turn off.
8. Hold the pair button on the front panel of the Receiver down
continuously for 3 to 5 seconds. The unit will exchange pairing
records with the Transmitter unit. The LINK LED will flash green
during the 3 seconds pairing procedure. After a successful pairing,
the LINK LED will turn solid green.
(NOTE: The USB and Video LEDs should be solid amber)
9. The Transmitter and Receiver units are now paired to each other
and can be re-connected to the computer and network.
CrystalView Extreme Installation and Operations Manual 17
Page 22
NOTES
18 CrystalView Extreme Installation and Operations Manual
Page 23
Page 24
10707 Stancliff Road Phone: (281) 933-7673
Houston, Texas 77099 WWW.ROSE.COM
Loading...
