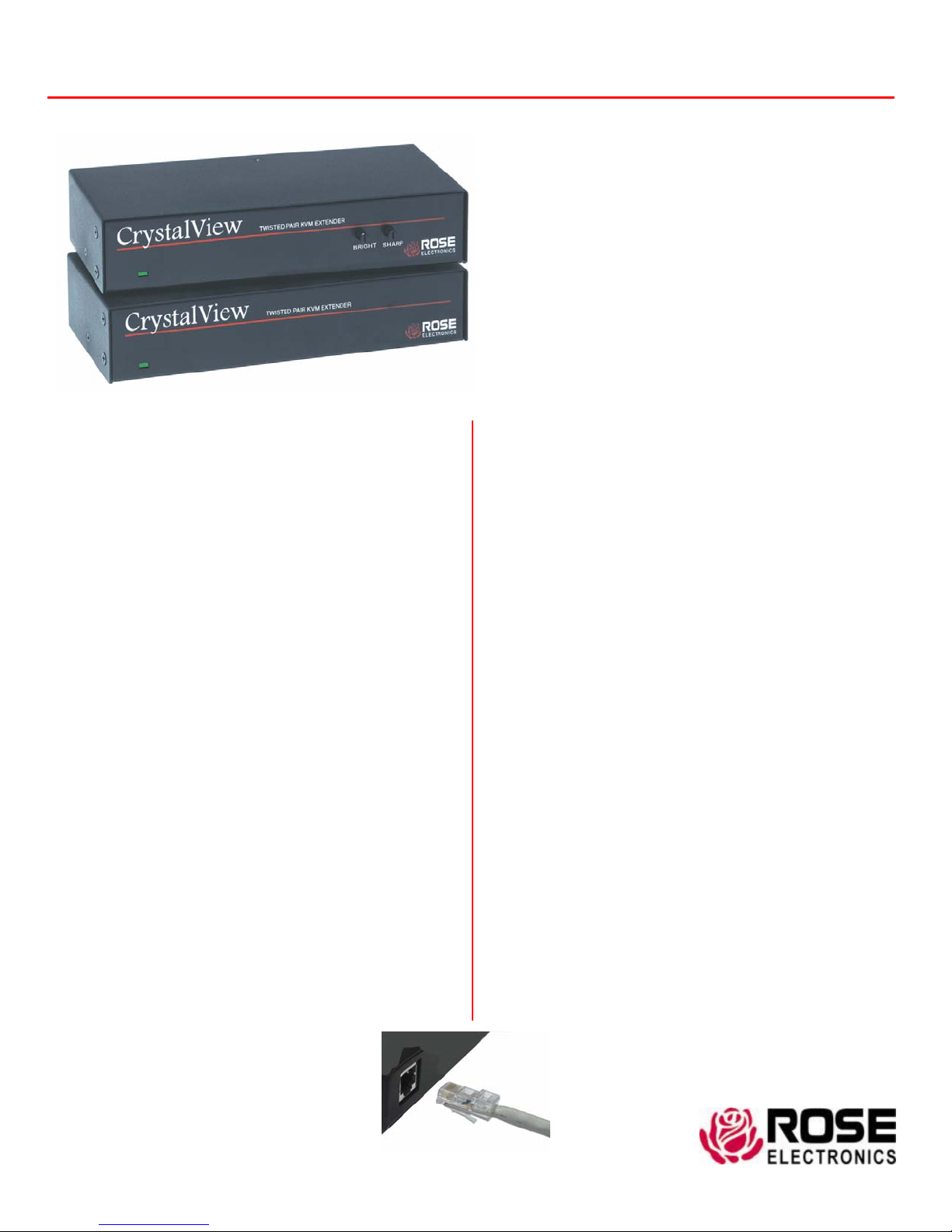

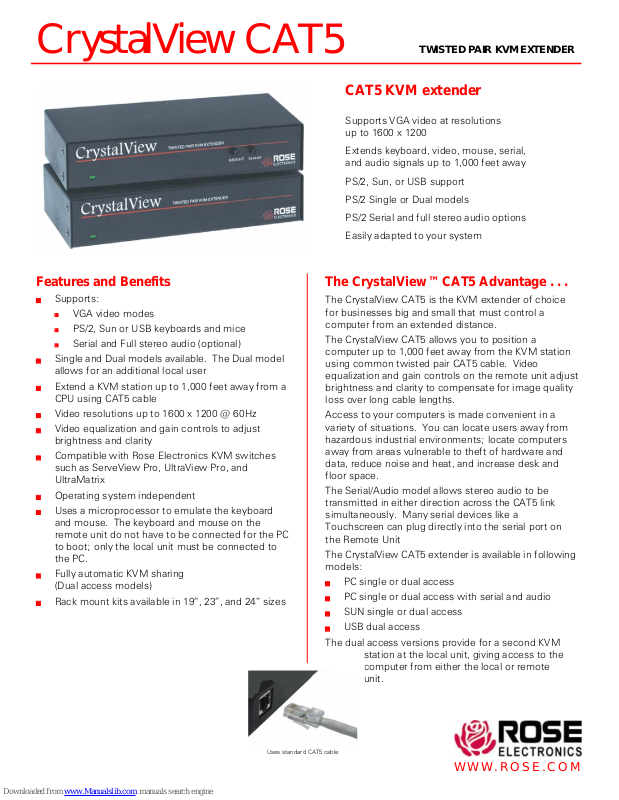

Page 1
CrystalView CAT5 TWISTED PAIR KVM EXTENDER
Features and Benefits
J Supports:
VGA video modes
PS/2, Sun or USB keyboards and mice
Serial and Full stereo audio (optional)
J Single and Dual models available. The Dual model
allows for an additional local user
J Extend a KVM station up to 1,000 feet away from a
CPU using CAT5 cable
J Video resolutions up to 1600 x 1200 @ 60Hz
J Video equalization and gain controls to adjust
brightness and clarity
J Compatible with Rose Electronics KVM switches
such as ServeView Pro, UltraView Pro, and
UltraMatrix
J Operating system independent
J Uses a microprocessor to emulate the keyboard
and mouse. The keyboard and mouse on the
remote unit do not have to be connected for the PC
to boot; only the local unit must be connected to
the PC.
J Fully automatic KVM sharing
(Dual access models)
J Rack mount kits available in 19”, 23”, and 24” sizes
CAT5 KVM extender
Supports VGA video at resolutions
up to 1600 x 1200
Extends keyboard, video, mouse, serial,
and audio signals up to 1,000 feet away
PS/2, Sun, or USB support
PS/2 Single or Dual models
PS/2 Serial and full stereo audio options
Easily adapted to your system
The CrystalView™ CAT5 Advantage . . .
The CrystalView CAT5 is the KVM extender of choice
for businesses big and small that must control a
computer from an extended distance.
The CrystalView CAT5 allows you to position a
computer up to 1,000 feet away from the KVM station
using common twisted pair CAT5 cable. Video
equalization and gain controls on the remote unit adjust
brightness and clarity to compensate for image quality
loss over long cable lengths.
Access to your computers is made convenient in a
variety of situations. You can locate users away from
hazardous industrial environments; locate computers
away from areas vulnerable to theft of hardware and
data, reduce noise and heat, and increase desk and
floor space.
The Serial/Audio model allows stereo audio to be
transmitted in either direction across the CAT5 link
simultaneously. Many serial devices like a
Touchscreen can plug directly into the serial port on
the Remote Unit
The CrystalView CAT5 extender is available in following
models:
J PC single or dual access
J PC single or dual access with serial and audio
J SUN single or dual access
J USB dual access
The dual access versions provide for a second KVM
station at the local unit, giving access to the
computer from either the local or remote
unit.
Uses standard CAT5 cable
WWW.ROSE.COM
Page 2

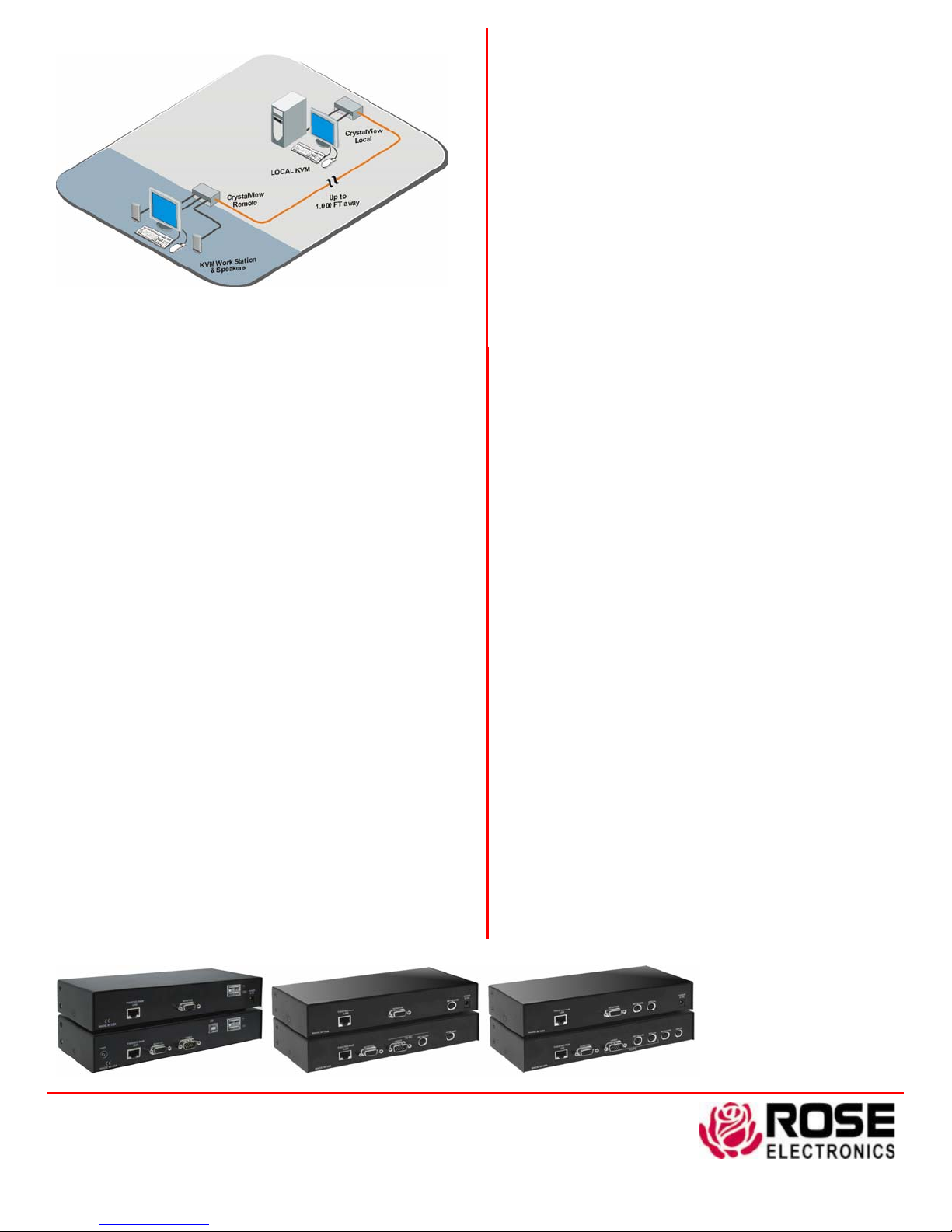

Typical Application
Accessing a computer from two locations,
one is local, the other is 1,000 feet away
CrystalView CAT5 basics The CrystalView CAT5 consists of a
local unit that connects to a PC, server, or KVM switch and a remote
unit that connects to a keyboard, monitor, and mouse.
The local and remote units are connected together with up to 1,000 feet
of standard CAT5 cable.
The ideal way to apply the CrystalView CAT5 is to connect the Local unit
to a Rose Electronics KVM switch. Expanding the switch allows access
to 1,000 computers or servers.
Installation
as connecting the KVM station to the remote unit, a computer to the
local unit, and connecting the local and remote units together with CAT5
cable.
Installing the CrystalView CAT5 is as easy
Models The CrystalView CAT5 is available in PS/2, SUN, and USB
models with serial and audio options.
Keyboard and mouse emulation The CrystalView CAT5 uses
a microprocessor to emulate the keyboard and mouse. This means that
the keyboard and mouse on the remote unit does not have to be
connected for the PC to boot. Only the Local unit must be connected to
the PC.
Part Numbers
CRK-1P Single KVM Extender (Local and Remote)
CRK-2P Dual KVM Extender (Local and Remote)
CRK-1USB Single access – USB
CRK-2USB Dual access - USB
/AUD suffix = audio and serial option
/SUN suffix = SUN connectors
RM-UMxx Rack Mount kit (xx = 19", 23", or 24")
Specifications
Dimensions Width Depth Height Weight
Single (in) 8.80 3.40 1.75 1.40 lbs
Single (cm) 22.3 8.64 4.45 0.61 kg
Dual (in) 8.80 3.40 1.75 1.60 lbs
Dual (cm) 22.3 8.64 4.45 0.72 kg
Video:
Resolution 1600 x 1200 (200feet)
1280 x 1024 (300 feet)
1024 x 768 (300 – 1,000 feet
Compatibility SVGA, VGA, XGA, RGB
Levels 0.7V p-p
Sync type Separate/composite TTL level
Support: Keyboards – PC/AT, PS/2, SUN, USB
Video – VGA, SVGA, XGA, RGB
Mouse – PS/2, SUN, USB
Microsoft IntelliMouse
Logitech three button
Connectors:
Video in/out HD15F
CPU connect HD15F, PS/2, PS/2 or USB type B
Keyboard PS/2 – MiniDin-6F
Sun – MiniDin-8F
USB – USB type A
Mouse PS/2 – MiniDin-6F
Sun – MiniDin-8F
USB – USB type A
Serial Local – DB9F
Remote – DB9M
Audio (2) 3.5mm stereo jack
CAT5 RJ45F
Interconnect CAT5 UTP/STP, EIA/TIA 568
Power: Local – From PC
Remote – 9V 1,000 ma external
Serial Data:
Baud Rate up to 19,200
Data Flow Format independent
Flow control RTS, CTS, DTR, DSR
Audio Data:
Signal level 5V p-p
Impedance 47KΩ
Connectors 3.5mm stereo jack
Transmission 16 bit, 38.4KHz Digitized audio
Microphone Powered or un-powered
Speakers Powered
Environmental: Temp. 0°C – 45°C
Humidity 0% – 80% non-condensing
Approvals CE
USB model Sun model PC model
Phone: 281-933-7673 E-mail: [email protected]
10707 Stancliff Rd. Houston, TX 77099
Rose Electronics – Europe: +49 (0)2454 969442 Rose Electronics – Asia: +65 6324 2322
DS-CRV 2.6 Copyright 2004 Rose Electronics. All rights reserved
