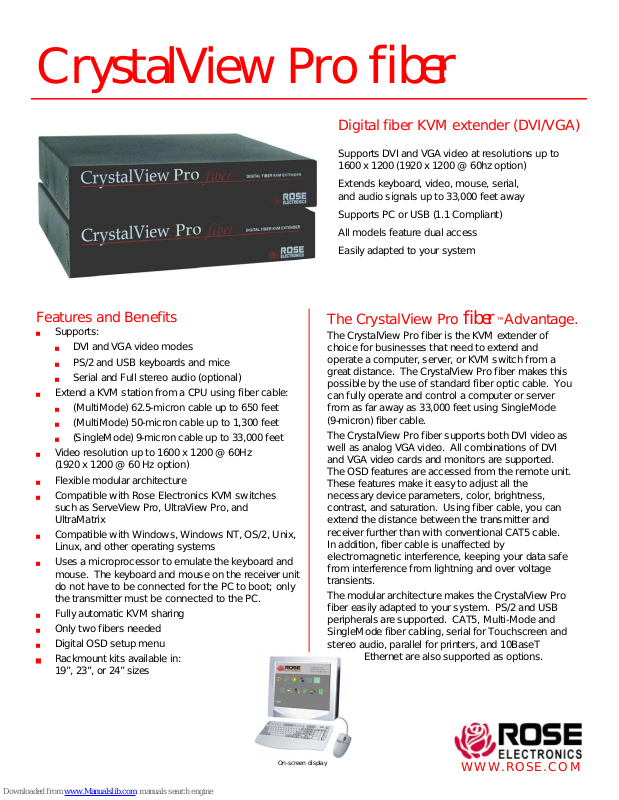

Rose electronics CRK-1DFMUDVI, CRK-2DFSPDVI, CRK-1DFSUDVI, CRK-2DFMPDVI, CRV-DLDFMPDVI Specifications

CrystalView Pro fiber

Features and Benefits

J Supports:

J DVI and VGA video modes
J PS/2 and USB keyboards and mice
J Serial and Full stereo audio (optional)

J Extend a KVM station from a CPU using fiber cable:

J (MultiMode) 62.5-micron cable up to 650 feet
J (MultiMode) 50-micron cable up to 1,300 feet
J (SingleMode) 9-micron cable up to 33,000 feet

J Video resolution up to 1600 x 1200 @ 60Hz

(1920 x 1200 @ 60 Hz option)

J Flexible modular architecture
J Compatible with Rose Electronics KVM switches

such as ServeView Pro, UltraView Pro, and
UltraMatrix

J Compatible with Windows, Windows NT, OS/2, Unix,

Linux, and other operating systems

J Uses a microprocessor to emulate the keyboard and

mouse. The keyboard and mouse on the receiver unit
do not have to be connected for the PC to boot; only
the transmitter must be connected to the PC.

J Fully automatic KVM sharing
J Only two fibers needed
J Digital OSD setup menu
J Rackmount kits available in:

19”, 23”, or 24” sizes

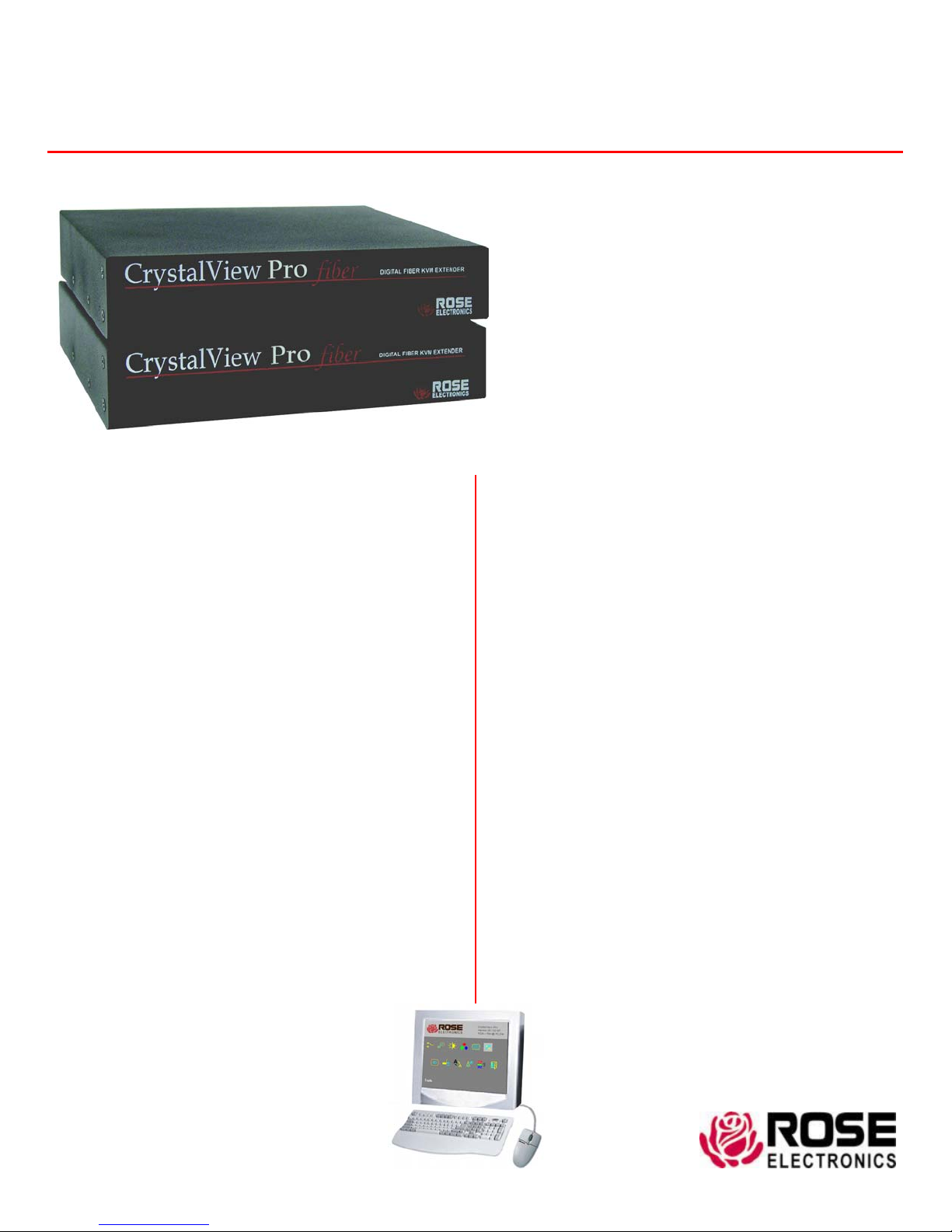

Digital fiber KVM extender (DVI/VGA)

Supports DVI and VGA video at resolutions up to
1600 x 1200 (1920 x 1200 @ 60hz option)

Extends keyboard, video, mouse, serial,
and audio signals up to 33,000 feet away

Supports PC or USB (1.1 Compliant)
All models feature dual access
Easily adapted to your system

The CrystalView Pro fiber ™Advantage.

The CrystalView Pro fiber is the KVM extender of
choice for businesses that need to extend and
operate a computer, server, or KVM switch from a
great distance. The CrystalView Pro fiber makes this
possible by the use of standard fiber optic cable. You
can fully operate and control a computer or server
from as far away as 33,000 feet using SingleMode
(9-micron) fiber cable.

The CrystalView Pro fiber supports both DVI video as
well as analog VGA video. All combinations of DVI
and VGA video cards and monitors are supported.
The OSD features are accessed from the remote unit.
These features make it easy to adjust all the
necessary device parameters, color, brightness,
contrast, and saturation. Using fiber cable, you can
extend the distance between the transmitter and
receiver further than with conventional CAT5 cable.
In addition, fiber cable is unaffected by
electromagnetic interference, keeping your data safe
from interference from lightning and over voltage
transients.

The modular architecture makes the CrystalView Pro
fiber easily adapted to your system. PS/2 and USB
peripherals are supported. CAT5, Multi-Mode and
SingleMode fiber cabling, serial for Touchscreen and
stereo audio, parallel for printers, and 10BaseT
Ethernet are also supported as options.

On-screen display

WWW.ROSE.COM

Typical Application Part Numbers

CRK-2DFMPDVI PS/2 Dual Local KVM Multi Mode
CRK-2DFSPDVI PS/2 Dual Local KVM Single Mode
CRK-1DFMUDVI USB Multi Mode
CRK-1DFSUDVI USB Single Mode
CRK-1DFMPDVI/SF PS/2 Dual Local KVM Single Fiber Multi Mode
CRV-DLDFMPDVI PS/2 Dual Local KVM Multi Mode
CRV-DLDFSPDVI PS/2 Dual Local KVM Single Mode
CRV-SLDFMUDVI USB Local KVM Multi Mode
CRV-SLDFSUDVI USB Local KVM Single Mode
CRV-SRDFMPDVI PS/2 Remote KVM Multi Mode
CRV-SRDFSPDVI PS/2 Remote KVM Single Mode
CRV-SRDFMUDVI USB Remote KVM Multi Mode
CRV-SRDFSUDVI USB Remote KVM Single Mode
CRV-SRDFMPDVI/SF PS/2 Remote KVM Single Fiber Multi Mode
CRV-DLDFMPDVI/SF PS/2 Local KVM Single Fiber Multi Mode

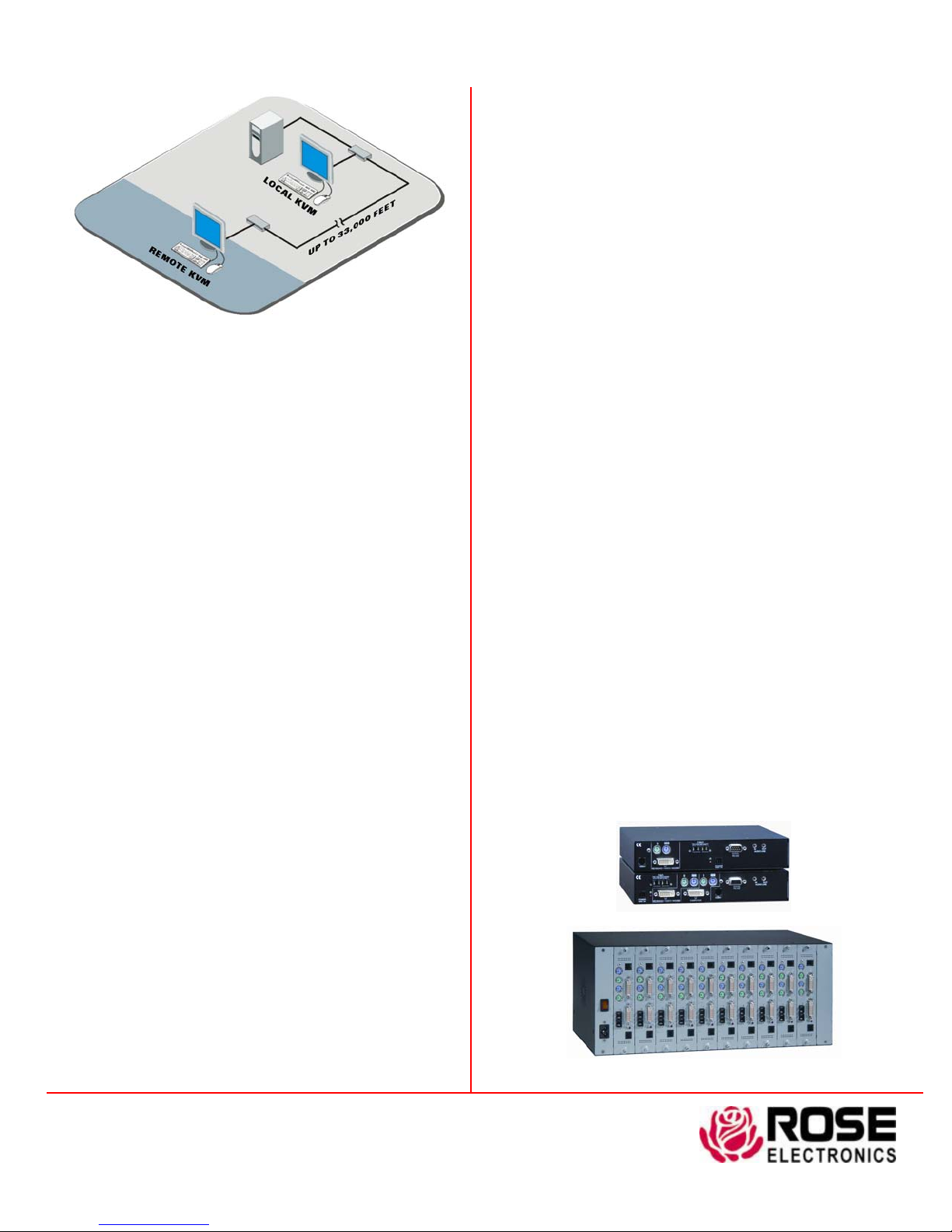

Accessing a computer from two locations,

one is local, the other is 33,000 feet away

CrystalView Pro fiber basics: The CrystalView Pro fiber consists

of a transmitter that connects to a PC, server, or KVM switch and a
receiver that connects to a keyboard, monitor, and mouse, or a KVM
switch. The transmitter and receiver units are connected together with
up to 33,000 feet of standard 9-micron optical fiber cable. (Singlemode)

The ideal way to apply the CrystalView Pro fiber is to connect the
transmitter to a Rose Electronics KVM switch. Expanding the switch
allows the receiver to access up to 1,000 computers or servers. The
Rose KVM switch can be connected between the transmitter and
computers, the KVM station and the receiver unit , or both.

Installation: Installing the CrystalView Pro fiber unit is as easy as

connecting the KVM station to the receiver, connecting the CPU t o the
transmitter, and connecting the transmitter to the receiver with fiber
cable.

Models: The CrystalView Pro fiber is available in different models with

PC, SUN, and USB support. The PC model is available in a dual version
allowing for a second KVM station next to the PC, providing operation
from the transmitter or the receiver unit. The computer video is
displayed on the local monitor (no conversions) and the remote monitor
(DVI to VGA or VGA to DVI conversion options). A rack version,
containing 10 transmitters or receivers is also available. The single fiber
models are application specific models that supply unidirectional video
and audio only (no keyboard/mouse)

Keyboard and mouse emulation The CrystalView Pro fiber

uses a microprocessor to emulate the keyboar d and mouse. This
means that the keyboard and mouse on the receiver do not have to be
connected for the PC to boot. Only the Transmitter must be connected
to the PC.

Rack Assembly The CrystalView Pro fiber can be ordered in a 10-

unit rack assembly. (PC model only)

CRV-SLDFMPDVI/SF PS/2 Local KVM Single Fiber Multi Mode
CRV-DLDFMPDVI/SF-IRK PS/2 Dual Local KVM Single Fiber Multi Mode
CRV-SLDFMPDVI/SF-IRK PS/2 Local KVM Single Fiber Multi Mode
CRV-SRDFMPDVI/SF-IRK PS/2 Remote KVM Single Fiber Multi Mode
/AU Audio & Serial option
/2.5 2.5 GBit module option

-IRK Plug-in card
ACC-DVIMVF DVI to VGA adapter
RM-UMnn Rack mount kit nn = 19”, 23”, or 24”
TFR-06D200FSU4A 6VDC / 200 ma power adapter
Note: Single fiber models are application specific, unidirectional video

and audio only models

Specifications

Dimensions Width Depth Height Weight
(in.) 8.8 6.3 1.75 3.3 lbs

(cm) 224 160 445 1.5 kg
Operating Temp 10˚C - 45˚C / 50˚F - 113˚F
Humidity 80% max, non-condensing
Resolution Up to 1600 x 1200 @ 60Hz

Connectors Video – DVI
Fiber – Type SC
PC -Keyboard/Mouse – MiniDin6 (2)
USB – Keyboard/Mouse – Type A/B
Power – 4-Pin square
Program – RJ22
Serial – DB9F (TX), DB9M (RX)
Audio – 3.5mm stereo jack (2)

Wavelength / (Multimode) – 850nm / 70--400µw
Power (Singlemode) – 1300nm / 180-2000µw

 Phone: [phone]  E-mail: [email protected] 

10707 Stancliff Rd. Houston, TX 77099

Rose Electronics – Europe: [phone] Rose Electronics – Asia: [phone]

DS-CRVPF-2.8  Copyright Rose Electronics 2004. All rights reserved

DUAL PC MODEL WITH AUDIO / SERIAL

10 UNIT RACK
