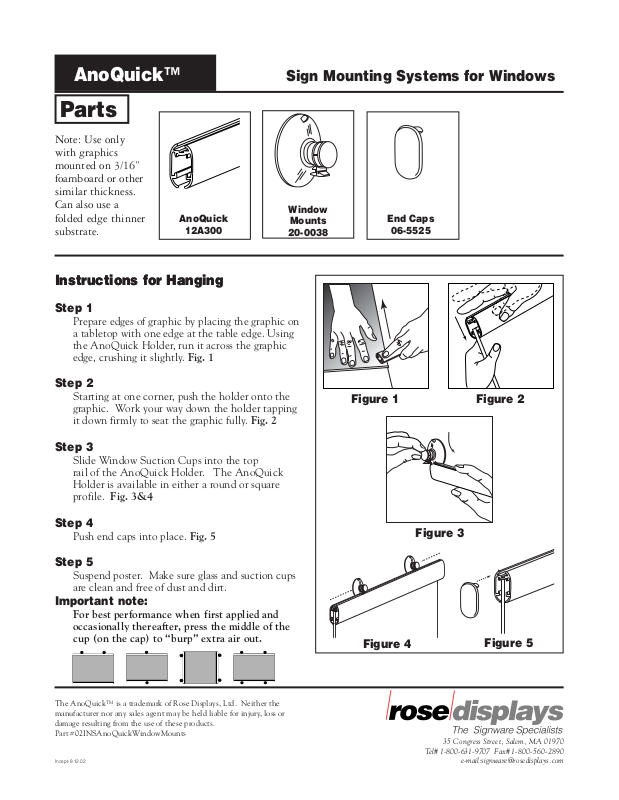

AnoQuick™

Parts

Note: Use only
with graphics
mounted on 3/16”
foamboard or other
similar thickness.
Can also use a
folded edge thinner
substrate.

Instructions for Hanging

Instructions for Hanging

Step 1

Prepare edges of graphic by placing the graphic on
a tabletop with one edge at the table edge. Using
the AnoQuick Holder, run it across the graphic
edge, crushing it slightly. Fig. 1

AnoQuick

12A300

Sign Mounting Systems for Windows

Window

Mounts

20-0038

End Caps

06-5525

Step 2

Starting at one corner, push the holder onto the
graphic. Work your way down the holder tapping
it down firmly to seat the graphic fully. Fig. 2

Step 3

Slide Window Suction Cups into the top
rail of the AnoQuick Holder. The AnoQuick
Holder is available in either a round or square
profile. Fig. 3&4

Step 4

Push end caps into place. Fig. 5

Step 5

Suspend poster. Make sure glass and suction cups
are clean and free of dust and dirt.

Important note:

For best performance when first applied and
occasionally thereafter, press the middle of the
cup (on the cap) to “burp” extra air out.

Figure 1

Figure 4

Figure 2

Figure 3

Figure 5

The AnoQuickTM is a trademark of Rose Displays, Ltd. Neither the
manufacturer nor any sales agent may be held liable for injury, loss or
damage resulting from the use of these products.
Part #02INSAnoQuickWindowMounts

Incept-9.12.02

35 Congress Street, Salem, MA 01970

Tel# [phone] Fax# [phone]

e-mail:[e-mail]

AnoQuick™

Parts

Note: Use only
with graphics
mounted on 3/16”
foamboard or other
similar thickness.
Can also use a
folded edge thinner
substrate.

Instructions for Hanging

Instructions for Hanging

Step 1

Prepare edges of the graphic by placing the graphic
on a tabletop with one edge at the table edge.
Using the AnoQuick Holder, run it across the
graphic edge, crushing it slightly. Fig. 1

AnoQuick

12A300

Sign Mounting Systems for Windows

Window

Mounts

20-0038

End Caps

06-5525

Step 2

Starting at one corner, push the holder onto the
graphic. Work your way down the holder tapping
it down firmly to seat the graphic fully. Fig. 2

Step 3

Slide the Window Suction Cups into the top rail
of the AnoQuick Holder. The AnoQuick holder
is available in either a round or square profile.

Fig. 3&4

Step 4

Push end caps into place. Fig. 5

Step 5

Suspend poster. Make sure glass and suction cups
are clean and free of dust and dirt.

Important note:

For best performance when first applied and
occasionally thereafter, press the middle of the
cup (on the cap) to “burp” extra air out.

Figure 1

Figure 4

Figure 2

Figure 3

Figure 5

The AnoQuickTM is a trademark of Rose Displays, Ltd. Neither the
manufacturer nor any sales agent may be held liable for injury, loss or
damage resulting from the use of these products.
