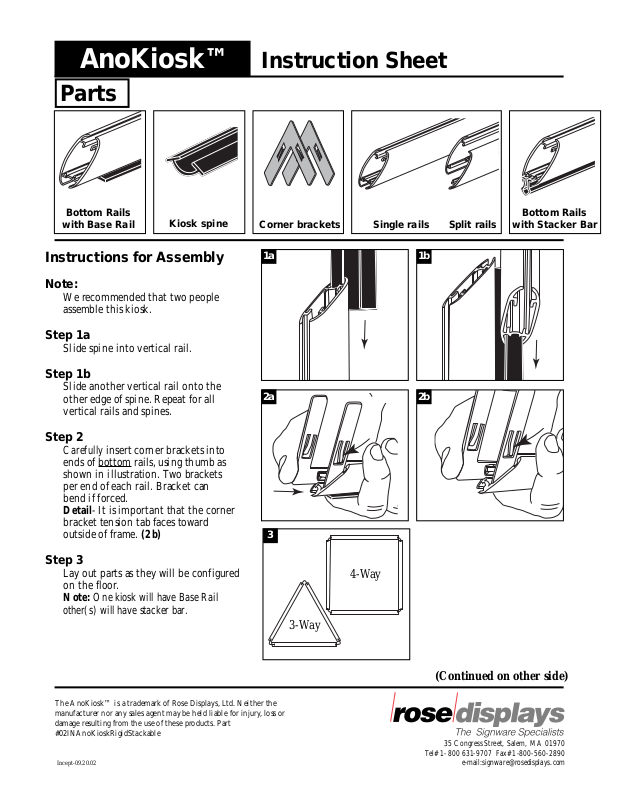

AnoKiosk™

Parts

Instruction Sheet

Bottom Rails

with Base Rail

Kiosk spine

Instructions for Assembly

Note:

We recommended that two people
assemble this kiosk.

Step 1a

Slide spine into vertical rail.

Step 1b

Slide another vertical rail onto the
other edge of spine. Repeat for all
vertical rails and spines.

Step 2

Carefully insert corner brackets into
ends of
shown in illustration. Two brackets
per end of each rail. Bracket can
bend if forced.
Detail- It is important that the corner
bracket tension tab faces toward
outside of frame. (2b)

bottom rails, using thumb as

Corner brackets

1a 1b

2a 2b

3

Single rails Split rails

Bottom Rails

with Stacker Bar

Step 3

Lay out parts as they will be configured
on the floor.

Note: One kiosk will have Base Rail
other(s) will have stacker bar.

The AnoKiosk™ is a trademark of Rose Displays, Ltd. Neither the
manufacturer nor any sales agent may be held liable for injury, loss or
damage resulting from the use of these products. Part
#02INAnoKioskRigidStackable

Incept-09.20.02

4-Way

3-Way

(Continued on other side)

35 Congress Street, Salem, MA 01970

Tel# [phone] Fax# [phone]

e-mail:[e-mail]

AnoKiosk™

Instruction Sheet (side 2)

Instructions for Assembly continued

Step 4

Assemble the vertical rail assem­blies onto the upward facing
corner brackets already inserted
into the bottom rails. All four
brackets should go into the
vertical rails at one time.
Note: (4 way only) The last
vertical rail will be tensioned.
This is normal.

Step 5

Insert corner brackets into ends
of split rails, 1 per end. Use thumb
as shown in illustration.

Step 6

Assemble split rails onto top ends
of vertical rails, one inside and
one outside of each side of the
AnoKiosk.

Step 7

Insert graphics into kiosk
with Base Rails.

4

5

76

Step 8

Place kiosk with stacker bar on
top of first kiosk. Line up stacker
bar with split rails on lower kiosk
and snap together.

Step 9

Load graphics into upper kiosk.

Step 10

If there are more kiosks to be
stacked repeat steps 8 and 9.

The AnoKiosk™ is a trademark of Rose Displays, Ltd. Neither the
manufacturer nor any sales agent may be held liable for injury, loss or
damage resulting from the use of these products. Part
#02INAnoKioskRigidStackable

Incept-09.20.02

Figure 8 Figure 9
