AnoFrame VersaMount

TM

Ceiling Anchors

#97-0441SQ

Parts

AnoFrame

Rails

AnoFrame
Split Rails

Instructions For Assembly

Step 1

Locate the two split rails and the solid
rail that is the same length as the split
rails.
Insert two corner brackets into each
end of the solid side Ano rail. Insert
one corner bracket into each end of
each split side Ano rail.

Fig. 1 & Fig. 2
Note: Tension tabs on corner
brackets face towards outside of
frame.

Corner

Brackets

Instruction Sheet (page 1 of 2)

Vertical

Screw Tabs Transitional

Collars

Figure 1

Posts with

Ceiling Anchors

solid rail

split rails

Figure 2

Step 2

Slide both screw tabs into channel of
top Ano rail. Fig. 3.
Place one near each end of frame.

Step 3

Place one transitional collar over each
screw tab and push onto frame. Fig. 4.

Step 4

Finish assembling frame following the
sequence in Fig. 5.

The AnoFrame VersaMount is a trademark of Rose Displays, Ltd. Neither
the manufacturer nor any sales agent may be held liable for injury, loss
or damage resulting from the use of these products.
Part #02INSVersaMountCeilingAnchorsSQ

Incept-9.6.02

Figure 3

Figure 4

solid rail

split rails

solid rail

Figure 5

35 Congress Street, Salem MA 01970

Tel# [phone] Fax# [phone]

e-mail:[e-mail]

AnoFrame VersaMount

TM

Ceiling Anchors

#97-0441SQ

Parts

Instructions For Assembly

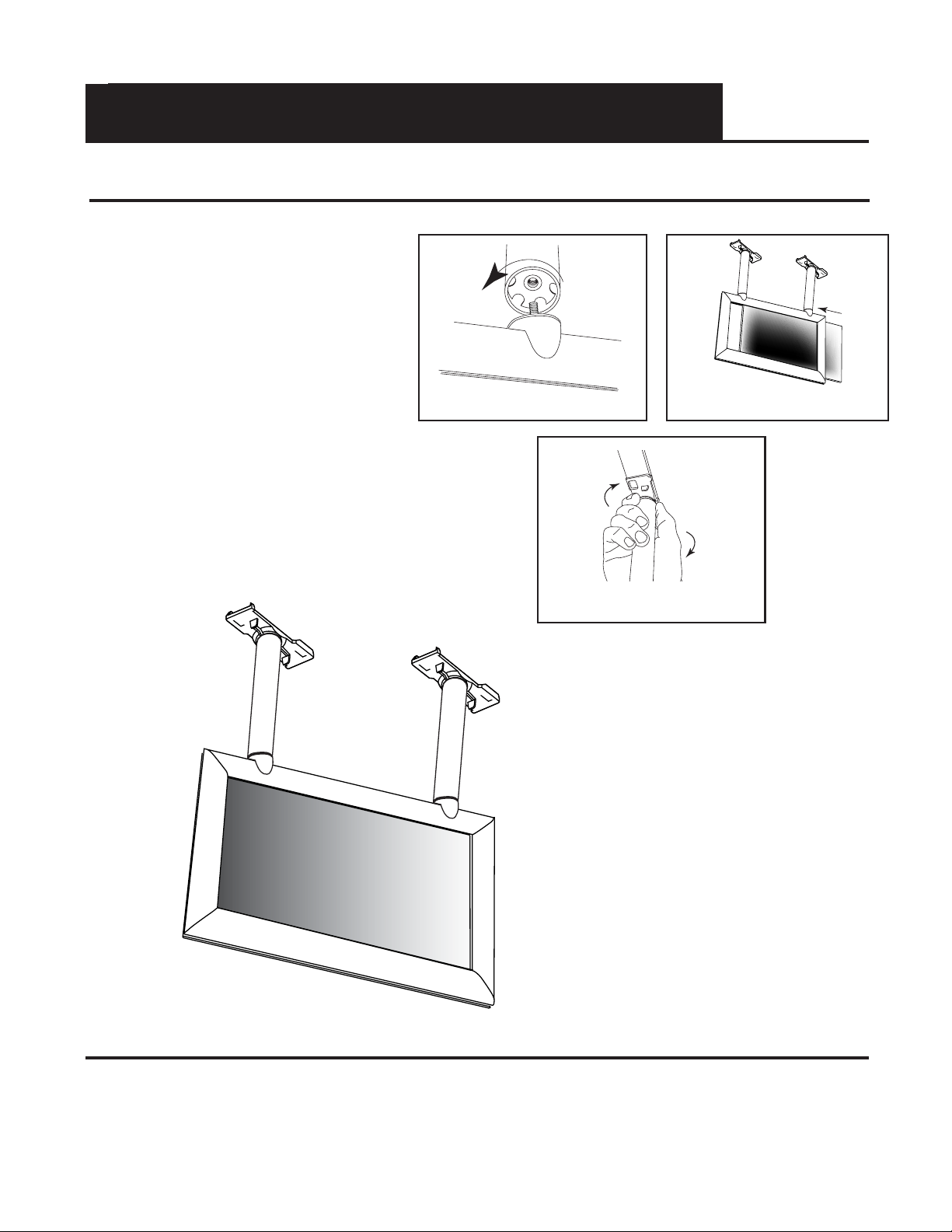

Step 5

Screw vertical posts with ceiling
anchors onto screw tabs on frame.
Tighten. Fig. 6

Step 6

Slide your graphic into the AnoFrame.

Fig. 7

Step 7

With your hand, twist ceiling anchors
onto ceiling grid. Fig 8
You will hear the ceiling anchors snap
into place.

Instruction Sheet (page 2 of 2)

Figure 6

Figure 8

Figure 7

The AnoFrame VersaMount is a trademark of Rose Displays, Ltd. Neither
the manufacturer nor any sales agent may be held liable for injury, loss
or damage resulting from the use of these products.
Part #02INSVersaMountCeilingAnchorsSQ

Incept-9.6.02

Finished Look

35 Congress Street, Salem, MA 01970

Tel# [phone] Fax# [phone]

e-mail:[e-mail]
