AnoFrame

TM

Parts

Square Profile Instruction Sheet

Corner

Brackets

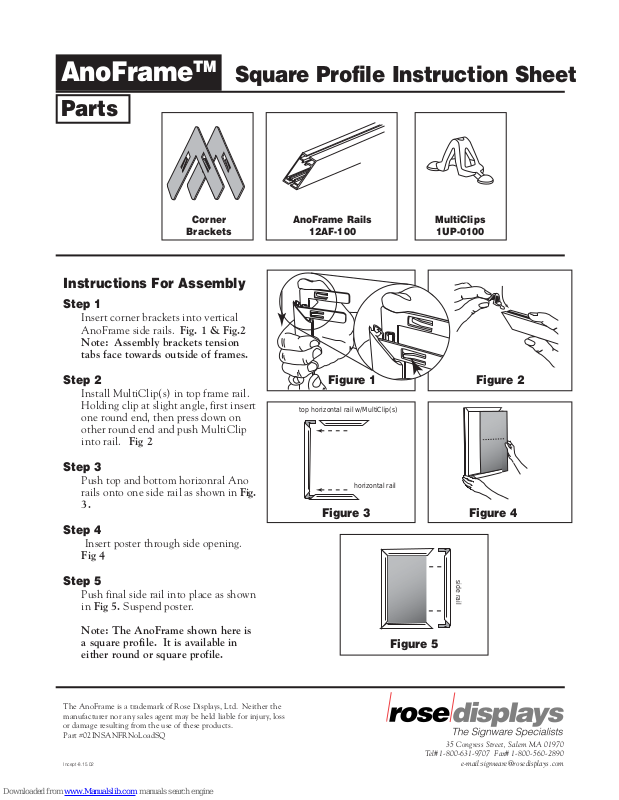

Instructions For Assembly

Step 1

Insert corner brackets into vertical
AnoFrame side rails. Fig. 1 & Fig.2

Note: Assembly brackets tension
tabs face towards outside of frames.

Step 2

Install MultiClip(s) in top frame rail.
Holding clip at slight angle, first insert
one round end, then press down on
other round end and push MultiClip
into rail. Fig 2

Step 3

Push top and bottom horizonral Ano
rails onto one side rail as shown in Fig.

3.

Step 4

Insert poster through side opening.
Fig 4

AnoFrame Rails

12AF-100

Figure 1

top horizontal rail w/MultiClip(s)

horizontal rail

Figure 3

MultiClips

1UP-0100

Figure 2

Figure 4

Step 5

Push final side rail into place as shown
in Fig 5. Suspend poster.

Note: The AnoFrame shown here is
a square profile. It is available in
either round or square profile.

The AnoFrame is a trademark of Rose Displays, Ltd. Neither the
manufacturer nor any sales agent may be held liable for injury, loss
or damage resulting from the use of these products.
Part #02INSANFRNoLoadSQ

Incept-8.15.02

side rail

Figure 5

35 Congress Street, Salem MA 01970

Tel# [phone] Fax# [phone]

e-mail:[e-mail]
