Product Description
PICA Cube™
Rosco's innovative PICA Cube™ series of LED wash lights pack 1400 lumens of
output into a compact and portable 2 inch cube, while only consuming 20W
of power!The sleek yet rugged, geometric design of the PICA Cube™ is
perfectly at home in entertainment environments, museums, stores and
lobbies, built into sets, truss and lighting rigs of all styles.
These luminaires oer the flexibility and versatility needed for any type of
lighting challenge. No expensive external power supply or ballast is required.
The PICA Cube™ plugs directly into the wall or PICA Portal™ anywhere in the
world, automatically adjusting to mains power from 90-240vAC 50-60hz.
An intuitive control panel sets virtually every aspect of the lights including a
master-slave configuration for fast lighting set-ups. With several modes you
can control your light with no limitations.
05
Product Description
Weighing just under 1 pound, mounting these compact 2 inch cubes is
limited only by the imagination of the installer. The one sided bolted yoke
design allows units to be easily mounted on any surface for greater output and
coverage.
Available in versions that oer full quad chip color mixing, tuneable color
temperature white light and true UV LED blacklight, the PICA Cube™ luminaires
are the smallest, most feature packed and aordable, professional grade LED
lights on the market.
06
What’s In the Box
PICA Cube™
Power Option
Diuser Pack*
60
40
20
*Homogenizing lens included with
Pica 4C only.
07

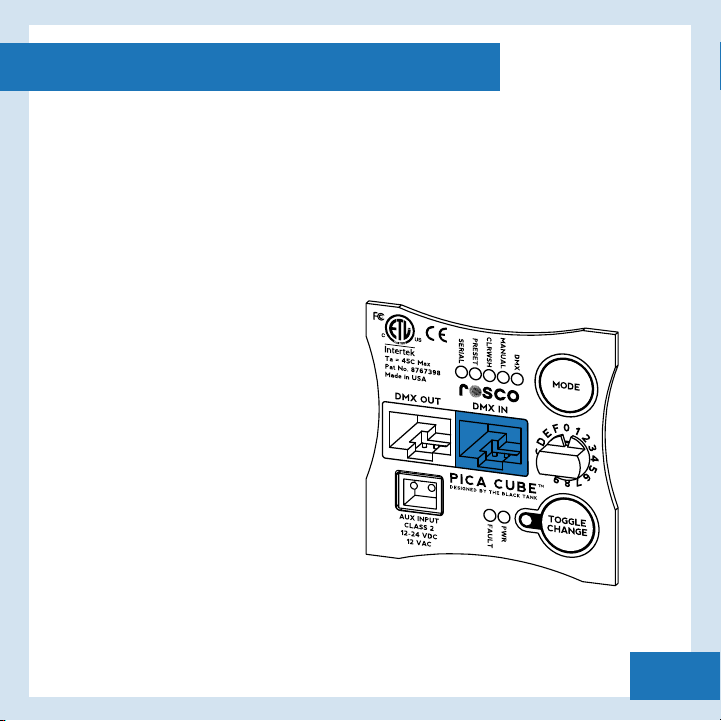

PICA Cube™ Interface
Ta = 45C Max
Pat No. 8767398
Made in USA
DMX OUT DMX IN
AUX INPUT
CLASS 2
12-24 VDC
12 VAC
MANUAL
CLRWSH
PRESET
SERIAL
DMX
PICA CUBE
DESIGNED BY THE BLACK TANK
PWR
FAULT
E
D
C
B
TM
TOGGLE
CHANGE
MODE
0
F
A
9
1
2
3
4
5
6
7
8
08

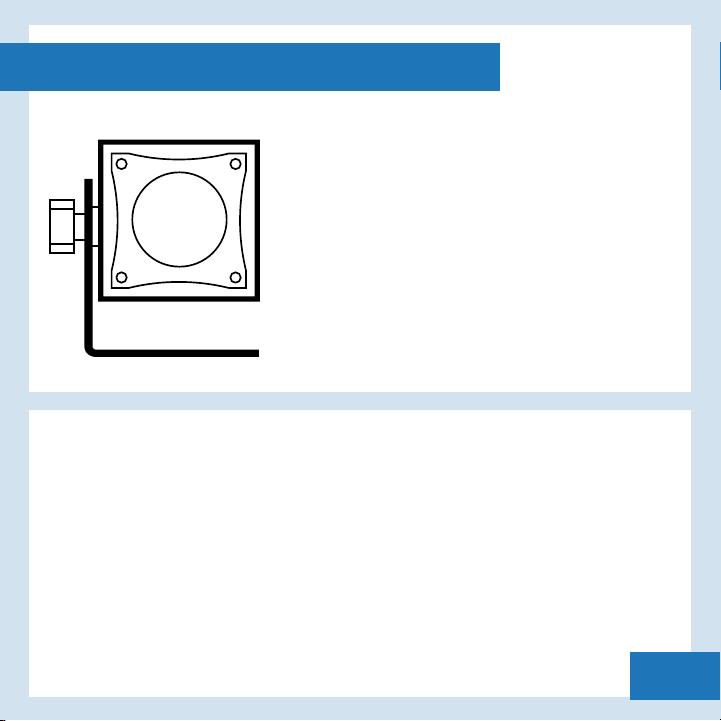

PICA Cube™ 4C
From walls to washes to uplighters, the PICA
Cube™ 4C color mixing wash light oers a
designer maximum creativity in a tiny package.
Using best in class RGBW quad color, multi
channel chip, a gorgeous palette of saturated,
mid-tone and pale tint colors can be dialed in
at the spin of a knob. And of course, a true
white is always available as well, not the
unflattering mixed amber compromise found
in other lights. Smart programming in the
PICA Cube™ 4C includes a stand-alone color wash mode or allows multiple
units to be easily slaved together, synchronized and oset using
self-generated DMX for color chases and other dynamic lighting patterns
without a console. Use it alone, configured in strips & arrays or built-in for
virtually any application needing colored light - from stage, studios and
location, bars and casinos, to stores, windows and lobbies.
NOTE: The luminaire should be positioned so that prolonged staring
into the luminaire at a distance closer than 3.3m is not expected.
09

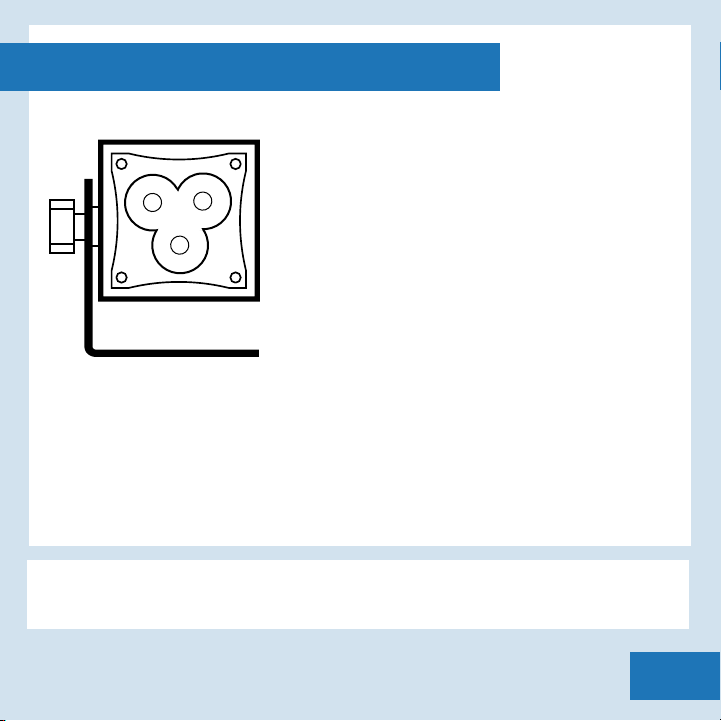

PICA Cube™ WNC
Size Matters. But quality of light matters more!
The PICA Cube™ WNC embodies what every
lighting professional needs - A bright, tuneable,
beautiful white light. Using high quality Cree XML
4W emitters, the WNC outputs 1400 lumens and
can adjust from 2700K to 6500K. A mix of warm,
neutral and cool LEDs insure excellent rendering
across all color temperatures making it perfect
for use on TV, film sets, in retail llighting,
museums, architecture, photography studios
or any white light application.
NOTE: The luminaire should be positioned so that prolonged staring
into the luminaire at a distance closer than 3.3m is not expected.
10
PICA Cube™ UV
Ideally suited for theme parks, night clubs,
casinos, museums and stage applications, PICA
Cube™ UV is the smallest, most aordable high
powered UV light available to lightingprofessionals.
Drawing just 20 watts, it outperforms conventional
long throw fixtures using two times the power,
weighing 10 times more, and which need an
expensive lamp change every 1000 hours! The
fixture allows for full speed DMX dimming and
standalone control.
DO NOT look directly into the ultra-violet LED (hereinaer referred to as “UV-LED”) during
operation of the device. THE UV-LED radiates intense ultra-violet light (hereinaer referred to
as “UV light”) and can be harmful to the eyes even during a brief period of exposure. *UV-LED
means any UV-LED dice or packaged UV-LEDs which emit ultra-violet light whose peak
wavelength is shorter than 400nm.
2. ALWAYS wear UV protective eyewear when handling the UV-LEDs.
3. UV light can cause skin damage, up to and including, skin cancer. ALWAYS wear protective
clothing to prevent UV-LED exposure to skin.
4. ALWAYS instruct and warn all intended users of proper handling of the UV-LEDs and all
potential hazards. ALWAYS provide proper instructions, labels and warnings with your product
in accordance, at minimum, with the standards set forth by the International Electric
Committee (IEC). ALL UV light should be used in your product in such a way as to
ensure that no direct exposure to the UV light on the human.
11
DMX Mode

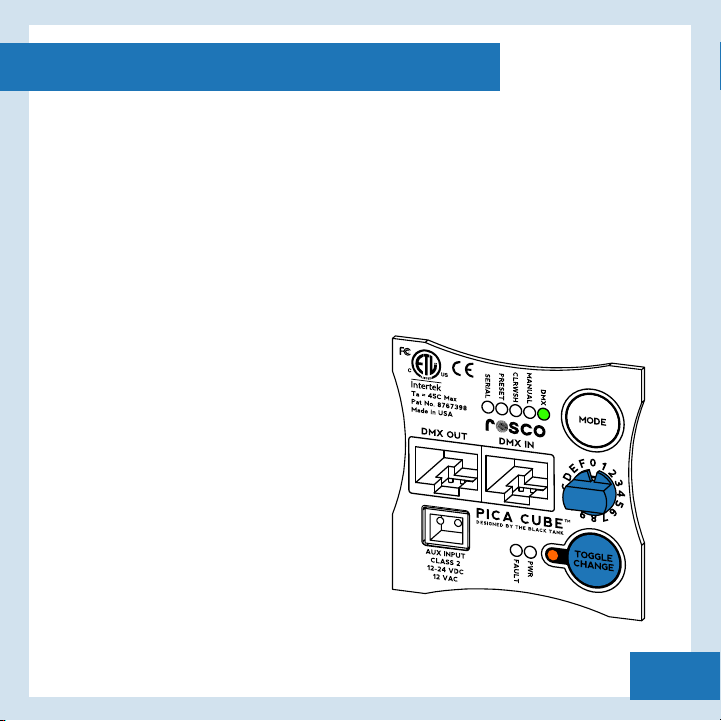

In DMX mode, the unit is controlled by the data it receives on the RJ45 connectors
located on the rear panel. The number of DMX channels required to control the fixture
is dependent on the factory setting in use (for example - four color PICA Cubes™ use
four DMX Channels whilte one color PICA Cubes™ use one).
Note: The RJ45 located at
the center of the back
panel (DMX In) also serves
as a power input.
12
DMX Mode
There are three user settings that can be adjusted - DMX Address, 8 or 16 Bit Mode
and Filament Fade Mode. To Adjust these settings you can use the back panel.
DMX Address:
To change the DMX address while in DMX Mode press the TOGGLE button. The
Status LED will begin to blink slowly and at this time adjust the KNOB to set the
first digit of your address. Once you have selected the first digit press the
TOGGLE button to lock it in. The status
LED will blink rapidly for a brief moment
telling you that the first digit is locked
and ready for the second digit. Repeat
this step again for the second and third
digits and press the TOGGLE button upon
completion.
NOTE: It is important that you inlcude
leading zero’s in the first and second
digits if neccesarry. Also make sure you
enter a valid DMX address (001-512)
otherwise the fixture will default to your
previous address.
13
DMX Mode
8 bit or 16 bit DMX:
The fixture can run in either 8 bit or 16 bit DMX Mode. In 8 bit mode, the PICA
Cube™ accepts one DMX channel for each color. In 16 bit mode, two channels
are required for each color. To choose 8 or 16 bit press and hold TOGGLE until
the status LED blinks rapidly. Then rotate the KNOB to desired bit setting
(8 + TOGGLE = 8bit) and (1 +TOGGLE + 6 TOGGLE = 16bit ). The Status LED
will blink rapidly notifying you the desired bit setting has been saved.
Filament Fade:
An incandescent lamp has a slight delay, or lag with changing intensities,
whereas an LED responds instantly. The dierence is most noticeable during a
theatrical black out. The PICA CUBE™ can emulate an incandescent lamp by
selecting one of the FIlament Fade settings.
To change the Filament Fade Setting switch the mode to SERIAL mode. Once
in Serial Mode you will hold the TOGGLE button until the status LED blinks
rapidly. Then rotate the KNOB to desired Filament Fade setting as follows
(0 = o, 1 = low, 2 = medium, 3 = high). Press MODE to save and exit.
14
Manual Mode
In Manual Mode, the PICA Cube™ can be controlled directly from its rear panel
without the need of a DMX console or a DMX control device. Standalone control
capabilities vary according to the factory setting in use (Four Color, Three Color,
or One Color). The PICA Cube™ has a self recognizing interface, meaning you
don’t have to configure it at the possibility you changed LED boards.
(All standalone, DMX address and configuration settings are non-volatile,
meaning they will not change if power is lost or switched o and restored. When
set to manual mode, the PICA Cube™ operates as a DMX Master and is sending
DMX512 data.)
NOTE: Do not connect any PICA Cube™ in Manual Mode to any other DMX
sending device as contention on the DMX512 input will result.
15
Manual Mode
Manual Mode allows you to set the color
of your fixture by adjusting the intensity
of the LEDs using the rear panel. The
current value of each setting is created by
adjusting the KNOB and TOGGLE button.
There are two types of adjusments you
can make in Manual Mode, Coarse and
Fine.
To set the coarse adjustment press
TOGGLE until desired color flashes and
the status LED is blinking slowly. Rotate
the KNOB until desired setting is achieved (0 = o, 8 = medium, F = maximum).
Press MODE to save and exit. You can also press TOGGLE to adjust the next
color or hold TOGGLE to adjust the fine color setting.
To set the fine adjustment hold TOGGLE aer coarse adjustment is made. The
status LED will begin to blink rapidly. Rotate the KNOB to the desired fine
setting. Press MODE to save and exit or press TOGGLE t o set the next color
coarse setting.
16
Color Wash Mode
Color wash is only available in PICA Cube™ 4C. In Color Wash mode, the PICA
Cube™ automatically cycles through its entire saturated color spectrum by
modulating the intensity of the red, green, and blue LEDs.
There are two user settings that can be adjusted in Color Wash Mode - Wash
Timer and Wash Oset.
Wash Timer:
The wash timer determines how long it takes for the PICA Cube™ to complete
an entire color cycle, and by extension, the rate at which the colors change.
Choose a short time for a rapid wash or a longer time for a slower wash. To
change the Wash Timer press TOGGLE. The status LED will begin to blink slowly.
Rotate the KNOB to desired Color Wash speed (0 = 15s, 8 = 16.5min, F = 60min).
Once your speed is achieved, press MODE to save and exit.
Wash Oset:
When set to Color Wash Mode, the PICA Cube™ is operating as a DMX master
and is sending DMX512 data, allowing it to control unique color washes on up
to fourteen additional fixtures in a chain (set to DMX mode).
17
Color Wash Mode
Use the Wash Oset function to control the
interaction between multiple PICA Cubes™
in a Color Wash chain. The Wash Oset
determines the length of delay between
each light, or how long it takes to “pass” a
color from one light to the next. Set the Wash
Oset to “0” and the lights will color wash in
unison, displaying the same color at the
same time. Create a multi-fixture Chasing
Rainbow eect, where colors pass from
light to light, by increasing the Wash Oset.
The larger the oset time, the longerit takes
for a color to pass to the next light.
To change the Wash Oset, hold the TOGGLE button until the status LED blinks
rapidly. Rotate the KNOB to desired oset (0 = no oset, 8 = medium oset,
F = large oset). Once desired Color Wash oset is achieved, press MODE to
save and exit.
18
Preset Mode
In Preset Mode, the PICA Cube™ can be
controlled directly from its rear panel
without the need of a DMX console or a DMX
control device. This mode is only available in
the 4C and WNC Configurations. Preset
mode allows you to tune your fixture to
various color temperatures ranging from
2700K to 6500K.
When set to preset mode, the PICA Cube™
operates as a DMX Master and is sending
DMX512 data.(All Standalone settings, DMX
setting and configuration settings are non-volatile, meaning they will
not change if power is lost or switched o and restored.)
To change the Preset Intensity, press the TOGGLE button until the status LED
blinks slowly. Rotate the KNOB to desired intensity (0 = o, 8 = medium
intensity, F = high intensity). Once desired Color Wash oset is achieved, press
MODE to save and exit. To change the Color Temperature hold the TOGGLE
button until the status LED blinks rapidly. Rotate the KNOB until the desired
color is selected (Use next page to see color temperature settings). Press
MODE to save and exit.
19
Preset Mode
20
Serial Mode
In Serial mode, the unit is controlled by the serial data it receives on the RJ45
connectors located on the rear panel. The serial address required to control the fixture
is dependent on the factory setting in use (for example - four color PICA Cubes™ use
four DMX Channels whilte one color PICA Cubes™ use one).
Serial Address
To change the Serial address while in Serial Mode press the TOGGLE button.
The Status LED will begin to blink slowly and at this time adjust the KNOB to set
the first digit of your address. Once you have selected the first digit press the
TOGGLE button to lock it in. The status LED will blink rapidly for a brief moment
telling you that the first digit is locked and ready for the second digit. Repeat
this step again for the second and third digits and press the TOGGLE button
upon completion.
NOTE: It is important that you inlcude leading zero’s in the first and second
digits if neccesarry. Also make sure you enter a valid Serial address (001-512)
otherwise the fixture will default to your previous address.
21
Beam Angles
The beam angle can be easily adjusted using a holographic diusing film. Using a
PICA Cube™ without a diusing film will create a narrow beam angle.
WARNING: Disconnect the power cable before removing thumbscrews.
none 20˚ 40˚ 60˚
22
Beam Angles
To change the diusing film, unscrew the thumbscrews from the front panel and
remove the acrylic panel. Replace the existing film with the diuser of your choice.
Place the acrylic panel on top and secure it with four thumbscrews.
23
Mounting
Safety Cables
Single PICA Cubes™ as well as arrays can be suspended from truss or other major
support structures using 3rd party clamping devices. When used in suspended
applications, a safety cable (provided by others) must be used as a positive retaining
means between the main support structure and each PICA Cube™ using the “safety
cable hole.”
24
FCC Warning
This equipment has been tested and found to comply with the regulations for a
Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference when
the equipment is operated in a commercial environment. This equipment
generates, uses, and can radiate radio frequency energy and, if not installed and
used in accordance with this user’s guide, may cause harmful interference to
radio communications. Operation of this equipment in a residential area is likely
to cause harmful interference, in which case the user will be required to correct
the interference at his own expense.
25
General Precautions
1. The use of a safety cable is required when rigging the fixture.
2. Before use, make sure all screws and safety points are secured.
3. Make sure the light is unplugged before performing any service to the unit.
4. ALWAYS keep this product out of reach of children and untrained
persons.
5. ALWAYS adhere to safety instructions and warnings, including any and
all instructions set forth in the Product Specifications.
6. To allow for proper cooling, airflow must not be restricted through the front
and rear of the fixture - do not block o the front or rear panel.
7. For Dry locations/Indoor use only.
26
Warning Messages
The PICA Cube™ has warning messages built in that will instruct you when an action
needs to be taken.
On startup, if a DMX signal is not present on the DMX connectors, and the fixture is set
to DMX mode, all of the LEDS will glow dimly. This feature can be used for
troubleshooting your DMX control lines. Once DMX is detected the fixture will
instantaneously respond to the command it is given.
The PICA Cube™ is equipped with an internal temperature sensor.If an overheat
condition is experienced the Red (4C),Warm (WNC) or UV LED will glow dimly and the
fault LED on the back of the fixture will turn on. If this occurs unplug the 120VAC power
connector from the unit and wait three seconds. Plug the fixture in again. If the
same condition occurs again contact the manufacturer.
The PICA Cube™ can also detect a fan speed fault. If this occurs the Blue (4C),
Cool (WNC) or UV LED will glow dimly and the fault LED on the back of the fixture will
turn on. If this occurs unplug the 120VAC power connector from the unit and wait
three seconds. Plug the fixture in again. If the same condition occurs again contact the
manufacturer.
27
PICA CUBE
DESIGNED BY THE BLACK TANK
ww w.rosco.com
™
Loading...
