Rosch Computer GITOX3 User Manual

GITOX3

Rev. A+
System Board
User’s Manual

935-015182-050

I41411305

Copyright

This publication contains information that is protected by copyright. No
part of it may be reproduced in any form or by any means or used to
make any transformation/adaptation without the prior written permission
from the copyright holders.

This publication is provided for informational purposes only. The
manufacturer makes no representations or warranties with respect to
the contents or use of this manual and specifically disclaims any express
or implied warranties of merchantability or fitness f or any particular purpose.
The user will assume the entire risk of the use or the results of the use of
this document. Further , the manufacturer reserves the right to revise this
publication and make changes to its contents at any time, without obligation
to notify any person or entity of such revisions or changes.

All Rights Reserved. © 2002

Trademarks

Microsoft® MS-DOS®, Windo wsTM, Windows® 95, Windows® 98 and
Windows NT® are registered trademarks of Microsoft Corporation. Intel®,
Pentium® and CeleronTM are registered trademarks of Intel Corporation.
Award is a registered trademark of Award Software, Inc. Other trademarks
and registered trademarks of products appearing in this manual are the
properties of their respective holders.

Caution:

Danger of explosion if batter y incorrectly replaced.
Replace only with the same or equivalent type recommended by the
manufacturer.
Dispose of used batteries according to the battery manufacturer’s
instructions.

FCC and DOC Statement on Class B

This equipment has been tested and found to comply with the
limits for a Class B digital device, pursuant to Part 15 of the FCC
rules. These limits are designed to provide reasonable protection
against harmful interference when the equipment is operated in a
residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in
accordance with the instruction manual, may cause harmful
interference to radio communications. However, there is no
guarantee that interference will not occur in a par ticular installation.
If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct
the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and the
receiver.

• Connect the equipment into an outlet on a circuit different
from that to which the receiver is connected.

• Consult the dealer or an experienced radio TV technician for
help.

Notice:

1. The changes or modifications not expressly approved by the
party responsible for compliance could void the user's
authority to operate the equipment.

2. Shielded interface cables must be used in order to comply
with the emission limits.

Table of Contents

Chapter 1 - Introduction

1. 1 Features and Specifications..............................................................

1. 2 Package Checklist ...................................................................................

Chapter 2 - Hardware Installation

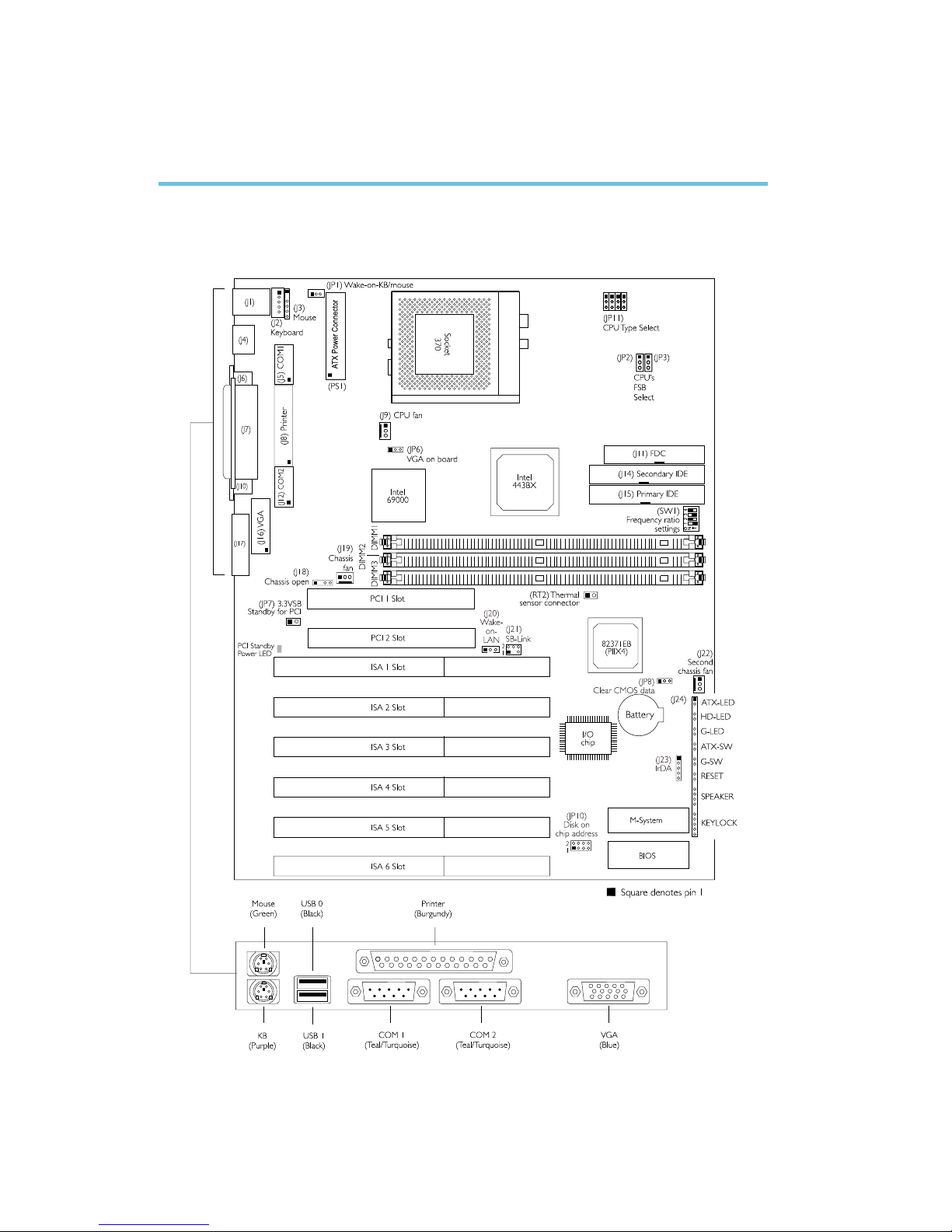

2. 1 System Board Layout ..........................................................................

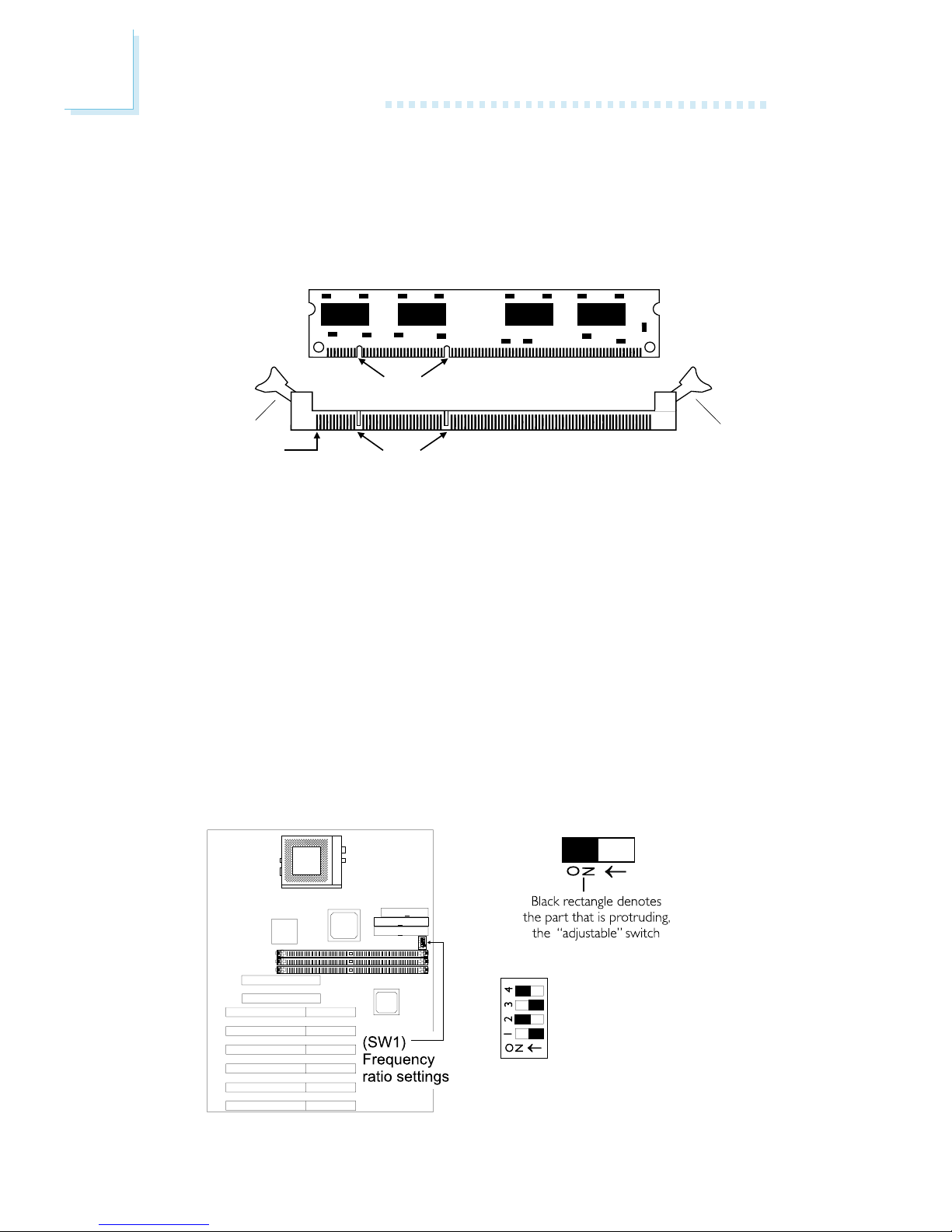

2.2 System Memory.....................................................................................

2. 3 Frequency Ratio Settings for Processors...............................

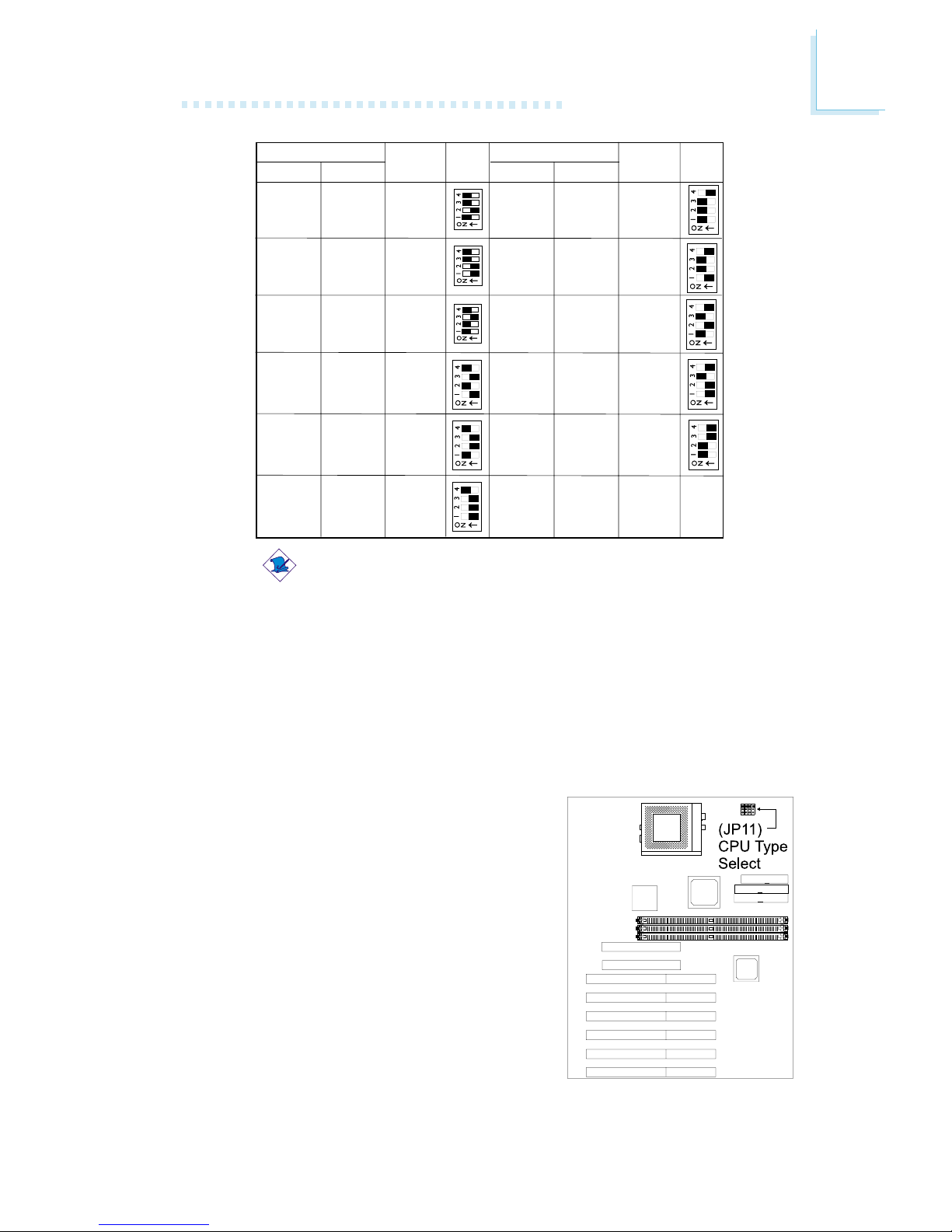

2. 4 Jumper Settings for the CPU’s Type .........................................

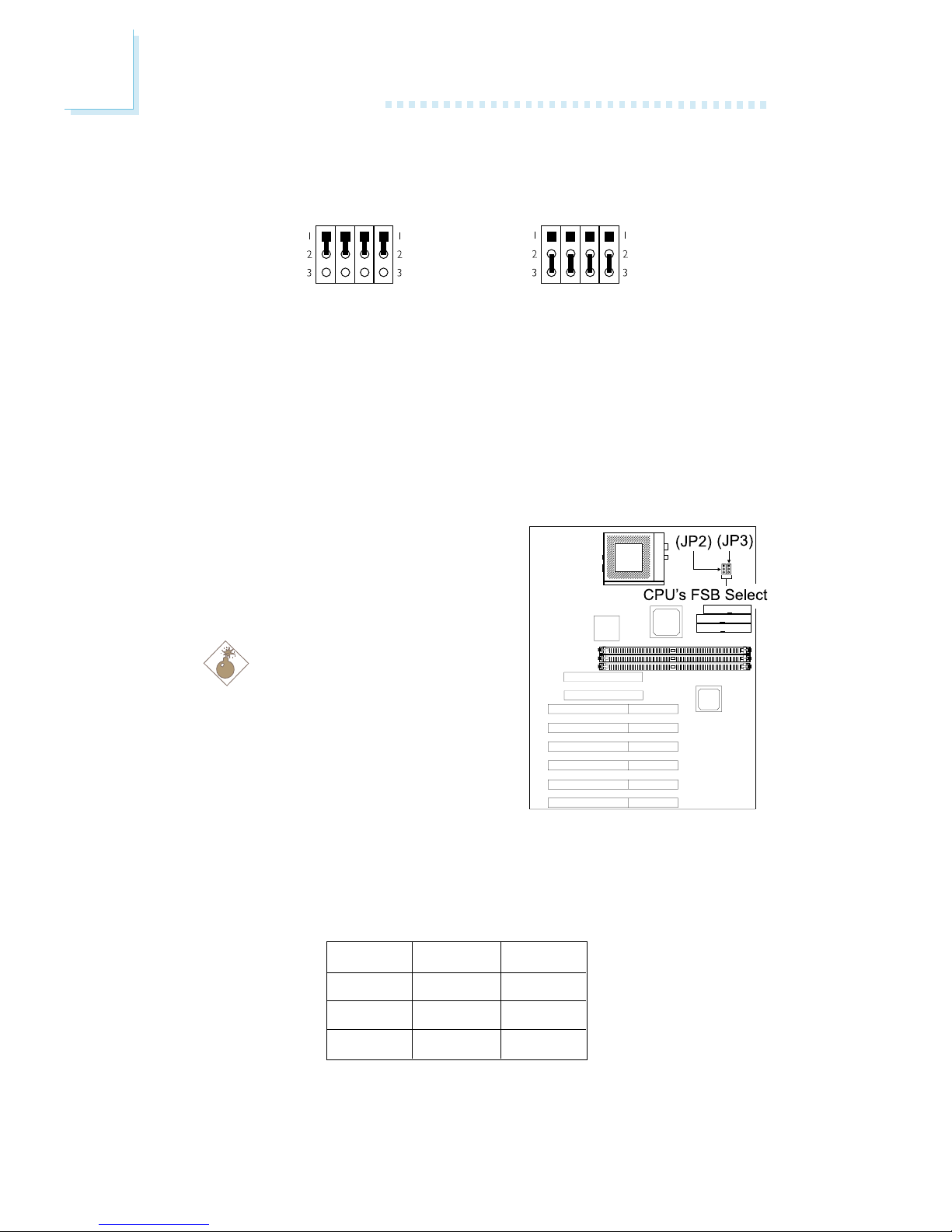

2. 5 Jumper Settings for the CPU’s Front Side Bus ..................

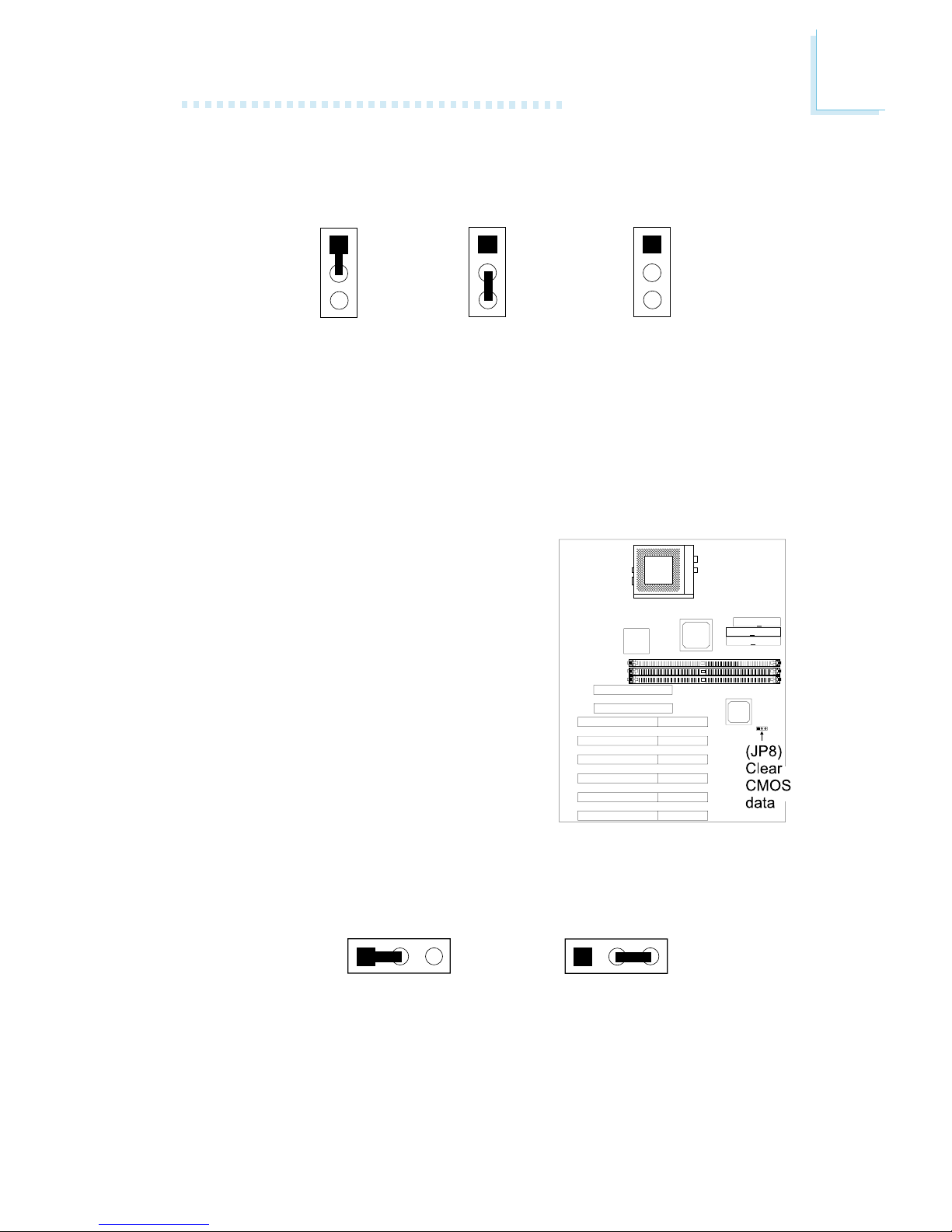

2. 6 Jumper Settings for Clearing CMOS Data ...........................

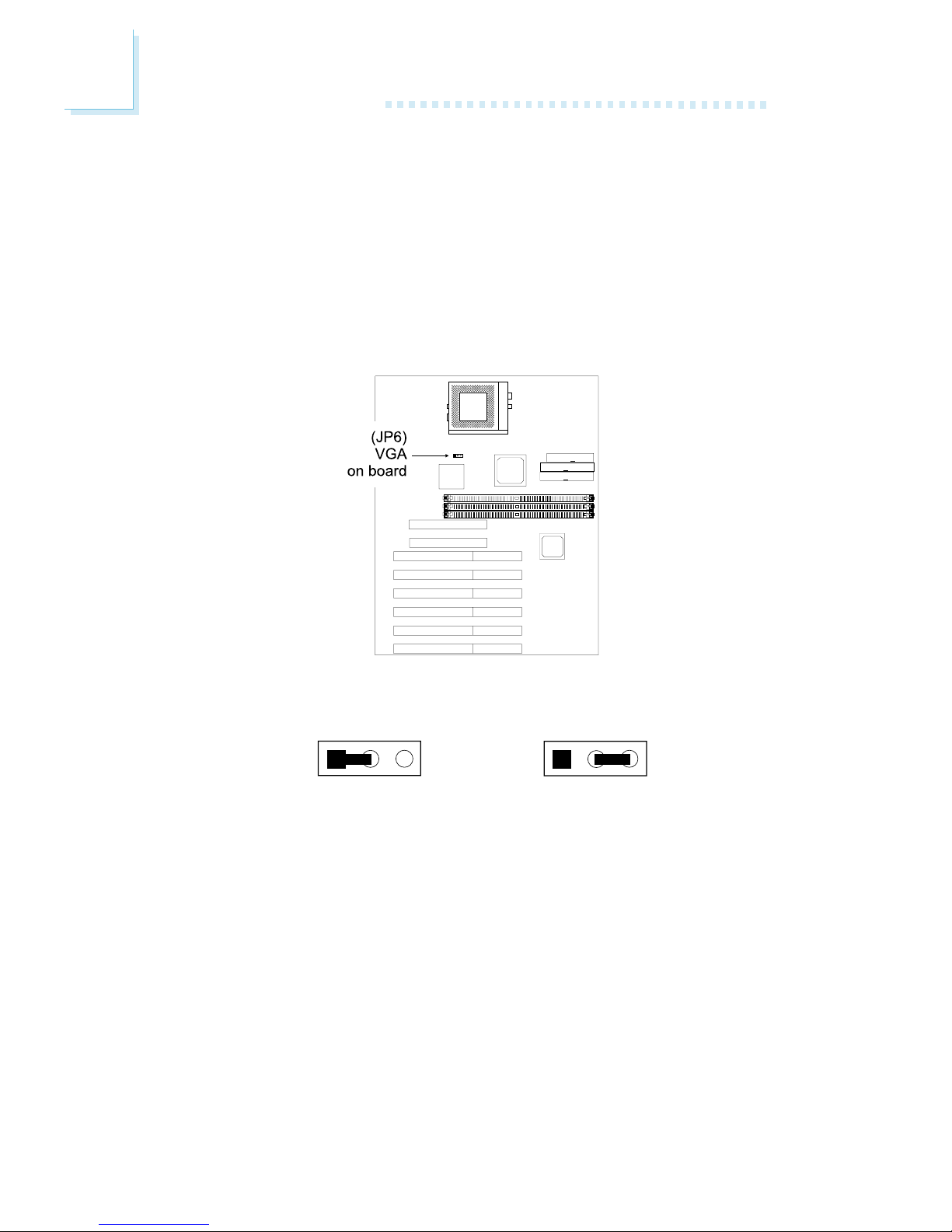

2. 7 Jumper Settings for VGA on Board .............................................

2. 8 Jumper Settings for M-system Flash Disk Address..............

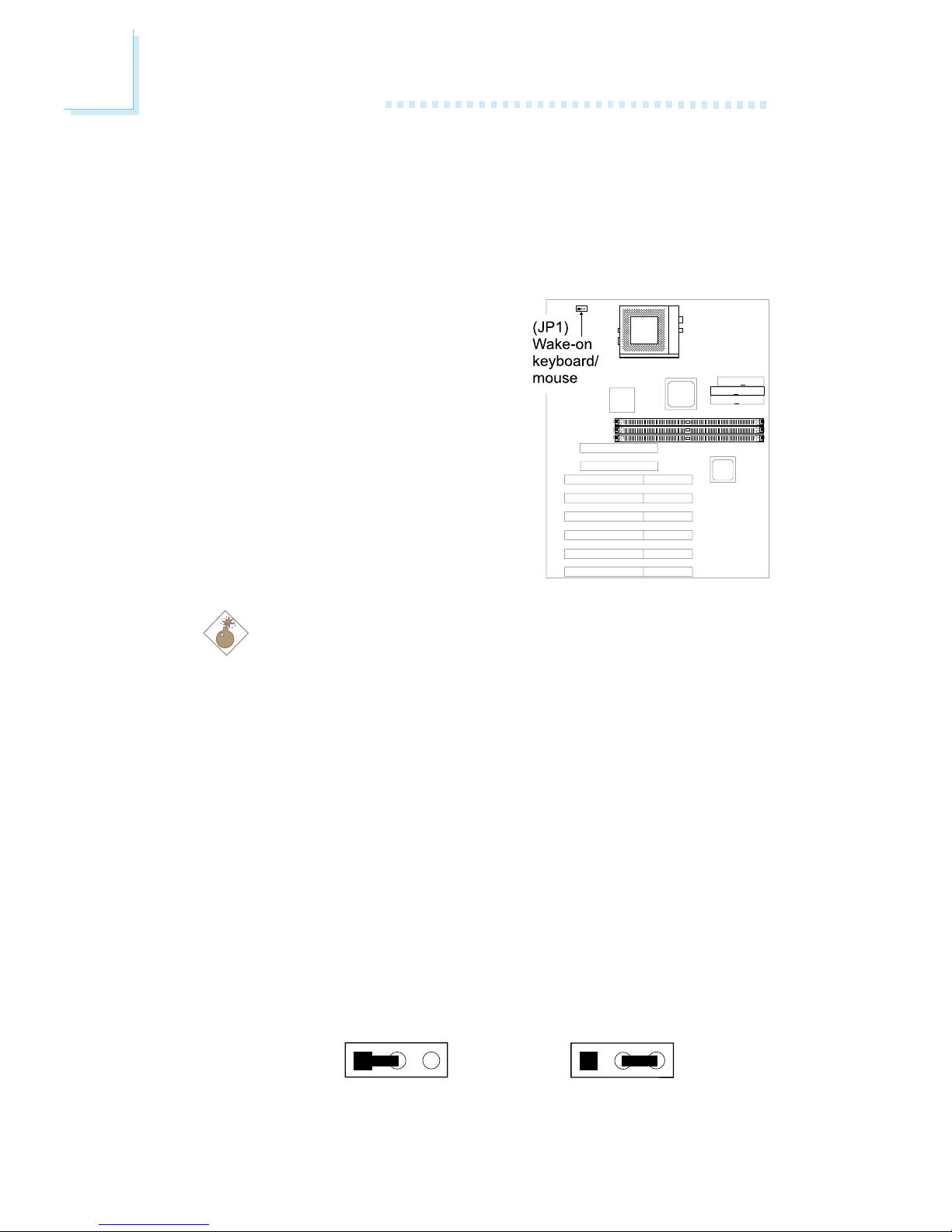

2.9 Jumper Settings for Wake-On-Keyboard/Mouse ..................

2.10 Ports and Connectors .......................................................................

Chapter 3 - Award BIOS Setup Utility

3. 1 The Basic Input/Output System...................................................

3.1.1 Standard CMOS Setup .....................................................

3.1.2 BIOS Features Setup ...........................................................

3.1.3 Chipset Features Setup .....................................................

3.1.4 Power Management Setup ..............................................

3.1.5 PNP/PCI Configuration .....................................................

3.1.6 Load Fail-Safe Settings ........................................................

3.1.7 Load Optimal Settings ........................................................

3.1.8 Integrated Peripherals .........................................................

3.1.9 Supervisor Password ..........................................................

3.1.10 User Password ........................................................................

3.1.11 IDE HDD Auto Detection .............................................

3.1.12 Save & Exit Setup..................................................................

3.1.13 Exit Without Saving..............................................................

6

11

38
38
41
45
47
52
53
54
54
58
59
60
61
61

12
13
14
15
16
17
18
19
20
21

69
69

71

64
67
67
68

Chapter 4 - Supported Softwares

4. 1 Desktop Management Interface ...................................................

4.2 Hardware Doctor Utility ..................................................................

4. 3 Patch Utility for Windows 95 .......................................................

4.4 VGA Driver for Windows 95/98/NT4.0 ..............................

Appendix A - System Error Messages

A.1 POST Beep ...............................................................................................

A.2 Error Messages ........................................................................................

Appendix B - Troubleshooting

B.1 Troubleshooting Checklist ................................................................

Appendix C - Watchdog Timer

Using the Watchdog Timer Function.......................................................

75

6

1.1 Features and Specifications

1.1.1 Features

Chipset

• Intel 440BX AGPset

• Intel 69000 (on board VGA)

Processor

The system board is equipped with Socket 370 for installing an
Intel CeleronTM PPGA and Pentium® III FCPGA processor. The
system board is also equipped with a switching voltage regulator
that suppor ts 1.30V to 2.05V core voltage for various processors.

• Pentium® III FCPGA 100MHz FSB processor

• CeleronTM PPGA (300A - 533MHz) processor

System Memory

• 16MB to 384MB memory using unbuffered DIMMs

• 32MB to 768MB memory using registered DIMMs

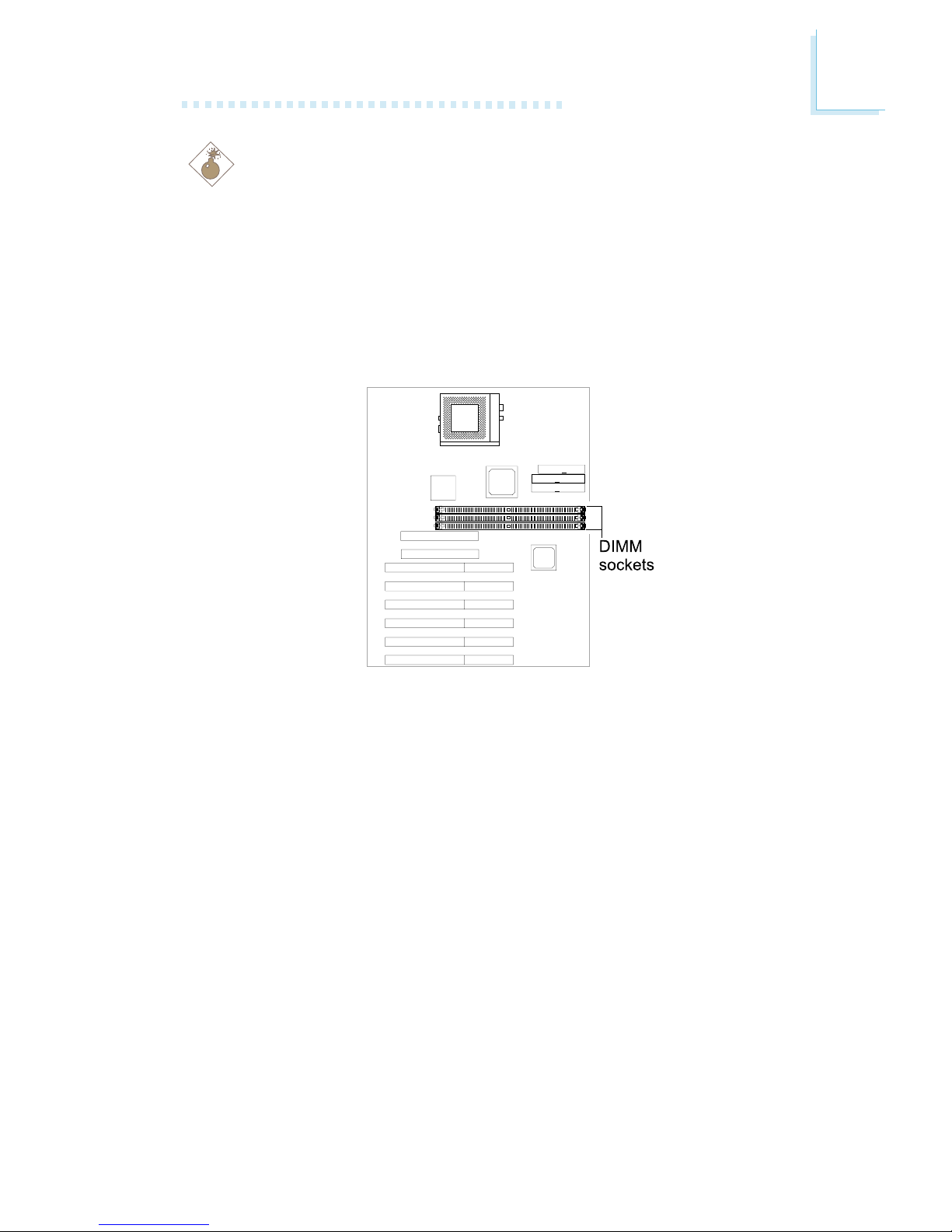

• Three 168-pin DIMM sockets

• Uses x64 or x72 PC SDRAM, 3.3V

- PC-66 SDRAM DIMM for 66MHz FSB processors

- PC-100 SDRAM DIMM for 100MHz FSB processors

• ECC supported (uses x72 PC SDRAM DIMM)

Chapter 1 - Introduction

DIMMs

2MBx64/x72
4MBx64/x72
8MBx64/x72
16MBx64/x72
32MBx64/x72

Memory Size

16MB
32MB
64MB
128MB
256MB*

* Registered DIMMs only.

1

Introduction

7

Expansion Slots

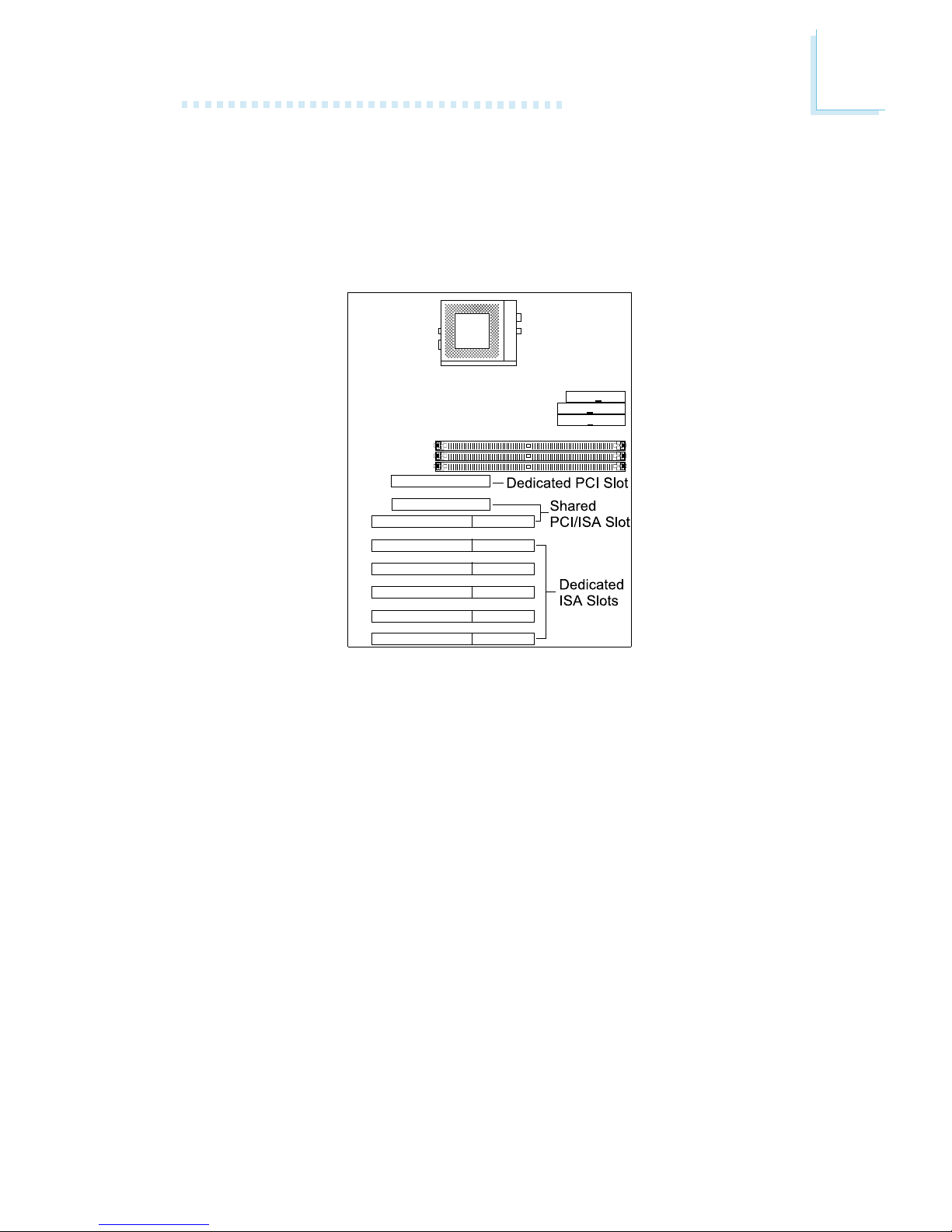

The system board is equipped with 1 dedicated PCI slot, 5
dedicated 16-bit ISA slot and 1 shared PCI/ISA slot. All PCI and
ISA slots are bus masters.

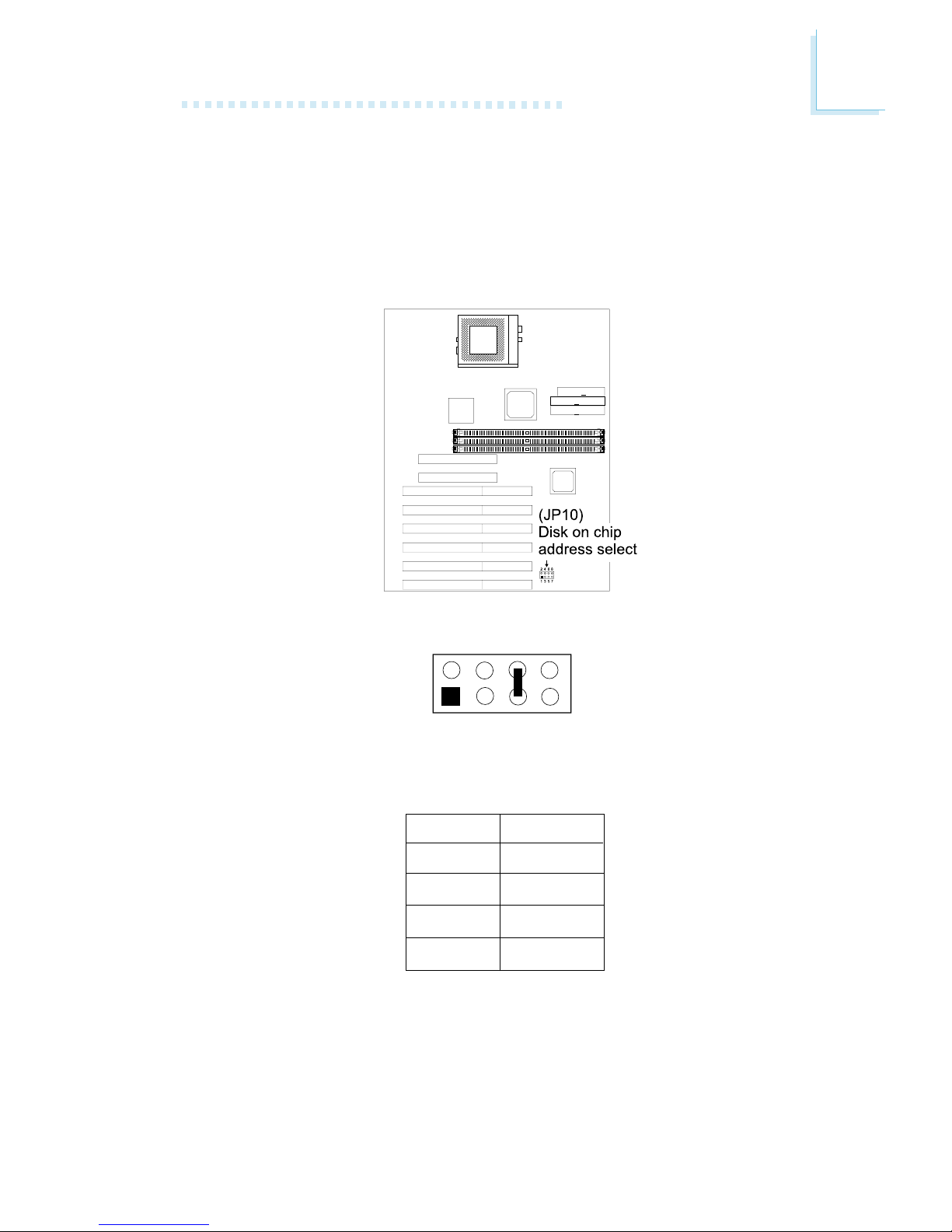

Disk-On-Chip

Optional M-system up to 144Mbytes or above.

Desktop Management Interface (DMI)

The system board comes with a DMI 2.0 built into the BIOS. The
DMI utility in the BIOS automatically records various information
about your system configuration and stores these information in
the DMI pool, which is a par t of the system board's Plug and Play
BIOS. DMI, along with the appropriately networked software, is
designed to make inventory, maintenance and troubleshooting of
computer systems easier. Refer to Chapter 4 for instructions on
using the DMI utility.

ATX double deck ports

• 2 USB ports

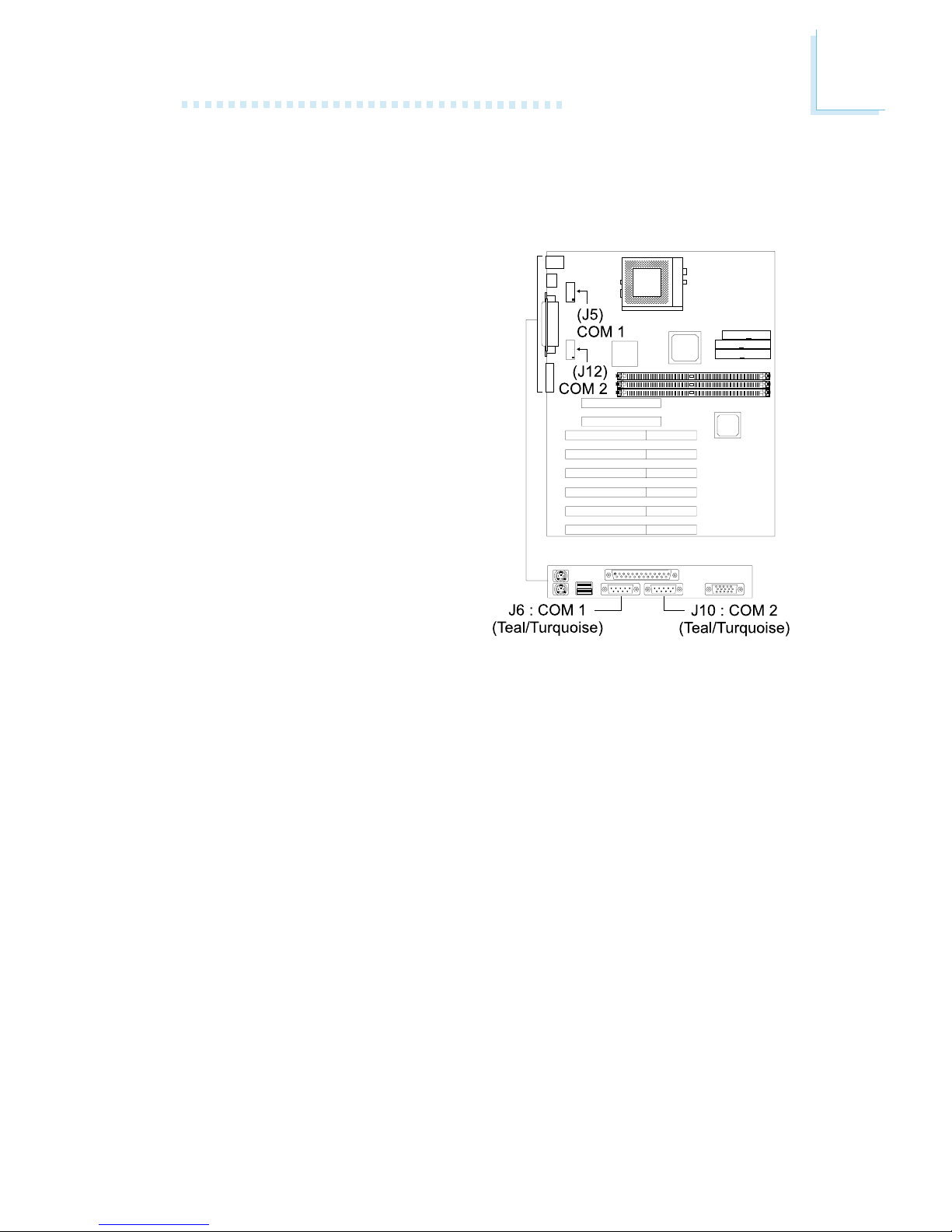

• 2 DB-9 serial por ts

• 1 DB-25 parallel por t

• 1 DB-15 graphics por t

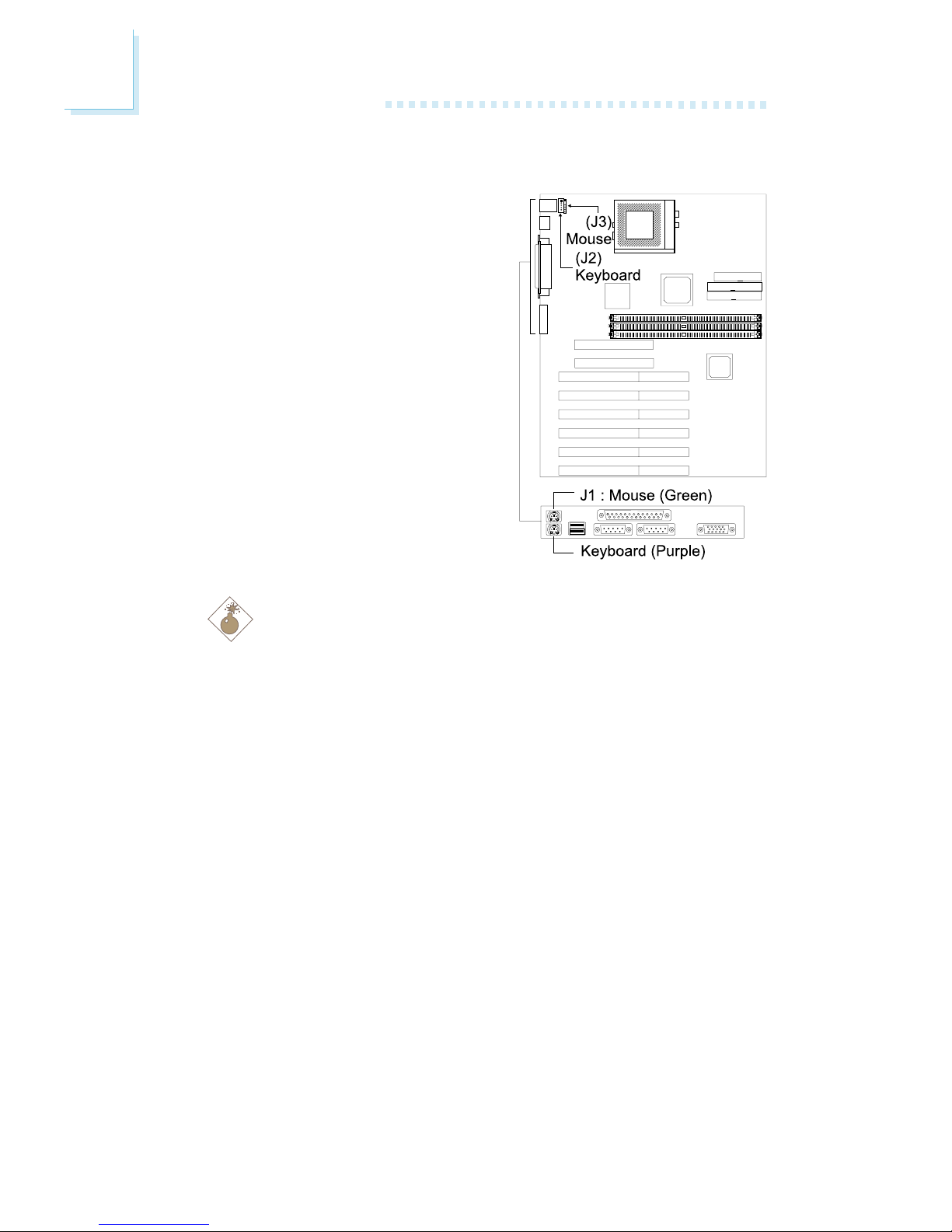

• 1 mini-DIN-6 PS/2 keyboard port

• 1 mini-DIN-6 PS/2 mouse por t

Connectors

• 2 9-pin headers for serial ports

• 1 25-pin header for SPP/ECP/EPP parallel por t

• 1 15-pin header for video

• 1 5-pin header for mouse

• 1 5-pin header for keyboard

• 1 connector for IrDA interface

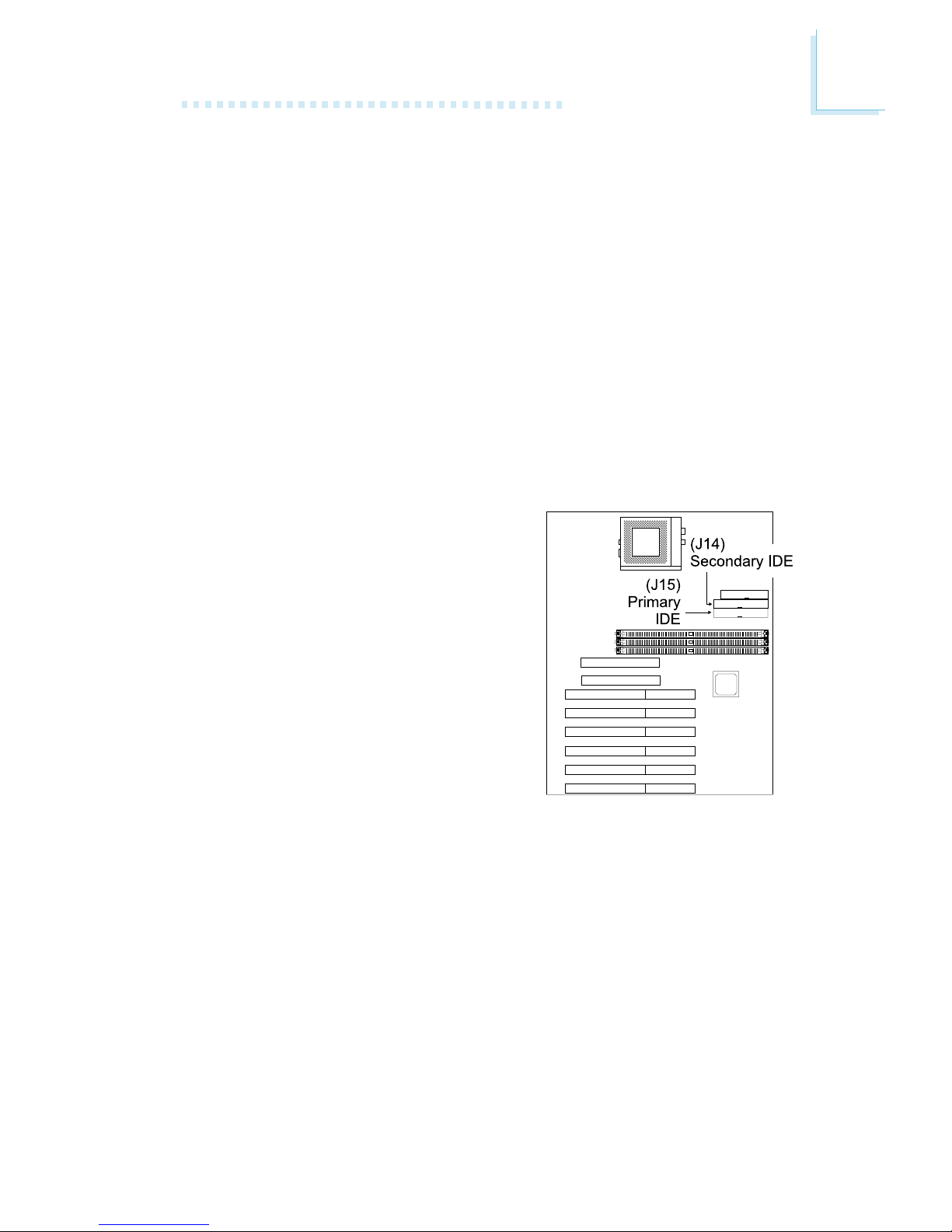

• 2 IDE connectors

• 1 floppy connector

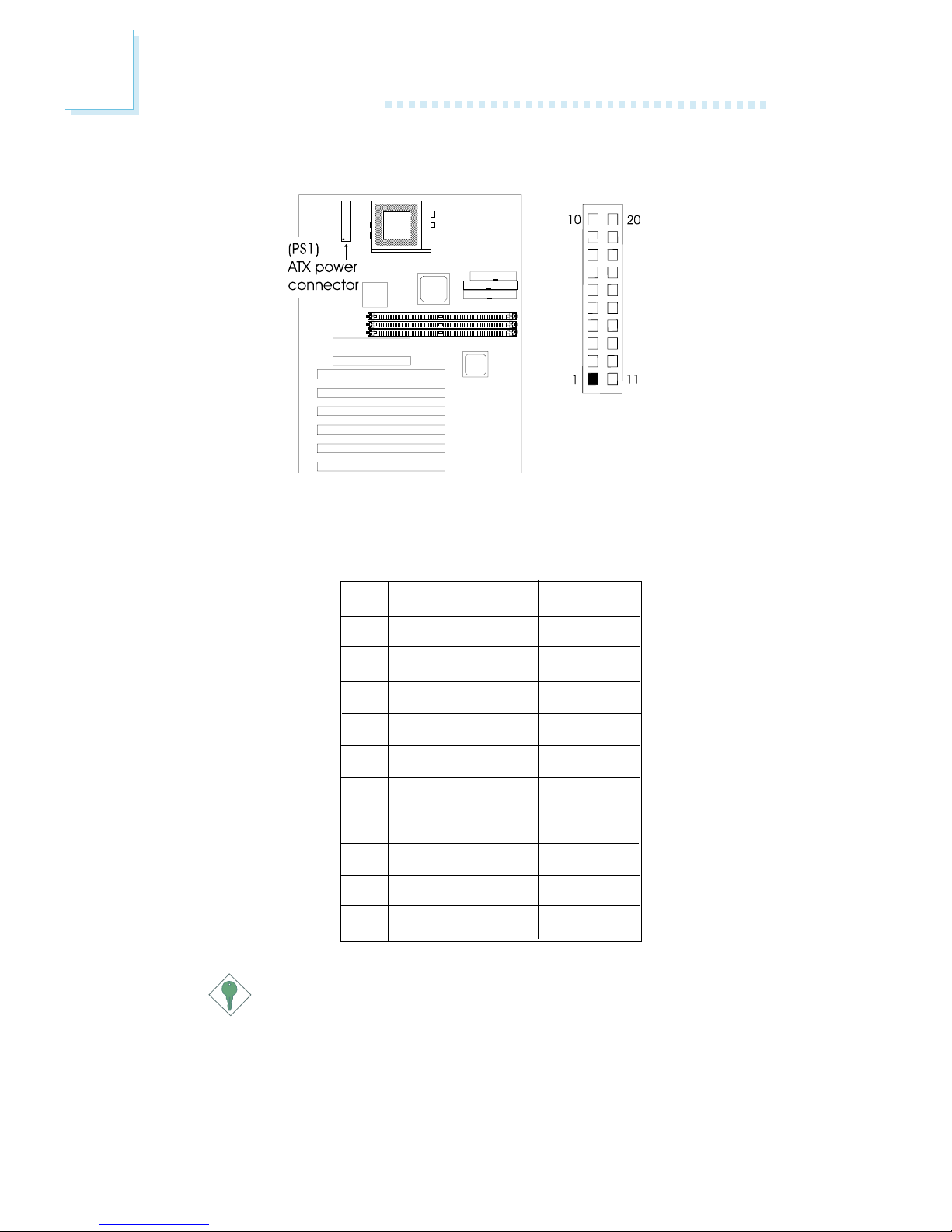

• 1 20-pin ATX power supply connector

• 1 3-pin WOL (Wake-On-LAN) connector

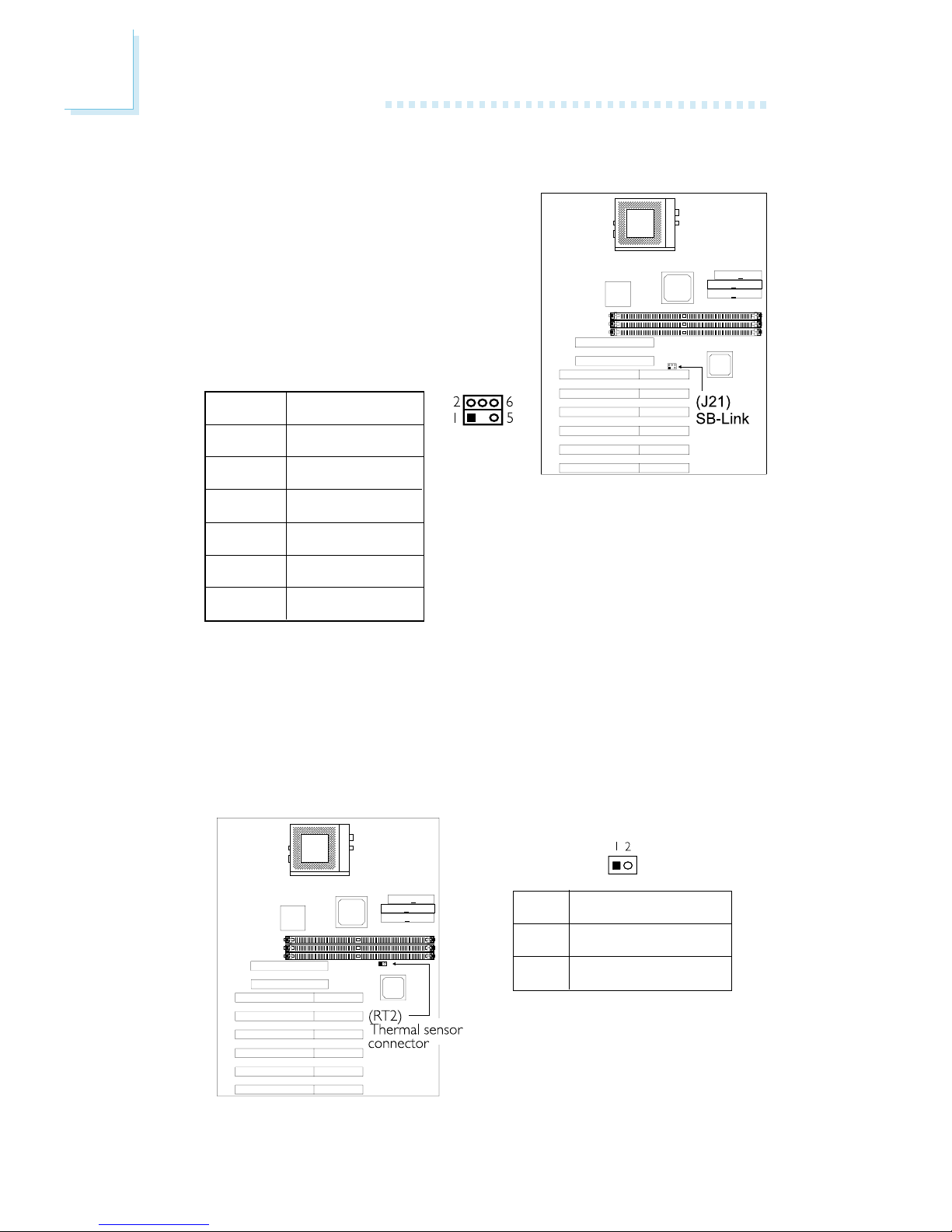

• 1 SB-LINK connector

Introduction

1

8

• 1 chassis open connector

• 1 system temperature sensor connector

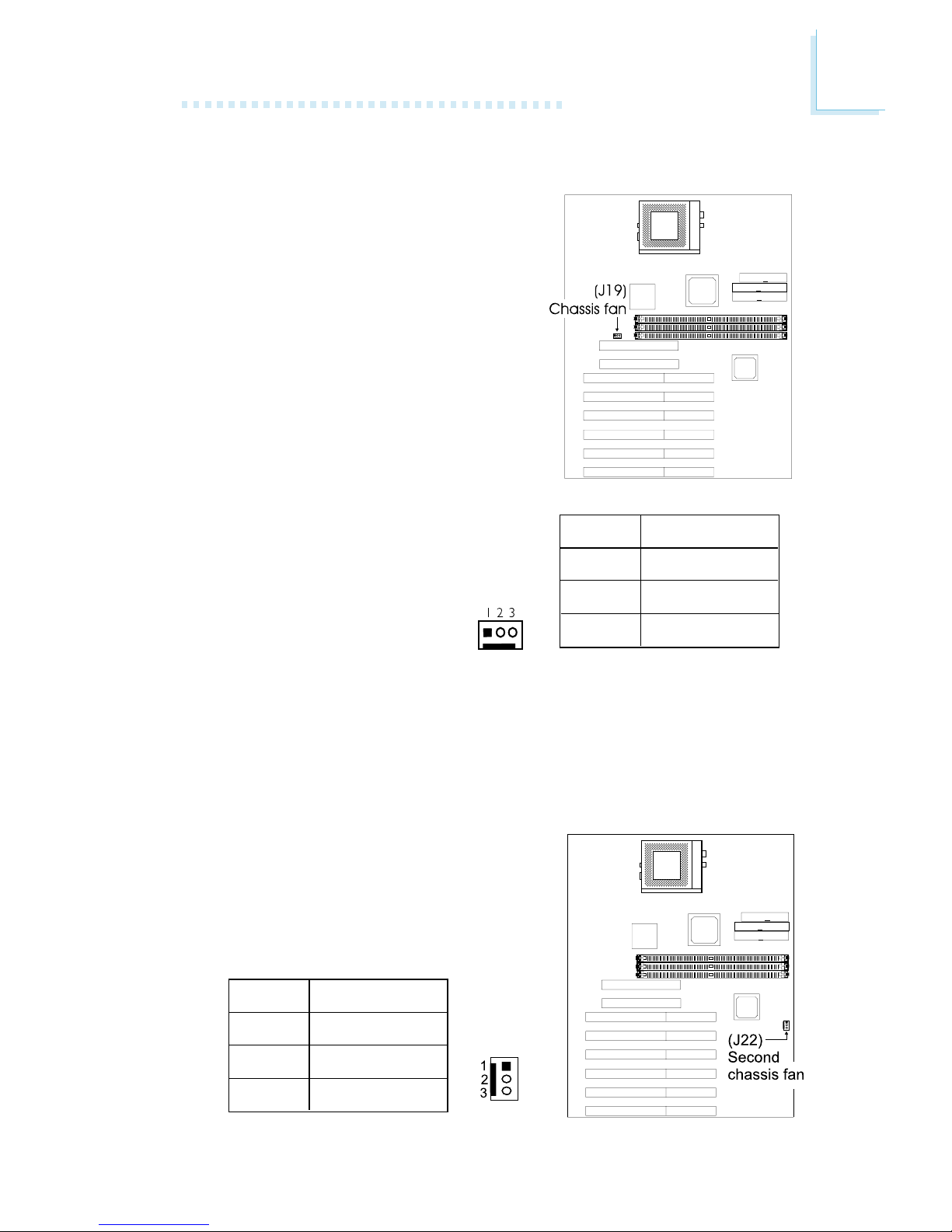

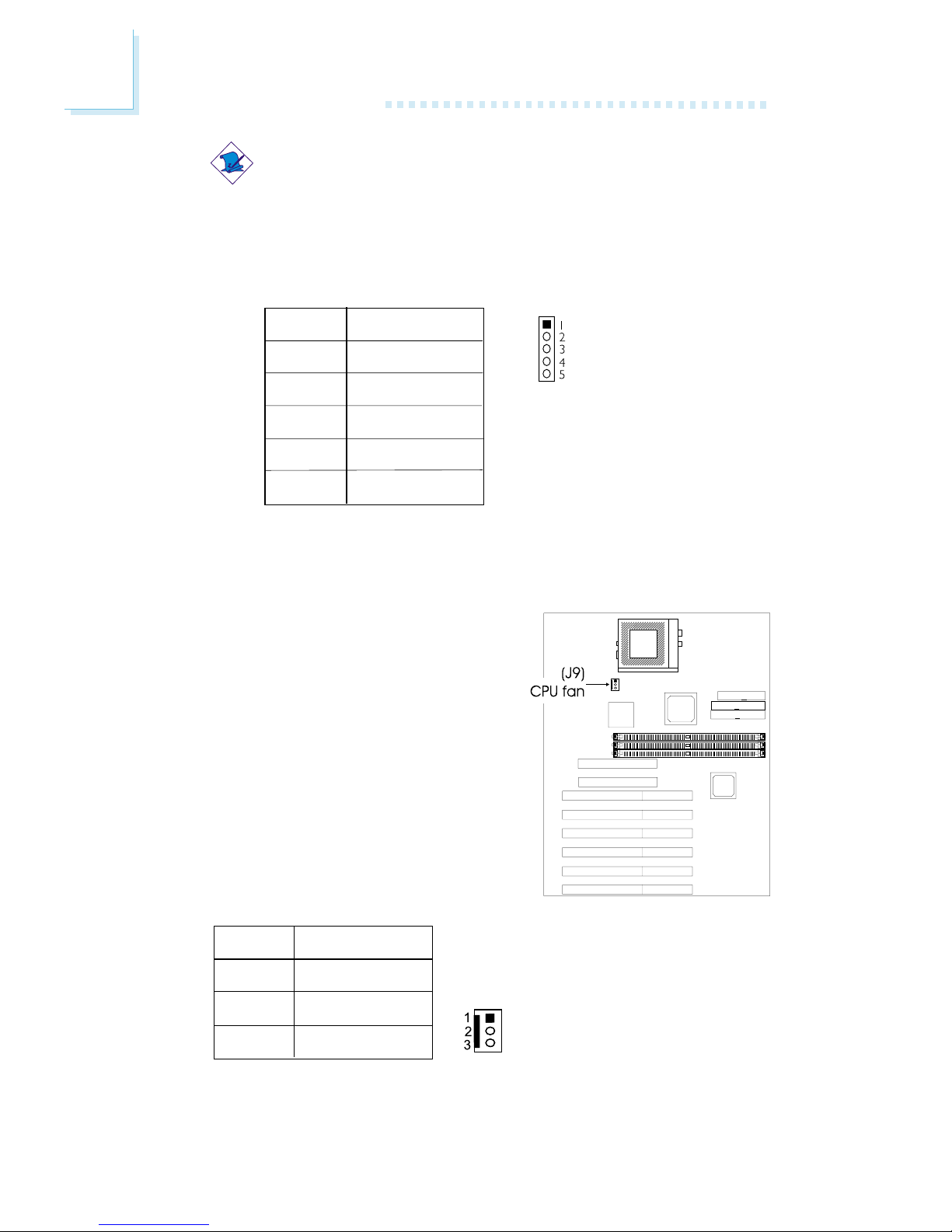

• 3 fan connectors for CPU, chassis and second chassis fans

PCI Bus Master IDE Controller

• Two PCI IDE interfaces support up to four IDE devices

• Supports ATA/33 hard drives

• ATA/66 hard drives detectable by the BIOS

• PIO Mode 3 and Mode 4 Enhanced IDE (data transfer rate up
to 16.6MB/sec.)

• Bus mastering reduces CPU utilization during disk transfer

• ATAPI CD-ROM, LS-120 and ZIP supported

IrDA Interface

The system board is equipped with an IrDA connector for
wireless connectivity between your computer and peripheral
devices. It supports peripheral devices that meet the IrDA or
ASKIR standard.

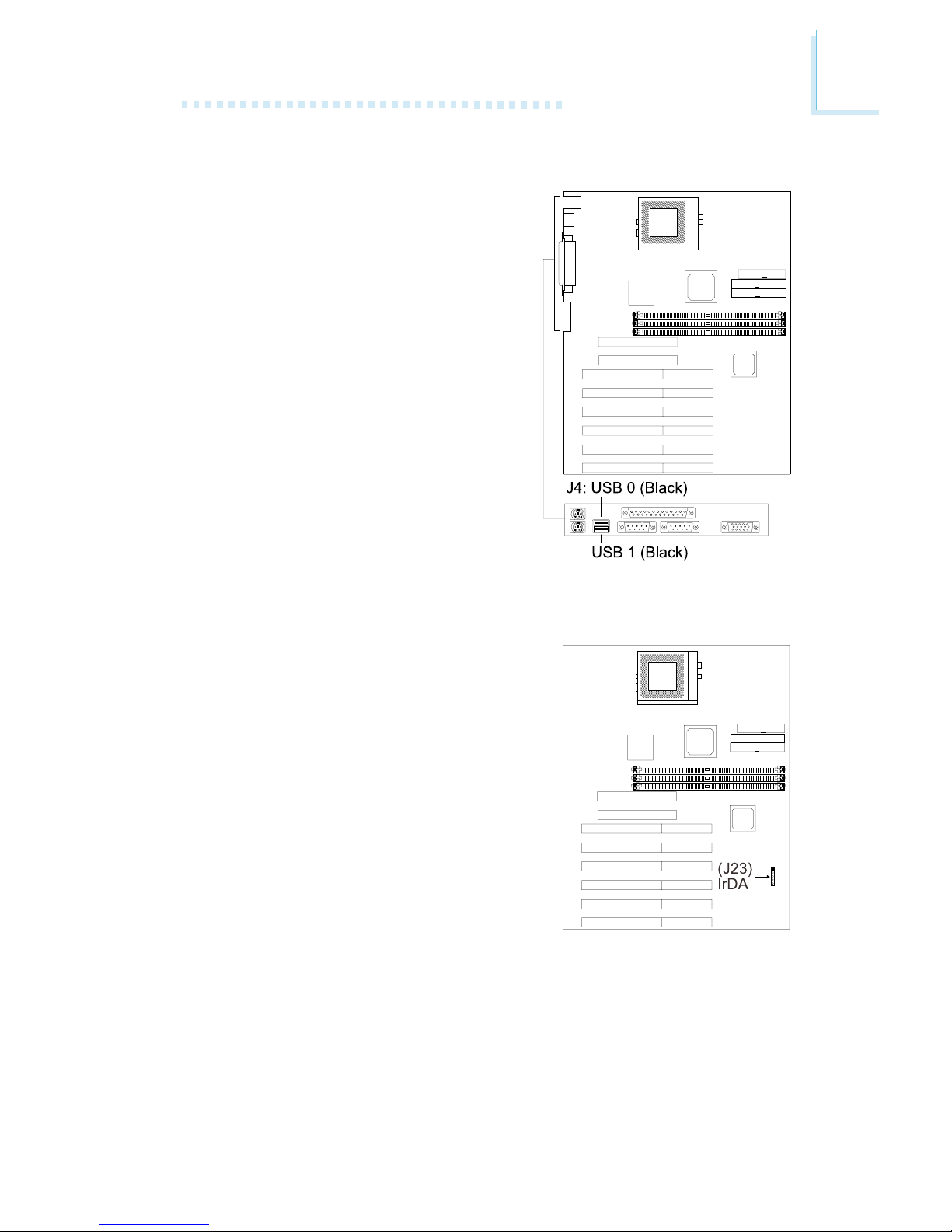

USB Ports

The system board is equipped with two USB ports. USB allows
data exchange between your computer and a wide range of
simultaneously accessible external Plug and Play peripherals.

BIOS

• Award BIOS, Windows 95/98 Plug and Play compatible

• Suppor ts DMI 2.0 function

• 2 MBit flash EPROM for easy BIOS upgrades

• Includes NCR 810 SCSI BIOS

1.1.2 System Health Monitor Functions

The system board is capable of monitoring the following “system
health” conditions.

• Monitors processor/system temperature and processor
overheat alarm

• Monitors 1.5V/3.3V/±5V/±12V/VCORE voltages and failure
alarm

1

Introduction

9

• Monitors processor/chassis fan speed and failure alarm

• Automatic processor/chassis fan control

• Read back capability that displays accurate temperature, voltage
and fan speed

• Watchdog timer function

1.1.3 Intelligence

Automatic CPU/Chassis Fan Off

The CPU and chassis fans will automatically turn off once the
system enters the Suspend mode .

Dual Function Power Button

Depending on the setting in the BIOS setup, this switch will allow
the system to enter the Soft-Off or Suspend mode.

Watchdog Timer

The Watchdog Timer function allows your application to regularly
“clear” the system at the set time interval. If the system hangs or
fails to function, it will reset at the set time interval so that your
system will continue to operate. Refer to “Watchdog Timer Select”
in the Integrated Peripherals setup of the Award BIOS.

External Modem Ring-on

The Modem Ring-on feature allows the system that is in the
Suspend mode or Soft Power Off mode to wake-up/power-on to
respond to incoming calls.

Note:

This feature supports external modem only.

RTC Timer to Power-on the System

The RTC installed on the system board allows your system to
automatically power-on on the set date and time.

Introduction

1

10

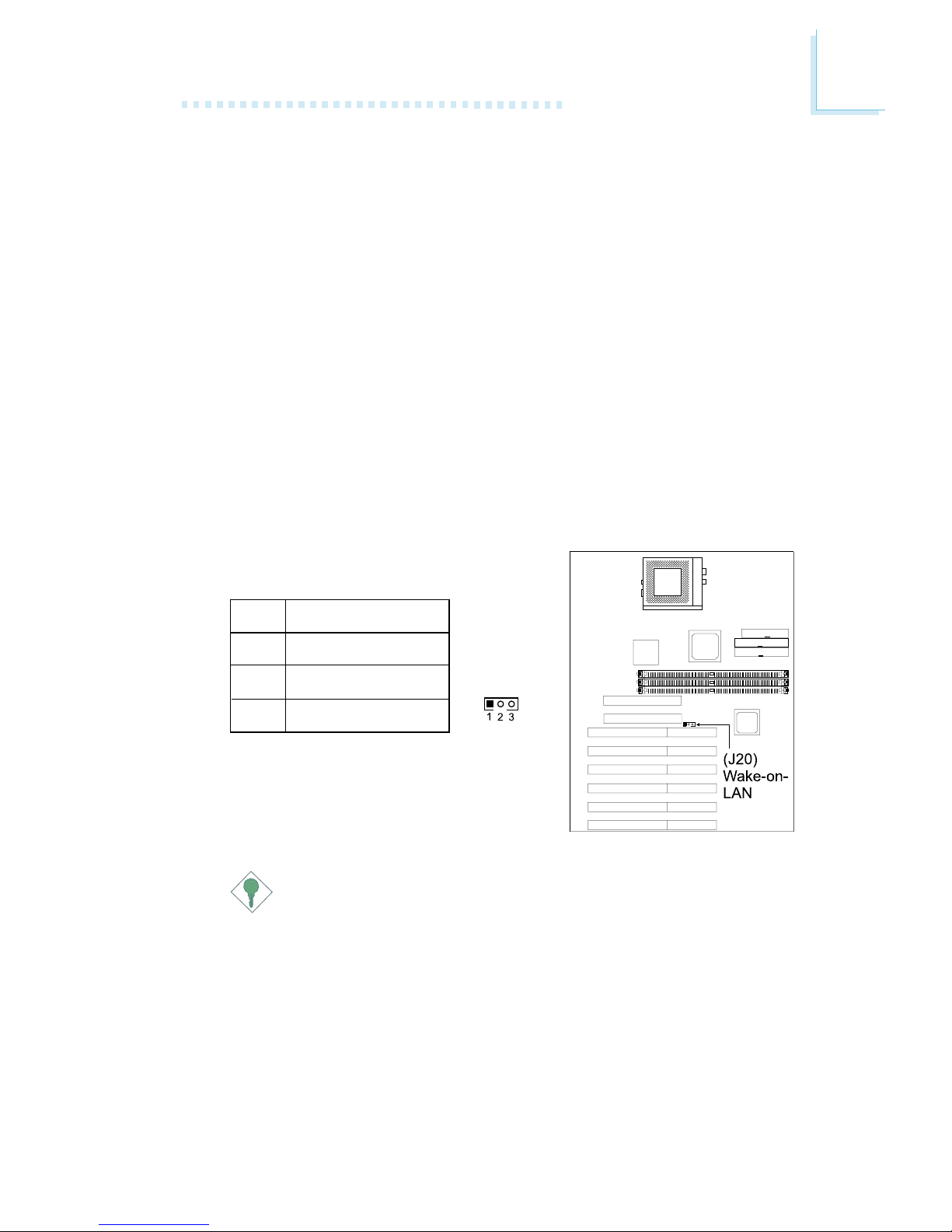

Wake-On-LAN Ready

The Wake-On-LAN function allows the network to remotely wake
up a Soft Power Down (Soft-Off) PC. Your LAN card must
suppor t the remote wakeup function.

Important:

The 5VSB power source of your power supply must support

≥

720mA (minimum).

Wake-On-Keyboard/Wake-On-Mouse

This function allows you to use the keyboard or mouse to power­on the system. Refer to “Jumper Settings for Wake-On-Keyboard/
Wake-On-Mouse” in Chapter 2 and “Keyboard/Mouse Power On”
in the Integrated Peripherals of the Award BIOS in Chapter 3 for
more information.

Important:

• The power button will not function once a keyboard
password has been set in the “KB Power On Password”
field of the Integrated Peripherals setup. You must type
the correct password to power-on the system.

• The 5VSB power source of your power supply must
support ≥720mA (minimum).

AC Power Failure Recovery

When power returns after an AC power failure, you may choose
to either power-on the system manually, let the system power-on
automatically or return to the state where you left off before
power failure occurs. Refer to “PWR Lost Resume State” in the
Integrated Peripherals section in chapter 3 for more information.

ACPI

The system board is designed to meet the ACPI (Advanced
Configuration and Power Interface) specification. ACPI has energy
saving features that enables PCs to implement Power Management
and Plug-and-Play with operating systems that support OS Direct
Power Management.

1

Introduction

11

Virus Protection

Most viruses today destroy data stored in hard drives. The system
board is designed to protect the boot sector and partition table
of your hard disk drive.

1.2 Package Checklist

The system board package contains the following items:

! The system board
! A user’s manual
! One 40-pin IDE hard disk cable
! One 34-pin floppy disk drive cable
! One CD

If any of these items are missing or damaged, please contact your
dealer or sales representative for assistance.

12

2.1 System Board Layout

Chapter 2 - Hardware Installation

2

Hardware Installation

13

2.2 System Memory

The system board is equipped with three 168-pin DIMM (Dual
In-line Memory Module) sockets that support x64/x72 unbuffered
or registered PC SDRAM DIMM, 3.3V. PC SDRAM (Synchronous
Dynamic Random Access Memory) uses a fast memory interface
technology that includes using the clock on the chip to synchronize
with the CPU clock so that the timing of the memory chips and
the timing of the CPU are synchronized. This saves time during
transmission of data, subsequently increasing system perfor mance.

The system board also supports the ECC (Error Checking and
Correction) function. To use this function, you must install DIMM
that supports parity. That is, DIMM that typically has 9 memory
chips per side. This kind of module has 8 standard memory chips
and a parity chip. DIMM with no parity has 8 standard memory
chips only. Refer to chapter 1 (System Memory section) for
detailed specification of the memory supported by the system

board.

Warning:

Electrostatic discharge (ESD) can damage your system board, processor, disk
drives, add-in boards, and other components. Perform the upgrade instruction
procedures described at an ESD workstation only. If such a station is not
available, you can provide some ESD protection by wearing an antistatic wrist
strap and attaching it to a metal part of the system chassis. If a wrist strap is
unavailable, establish and maintain contact with the system chassis
throughout any procedures requiring ESD protection.

2

14

Hardware Installation

Pin 1

Notch

Key

Tab

Tab

1. Pull the “tabs” which are at the ends of the socket to the side .

2. Position the DIMM above the socket with the “notches” in the
module aligned with the “keys” on the socket.

3. Seat the module vertically into the socket. Make sure it is
completely seated. The tabs will hold the DIMM in place.

2.3 Frequency Ratio Settings for Processors

Make sure you have set JP11 according to the type of processor
installed in the system board.

In the example on the left:

Switch 1: Off
Switch 2: On
Switch 3: Off
Switch 4: On

2.2.1 Installing the DIM Module

A DIM module simply snaps into a DIMM socket on the system
board. Pin 1 of the DIM module must correspond with Pin 1 of

the socket.

2

Hardware Installation

15

Processor

SW1

66MHz

100MHz

Frequency

Ratio

Processor

SW1

66MHz

100MHz

Frequency

Ratio

8x

533MHz

Future

processor

500MHz

Future

processor

7.5x

466MHz

700MHz

7x

433MHz

650MHz

6.5x

400MHz

600MHz

6x

550MHz

5.5x

366MHz

333MHz

5x

500MHz

300MHz

(300A)

4.5x

Future

processor

Note:

1. The switching voltage regulator on the system board will
automatically set the voltage regulator according to the voltage
of the processor.

2. You can not overclock some processors because their
frequency ratio has been fixed by the manufacturer.

----------

----------

----------

3x

4x

3.5x

Future

processor

Future

processor

Future

processor

2.4 Jumper Settings for the CPU Type

Jumper JP11

CPU Type Select
This jumer is used to choose the

type of processor. The default setting
is Intel processor, pins 1 and 2 on.
Please leave JP11 in its default
setting.

2

16

Hardware Installation

2.5 Jumper Settings for the CPU’s Front Side Bus

Jumpers JP2 & JP3

CPU’s Front Side Bus Select
The default setting is Auto - the

system will automatically run
according to the FSB of the
processor.

Warning:

Overclocking a 66MHz FSB
processor to 100MHz will
provide better system
performance. However, not all
66MHz FSB processors are
capable of running at
100MHz bus speed.
Therefore, if you are unable to boot your system when set at
100MHz, make sure to set JP2 and JP3 back to their default
settings.

Jumper JP11:

1-2 On: Intel CPU

(default)

2-3 On: Reserved

Function

Auto*

66MHz

100MHz

JP2
2-3 On
2-3 On
1-2 On

JP3
1-2 On
2-3 On

All off

“*” denotes default

2

Hardware Installation

17

2.6 Jumper Settings for Clearing CMOS Data

Jumper JP8

Clear CMOS Data
If, for some reason, the CMOS data

becomes corrupted or you forgot
the supervisor/user/keyboard
password, the system can be
reconfigured with the default values
stored in the ROM BIOS. To load
the default values, power off your
system and unplug the power

cord. Set JP8 pins 2 and 3 to On.

Wait for a few seconds and set JP8
back to its default setting, pins 1 and
2 On. You may now plug the power
cord and power-on your system.

1-2 On

2-3 On

All Off

1
2

3

1
2

3

1
2

3

2-3 On:

Clear CMOS Data

1-2 On: Normal

(default)

123

123

Jumpers JP2 & JP3:

2

18

Hardware Installation

2.7 Jumper Settings for VGA on Board

Jumper JP6

Onboard VGA Enable/Disable
The system is equipped with an onboard VGA por t and a 15-pin

onboard VGA connector. If you wish to install a VGA add-on card,
set JP6 to pins 2-3 On to disable the onboard VGA.

2-3 On: Disable

1-2 On: Enable

(default)

123

123

2

Hardware Installation

19

2.8 Jumper Settings for M-system Flash Disk
Address

Jumper JP10

M-system Flash Disk Address Select

5-6 On: (default)

1

2

4

35

6

8

7

JP10

1-2 On
3-4 On

5-6 On*

7-8 On

Address

C0000
C8000
D0000

D8000

“*” denotes default

2

20

Hardware Installation

2.9 Jumper Settings for Wake-On-Keyboard/
Wake-On-Mouse

Jumper JP1

Wake-On-Keyboard/Wake-On-Mouse
The system board supports the

Wake-On-Keyboard/Wake-On­Mouse function. This function allows
you to use the keyboard or PS/2
mouse to power-on the system. By
default, JP1 is disabled. To use this
function, set JP1 to 2-3 On.
“Keyboard/Mouse Power On” in
the Integrated Peripherals setup of
the Award BIOS must be set
accordingly. Refer to chapter 3 for
details.

Warning:

1. If JP1 was previously enabled with a password set in the
“KB Power On Password” field, and now you wish to
disable the Wake-On-Keyboard (password) function, make
sure to set the “Keyboard/Mouse Power On” field to
Disabled prior to setting JP1 to disabled. You will not be
able to boot up the system if you fail to do so.

2. The power button will not function once a keyboard
password has been set in the “KB Power On Password”
field of the Integrated Peripherals setup. You must type
the correct password to power-on the system.

3. The 5VSB power source of your power supply must
support ≥720mA (minimum).

2-3 On: Enable

1-2 On: Disable

(default)

123

1

23

2

Hardware Installation

21

2.10 Ports and Connectors

2.10.1 Serial Ports

The system board is
equipped with two onboard
serial ports (Teal/Turquoise
color) at locations J6 (COM

1) and J10 (COM 2) of the
ATX double deck prots.

The system board is also
equipped with two 9-pin
onboard connectors at
locations J5 (COM 1) and
J12 (COM 2) for optional
serial port cables. Connect
one serial port cable to
connector J5 for COM 1
primary serial port and the
other serial port cable to
connector J12 for the COM
2 secondary serial port. Make sure the colored stripes on the
ribbon cables are aligned with pins 1 of connector J5 and J12.
Mount the card-edge bracket to the system chassis.

The built-in serial por ts are RS-232C asynchronous communication
ports with 16C550A-compatible UARTs that can be used with
modems, serial printers, remote display terminals, and other serial
devices. You can set the serial ports’ I/O address in the Integrated
Peripherals setup of the Award BIOS.

2

22

Hardware Installation

2.10.2 PS/2 Mouse and Keyboard Ports

The system board is equipped
with an onboard PS/2 mouse
port (Green) and an PS/2
keyboard (Purple) port - both at
location J1 of the ATX double
deck ports; it is also equipped
with a 5-pin onboard mouse
connector at location J3 and a 5­pin onboard keyboard connector
at location J2.

The PS/2 mouse port/connector
uses IRQ12. If a mouse is not
connected to the port/connector,
IRQ12 will be reserved for other
expansion cards.

Warning:

Make sure to turn off your computer prior to connecting or
disconnecting a mouse or keyboard. Failure to do so may
damage the system board.

2

Hardware Installation

23

Setting

SPP
(Standard Parallel Port)

ECP
(Extended Capabilities Po rt)

EPP
(Enhanced Parallel Port)

Function

Allows normal speed operation
but in one direction only.

Allows parallel port to operate in
bidirectional mode and at a speed
faster than the SPP’s data transfer
rate.

Allows bidirectional parallel port
operation at maximum speed.

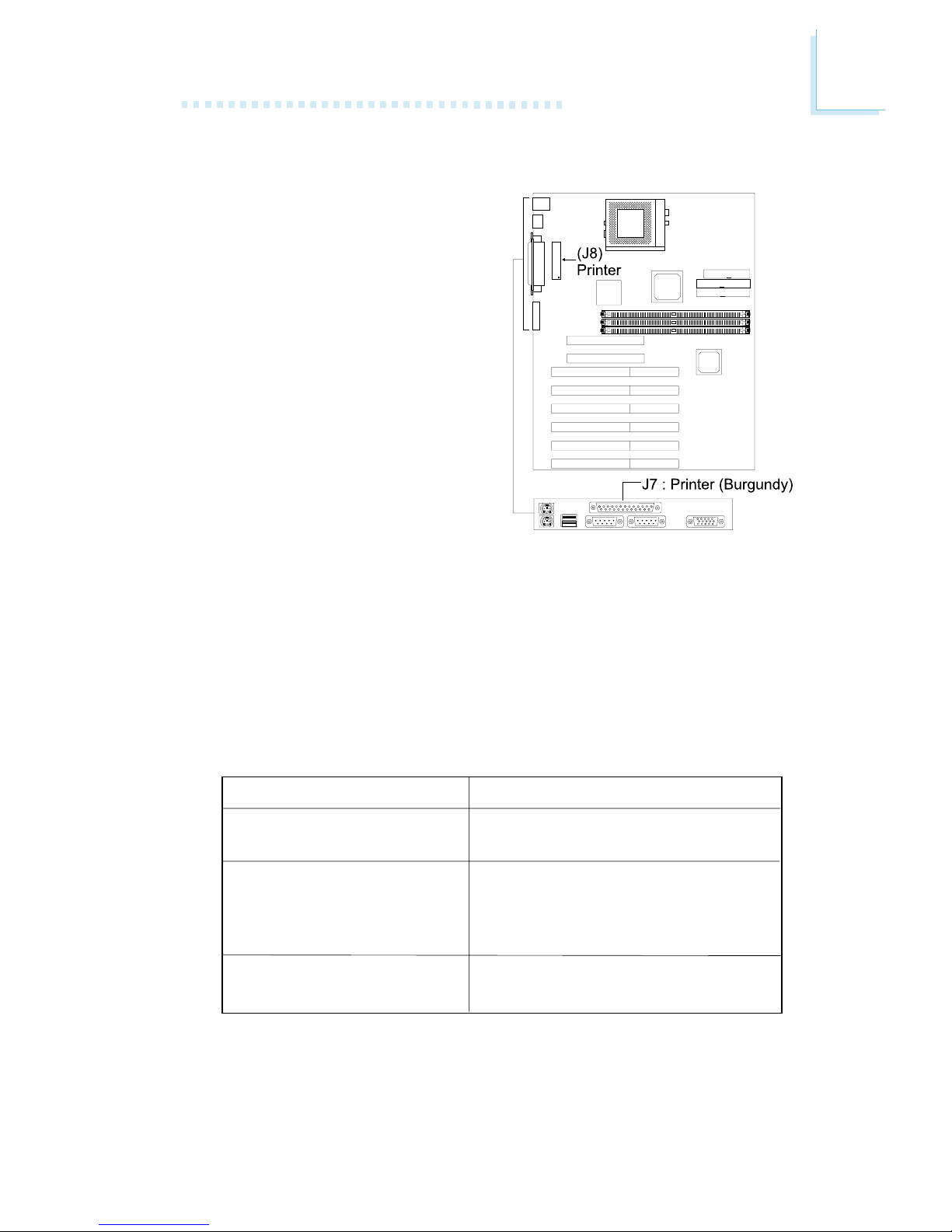

2.10.3 Parallel Ports

The system board has a stan­dard printer port (Burgundy)
located at J7 of the ATX
double deck ports for inter­facing your PC to a parallel
printer; it is also equipped
with 1 25-pin connector (J8)
for optional printer por t cable.
Attach the DB-25 printer por t
cable to connector J8 on the
system board. Make sure the
colored stripe on the ribbon
cable aligns with pin 1 of
connector J8. Use a small
nutdriver to mount the cable
into a DB-25 cutout in the system chassis. If your printer port
cable is attached to a card-edge bracket, connect the cable to
connector J8 on the system board and mount the card-edge
bracket to the system chassis.

The printer port supports SPP, ECP and EPP modes. You can set
the port’s mode in the Integrated Peripherals setup of the Award
BIOS.

2

24

Hardware Installation

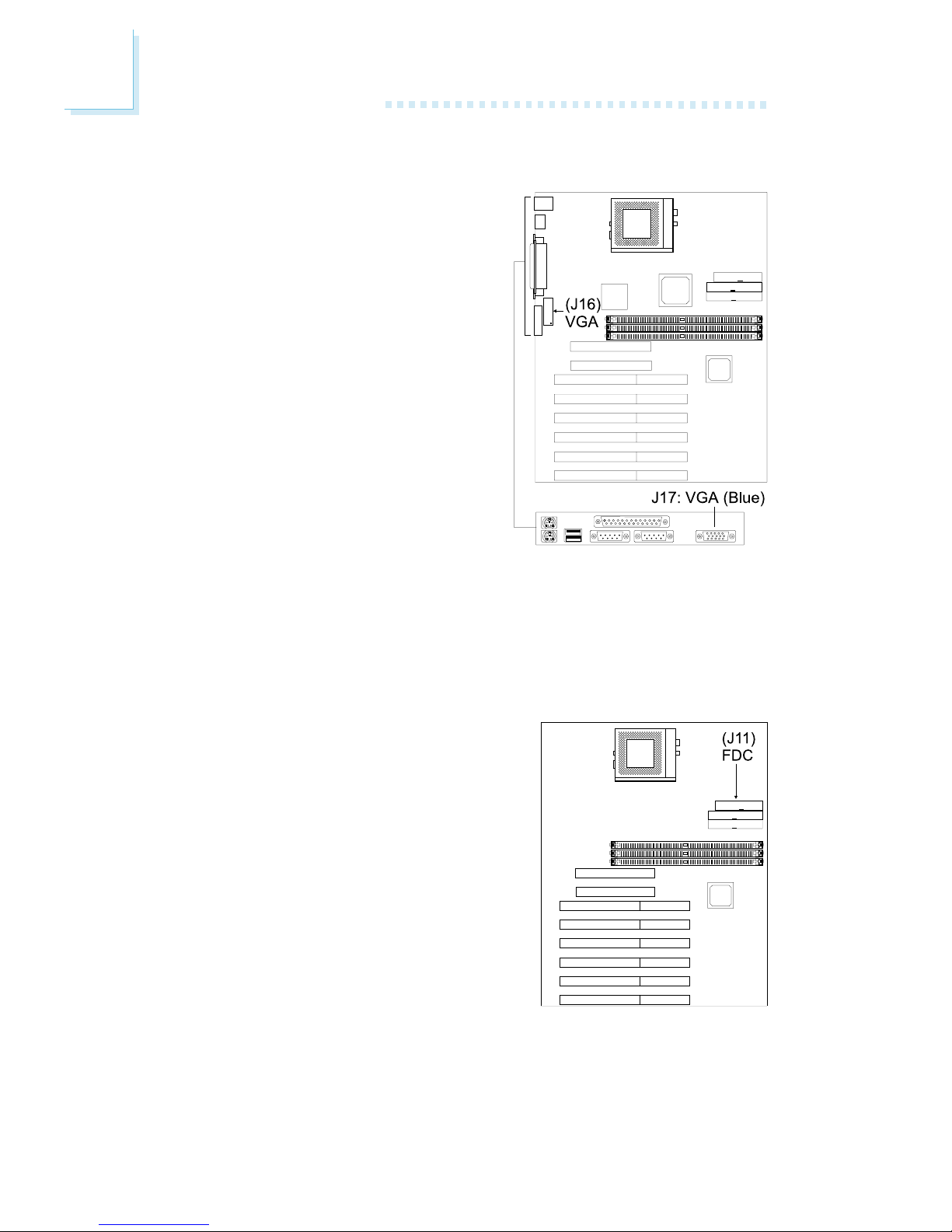

2.10.4 VGA Por t

The system board is equipped
with a VGA prot at location J17
(Blue) of the double deck por ts.

The system board is also
equipped with 1 15-pin
connector (J16) for optional VGA
port cable. Connect the VGA
port cable to connector J16 on
the system board. Make sure the
colored stripe on the ribbon
cable is aligned with pin 1 of
connector J16. Use a small
nutdriver to mount the VGA por t
into a cutout in the system
chassis.

2.10.5 Floppy Disk Controller

The system board is equipped with
a shrouded floppy disk header that
supports two standard floppy disk
drives. To prevent improper floppy
cable installation, the shrouded floppy
disk header has a keying mechanism.
The 34-pin connector on the floppy
cable can be placed into the header
only if pin 1 of the connector is
aligned with pin 1 of the header. You
may enable or disable this function in
the Integrated Peripherals setup of
the Award BIOS.

2

Hardware Installation

25

2.10.6 IDE Hard Disk Interface

The system board is equipped
with two shrouded PCI IDE
headers that will interface four
Enhanced IDE (Integrated Drive
Electronics) hard disk drives. To
prevent improper IDE cable
installation, each shrouded PCI
IDE header has a keying
mechanism. The 40-pin connector
on the IDE cable can be placed
into the header only if pin 1 of
the connector is aligned with pin
1 of the header.

Connecting the Hard Disk Cable

1. If you are connecting two hard drives, install the 40-pin
connector of the IDE cable into the primary shrouded IDE
header (connector J15). If you are adding a third or fourth
IDE device, install the 40-pin connector of the other IDE cable
into the secondary shrouded IDE header (connector J14).

Connecting the Floppy Disk Cable

1. Install the 34-pin header connector into the shrouded floppy
disk header (J11) on the system board. The colored edge of
the ribbon should be aligned with pin 1 of J11.

2. Install the other 34-pin header connector(s) into the disk
drive(s). Align the colored edge of the daisy chained ribbon
cable with pin 1 of the drive edge connector(s). The end-most
connector should be attached to the drive you want to
designate as Drive A.

2

26

Hardware Installation

Adding a Second IDE Hard Drive

When using two IDE drives, one must be set as the master and
the other as the slave. Follow the instructions provided by the
drive manufacturer for setting the jumpers and/or switches on the
drives.

We recommend that you use Enhanced IDE or ATA-2, ATA/33
and ATA/66 hard drives be from the same manufacturer. In a few
cases, drives from two different manufacturers will not function
properly when used together. The problem lies in the hard drives,
not the system board.

Important:

If you encountered problems while using an ATAPI CD-ROM
drive that is set in Master mode, please set the CD-ROM
drive to Slave mode. Some ATAPI CD-ROMs may not be
recognized and cannot be used if incorrectly set in Master
mode.

2. Install the other 40-pin header connector(s) into the device
with the colored edge of the ribbon cable aligned with pin 1
of the drive edge connector(s).

Note:

Refer to your disk drive user’s manual for information about
selecting proper drive switch settings.

2

Hardware Installation

27

2.10.8 IrDA Connector

The system board is equipped with
an IrDA connector for wireless
connectivity between your computer
and peripheral devices. The IRDA
(Infrared Data Association)
specification supports data transfers
of 115K baud at a distance of 1
meter.

Connect your IrDA cable to connec­tor J23 on the system board. Set
“UART2 Mode Select” in the Inte­grated Peripherals setup of the
Award BIOS to the type of IrDA standard supported by your
device. You must have the proper drivers installed in your
operating system to use this connector. Refer to your operating
system’s manual or documentation.

2.10.7 USB Ports

The system board is equipped
with two onboard USB ports at
location J4. USB allows data
exchange between your computer
and a wide range of
simultaneously accessible external
Plug and Play peripherals.

You must have the proper drivers
installed in your operating system
to use these ports. Refer to your
operating system’s manual or
documentation.

2

28

Hardware Installation

2.10.9 CPU Fan Connector

The processor must be kept cool
by using a fan with heatsink.
Connect the CPU fan to the 3-pin
fan connector at location J9 on the
system board. The system is
capable of monitoring and
controlling the speed of the CPU
fan. The CPU fan will automatically
turn off once the system enter s the
Suspend mode.

Pin

1
2

3

Function

On/Off
+12V
Sense

Pin

1

2
3
4
5

Function

VCC
N. C.
IRRX
Ground
IRTX

Note:

The sequence of the functions on some IrDA cable may be
reversed from the pin function defined on the system board.
Make sure to connect the cable to the IrDA connector
according to their pin functions.

2

Hardware Installation

29

2.10.11 Second Chaasis Fan Connector

If you are installing a second chassis fan in the system unit, connect
the fan’s connector to location J22 on the system board.

Pin

1
2

3

Function

Ground
+12V
N. C.

2.10.10 Chassis Fan Connector

The system board is equipped
with a chassis fan connector. If you
are installing a fan in the system
unit, connect the fan’s connector to
location J19 on the system board.
The fan will provide adequate
airflow throughout the chassis to
prevent overheating the processor.
The system is capable of
monitoring and controlling the
speed of the chassis fan. The
chassis fan will automatically turn
off once the system enters the
Suspend mode.

Pin

1
2

3

Function

On/Off
+12V
Sense

2

30

Hardware Installation

2.10.12 SB-LINK™ Connector

If the system board is installed with
a Creative sound card that requires
connecting the card to the SB­LINK™ connector, connect the cable
that came with the sound card to
connector J21. Refer to the sound
card’s manual for more infor mation.

Pin

1

2
3
4
5

6

Function

PC-PCI-GNTx
DGND
Key
PC-PCI-REQx
DGND
SERIRQ

2.10.13 Thermal Sensor Connector

If you wish to monitor the thermal condition of a device, connect
one end of the thermal cable to the RT2 connector on the
system board and the other end to the device.

Pin

1
2

Function

Ground
Sense

2

Hardware Installation

31

2.10.14 Wake-On-LAN Connector

The system board supports the Wake-On-LAN function. This
function will allow the network to remotely power-on a Soft
Power Down (Soft-Off) PC. However, if your system is in the
Suspend mode, you can power-on the system only through an
IRQ or DMA interrupt.

To use the Wake-On-LAN function, you must enable the “Resume
on LAN” field in the Power Management Setup of the Award
BIOS. Your LAN card package should include a cable. Connect one
end of the cable to the wakeup header on the card and the other
end to location J20 on the system board. The network will detect
Magic Packet and assert a wakeup signal to power-up the system.
Refer to the add-in card’s manual for details. Note: Your LAN card
must suppor t the remote wake up function.

Pin

1
2
3

Function

+5VSB (720mA)
Ground
WOL

Important:

The 5VSB power source of your power supply must support

≥

720mA (minimum).

2

32

Hardware Installation

2.10.15 Chassis Open Connector

The “chassis open” function, when enabled, will alert you that the
system chassis is open. To use this function, please follow the steps
below.

1. Connect the “chassis sensor” cable that is attached on your
system chassis to location J18 on the system board.

2. Install the “Hardware Doctor” utility contained in the provided
CD. By default, this function is disabled. When enabled, a
warning message will appear when the chassis is open. The
utility may also be configured so that a beeping alarm will
sound when the chassis is open. Refer to the Hardware
Doctor Utility section in chapter 4 for instructions on installing
the utility.

Pin

1
2

3

4

Function

+5V
N. C.
Chassis signal
Ground

2

Hardware Installation

33

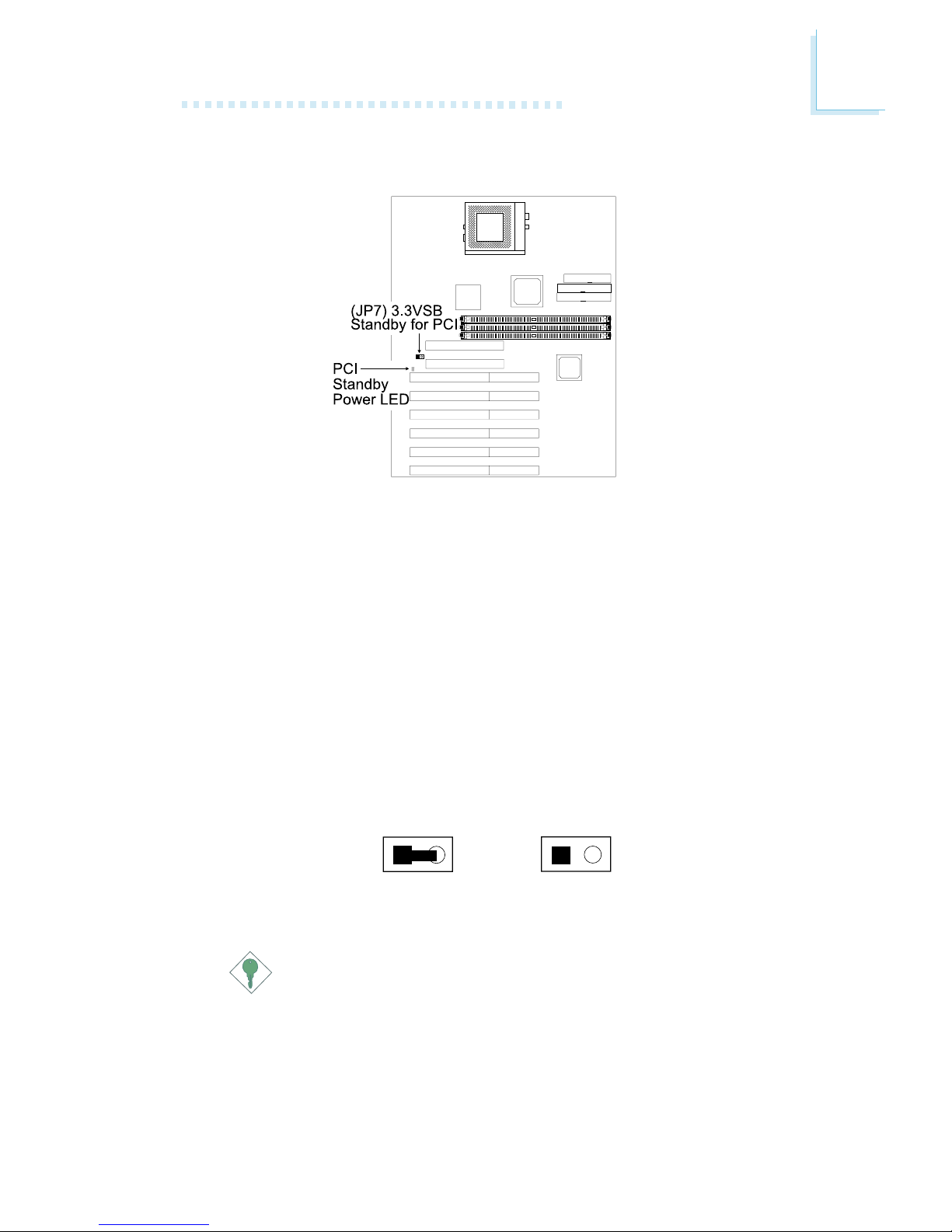

2.10.16 PCI Standby Power LED

PCI Standby Power LED

This LED will light when the system is in the power-on, Soft-Off or
Suspend mode.

3.3VSB Standby for PCI (Jumper JP7)

The default setting of jumper JP7 is On. It provides 3.3VSB
Standby power to the PCI slots. If you are using a PCI modem
card that does not comply to the PCI 2.2 specification, please
set this jumper to Off. The PCI Standby Power LED’s light will
subsequently turn off.

2

1

On Off

21

Important:

The Lighted LED serves as a reminder that you must power­off the system then turn off the power supply’s switch or
unplug the power cord prior to installing any add-on cards.

2

34

Hardware Installation

2.10.17 Power Connector

The pin assignment of the ATX power connector is shown below.

Pin

1
2
3
4
5
6
7
8
9

10

Function

3.3V

3.3V
COM
+5V
COM
+5V
COM
PW-OK
5VSB
+12V

Pin

11
12
13
14
15
16
17
18
19
20

Function

3.3V

-12V
COM
PS-ON
COM
COM
COM

-5V
+5V
+5V

Important:

The system board requires a minimum of 3.3V/6A electric
current.

PS1

2

Hardware Installation

35

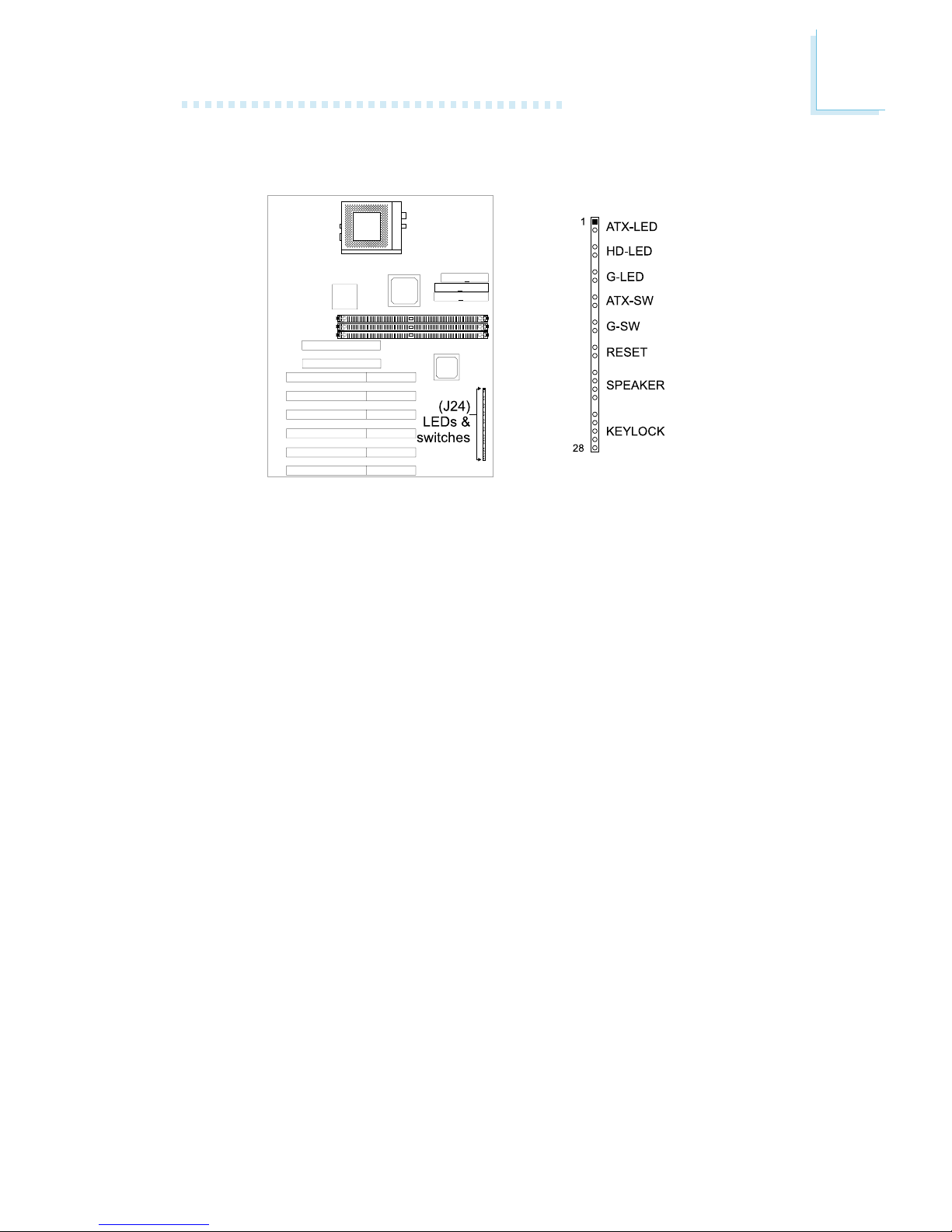

2.10.18 LEDs and Switches

ATX-LED:

This LED will light when the 5VSB power is active.

HD-LED: Primary/Secondary IDE LED

This LED will light when the hard drive is being accessed.

G-LED: Green LED

This LED will light when the system is in the Suspend mode.

ATX-SW: ATX Power Switch

Depending on the setting in the BIOS setup, this switch is a “dual
function power button” that will allow your system to enter the
Soft-Off or Suspend mode. Refer to “Soft-Off By PWR-BTTN” in
the Power Management Setup (Chapter 3).

G-SW: Green Switch

This switch will allow your system to enter the Suspend mode.

RESET: Reset Switch

This switch allows you to reboot without having to power off the
system thus prolonging the life of the power supply or system.

SPEAKER: Speaker Connector

This connects to the speaker installed in the system chassis.

2

36

Hardware Installation

KEYLOCK: Power/Standby LED and Keylock Connector

Use pins 24-26 to connect to the Power/Standby LED. This LED
will light when the system’s power is on and blinks when the
system enters the Suspend mode .

Use pins 27 to 28 to connect to the keyboard lock (located on
the front panel of the system chassis) for locking the keyboard.

Pi n Pin Assignment

ATX LED 1 ATX Power

(ATX 5VSB standby) 2 Ground

3N. C.

HD-LED 4 HDD LED Power
(Primar y/Secondary IDE LED) 5 HDD

6N. C.

G-LED 7 Green LED Power
(Green LED) 8 Green

9N. C.

ATX-SW 10 PWRBT
(ATX power switch) 1 1 Ground

12 N. C.

G-SW 13 SMI
(Green switch) 1 4 Ground

15 N. C.

RESET 1 6 H/W Reset
(Reset switch) 1 7 Ground

18 N. C.

SPEAKER 1 9 Speaker Data
(Speaker connector) 20 N. C.

21 Ground
22 Speaker Power

23 N. C.

KEYLOCK 24 LED Power
(Keylock and power LED 2 5 N. C .
connector) 2 6 Standby Signal

27 Keylock
28 Ground

2

Hardware Installation

37

2.10.19 Expansion Slots

The system board is equipped with 1 dedicated PCI slot, 5
dedicated 16-bit ISA slot and 1 shared PCI/ISA slot. All CPI and
ISA slots are bus masters.

38

3.1 The Basic Input/Output System

The Basic Input/Output System (BIOS) is a program that takes care
of the basic level of communication between the processor and
peripherals. In addition, the BIOS also contain codes for various
advanced features found in this system board. This chapter explains
the Setup Utility for the Award BIOS.

After you power up your system, the BIOS message appears on
your screen and the memory count begins. After the memor y test,
the following message will appear on the screen:

Press DEL to enter setup

If the message disappears before you respond, restar t your system
or press the “Reset” button. You may also restart the system by
pressing the <Ctrl> <Alt> and <Del> keys simultaneously.

When you press <Del>, the main program screen will appear.

3.1.1 Standard CMOS Setup

Use the arrow keys to highlight “Standard CMOS Setup” and press
<Enter>. A screen similar to the one on the next page will appear.

ROM PCI/ISA BIOS

CMOS SETUP UTILITY

AWARD SOFTWARE, INC.

STANDARD CMOS SETUP
BIOS FEATURES SETUP
CHIPSET FEATURES SETUP
POWER MANAGEMENT SETUP
PNP/PCI CONFIGURATION
LOAD FAIL-SAFE SETTINGS
LOAD OPTIMAL SETTINGS

INTEGRATED PERIPHERALS
SUPERVISOR PASSWORD
USER PASSWORD
IDE HDD AUTO DETECTION
SAVE & EXIT SETUP
EXIT WITHOUT SAVING

Esc
F10

: Quit
: Save & Exit Setup

↑↓→←

(Shift) F2

: Select Item
: Change Color

Chapter 3 - Award BIOS Setup Utility

39

3

Award BIOS Setup Utility

Date

The date format is <day>, <month>, <date>, <year>. Day displays
a day, from Sunday to Saturday. Month displays the month, from
January to December. Date displays the date, from 1 to 31. Year
displays the year, from 1994 to 2079.

Time

The time format is <hour>, <minute>, <second>. The time is based
on the 24-hour militar y-time clock. For example, 1 p.m. is 13:00:00.
Hour displays hours from 00 to 23. Minute displays minutes from
00 to 59. Second displays seconds from 00 to 59.

Primary Master, Primary Slave, Secondary Master and Secondary
Slave

These categories allow you to enter the appropriate specifications
for the type of hard disk drive(s) installed in your system. Press
<PgUp> or <PgDn> to select a numbered hard disk type or type
the number and press <Enter>. The hard disk will not work
properly if you enter improper information for this category. You
can use Type “User” to define your own drive type manually. This
information should be included in the documentation from your hard
disk vendor. If you select Type ”Auto”, the BIOS will auto-detect the
HDD & CD-ROM drive at the POST stage and show the IDE for
the HDD & CD-ROM drive. If a hard disk has not been installed,
select “None” and press <Enter>.

The settings on the screen are for reference only. Your version may not be
identical to this one.

ROM PCI/ISA BIOS

STANDARD CMOS SETUP

AWARD SOFTWARE, INC.

Date (mm:dd:yy) : Thu, Dec 2 1999
Time (hh:mm:ss) : 10: 35: 50

HARD DISKS
Primary Master
Primary Slave
Secondary Master
Secondary Slave

TYPE
Auto
Auto
Auto
Auto

SIZE

0
0
0
0

CYLS

0M
0M
0M
0M

HEAD

0
0
0
0

PRECOMP

0
0
0
0

LANDZ

0
0
0
0

SECTOR

0
0
0
0

MODE
Auto
Auto
Auto
Auto

Drive A : 1.44M, 3.5 in.
Drive B : None

Video : EGA/VGA
Halt on : All, But Keyboard

Base Memory : 640K

Extended Memory : 64512K

Other Memory : 384K

Total Memory : 65536K

PU/PD/+/- : Modify

↑↓→←

: Select Item
: Change

(Shift)F2

:
:
:
:

Esc
F10

: Quit
: Save & Exit Setup

40

3

Award BIOS Setup Utility

Drive A and Drive B

These categories identify the types of floppy disk drives installed.

None No floppy drive is installed
360K, 5.25 in. 5-1/4 in. standard drive; 360KB capacity

1.2M, 5.25 in. 5-1/4 in. AT-type high-density dr ive; 1.2MB capacity
720K, 3.5 in. 3-1/2 in. double-sided drive; 720KB capacity

1.44M, 3.5 in. 3-1/2 in. double-sided drive; 1.44MB capacity

2.88M, 3.5 in. 3-1/2 in. double-sided drive; 2.88MB capacity

Video

This categor y selects the type of video adapter used for the primary
system monitor. Although secondary monitors are suppor ted, you
do not have to select the type in Setup. The default setting is EGA/
VGA (BIOS default, Setup default).

EGA/VGA Enhanced Graphics Adapter/Video Graphics Arr ay. For

EGA, VGA, SVGA and PGA monitor adapter s.

CGA 40 Color Graphics Adapter. Power up in 40-column

mode.

CGA 80 Color Graphics Adapter. Power up in 80-column

mode.

Mono Monochrome adapter. Includes high resolution

monochrome adapters.

Halt On

This category determines whether the system will stop if an error
is detected during power up.

No Errors The system boot will not stop for any error s detected.
All Errors The system boot will stop whenever the BIOS detects

a non-fatal error.

All, But Keyboard The system boot will not stop for a keyboard

error ; it will stop for all other error s.

All, But Diskette The system boot will not stop for a disk error;

it will stop for all other error s.

All, But Disk/Key The system boot will not stop for a disk or

keyboard error ; it will stop for all other error s.

41

3

Award BIOS Setup Utility

3.1.2 BIOS Features Setup

The BIOS Features Setup allows you to configure your system for
basic operation. Some entries are defaults required by the system
board, while other s, if enabled, will improve the performance of your
system or let you set some features according to your preference .

The settings on the screen are for reference only. Your version may not be
identical to this one.

Virus Warning

This category protects the boot sector and partition table of your
hard disk drive. When this item is enabled, the Award BIOS will
monitor the boot sector and par tition table of the hard disk drive.
If an attempt is made to write to the boot sector or par tition table
of the hard disk drive, the BIOS will halt the system and an error
message will appear.

After seeing the error message , if necessar y, you will be able to r un
an anti-virus progr am to locate and remove the problem before any
damage is done.

Many disk diagnostic programs which attempt to access the boot
sector table will cause the warning message to appear. If you are
running such a program, we recommend that you first disable this
category. Also, disable this categor y if you are installing or running
cer tain oper ating systems like Windows® 95 or the operating system
may not install nor work.

ROM PCI/ISA BIOS

BIOS FEATURES SETUP

AWARD SOFTWARE, INC.

Virus Warning
CPU L1 Cache
CPU L2 Cache
CPU L2 Cache ECC Checking
Quick Power On Self Test
Boot Sequence
Swap Floppy Drive
Boot Up Floppy Seek
Boot Up NumLock Status
Typematic Rate Setting
Typematic Rate (Chars/Sec)
Typematic Delay (Msec)
Security Option
PCI/VGA Palette Snoop
OS Select For DRAM > 64MB
HDD S.M.A.R.T. Capability
Processor Serial Number

: Disabled
: Enabled
: Enabled
: Enabled
: Enabled
: A, C, SCSI
: Disabled
: Disabled
:On
: Disabled
:6
: 250
: Setup
: Disabled
: Non-OS2
: Disabled
: Disabled

ESC
F1
F5
F6
F7

: Quit
: Help
: Old Values
: Load Fail-Safe Settings
: Load Optimal Settings

↑↓→←

PU/PD/+/­(Shift) F2

: Select Item
: Modify
: Color

42

3

Award BIOS Setup Utility

CPU L1 Cache and CPU L2 Cache

These categories speed up the memor y access. The default value
is enabled. Enable the External Cache for better performance.

CPU L2 Cache ECC Checking

By default, ECC is enabled to check the Level 2 cache. If you are
not using this function, set this field to Disabled.

Quick Power On Self Test

This category speeds up Power On Self Test (POST) after you
power on your system. When Enabled, the BIOS will shorten or
skip some check items during POST.

Boot Sequence

This category determines which drive to search first for the disk
operating system. The default is A, C, SCSI. The options are:

A, C , SCSI; C, A, SCSI; C, CDROM, A; CDROM, C, A;
D, A, SCSI; E, A, SCSI; F, A, SCSI; SCSI, A, C;
SCSI, C , A; C only; LS/ZIP, C.

Swap Floppy Drive

When this option is enabled and the system is booting from the
floppy drive, the system will boot from drive B instead of drive A.
When this option is disabled and the system is booting from the
floppy drive, the system will boot from drive A. You must have two
floppy drives to use this function.

Boot Up Floppy Seek

When enabled, the BIOS will check whether the floppy disk drive
installed is 40 or 80 tracks. Note that the BIOS cannot distinguish
between 720K, 1.2M, 1.44M and 2.88M drive types as they are all
80 tracks. When disabled, the BIOS will not search for the type of
floppy disk drive by track number. Note that there will not be any
warning message if the drive installed is 360KB.

43

3

Award BIOS Setup Utility

Boot Up NumLock Status

This allows you to determine the default state of the numeric
keypad. By default, the system boots up with NumLock on wherein
the function of the numeric keypad is the number keys. When set
to Off, the function of the numeric keypad is the arrow keys.

Typematic Rate Setting

Enable this filed to activate the settings in the typematic rate field
and typematic delay filed. When this filed is set to Disabled, the
settings in the following two fields won’t take effect.

Typematic Rate (Chars/Sec)

This selection allows you to select the rate at which the keys are
accelerated.

Typematic Delay (Msec)

This selection allows you to select the delay between when the key
was first depressed and when the acceleration begins.

Security Option

This field determines when the system will prompt for the
password - everytime the system boots or only when you enter
the BIOS setup. Set the password in the Supervisor/User
Password submenu.

System The system will not boot and access to Setup will be

denied unless the correct password is entered at the
prompt.

Setup The system will boot, but access to Setup will be denied

unless the correct password is entered at the prompt.

PCI/VGA Palette Snoop

It determines whether the MPEG ISA/VESA VGA Cards can work
with PCI/VGA or not. The default value is Disabled.

Enabled PCI/VGA working with MPEG ISA/VESA VGA cards.
Disabled PCI/VGA not working with MPEG ISA/VESA VGA

cards.

44

3

Award BIOS Setup Utility

OS Select for DRAM > 64MB

This item allows you to access the memory that is over 64MB in
OS/2. The options are: Non-OS/2 and OS/2.

HDD S.M.A.R.T. Capability

The system board supports SMART (Self-Monitoring, Analysis and
Repor ting Technology) hard drives. SMART is a reliability prediction
technology for ATA/IDE and SCSI drives. The drive will provide
sufficient notice to the system or user to backup data prior to the
drive’s failure. The default is Disabled. If you are using hard drives
that support S.M.A.R.T., set this field to Enabled. SMART is
suppor ted in ATA/33 or later hard drives.

Processor Serial Number

This field will appear only when you are using a Pentium III
processor. Each Pentium III processor comes with an individual
"processor serial number" which by default is activated. Therefore,
when connected to the Internet, Pentium III processor transmits
the serial number online making it possible to track your online
activity. The field provides you the option of disabling this

function.

45

3

Award BIOS Setup Utility

This section gives you functions to configure the system based on
the specific features of the chipset. The chipset manages bus
speeds and access to system memory resources. It also
coordinates communications between the conventional ISA bus
and the PCI bus. These items should not be altered unless

necessary. The default settings have been chosen because they

provide the best operating conditions for your system. The only
time you might consider making any changes would be if you
discovered some incompatibility or that data was being lost while
using your system.

SDRAM RAS-to-CAS Delay

This field allows you to inser t a timing delay between the C AS and
RAS strobe signals, used when DRAM is written to, read from, or
refreshed. This field applies only when synchronous DRAM is
installed in the system.

SDRAM RAS Precharge Time

If there is insufficient number of cycles for the RAS to accumulate
its charge before DRAM refresh, the refresh may be incomplete and
the DRAM may fail to retain data.

3.1.3 Chipset Features Setup

:3
:3
:3
: Disabled
: Non-ECC
: Disabled
: Disabled
: Disabled
:1
:1
: Disabled
: Disabled
: Disabled

ROM PCI/ISA BIOS

CHIPSET FEATURES SETUP

AWARD SOFTWARE, INC.

SDRAM RAS-to-CAS Delay
SDRAM RAS Precharge Time
SDRAM CAS Latency Time
SDRAM Precharge Control
DRAM Data Integrity Mode
System BIOS Cacheable
Video BIOS Cacheable
Video RAM Cacheable
8 Bit I/O Recovery Time
16 Bit I/O Recovery Time
Memory Hole At 15M-16M
PCI 2.1 Compliance
Spread Spectrum

↑ ↓ → ←

ESC
F1
F5
F6
F7

: Quit
: Help
: Old V alues
: Load Fail-Safe Settings
: Load Optimal Settings

PU/PD/+/­(Shift) F2

: Select Item
: Modify
: Color

**** System Health Monitor ****
Current CPU Temperature
First System Temperature
Second System Temperature
Current Chassis FAN Speed
Current CPU FAN Speed
CPU(V)
+1.5 V
+3.3 V
+5 V
+12 V

-12 V

-5 V

:33oC/91oF
:24oC/75oF
:29oC/84oF
: 0 RPM
: 4326 RPM

The settings on the screen are for reference only. Your version may not be identical
to this one.

: 1.61 V
: 1.52 V
: 3.26 V
: 4.94 V
: 11.97 V
: -11.42 V
: -5.04 V

46

3

Award BIOS Setup Utility

SDRAM CAS Latency Time

The default setting is 3 which is 3 clock cycles for the CAS
latency.

DRAM Data Integrity Mode

The ECC (Error Checking and Correction) function is supported
only in x72 (72-bit) PC SDRAM DIMMs. If you are using x64 (64­bit) PC SDRAM DIMMs, set this field to Non-ECC .

Non-ECC Uses x64 PC SDRAM DIMM.
ECC This option allows the system to recover from memory

failure. It detects single-bit and multiple-bit errors, then
automatically corrects single-bit error.

System BIOS Cacheable

When this option is enabled, accesses to the system BIOS ROM
addressed at F0000H-FFFFFH are cached, provided that the cache
controller is enabled. The larger the range of the Cache RAM, the
higher the efficiency of the system.

Video BIOS Cacheable

As with caching the system BIOS, enabling the Video BIOS cache
will allow access to video BIOS addresssed at C0000H to C7FFFH
to be cached, if the cache controller is also enabled. The lar ger the
range of the Cache RAM, the faster the video perfor mance.

Video RAM Cacheable

When enabled, it allows the video RAM to be cacheable thus
providing better video performance. If your graphics card does not
suppor t this function, leave this field in its default setting - Disabled.

8 Bit I/O Recovery Time and 16 Bit I/O Recovery Time

The recovery time is the length of time , measured in SYSCLK, which
the system will delay after the completion of an input/output request.
This delay takes place because the CPU is operating so much faster
than the input/output bus that the CPU must be delayed to allow
for the completion of the I/O. This item allows you to determine
the recovery time allowed for 8-bit I/O or 16-bit I/O.

47

3

Award BIOS Setup Utility

ACPI Function

By default, the ACPI function is disabled. This function should be
enabled only in operating systems that suppor t ACPI.

Power Management

This category allows you to select the type (or degree) of power
saving by changing the length of idle time that elapses before the
Standby mode and Suspend mode are activated.

Disable No power management. Disables the Standby, Suspend

modes and HDD Power Down.

Min. Power Saving Minimum power management. Standby Mode

= 1 hr.; Suspend Mode = 1 hr.; HDD Power
down = 15Min.

3.1.4 Power Management Setup

The Power Management Setup allows you to configure your system
to most effectively save energy. If you like to use the soft power
down feature of Windows 95/98, you must enable the Power
Management below. Select Min. Power, Max. Power or User Defined.
Either one can be used as long as it is NOT disabled.

The settings on the screen are for reference only. Your version may not be
identical to this one.

ROM PCI/ISA BIOS

POWER MANAGEMENT SETUP

AWARD SOFTWARE, INC.

ACPI Function
Power Management
PM Control by APM
Video Off Method
Video Off After
MODEM Use IRQ
Standby Mode
Suspend Mode
HDD Power Down
VGA Active Monitor
Soft-Off by PWR-BTTN
PWR Lost Resume State
Resume on Ring
Resume on LAN
Resume on Alarm

: Disabled
: User Define
:Yes
: DPMS
: Suspend
:3
: Disabled
: Disabled
: Disabled
: Disabled
: Instant-Off
: Last State
: Disabled
: Disabled
: Disabled

ESC
F1
F5
F6
F7

: Quit
: Help
: Old Values
: Load Fail-Safe Settings
: Load Optimal Settings

PU/PD/+/­(Shift) F2

: Select Item
: Modify
: Color

↑ ↓ → ←

• +1.5V, +3.3V, +5V, +12V, -12V and -5V

These fields show the output voltage of the power supply.

48

3

Award BIOS Setup Utility

Max. Power Saving Maximum power management. Standby Mode

= 1 min.; Suspend Mode = 1 min. and HDD
Powen Down = 1 Min.

User Defined Allows you to set each mode individually. When

selected, user s can set a time value in the Standby
Mode, Suspend Mode and HDD Pown Down
fields respectively.

PM Control by APM

Yes An Advanced Power Management device will be activated

to enhance the power saving mode and stop the CPU’s
internal clock. Use this option in Windows® 95/98. (default)

No The system BIOS will ignore APM when initiating the Power

Management mode.

Video Off Method

This determines the manner in which the monitor is blanked.

V/H SYNC + Blank This selection will cause the system to turn

off the ver tical and horizontal synchronization
por ts and write blanks to the video buffer.

Blank Screen This option only writes blanks to the video buffer.
DPMS Initializes display power management signaling. Use

this option if your video board suppor ts it.

Video Off After

N/A The system BIOS will never turn off the screen.
Suspend The screen is off when the system is in the Suspend

mode.

Standby The screen is off when the system is in the Standby

mode.

MODEM Use IRQ

This category is used to set an IRQ channel (IRQ 3, 4, 5, 7, 9, 10
or 11) for the external modem installed in your system. However,
if the “Resume on Ring” or “Resume on LAN” field is disabled, the
BIOS will mask the IRQ assigned for the modem. This is to prevent
the modem or LAN from waking up the system when it is in the
Suspend mode.

49

3

Award BIOS Setup Utility

Standby Mode

This is user configurable only when the Power Management
category is set to User Defined. When enabled and after the set
time of system inactivity, video will be shut off while all other
devices still operate at full speed.

Suspend Mode

This is user configurable only when the Power Management categor y
is set to User Defined. When enabled and after the set time of
system inactivity, the CPU and onboard per ipherals will be shut off.

HDD Power Down

This is user configurable only when the Power Management categor y
is set to User Defined. When enabled and after the set time of
system inactivity, the hard disk drive will be powered down while
all other devices remain active.

VGA Active Monitor

Enabled When the system enters the Suspend mode, it will

check the status of the VGA. If the VGA is active, it will
not turn the screen off. If the VGA is inactive, it will tur n
the screen off.

Disabled When the system enters the Suspend mode, it will

immediately turn the screen off without checking the
status of the VGA.

Soft-Off by PWR-BTTN

This categor y allows you to select the method of powe ring off your
system.

Hold 4 Sec. Regardless of whether the Power Management field

is enabled or disabled, if the power button is pushed
and released in less than 4 sec, the system enters
the Suspend mode. The purpose of this function is
to prevent the system from powering off in case
you accidentally “hit” or pushed the power button.
Push and release again in less than 4 sec to restore.
Pushing the power button for more than 4 seconds
will power off the system.

50

3

Award BIOS Setup Utility

Instant-Off Pressing and then releasing the power button at

once will immediately power off your system.

PWR Lost Resume State

Keep Off When power returns after an AC power failure, the

system’s power is off. You must press the Power
button to power-on the system.

Turn On When power returns after an AC power failure, the

system will automatically power-on.

Last State When power returns after an AC power failure, the

system will return to the state where you left off
before power failure occurs. If the system’s power
is off when AC power failure occurs, it will remain
off when power returns. If the system’s power is on
when AC power failure occurs, the system will
power-on when power returns.

Resume On Ring

With an external modem installed, the Modem Ring-on function
will allow your system to power-on to respond to incoming calls.
By default, the “Resume on Ring” field is Disabled. To use this
function, please follow the steps below.

1. Make sure the computer system is powered off.

2. Connect the external modem to the COM 1 or COM 2
serial por t.

3. Switch on the power of the external modem.

4. Power-on the computer system. After the memory test, press
<Del> to enter the Award BIOS setup utility.

5. Select Power Management Setup and press <Enter>.

6. Enable the “Resume on Ring” field.

7. Press <Esc> to return to the main menu of the Award BIOS
setup utility. Select “Save & Exit Setup” and press <Enter>.

8. Type <Y> and press <Enter>.

Resume On LAN

With a LAN card installed, the Wake-On-LAN function allows
the network to remotely wake up a Soft Power Down (Soft­Off) PC. However, if your system is in the Suspend mode, you

51

3

Award BIOS Setup Utility

can wake-up the system only through an IRQ or DMA
interrupt. Make sure your LAN card supports the remote
wakeup function. To use this function, set this field to Enabled.
Refer to the “Wake-On-LAN Connector” section in Chapter 2
of this manual for more information.

Resume On Alarm

Enabled When Enabled, you can set the date and time you

would like the Soft Power Down (Soft-Off) PC to
power-on. However, if the system is being accessed by
incoming calls or the network (Resume On Ring/LAN)
prior to the date and time set in this field, the system
will give priority to the incoming calls or networ k. “Date
(of Month)” and “Timer (hh:mm:ss)” will appear right
below this field.

Disabled Disables the automatic power-on function. (default)

Date (of Month)

0 The system will power-on everyday according to the

time set in the “Timer (hh:mm:ss)” field.

1-31 Select a date you would like the system to power-on.

The system will power-on on the set date, and time
set in the “Timer (hh:mm:ss)” field.

Timer (hh:mm:ss)

This is used to set the time you would like the system to power-on.

52

3

Award BIOS Setup Utility

Resources Controlled By

The Award Plug and Play BIOS has the capability to automatically
configure all of the boot and Plug and Play compatible devices.

Auto The system will automatically detect the settings for you.

The categories that follow will not be shown on the
screen.

Manual This will allow you to set the IRQ/DMA (you have

assigned your add-in card) to Legacy ISA or PCI/ISA
PnP. For non-PnP ISA cards, select Legacy ISA. For PnP
ISA or PCI cards, select PCI/ISA PnP.

Reset Configuration Data

Enabled The BIOS will reset the configuration data once

automatically. It will then recreate a new set of
configuration data.

Disabled The BIOS will not reset the configuration data.

The settings on the screen are for reference only. Your ver sion may not be
identical to this one.

3.1.5 PNP/PCI Configuration

This section describes configuring the PCI bus system. It covers some
very technical items and it is strongly recommended that only
experienced user s should make any changes to the default settings.

ROM PCI/ISA BIOS

PNP/PCI CONFIGURATION

AWARD SOFTWARE, INC.

Resources Controlled By
Reset Configuration Data

: Auto
: Disabled

ESC
F1
F5
F6
F7

: Quit
: Help
: Old Values
: Load Fail-Safe Settings

: Load Optimal Settings

PU/PD/+/­(Shift) F2

: Select Item
: Modify
: Color

↑ ↓ → ←

Assign IRQ for VGA
Assign IRQ for USB
PCI Slot 1 Use IRQ
PCI Slot 2 Use IRQ

: Enabled
: Enabled
: Auto
: Auto

53

3

Award BIOS Setup Utility

Assign IRQ for VGA

When Enabled, the system automatically assigns an IRQ for the VGA
card installed. Your VGA card will need an IRQ only when using the
video capture function of the card. If you are not using this function
and a new device requires an IRQ, you can set this function to
Disabled. The IRQ (previously occupied by the VGA card) will be
available for your new device .

Note:

When Disabled, a “Yellow” mark will appear in Windows 95’s
or Windows 98’s Device Manager.

Assign IRQ for USB

When Enabled, the system automatically assigns an IRQ for the USB
device connected to your system. However, if you are not using USB
devices and an ISA slot requires an IRQ, set this function to Disabled.
The IRQ previously occupied by the USB device will be available
for the ISA slot.

Note:

When Disabled, a “Yellow” mark will appear in Windows 95’s
or Windows 98’s Device Manager.

PCI Slot 1 Use IRQ and PCI Slot 2 Use IRQ

By default, an IRQ is automatically assigned to each PCI slot. You
may also manually assign an IRQ to these slots. The options are: 3,
4, 5, 7, 9, 10, 11, 12, 14 and 15.

3.1.6 Load Fail-Safe Settings

The “Load Fail-Safe Settings” option loads the troubleshooting default
values permanently stored in the ROM chips. These settings are not
optimal and turn off all high performance features. You should use
these values only if you have hardware problems. Highlight this
option on the main menu and press <Enter>. The message below
will appear.

Load Fail-Safe Settings (Y/N)? N

If you want to proceed, type <Y> and press <Enter>. The default
settings will be loaded.

54

3

Award BIOS Setup Utility

IDE HDD Block Mode

Enabled The IDE HDD uses the block mode. The system BIOS

will check the hard disk drive for the maximum block
size the system can transfer. The block size will depend
on the type of hard disk drive.

Disabled The IDE HDD uses the standard mode.

IDE Primary Master/Slave PIO and IDE Secondary Master/Slave
PIO

PIO means Programmed Input/Output. Rather than have the BIOS
issue a series of commands to effect a transfer to or from the disk
drive, PIO allows the BIOS to tell the controller what it wants and

3.1.7 Load Optimal Settings

The “Load Optimal Settings” option loads optimized settings from the
BIOS ROM. Use the Setup default values as standard values for your
system. Highlight this option on the main menu and press <Enter>.
The message below will appear.

Load Optimal Settings (Y/N)? N

Type <Y> and press <Enter> to load the Setup default values.

3.1.8 Integrated Peripherals

The settings on the screen are for reference only. Your version may not be
identical to this one.

ROM PCI/ISA BIOS

INTEGRATED PERIPHERALS

AWARD SOFTWARE, INC.

IDE HDD Block Mode
IDE Primary Master PIO
IDE Primary Slave PIO
IDE Secondary Master PIO
IDE Secondary Slave PIO
IDE Primary Master UDMA
IDE Primary Slave UDMA
IDE Secondary Master UDMA
IDE Secondary Slave UDMA
On-chip Primary PCI IDE
On-chip Secondary PCI IDE
USB Keyboard Support
Watchdog Timer Select

: Enabled
: Auto
: Auto
: Auto
: Auto
: Auto
: Auto
: Auto
: Auto
: Enabled
: Enabled
: Disabled
: 0.5 Sec

ESC
F1
F5
F6
F7

: Quit
: Help
: Old Values
: Load Fail-Safe Settings
: Load Optimal Settings

PU/PD/+/­(Shift) F2

: Select Item
: Modify
: Color

↑ ↓ → ←

KBC Input Clock
Onboard FDC Controller
Onboard Serial Port 1
Onboard Serial Port 2
UART2 Mode Select

Onboard Parallel Port
Parallel Port Mode
ECP Mode Use DMA
EPP Mode Select
Keyboard/Mouse Power On

: 8MHz
: Enabled
: 3F8/IRQ4
: 2F8/IRQ3
: Normal

: 378/IRQ7
: ECP+EPP
:3
: EPP1.7
: Disabled

55

3

Award BIOS Setup Utility

then let the controller and the CPU perform the complete task by
themselves. Your system suppor ts five modes, 0 (default) to 4, which
primar ily differ in timing. When Auto is selected, the BIOS will select
the best available mode after checking your drive.

Auto The BIOS will automatically set the system according to

your hard disk drive’s timing.

0-4 You can select a mode that matches your hard disk drive’s

timing. Caution: Do not use the wrong setting or you will
have drive errors.

IDE Primary Master/Slave UDMA and IDE Secondary Master/
Slave UDMA

These categories allow you to set the Ultra DMA in use. When Auto
is selected, the BIOS will select the best available option after
checking your hard drive or CD-ROM.

Auto The BIOS will automatically detect the settings for you.
Disabled The BIOS will not detect these categories.

On-Chip Primary PCI IDE and On-Chip Secondary PCI IDE

These categories allow you to enable or disable the primar y and
secondary IDE controller. The default is Enabled. Select Disabled if
you want to add a different hard drive controller.

USB Keyboard Support

By default, USB Keyboard Suppor t is Disabled. However, if you are
using a USB keyboard under DOS, make sure to enable this function.

Watchdog Timer Select

The system board supports the Watchdog Timer function allowing
your application to regularly “clear” the system at the set time
interval. If the system hangs or fails to function, it will reset at the
set time interval so that your system will continue to operate. You
may set the time interval in 0.5, 1, 2, 4, 8, 16, 32 or 64 sec. The
default is 0.5 sec.

Refer to Appendix C for instr uctions on using the Watchdog Timer
function.

56

3

Award BIOS Setup Utility

KBC Input Clock

This is used to select the input clock of your keyboard. The options
are: 8MHz and 12MHz. The default is 8MHz.

Onboard FDC Controller

Enabled Enables the onboard floppy disk controller.
Disabled Disables the onboard floppy disk controller.

Onboard Serial Port 1 and Onboard Serial Port 2

Auto The system will automatically select an I/O address for

the onboard serial por t 1 and serial por t 2.

3F8/IRQ4, 2F8/IRQ3, 3E8/IRQ4, 2E8/IRQ3 Allows you to

manually select an I/O address for the onboard serial
por t 1 and serial por t 2.

Disabled Disables the onboard serial port 1 and/or serial por t

2.

UART2 Mode Select

The system board suppor ts IrDA function for wireless connectivity
between your computer and peripheral devices. You may not use
IrDA (J23) and COM 2 (J10 or J12) at the same time. If you are
using the COM 2, make sure “UART2 Mode Select” is set to
Normal.

To use the IrDA function, follow the steps below.

1. Connect your IrDA cable to connector J23 on the system
board.

2. Set “UART2 Mode Select” to the type of IrDA standard
supported by your IrDA peripheral/device (IrDA 1.0 or
ASKIR). For better transmission of data, your IrDA per ipheral
device must be within a 30o angle and within a distance of 1
meter.

3. The following will appear right after “UART2 Mode Select”.

57

3

Award BIOS Setup Utility

IR Transmission Delay

If this option is Enabled, transmission of data will be slower. This
is recommended when you encounter transmission problem with
your device. The options are: Enabled and Disabled.

Onboard Parallel Port

378H/IRQ7, 3BCH/IRQ7, 278H/IRQ5 Selects the I/O address

and IRQ for the onboard parallel por t.

Disabled Disables the onboard parallel por t.

Parallel Port Mode, ECP Mode Use DMA and EPP Mode Select

These fields will appear only if you selected an I/O address and IRQ
in the Onboard Parallel Port field. These apply to a standard
specification and will depend on the type and speed of your device.
Refer to your peripheral’s manual for the best option.

The parallel modes are SPP, EPP, ECP and ECP+EPP. The default is
ECP+EPP. Both “ECP Mode Use DMA” and “EPP Mode Select” will
appear on the screen. If you selected EPP, “EPP Mode Select” will
appear. This field applies to standard specification. The options are
EPP1.9 and EPP1.7. Default setting: EPP1.7. If you selected ECP, “ECP
Mode Use DMA” will appear. This is used to select a DMA channel
for the parallel por t. The options are 1 and 3. Default setting: 3.

Keyboard/Mouse Power On

This field allows you to use the keyboard or mouse to power-on
the system. To use this function, make sure JP1 is set to 2-3 On ­the Wake-On-Keyboard/Mouse function enabled. Refer to “Jumper
Settings for Wake-On-Keyboard/Wake-On-Mouse” in Chapter 2 of
this manual for more information.

Disabled Default setting.

Warning:

If JP1 was previously enabled with a password
set in the “KB Power On Password” field, and
now you wish to disable the Wake-On­Keyboard (password) function, make sure to
set this field to disabled prior to setting JP1

58

3

Award BIOS Setup Utility

to disabled (1-2 On). You will not be able to
boot up the system if you fail to do so.

Password When this option is selected, the “KB Power On

Password” field will appear. Move the cursor to this
field and press <Enter>. Enter your password. You
can enter up to 5 characters. Type in exactly the
same password to confirm, then press <Enter>.

Important:

The power button will not function once a
keyboard password has been set in the “KB
Power On Password” field. You must type the
correct password to power-on the system.

Hot Key When this option is selected, the “KB Power On

Hot Key” field will appear. Move the cursor to this
field to select a function key you would like to use
to power-on the system. The options are from Ctrl­F1 to Ctrl-F12.

Mouse Left When this option is selected, double-click the left

button of the mouse to power-on the system.

Mouse Right When this option is selected, double-click the right

button of the mouse to power-on the system.

Any Key Press any key to power-on the system.
Keyboard 98 When this option is selected, press the “wake up”

key of the Windows 98 compatible keyboard to
power-on the system.

3.1.9 Supervisor Password

If you want to protect your system and setup from unauthorized
entr y, set a supervisor’s password with the “System” option selected
in the BIOS Features Setup. If you want to protect access to setup
only, but not your system, set a supervisor’s password with the
“Setup” option selected in the BIOS Features Setup. You will not
be prompted for a password when you cold boot the system.

Use the arrow keys to highlight the “Supervisor Password” option
and press <Enter>. The message below will appear.

Enter Password:

59

3

Award BIOS Setup Utility

Type in the password. You are limited to eight characters. When
done, the message below will appear :

Confirm Password:

You are asked to verify the password. Type in exactly the same
password. If you type in a wrong password, you will be prompted
to enter the correct password again. To delete or disable the
password function, highlight “Supervisor Password” and press
<Enter>, instead of typing in a new password. Press the <Esc> key
to return to the main menu.

3.1.10 User Password

If you want another user to have access only to your system but
not to setup, set a user’s password. Using user’s password to enter
Setup allows a user to access only the “User Password” option that
appears on the main screen. Access to all other options is denied.
To set, confirm, verify, disable or delete a user’s password, follow
the procedures described in the section “Super visor Password”.

60

3

Award BIOS Setup Utility

3.1.11 IDE HDD Auto Detection

Use this option to detect the parameters for the hard disk drives
installed in your system. These par ameter s will then be automatically
entered into the "Standard CMOS Setup". The IDE HDD Auto
Detection screen displays the following categories of information:
Size, Cylinders, Heads, Precomp, LandZone, Sectors and Mode.

ROM PCI/ISA BIOS

CMOS SETUP UTILITY

AWARD SOFTWARE, INC.

HARD DISKS TYPE SIZE CYLS HEAD RECOMP LANDZ SECTOR MODE

Primary Master:

Select Primary Master Option (N=Skip): N
OPTIONS SIZE CYLS HEAD RECOMP LANDZ SECTOR MODE
2 (Y) 853 827 32 0 1653 63 LBA

1 853 1654 16 65535 1653 63 Normal
3 853 827 32 65536 1653 63 Large

Note: Some OS (like SCO-UNIX) must be “NORMAL” for installation

ESC: Skip

The settings on the screen are for reference only. Your version may not be
identical to this one.

For hard drives larger than 528MB, you would typically select the
LBA type . Cer tain oper ating systems require that you select Normal
or Large . Please check your operating system’s manual or Help desk
on which one to select.

61

3

Award BIOS Setup Utility

3.1.12 Save & Exit Setup

When all the changes have been made, highlight “Save & Exit Setup”
and press <Enter>. The message below will appear :

Save to CMOS and Exit (Y/N)? N

Type “Y” and press <Enter>. The modifications you have made will
be written into the CMOS memor y, and the system will reboot. You
will once again see the initial diagnostics on the screen. If you wish
to make additional changes to the setup, press <Ctrl> <Alt> <Esc>
simultaneously or <Del> after memory testing is done .

3.1.13 Exit Without Saving

When you do not want to save the changes you have made,
highlight “Exit Without Saving” and press <Enter>. The message
below will appear :

Quit Without Saving (Y/N)? N

Type “Y” and press <Enter>. The system will reboot and you will
once again see the initial diagnostics on the screen. If you wish to
make any changes to the setup, press <Ctrl> <Alt> <Esc>
simultaneously or <Del> after memory testing is done .

62

4

Supported Software

4.1 Desktop Management Interface (DMI)

The system board comes with a DMI built into the BIOS. DMI, along
with the appropriately networked software, is designed to make
inventory, maintenance and troubleshooting of computer systems easier.
With DMI, a network administrator or MIS engineer can remotely
access some information about a particular computer system without
physically going to it. Quite often a ser vice call may be unnecessar y as
the problem can be solved remotely.

The DMI utility in the BIOS automatically records various information
about your system configuration. Information about the type and speed
of CPU, type and amount of memory for each memory slot, BIOS
revision level, types of add-in PCI boards and components, certain
revision numbers of hardware installed, etc. are automatically detected
and stored in the DMI pool, which is a par t of the system board's
Plug and Play BIOS. Additional information, such as ISA based
peripherals, which may not be automatically detected, can be manually
recorded in the DMI pool by using the Add DMI menu. The DMI pool
data is then verified or updated whenever the system hardware or
setup is altered.

4.1.1 Running the DMI Utility

To run the DMI utility, type: DMICFG.EXE. Please contact your sales
representative for the utility.

The DMI utility must run in real mode with at least 180K of base
memor y. Memory manager s like HIMEM.SYS (required by Windows)
must not be installed. You may do this by using one of the 3 methods
listed below.

1. Boot up from a system diskette without the AUTOEXEC.B AT and
CONFIG.SYS files,

2. “REM” HIMEM.SYS in the CONFIG.SYS, or

3. Press <F5> during bootup to bypass your AUTOEXEC.BAT and
CONFIG.SYS files.

Chapter 4 - Supported Softwares

63

4

Supported Software

4.1.2 Using the DMI Utility

The four menus located on top of the DMI Configuration Utility screen
are Edit DMI, Add DMI, Load DMI File and Save DMI File. Use the
← or → (left or right) arrow keys to select a menu from the Menu
bar.

On the left side of the screen is a list of the system configuration items.
Use the ↑ or ↓ (up or down) arrow keys to select an item.

The commands at the bottom of the screen will allow you to navigate
through the various setup menus.

Edit DMI

1. Use the ← or → arrow keys to select the Edit DMI menu.

2. Highlight the item on the left screen that you would like to edit
by using the ↑ or ↓ arrow keys, then press <Enter>.

3. The cur sor will move to the screen you select allowing you to edit
information. The screen will also display the auto-detected
information.

4. Press <F10> to update the edited information into the flash ROM.













Move cursor ENTER-Accept DEL-Delete ESC-Abort&Exit

↑ ↓ ↑ ↓

↑ ↓ ↑ ↓

↑ ↓

←←

←←

←

→→

→→

→

Award DMI Configuration Utility Copyright Award Software Inc, 1996

[Edit DMI] [Add DMI] [Load DMI File] [Save DMI File]







BIOS

System

Enclosure/Chassis

Processor

Memory Controller

Memory Module
Memory Module
Memory Module
Memory Module

Cache

Cache
Port Connector
Port Connector
Port Connector
Port Connector
Port Connector
Port Connector
Port Connector

System Slots

*** BIOS Auto Detect ***

Type : BIOS Information
Handle : 0000

Vendor Name :
BIOS Version :
BIOS Starting Address Segment : E000
BIOS Build Date :
BIOS Characteristics :
Size of BIOS ROM : 0256K

64

4

Supported Software

Add DMI

1. Use the ← or → arrow keys to select the Add DMI menu.

2. Highlight the item on the left screen that you would like to add
by using the ↑ or ↓ arrow keys, then press <Enter>.

3. The cursor will move to the screen you select allowing you to enter
information about the added item.

4. Press <F10> to save information into the flash ROM.

To view information about the added items, go to the Edit DMI menu.

Load DMI File

1. Use the ← or → arrow keys to select the Load DMI File menu.

2. The following message will appear.

Press [Enter] to select DMI file for load

Press <Enter>.

3. The DMI files will appear on the screen. Select the file you would
like to load and press <Enter>.

4. The following message will appear.

Do you want to execute? (Y/N)

Type <Y>. All previous DMI structures will be destroyed and the
new file will be saved into the flash ROM.

Save DMI File

1. Use the ← or → arrow keys to select the Save DMI File menu.

2. The following message will appear.

Press [Enter] to select DMI file for save

Press <Enter>.

3. Enter the director y and filename under which you would like the
DMI file saved.

65

4

Supported Software

4.2 Hardware Doctor Utility

The system board comes with a Hardware Doctor utility contained
in the provided CD. This utility is capable of monitoring the system’s
“health” conditions and allows you to manually set a range (Highest
and Lowest Limit) to the items being monitored. If the settings/
values are over or under the set range, a warning message will pop­up. The utility can also be configured so that a beeping alarm will
sound whenever an error occur s. We recommend that you use the
“Default Setting” which is the ideal setting that would keep the
system in good working condition.

Note:

Use this utility only in Windows

®®

®®

®

95, Windows

®®

®®

®

98 and

Windows NT

®®

®®

®

4.0.

To install the utility, insert the CD (included in the system board
package) into a CD-ROM drive. The autorun screen (Main Board
Utility CD) will appear. Click the Hardware Doctor button to install
the utility.

4.3 Patch Utility for Windows® 95

The CD included in the system board package contains a patch
utility. If you are running Windows 95 (Win95, Win95+, Win95
OSR1: Windows 95 OEM Service Release 1, Win95 OSR2: Windows
95 OEM Ser vice Release 2.0 or Win95 OSR2.1: Windows 95 OEM
Service Release 2.0 plus USB Supplement), you need to run the
patch utility.

Important:

1. You must install this utility in Windows 95 prior to installing
any PCI/ISA drivers.

2. Windows 98 does not require the patch utiltiy; therefore DO
NOT install it in this operating system.

66

4

Supported Software

4.4 VGA Driver for Windows® 95/98/NT4.0

To install the VGA driver, inser t the provided CD into a CD-ROM
drive and click the “VGA Driver for Windows 95/98/NT4.0” button
in the autorun screen. The message about VGA driver installation
procedures will appear. Read the on-screen information carefully and
follow the procedures to install the driver. You may also refer to the
“Readme” file included in the provided CD for advanced information
on the installation intr uctions.

Note:

The provided VGA driver only supports Windows

®®

®®

®

95,

Windows

®®

®®

®

98 and Windows NT

®®

®®

®

4.0.

67

When the BIOS encounters an error that requires the user to
correct something, either a beep code will sound or a message will
be displayed in a box in the middle of the screen and the message ,
PRESS F1 TO CONTINUE, CTRL-ALT-ESC or DEL TO ENTER
SETUP, will be shown in the information box at the bottom. Enter
Setup to correct the error.

A.1 POST Beep

There are two kinds of beep codes in the BIOS. One code
indicates that a video error has occured and the BIOS cannot
initialize the video screen to display any additional information. This
beep code consists of a single long beep followed by three short
beeps. The other code indicates that a DRAM error has occured.
This beep code consists of a single long beep.

A.2 Error Messages

One or more of the following messages may be displayed if the
BIOS detects an error during the POST. This list indicates the er ror
messages for all Awards BIOSes:

CMOS BATTERY HAS FAILED

The CMOS batter y is no longer functional. It should be replaced.

Caution:

Danger of explosion if batter y incorrectly replaced. Replace only
with the same or equivalent type recommended by the
manufacturer. Dispose of used batteries according to the
batter y manufacturer’s instr uctions.

CMOS CHECKSUM ERROR

Checksum of CMOS is incorrect. This can indicate that CMOS has
become corrupt. This error may have been caused by a weak
batter y. Check the battery and replace if necessar y.

DISPLAY SWITCH IS SET INCORRECTLY

The display switch on the motherboard can be set to either
monochrome or color. This indicates the switch is set to a different

Appendix A - System Error Messag e

A

68

System Error Message

setting than indicated in Setup. Determine which setting is correct,
either turn off the system and change the jumper or enter Setup
and change the VIDEO selection.

FLOPPY DISK(S) fail (80)

Unable to reset floppy subsystem.

FLOPPY DISK(S) fail (40)

Floppy type mismatch.

Hard Disk(s) fail (80)

HDD reset failed.

Hard Disk(s) fail (40)

HDD controller diagnostics failed.

Hard Disk(s) fail (20)

HDD initialization error.

Hard Disk(s) fail (10)

Unable to recalibrate fixed disk.

Hard Disk(s) fail (08)

Sector V erify failed.

Keyboard is locked out - Unlock the key

The BIOS detects that the keyboard is locked. Keyboard controller
is pulled low.

Keyboard error or no keyboard present

Cannot initialize the keyboard. Make sure the keyboard is attached
correctly and no keys are being pressed during the boot.

Manufacturing POST loop

System will repeat POST procedure infinitely while the keyboard
controller is pull low. This is also used for the M/B burn in test at
the factor y.

BIOS ROM checksum error - System halted

The checksum of ROM address F0000H-FFFFFH is bad.

Memory test fail

The BIOS repor ts memor y test fail if the memory has er ror(s).

69

B.1 Troubleshooting Checklist

This chapter of the manual is designed to help you with problems
that you may encounter with your personal computer. To efficiently
troubleshoot your system, treat each problem individually. This is to
ensure an accurate diagnosis of the problem in case a problem has
multiple causes.

Some of the most common things to check when you encounter
problems while using your system are listed below.

1. The power switch of each peripheral device is turned on.

2. All cables and power cords are tightly connected.

3. The electrical outlet to which your peripheral devices are
connected is working. Test the outlet by plugging in a lamp or
other electrical device.

4. The monitor is turned on.

5. The display’s brightness and contrast controls are adjusted
properly.

6. All add-in boards in the expansion slots are seated securely.

7. Any add-in board you have installed is designed for your system
and is set up correctly.

Monitor/Display

If the display screen remains dark after the system is turned on:

1. Make sure that the monitor’s power switch is on.

2. Check that one end of the monitor’s power cord is properly
attached to the monitor and the other end is plugged into a
working AC outlet. If necessar y, try another outlet.

3. Check that the video input cable is properly attached to the
monitor and the system’s display adapter.

4. Adjust the brightness of the display by turning the monitor’s
brightness control knob.

Appendix B - Troubleshooting

B

70

Troubleshooting

The picture seems to be constantly moving.

1. The monitor has lost its ver tical sync . Adjust the monitor’s vertical
sync.

2. Move away any objects, such as another monitor or fan, that
may be creating a magnetic field around the display.

3. Make sure your video card’s output frequencies are supported
by this monitor.

The screen seems to be constantly wavering.

1. If the monitor is close to another monitor, the adjacent monitor
may need to be turned off. Fluorescent lights adjacent to the
monitor may also cause screen wavering.

Power Supply

When the computer is turned on, nothing happens.

1. Check that one end of the AC power cord is plugged into a live
outlet and the other end properly plugged into the back of the
system.

2. Make sure that the voltage selection switch on the back panel is
set for the correct type of voltage you are using.

3. The power cord may have a “shor t” or “open”. Inspect the cord
and install a new one if necessar y.

Floppy Drive

The computer cannot access the floppy drive.

1. The floppy diskette may not be formatted. Format the diskette
and tr y again.

2. The diskette may be write-protected. Use a diskette that is not
write-protected.

3. You may be writing to the wrong drive. Check the path
statement to make sure you are writing to the targeted drive.

4. There is not enough space left on the diskette. Use another
diskette with adequate storage space.

B

Troubleshooting

71

Hard Drive

Hard disk failure.

1. Make sure the correct drive type for the hard disk drive has
been entered in the BIOS.

2. If the system is configured with two hard drives, make sure the
bootable (first) hard drive is configured as Master and the
second hard drive is configured as Slave. The master hard drive
must have an active/bootable par tition.

Excessively long formatting period.

1. If your hard drive takes an excessively long period of time to
format, it is likely a cable connection problem. However, if your
hard drive has a large capacity, it will take a longer time to
format.

Parallel Port

The parallel printer doesn’t respond when you tr y to print.

1. Make sure that your printer is turned on and that the printer is
on-line.

2. Make sure your software is configured for the right type of
printer attached.

3. Ver ify that the onboard LPT por t’s I/O address and IRQ settings
are configured correctly.

4. Ver ify that the attached device works by attaching it to a par allel
port that is working and configured correctly. If it works, the
printer can be assumed to be in good condition. If the printer
remains inoperative, replace the printer cable and try again.

B

72

Troubleshooting
Serial Port

The serial device (modem, printer) doesn’t output anything or is
outputting garbled characters.

1. Make sure that the serial device’s power is turned on and that
the device is on-line.

2. Verify that the device is plugged into the correct serial por t on
the rear of the computer.

3. Verify that the attached serial device works by attaching it to a
serial por t that is working and configured correctly. If the serial
device does not work, either the cable or the serial device has a
problem. If the serial device wor ks, the problem may be due to
the onboard I/O or the address setting.

4. Make sure the COM settings and I/O address are configured
correctly.

Keyboard

Nothing happens when a key on the keyboard was pressed.

1. Make sure the keyboard is properly connected.

2. Make sure there are no objects resting on the keyboard and
that no keys are pressed during the booting process.

System Board

1. Make sure the add-in card is seated securely in the expansion
slot. If the add-in card is loose, power off the system, re-install
the card and power up the system.

2. Check the jumper settings to ensure that the jumpers are
proper ly set.

3. Verify that all memory modules are seated securely into the
memor y sockets.

4. Make sure the memor y modules are in the correct locations.

5. If the board fails to function, place the board on a flat surface
and seat all socketed components. Gently press each component
into the socket.

6. If you made changes to the BIOS settings, re-enter setup and
load the BIOS defaults.

73

Using the Watchdog Timer Function

The following are the parameters for enabling or disabling the
Watchdog Timer function when using the GWBASIC or
ASSEMBLY applications.

When enabled, the application accesses read port 443 (HEX).
When disabled, it accesses read por t 43 (HEX).

GWBASIC

To enable Watchdog Timer and reload the timer, type:

A = INP (&H443)

To disable, type:

A = INP (&H43)

ASSEMBLY

To enable Watchdog Timer and reload the timer, type:

MOV DX, 0443H
IN AL, DX

To disable, type:

MOV DX, 043H
IN AL, DX

Please note that your custom software must regularly reload the
timer (by reading that port) before the Watchdog Timer times
out. Otherwise, the system will think the machine has already
hung-up and will next reboot. Remember to disable it before the
software ends/exits.

Appendix C - Watchdog Timer
