Vision Manual D
User Manual
21 pgs1.85 Mb0

Ropox Vision Manual A, Vision Manual B, Vision Manual C, Vision Manual D, Vision Manual E User Manual

...
Download
User manual Mountinginstruction
Keep always this folder with product!
Ropox Vision Manuel
2
© ROPOX 2015
Warning: KEEP TABLETOP IN BOX during assembly of leg section, otherwise tabletop will be damaged & right to complain becomes void.
3
© ROPOX 2015
Contents:
1. TECHNICAL DATA .................................................................................................................................................... 4
2. INTRODUCTION ...................................................................................................................................................... 5
3. COMPLIANCE WITH EU-DIRECTIVES ........................................................................................................................ 5
4. APPLICATION .......................................................................................................................................................... 5
5. MODELS .................................................................................................................................................................. 6
6. COMPONENTS ........................................................................................................................................................ 8
7. MOUNTING INSTRUCTION .....................................................................................................................................10
7.1 Mounting of legsection ....................................................................................................... 10
7.2 Mounting of tilting fitting of tabletop (not table A) ............................................................ 11
7.3 Mounting of feet ................................................................................................................. 12
8. HEIGHT ADJUSTMENT OF TABLE ............................................................................................................................13
9. OPERATION OF TILTING FACILITY ..........................................................................................................................13
10. MOVING THE TABLE .............................................................................................................................................14
11. MAGRULE (ACCESSORIES) ....................................................................................................................................14
12. MOUNTING OF ARMSUPPORT (ACCESSORIES) .....................................................................................................15
13. PERFORMANCE TEST ............................................................................................................................................16
14. SAFETY IN USE......................................................................................................................................................16
15. CLEANING/ MAINTENANCE ..................................................................................................................................17
15.1 Cleaning of frame ................................................................................................................... 17
15.2 Cleaning of tabletop, laminate............................................................................................... 17
15.3 Maintenance .......................................................................................................................... 17
16. FAULT FINDING ....................................................................................................................................................18
16.1 The table seems loose or unstable ........................................................................................ 18
16.2 The height/tilting cannot be adjusted (adjustment is very difficult) ..................................... 18
17. ACCESSORIES .......................................................................................................................................................19
18. CE-MARKING ........................................................................................................................................................20
19. COMPLAINTS .......................................................................................................................................................21
4
© ROPOX 2015
1. Technical data
Product name: Ropox Vision Manual
Type A, B, C, D, E, F, G
90x60 cm, 120x60 cm og 90x90 cm
Item numbers: 20-60XXX-11
Height range: 50–70 cm (manual) incl. tabletop 60–90 cm (manual) incl. tabletop
Frame material: Aluminium leg. 606045-T6
Steel St. 37
Various plastic components
Tabletop: Laminate
Surface treatment: Anodic coating
Powder coating Chromating
Max. Load on the table
(static): 100 kg evenly distributed over the entire tabletop
Max. Load during lifting (dynamisk): 50 kg
Max. load on the tabletop tilted (static): 30 kg
Max. load during tilting the tabletop (dynamic): 4 kg
Temperature: 5-45° C
Air humidity: 5-85 % (non-condensing)
Complaints: See complaints, page 21
Manufacturer: Ropox A/S, DK-4700 Naestved, Tlf.: +45 55 75 05 00
E-mail: info@ropox.dk, www.ropox.dk
5
© ROPOX 2015
2. Introduction
VISION is the new range of modern height-adjustable Ropox tables. In our opinion a product must be functional and beautiful – no matter who is going to use it. That’s what we call VISION.
Vision is available in several sizes to suit individuals and carers needs. Sufficient legspace makes the table ideal for wheelchair users and gives the therapist optimum working conditions in a training situation. Due to the unique design with rounded corners there is no danger of hitting sharp edges when moving round the table and two inconspicuous castors at the back, make it easy to draw the table closer to the user. As an option extra arm supports may be clipped on and off as required.
Vision meets all needs and ensures ergonomically correct working positions for people with or
without disability.
Correct use, operation and inspection are decisive factors for efficient and safe performance.
3. Compliance with EU-directives
This product has CE-marking according to the current Directives and thus complies with the basic safety requirements. See separate CE-declaration, section 18.
4. Application
Vision is designed to obtain optimum working height for the user. It is an activity table not intended for lifting people or objects.
Vision should be used indoor, at temperatures and humidity as described in section 1.
As this product is adjustable in height there is a risk of squeezing. The product must therefore always be operated by or under the guidance of an experienced adult, who has read and understood the importance of section 14 ”Safety in use”.
It is very important that there are no obstacles between the tilted tabletop and the frame
to prevent any change of entrapment.
This document should always accompany the product and be read by and be available to the user.
6
© ROPOX 2015
5. Models
Model name
Description
Size
Height 50-70cm
Height 60-90cm
Vision Manual B
With tilt, entire
tabletop
90x60cm
20-60011-11
20-60021-11
Vision Manual B
With tilt, entire
tabletop
120x60cm
20-60211-11
20-60221-11
Model name
Description
Size
Height 50-70cm
Height 60-90cm
Vision Manual A
Without tilting
of tabletop
90x60cm
20-60010-11
20-60020-11
Vision Manual A
Without tilting
of tabletop
120x60cm
20-60210-11
20-60220-11
Model name
Description
Size
Height 50-
70cm
Height 60-
90cm
Vision Manual C
Devided
tabletop, right
side tilt section
90x60cm
Fixed plate : 30cm
Adjustable plate: 60cm
20-60012-11
20-60022-11
Vision Manual C
Devided
tabletop, right
side tilt section
120x60cm
Fixed plate : 30cm
Adjustable plate: 60cm
20-60212-11
20-60222-11
Model name
Description
Size
Height 50-
70cm
Height 60-
90cm
Vision Manual
D
Devided
tabletop, left
side tilt section
90x60cm
Fixed plate: 30cm
Adjustable plate: 60cm
20-60013-11
20-60023-11
Vision Manual
D
Devided
tabletop, left
side tilt section
120x60cm
Fixed plate : 30cm
Adjustable plate: 90cm
20-60213-11
20-60223-11
Model name
Description
Size
Height 50-
70cm
Height 60-
90cm
Vision Manual E
Devided
tabletop, middle
tilt section
90x60cm
Fixed plate: 20cm
Adjustable plate : 50cm
Fixed plate : 20cm
20-60014-11
20-60024-11
Vision Manual E
Devided
tabletop, middle
tilt section
120x60cm
Fixed plate: 30cm
Adjustable plate: 60cm
Fixed plate: 30cm
20-60214-11
20-60224-11
7
© ROPOX 2015
Model name
Description
Size
Height 50-
70cm
Height 60-
90cm
Vision Manual F
Devided
tabletop, right
side tilt section
120x60cm
Fixed plate: 60cm
Adjustable plate: 60cm
20-60215-11
20-20225-11
Model name
Description
Size
Height 50-
70cm
Height 60-
90cm
Vision Manual
G
Devided
tabletop, left
side tilt section
120x60cm
Fixed plate : 60cm
Adjustable plate: 60cm
20-60216-11
20-60226-11
Model name
Description
Size
Height 50-
70cm
Height 60-
90cm
Vision Manual A
Without tilting of
tabletop
90x90cm
20-60310-11
20-60320-11
8
© ROPOX 2015

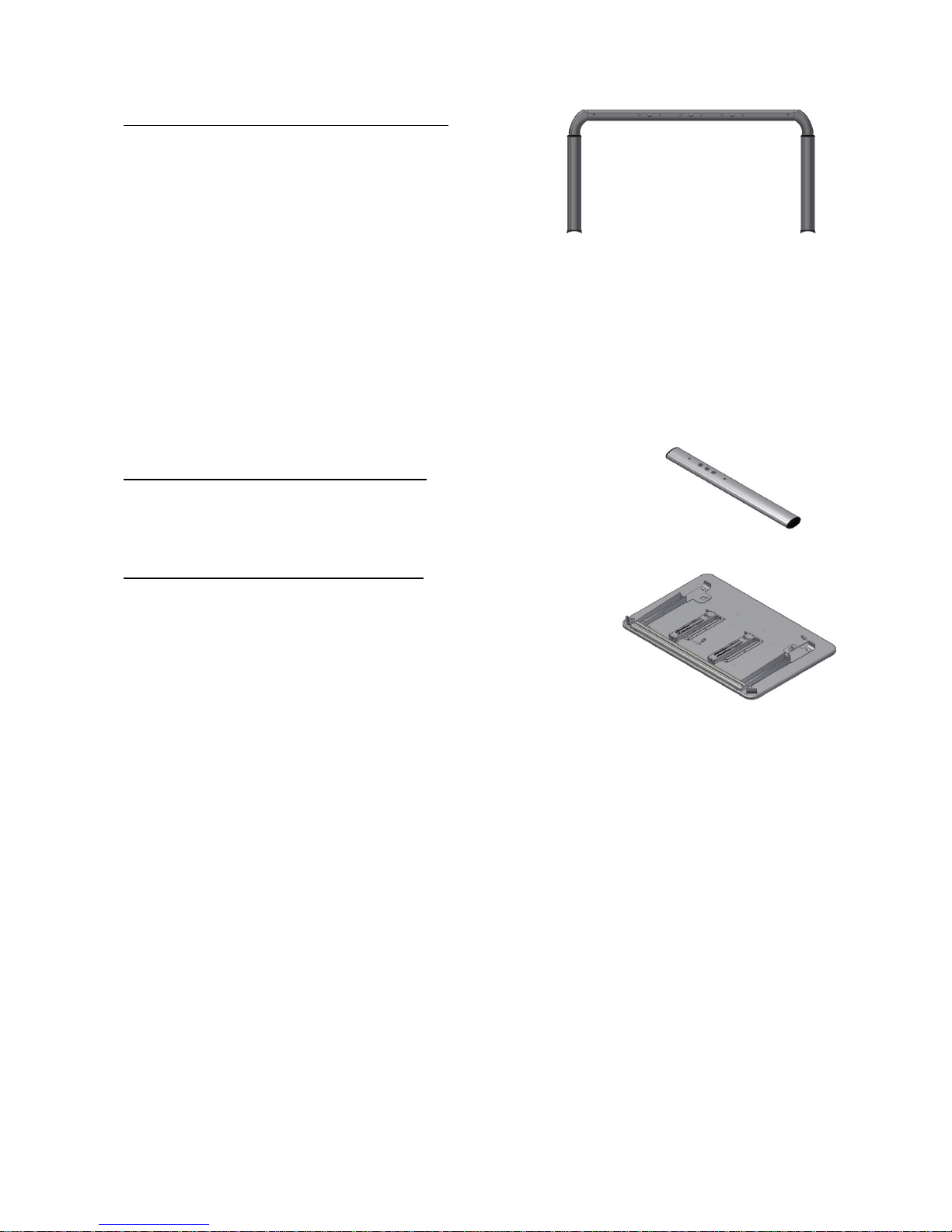

6. Components
Leg section 1 stk. Contains:
Beam:
90x60cm: 20-60401-050, 1 pc. 90x90cm: 20-60401-050, 1 pc. 120x60cm: 20-60401-051, 1 pc.
Leg height 50-70cm:
20-60320-059, 1 pc. 20-60320-060, 1 pc.
Leg height 60-90cm:
20-60320-542, 1 pc. 20-60320-544, 1 pc.
Screws M6x16, 95010618, 4 pcs. Screws M8x30, 95010830, 4 spcs.
Feet mounted with plugs and adjusting screws 90x60cm: 20-60320-045 2 pcs. 90x90cm: 20-60320-066 2 pcs. 120x60cm: 20-60320-045 2 pcs.
Tabletop 1 pc.
Contains:
Tabletop:
A 90x60cm: 64109060 B 90x60cm: 64109061 C + D 90x60cm: 64109062 E 90x60cm: 64109064 A 120x60cm: 64112060 B 120x60cm: 64112061 C + D 120x60cm: 64112062 E 120x60cm: 64112064 F + G 120x60cm: 64112065 A 90x90cm: 64109090
Support arms 90x60/120x60 cm:
Right: 20-60320-168 1 pc. Left: 20-60320-165 1 pc.
Support arms 90x90cm:
20-60320-187 2 pcs.
Front profile:
90x60cm: 20-60320-077 1 pc. 90x90cm: 20-60320-077 2 pc. 120x60cm: 20-60320-108 1 pc.
9
© ROPOX 2015
Tabletop bracket (not for table B ):
90x60cm: 97702-034 1 pc. 120x60cm: 97702-034 1-2 pcs.
Hinges for tabletops (not for table A ):
20-60320-140 2 pc.
Tilting 90x60cm:
B: 20-60320-026, 2 pcs. C+D+E: 20-60320-026, 1 pc. Tilting 120x60cm: B-G: 20-60320-026, 2 pcs.
Gearbox for tilting 90x60cm:
B: 96000656, 2 pcs. C+D+E: 96000656, 1 pc.
Gearbox for tilting 120x60cm: B-G: 96000656, 2 pcs.
Allen key 4mm 95001019: 1 pc.
Allen key 6 mm 95000006: 1 pc.
Handle: 1 pc.
10
© ROPOX 2015
7. Mounting instruction
7.1 Mounting of legsection
M6x16
11
© ROPOX 2015
7.2 Mounting of tilting fitting of tabletop (not table A)
1
2
M5x16
12
© ROPOX 2015
7.3 Mounting of feet
M8x30
13
© ROPOX 2015

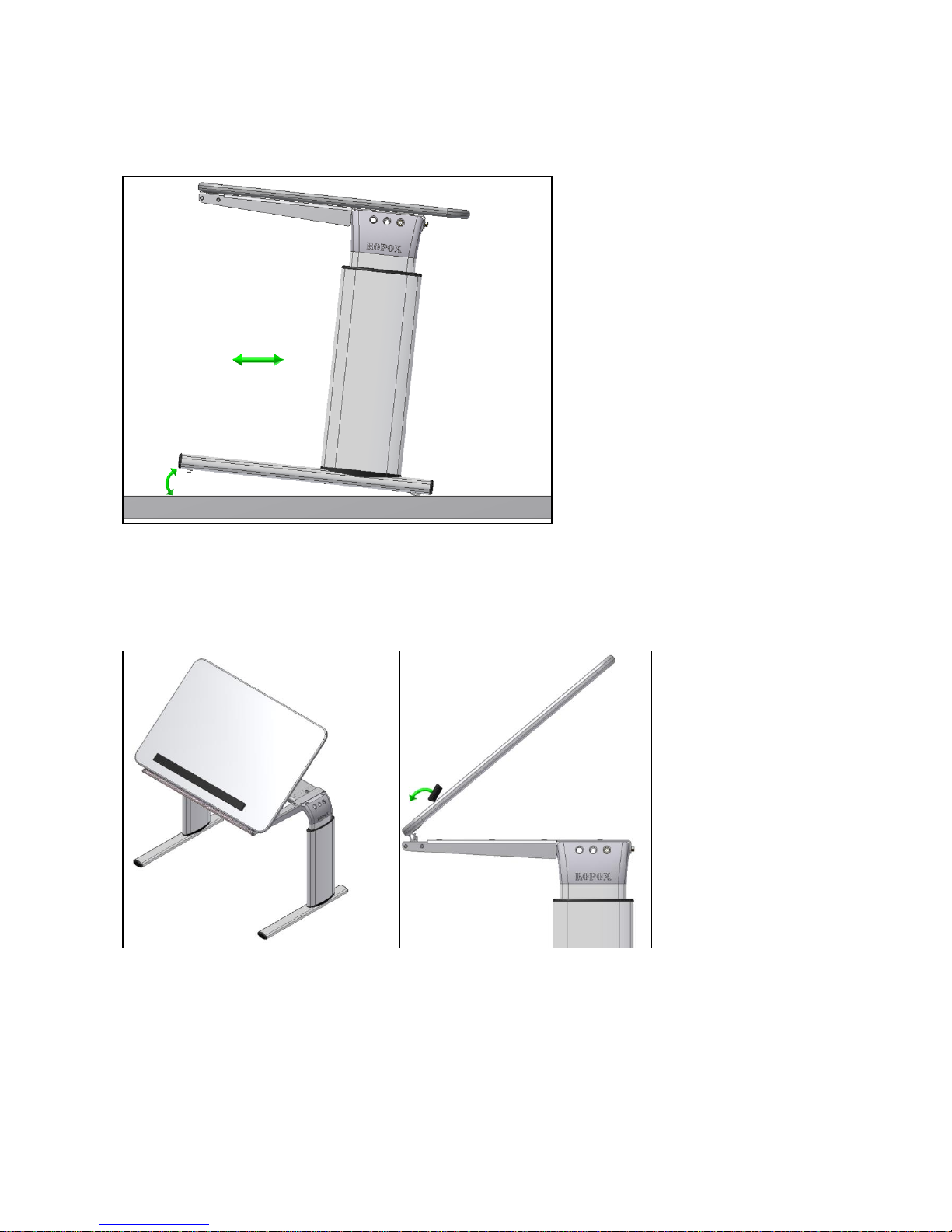

8. Height adjustment of table
9. Operation of tilting facility
14
© ROPOX 2015
10. Moving the table
By lifting the table slightly in the front, it can easily be pushed around.

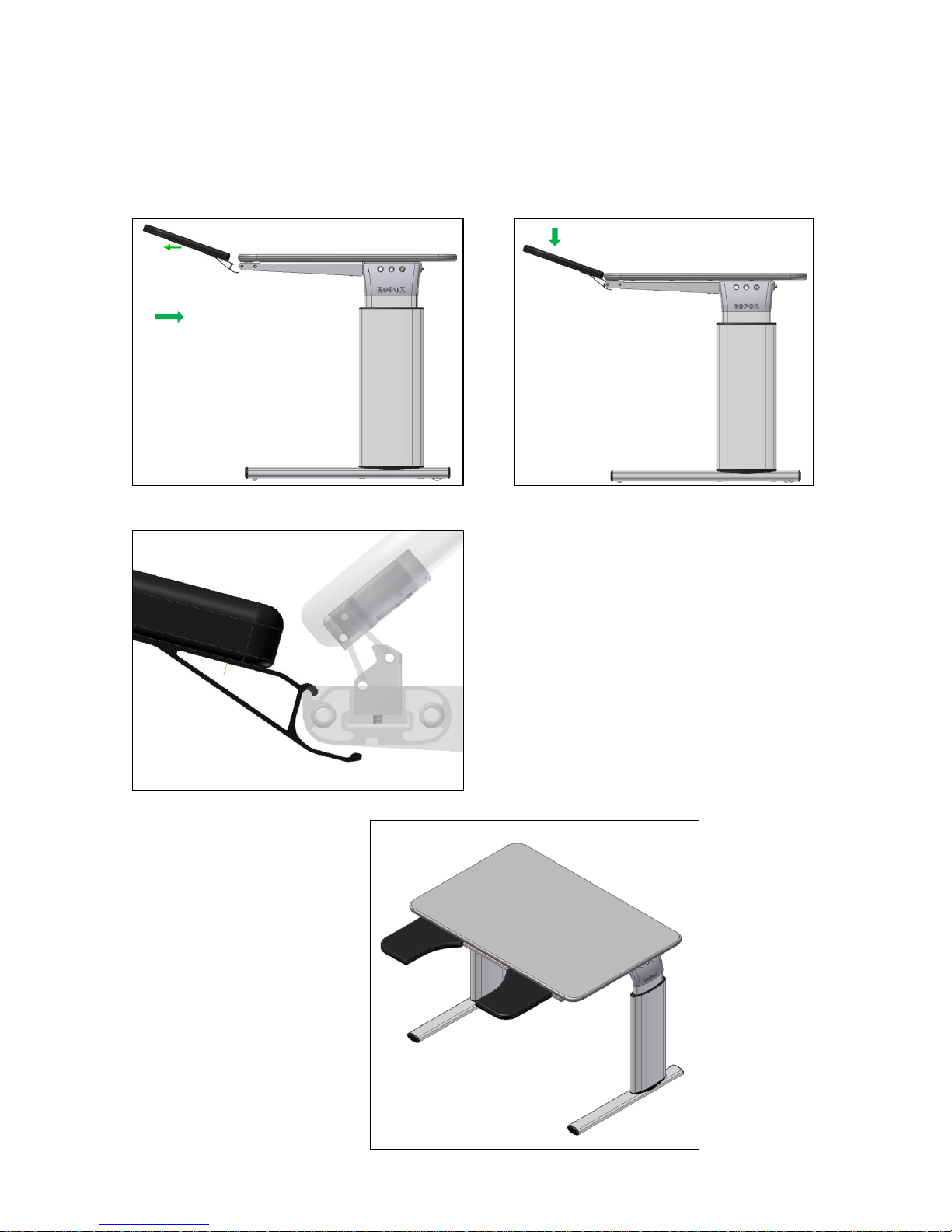

11. Magrule (accessories)
15
© ROPOX 2015
12. Mounting of armsupport (accessories)
16
© ROPOX 2015
13. Performance test
After completed installation and before use, all functions of the table must be tested. After that, a performance test must be carried out at least once a year by competent personnel.
1. Check that the mounting instructions have been observed.
2. Check that all bolts have been tightened.
3. Make sure that there is no load on the table.
4. Make sure that there are no objects or the like preventing the table from moving unhindered
within the range of height adjustment.
5. Place the handle as illustrated in the manual and adjust the table to bottom position. Check that
the movement is even and smooth.
6. Now adjust the table to top position and check that the movement is even and smooth.
If tilt fitting is mounted:
7. Place the handle for the tilt fitting according to the “user guide” and tilt the tabletop to the upright
and down position. Check that the movement is even and smooth.
When these tests have been carried out successfully, the table is ready for use. See ”Safety in use”, Section
14.
14. Safety in use
Vision must only be used by persons, who have read and understood these instructions. Vision is an activity table and must not be used as a lifting table or person lifter. Always use the table in a manner excluding the risk of damage to persons or property. The person
operating the table is responsible for avoiding damage or injury.
Make sure that there is free space above and below the table to allow height adjustment. Do not operate the table in case of defects or damage. Do not overload the table and ensure that the load distribution is correct. During inspections, service or repairs any load must be removed from the table. Modifications, which may influence the performance or design of the table, are not allowed. Assembly, service and repairs must be carried out by competent personnel. If the table has not been assembled according to these mounting instructions, the guarantee may
become void.
Only use Ropox original spare parts for replacement. If other spare parts are used, the guarantee
may become void.
17
© ROPOX 2015
15. Cleaning/ maintenance
15.1 Cleaning of frame
Dry the frame with a wrung cloth with lukewarm water and a mild detergent. Do not use Enchants or abrasives or grinding cloths, brushes or sponges.
After cleaning, dry the frame.
Disinfection of the frame may be done with household spirits.
15.2 Cleaning of tabletop, laminate
Clean the laminate tabletop with a soft cloth wrung in hot water with a liquid detergent, which is not sulfonated, as this will result in a greasy surface. Stains that cannot be removed with water may often be removed with equal parts chlorine and water or with acetone. When using these materials, be aware of airing of the room and make sure that the frame does not get in touch with these cleaning materials.
Stains from felt-tip pens may be removed by means of ordinary denatured alcohol. Pencil strokes should be removed with a piece of eraser. Certain chemicals, ink and strongly coloured fruit juices may – if they are left on the table top for a longer period – result in discoloration as the colour pigments stick to the surface.
Never use steel wool, scouring powder or cleaning materials, which leave a film on the surface, e.g. yellow soap.
After cleaning, it is recommendable to wash the surface with a cloth wrung in clean water and dry with a soft cloth.
Disinfection of the tabletop may be done with household spirits.
15.3 Maintenance
The frame is maintenance-free and moving parts have been lubricated for life. For reasons of safety and reliability, we recommend inspection of the frame once a year:
Check that all bolts have been securely fastened.
Check that the table moves from bottom to top position without problems.
Only use Ropox original spare parts for replacement. If other spare parts are used, the guarantee may become void.
Inspections, service and repairs must be carried out by competent personnel
18
© ROPOX 2015
16. Fault finding
16.1 The table seems loose or unstable
The assembly screws have not been securely tightened.
Retighten all screws, cf. mounting instructions.
16.2 The height/tilting cannot be adjusted (adjustment is very difficult)
Check that there is no load on the table. Check the table for physical overloading or damage.
19
© ROPOX 2015
17. Accessories
Magrule 50 cm: Item number 20-60541
Magnet, White round magnet: Item number 50200-000
Castors, 4 pcs, increase height 8cm: Mounted by Ropox, Item number 20-60570 For remounting, Item number 20-60575
Castors without height increase: Mounted by Ropox, Item number 20-60573
For remounting, Item number 20-60572
Arm support standard Item number 20-60520
Arm support, locable Item number 20-60516
20
© ROPOX 2015
18. CE-marking
The undersigned hereby declares that the following products:
Vision table manual
Tabletop 90x60 cm Tabletop 120x60 cm Tabletop 90x90 cm
Type Height 50-70 cm Height 60-90 cm Height 50-70 cm Height 60-90 cm Height 50-70 cm Height 60-90 cm
A 20-60010-11 20-60020-11 20-60210-11 20-60220-11 20-60310-11 20-60320-11 B 20-60011-11 20-60021-11 20-60211-11 20-60221-11 C 20-60012-11 20-60022-11 20-60212-11 20-60222-11 D 20-60013-11 20-60023-11 20-60213-11 20-60223-11 E 20-60014-11 20-60024-11 20-60214-11 20-60224-11 F 20-60215-11 20-60225-11 G 20-60216-11 20-60226-11
Are in accordance with the following directive and standards:
DIRECTIVES
EU-Directive 93/42EEC on Medical equipment, modified by Directive No. 98/79/EC
STANDARDS
DS/EN 1041: 2000 DS/EN 12182: 2002 DS/EN 14971: 2001 DS/EN ISO 9999: 2002
Declarations of conformity can be supplied upon request.
Dato: 15-09-2015
21
© ROPOX 2015
19. Complaints
We refer to our general Terms of sale and delivery on our homepage www.ropox.com
ROPOX A/S
Ringstedgade 221
DK – 4700 Næstved
Tel.: +45 55 75 05 00 Fax.: +45 55 75 05 50
E-mail: info@ropox.dk
www.ropox.dk
Loading...
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
