Ropox Support Washbasin
Fixed – Basic - Manual
USER MANUAL
Keep this manual with the product at all times
PA 2004 00634
PDF 6096 / 01.07.2019
Page 2
© ROPOX 2013
Contents:
1. INTRODUCTION ..................................................................................................................................... 3
2. CONFORMITY WITH EU DIRECTIVES ................................................................................................. 3
3. APPLICATION ........................................................................................................................................ 3
3.1 Operation ....................................................................................................................................... 4
4. TECHNICAL DATA ................................................................................................................................. 5
5. DIMENSION SKETCHES ....................................................................................................................... 6
6. RECOMMENDED POSITIONING OF WATER AND DRAIN ................................................................. 7
6.1 Connection adapters ..................................................................................................................... 9
7. MOUNTING INSTRUCTIONS AND LIST OF COMPONENTS ............................................................ 10
8. PERFORMANCE TEST ........................................................................................................................ 10
9. SAFETY IN USE ................................................................................................................................... 10
10. SERVICE AND MAINTENANCE .......................................................................................................... 11
10.1 Cleaning ...................................................................................................................................... 11
10.2 Cleaning of tabletop and washbasin ........................................................................................... 11
10.3 Repair of washbasin .................................................................................................................... 11
10.4 Inspection .................................................................................................................................... 11
10.5 Service schedule ......................................................................................................................... 12
11. FAULT FINDING ................................................................................................................................... 12
12. LIST OF SPARE PARTS ...................................................................................................................... 13
13. OPTIONAL EXTRAS ............................................................................................................................ 13
14. LABEL ................................................................................................................................................... 14
EU – DECLARATION OF CONFORMITY .............................................................................................................. 15
15. COMPLAINT .......................................................................................................................................... 16
Page 3
© ROPOX 2013
1. Introduction
Owing to its unique design, Ropox Support Washbasin provides additional support and easier
access to the washbasin for wheelchair users and walking-impaired persons. The manual height
adjustment facilitates frequent adjustment of the washbasin to suit several users. The height
adjustment range of the adjustable models is 30cm.
The ample space for knees and legs makes the washbasin ideal for wheelchair users, who obtain
optimum mobility and a perfect working position.
The integrated grab handles facilitate access and allows the user to get close to the washbasin.
Correct use, operation and inspection are decisive factors for effective and safe performance.
The manual must always be available to the user and must accompany the product in case of
relocation.
2. Conformity with EU Directives
This product has CE marking and is thus in accordance with the basic requirements concerning
functionality and safety according to the current Machinery Directive.
All models of Ropox Support Washbasin are manufactured in accordance with the current
requirements of Directive No. 93/42/EEC concerning Medical Devices and belong to the lowest risk
class 1
See separate CE declaration page 15.
3. Application
Ropox Support Washbasin Basic and Manual may be adjusted in height for optimum working
height for user and carer. Ropox Support Washbasin must NOT be used as a lifting table or person
lifter.
The product is designed for indoor use under normal room temperature and humidity as specified
in Section 4.
This manual must ALWAYS accompany the product and be read by and available to the user
Page 4
© ROPOX 2013

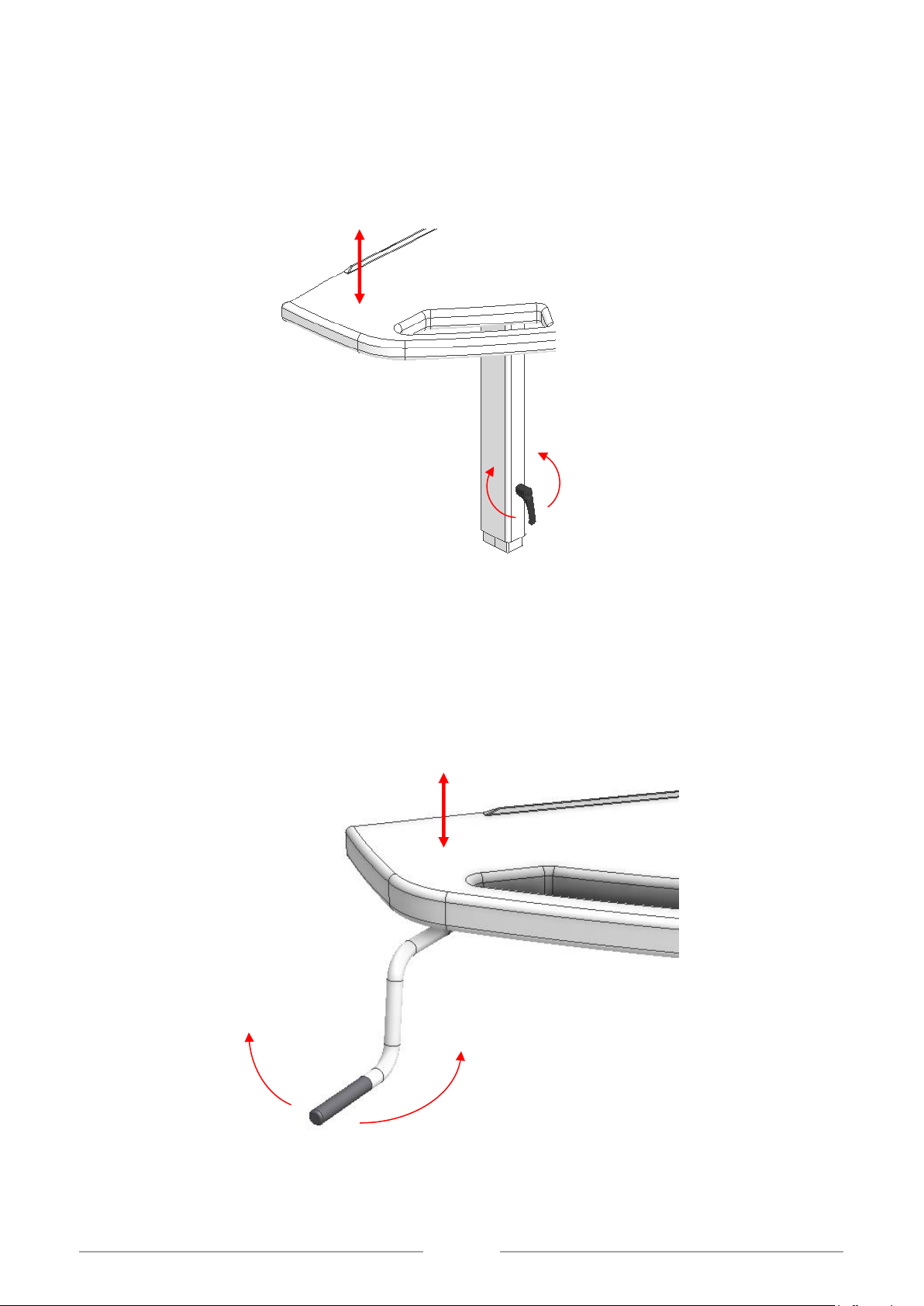

3.1 Operation
Basic height adjustment (applying to 40-44012/13)
The height of the washbasin may be adjusted by loosening the two handles. Note that the
washbasin must be supported while loosening the handles in order to prevent it from falling to the
bottom position. Covers, if any, must be removed before adjustment of these models.
Manual height adjustment (applying to 40-44014/15):
The height of the washbasin may be easily adjusted by means of the detachable hand crank.
Page 5
© ROPOX 2013
4. Technical data
Product name: Ropox Support Washbasin
Item number: Item number Name Illustration
40-44010 Fixed (left)
40-44011 Fixed (right)
40-44012 Basic height adjustment (left)
40-44013 Basic height adjustment (right)
40-44014 Manual height adjustment (left)
40-44015 Manual height adjustment (right)
Adjustment range: 30 cm (71-101cm)
Mixer tap: The following optional extras are available:
Standard: Oras Saga
Standard with auxiliary lever: Oras Saga + auxiliary lever
Disabled mixer tap: Damixa Clover Easy
No-touch mixer tap: Oras Electra 6250F
Materials: Frame: Welded steel pipes St. 37
Aluminium alloy 6060-T6
Various plastic components
Washbasin: Synthetic/marble composite
Cover: Vacuum-shaped ABS
Surface treatment: Powder coating, RAL 9010 matte white, chromite, gel coat
Max. load: Tested with max user weight of 200 kg in accordance
with DS/EN 12182.
Temperature: 10-40° C
Air humidity: 5-85 % (non-condensing)
Complaint: See Complaint page 15
Manufacturer: Ropox A/S, DK-4700 Næstved, Phone: +45 55 75 05 00
e-mail: info@ropox.dk, www.ropox.dk
Page 6
© ROPOX 2013

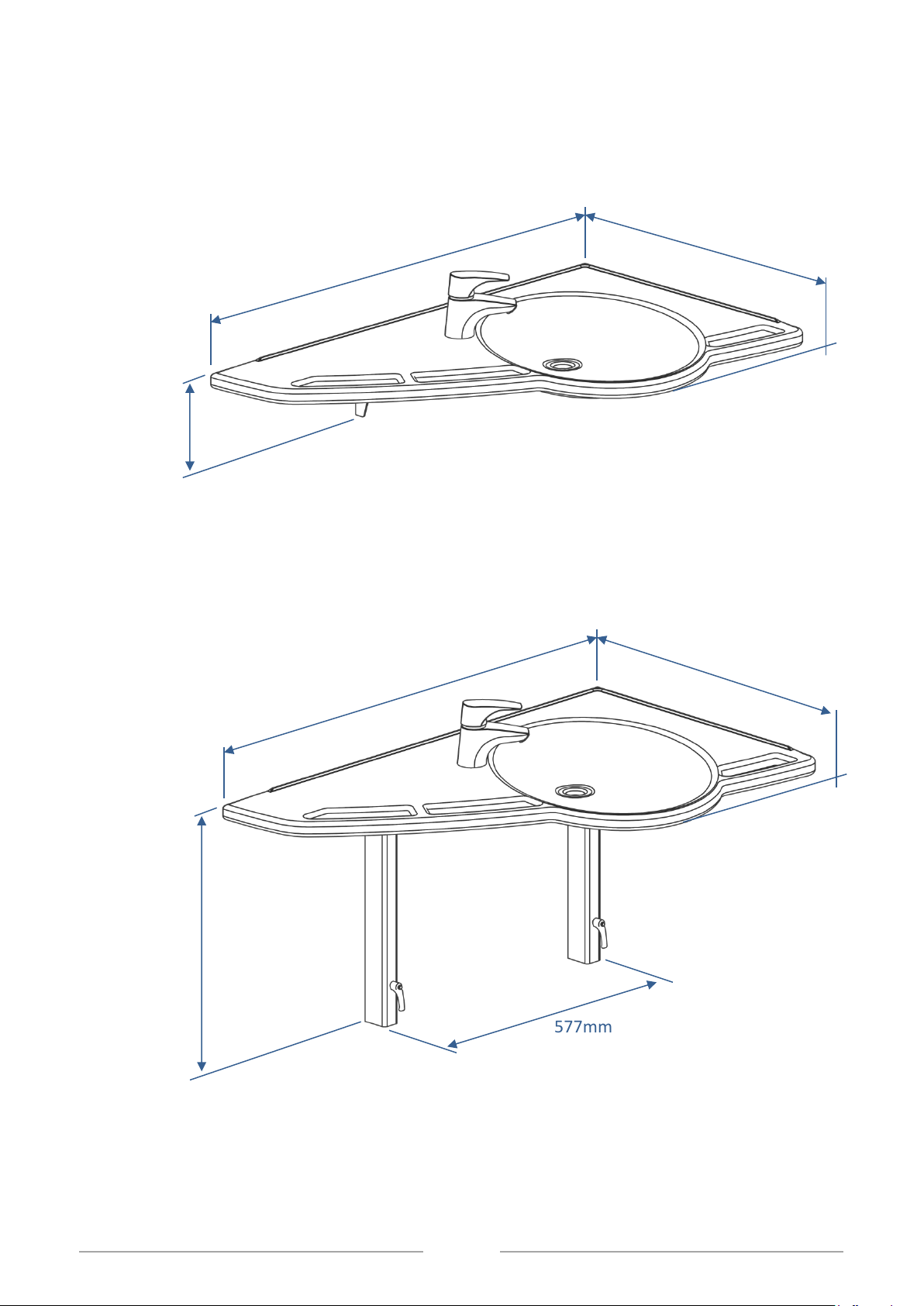

5. Dimension sketches
Fixed
40-44010/11
Basic height adjustment
40-44012/13
1000mm
633mm
166mm
1000mm
633mm
518mm
577mm
Page 7
© ROPOX 2013

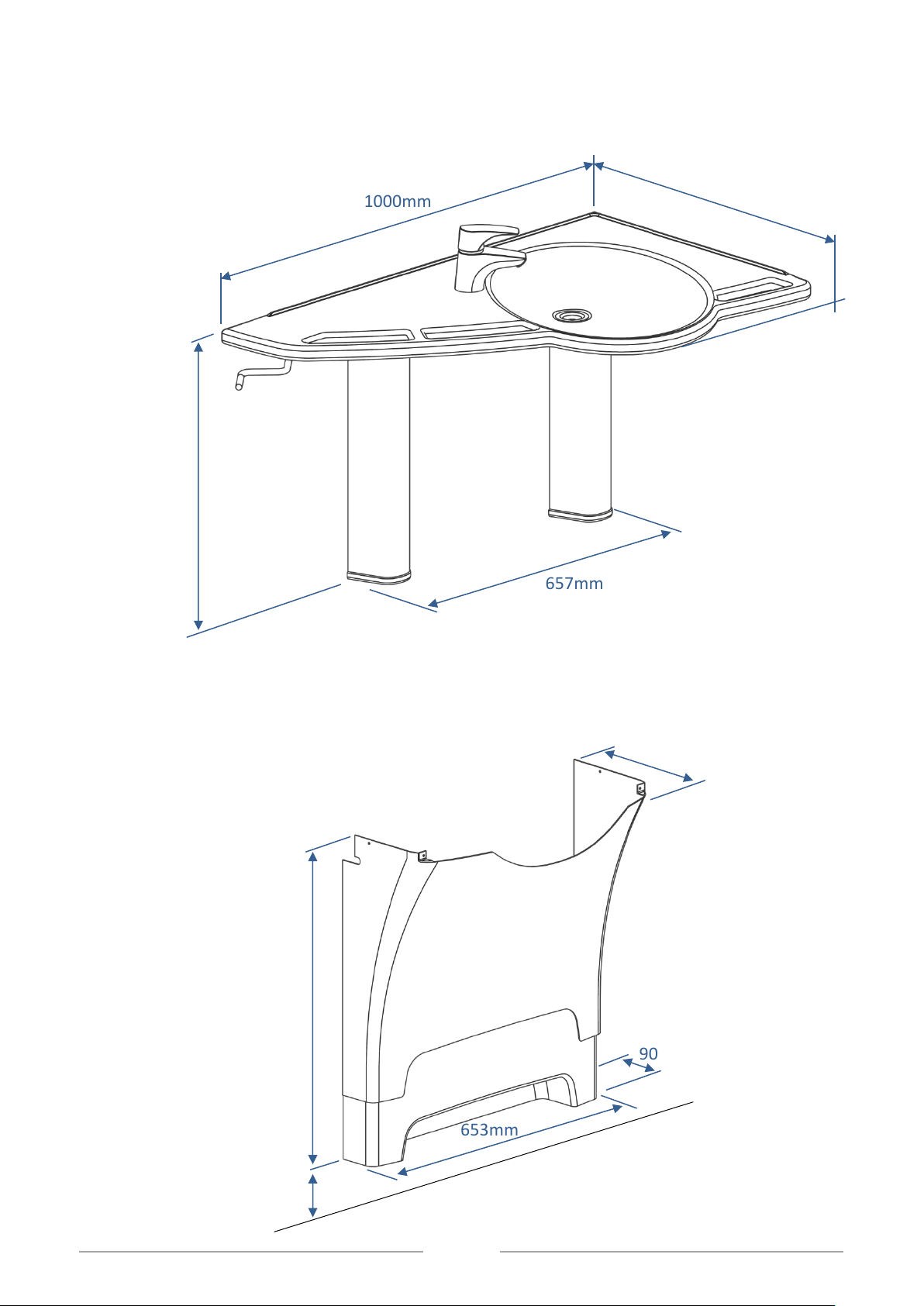

Manual height adjustment
40-44014/15
Accessories – covers
40-44021/22
633mm
1000mm
580mm
657mm
125mm
273mm
90mm
550-850mm
653mm
Page 8
© ROPOX 2013
6. Recommended positioning of water and drain
Fixed and Basic height adjustment
Manual height adjustment
We recommend positioning of water and drain installations as illustrated. It is important that all
hoses for water and drain installations are flexible to ensure unhindered movement of the frame
within the height adjustment range from 71-101 cm (including washbasin).
Drain may also be positioned in the floor.
It is recommended to position the fixed water intake on the wall so that it points
downward at a height of max. 50 cm from the floor. This ensures positioning of the
flexible hoses close to the wall without folds. A 90° valve with ½” thread is
recommended.
480
170
170
320
320
Page 9
© ROPOX 2013
6.1 Connection adapters
The highlighted components can be bought separately depending on the type of building
installation requirements.
Water supply
Hoses from basin
Adapters
Installation in room
(not included)
No adapter
necessary
1/2"
Thread
1/2" -> 3/8"
Item no. 97001670
3/8"
Thread
1/2" -> 15mm
Item no. 97001666
15mm
Pipe
Water hose extensions
Hose from basin
Coupling piece
Extra hose
1/2" -> 1/2"
Item no. 97001662
1/2" x 1/2", 0,5m, steel
Item no. 97001123
1/2" x 1/2", 1m, plastic
Item no. 97001120
Drain
Drain pipe from basin
Adapters
Installation in room
(not included)
No adapter
necessary
Ø32
Ø32 -> Ø40
Item no. 97001660
Ø40
Ø32 -> Ø50
Item no. 97001661
Ø50
Drain pipe extensions
Drain pipe from basin
Coupling piece
Extra drain pipe
Ø32-Ø32
Item no. 97001662
Ø32 Flex hose, 27-62cm
Item no. 97001162
Ø32 Flex hose, 40-110cm
Item no. 97001161
1/2”
Ø32
Ø32
Page 10
© ROPOX 2013
7. Mounting instructions and list of components
See separate Mounting Instructions.
8. Performance test
After completed installation and before use, all functions of the Ropox Support Washbasin must be
tested. After that, a performance test must be carried out at least once a year by competent
personnel.
1. Check that the mounting instructions have been observed.
2. Check that all bolts and screws have been tightened.
3. Check that all drains and hoses have been correctly connected.
4. Ensure that there is no load on the frame.
5. Ensure that there are no objects preventing the frame from moving freely within the height
adjustment range.
When these tests have been carried out successfully, Ropox Support Washbasin is ready for use.
See Section 9 ”Safety in use”.
9. Safety in use
➢ Ropox Support Washbasin must only be adjusted in height by persons who have read and
understood these instructions.
➢ Some models of Ropox Support Washbasin are height-adjustable and must not be used as
a lifting table or person lifter.
➢ Always use the washbasin in a manner excluding the risk of damage to persons or
property. The person operating the washbasin is responsible for avoiding damage or injury.
➢ If the washbasin is used in publicly accessible locations where children or persons with
reduced observation capacity may get near it, the person operating the washbasin must
pay attention to those present in order to prevent dangerous situations.
➢ Make sure that there is free space above and below the washbasin to allow height
adjustment.
➢ Do not overload Ropox Support Washbasin and make sure that the load distribution is
correct.
➢ Do not operate the washbasin in case of defects or damage.
➢ Modifications, which may influence the performance or design of Ropox Support
Washbasin, are not allowed.
➢ Installation, service and repairs must be carried out by competent personnel.
➢ During inspection, service or repairs any load must be removed from Ropox Support
Washbasin.
NOTE:
When mounting screws in the wall, always consider the strength and nature of the
wall. The screws provided are only intended as a guide for installation on a reinforced
wall with a view to the maximum screw loads specified in the Mounting Instructions.
Page 11
© ROPOX 2013
10. Service and maintenance
10.1 Cleaning
During use, the product may get dirty. It is very important to clean the product as described in
these instructions.
Wipe Ropox Support Washbasin with a wrung cloth with lukewarm water and a mild detergent. Do
not use enchants, abrasives or grinding cloths, brushes and sponges.
10.2 Cleaning of tabletop and washbasin
Ropox Support Washbasin is made of a composite material of marble and plastic granulate with a
gel coat surface. This gives a hard and very hardwearing finish, which is easy to clean. Wash the
surfaces daily with water and dry with a cloth. Do not use detergents containing hard abrasives –
e.g. steel wool, scouring powder or sulphuric acid.
If the water has high calcium content, calcareous deposits will often occur. These deposits should
be removed at least once a week by using a detergent containing citric acid, acetic acid or
phosphoric acid. Leave the detergent to work for 5 to 10 minutes depending on the thickness of
the deposits and clean thoroughly with a soft scouring sponge.
Disinfection of the basin may be done with household spirits.
10.3 Repair of washbasin
Minor damage or limited discolorations of the surfaces of the washbasin may easily be repaired by
means of a special repair kit for Ropox Support Washbasin. Please contact Ropox for further
details.
10.4 Inspection
The frame of Ropox Support Washbasin is maintenance-free. Moving parts have been lubricated
for life. For reasons of safety and reliability, we recommend inspection of the frame once a year.
Annual inspection:
➢ Check that all bolts and screw have been securely tightened.
➢ Check that the frame moves freely and without problems from bottom to top position.
➢ Check that water hoses and drain hoses are tight and functional.
After each inspection, complete the service schedule. See Section 10.4.
Only use Ropox original spare parts for replacement. If other spare parts are used, the
whole guarantee may become void.
Inspections, service and repairs must be carried out by competent
personnel
Page 12
© ROPOX 2013
10.5 Service schedule
11. Fault finding
a) The frame seems loose or unstable
1. The assembly screws of the frame have not been securely tightened.
2. Retighten all screws of the frame according to the mounting instructions.
b) The washbasin cannot be adjusted in height / adjustment is very difficult
1. Check that there are no jammed objects preventing adjustment.
c) It takes too long for the water to leave the washbasin
1. Check the siphon for clogging and clean it, if required.
2. Check that the flexible hose on the wall has not been positioned so high that it acts as
an extra siphon. Cf. recommendation, Section 6.
Service and maintenance Serial No.
Date:
Signature:
Comments:
Service and maintenance Serial No.
Date:
Signature:
Comments:
Service and maintenance Serial No.
Date:
Signature:
Comments:
Service and maintenance Serial No.
Date:
Signature:
Comments:
Page 13
© ROPOX 2013
12. List of spare parts
Handle M6
Item No. 96000177
Applies to 40-44012/13 only
Hand crank
Item No. 20-60320-548
Applies to 40-44014/15 only
13. Optional extras
Water and drain kit
Item No. 40-44020
Excl. of mixer tap
Cover plate kit, left
Item No. 40-44021 (Applies to Fixed and Basic models)
Item No. 40-44027 (Applies to Manual model)
Cover plate kit, right
Item No. 40-44022 (Applies to Fixed and Basic models)
Item No. 40-44028 (Applies to Manual model)
Mixer tap Oras Saga
Item No. 40-44040
Auxiliary lever for Oras Saga mixer tap
Item No. 40-14680
Mixer tap, Damixa Clover Easy
Item No. 40-44044
No-touch mixer tap, Oras Electra 6250F
Item No. 40-44045
Ropox overflow plug
Item No. 40-40935
Page 14
© ROPOX 2013
14. Label
Each unit has a label of its own as illustrated. This label contains important information to be stated
in connection with inquiries to the supplier. For positioning of the label, see drawing of spare parts.
Symbols:
The user manual must be read before use.
Waste must be sorted – if possible, for recycling.
Ropox is the manufacturer of the product in question.
CE marking. This product meets the requirements for General Safety and
Functionality of the current EU Directives and Standards.
Ropox Support Washbasin, Manual
Right-oriented
40-44015
200 KG
Page 15
© ROPOX 2013
EU – Declaration of Conformity
The undersigned hereby declares that the following products:
Ropox Support Washbasin
Item numbers: 40-44010, Ropox Support Washbasin, Fixed (left)
40-44011, Ropox Support Washbasin, Fixed (right)
40-44012, Ropox Support Washbasin, Basic (left)
40-44013, Ropox Support Washbasin, Basic (right)
40-44014, Ropox Support Washbasin, Manual (left)
40-44015, Ropox Support Washbasin, Manual (right)
are in accordance with the following Directives and Standards:
DIRECTIVES
Directive No. 93/42/EEC concerning Medical Devices (risk class 1)
Machinery Directive No. 2006/42/EC, amended by Directive No. 98/37/EC.
STANDARDS
DS/EN 12182: 2012: Assistive devices for persons with functional disabilities General requirements and test methods
DS/EN 14971: 2012: Medical devices - Application of risk management to medical devices
DS/EN 9999: 2011: Assistive devices for persons with functional disabilities -
Classification and terminology
Date: 09-12-13
ROPOX A/S
Ringstedgade 221
DK-4700 Naestved Denmark
Tel. (+45) 55 75 05 00 Fax (+45) 55 75 05 50
e-mail:info@ropox.dk
- Better ways to better days -
Page 16
© ROPOX 2013
15. Complaint
See General Terms of Sale and Delivery on www.ropox.dk
ROPOX A/S
Ringstedgade 221
DK – 4700 Næstved
Tel.: +45 55 75 05 00 Fax.: +45 55 75 05 50
E-mail: info@ropox.dk
www.ropox.dk
Loading...
