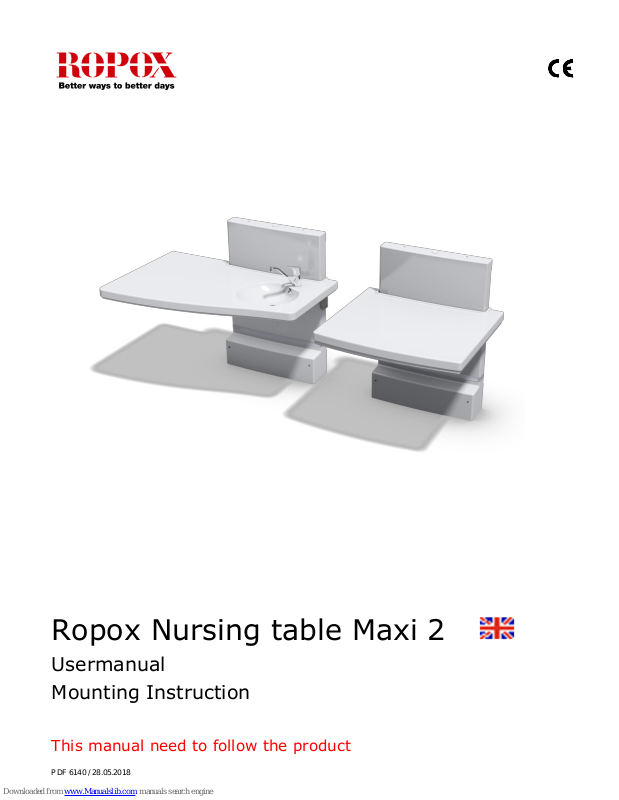

Ropox Maxi 2 User Manual

Ropox Nursing table Maxi 2
Usermanual Mounting Instruction
PDF 6140 / 28.05.2018
Page 2
Contents
Product information ................................................................................................................................................... 3
Item number .............................................................................................................................................................. 3
Technical data ............................................................................................................................................................ 4
Daily use ..................................................................................................................................................................... 4
Recommendations for use .......................................................................................................................................... 5
Important information before mounting .................................................................................................................... 6
Placement of 230V socket, hot and cold water and drain ........................................................................................... 6
Receiving the nursing table ........................................................................................................................................ 7
Dimension sketch ....................................................................................................................................................... 7
Mounting Instructions ................................................................................................................................................ 7
1.Mounting to the wall ............................................................................................................................................... 8
2. Mounting of the lower cover .................................................................................................................................11
3. Mounting of the upper cover .................................................................................................................................11
4. Connection of the worktop ....................................................................................................................................12
5. Connection of the safety stop ................................................................................................................................13
6. Connection of water and drain ..............................................................................................................................14
Wiring circuit .............................................................................................................................................................18
Connections ...............................................................................................................................................................19
Dismounting ..............................................................................................................................................................19
Performance test .......................................................................................................................................................20
Labelling ....................................................................................................................................................................21
Label ..........................................................................................................................................................................21
Symbols: ....................................................................................................................................................................21
Support ................................................................................................................................................ 22
Troubleshooting ........................................................................................................................................................22
Waste ........................................................................................................................................................................22
Factors affecting the product during storage and transport.......................................................................................22
Maintenance .............................................................................................................................................................23
Cleaning .....................................................................................................................................................................23
Declaration of conformity ..........................................................................................................................................28
Claims .................................................................................................................................................. 28
Page 3
Generel informations
Product information
Product : Ropox Nursing table Maxi 2, Heightadjustable
Producer : Ropox, DK-4700 Naestved, Tel. +45 55 75 05 00
The height adjustable nursing table is designed for nursing children up to 75 kg. The nursing table can be used I private homes, daycare centers or similar institutions to ensure correct and optimal working conditions for staff. The height adjustment is performed by pressing the up and down buttons on the handset.
Item number
Lenght of
the nursing
table
Part no.
90cm
50-50672
130cm
50-50670
It is important to read this manual before mounting and use of
the nursing table.
Page 4
Generel informations
Technical data
Power consumbtion: 230V, 50Hz, max 2.0A Standby consumption: 7W Duty cycle: Maks. 10%, 2min/18min Height: Workheight 40 – 100cm Speed: 50mm/s Material – the frame: Welded steeltubes St.37, stainless steel and aluminum The worktop: ABS/PMMA Surface: Powder-coated, white RAL 9010 mat, chromate Max. load: 75 kg
This product has CE marked according to the Machinery, Low Voltage and EMC Directives. It has been tested according to European standards DS / EN ISO 12182 and DS / EN ISO the 60335th
Daily use
Before using this product, it is important that the main power is applied as described under electrical connections.
The height of the nursing table is adjusted by pressing
the up and down buttons on the handset.
Max. load on the nursing table: 75kg.
Warning !!
During height adjustment of the nursing table, there is a risk of getting jammed between table and adjacent objects.
Before using the table, ensure that there are no objects preventing movement of the table.
!! The product must NOT be operated by children!!
Page 5
Generel informations
Recommendations for use
Height adjustment allows individual working height for each employee and can also help to reduce the number of lift when transferring from example: a wheelchair user.
To ensure optimum utilisation of the functions of the nursing table and to avoid accidents, it is important to observe these basic safety procedures.
NEVER leave a child on the nursing table unattended - not even for a short period. The nursing table should only be used by adults. Pay special attention to other people who may stay in the room while using the
nursing table. Make sure that no children are playing under or with the table. Make sure that children cannot operate the nursing table unintentionally. See that there is free space above and below the table to allow height adjustment.
Make sure that there are no obstacles above, below or around the nursing table in order to avoid the risk of getting jammed during height adjustment.
If the handset is damaged or does not work, replace it immediately. The buttons are of the "press and keep pressed" type. The motor stops when the press on the button removed. This is an important safety factor.
If two nursing tables are mounted in the immediate vicinity of each other, it is recommended to mount a side cover between them to prevent the risk of getting jammed.
Be constantly aware of objects under the nursing table.
Page 6
Mounting instruction
Important information before mounting
Make sure that there is free space on all sides of the nursing table as shown below.
Placement of 230V socket, hot and cold water and drain
If possible, socket for 230V and drain and connection for hot and cold water should be located as shown on the above sketch.
The length of the mains cable is 3,2 m.
Nursing table Maxi 2, 90 cm
Nursing table maxi 2, 130 cm
70 cm
Page 7
Mounting instruction
Receiving the nursing table
Dimension sketch
These mounting instructions comprise:
Lifting unit x1 Mounting screws x7
Covers for the lifting unit x1 Rawlplugs x7
Worktop x1 Bolts M5 x 25 x6
Bolt M4 x 10 x9
Safety plate x1 Bolts M8 x 20 x2
Drain and water hose kit x1 Cable, Safety stop x1
Page 8
Mounting Instructions
1.Mounting to the wall
The nursing table is being supplied with a set (8 pcs) of screws and rawlplugs, which is ONLY used to mount the unit in a concrete wall. The installer must always examine the material, condition and strength of the wall and use appropriate screws and rawlplugs.
Nursing table has a max user weight of 75 kg.
Maximum load in the top screws are 20kg for each screw.
The holes for fastening can be marked up on the wall, four possibilities in the top, and four in the bottom of the frame. Place the frame against the wall and make sure it is horizontal. The frame is standing on two adjustable feet. The holes in the frame are all Ø 10 mm. Remove the frame and drill the holes.
Force for each of the four screws in top of the unit:
F
screw
= (75 kg * 830)/(790 * 4 screws)
F
screw
=20 kg for each screw
If you have other objects mounted right next to this nursing table, you have to
consider the risk of trapping, and therefore consider a safe distance to other
objects.
Make sure that no dust or other obstacles are interfering with the rollers, chain, sprocket or gas springs. This can cause malfunction and damage the system
F=Screw
F=75kg
Page 9
Mounting instruction
Mounting to the wall
Page 10
Mounting instruction
Page 11
Mounting instruction
2. Mounting of the lower cover
3. Mounting of the upper cover
Page 12
Mounting instruction
4. Connection of the worktop
5. Mounting of the worktop
Page 13
Mounting Instruction
5. Connection of the safety stop
Page 14
Mounting Instruction
6. Connection of water and drain
Page 15
Mounting Instruction
Page 16
Mounting Instruction
7. If the table top is not in horizontal level
Page 17
Page 18
Electrical components
Wiring circuit
The nursing table comes with control box mounted on the frame. The diagram shows how to connect the cables with the control box.
All plug-in connections are waterproof, and mounting/dismounting may therefore be a little difficult. Make sure that all plugs have the correct position before inserting them into the control unit. The plugs must be pressed home until the O­ring is no longer visible.
Motor and control box has an IPX6 rating. This means that they are dust-and waterproof.
The electrical system is designed for intermittent use, which means a maximum duty cycle of 10%; 2min on / 18min from.
1. Controlbox
2. Mains cable 230V
3. Actuator, connects to 1
4. Handset
5. Safety stop
1 5 2 3 4
Page 19
Electrical components
Connections
The nursing table comes with control box mounted on the frame.
Motor cable connected to port 1. Ports 2, 3 & 4 are not used and are therefore provided by blind plug.
Handset must be connected to ”HB”.
The mains cable must be connected to the port on
the side of the control box.
Dismounting
Just pull out the mains cable.
In order to maintain the full IPX6 protection class, it is very important that all cables have been mounted correctly.
Page 20
Performance test
After installation and prior to use all functions of nursing table must be tested. The test must be carried out by competent personnel. Subsequently the test shall be carried out once a year.
Testing prior to connection to mains voltage:
1. Check that mounting instructions have been observed
2. Check that all bolts have been tightened.
3. Check that all cables have been connected correctly and that the plugs have
been pressed home.
4. Check that there is no load on the frame.
5. Check that there is nothing preventing the nursing table from moving freely
within the height adjustment range.
Connect main power to control box and continue testing:
1. Press DOWN button, move frame to bottom position & check movement is
even and controlled. Be aware that hoes connections follow movement of frame and do not get trapped.
2. Press UPWARDS button, move frame to top position & check movement is
even and controlled. Also, be aware that tabletop does not bump into wall. Should this be the case it could be because the wall is skewed. If the wall is only a little skewed (1-2mm) it is possible to adjust by moving the tabletop. The tabletop is fastened with Velcro. Remove tabletop from Velcro in opposite side of washbasin and slightly pull away from wall and secure again.
3. If the wall is skewed more that 2mm the lifting unit has to be jacked away
from the wall.
4. Press DOWN on control switch and let frame move 2-5 cm downwards,
activate the safety stop. The frame must stop downwards movement
If all tests are ok, the nursing table is ready for use. See section “Safety in use”.
Page 21
Labelling
Label
Each nursing table has a label of its own as illustrated. This label contains important information to be stated in connection with inquiries to the supplier.
Symbols:
User manual must be read before use.
Waste must be sorted - if possible for recycling.
Type B equipment.
Class 2 equipment. No connection to earth.
CE-marking. This product meets the requirements for General Safety and
Functionality of the current EU Directives and Standards.
EMC information The nursing table meets the requirements for Electromagnetic Compatibility (EMC), if installation and daily use are in accordance with the instructions in this manual. On rare occasions, the nursing table can be affected by electronic signals from e.g. laptops, mobile phones or the like.
Serial no.
Part no.
Name / model
Production year and production month
Max. load 75kg See below
50-50670-1 Nursing table Maxi 2, 130 cm
75kg
2014-03
Page 22
Support
Troubleshooting
The nursing table does not move up and down when the hand-control switch is pressed
Check:
1. If 230V has been connected and current is
available.
2. If all plugs have been correctly inserted.
3. If the tale only moves upward, check if the
safety stop has been blocked/activated.
4. Dismount all cables and mount them again.
5. Contact Ropox for support.
Waste
The used equipment must be disposed of in accordance with national law. We recommend disassembling of the product to the greatest possible extent, so that most parts may be recycled. Please note that this product contains electrical components. Examples of sorting groups: Metal, plastic, cables, electronics and parts for destruction.
The nursing table may be used at temperatures from 5°C to 45°C
The nursing table may be used at a relative humidity between 5% and 85% non-condensing
Factors affecting the product during storage and transport
Page 23
Maintenance
Ropox recommends testing the functions of the nursing table as well as retightening of all bolts and nuts once a year.
In case of defects, please contact Ropox as soon as possible and do not use the nursing table until the problem has been solved/remedied.
If you do not want to carry out this performance test yourself, contact Ropox to arrange a visit by a service technician. See contact information at the end of this manual.
The nursing table is maintenance-free. For safety reasons we recommend regular inspection of all bolts and moving parts to ensure correct fastening to the wall.
Cleaning
Do not use a high-pressure washer to clean this product. Simply use a soft cloth or sponge with soapy water of max. 60 °C (pH 7) or cleaning alcohol. Always clean the nursing table after use to prevent dirt from sticking to the surfaces.
** IMPORTANT **
Do not use scouring powders or other abrasives, as they will scratch the surface. Also, avoid the use of cleaning utensils with sharp edges. Never use strong mineral acids or alkaline products.
Page 24
Spare parts
For a complete parts list, please contact Ropox
97000462
Actuator
Type : LA31.3
Stroke 300 mm
97000469
Controlbox
Type : CB9096-2
97000247
Control switch
Page 25
Acessories
Item number
Description
50-50680
Mattress for Nursing Table 90cm, grey
88 x 70 x 4 cm.
50-50681
Mattress for Nursing Table 130cm, grey
88 x 75 x 4 cm.
50-50685
Adaptor frame for Nursing Table Maxi 2
Wall distance: 20 mm
50-50686
Adaptor frame for Nursing Table Maxi 2
Wall distance: 80 mm
50-50682
Side covering, white compact laminate
82 x 105 cm. For mounting on floor/wall
50-50683
Side covering, white compact laminate
61 x 105 cm. For mounting on floor/wall
Page 26
50-50688
Side Bed Guard for Medi2/Maxi2 130 cm
82 x 24 cm. Mounted on worktop
Not for retrofitting
50-50699
Side Bed Guard for Medi2/Maxi2 90 cm
82 x 24 cm. Mounted on worktop
Not for retrofitting
On picture there are mounted 2 pcs.
50-14684
Mixer tab
Non-touch monobloc tap Iqua
50-50694
Mixer tab
with extension shower head
50-50702
2-step ladder
White
50-50690
Extra hand control with spiral cable
For Maxi 2 og Medi 2 with safety stop
Page 27
50-50697
Ropox Basket unit without wash basin
50-50696
Ropox Basket unit with wash basin
Page 28
Declaration of conformity
Ropox hereby declares under sole responsibility that the following products
50-50670 Ropox Nursing table Maxi 2, 130 cm
50-50672 Ropox Nursing table Maxi 2, 90 cm
are classified as Class I and comply with the following directives and standards:
DIRECTIVES
2006/42/EF, Machinery Directive, concerning Machines, amended by
Directive No. 98/37/EG
2014/35/EU, Low Voltage directive, amended by directive No.
2006/95/EU
2014/30/EU, EMC-directive, amended by directive No. 2004/108/EU
STANDARDS
DS/EN 1041: 2009 DS/EN ISO 60335-1: 2012 DS/EN 14971: 2008 DS/EN 12221-1:2008+A1: 2013 DS/EN 12182: 2012 DS/EN 71-3 + A1: 2014
Date: 01-03-2017
Page 29
Claims
See General Terms and Conditions of www.ropox.com
Ropox A/S
Ringstedgade 221
DK – 4700 Naestved
Tel.: +45 55 75 05 00 Fax.: +45 55 78 05 50
E-mail: info@ropox.dk
www.ropox.de
Ropox A/S
Ringstedgade 221
DK – 4700 Naestved
Tel.: +45 55 75 05 00 Fax.: +45 55 78 05 50
E-mail: info@ropox.dk
www.ropox.com
Ropox A/S
Ringstedgade 221
DK – 4700 Næstved
Tel.: +45 55 75 05 00 Fax.: +45 55 78 05 50
E-mail: info@ropox.dk
www.ropox.dk
Loading...
