User manual
General product information
Ropox AdaptLine Manual is a small height adjustable system for a washbasin. It can be height
adjusted 20 cm, and the minimalistic design offers wheelchair users optimal legroom towards the
wall. Ropox AdaptLine Unit comes as a height adjustable unit where most standard bolt mounted
washbasins can be mounted. Ropox AdaptLine is also available as a complete all-inclusive model
(washbasin, mixer tap, and plumbing kit).
Technical data
Product name: Ropox AdaptLine
Item no.: Ropox AdaptLine Unit Manual 40-42110
Ropox AdaptLine Washbasin
Complete Manual 60cm: 40-42010
Ropox AdaptLine Washbasin
Complete Manual 60cm straight support 40-42011
Ropox AdaptLine Washbasin
Complete Manual 64cm hospital 40-42012
Accessories:
Flexible handle 40-42170
Plumbing kit for unit
40-42110 40-25731
Height adjustment: 20 cm
Washbasins –
type and size 40-42110: Any washbasin with a bolt distance of 280-310mm
40-42010: Standard washbasin 60x45cm
40-42011: Straight support 60x50cm
40-42012: Hospital 64x55cm
Mixer tap: Oras Saga mixer tap, a one-grip mixer tap allowing presetting of
temperature.
Alternative mixer taps are available as well, please contact Ropox for
further information
Material, washbasin: 40-42010: Synthetic/marble composite, with gel coat surface
40-42011: Synthetic/marble composite, with gel coat surface
40-42012: Porcelain
Material, frame: Welded steel tubes and sheet St. 37
Aluminium alloy 6060-T6
Various plastic components
Page 4
© ROPOX 2017
Surface treatment: Powder coating, RAL 9010, matte white, chromite
Max. load: Tested in accordance with DS/EN 12182:2012 and DS/ISO
17966:2016 with the following max. user weights:
40-42010: 150kg
40-42011: 150kg
40-42012: 120kg
40-42110: 120kg (when using a porcelain wash basin)
Product weight: 40-42110: 5,5kg
40-42010: 16,5kg
40-42011: 19,5kg
40-42012: 22kg
Temperature: 10-40° C
Air humidity: 5-85 % (non-condensing)
Complaints: See Complaints page 18
Manufacturer: Ropox A/S,
DK-4700 Næstved,
Tel.: +45 55 75 05 00
Email: info@ropox.dk,
www.ropox.dk
This product has CE marking and is tested in accordance with the European
standards regarding assistive products for disabled, DS/EN 12182 and DS/ISO
17966. The model is manufactured in accordance with the current requirements
of Directive No. 93/42/EEC concerning medical devices and belongs to the
lowest risk class 1. See separate CE declaration on page 17.
To ensure that this product is used, operated, and inspected correctly, please read this manual
carefully. It is important that you have read and understood the instructions before using the product
in order to achieve an effective and safe functionality.
The manual must always be stored in a place where it is easily accessible to the user. The manual
must follow the product at all times.
This document MUST always accompany the product and be read by and be available to
the user.
Page 5
© ROPOX 2017
User manual

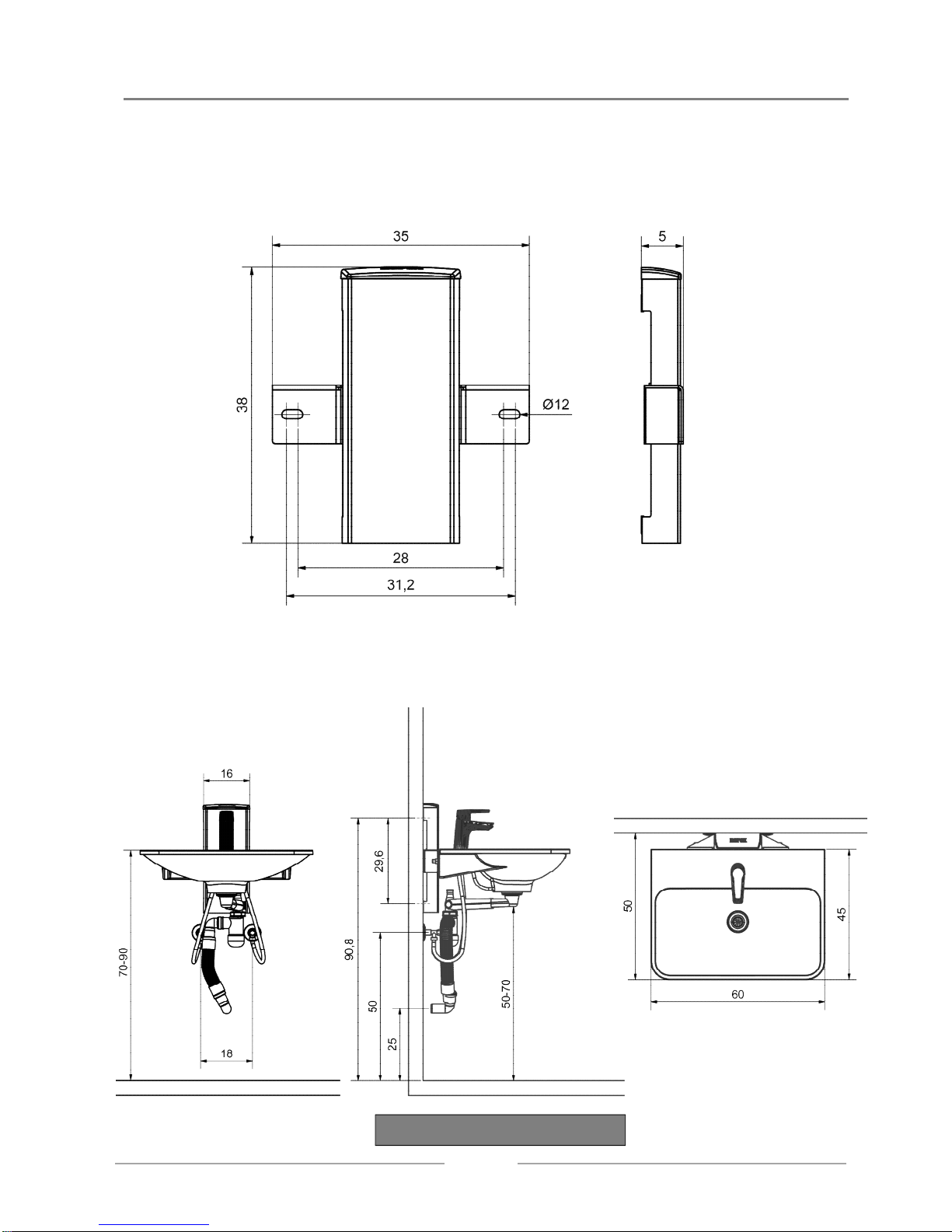

Dimension drawings
40-42110
40-42010
NB: All dimensions are in cm
Page 6
© ROPOX 2017
User manual
Dimension drawings
40-42011
40-42012
NB: All dimensions are in cm
Page 7
© ROPOX 2017
User manual
Use

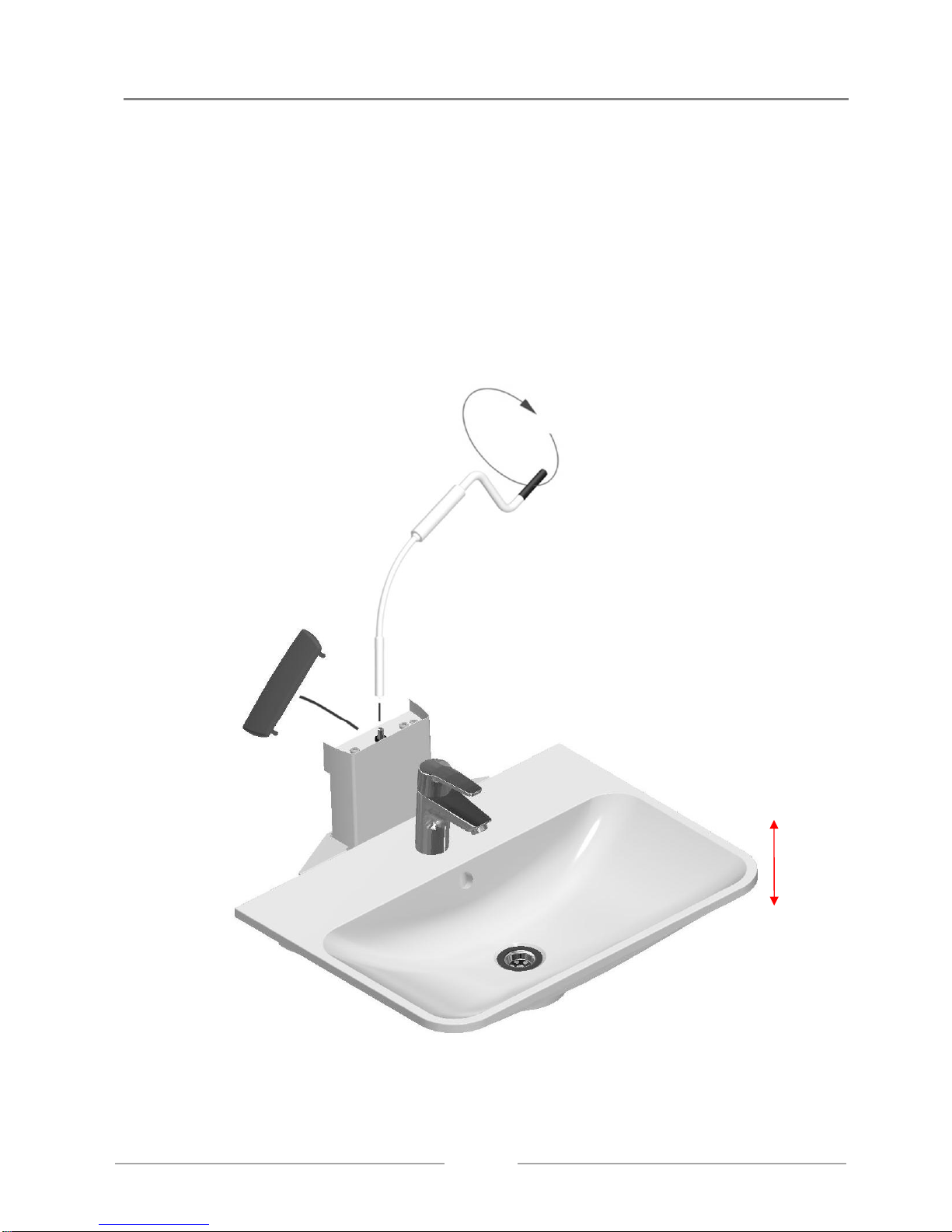

Height adjustment:
The washbasin height can be adjusted by means of the flexible handle. The grey top cover
must be dismounted first, however.
Then mount the flexible handle on the hexagonal shaft. Subsequently, the washbasin height
is adjusted by turning the handle.
Page 8
© ROPOX 2017
User manual
Safe use
· Ropox AdaptLine may only be used by persons who have read and understood these
instructions.
· Always use the product in a manner excluding the risk of damage to persons or
property. The person operating the Ropox AdaptLine is responsible for avoiding
damage or injury.
· Any modification which may influence the performance or construction of the product is
not allowed.
· Installation, service, and repairs may only be carried out by qualified personnel.
· During inspection, service, or repairs any load must be removed from the unit.
Cleaning
During use, the product may get dirty. It is very important to clean the unit as described in
these instructions.
Cleaning of unit
Ropox AdaptLine may be wiped with a wrung cloth with lukewarm water and a mild
detergent. Do not use corrosive/grinding fluids or scouring sponges.
Disinfection may be done with household disinfectants.
Cleaning of washbasins
Wash the surfaces daily with water and wipe off with a dry cloth. Do not use detergents
containing hard abrasives – e.g. steel wool, scouring powder, or sulphuric acid.
If the water has a high calcium content, calcareous deposits will often occur in the
washbasin. These deposits should be removed at least once a week by using a detergent
containing citric acid, acetic acid, or phosphoric acid. Leave the detergent to work for 5-10
minutes depending on the thickness of the deposits and clean thoroughly with a soft
sponge.
Disinfection of the washbasin may be done with household disinfectants.
Page 9
© ROPOX 2017
Mounting instructions
Installation information
CONSTRUCTION
The wall must of a suitable material for screws
and approved for wet rooms.
The grey-shaded area states the minimum
area for reinforcement of the wall.
Load tested and safe up to 200kg. In
accordance with DS/EN 12182:2012 and ISO
17966:2016, the max. user weight is 100kg.
Max. tensile load of top screws
40-42110: 50kg
40-42010: 50kg
40-42011: 50kg
40-42012: 50kg

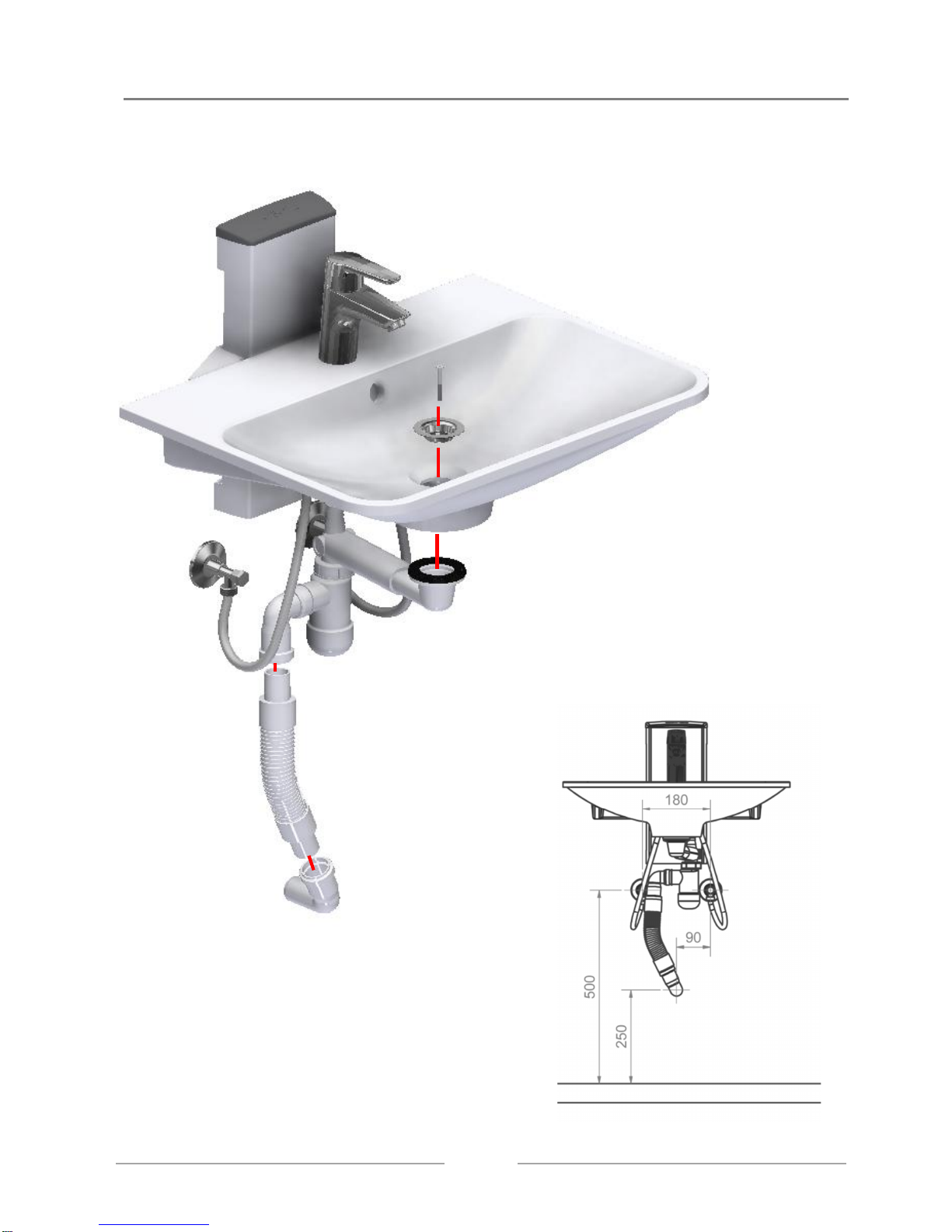

Plumbing
The drain is Ø32.
The water supply ends with 2 (two) 90° stop
valves with ½” outside thread pointing
downward.
All hoses for water and drain installations must
be flexible to ensure free and unhindered
adjustments within the height adjustment range
of 70-90 cm (the upper side of the
washbasin).
For the purchase of adapters for connection
to various standard installations, see the
section ”Connection adapters”
NOTE:
All dimensions are based on a washbasin
height of 700-900mm above floor level. If a
change of this height is required, the
recommended dimensions must be changed
accordingly.
Page 10
© ROPOX 2017
Mounting instructions
Connection adapters
The below components illustrated in blue are available depending on the type of installation in the
building.
Water connection adapters
Hoses from washbasin Adapter
Installation in room (not
included)
No adapter needed
1/2"
Thread
1/2" -> 3/8"
Item no. 97001670
3/8"
Thread
1/2" -> 15mm
Item no. 97001666
15mm
Pipe
Water hose extensions
Hose from washbasin Coupling piece Extra hose
1/2" -> 1/2"
Item no. 97001669
1/2" x 1/2", 05m, steel
Item no. 97001123
1/2" x 1/2", 1m, plastic
Item no. 97001120
Drain adapters
Drain from washbasin Adapter
Installation in room (not
included)
No adapter needed
Ø32
Ø32 -> Ø40
Item no. 97001660
Ø40
Ø32 -> Ø50
Item no. 97001661
Ø50
Drain extensions
Drain hose from washbasin Coupler Extra drain hose
Ø32-Ø32
Item no. 97001062
Ø32 Flex hose, 27-62cm
Item no. 97001162
Ø32 Flex hose, 40-110cm
Item no. 97001161
1/2”
Ø32 Ø32
Page 11
© ROPOX 2017
Mounting instructions
List of components
1 (one) height adjustment unit
40-42110
List of components for Complete models 40-42010, 40-42011, and 4042012
1 (one) washbasin
40-42010 (A), 40-42011 (B), 40-42012 (C)
1 mixer tap
Oras Saga 3910F
1 (one) plumbing kit
1 (one) 97001601 Siphon
1 (one) 97001162 Flexible drain hose ø32
2 (two) 97001035 Drain elbow 88,5°
2 (two) 97001012 Nipple ½” to 3/8”
2 (two) 97001123 Connecting hose ½” 0.5m
1 (one) kit of mounting parts for bolt
mounted washbasin
1 (one) replacement screw for drain
Ø4.8x70 A2 (only for 40-42010)
2 (two) bolts
M12x65
A
B C
Page 12
© ROPOX 2017
Mounting instructions
Mounting instructions
Prior to the installation, please make sure that all parts have been provided in accordance with the
list of components.
Page 13
© ROPOX 2017
Mounting instructions
NOTE: When mounting a porcelain wash basin an insolation foam
pad MUST to be placed between the wash basin and the unit.
Page 14
© ROPOX 2017
Mounting instructions
Page 15
© ROPOX 2017
Service information
Maintenance
Ropox AdaptLine is maintenance-free. Moving parts have been lubricated for life. For reasons of
safety and reliability, we recommend a performance test once a year.
Performance test
After one month
Check: Mounting of bolts and screws
That Ropox AdaptLine moves unhindered within its height adjustment range.
Inspections, service, and repairs must be carried out by qualified personnel
Page 16
© ROPOX 2017
Spare parts
For 40-42110-1, 40-42010-1, 40-42011-1, 40-42012-1
# Description
In product
Item no.
1 Ropox AdaptLine Unit Manual 1 40-42110-1
2 Mixer tap Oras Saga 3910F 1 97001706
3 Mounting parts for bolt mounted washbasin 1 97001467
4 Bolt M12x65 2 95041265
5 Stainless screw ø4.8x70 (only for 40-42010-1) 1 95091070
6 Plumbing kit for AdaptLine unit 1 40-25731-1
7 60cm washbasin (only for 40-42010-1) 1 97001575
8 60cm straight support washbasin
(only for 40-42011-1)
1 40-15620-1
9 64cm hospital washbasin (only for 40-42012-1) 1 97001576
Page 17
© ROPOX 2017
CE declaration
EU – Declaration of conformity
The undersigned hereby declares that the following products:
Ropox AdaptLine Manual
Item no.: 40-42110 Ropox AdaptLine Unit Manual
40-42010 Ropox AdaptLine Washbasin Complete Manual, 60cm
40-42011 Ropox AdaptLine Washbasin Complete Manual, 60cm straight
support
40-42012 Ropox AdaptLine Washbasin Complete Manual, 64cm hospital
are in accordance with the following directives and standards:
DIRECTIVES
Directive concerning medical devices 93/42/EEC (Risk class 1)
STANDARDS
DS/EN 1041:2009 Information supplied by the manufacturer of medical devices
DS/ISO 17966:2016: Assistive products for personal hygiene that support users -
Requirements and test methods
DS/EN 12182:2012: Assistive products for persons with disabilities -
General requirements and test methods
DS/EN ISO 14971:2012: Medical devices – Application of risk management as regards medical
devices
DS/EN ISO 9999:2011: Assistive products for persons with disabilities -
Classification and terminology
Date: ___01-01-2018____
- Better
ways to better days
-
Page 18
© ROPOX 2017
Complaints
See our general terms of sale and delivery on www.ropox.dk
ROPOX A/S
Ringstedgade 221
DK – 4700 Næstved
Tel.: +45 55 75 05 00 Fax.: +45 55 75 05 50
E-mail: info@ropox.dk
www.ropox.dk
Loading...
