Page 1
Page 2

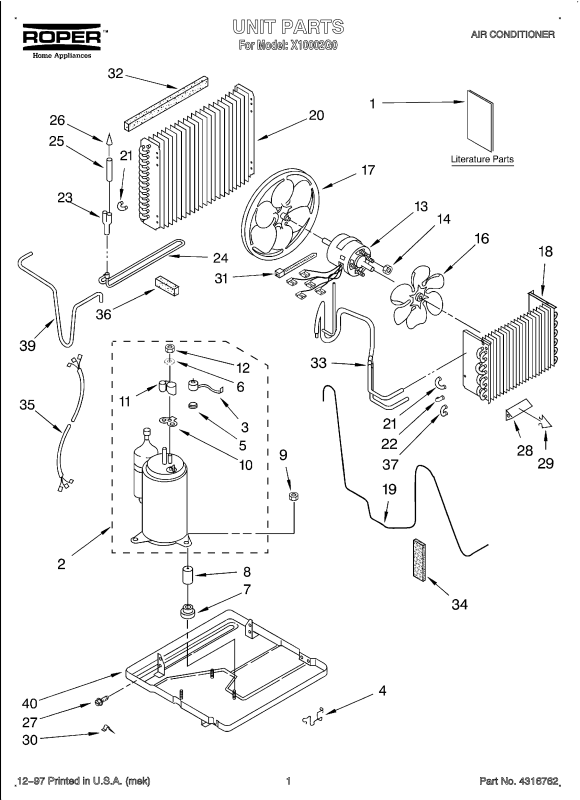

1 LITERATURE PARTS
LIT1169913 Tech Sheet
LIT1169912 Wiring Diagram
LIT1169347 Use and Care Guide
2 1163572 Compressor
3 951865 Overload
4 949634 Clip, Cabinet Front Mtg (2)
5 950032 Spring, Overload
6 950037 Gasket, Nut
7 950021 Grommet, Compressor Mounting (3)
8 950020 Sleeve, Compressor Mounting (3)
9 858121 Nut, Lock (3)
10 950035 Gasket, Terminal Cover
11 950036 Cover, Terminal
12 950027 Nut, Hex
13 1172020 Motor, Fan
14 488130 Nut, Hex Keps 8-32 (4)
16 1160946 Blade, Fan (Evaporator)
17 1161594 Blade, Fan (Condenser)
18 1164692 Evaporator
19 1164700 Tube, Restrictor
20 1160065 Condenser
21 708531 Bend, Return Evaporator (6) Condenser (13)
22 708532 Bend, Return Evaporator (1)
23 1162071 Tube, Flow Divider
24 1168421 Tube,Wet Loop
25 951437 Tube, Outlet (Includes No. 26)
26 49599 Strainer, Tube
27 488480 Screw, SM #8 x 1/2A (7)
28 996773 Anticipator, Temperature
29 475577 Clip, Temperature Anticipator
30 642684 Clamp, Tube
31 857547 Tie, Cable
32 948090 Seal, Condenser Top
33 1164706 Tube, Suction
34 1162616 Seal, Anti-Rub
35 484136 Harness, Wiring
36 859600 Seal, Condenser Bottom
37 1158407 Bend, Return (1)
39 1161574 Tube, Discharge
40 950019 Base
REFRIGERANT CHARGE 19.25 OZ.
Page 3
Page 4
1 852451 Clamp, Cable
2 1167155 Wall, Dividing
3 1162594 Capacitor, Running
4 1167611 Bracket, Running Capacitor
5 488480 Screw, S.M.#8 x 1/2
9 1166339 Insulation (Side, Dividing Wall)
10 856039 Shroud, Evaporator
14 856037 Shroud, Condenser
15 1156536 Support, Unit (2)
16 487910 Screw, S.M.#8 x 1/2 (2)
17 994561 Extension, Dividing Wall
19 1159147 Panel, Control
20 1158576 Insulation, Control Panel
22 1169915 Switch, Rotary
23 488734 Screw, Machine 6-32 x .175 (4)
24 1166758 Control, Temperature
25 856094 Wire, Ground
26 1165241 Cable, Appliance
27 487871 Screw, ST 8-32 x 3/8
29 1166338 Insulation (Back, Dividing Wall)
30 475841 Insulator, Sleeve
Page 5
Page 6

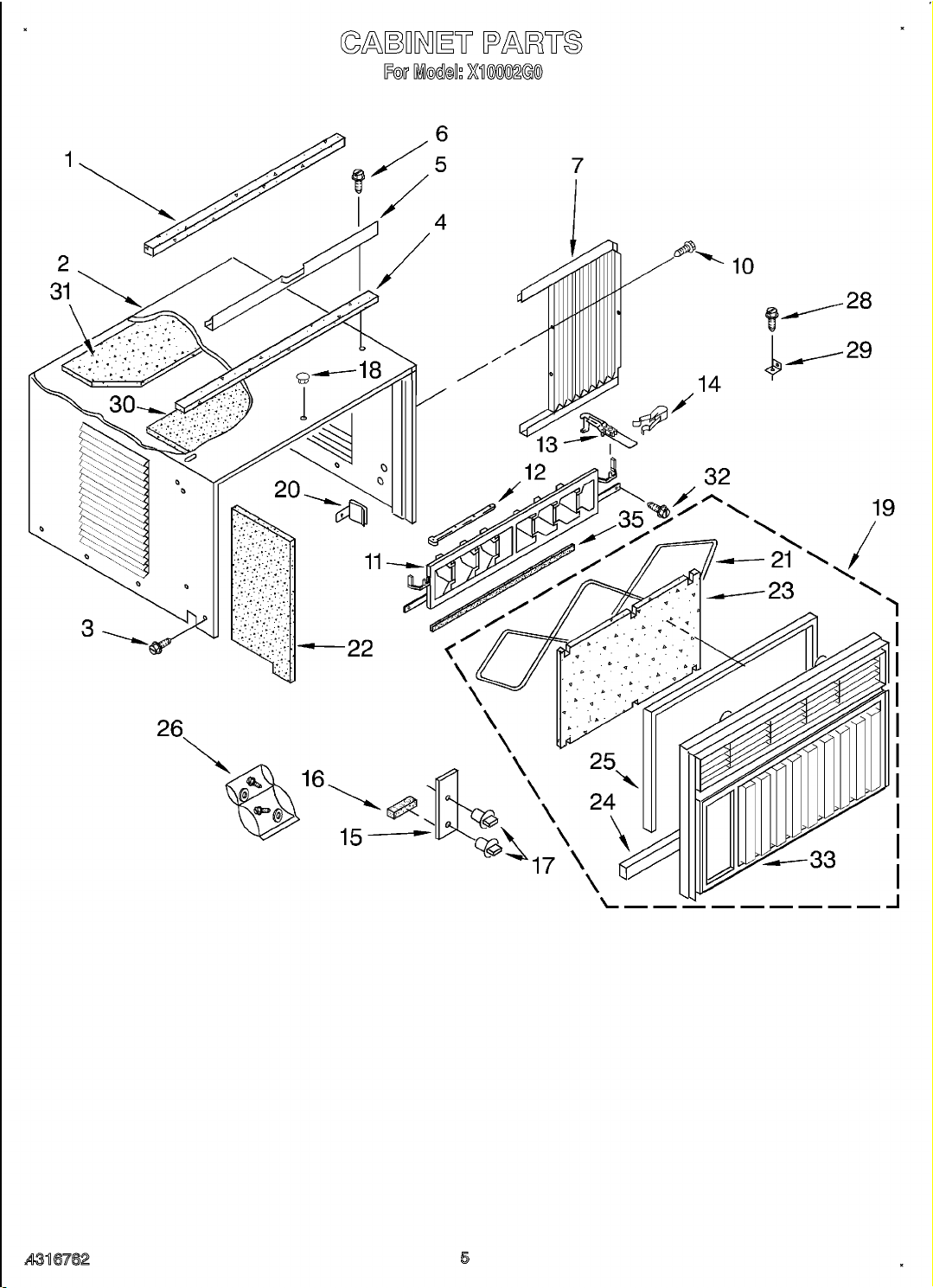

1 469877 Seal, Meeting Rail
2 1163513 Cabinet
3 1157158 Screw, ST #8 x 3/8 (8)
4 856989 Seal, Strip
5 1169001 Channel, Top Mounting
6 488720 Screw, SM #10 x 1/2AB (3)
7 1164155 Housing, Curtain R.S.
1164154 Housing, Curtain L.S.
10 1161561 Screw, 3/8 SG
11 1159980 Louver, Vertical (Insludes Illus. Nos. 12, 13, 14)
12 855158 Link, Vertical Louver (2)
13 1161636 Handle, Vertical Louver (2)
14 644006 Spring, Detent (2)
15 1172321 Plate, Escutcheon
16 470036 Spacer, Escutcheon Plate (2)
17 1167618 Knob, Control (2)
18 1157126 Cover, Hole
19 1169207 Front, Complete
20 1158294 Clip, Vertical Louver (2)
21 646963 Retainer, Filter
22 Insulation,
1163430 (Right Side)
1163431 (Left Side)
23 855246 Filter, Air
24 852923 Seal, Cabinet Front
25 645883 Seal, Strip (Top & Sides)
26 476180 Bag, Accessory
28 488255 Screw, Round Head Wood #8 x 3/4 (1)
29 644228 Bracket, Window Lock
30 1163429 Insul. Cabinet Top
31 1158501 Insul. Cabinet
32 1159222 Screw
33 1169206 Front
35 855238 Seal (Back, Vertical Louver)
Page 7
Page 8

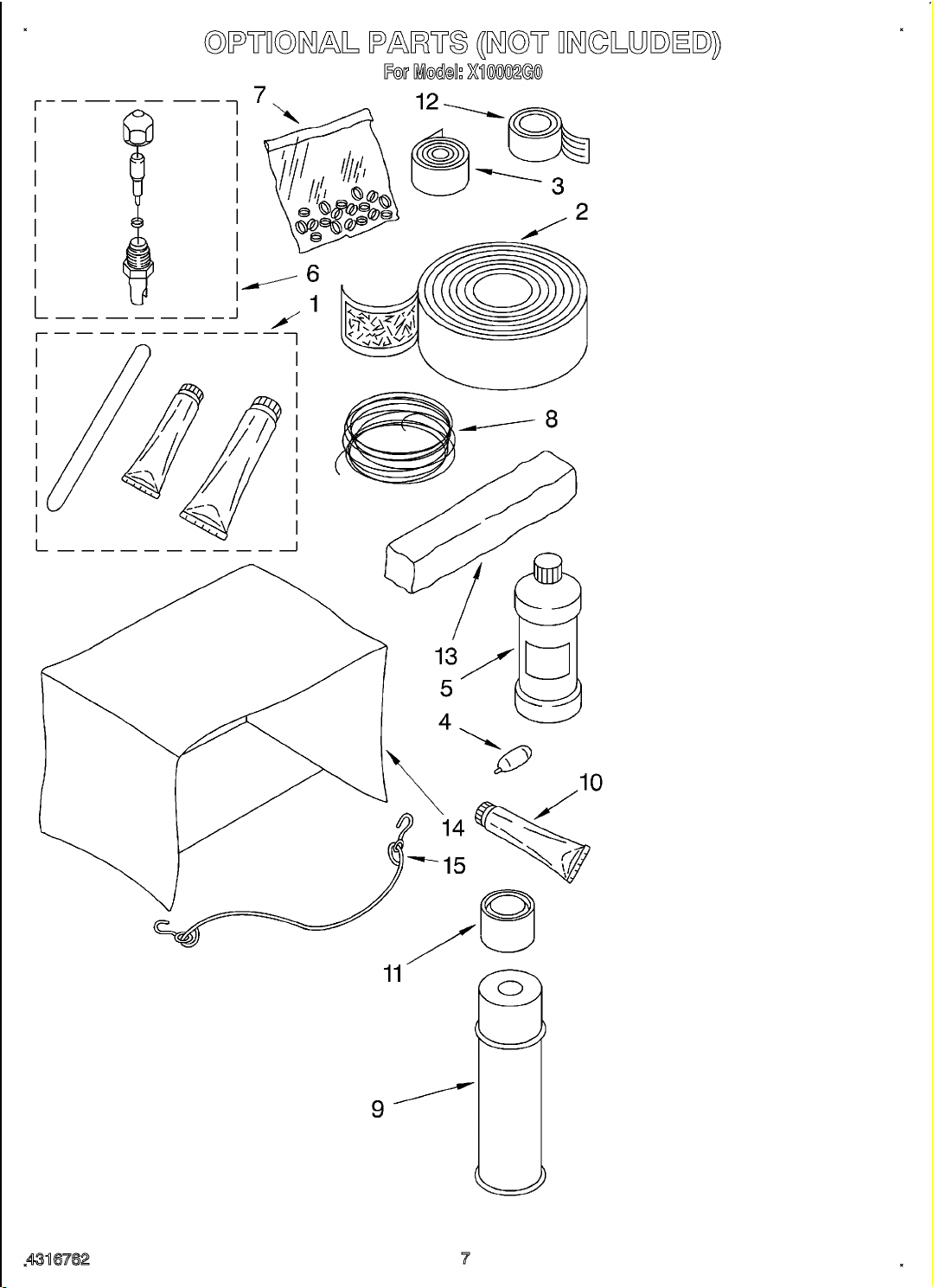

1 799833 Epoxy, Tube (Aluminum Repair)
2 505168 Tape, No Drip 30'
3 479502 Tape, Vinyl 36'
4 10943 Oil, Turbine 1 Fl. Oz.
5 99243 Oil, Turbine 8 Fl. Oz.
6 Valve, Access
876764 3/16" Tube O.D.
978025 1/4" Tube O.D.
978026 5/16" Tube O.D.
978027 3/8" Tube O.D.
978028 1/2" Tube O.D.
978029 5/8" Tube O.D.
978030 3/4" Tube O.D.
7 978865 Seal, Ring Access Valve (20-Pack)
8 Wire, 25'Roll
10875 Blue 16 Ga.
242820 Black 14 Ga.
242825 Red 14 Ga.
242826 White 14 Ga.
47261 Black 12 Ga.
299885 Red 12 Ga.
47263 White 12 Ga.
9 813684 Adhesive, Insulation (24 Oz. Spray)
10 279368 Adhesvive, Insulation (2 Oz. Tube)
11 485426 Paint, Touch-up Starlight Gray 1/2 Pint (Lacquer)
12 470168 Sealer, Permagum 4-1" Strips
13 99344 Sealer, Permagum 1 Lb. Bar
14 Cover, Winter
484066 28 x 19 x 31"
484067 19 x 12 x 14"
484069 27 x 19x6to27"
484184 22 x 15x3to18"
15 813610 Retainer, Cord (Winter Cover)
Page 9
Page 10

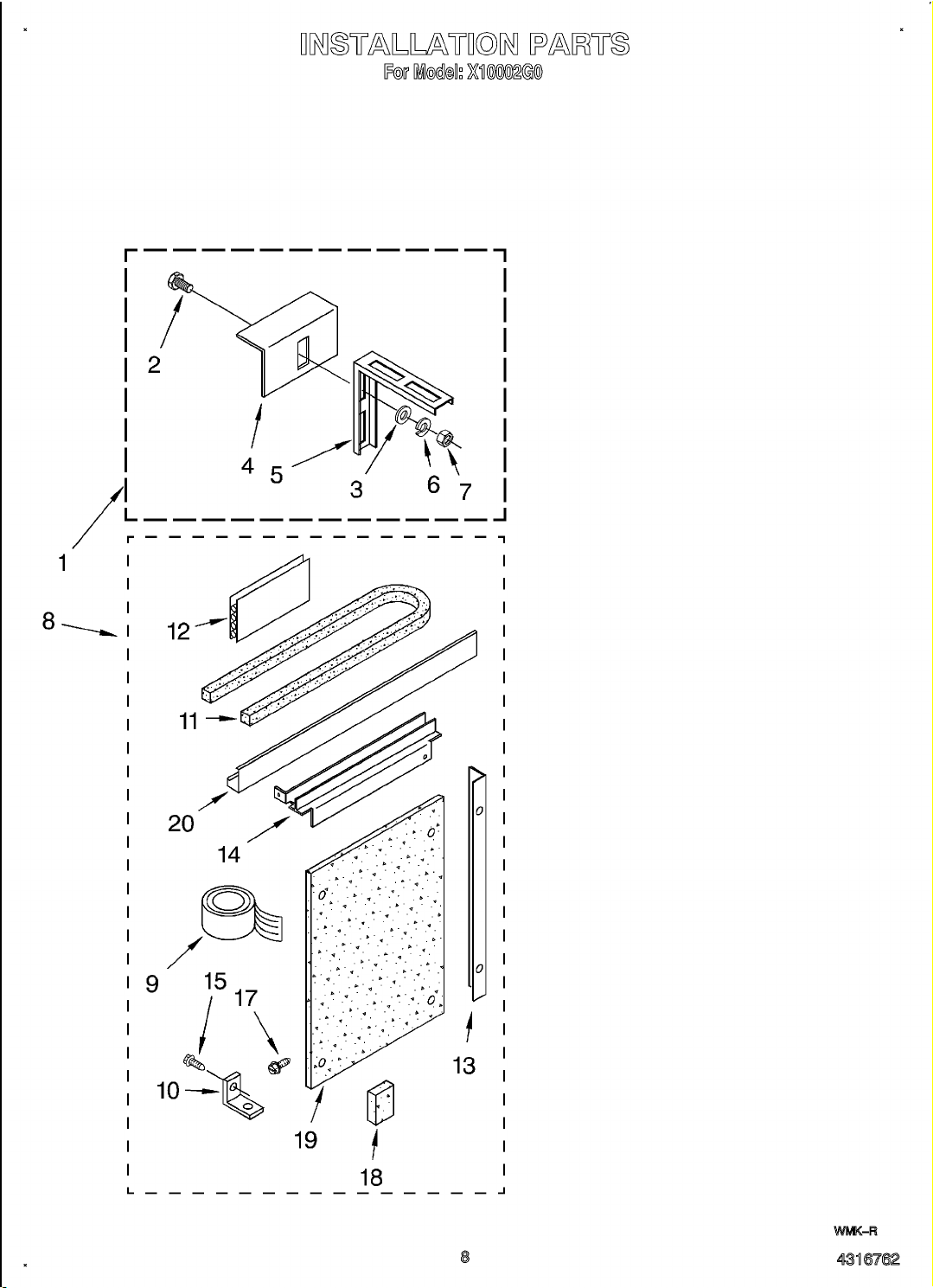

The Accessory Installation Kits illustrated below may or may not be included
with your Air Conditioner. They have been made available only as an accessory to
help you install the Air Conditioner where special circumstances may require
them. If one of these accessory kits has been installed with your Air
Conditioner and repair parts are required at some later date, you may select the
correct part number from this listing.
1 485678 Kit, Outside Sill (For Additional Support)
2 488750 Bolt 1/4-20 x 3/4 (6)
3 120393 Washer, Flat (6)
4 645515 Bracket, Sill (2)
5 485466 Bracket, Rail (2)
6 486009 Washer, Lock (6)
7 487541 Nut, 1/4-20 (6)
8 1155851 Kit, Economy Installation
9 855265 Seal, Strip
10 644228 Bracket, Window Lock
11 855841 Seal, Meeting Rail
12 212643 Sealer, Permagum
13 646233 Angle, Side (2)
14 Bracket, Top Mounting
645562 (Right Side)
645563 (Left Side)
15 47435 Screw, Wood
17 965173 Screw, Sheet Metal (6)
18 995274 Spacer, Block (2)
19 876826 Board, Filler
20 646232 Channel, Top
Following Parts Not Illustrated
485676 Wide Window Kit (Use with 1155851 for windows up to 54 inches
wide)
LITERATURE PARTS
LIT485706 Instructions, Installation (Outside Sill Kit)
LIT1155124 Instructions Installation (Economy Mounting Kit)
