1 950844 Condenser
2 854624 Bend, Return Condenser (2) Evaporator (7)
3 855199 Bend, Return Condenser (15) Evaporator (5)
4 49599 Strainer, Tube
5 484230 Tube, Outlet (Includes No.4)
6 950843 Tube, Restrictor
7 997885 Blade, Fan
8 595085 Setscrew, 5/16-24 x 1/4
9 876034 Clip, Balancing
10 949678 Motor, Fan
11 488130 Nut, Hex 8-32 (4)
12 950814 Tube, 90~ Connect (1)
13 950840 Evaporator
14 646497 Plate, Mounting
15 643179 Spring, Mounting
16 994262 Anticipator, Temperature
17 475577 Clip, Anticipator
18 950323 Base
19 612805 Tie, Wire (4)
20 484136 Harness, Wiring
21 485397 Compressor
22 646499 Grommet (3)
23 949990 Sleeve (3)
24 858121 Locknut (3)
25 647154 Gasket, Terminal Cover
26 950834 Overload
27 994171 Spring, Overload
28 647152 Cover, Terminal
29 643299 Retainer, Terminal Cover
30 997887 Fan, Blade Evaporator
31 852451 Clamp, Wiring
32 947364 Tube, Flow Divider
33 488480 Screw,8x1/2
488481 Screw (Repair)
34 852063 Seal, Condensate (Condenser Bottom)
35 949634 Clip, Front Mtg. (2)
36 646870 Seal, Condensate (Base R.H. Flange)
37 854841 Seal, Strip (Base Rear Flange)
Following Parts Not Illustrated
LITERATURE PARTS
LIT1155974 Installation, Instructions
LIT950846 Sheet, Tech And Wiring Diagram
LIT1155974 Guide, Use And Care
LIT1158329 Guide, Energy
LIT4316201 List, Repair Parts
Page 4
Page 5
1 859822 Wall, Dividing
2 859934 Sealer, Tube
3 488480 Screw,8x1/2
488481 Screw (Oversized)
4 646297 Shroud, Condenser
5 649879 Support, Unit
6 952078 Capacitor, Running
7 856105 Bracket, Capacitor
8 486288 Nut, Speed #8A
9 994686 Clip, Shroud
10 947072 Clamp, Wiring
11 646130 Extension, Dividing Wall
12 856929 Screen, Exhaust Door
13 857774 Seal, Control Panel Bottom
14 646134 Door, Exhaust
15 996685 Guard, Evaporator Impeller
16 646306 Cord, Appliance
17 487871 Screw, 8-32 x 3/8
18 856094 Wire, Ground
20 646123 Shroud, Evaporator
21 859955 Plate, Dividing Wall
23 858765 Retainer, Detent Spring
24 953066 Actuator, Exhaust Door
27 950283 Switch, Rotary
28 949411 Control, Temperature
29 993398 Panel, Control
30 488734 Screw, 6-32 x .175
31 859931 Seal, Condenser
32 857923 Seal, Condenser Shroud R.S.
37 950255 Arm, Exhaust Door
Page 6
Page 7

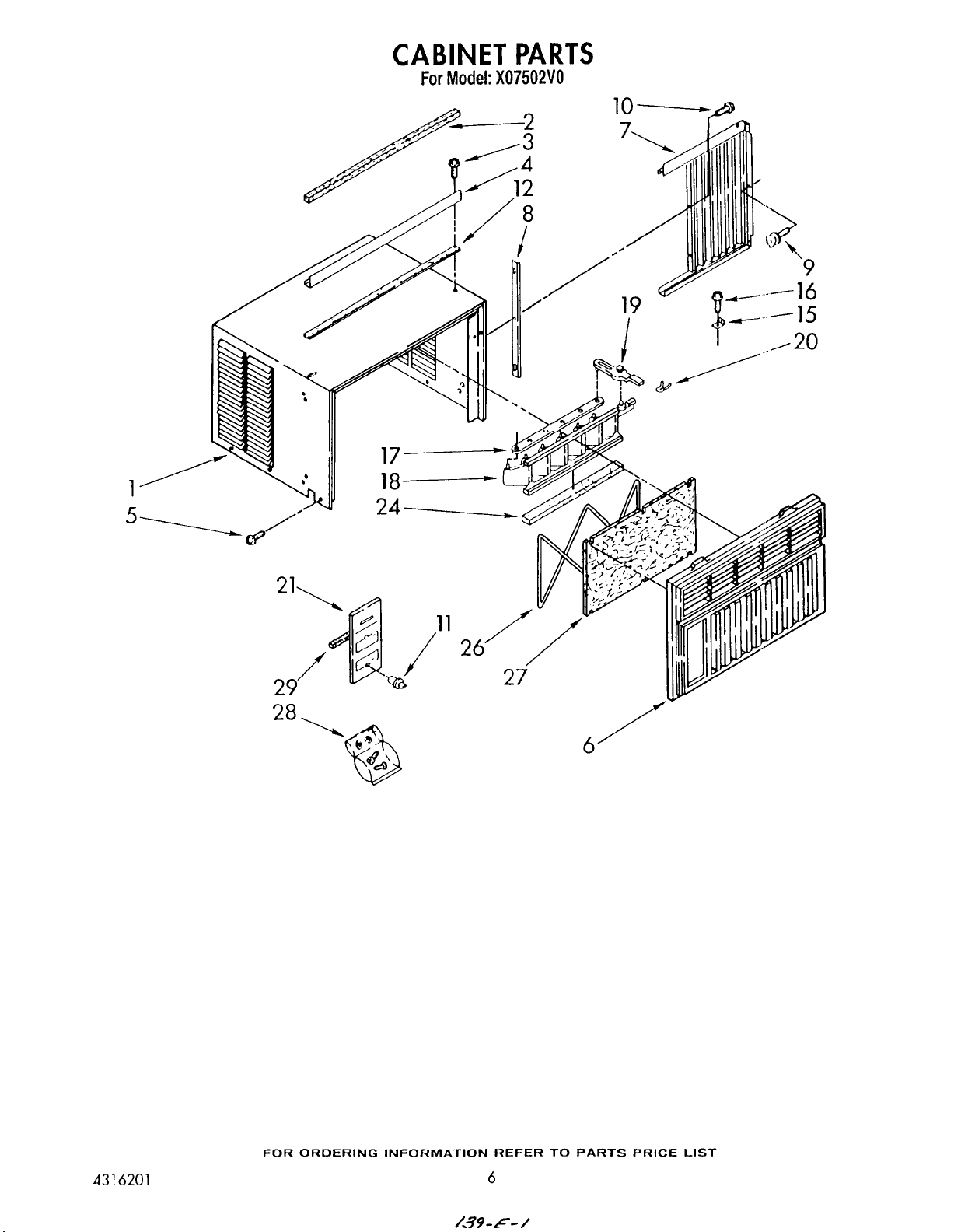

1 1157276 Cabinet
2 469877 Gasket, Meeting Rail
3 488720 Screw, 10 x 1/2 (3)
4 993849 Channel, Top
5 488875 Screw, ST 8-32 x 3/8 (6)
6 1158195 Front, Cabinet
7 646158 Housing, Curtain (L.S.)
646154 Housing, Curtain (R.S.)
8 646160 Retainer, Curtain (2)
9 475581 Thumbscrew (2)
10 488730 Screw, 8 x 7/16 (6)
11 953054 Knob, Control (2)
12 856990 Seal, Strip
15 644228 Bracket, Window
16 488255 Screw,8x3/4
17 645684 Link, Louver (2)
18 1157284 Louver, Vertical
19 645683 Handle, Louver (2)
20 641484 Spring, Detent (1)
21 1158176 Plate, Escutcheon
24 855238 Seal, Vertical Louver
26 646963 Retainer, Filter
27 852344 Filter, Air
28 476180 Bag, Accessory
29 646318 Spacer, Escutcheon Plate (2)
Page 8
Page 9

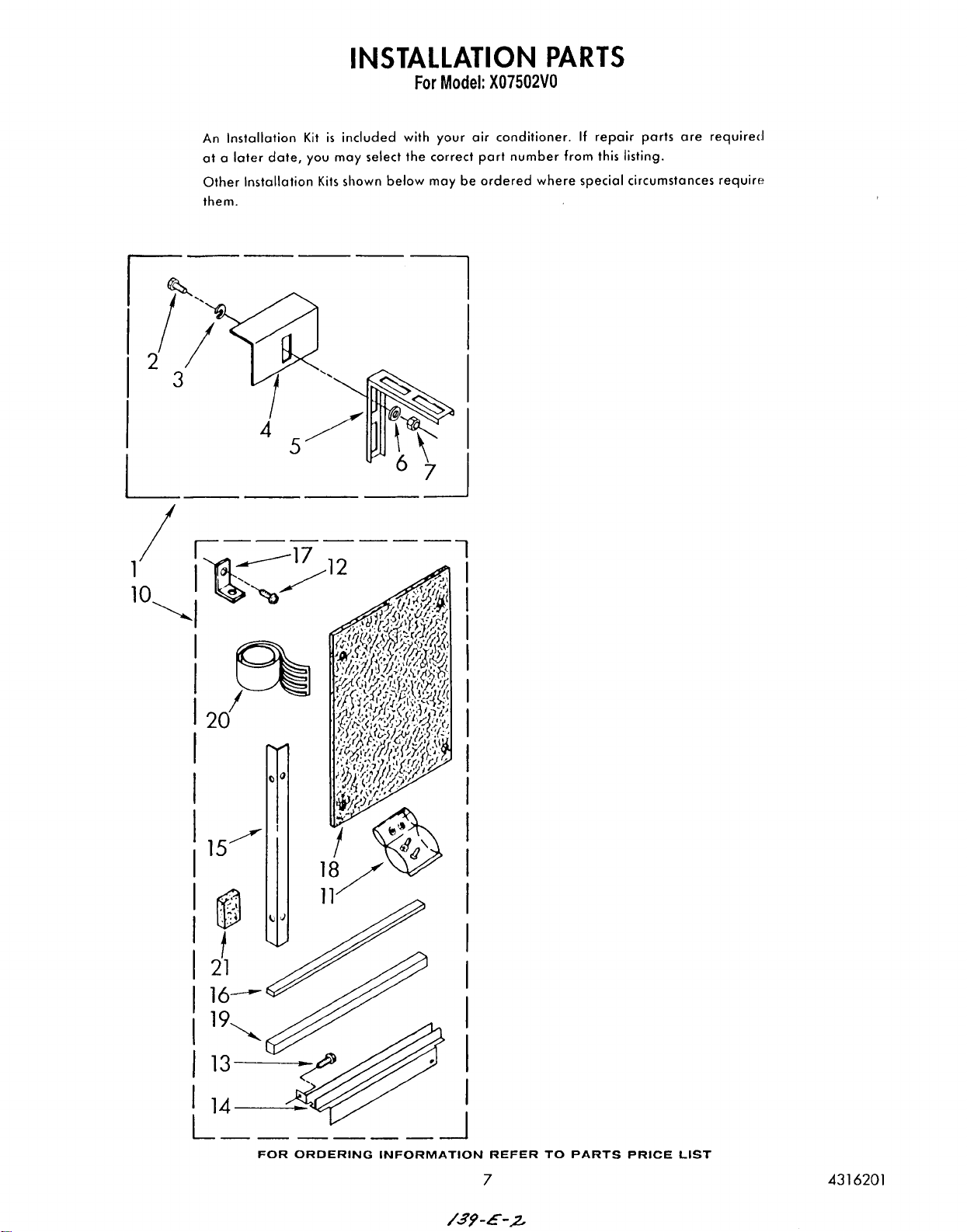

1 485678 Kit, Outside Sill (For Additional Support)
2 488750 Bolt, 1/4-20 x 3/4 (6)
3 488808 Washer, Flat (6)
4 645515 Bracket, Sill (2)
5 485466 Bracket, Rail (2)
6 486009 Washer, Lock (6)
7 486035 Nut, 1/4-20 (6)
10 994818 Kit, Window Installation
11 858358 Bag, Accessory
12 488255 Screw, Wood #8 x 3/8 (8)
13 488017 Screw, S.M. #8 x 3/8 (8)
14 Bracket, Mounting
645562 Right Side
645563 Left Side
15 646988 Angle, Side (2)
16 856979 Seal, Strip
17 644228 Bracket, Window Lock
18 648854 Board, Filler (2)
19 469877 Seal, Meeting Rail
20 470168 Sealer, Gum
21 995274 Spacer, Block
Following Parts Not Illustrated
LITERATURE PARTS
LIT485 06 Instructions, Installation (Outside Sill Kit)
Page 10
Page 11

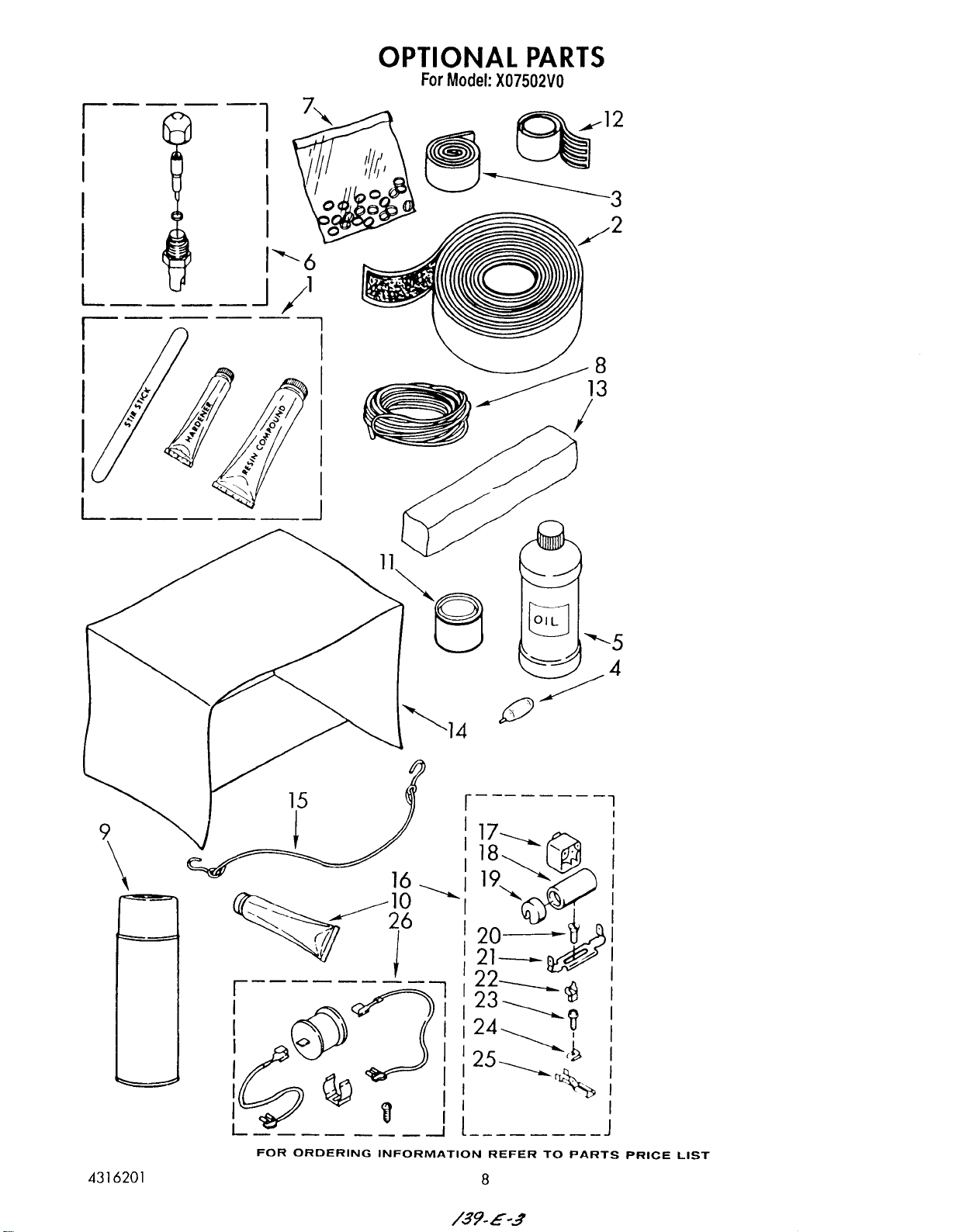

1 799833 Epoxy, Tube (aluminum repair)
2 505168 Tape, No Drip 30'
3 479502 Tape, Vinyl 36'
4 10943 Oil, Turbine 1 Fl. Oz.
5 99243 Oil, Turbine 8 Fl. Oz.
6 Valve, Access
876764 3/16" Tube O.D.
978025 1/4" Tube O.D.
978026 5/16" Tube O.D.
978027 3/8" Tube O.D.
978028 1/2" Tube O.D.
978029 5/8" Tube O.D.
978030 3/4" Tube O.D.
7 978865 Seal, Ring Access Valve (20-Pack)
8 Wire, 25' Roll
10875 Blue 16 Ga.
242820 Black 14 Ga.
242825 Red 14 Ga.
242826 White 14 Ga.
47261 Black 12 Ga.
299885 Red 12 Ga.
47263 white 12 ga.
9 813684 Adhesive, Insulation (24 Oz. Spray)
10 279368 Adhesive, Insulation (2 Oz. Tube)
11 485426 Paint, Touch-up Starlight Gray 1/2 Pint (Lacquer)
12 212643 Sealer, Permagum 4-1" strips
13 99344 sealer, permagum 1 lb. bar
14 Cover, Winter
484066 28 x 19 x 31"
484067 19 x 12 x 14"
484069 27 x 19x6to27"
484184 22 x 15x3to18"
15 813610 Retainer, Cord (Winter Cover)
16 485884 Hard Start Kit (Use With 485397 Compressor)
17 484177 Relay, Start
18 467614 Capacitor, Start
19 965173 Cap, Capacitor
20 965173 Screw (2)
21 35564 Bracket, Capacitor
22 90654 Multiplier, Terminal
23 487869 Screw
24 486197 Nut
25 45571 Terminal (8)
26 484220 Start Assist Kit
