Page 1
Page 2

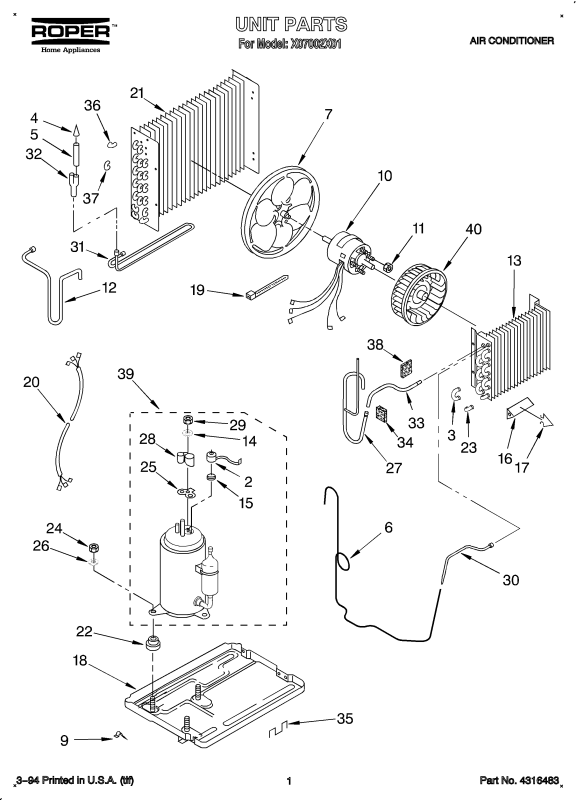

2 Overload
1157040 Production
1161170 Service
3 855199 Bend, Return (6)
4 49599 Strainer
5 950850 Tube & Strainer (Includes Illus. 4)
6 1164668 Tube, Restrictor
7 1158524 Blade, Fan
9 855930 Clamp, Tube
10 1164640 Motor, Fan
11 488130 Nut, Hex 8-32 (4)
12 1159370 Tube, Discharge
13 1164540 Evaporator
14 950037 Gasket
15 950032 Spring, Overload
16 996773 Anticipator
17 475577 Clip, Anticipator
18 1157926 Base
19 857547 Cable, Tie
20 484136 Harness, Wiring
21 1165656 Condenser
22 950212 Grommet (3)
23 997669 Bend, Return
24 858122 Locknut (3)
25 950035 Gasket, Terminal Cover
26 489108 Washer (3)
27 1164658 Tube, Suction
28 Cover, Terminal
950213 Production
950036 Service
29 950027 Nut Hex 5 - 8 mm.
30 1165066 Tube, Feeder (Restrictor)
31 1163963 Tube, Condenser Extension
32 947364 Tube, Flow Divider
33 1164547 Tube, Feeder (Suction)
34 1159443 Seal, Foam
35 949634 Clip, Mtg (2) (Cabinet-Front)
36 708532 Bend, Return (4)
37 708531 Bend, Return (13)
38 1164551 Sealer, Tube
39 1157026 Compressor Assembly
40 1164650 Wheel, Blower
LITERATURE PARTS
LIT1165174 Tech Sheet
LIT1165173 Wiring Diagram
LIT1159417 Guide, Operation
LIT1158928 Instructions, Installation
REFRIGERANT CHARGE 16.5 OZ.
Production Compressor Requires Production Electrical Components. Service
Compressor Requires Service Electrical Components. For Further Information,
Refer to Filmcard 19.1.
Page 3
Page 4
1 646870 Seal, Condensate
2 852451 Clamp, Wiring
3 488480 Screw, 8 x 1/2
4 1157908 Shroud, Condenser
5 649879 Support, Unit
6 1162595 Capacitor, Running
7 1162954 Bracket, Capacitor
8 950403 Control, Temp.
9 857923 Seal, Shroud R.S.
10 1158295 Seal, Strip
11 1159414 Insulation, Control Panel
13 1158451 Wall, Dividing
15 1158469 Insulation, Motor
16 1164674 Cord, Appliance
17 1159222 Screw, ST 8-32 x 3/8
18 856094 Wire, Ground
20 1164655 Shroud, Evaporator
23 1164671 Pan, Evaporator
25 488734 Screw 6-32 x .175
26 1164670 Hood, Air Housing
28 1165251 Switch, Rotary
29 1159409 Panel, Control
30 1159222 Screw, 3/8
31 852063 Seal, Condensate
32 1158850 Seal, Side
33 1164648 Housing, Air
35 1160302 Wire, Lead
36 1161208 Guard, Edge Seal
37 1161209 Guard, Edge Seal
38 488624 Screw 8 x 3/8
41 1158295 Seal
42 475841 Sleeve, Insul.
43 1164680 Seal (2)
Page 5
Page 6

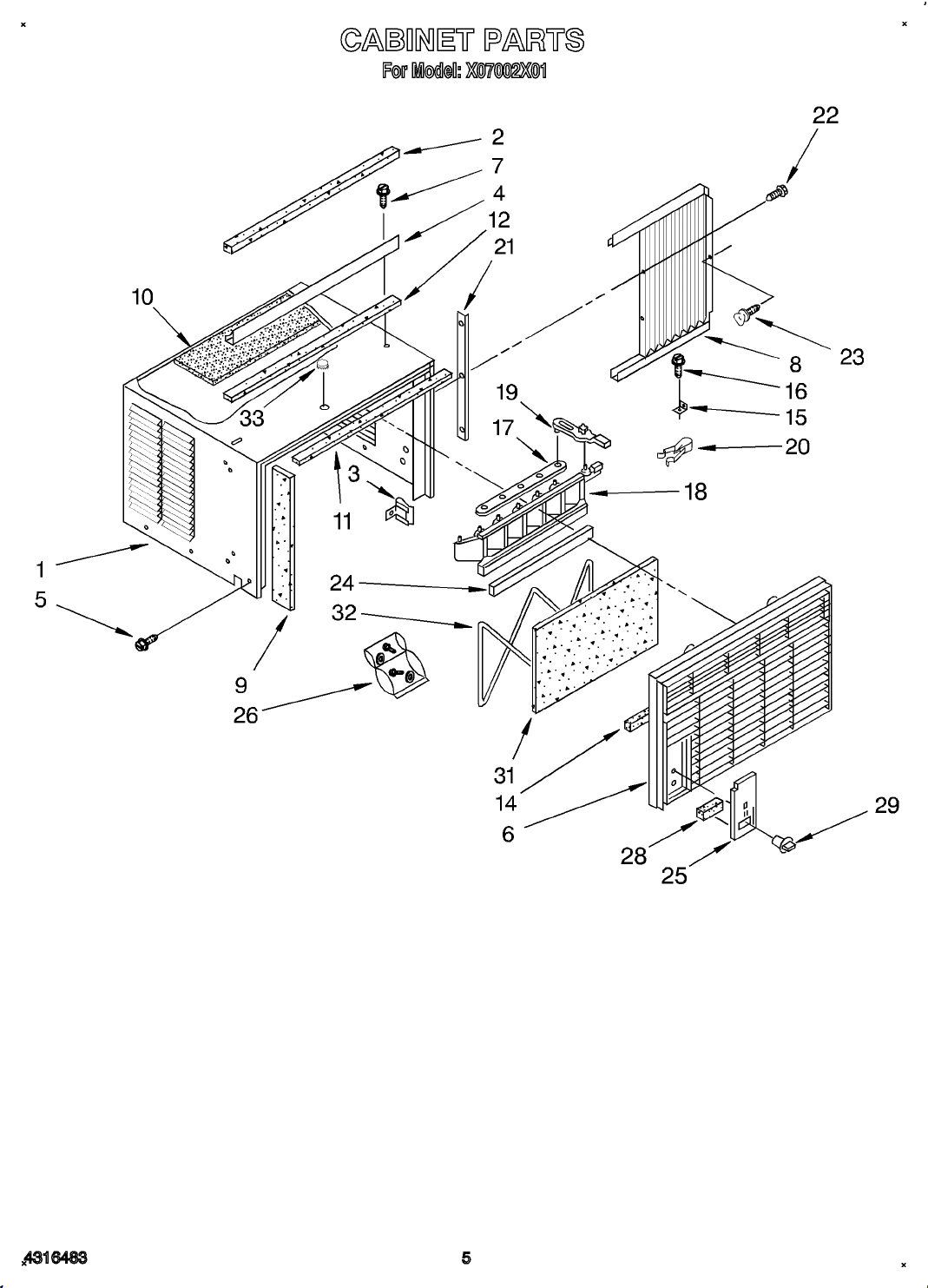

1 1157939 Cabinet
2 469877 Gasket, Meeting Rail
3 1158294 Clip
4 993849 Channel, Top
5 1157158 Screw, ST 8 x 3/8 (6)
6 1158195 Front, Cabinet Assembly
7 488720 Screw (2)
8 1162963 Curtain (L.S.)
1162961 Curtain (R.S.)
9 950169 Insulation, Side
10 1157942 Insulation, Top
11 1159283 Seal
12 856990 Seal, Strip
14 949090 Seal, Cabinet Front
15 644228 Bracket, Window
16 488255 Screw, 8 x 3/4
17 645684 Link, Louver
18 1158325 Louver, Vertical
19 645683 Handle, Louver
20 641484 Spring, Detent
21 646160 Retainer, Curtain (2)
22 1161561 Screw
23 475581 Screw, Thumb
24 855238 Seal, Vertical Louver
25 1159407 Escutcheon
26 476180 Bag, Accessory
28 646318 Spacer (2)
29 1158639 Knob, Control (2)
31 852344 Filter
32 646963 Retainer, Filter
33 1157126 Cover, Hole
Page 7
Page 8

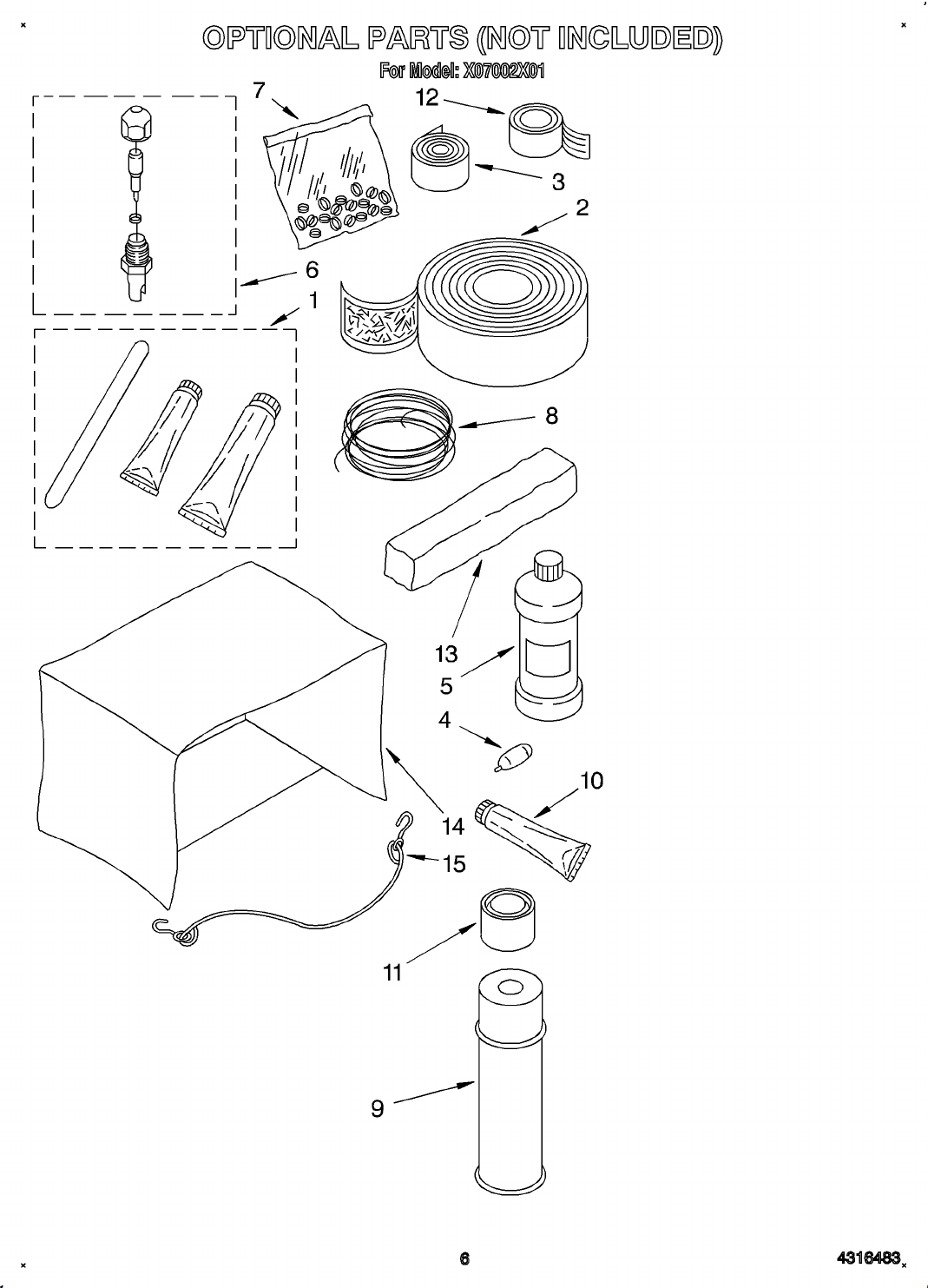

1 799833 Epoxy, Tube (Aluminum Repair)
2 505168 Tape, No Drip 30'
3 479502 Tape, Vinyl 36'
4 10943 Oil, Turbine 1 Fl. Oz.
5 99243 Oil, Turbine 8 Fl. Oz.
6 Valve, Access
876764 3/16" Tube O.D.
978025 1/4" Tube O.D.
978026 5/16" Tube O.D.
978027 3/8" Tube O.D.
978028 1/2" Tube O.D.
978029 5/8" Tube O.D.
978030 3/4" Tube O.D.
7 978865 Seal, Ring Access valve (20-Pack)
8 Wire, 25' Roll
10875 Blue 16 Ga.
242820 Black 14Ga.
242825 Red 14 Ga.
242826 White 14 Ga.
47261 Black 12 Ga.
299885 Red 12 Ga.
47263 White 12 Ga.
9 813684 Adhesive, Insulation (24 Oz. Spray)
10 279368 Adhesive, Insulation (2 Oz. Tube)
11 485426 Paint, Touch-up Starlight Gray 1/2 Pint (Lacquer)
12 212643 Sealer, Permagum 4-1" Strips
13 99344 Sealer, Permagum 1 Lb. Bar
14 Cover, Winter
484066 28 x 19 x 31"
484067 19 x 12 x 14"
484069 27 x 19 x 6 to 27"
484184 22 x 15 x 3 to 18"
15 813610 Retainer, Cord (Winter Cover)
Page 9
Page 10

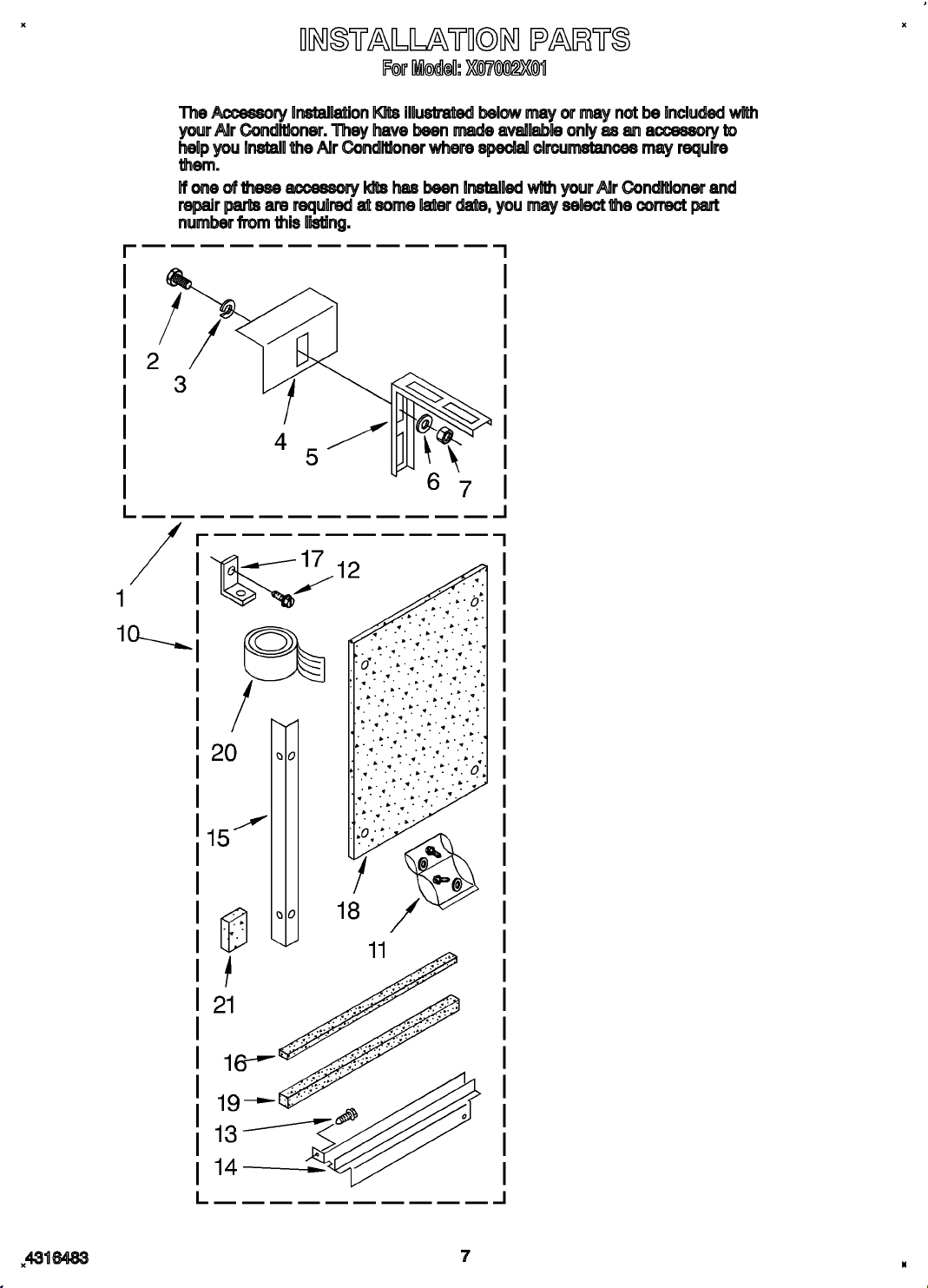

1 485678 Kit, Outside Sill (For Additional Support)
2 488750 Bolt, 1/4-20 x 3/4 (6)
3 488808 Washer, Flat (6)
4 645515 Bracket, Sill (2)
5 485466 Bracket, Rail (2)
6 486009 Washer, Lock (6)
7 486035 Nut, 1/4-20 (6)
10 994818 Kit, Window Installation
11 858358 Bag, Accessory
12 488255 Screw, Wood #8 x 3/8 (3)
13 488017 Screw, S.M. #8 x 3/8 (8)
14 Bracket, Mounting
645562 Right Side
645563 Left Side
15 646988 Angle, Side
16 856979 Seal, Strip
17 644228 Bracket, Window Lock
18 648854 Board, Filler (2)
19 469877 Seal, Meeting Rail
20 470168 Sealer, Gum
21 995274 Spacer, Block
LITERATURE PARTS
LIT485706 Instructions, Installation (Outside Sill Kit)
