Roper X07002x00 Installation Template

2 947364 Tube, Flow Divider
3 855199 Bend, Return Evaporator (3)
4 49599 Strainer
5 950850 Tube & Strainer (Includes Illus. 4)
6 1159366 Tube, Restrictor
7 1158524 Blade, Fan (Condenser)
8 489292 Setscrew, 5/16 x 1/4
9 1158502 Clip, Balancing
10 1159365 Motor, Fan
11 488130 Nut, Hex 8-32 (4)
12 1158322 Tube, Condenser Extension
13 1159352 Evaporator
14 950037 Gasket, Nut
15 949634 Clip, Front (2)
16 996773 Anticipator, Temperature
17 475577 Clip, Anticipator
18 1157926 Base
19 857547 Cable, Tie
20 484136 Harness, Wiring
21 4210447 Compressor
22 950212 Grommet (3)
23 489108 Washer (3)
24 858122 Locknut (3)
25 950035 Gasket, Terminal Cover
26 1157040 Overload
27 950032 Spring, Overload
28 950213 Cover, Terminal
29 950027 Nut, Hex
30 854624 Bend, Return Evaporator (8)
31 708531 Bend, Return (13)
32 708532 Bend, Return (4)
34 855930 Clamp, Tube
35 1157936 Bend Return Condenser (18)
36 1159367 Condenser
40 1156594 Fan, Blade (Evaporator)
41 852451 Clamp, Wiring
43 488480 Screw,8x1/2

LITERATURE PARTS

LIT1158928 Installation Instructions
LIT1159472 Tech Sheet
LIT1158939 Wiring Diagram
LIT1159417 Operation Guide
LIT4316291 Repair Parts List

1 646870 Seal, Condensate
2 1159316 Sealer, Tube
3 1159222 Screw
4 1157908 Shroud, Condenser
5 649879 Support, Unit
6 952739 Capacitor, Running
7 856105 Bracket, Capacitor
10 1158295 Seal, Strip
13 1158451 Wall, Dividing Assembly
16 647216 Cord, Appliance
17 488624 Screw, 8-32 x 3/8
18 856094 Wire, Ground
20 1159348 Shroud, Evaporator
22 1158649 Seal, Condenser
25 1158469 Insulation, Motor
26 1159428 Pan, Evaporator
27 950524 Switch, Rotary
28 950403 Control, Temperature
29 1159409 Panel, Control
30 488734 Screw, 6-32 x .175
31 852063 Seal, Condenser
32 857923 Seal, Condenser (R.S.)
33 1159346 Housing, Air
38 1159414 Insulation, Control Panel
39 1158937 Wire, Jumper
40 1160480 Seal, Switch
41 1158648 Seal
42 1159347 Hood, Air Housing
43 1158850 Seal, Side

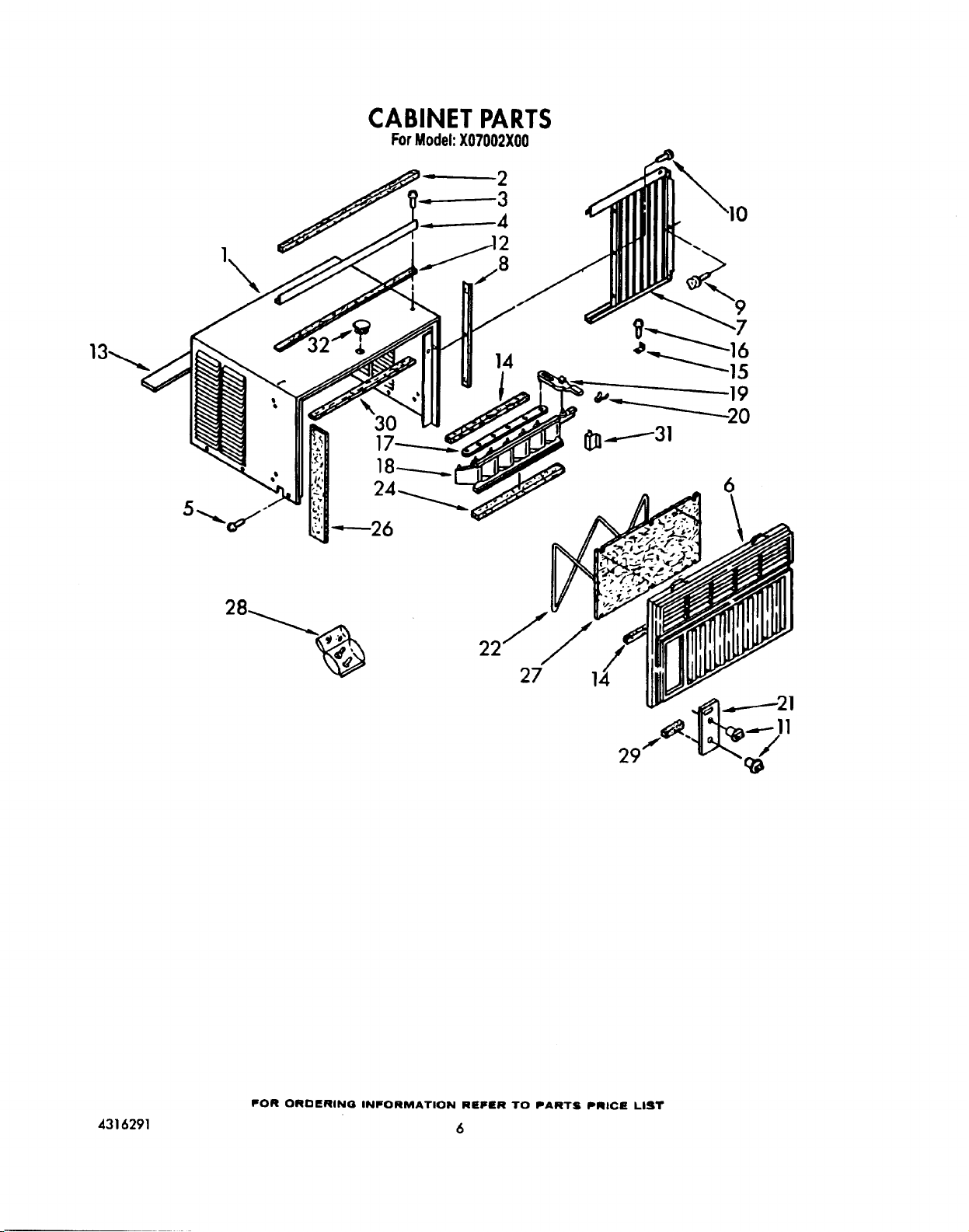

1 1157939 Cabinet
2 469877 Gasket, Meeting Rail
3 488720 Screw, 10 x 1/2 (2)
4 993849 Channel, Top
5 1157158 Screw, 8-32 x 3/8 (6)
6 1158195 Front, Cabinet
7 646158 Housing, Curtain (L.S.)

646154 Housing, Curtain (R.S.)
8 646160 Retainer, Curtain (2)
9 475581 Thumbscrew (2)
10 488730 Screw, 8 x 7/16 (6)
11 1158639 Knob, Control (2)
12 856990 Seal, Strip
13 1157942 Insulation Cabinet
14 949090 Seal, Strip
15 644228 Bracket, Window Lock
16 488255 Screw,8x3/4
17 645684 Link, Louver
18 1158325 Louver, Vertical
19 645683 Handle, Louver
20 641484 Spring, Detent
21 1159407 Plate, Escutcheon
22 646963 Retainer, Filter
24 855238 Seal, Louver
26 950169 Insulation, Cabinet (LS)
27 852344 Filter, Air
28 476180 Bag, Accessory
29 646318 Spacer, Plate
30 1159283 Seal, Top
31 1158294 Clip, Louver
32 1157126 Cover, Hole

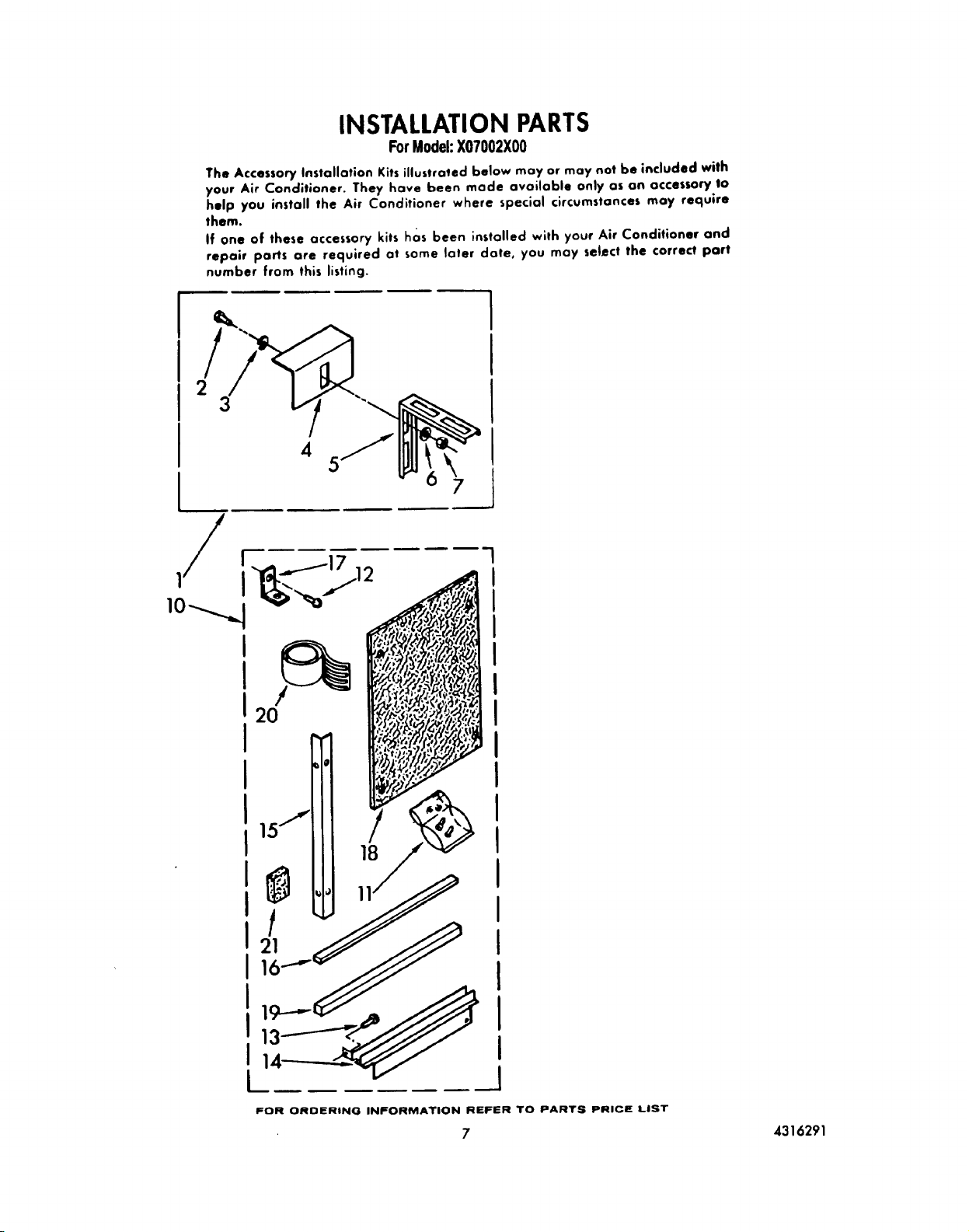

1 485678 Kit, Outside Sill (For Additional Support)
2 488750 Bolt, 1/4-20 x 3/4 (6)
3 488808 Washer, Flat (6)
4 645515 Bracket, Sill (2)
5 485466 Bracket, Rail (2)
6 486009 Washer, Lock (6)
7 486035 Nut, 1/4-20 (6)
10 994818 Kit, Window Installation
11 858358 Bag, Accessory
12 488255 Screw, Wood #8 X 3/8 (3)
13 488017 Screw, S.M. #8 X 3/8 (8)
14 Bracket, Mounting

645562 Right Side

645563 Left Side
15 646988 Angle, Side (2)
16 856979 Seal, Strip
17 644228 Bracket, Window, Lock
18 648854 Board, Filler (2)
19 469877 Seal, Meeting Rail
20 470168 Sealer, Gum
21 995274 Spacer, Block

Following Parts Not Illustrated

LITERATURE PARTS

LIT485706 Instructions, Installation (Outside Sill Kit)

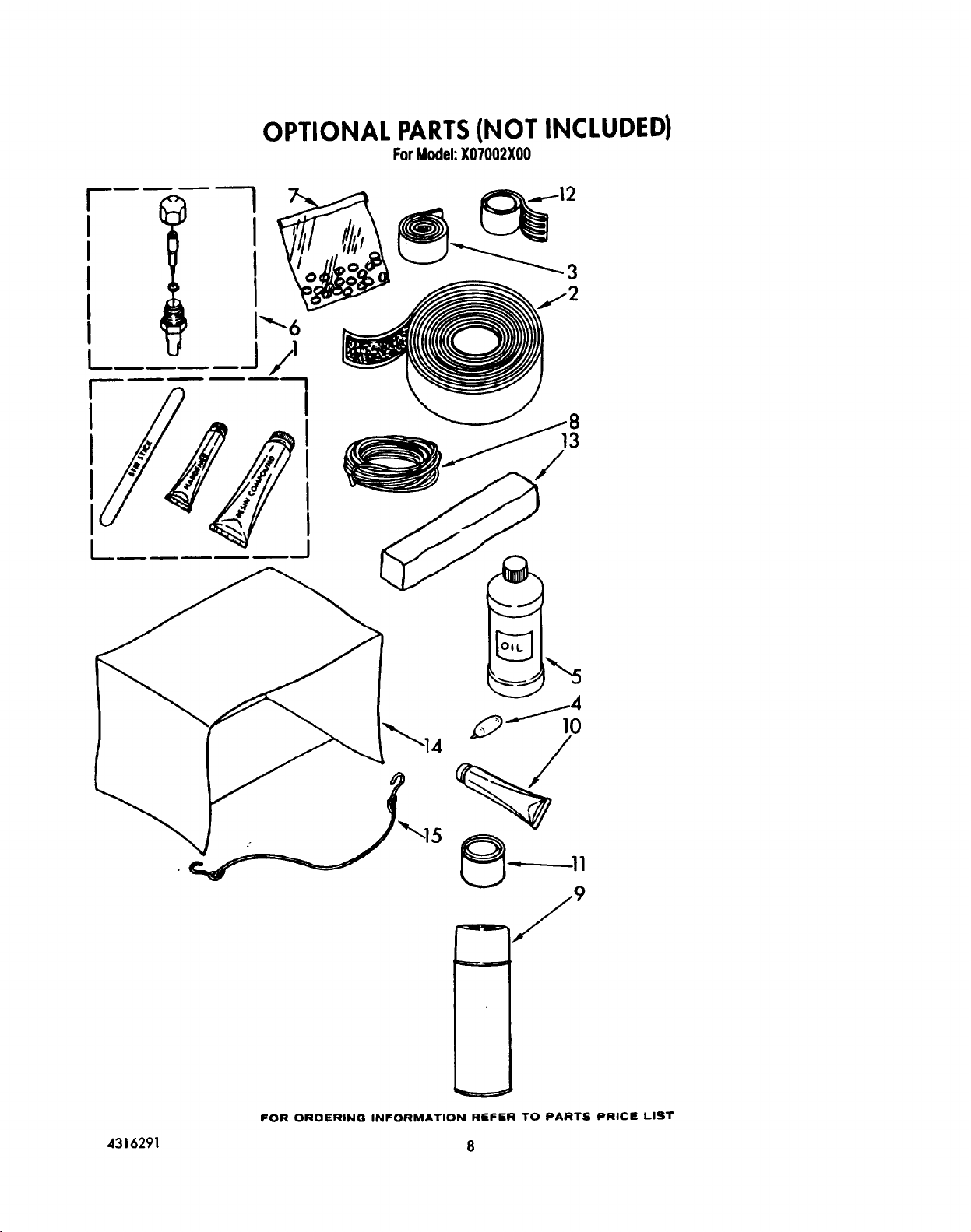

1 799833 Epoxy, Tube (Aluminum Repair)
2 505168 Tape, No Drip 30'
3 479502 Tape, Vinyl 36'
4 10943 Oil, Turbine 1 Fl. Oz.
5 99243 Oil, Turbine 8 Fl. Oz.
6 Valve, Access

876764 3/16" Tube O.D.

978025 1/4" Tube O.D.

978026 5/16" Tube O.D.

978027 3/8" Tube O.D.

978028 1/2" Tube O.D.

978029 5/8" Tube O.D.

978030 3/4" Tube O.D.
7 978865 Seal, Ring Access Valve (20-Pack)
8 Wire, 25'Roll

10875 Blue 16 Ga.

242820 Black 14 Ga.

242825 Red 14 Ga.

242826 White 14 Ga.

47261 Black 12 Ga.

299885 Red 12 Ga.

47263 White 12 Ga.
9 813684 Adhesive, Insulation (24 Oz. Spray)
10 279368 Adhesvive, Insulation (2 Oz. Tube)
11 485426 Paint, Touch-up Starlight Gray 1/2 Pint (Lacquer)
12 212643 Sealer, Permagum 4-1" Strips
13 99344 Sealer, Permagum 1 Lb. Bar
14 Cover, Winter

484066 28 x 19 x 31"

484067 19 x 12 x 14"

484069 27 x 19x6to27"

484184 22 x 15x3to18"

15 813610 Retainer, Cord (Winter Cover)
