Page 1
Page 2
Page 3
1 1155940 condenser
2 854624 bend, return condenser (2) evaporator (7)
3 855199 bend, return condenser (15) evaporator (5)
4 49599 strainer, tube
5 950850 tube, outlet (includes no. 4)
6 1157043 tube, restrictor
7 1155859 blade, fan
9 1158502 clamp, blancing
10 1157804 motor, fan
11 488130 nut, hex 8-32 (4)
12 489292 screw, slotted hex
13 1155639 evaporator
16 996773 anticipator, temperature
17 475577 clip, anticipator
18 950013 base
19 612805 tie, wire (4)
20 484136 harness, wiring
21 1157026 compressor
22 950212 grommet (3)
23 489108 washer (3)
24 1156715 locknut (3)
25 950035 gasket, terminal cover
26 1157040 overload
27 950032 spring, overload
28 950213 cover, terminal
29 950037 washer
30 1156594 fan, blade evaporator
31 852451 clamp, wiring
32 947364 tube, flow divider
33 488480 screw, 8 x 1/2
488481 screw (repair)
34 852063 seal, condensate (condenser bottom)
35 949634 clip, front mtg. (2)
36 646870 seal, condensate (base r.h. flange)
37 854841 seal, strip (base rear flange)
38 950037 nut, terminal cover
39 1155622 tube, condenser extension
40 1156028 clip, speed
Page 4
Page 5
1 859822 wall, dividing
2 859934 sealer, tube
3 488480 screw, 8 x 1/2
488481 screw (oversized)
4 646297 shroud, condenser
5 649879 support, unit
6 952739 capacitor, running
7 856105 bracket, capacitor
8 486288 nut, speed #8a
9 994686 clip, shroud
10 947072 clamp, wiring
11 646130 extension, dividing wall
12 856929 screen, exhaust door
13 857774 seal, control panel bottom
14 646134 door, exhaust
15 996685 guard, evaporator impeller
16 647216 cord, appliance
17 487871 screw, 8-32 x 3/8
18 856094 wire, ground
19 855502 bracket, mtg.
20 996748 shroud, evaporator
21 859890 plate, dividing wall
23 858765 retainer, detent spring
24 953066 actuator, exhaust door
27 950283 switch, rotary
28 949411 control, temperature
29 993398 panel, control
30 488734 screw, 6-32 x .175
31 859931 seal, condenser
32 857923 seal condenser shroud r.s.
37 950255 arm, exhaust door
following parts not illustrated
literature parts
lit1155974 installation, instructions
lit1158169 guide, operation
lit1156495 sheet, tech
lit950222 wiring diagram
lit4316239 list, repair parts
Page 6
Page 7

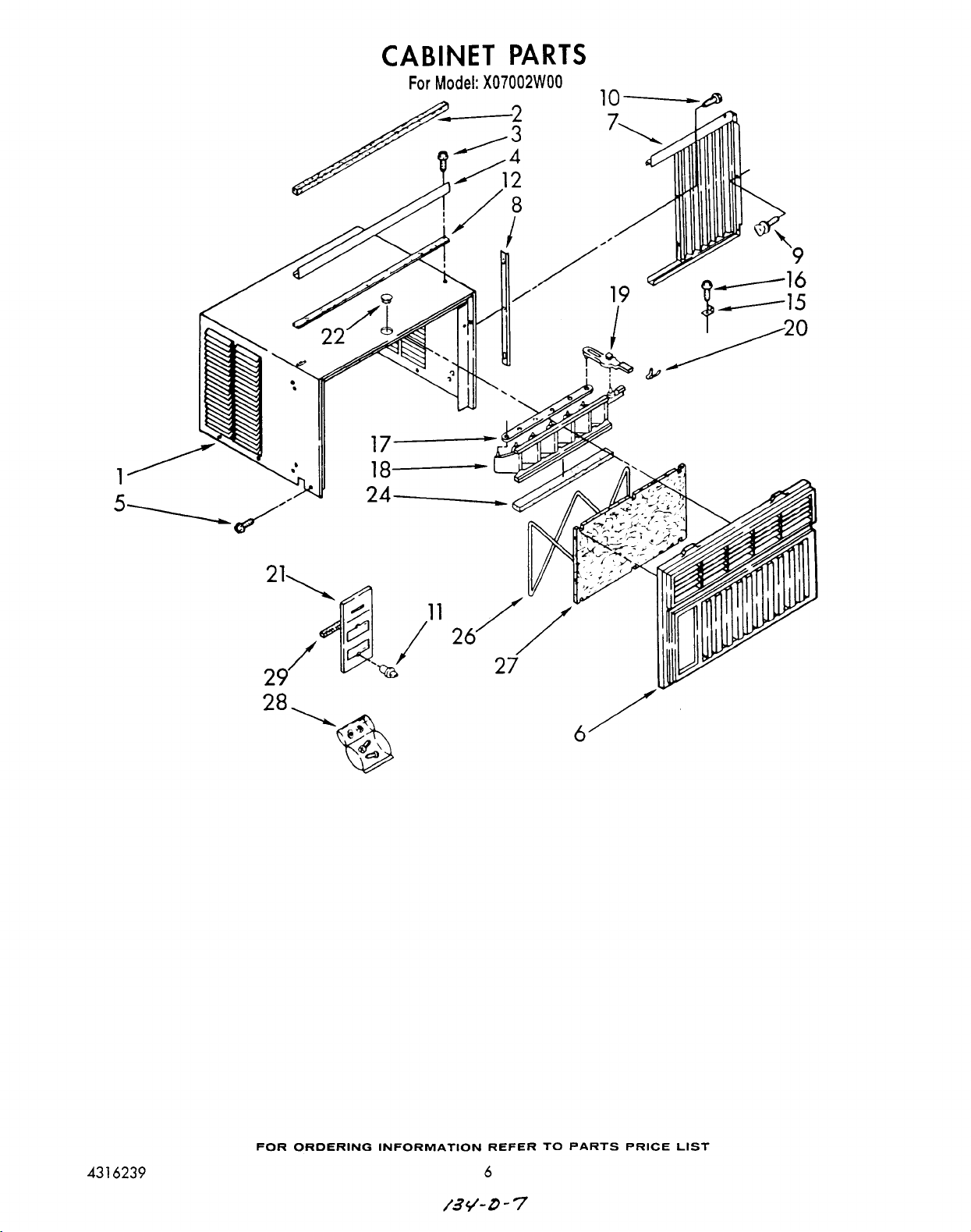

1 1157276 cabinet
2 469877 gasket, meeting rail
3 488720 screw, 10 x 1/2 (3)
4 993849 channel, top
5 488875 screw, st 8-32 x 3/8 (6)
6 1158195 front, cabinet
7 646158 housing, curtain (l.s.)
646154 housing, curtain (r.s.)
8 646160 retainer, curtain (2)
9 475581 thumbscrew (2)
10 488730 screw, 8 x 7/16 (6)
11 953054 knob, control (2)
12 856990 seal, strip
15 644228 bracket, window
16 488255 screw, 8 x 3/4
17 645684 link, louver (2)
18 1157284 louver, vertical
19 645683 handle, louver (2)
20 641484 spring, detent (1)
21 1158176 plate, escutcheon
22 1157126 plug, hole
24 855238 seal, vertical louver
26 646963 retainer, filter
27 852344 filter, air
28 476180 bag, accessory
29 646318 spacer, escutcheon plate (2)
Page 8
Page 9

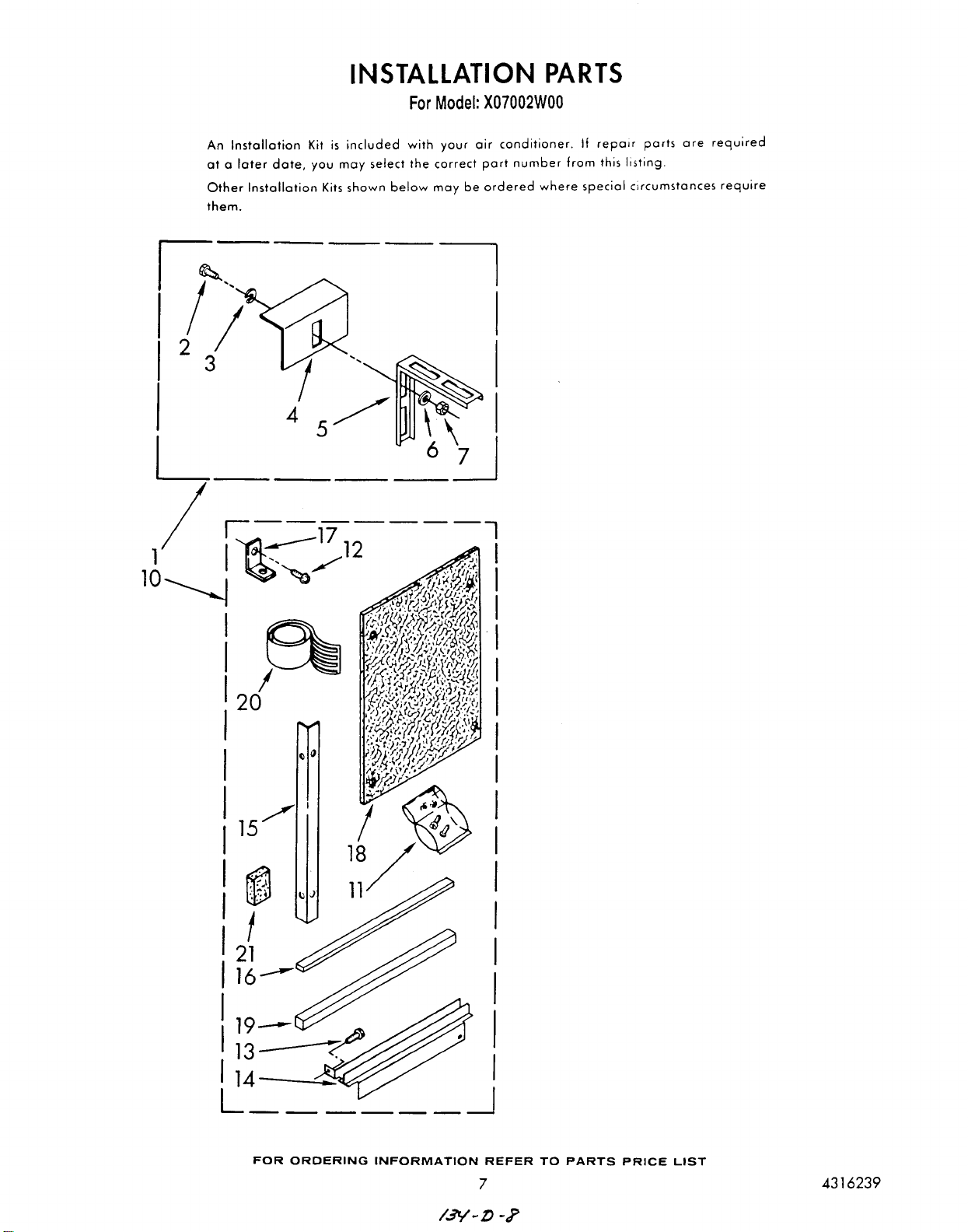

1 485678 kit, outside sill (for addtional support)
2 488750 bolt, 1/4-20 x 3/4 (6)
3 488808 washer, flat (6)
4 645515 bracket, sill (2)
5 485466 bracket, rail (2)
6 486009 washer, lock (6)
7 486035 nut, 1/4-20 (6)
10 994818 kit, window installation
11 858358 bag, accessory
12 488255 screw, wood #8 x 3/8 (3)
13 488017 screw, s.m. #8 x 3/8 (8)
14 bracket, mounting
645562 right side
645563 left side
15 646988 angle, side (2)
16 856979 seal, strip
17 644228 bracket, window, lock
18 648854 board, filler (2)
19 469877 seal, meeting rail
20 470168 sealer, gum
21 995274 spacer, block
following parts not illustrated
literature parts
lit485706 instructions, installation (outside sill kit)
Page 10
Page 11

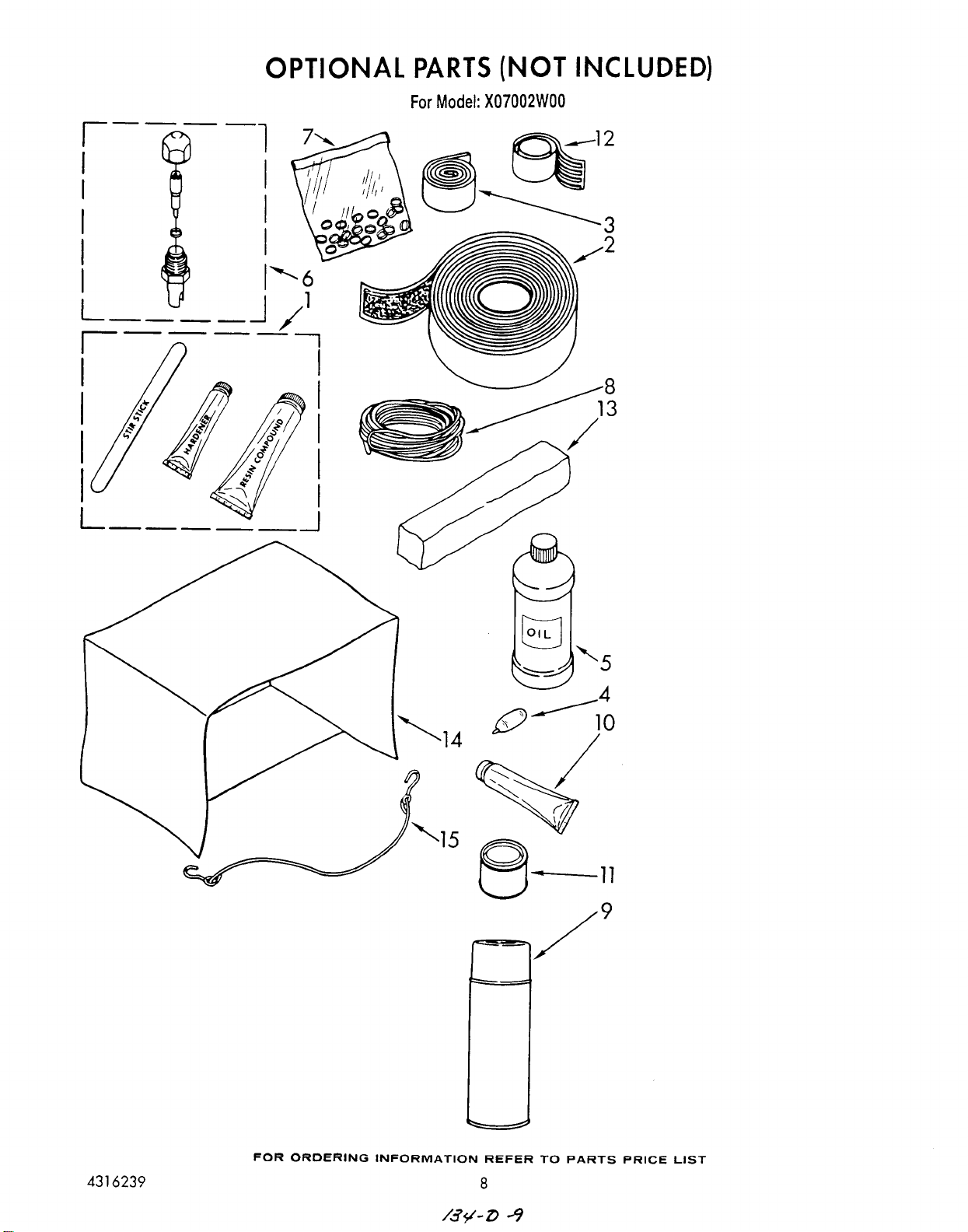

1 799833 epoxy, tube (aluminum repair)
2 505168 tape, no drip 30'
3 479502 tape, vinyl 36'
4 10943 oil, turbine 8 fl. oz.
5 99243 oil, turbine 8 fl. oz.
6 valve, access
876764 3/16" tube o.d.
978025 1/4" tube o.d.
978026 5/16" tube o.d
978027 3/8" tube o.d.
978028 1/2" tube o.d.
978029 5/8" tube o.d.
978030 3/4" tube o.d.
7 978865 seal, ring access valve (20-pack)
8 wire, 25' roll
10875 blue 16 ga.
242820 black 14 ga.
242825 red 14 ga.
242826 white 14 ga.
47621 black 12 ga.
299885 red 12 ga.
47263 white 12 ga
9 813684 adhesive, insulation (24 oz. spray)
10 279368 adhesive, insulation (2 oz. tube)
11 485426 paint, touch-up starlight gray 1/2 pint
(lacquer)
12 212643 sealer, permagum 4-1" strips
13 99344 sealer, permagum 1 lb. bar
14 cover, winter
484066 28 x 19 x 31"
484067 19 x 12 x 14"
484069 27 x 19x6to27"
484184 22 x 15x3to18"
15 813610 retainer, cord (winter cover)
