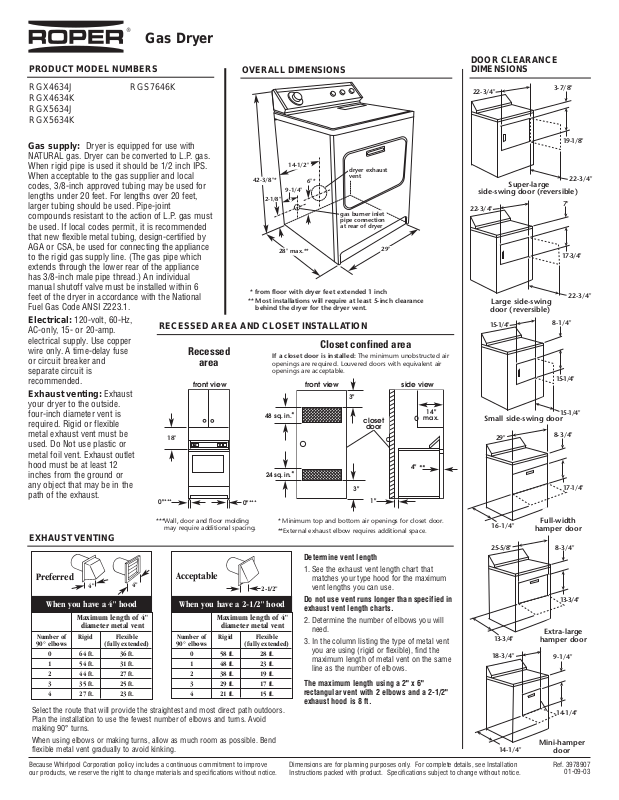

Roper RGX4634JQ, RGX5634KQ, RGX5634JQ, RGX4634KQ Dimension Guide

Gas supply: Dryer is equipped for use with

NATURAL gas. Dryer can be converted to L.P. gas. When rigid pipe is used it should be 1/2 inch IPS. When acceptable to the gas supplier and local codes, 3/8-inch approved tubing may be used for lengths under 20 feet. For lengths over 20 feet, larger tubing should be used. Pipe-joint compounds resistant to the action of L.P. gas must be used. If local codes permit, it is recommended that new flexible metal tubing, design-certified by AGA or CSA, be used for connecting the appliance to the rigid gas supply line. (The gas pipe which extends through the lower rear of the appliance has 3/8-inch male pipe thread.) An individual manual shutoff valve must be installed within 6 feet of the dryer in accordance with the National Fuel Gas Code ANSI Z223.1.

Electrical: 120-volt, 60-Hz, AC-only, 15- or 20-amp. electrical supply. Use copper wire only. A time-delay fuse or circuit breaker and separate circuit is recommended.

Exhaust venting: Exhaust your dryer to the outside. four-inch diameter vent is required. Rigid or flexible metal exhaust vent must be used. Do Not use plastic or metal foil vent. Exhaust outlet hood must be at least 12 inches from the ground or any object that may be in the path of the exhaust.

Gas Dryer

OVERALL DIMENSIONS

RECESSED AREA AND CLOSET INSTALLATION

EXHAUST VENTING

Closet confined area

Determine vent length

1. See the exhaust vent length chart that matches your type hood for the maximum vent lengths you can use.

Do not use vent runs longer than specified in exhaust vent length charts.

2. Determine the number of elbows you will need.

3. In the column listing the type of metal vent you are using (rigid or flexible), find the maximum length of metal vent on the same line as the number of elbows.

The maximum length using a 2" x 6" rectangular vent with 2 elbows and a 2-1/2" exhaust hood is 8 ft.

48 sq. in.

24 sq. in.*

14"

max.

front view

closet

door

* Minimum top and bottom air openings for closet door.

**External exhaust elbow requires additional space.

0"***

front view

18"

If a closet door is installed: The minimum unobstructed air

openings are required. Louvered doors with equivalent air openings are acceptable.

***Wall, door and floor molding

may require additional spacing.

side view

Recessed

area

Because Whirlpool Corporation policy includes a continuous commitment to improve our products, we reserve the right to change materials and specifications without notice.

Dimensions are for planning purposes only. For complete details, see Installation Instructions packed with product. Specifications subject to change without notice.

Ref. 3978907

01-09-03

DOOR CLEARANCE DIMENSIONS

Large side-swing

door (reversible)

17-3/4"

22-3/4"

Extra-large

hamper door

Small side-swing door

15-1/4"

13-3/4"

25-5/8"

8-1/4"

8-3/4"

22-3/4"

19-1/8"

Super-large

side-swing door (reversible)

3-7/8"

16-1/4"

29"

17-1/4"

Full-width

hamper door

8-3/4"

14-1/4"

18-3/4"

14-1/4"

Mini-hamper

door

9-1/4"

* from floor with dryer feet extended 1 inch

** Most installations will require at least 5-inch clearance

behind the dryer for the dryer vent.

29"

28" max.**

14-1/2"

9-1/4"

6"*

2-1/8"

42-3/8"*

gas burner inlet pipe connection at rear of dryer

dryer exhaust vent

Preferred

Number of Rigid Flexible

90° elbows (fully extended)

When you have a 4" hood

Maximum length of 4"

diameter metal vent

0 1 2 3 4

64 ft. 54 ft. 44 ft. 35 ft. 27 ft.

36 ft. 31 ft. 27 ft. 25 ft. 23 ft.

Acceptable

Number of Rigid Flexible

90° elbows (fully extended)

When you have a 2-1/2" hood

Maximum length of 4"

diameter metal vent

0 1 2 3 4

58 ft. 48 ft. 38 ft. 29 ft. 21 ft.

28 ft. 23 ft. 19 ft. 17 ft. 15 ft.

2-1/2"

PRODUCT MODEL NUMBERS

RGX4634J RGX4634K RGX5634J RGX5634K

RGS7646K

Select the route that will provide the straightest and most direct path outdoors. Plan the installation to use the fewest number of elbows and turns. Avoid making 90° turns.

When using elbows or making turns, allow as much room as possible. Bend flexible metal vent gradually to avoid kinking.
