1 386367 Panel, Rear Console
2 693994 Screw, Hex Washer Head
3 355326 Screw, 13/16 x 5/8
4 63790 Cap, End (L.H.)
5 358472 Stop, Push-In (2)
7 63796 Cap, End (R.H.)
8 358473 Nut, Push-In (2)
10 337448 Screen, Lint
11 Cover, Lint Screen
688150 White
689310 Almond
12 339229 Hinge, R.H.
339230 Hinge, L.H.
13 688983 Screw, 8-18 x 5/8
14 64211 Screw, 8-18 x 1
16 Top
3393385 White
3393386 Almond
18 94614 Terminal
19 3348416 Knob, Temperature Selector
21 3393916 Timer Assembly, 60 Hz.
23 3393990 Harness, Wiring
29 339554 Screw
39 660936 Relay, Push-To-Start
48 3387906 Timer Knob & Dial
53 3394061 Bracket, Control
54 3387695 Panel, Control
62 688805 Clip
67 689559 Nut, Push-On (4)
72 690853 Wire, Ground
75 691707 Receptacle, Latching (3-Way) (Uses Terminal 94614)
79 694720 Switch, Temperature Selector
81 696075 Knob, Push-To-Start
LITERATURE PARTS
LIT3395433 Use & Care Guide
LIT3395320 Instructions, Installation
LIT3394551 List, Service Parts
OPTIONAL PARTS NOT INCLUDED
PAINT,TOUCH UP (1/2 oz.)
72017 White
72107 Almond
PAINT PRESSURIZED SPRAY (13 oz.)
350930 White
350956 Almond
350938 Primer, Gray
350941 Leveler (Thinner)
PAINT,BULK (1 qt.)
799344 White (Uncut)
978883 Almond(Uncut)
Following May Be Purchased: DO-IT-YOURSELF-REPAIR-MANUALS
LIT677813 Automatic Washer (Belt Drive)
LIT677818 Dryer
LIT677821 Compactor
LIT677967 Dishwasher
LIT677971 Ice Maker (In Refrigerator)
Page 4
Page 5
1 343641 Screw, 10-16 x 1/2
2 697776 Screw, 10-16 x 1/2 (External Ground)
3 693995 Screw, Hex Head
4 Plug, Front Panel
3394975 White
3394976 Almond
5 690893 Cover, Block
6 3393657 Restrainer, Belt
7 347736 Panel, Rear
9 691581 Clip, Door Switch
10 347207 Switch, Door
11 98129 Screw, 6-20 x 7/8 (2)
16 3392100 Foot, Dryer (4)

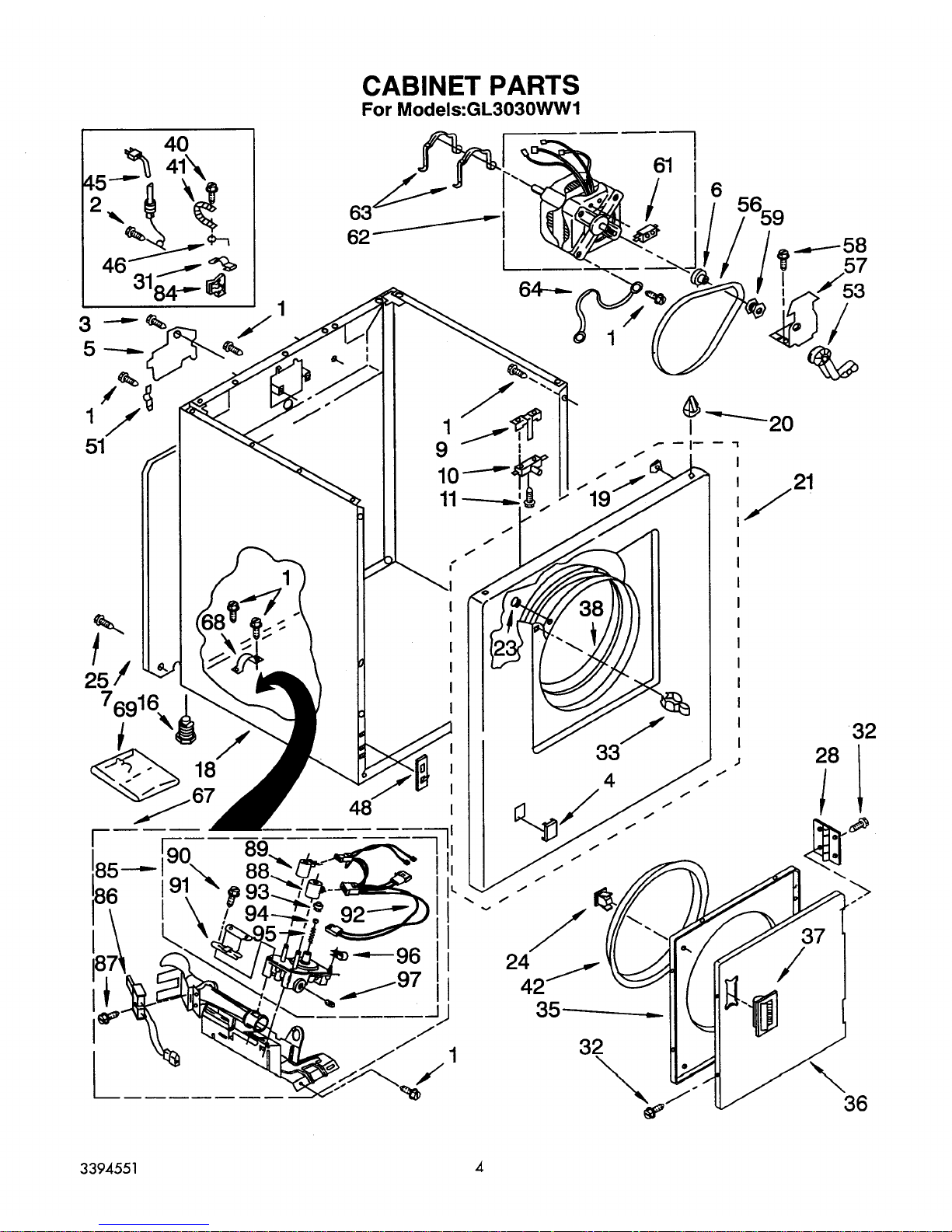

18 Cabinet
3394109 White
3394110 Almond
19 98234 Clip, Ground (2)
20 690363 Lock, Front Top (2)
21 Front Panel Assembly
3394895 White
3394896 Almond
23 685203 Clip, Felt Pad
24 3389441 Catch, Door
25 693994 Screw, Hex Head
28 348023 Hinge & Pin Assembly (2)
31 98997 Clip, Harness
32 694091 Screw
33 696144 Strike, Door
35 695656 Door, Rear
36 Door, Front
348205 White
689314 Almond
37 Handle, Door
686711 White
689306 Almond
38 349462 Seal & Bearing Assembly
40 132848 Screw, 10-24 x 1
41 22965 Strap, Ground
42 685763 Seal, Door
45 344020 Cord, Power
46 364089 Wire, Ground
48 3394083 Clip, Front Panel
51 238088 Hinge, Top (2)
53 691366 Idler & Pulley Assembly
56 3394651 Belt, Drive
57 348780 Base, Motor
58 172455 Bolt, 5/16-18 x 3/4
59 3389627 Pulley, 60 Hz.
61 3388235 Switch (Use W/3391888 Motor)
62 3391888 Motor, 60 Hz.
63 660658 Clamp, Motor (2)
343481 (Alt.)
685441 (Alt.)
64 690236 Wire, Ground (Motor)
67 694670 Burner Assembly, 60 Hz. (Refer To Pages 6 & 7 For Further
Breakdown)
68 341029 Clamp, Pipe
Page 6
69 694572 Kit, Conversion (Type 1, 2 & 3 To Type 4)
279243 Kit, Conversion (Type 1 To Type 3)
84 688412 Clip, Retainer
85 694054 Valve, Gas 60 Hz. (Complete)
86 660991 Ignitor
686590 (Alt.)
87 686953 Screw & Washer
88 694539 Coil, 60 Hz. (Split) (3 Terminal) (Pilot Position)
89 694540 Coil, 60 Hz. (2 Terminal) (Main)
90 694421 Screw, Bracket Mounting (8-32 x 1/2)
91 694538 Bracket, Coil
92 694426 Harness, Wiring
93 694424 Leak Limiter
94 694423 Screw, Regulator Adjustment
95 694422 Spring, Regulator
96 694510 Clip, Harness
97 239822 Plug, Pipe
Page 7
Page 8

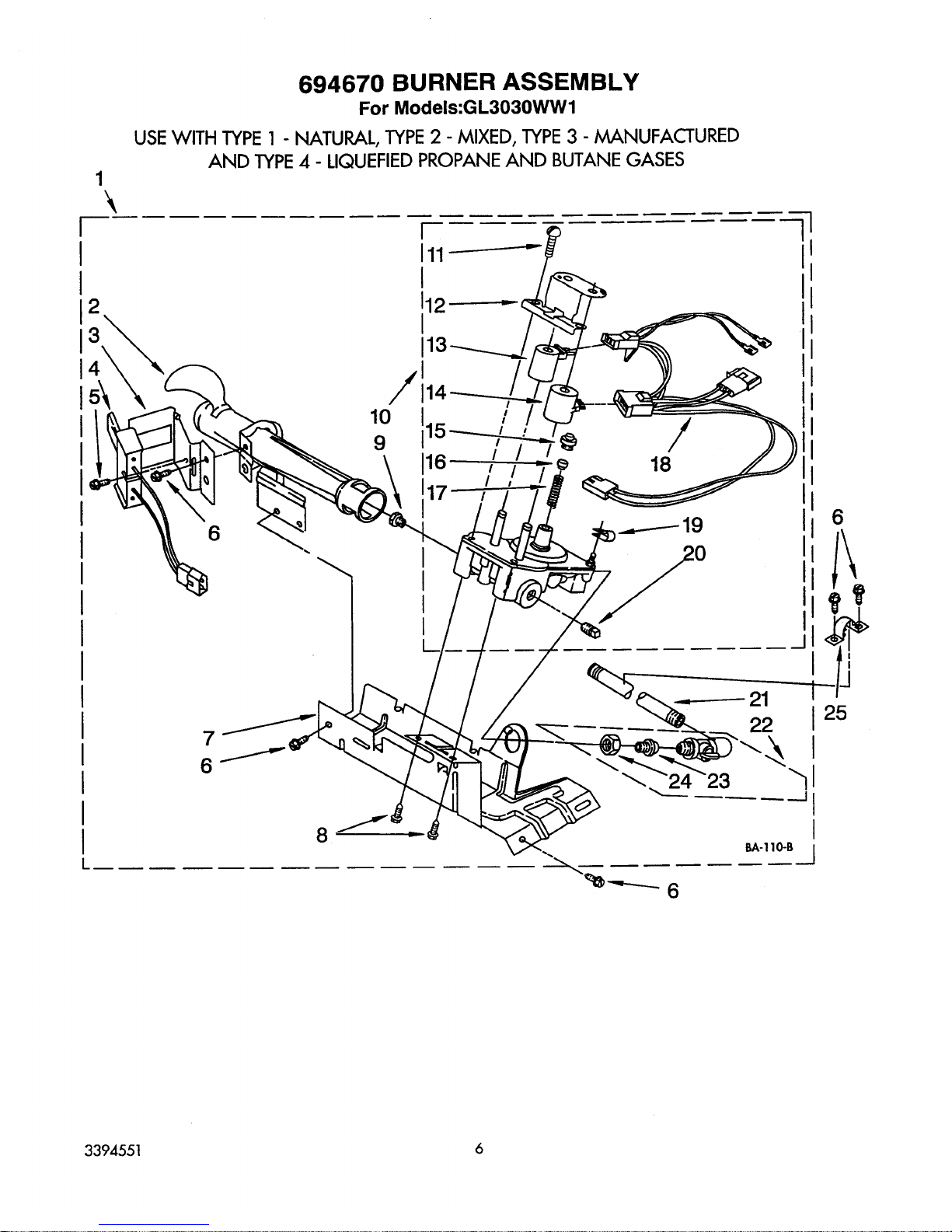

1 694670 Burner Assembly 60 Hz. (Type 1, 2 & 3) (White Rodgers)
2 688617 Tube, Burner
3 694298 Bracket, Ignitor
4 660991 Ignitor
686590 (Alt.)
5 686953 Screw & Washer (8-32 x 5/8)
6 343641 Screw, 10-16 x 1/2
7 693986 Base, Burner
8 339527 Screw, 8-32 x 3/8 (2)
9 Orifice, Burner
234826 Type 1
15775 Type 2
15419 Type 3
229742 Type 4 (Butane)
234868 Type 4 (Propane)
10 694054 Valve, 60 Hz.
11 694421 Screw, 8-32 x 1/2 (2)
12 694538 Bracket, Coil
13 694540 Coil, 60 Hz. (2 Terminal) (Main)
14 694539 Coil, 60 Hz. (Split) (3 Terminal) (Pilot Position)
15 694424 Leak Limiter
16 694423 Screw, Regulator Adjustment
17 694422 Spring, Regulator
18 694426 Harness, Wiring (Complete)
19 694510 Clip, Harness
20 239822 Plug, Pipe
21 233273 Pipe, Gas Supply
22 345062 Valve & Union, Shut-Off
23 3393767 Pipe, Tail
24 233076 Nut, Compression
25 341029 Clamp, Pipe
FOLLOWING PARTS NOT ILLUSTRATED
279243 Conversion Kit Type (1) Natural to Type (3) Manufactured
694572 Conversion Kit (Type 1, 2 & 3) to Type (4) L.P.G.
Page 9
Page 10

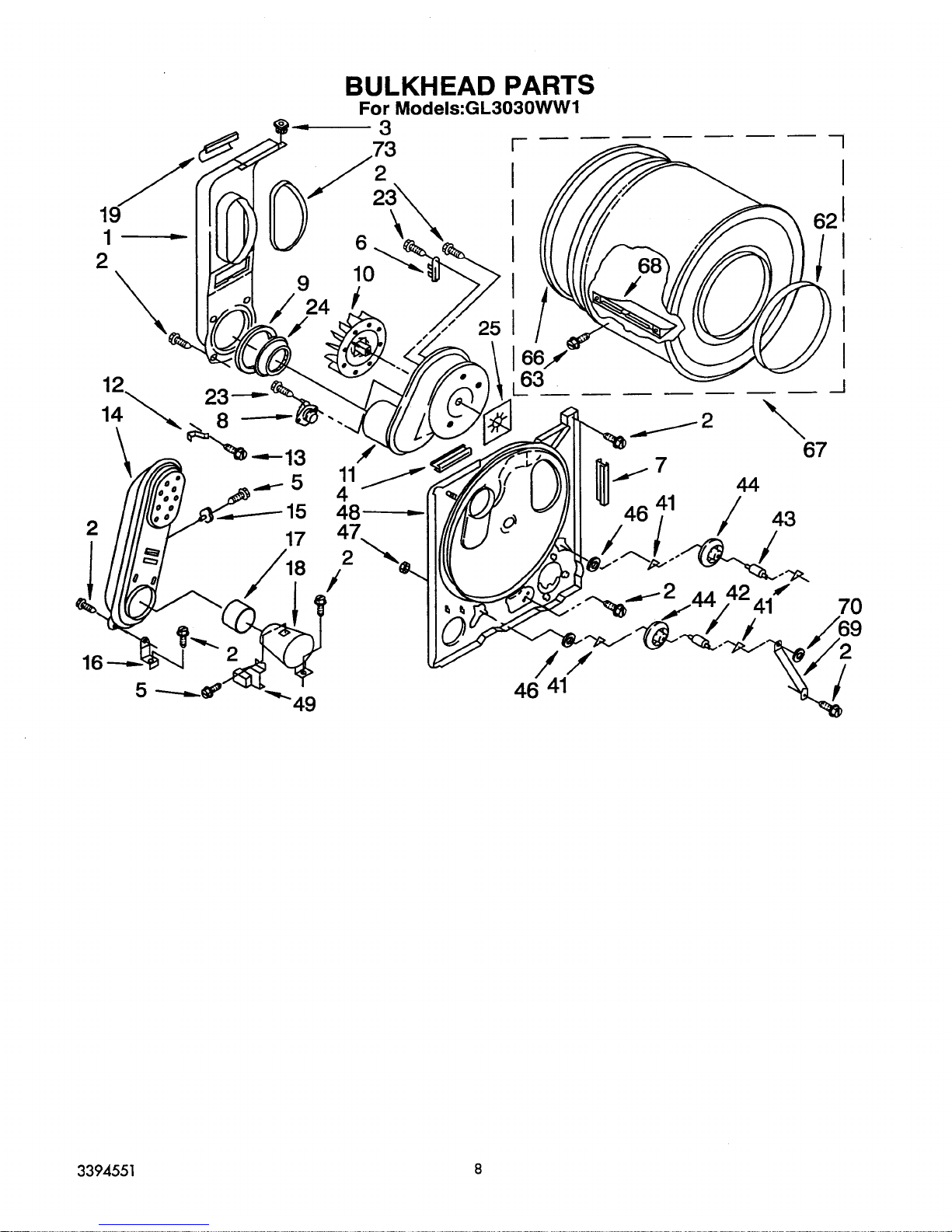

1 694283 Lint Chute Assembly
2 343641 Screw, 10-16 x 1/2
3 98460 Nut, Push-In
4 686889 Pad, Cabinet
5 90767 Screw, 8A x 3/8
6 3392519 Fuse, Thermal
7 3392247 Pad, Blower Housing
8 3387134 Thermostat, Internal-Bias
9 347139 Seal, Lint Chute
10 694089 Wheel, Blower
11 695081 Housing, Blower
12 337272 Clip
13 687128 Screw, 10-16 x 1/2
14 685458 Box, Heater
15 660036 Thermostat, 205~F (96~C)
338471 (Alt.)
341196 (Alt.)
16 337445 Support, Heater Box (2)
17 337450 Collar, Funnel
18 347389 Funnel, Burner
19 686770 Supp\ort Pr\otector
23 695239 Screw, 8-18 x 3/8
24 696302 Shield, Exhaust
25 3392123 Seal, Blower Shaft
41 690997 Ring, Tri
42 347364 Shaft, L.H.
43 339489 Shaft, R.H.
44 3389901 Roller, Support
46 348197 Washer, Support
47 120377 Nut, 3/8-16
48 685775 Bulkhead
49 338906 Sensor, Radiant
62 3394508 Ring, Bearing
63 690372 Screw, 11-16 x 7/8
66 337449 Seal, Rear Drum
67 695584 Drum Assembly
68 342847 Baffle, Drum
69 348945 Bracket, Support
70 90296 Clip
73 339956 Seal
