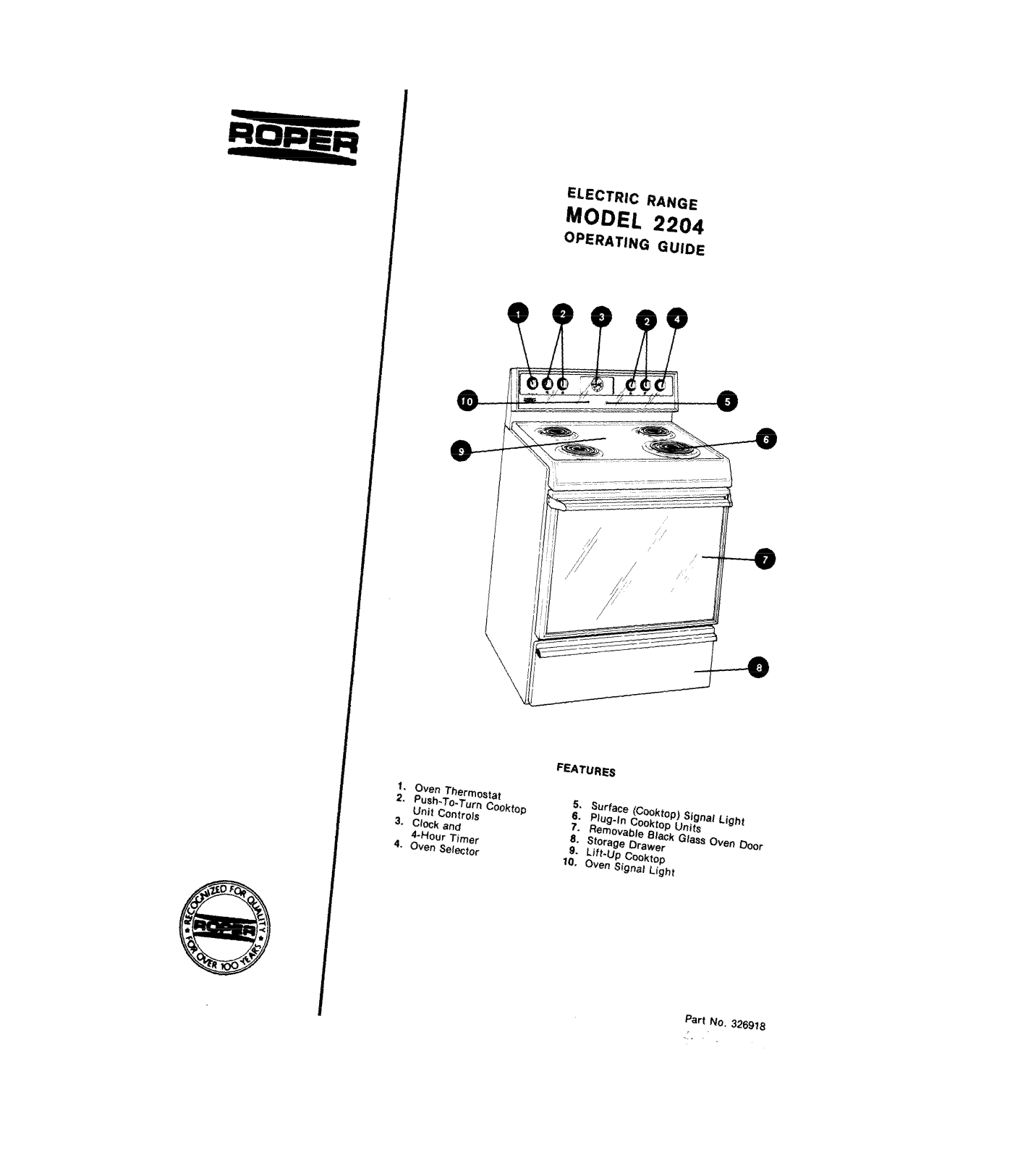

Roper 2204 Owner's Manual

EMCTRlC RANGE

MODEL

2204

OPERATWO GUIDE

1% Oven Thermostat

2.

bfh-To-Turn ~ooktop

Umt Controls

3. Clock and

W-tour Timer

4. Oven Selector

part NO.

.,_

326918

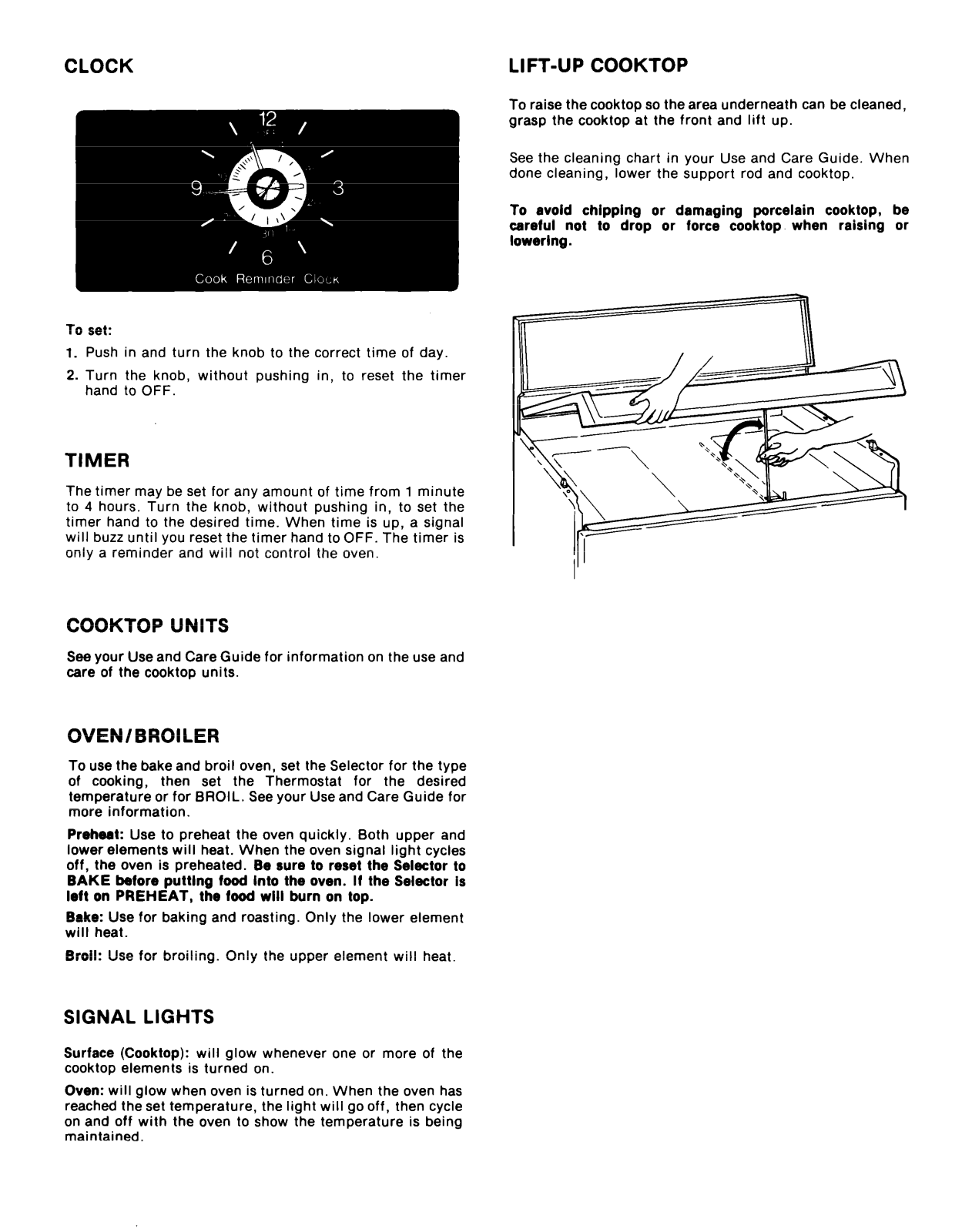

CLOCK

To set:

1. Push in and turn the knob to the correct time of day.

2. Turn the knob, without pushing in, to reset the timer
hand to OFF.

TIMER

The timer may be set for any amount of time from 1 minute
to 4 hours. Turn the knob, without pushing in, to set the
timer hand to the desired time. When time is up, a signal
will buzz until you reset the timer hand to OFF. The timer is
only a reminder and will not control the oven.

LIFT-UP COOKTOP

To raise the cooktop so the area underneath can be cleaned,
grasp the cooktop at the front and lift up.

See the cleaning chart in your Use and Care Guide. When
done cleaning, lower the support rod and cooktop.

To avold chipping or damaging porcelain cooktop, be
careful not to drop or force cooktop when raising or
lowerlng.

COOKTOP UNITS

See your Use and Care Guide for information on the use and

care of the cooktop units.

OVEN/BROILER

To use the bake and broil oven, set the Selector for the type
of cooking, then set the Thermostat for the desired
temperature or for BROIL. See your Use and Care Guide for
more information.

Preheat:

lower elements will heat. When the oven signal light cycles

off, the oven is preheated. Be

Use to preheat the oven quickly. Both upper and

sure to reset the Selector to

BAKE before putting food into the oven. If the Selector is

left on PREHEAT, the food will burn on top.
Bake:

Use for baking and roasting. Only the lower element

will heat.

Broil: Use for broiling. Only the upper element will heat.

SIGNAL LIGHTS

Surface (Cooktop):

cooktop elements is turned on.

Oven:

will glow when oven is turned on. When the oven has
reached the set temperature, the light will go off, then cycle
on and off with the oven to show the temperature is being
maintained.

will glow whenever one or more of the
