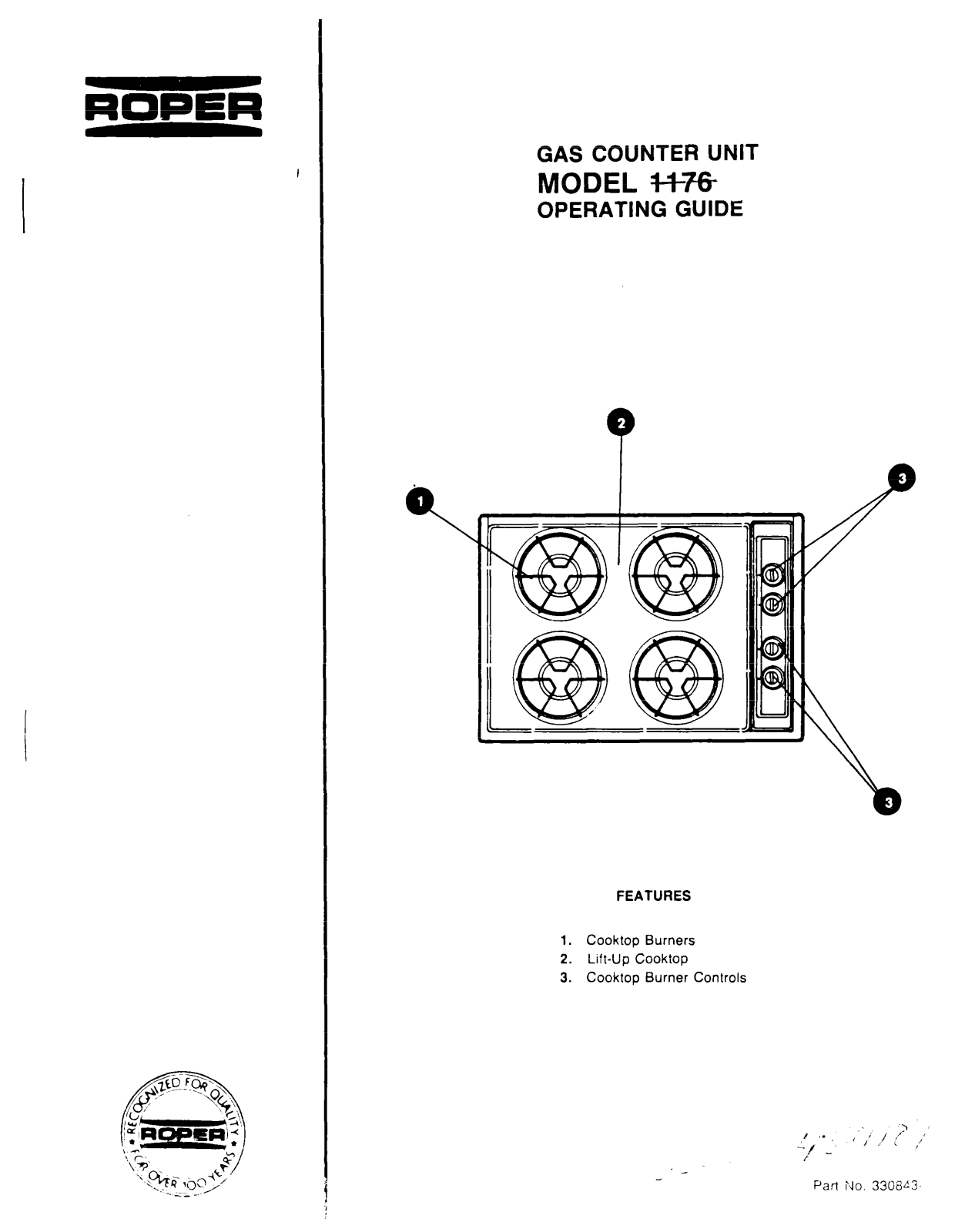

Roper 1176 Owner's Manual

GAS COUNTER UNIT

MODEL H36-

OPERATING GUIDE

FEATURES

1. Cooktop Burners

2. Lift-Up Cooktop

3. Cooktop Burner Controls

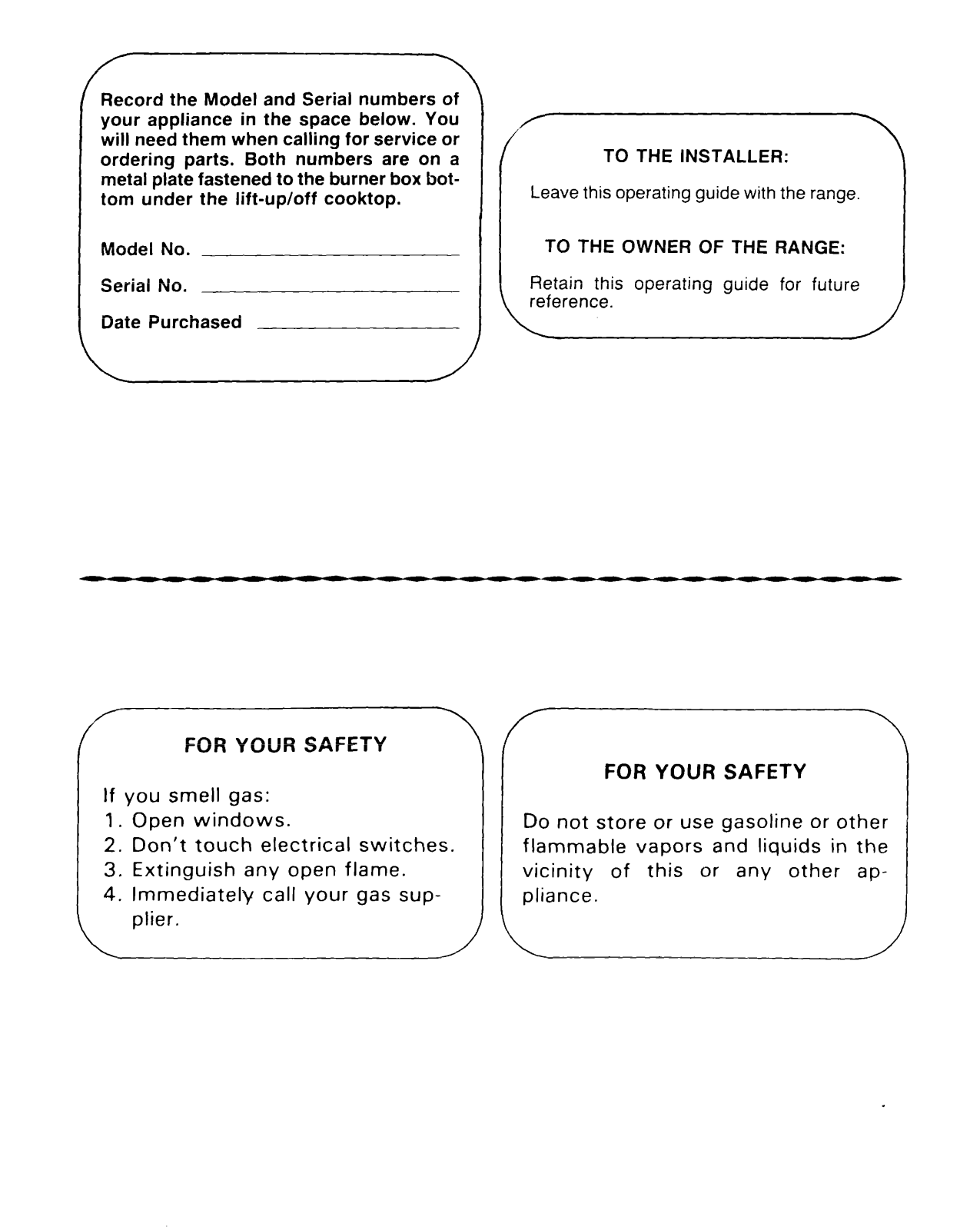

’ Record the Model and Serial numbers of

your appliance in the space below. You
will need them when calling for service or
ordering parts. Both numbers are on a
metal plate fastened to the burner box bot­tom under the lift-up/off cooktop.

TO THE INSTALLER:

Leave this operating guide with the range.

Model No.
Serial No.

Date Purchased

I

TO THE OWNER OF THE RANGE:

Retain this operating guide for future

reference.

/

If you smell gas:

1. Open windows.

2. Don’t touch electrical switches.

3. Extinguish any open flame.

4. Immediately call your gas sup­plier.

FOR YOUR SAFETY

FOR YOUR SAFETY

Do not store or use gasoline or other

flammable vapors and liquids in the
vicinity of this or any other ap­pliance.

\

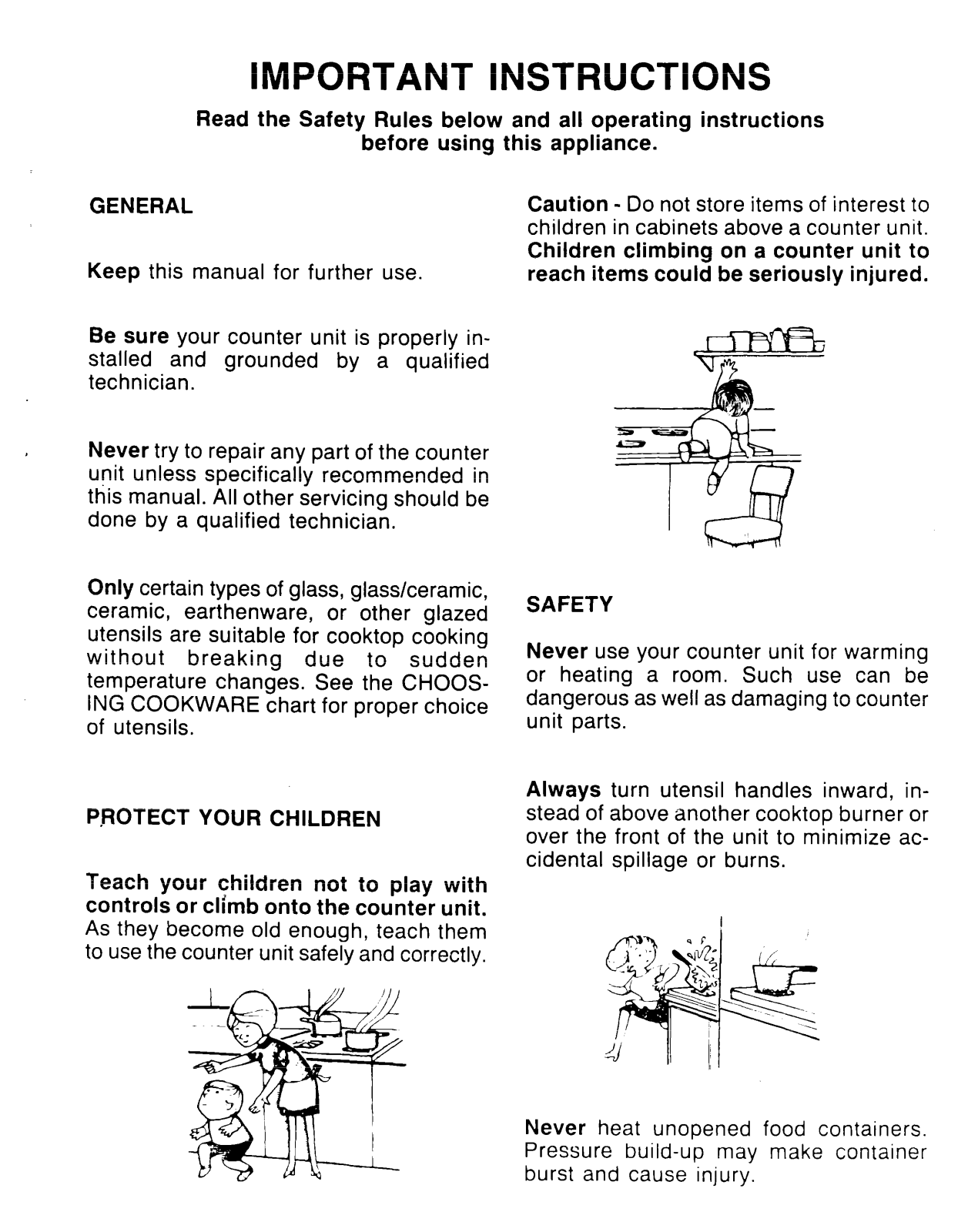

IMPORTANT INSTRUCTIONS

Read the Safety Rules below and all operating instructions

before using this appliance.

GENERAL

Keep this manual for further use.

Be sure your counter unit is properly in­stalled and grounded by a qualified
technician.

Never try to repair any part of the counter
unit unless specifically recommended in
this manual. All other servicing should be
done by a qualified technician.

Only certain types of glass, glass/ceramic,
ceramic, earthenware, or other glazed
utensils are suitable for cooktop cooking

without breaking due to sudden

temperature changes. See the CHOOS­ING COOKWARE chart for proper choice
of utensils.

Caution - Do not store items of interest to
children in cabinets above a counter unit.
Children climbing on a counter unit to
reach items could be seriously injured.

SAFETY
Never use your counter unit for warming

or heating a room. Such use can be
dangerous as well as damaging to counter
unit parts.

P,ROTECT YOUR CHILDREN

Teach your children not to play with
controls or climb onto the counter unit.
As they become old enough, teach them
to use the counter unit safelv and

correctlv.

Always turn utensil handles inward, in­stead of above another cooktop burner or
over the front of the unit to minimize ac­cidental spillage or burns.

Never heat unopened food containers.
Pressure build-up may make container
burst and cause injury.
