Page 1
1
Wizzard 340 Pump - Battery
Operator’s Manual
Wizzard/Pump/Battery
Mini Floor Scrubber Drier
Battery
Read this manual completely and understand the
instructions before operating the machine.
“English Version”
24V
Page 2
2
Wizzard 340 Pump - Battery
Page 3
3
Wizzard 340 Pump - Battery
P/N: 557250271-00, Rev: D, Date: 03/2018
Prepared by: KM-NPM TD Dept.
Roots Multiclean Ltd. (RMCL) is not liable for any legal claims that
may arise as a direct or indirect result of the contents of this
manual.
Roots Multiclean Ltd.
R.K.G. Industrial Estate, Ganapathy,
Coimbatore - 641 006, India.
IMPORTANT NOTE:
MACHINE DATA
Please fill at the time of installation for future reference:
Model No. - _______________________________
Serial No. - ________________________________
Accessories - ______________________________
Installation Date - ___________________________
Table of contents & Important note
Technical specification
Introduction
Customer support system & Annual maintenance contract
Know your machine
Safety instructions
Machine operation
Maintenance - Troubleshooting
Do’s & Don’ts
Battery Instructions
3
4
5
6
7
8
11
14
15
16
TABLE OF CONTENTS
Page 4
4
Wizzard 340 Pump - Battery
Weight - 25 kg
Fresh water tank - 4 litres

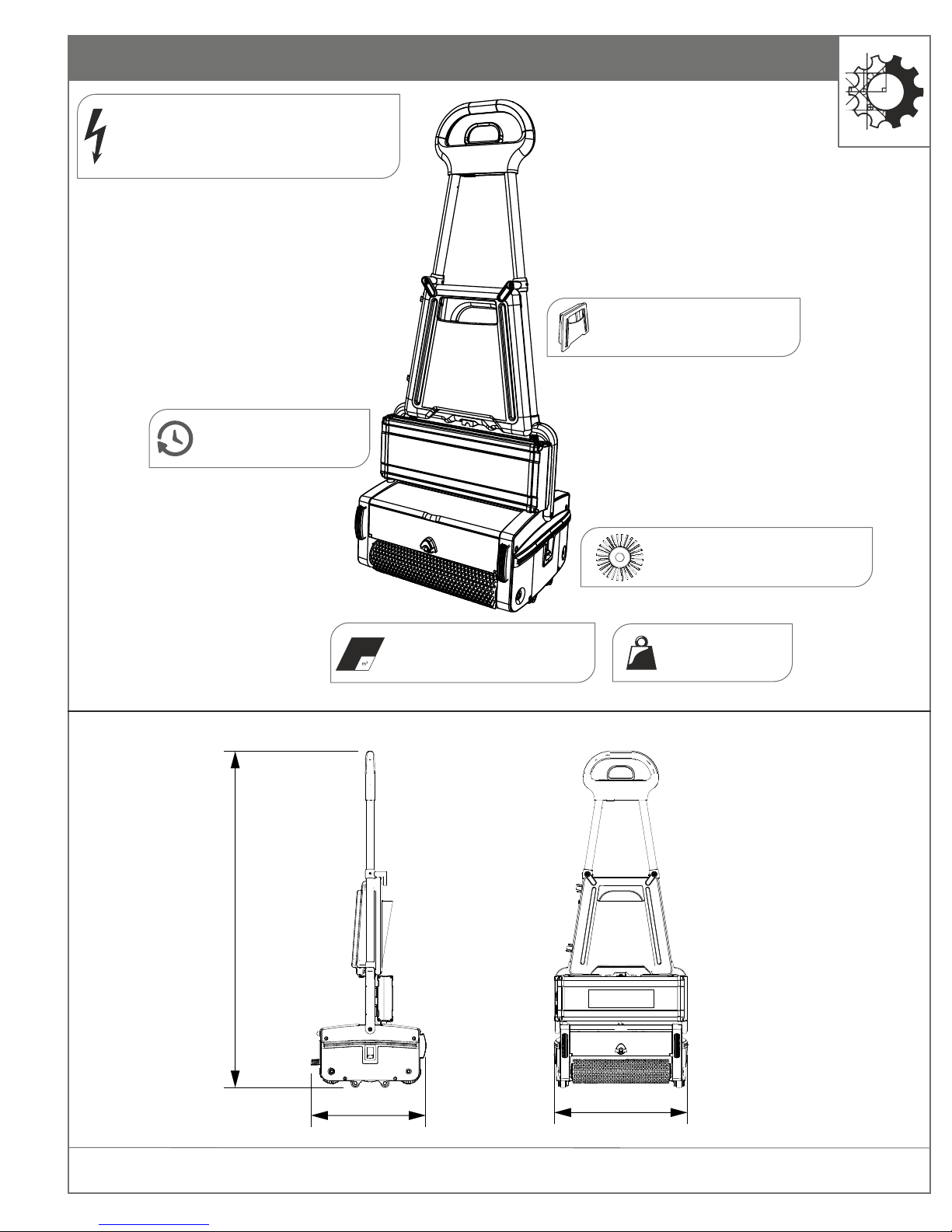

TECHNICAL SPECIFICATION
Rated voltage - 24 V
Rated current - 10 A
Power consumption (max) - 300 W
Brush speed - 400 rpm
Scrubbing width - 315 mm
Cleaning capacity
( Theoretical) - 350 m²/hr
Width - 440 mm
Length - 378 mm
Height wo/w handle - 210/1114
Runtime - 50 minutes
Page 5
5
Wizzard 340 Pump - Battery
PREFACE
Dear Customer,
We are pleased with your having chosen the Wizzard Battery
machine for your floor cleaning requirements. Backed by our
industry expertise that spans across decades, we assure you that
the machine comes with our Roots promise of quality, efficiency
and performance.
We advise you to carefully read through the instructions prior to
the operation of the machine. This manual contains detailed
instructions for the proper operation of the machine, along with
important information regarding its handling, care, maintenance
and service needs.
We are sure that you will find the machine and its performance to
your utmost satisfaction. Once again, we thank you for choosing
Roots Multiclean Ltd. (RMCL) as a trusted partner for your
cleaning requirements and solutions.
USAGE, HANDLING AND MODIFICATIONS
Use of the product beyond the specified scope of functioning is
deemed improper and the manufacturer cannot be held liable for
any damages which may arise due to this.
This machine may be used only by persons who are trained or are
familiar with the machine and are aware of the possible hazards
involved. The appropriate Accident Prevention Regulations as
well as applicable general regulations pertaining to Safety and
Health at the work place must be adhered to by the user.
Modifications made to machine without the manufacturer's
consent will relieve the manufacturer of responsibility and any
possible liability for consequential damage.
NOTES ON DOMESTIC WARRANTY
Please refer to the Limited Warranty card supplied along with
the machine for additional information. This Warranty Policy is
applicable only for the product sold within India.
If the product requires repair or maintenance work to be
performed, please ensure that you get the machine serviced
from an authorised service center or dealer of RMCL to ensure
that the warranty is not void.
ACCEPTANCE OF THE MACHINE
On arrival of the machine at the shipping address, please check
for any damage that may have occurred as a result of transit. In
the event of any such damage, the purchaser is bound by
responsibility to send a claim letter to the concerned authorized
branch/dealer with a copy of the invoice. The letter should be
sent within 24 hours of receipt of the machine.
THE MANUAL
Al l informatio n contained is wi thou t obli gation. RMCL
particularly reserves the right to modify any equipment,
technical specifications, colours, shapes, materials and the like so
as to adapt them to local conditions all without previous
announcement and without giving reasons. RMCL may stop
manufacturing certain models without previous notice.
The Operator’s Manual corresponds to the latest information
available for this machine at the time it was printed. Minor
deviations resulting from enhancements of the design cannot be
entirely represented.
The Operator’s Manual is an integral part of the machine and
must not be misplaced.
RMCL reserves the right to change the product or contents of this
manual without prior information.
For Battery, Motors, Engines and other OEM components related
kindly refer to their manufacturers manual supplied along with
the machine for instructions regarding usage, maintenance and
service.
NOTE: Illustrations shown in this manual are for representative
purpose only. Actual product may vary.
INTRODUCTION
Page 6
6
Wizzard 340 Pump - Battery
CUSTOMER SUPPORT SYSTEM (CSS)
RMCL has a dedicated CSS Team to ensure prompt after sales service support. One call solution for
all your complaints/concerns. Register your complaint or concern through the below toll free
number for hassle free support. The customer support executive registers your complaint/concern
and will keep you updated on the progress ensuring prompt closure.
Toll Free Number:
1800 41 99 77 9
Our timings (Monday to Saturday):
8:00 am to 7:00 pm
CUSTOMER SUPPORT SYSTEM
ANNUAL MAINTENANCE CONTRACT
Customer Support System Process
Customer
CSS Executive
Engineer
Site Location
AMC or Annual Maintenance Contract is a professional and timely maintenance cover offered by
RMCL to its customers. AMC takes care of scheduled and preventive maintenance services.
Equipment under AMC qualifies for agreed scheduled visits during the contract.
Advantages of AMC:
þ
Pan India network presence.
þ
Maximum equipment uptime.
þ
Focus on your business while we take care of your equipment.
þ
Well trained engineers to take care of the equipment.
þ
System driven scheduled periodic maintenance.
þ
Genuine spare parts.
þ
Toll free number assistance for breakdown.
AMC
Page 7
7
Wizzard 340 Pump - Battery

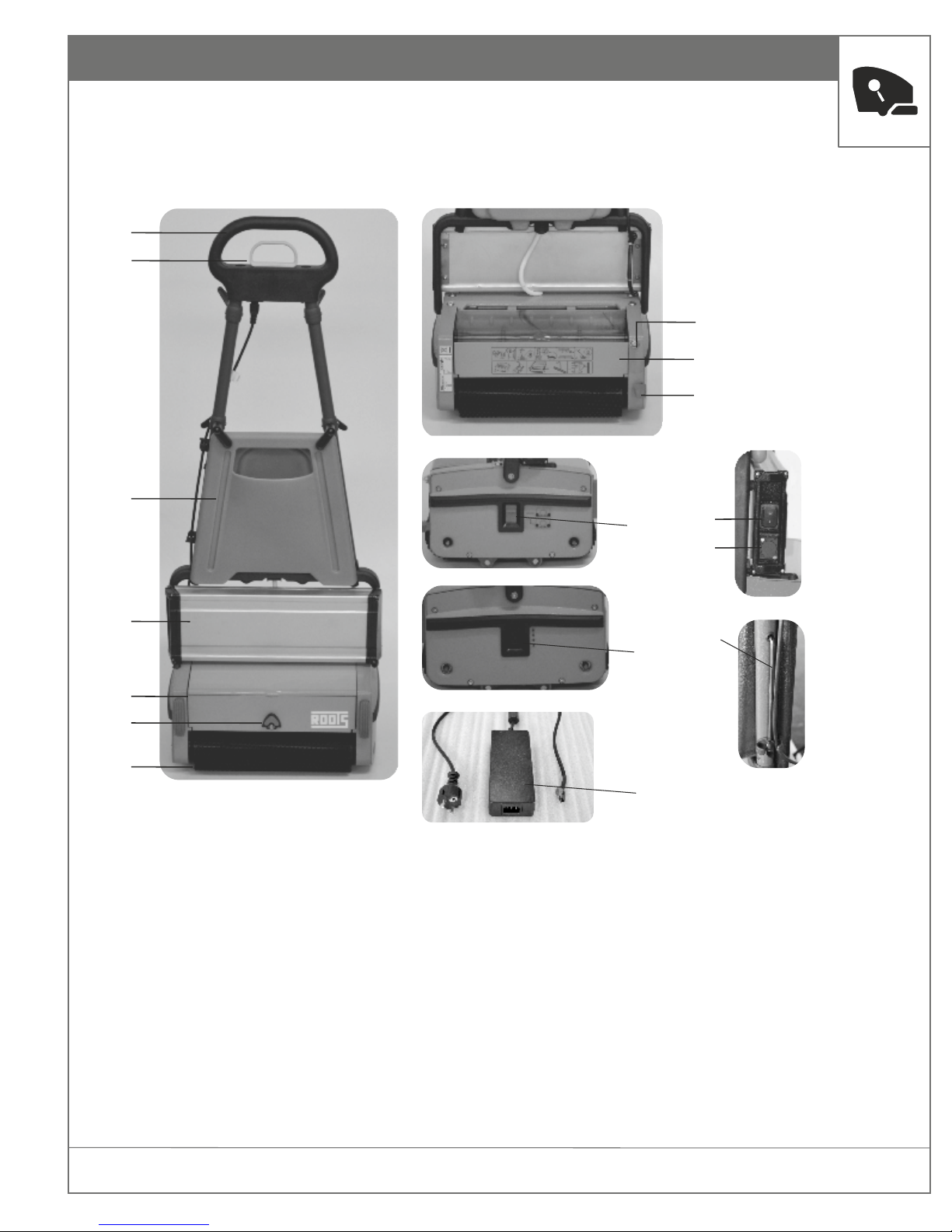

KNOW YOUR MACHINE
1. Top handle
2. Pump on - off control handle
3. Tank fresh water
4. Battery pack
5. Battery switch
6. Pump housing
7. Nozzle
8. Brush
9. Pedal
10. Dirty water tank
11. Charger adapter
12. Mode selector
13. Brush pressure adjustment
14. Status LED
15. Allen key
16. Charging socket
12
13
11
15
5
16
1
2
3
4
6
7
8
Wizzard 34 P - B
14
10
9
Page 8
8
Wizzard 340 Pump - Battery

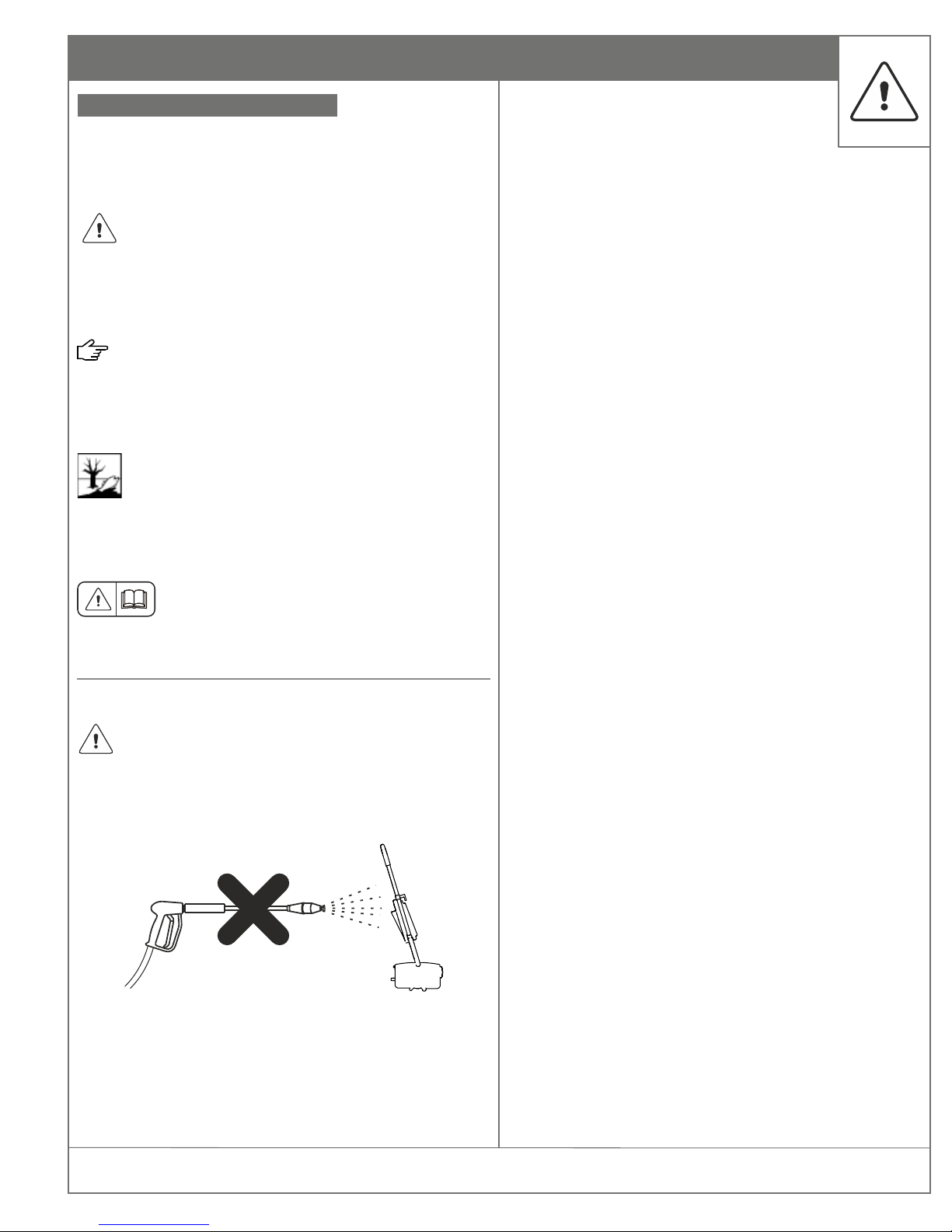

All paragraphs in this manual referring to you personal safety, the
safety of your machine and the environmental protection are
attributed one of the following warning symbols:
Safety provisions in dangerous situation caused by misuse
inaccurate adherence of instruction or prescribed work routine.
Safety Provisions (persons and goods)
Due to use of substances representing an inherent danger to
health of environment.
Ecological Hazard (the environment)
Prior to first operation, read the manual carefully and strictly
comply with the instructions contained.
Read Manual
Important information on handling the machine in order to
maintain operability.
Caution (the machine)

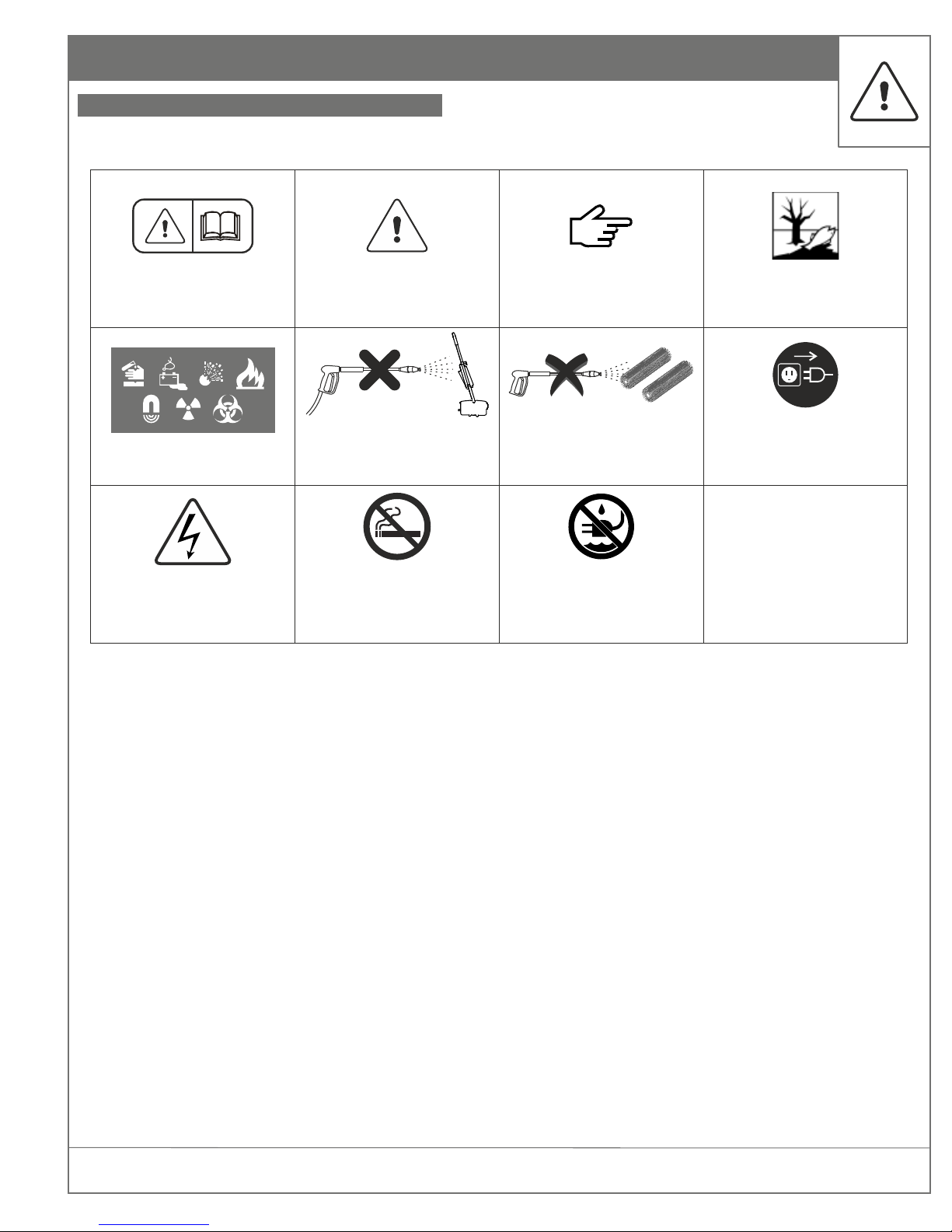

SAFETY & WARNING SYMBOLS
SAFETY INSTRUCTIONS
WARNING
SAFETY INSTRUCTIONS
Ÿ Apart from information contained in this
manual, generally applicable legal provisions
for safety and prevention of accidents must be
adhered to.
Ÿ Do not put this manual aside without having read it, even if
you have already ope rated similar ground c leaning
equipment before.
Ÿ Allow yourself the time to do so in order to save time at a later
time.
Ÿ The operator is responsible for all persons in the working
area.
Ÿ Children must be kept away from the machine during
operation.
Ÿ No person must be allowed to stay in the zone of danger.
Ÿ The warning and instruction plates attached to machine give
important advice on safe operation.
Ÿ Replace lost or illegible stickers.
Ÿ Before starting to work, the operator has to check that the
machine and its working implements are in proper and safe
operating condition.
Ÿ Machines with known defects must not be used.
Ÿ It is important for operators and all persons who use the
product, to familiarize themselves with all accessories and
controls, as wel l as th eir f unctions, before starting
operations.
Ÿ Abiding by the above general instructions can help you avoid
having to read this book while trying to run the machine.
Ÿ This machine must only be used for the manufacturer’s
approved application as described in this manual.
Ÿ The machine must be kept clean and in good condition with
regular inspections of the battery charging lead and plug for
signs of any damage. If any parts are damaged they shall only
be replaced by an approved part by the manufacturer, its
service agent or a similar qualified person in order to avoid a
hazard.
Ÿ Only genuine accessories and spare parts provided with the
machine or those approved by the manufacturer should be
used. All repairs must be performed by a qualified service
agent.
Ÿ This machine is for WET scrubbing only.
· Ground cleaning machines may be run by qualified personnel
only.
· The machine may be used for cleaning such surfaces
approved by the owner or this authorized representative.
· The operator must use the machine in accordance to its
intended fields of application.
· During operation, the operator must take account of local
conditions (stairs, obstacles) a nd of o the r persons,
particularly children.
DO NOT CLEAN THE MACHINE WITH A WATER HOSE
OR HIGH-PRESSURE WATER JET (DANGER OF SHORT
CIRCUITS OR DAMAGE TO MACHINE).
Page 9
9
Wizzard 340 Pump - Battery
Only use accessories and spare parts which have been approved
by the manufacturer. The exclusive use of original accessories
and original spare parts ensures that the appliance can be
operated safely and trouble free.
= Use only brushes that are provided with the machine or
specified in the Operations Manual. The use of other brushes
can affect the safety of the machine.
= Please keep in mind that the power cord or extension cable
can be damaged when run over while operating the cleaning
head with rotating brushes or the escalator itself.
Spare Parts & Accessories:
Equipments With Rotating Brushes:
Transport
Safety Gear:
WARNING
DANGER
As necessary
DANGER - Do Not Scrub Or Vacuum:
Corrosive/Battery Fluids/Explosive/Flammable/
Magnetic/Radio-active/Biohazard Materials.
SAFETY INSTRUCTIONS
· This machine is for indoor use only and should not be used or
stored outdoors in wet conditions.
· Do not operate the machine when connected to the mains
electrical supply.
· Take care when using a machine near the top of stairs to avoid
overbalancing.
· Keep hair, loose clothing, hands, feet and all other parts of the
body away from openings and moving parts.
· This charger should always be connected to a fully earth
power supply of the right voltage and frequency.
· When unplugging, pull the plug, not the charger supply cord.
· Unless charging, the plug of the charger supply cord must be
removed from the socket-outlet when not in use and before
commencing cleaning of the machine or undertaking
maintenance operations.
· When working on the electrical system, always disconnect
the battery cable.
· Battery may only be handled and changed by properly skilled
maintenance personnel.
· Pay attention that the insulation of the charger cables are not
damaged during the charging process.
· It is not permitted to use aggressive and corrosive cleaning
agents.
· Never lay any metallic objects or tools on batteries. Risk of
short circuit and deflagration!
The machine may be used only on indoor hard floorings
and for operation on level grounds with a maximum
inclination of upto 2%.
Never collect explosive fluids, undiluted acids and
solvents. This includes e.g. gasoline paint thinners or fuel
oil, which-when combined with air, may form explosive
vapors or mixtures. Acetone, undiluted acids and
solvents can be aggressive to the material used for the
machine components.
- Do not clean the machine by means of vapor jet or high
pressure cleaning equipment.
- Do not USE the machine on steps.
- Use of the machine in areas prone to explosion hazards is
strictly forbidden.
Use only genuine spare brushes as specified by the
manufacturer. Use of other than the indicated brush types
may affect safety.
Unless you are charging the machine; always remove the
plug from the socket outlet. Keep the charger supply cord
clear of moving parts.
Do not direct water or other liquids into the control unit
of your machine, risk of damaging the equipment or
short circuit.
Incorrect lifting techniques may result in personal injury.
We advise that the manual handling regulations are followed.
Carefully wrap the charger supply cord and store in dry indoor
location. Do not expose the machine to rain or moisture.
Page 10
10
Wizzard 340 Pump - Battery
SAFETY INSTRUCTIONS
SYMBOL & HAZARD PICTORIAL DEFINITIONS
Read t he Op era to r ’s
Manual
Toxic Hazard
No SmokingElectrical Hazard
Disconnect Powercord
Do not let powercord
come in contact with
water or other fluids.
Do Not Use High
Pressure Jets
Do Not Use High
Pressure Jets
General Warning Caution Ecological Hazard
Page 11
11
Wizzard 340 Pump - Battery

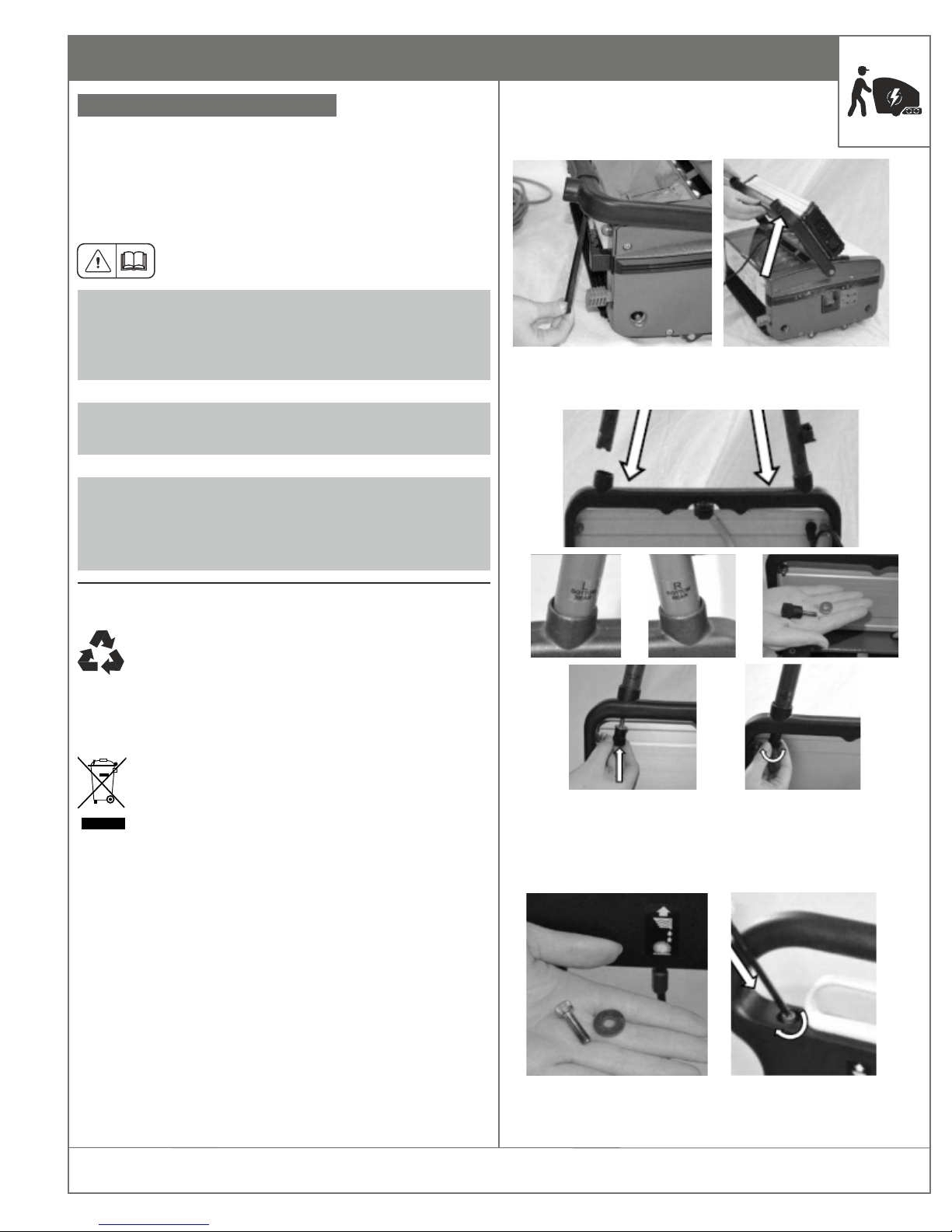

OPERATOR RESPONSIBILITY
Environmental Responsibility
The operator’s responsibility is to take care of the machine’s daily
maintenance and routine checkups to keep the machine in good
working condition.
The operator must also inform the supervisor when scheduled
maintenance of the machine is to be carried out.
The packaging material can be recycled. Please do not place the
packaging into the ordinary refuse for disposal, but arrange for
the proper recycling.
Old machines contain materials that can be recycled. Please
arrange for the proper recycling of old machines. Batteries and
ac tuators contain su bstances that must no t enter the
environment. Please dispose of your old machines, batteries and
actuators using appropriate collection systems.
Read this manual completely and understand before
operating this machine. Also ensure that the persons who
are going to operate this machine have also read and
understood the contents of this manual.
Do not use this machine to collect any external water.
Do not use this machine as a vacuum cleaner.
MACHINE OPERATION
Ÿ Insert the two pipe handles into the bottom handle and secure
them using washer and knob (2 Nos) by tightening lightly.
Ensure that the handles are assembled according to their
marked position.
Machine Assembly & Operation
Ÿ Fit the top handle over the pipe handles and secure them
with washer and screw (2 Nos). Ensure that the label on the
top handle is facing the front of the machine.
l Remove the retaining spring and place the handle in
upright position.
This machine is intended to clean smooth, even floors in
indoor areas.
This machine should not be used to clean rough uneven
surfaces.
Page 12
12
Wizzard 340 Pump - Battery

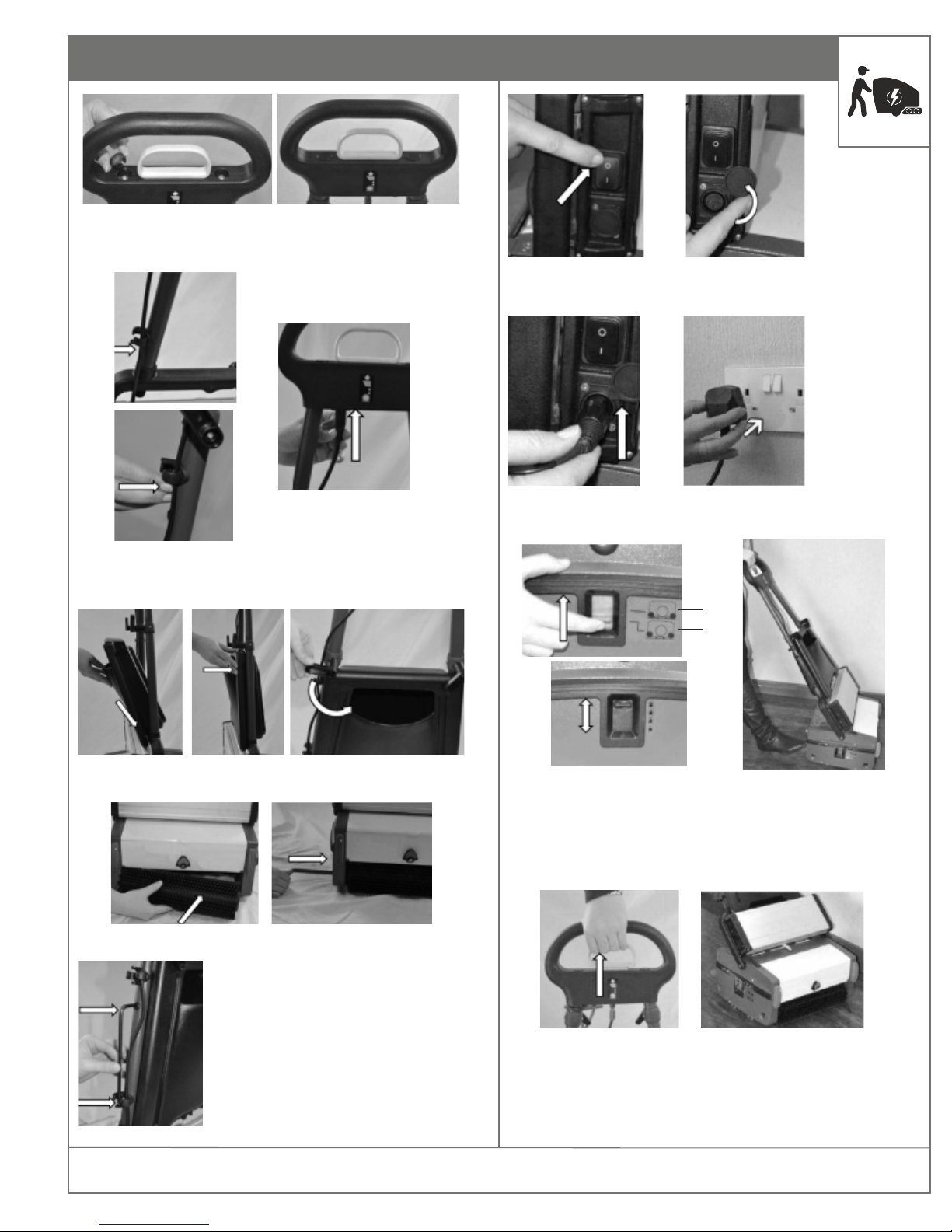

Ÿ Pass the free end of the pull cable through the plastic guide in
RH handle.
Ÿ Plug the cable to the top handle assembly.
Ÿ Install the fresh water tank in between the two pipe handles
and secure it using knobs.
Ÿ Fix the two brushes using the brush shafts.
Ÿ Now tighten firmly both the knobs and screws alternately.
Insert the dummy caps provided to cover the screws (2 nos) in
the top handle.
Ÿ Secure the allen key in the slot
provided in the handle tube for
further usage.
MACHINE OPERATION
Ÿ Set the switch in ON position and connect the charger with
battery.
Ÿ Connect the charger to the power supply.
Ÿ After 5 ½ hours the battery is fully charged.
Ÿ Slide this knob to TOP position (a) (Working Mode) to operate
the machine. Slide this knob to BOTTOM position (b) to move
the machine from one place to other place and to park the
machine. By keeping the knob to top position (working mode)
and move the machine to operate.
a
b
Ÿ The pull handle is used to spray fresh water in front of the
machine.
Page 13
13
Wizzard 340 Pump - Battery

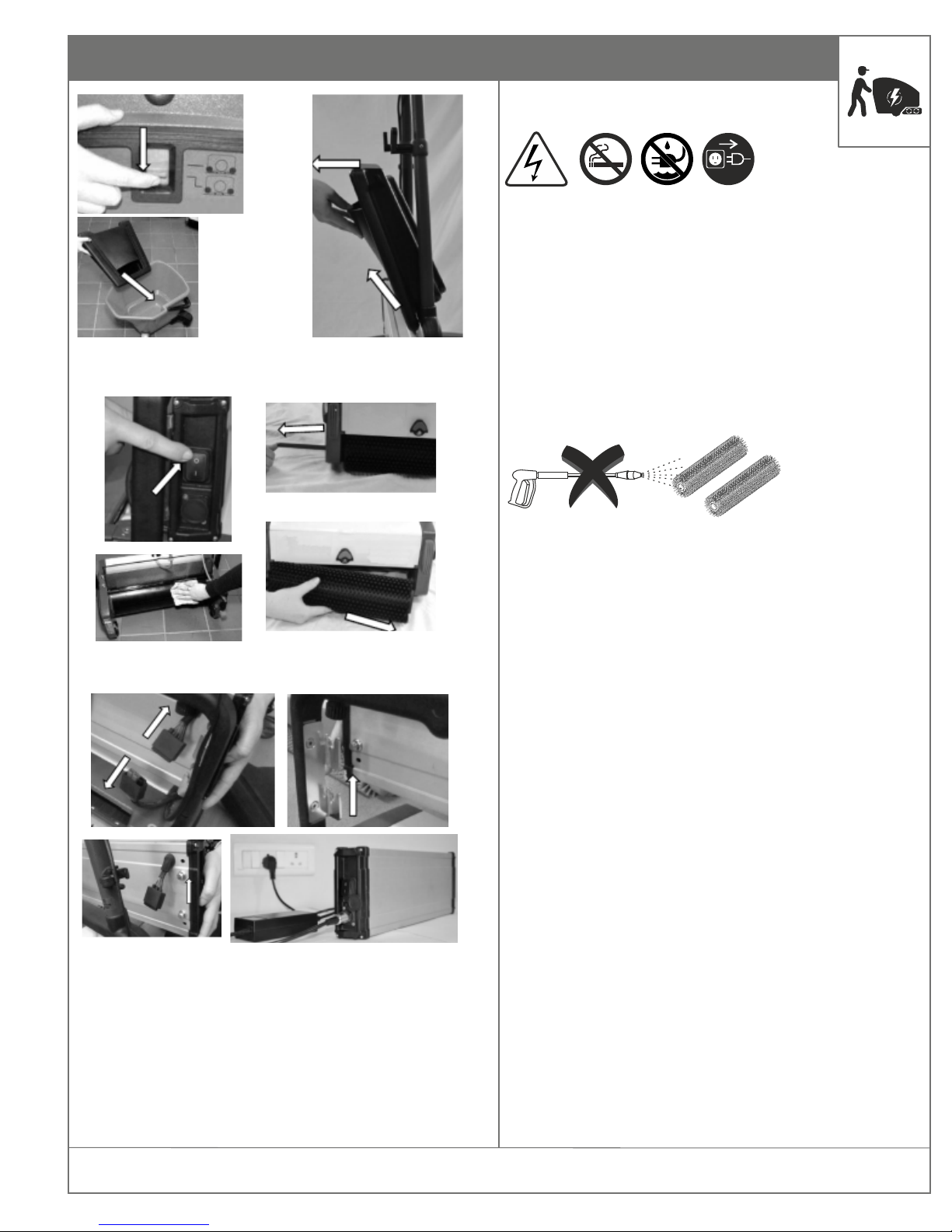

Ÿ Slide this knob to BOTTOM position to move the machine to
park. Remove the fresh water tank and clean it.
Ÿ Switch off the machine and remove the brushes.
Ÿ Clean the machine and brushes.
Ÿ Disconnect the battery from the machine and remove it.
Ÿ The battery can be charged separately.
MACHINE OPERATION
MAINTENANCE
è Before removing the brushes from the machine ensure that
the machine is switched off.
è Do not clean the brushes using a high pressure jet cleaner.
è Do not smoke near the battery during charging.
è Do not let water come in contact with the battery or charger
during charging, risk of short circuit.
è Disconnect the power cord from the wall socket after the
battery is completely charged.
è Do not keep the charger switched ON without the battery
pack connected to it.
Page 14
14
Wizzard 340 Pump - Battery
Trouble Display Reason Remedy
Transport working knob is in bottom
position
Change to operating position
Main switch is on Off position Switch on the main switch
30 A fuse blown Replace fuse and check
Handle switch, tilt switch are
opened/faulty
Check switches
Battery low voltage Charge the battery
Motor over heated Wait for 20 minutes and restart
Worn brushes
Damaged lip on recovery tank
Broken lugs on recovery tank
Drum not revolving
Bridge fitted wrong way on machine or
springs broken
Fit bridge in correct way
Blocked jet
Blocked inline filter
Faulty pump
Blocked filter or faulty valve in solution
tank
Faulty pump micro switch
Damaged or broken pump On/Off cord Check cord
Plastic gear inside rim of drum sheared
Drum sprocket bearing seized
Build up of dirty hair etc. around bridge
springs
Plastic gears in gearbox stripped
Drum rubber sleeve loose on drum
LED blinks in RED
NA
NA
NA
Clean jet or inline filter
Replace brush, lip, lugs or springs
Clean drum and bearings and
remove dirt and build up
Machine fails to start -
no power
Brushes not rotating
Machine fails to pick up
water from the floor
Machine fails to spray
solution onto the floor
Drum not rotating
No LED Display
MAINTENANCE - Troubleshooting
Page 15
15
Wizzard 340 Pump - Battery
DO’S DON’TS
DO’S & DON’TS
ü Take adequate care to hold the machine firmly while
installing and removing the brush.
ü Ensure all parts are fitted properly before operation.
ü Take care when using a machine near the top of stairs to
avoid overbalancing.
ü Keep children and unauthorized persons away from the
machine when in use.
ü The batteries must be neutralized through an approved
secondary treatment facility prior to disposal as waste.
ü This machine should be used to clean smooth, even floors in
indoor areas.
û Don’t use where hazardous dust is present.
û Don’t use in an explosive atmosphere.
û Don’t pick up or use near flammable or
combustible fluids, hazardous dusts or vapors.
û Don’t use to clean up any burning or lit debris materials such
as cigarettes, matches, ashes or other combustible objects.
û Don’t put any object into openings.
û Don’t use with any opening blocked; keep free of dust, debris
and anything that may reduce airflow.
û Don’t operate the machine when connected to the mains
electrical supply.
û Don’t charge the machine with a damaged battery charging
lead or plug, or after the machine malfunctions or is
damaged in any way. Contact an authorised Service Agent for
repair or adjustment.
û Don’t leave machine running unattended.
û Don’t operate switches or touch the mains plug with wet
hands as this may cause electric shock.
û Don’t pull or carry by the charger supply cord.
û Never use excessive foaming or highly corrosive cleaning
solutions.
û Do not dispose this device with unsorted waste.
û Do not use this machine to clean rough uneven surfaces.
û Do not use this machine outdoors.
û Do not store the machine outdoors.
Page 16
16
Wizzard 340 Pump - Battery
Warning Symbols
T h e a b ove i n s t r uc ti o ns ha v e b e en
established for your safety and have to be
strictly observed.
Observe the instruction which must be mounted
clearly at the charging point!
Any splashes of acid in the eyes or on the skin
must be rinsed throughly with plenty of clear
pure water. Then consult a doctor immediately!
No Smoking! No naked lights, embers or sparks in
the vicinity, risk of fire and explosion!
Risk of fire explosion, avoid short circuits!
Caution! Metal components in the battery cells
are always under voltage, never place any foreign
items or tools on the battery!
Keep children away from batteries.
Do not throw in environment/garbage!
Waste Electrical & Electronic Equipment (WEEE)
Battery Status LED
Do not dispose this device with unsorted waste. Improper
disposal may be harmful to the environment and human
health. Please refer to your local waste authority for
information on return and collection systems in your area.
LED Status Discharging
Green
Fully charged
Amber
Battery approaching low charge
Amber Flashing
Battery approaching cut off limit
Low charge / cut off
Motor temperature exceeds limits
Red Flashing
Battery cut off limit reached
Machine Operation
Red
BATTERY INSTRUCTIONS
Page 17
17
Wizzard 340 Pump - Battery
Page 18
18
Wizzard 340 Pump - Battery
Roots Multiclean Ltd.
R.K.G. Industrial Estate, Ganapathy, Coimbatore - 641 006, India.
Phone: +91 (422) 4330 330, E-mail: [email protected]
Web: rootsmulticlean.in,
Toll Free: 1800 41 99 77 9
Loading...
