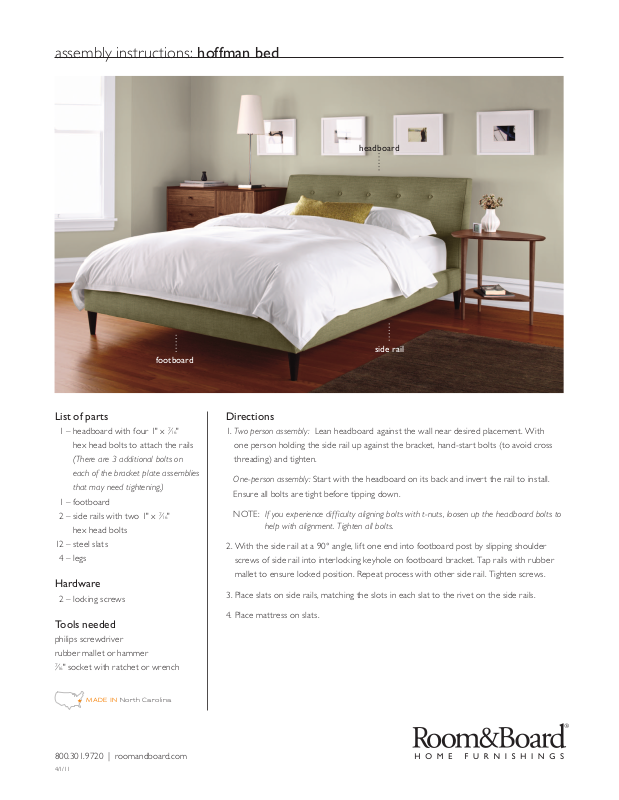

Room & Board Riley Duo Bunk Assembly Instruction

assembly instructions: hoffman bed

headboard

footboard

List of parts

1 – headboard with four 1" x 7⁄16"

hex head bolts to attach the rails

(There are 3 additional bolts on

each of the bracket plate assemblies

that may need tightening.)

1 – footboard

7

2 – side rails with two 1" x

hex head bolts

12 – steel slats

4 – legs

⁄16"

Hardware

2 – locking screws

Tools needed

philips screwdriver

rubber mallet or hammer

7

⁄16" socket with ratchet or wrench

side rail

Directions

1. Two person assembly: Lean headboard against the wall near desired placement. With

one person holding the side rail up against the bracket, hand-star t bolts (to avoid cross

threading) and tighten.

One-person assembly: Start with the headboard on its back and invert the rail to install.

Ensure all bolts are tight before tipping down.

NOTE: If you experience difficulty aligning bolts with t-nuts, loosen up the headboard bolts to

help with alignment. Tighten all bolts.

2. With the side rail at a 90° angle, lif t one end into footboard post by slipping shoulder

screws of side rail into interlocking keyhole on footboard bracket. Tap rails with rubber

mallet to ensure locked position. Repeat process with other side rail. Tighten screws.

3. Place slats on side rails, matching the slots in each slat to the rivet on the side rails.

4. Place mattress on slats.
