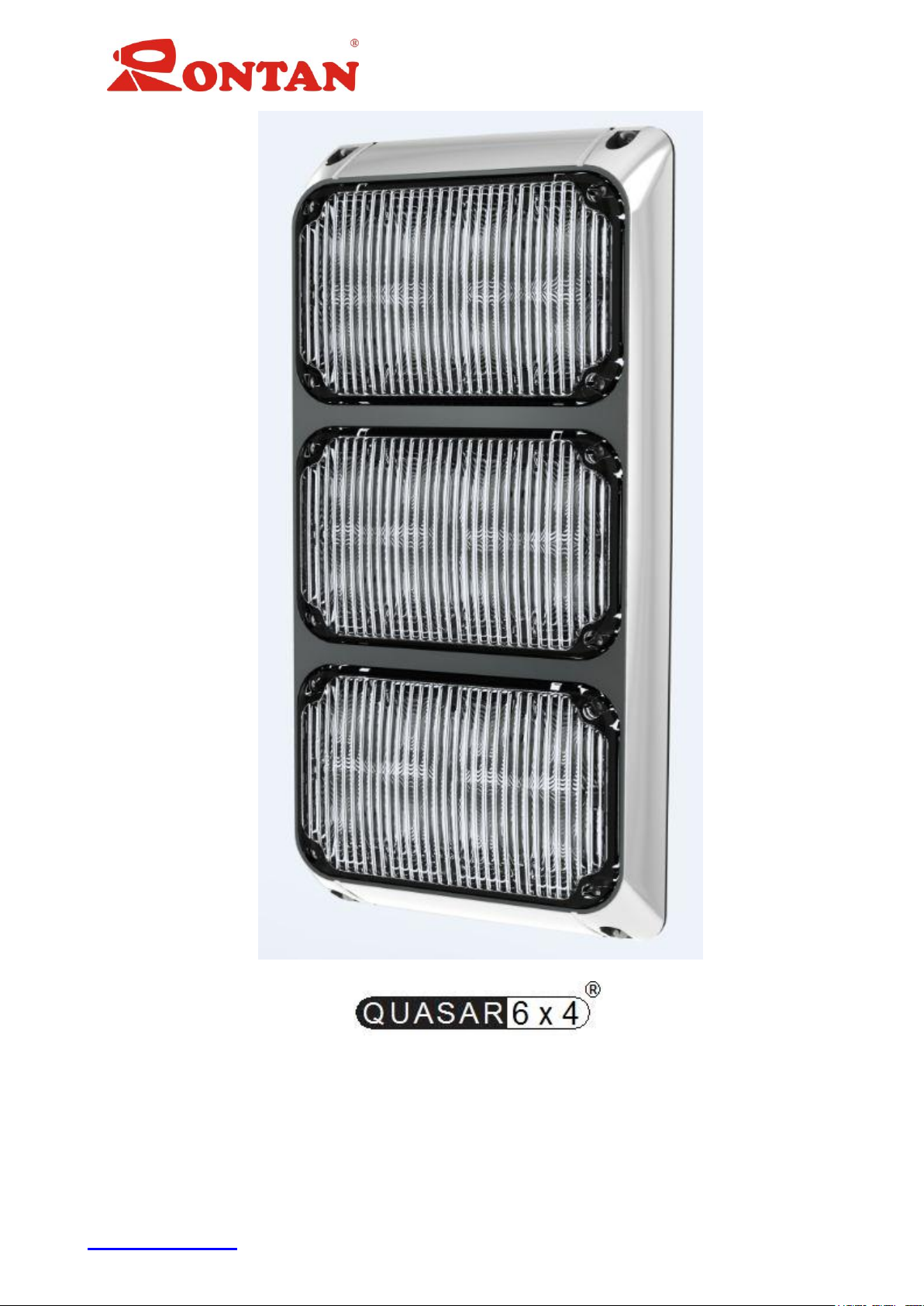

6x4 BTR QuasarBlaze®
Installation & Operation Manual
The 6x4 BTR QuasarBlaze® lights are indicated to be used as a warning for Brake,
Turn and Rear signaling lights. Their high power LEDs are assembled underneath an internal
lens, forming a high efficiency optical set. They are optimized for automotive applications for
medium and heavy sized vehicles, like ambulances, fire trucks, rescue and others.
www.rontan.com Rev. 1.0 Page 1
6x4 BTR QuasarBlaze®
Installation & Operation Manual
The plastic parts are injected polycarbonate and high-strength ABS. The hardware
assembly is made out of several parts. The electronic circuits and the LEDs are assembled on
a single board on the back of an internal transparent lens. This set fits into a polycarbonate
bezel and attached to the vehicle´s surface with a rubber gasket, as on figure 1.
Figure 1: Exploded view
1. Specifications
Cables:
Black – Ground (GND).
Green – Connected to +12VDC, activates the light. On red light, activates high intensity.
Violet (only on the red light) – Connected to +12VDC, activates the light on low intensity.
Note: If both green and violet wires are connected to +12VDC, the high intensity takes priority (green wire).
www.rontan.com Rev. 1.0 Page 2
2. Electrical Characteristics
Measurement
Parameter
Condition
Min.
Typical
Max.
Unit
VS
Supply voltage
ON
13.5 ± 15%
V
IS (B, T*, R)
Supply current
ON
Max. 0.29
A
IS (T**)
Supply current
ON
Max. 1.2
A
T-STG
Storage temperature
OFF
-20 80
°C
T-OP
Operating temperature
ON
-10 55
°C
* with 2.5G LED models
** with 5G LED models
3. Interconnections
6x4 BTR QuasarBlaze®
Installation & Operation Manual

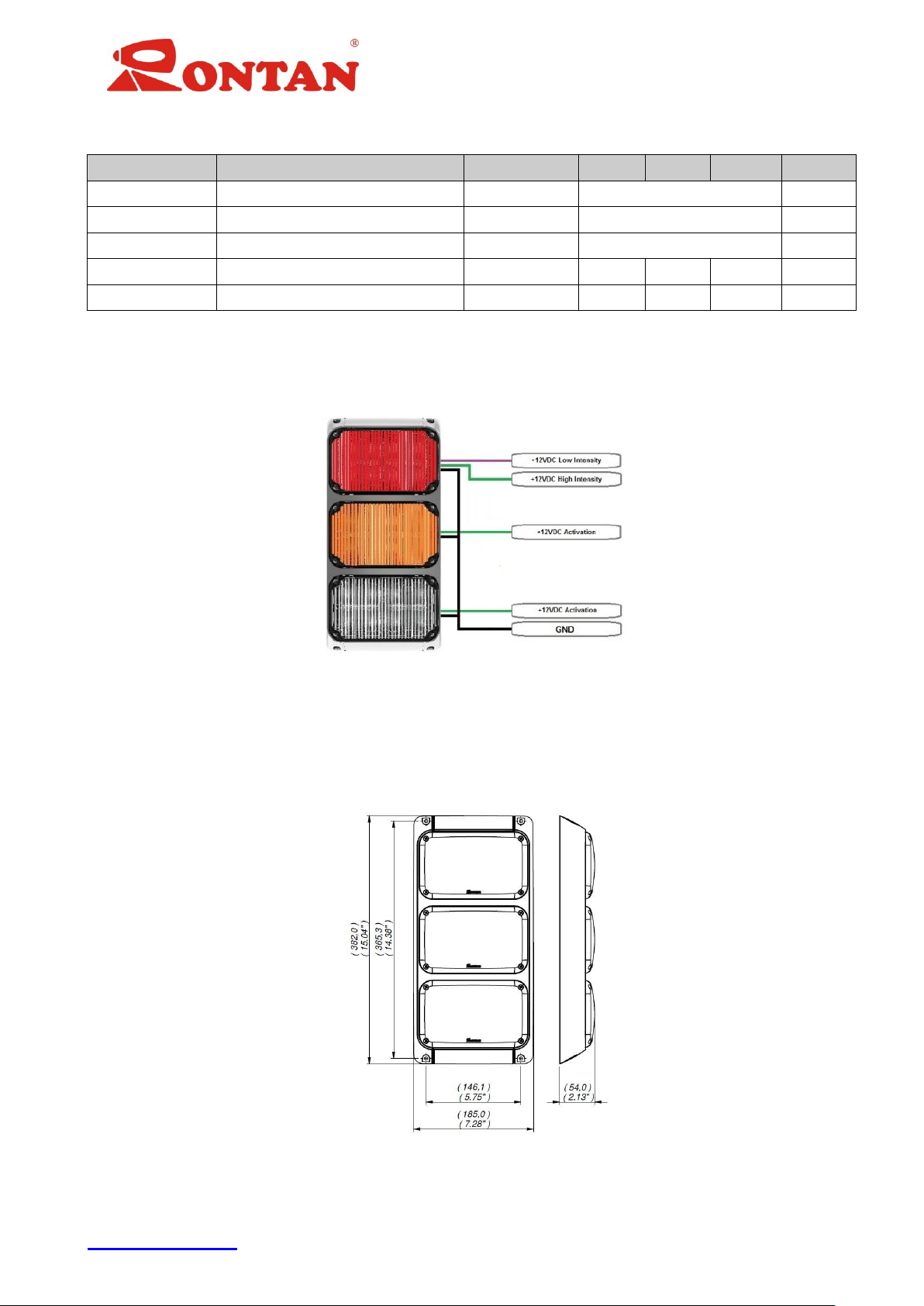

Figure 2: Interconnections
Figure 2 shows how to activate the 6x4 BTR QuasarBlaze® light. Note that if both wires
on the red light are connected to +12VDC, the high intensity activation will occur.
4. Dimensions in mm (in)
www.rontan.com Rev. 1.0 Page 3
Figure 3: Dimensions
