Rongta Technology RPP02 User Manual

Mobile Printer

RPP02A USER MANUAL

Contents

I. Notice......................................................................................................................................3

1.1 Safety Notice.....................................................................................................................3

1.2 Usage Notice.....................................................................................................................3

1.3 Storage Notice...................................................................................................................4

1.4 Battery Safety Notice........................................................................................................4

II. Introduction......................................................................................................................... 6

2.1 Printer outer design........................................................................................................... 6

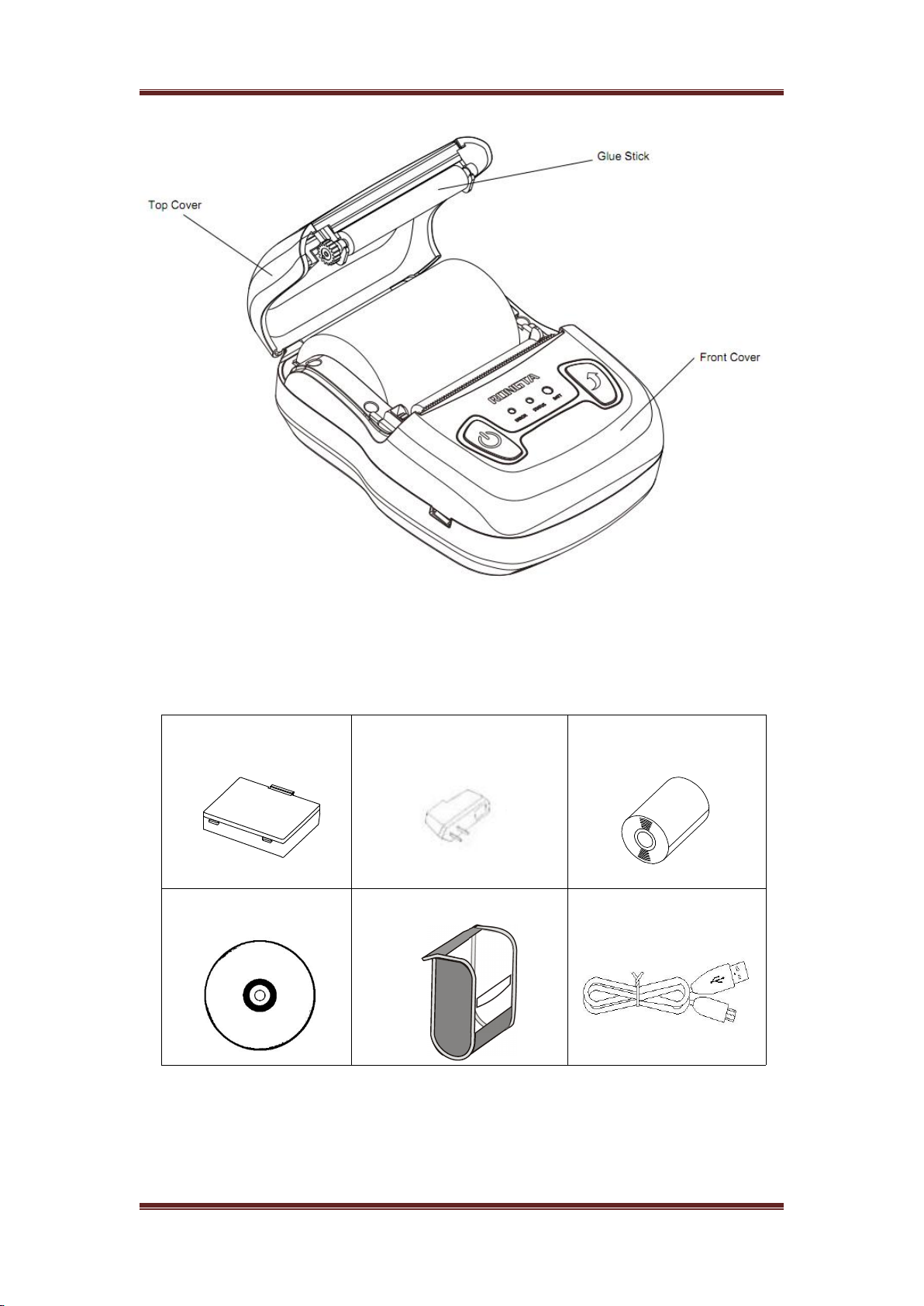

2.2 Accessories........................................................................................................................7

III. Performance....................................................................................................................... 8

3.1 Print Performance............................................................................................................. 8

3.2 Physics Parameter............................................................................................................. 8

3.3 Environment Parameter.................................................................................................... 8

3.4 Other Performance............................................................................................................8

IV. Introduction........................................................................................................................ 9

4.1 Preparing before usage......................................................................................................9

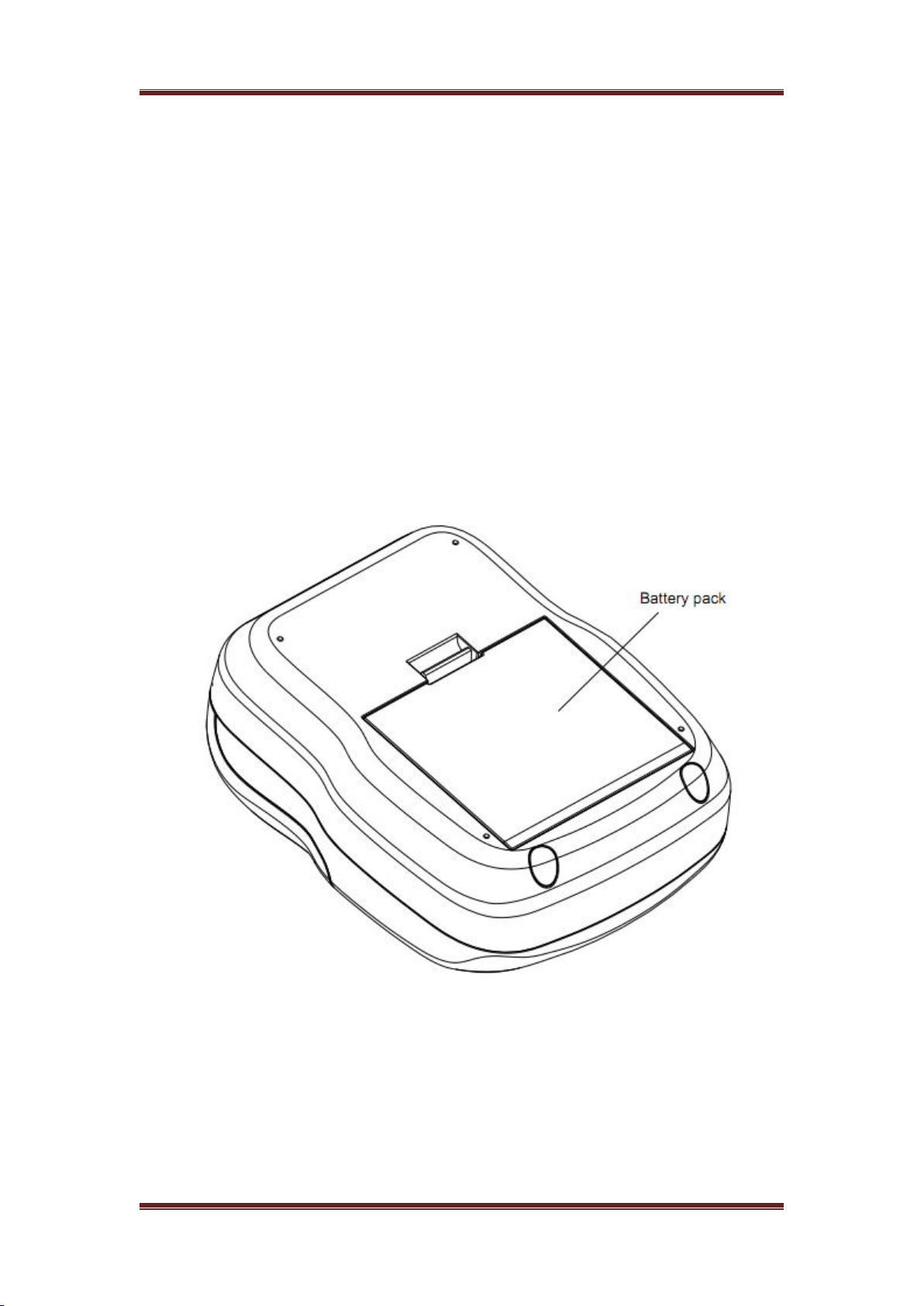

4.1.1 Battery Installation.....................................................................................................9

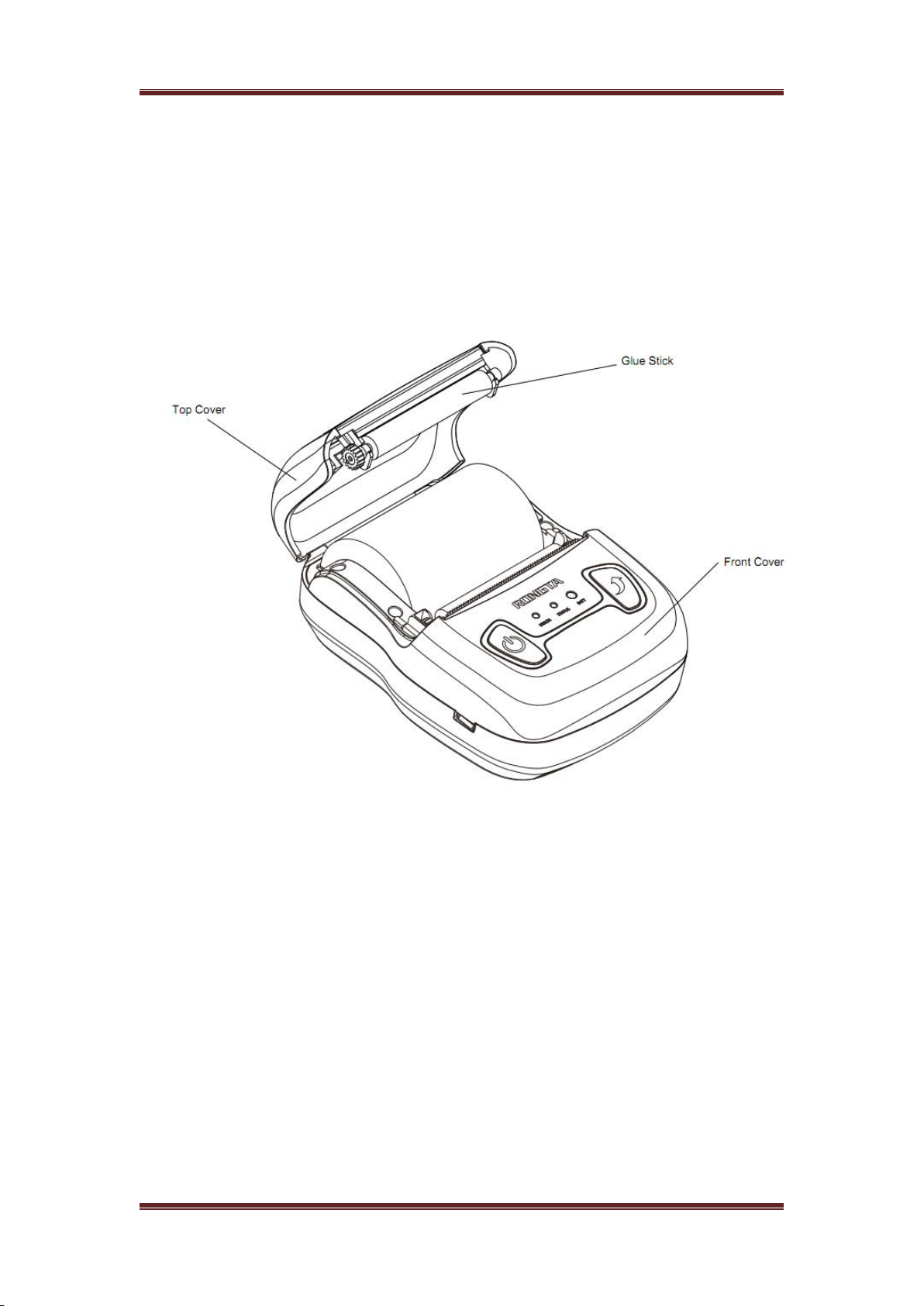

4.1.2 Paper Roll Installation..............................................................................................10

4.2 Basic Function.................................................................................................................11

4.2.1 Power On..................................................................................................................11

4.2.2 Power Off................................................................................................................. 11

4.2.3 Self-Test................................................................................................................... 11

4.2.4 Feed (Feed Manually).............................................................................................. 11

4.2.5 Charge...................................................................................................................... 11

4.3 Printer Connecting and Printing......................................................................................12

4.3.1 Serial Interface Connecting......................................................................................12

4.3.2 USB Interface Connecting....................................................................................... 12

4.3.3 The Bluetooth Matching and Printing......................................................................12

4. 4 Indicator Light and Buzzer Signal Description............................................................. 13

1

2

Note: This equipment has been tested and found to comply with the limits for a Class

B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to

provide reasonable protection against harmful interference in a residential installation.

This equipment generates, uses, and can radiate radio frequency energy, and if not

installed and used in accordance with the instructions, may cause harmful interference

to radio communications. However, there is no guarantee that interference will not

occur in a particular installation. If this equipment does cause harmful interference to

radio or television reception, which can be determined by turning the equipment off

and on, the user is encouraged to try to correct the interference by one or more of the

following measures:

– Reorient or relocate the receiving antenna.

–

Increase the separation between the equipment and receiver.

– Connect the equipment into an outlet on a circuit different from that to which the

receiver is connected.

–

Consult the dealer or an experienced radio/TV technician for help.

changes or modifications not expressly approved by the party responsible for

compliance could void the user’s authority to operate the equipment.

This device complies with Part 15 of the FCC Rules. Operation is subject to the

following two conditions:

(1) this device may not cause harmful interference, and

(2) this device must accept any interference received, including interference that may

cause undesired operation.

This equipment complies with FCC radiation exposure limits set forth for an

uncontrolled environment. This equipment should be installed and operated with a

minimum distance of 20cm between the radiator & your body. This transmitter must

not be co-located or operating in conjunction with any other antenna or transmitter.

3

I. Notice

Please read the following information carefully before using the printer!

1.1 Safety Notice

This printer can only use battery and power adapter provided by our company, or

it may cause damage to the printer, battery leakage, fire or explosion.

Do not put the battery into the fire, not make it short circuit, break up or heating,

otherwise it may cause the battery leakage, fire or explosion.

The battery liquid is corrosive, if the user’s careless operation leads the battery

leakage and the liquid viscosity to the skin or the clothes please use the clean water

for washing immediately, if accidentally into the eyes, please rinse with plenty of

clean water to wash the eyes then goes to the hospital.

Do not open paper cover and use hand or any part of body to touch the printer

mechanism when printing or printing just end, to avoid the exorbitant temperature

causes scald.

Do not use the printer when the operation is failed because that would cause a fire

or electric shock. Please turn off and unplug it, then call the dealer.

1.2 Usage Notice

The printer can not be immerged into the water and not be exposed in the rain for

a long time; otherwise it may lead the damage to the printer.

Do not open the paper cover when printing or it may cause the printer working

improperly.

If use the serial interface to print, do not pull off the serial line when printing,

otherwise it may result in incompletion of the final print data.

When using IR to print, the user should aim the IR windows of main equipment

at the IR windows of printer, the distance between them should be not more than 50

centimeters, and the angle should not exceed 30 degrees, or it may lead to print

garbled or unable to print.

The printer could work stably from -10°C to 40°C, but the higher temperature

(>/=45°C) or lower temperature (</=5°C) would debase the print quality.3

4

Higher humidity (>/=85%) or lower humidity (</=20%) also may debase the print

quality.

Use the bad print paper or long time storage paper would affect the print quality,

even damage the printer.

When the printer is working in black mark detection mode (when printing the

pre-print receipt with black mark), it requires the black mark that on the pre-print

paper is accord with black mark printing standard (as details in 4.2 Pre-print Black

Mark Instruction), otherwise it may lead the printer disable to detect the black mark

accurately.

The battery of the printer is better running out before charging, which could

effectively ensure the lifespan of it.

1.3 Storage Notice

The printer should be stored in the environment where the temperature is -20°C

to 70°C and relative humidity is 5% to 95%.

If the user plan to store the printer for a long time, please be sure to take out the

battery and stored it separately, or it may result in the battery lose efficacy, even

leakage and then damage the printer.

The storage time of common thermal paper is short, if the user need to print the

long-term preservation receipt, please use long-acting thermal paper.

Do not store the thermal paper in a high temperature or direct sunlight

environment, if it has been sealed off, please store it in dark place.

1.4 Battery Safety Notice

Please read this user manual carefully before using the printer. Ignoring the

followings may cause overheating, burning, explosion, damage of the battery and/or

debase the lifespan of the printer.

Warning:

1. Do not let water or sea water in or leak into the battery. If the safety device in it

is burned out, any charge of it would lead abnormity current and/ or voltage and bring

unusual chemistry reaction, then cause the overheating, burning and/ or explosion of

it.
