RONDAâ 200H and 200H-S
Industrial Vacuum Cleaner for Fine Dust and
Dust Hazardous to Health
General Description
Congratulations on your new RONDAâ 200H / RONDAâ200H-S industrial vacuum cleaner
from V. BRØNDUM A/S.
RONDAâ 200H / RONDAâ200H-S is an industrial vacuum cleaner developed for the collection of very fine and
health hazardous dust. RONDAâ 200H / RONDAâ200H-S meets the requirements for vacuum cleaners within
the industry and the construction industry today. The machine is ideal for the collection of fine and health
hazardous dust, such as cement or dust from grinding machines. The machine is ideal for use in connection with
hand tools.
· Self-cleaning Teflon-coated multi-tube filter (BIA dust class ”M”)
· Filter cleaning during operation with back flush valve
· HEPA-filter (BIA/IFA dust class ”H”)
· Protection level IPX4 (IEC 60 529)
· Satisfies the demands of EN 60 335-2-69 Annex AA, for collection of health
hazardous dust in dust class ”H”
· Electrical outlet with automatic start/stop
· Beeper alarm in case of too low air flow
· Soft start of motor
· Post-suction when using hand tool
RONDAâ200H-S is mounted with separate exhaust coupling. It is relatively easy to
mount separate exhaust coupling on RONDAâ 200H, if this is required.
It is, however, necessary to send the motor top to V.Brøndum A/S - or the dealer - for alteration.
The machine cannot immediately be restored to the original RONDAâ 200H without exhaust coupling.

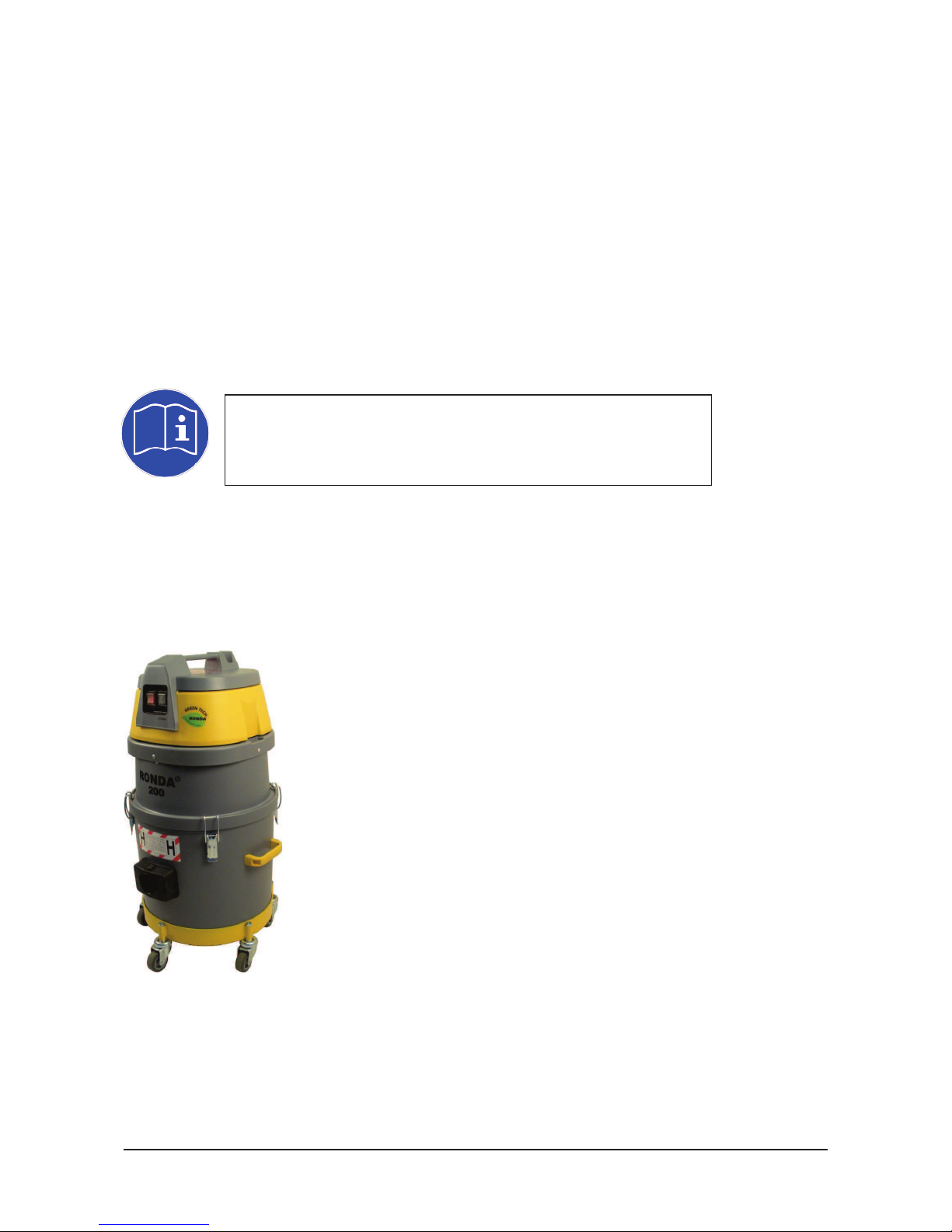

Read this manual before you operate the machine.
Keep the manual readily accessible to all users.
Page 6
User Manual
RONDA
â
200H (RONDAâ200H-S) 7 V. BRØNDUM A/S
The user manual is to ensure a secure operation of the vacuum cleaner, and to secure that the user is in no way
uncertain as to the use. The manual must be stored near the vacuum cleaner.
Does any uncertainty arise as to the use of the vacuum cleaner or the material collected, the work should be
stopped until all questions have been cleared.
Pictures and drawings are for illustrative purpose and will make the understanding of the manual easier. The
pictures shown may therefore be different from the actual product.
Safety Precautions
This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental
capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction
concerning use of the appliance by a person responsible for their safety.
Children should be supervised to ensure that they do not play with the appliance.
· The appliance is NOT approved for collection of flammable, explosive, poisonous or extremely health
hazardous dust, fluids or gasses.
· DO NOT USE THE VACUUM CLEANER WITHOUT A PROPER GROUND CONNECTION. This vacuum
cleaner is designed to be used with a grounding connection, in an installation with HFI or HPFI. The user is
responsible for ensuring that the wall outlet is grounded. The ground connection of the plug must NOT be
removed.
· RONDAâ 200H / RONDAâ200H-S must be connected to 230 V power supply. Make sure that the voltage
and safety fuse of the power supply correspond with the data of the data plate and the information given in
this manual.
· RONDAâ 200H / RONDAâ200H-S may be used for collection of dust hazardous to health according to
CEI/IEC 60335-2-69 Annex AA, dust class H.
· The appliance must be emptied after use.
· The user must ensure that the appliance is adjusted to the task and that regulatory requirements are met.
· When collecting dust hazardous to health you must use a filter bag, and disposal must comply with the legal
requirements for material (closed container, plastic bag etc.).
· Avoid damaging the supply cord. When replacing the supply cord, only use an original supply cord (see the
spare parts list). V. BRØNDUM A/S, an authorized V. BRØNDUM A/S dealer or an equally qualified person
must carry out the replacement in order to avoid danger. Regularly check the mains connection for damage,
such as fissures or ageing. If damage is found, the supply cord must be replaced before further use.
· The plug must be removed from the power supply before repair and maintenance operations.
· The mains socket of the machine is to be used only for the purposes specified in the user manual.
· This machine is intended for commercial use, e.g. in hotels, schools, hospitals, factories, shops, offices and
rental businesses.
· Before use operators should be provided with information, instruction and training for the use of the
appliance and the substances for which it is to be used, including the safe method of removal and disposal
of the material collected.
· For user servicing, the appliance must be dismantled, cleaned and serviced, as far as is reasonably
practicable, without causing risk to the maintenance staff and others. Suitable precautions include
Page 7
User Manual
RONDA
â
200H (RONDAâ200H-S) 8 V. BRØNDUM A/S
decontamination before dismantling, provision for local filtered exhaust ventilation where the appliance is
dismantled, cleaning of the maintenance area and suitable personal protection.
· In the case of class H appliances the outside of the appliance should be decontaminated by vacuum
cleaning methods and wiped clean or treated with sealant before being taken out of a hazardous area. All
the appliance parts shall be regarded as contaminated when removed from the hazardous area and
appropriate action taken to prevent dust dispersal.
· The manufacturer, or an instructed person, shall perform a technical inspection at least annually, consisting
of, for example, inspection of filters for damage, air tightness of the appliance and proper function of the
control mechanism. On class H appliances the appliance filtration efficiency should be tested at least
annually, or more often, according to national requirements. The test method that may be used for the
verification of the appliance filtration efficiency is given in AA.22.201.2. If the test will not be passed, it must
be repeated with a new essential filter.
· When carrying out service or repair operations, all contaminated items, which cannot be satisfactorily
cleaned, are to be disposed of. Such items shall be disposed of in impervious bags in accordance with any
current regulation of the disposal of such waste.
· The upper part of the motor top is a non-dust proof compartment, and when cleaning, the covers of this
compartment are removed by loosening the screws fixing the covers.
· IMPORTANT! The vacuum cleaner must not be started with covers removed.
· When the automatic start/stop is activated in connection with electrical hand tools, you must
ALWAYS turn off the hand tools before you turn off the machine.
· IMPORTANT! The motor top must not be covered when the vacuum cleaner is in use.
Guidelines in Connection with Disposal of the Machine
Does the safe use or maintenance of the appliance raise any questions, do not hesitate to contact either your
dealer or V. BRØNDUM A/S.
The product you have purchased is subject to Directive 2002/96/EC of the European
Parliament and the Council of the European Union on waste electrical and electronic
equipment (WEEE) and should not be disposed of as unsorted municipal waste. Please
utilize your local WEEE collection facilities in the disposition of this product and otherwise
observe all applicable national requirements.
Page 8
User Manual
RONDA
â
200H (RONDAâ200H-S) 9 V. BRØNDUM A/S
General Safety Instructions
1. Keep the working area clean. Slippery and greasy surfaces increase the risk of accidents.
2. Be aware of the surroundings. Do not expose the vacuum cleaner to rain. Do not use the vacuum
cleaner in moist or wet surroundings. Do not use the vacuum cleaner near flammable gasses or
liquids.
3. Protect against electrical shock.
Avoid bodily contact with earthed building parts, such as radiator, water pipes and the like and
also electrical appliances with their own earth connection.
4. Keep children and unauthorized persons away from the workplace.
Do not let unauthorized persons touch the vacuum cleaner or the supply cord. All unauthorized
persons should be kept at a distance.
5. Put the vacuum cleaner away, or make it ready for transport after use.
Keep the vacuum cleaner in a dry place and inaccessible to children.
6. Do not use force.
Do not use force when operating the vacuum cleaner. Do not step on the hose, or the electrical
cord.
7. Choose the correct tool, accessories for the task.
Do not use badly proportioned or light tools for heavy tasks. Do not use tools for anything they are
not intended for.
8. Choose suitable working clothes.
9. Personal protective equipment.
Put on eye and/or ear protection, if necessary. Put on respirator in dusty environments.
10. Protect the electrical cord.
Never carry the vacuum cleaner in the electrical cord. Do not remove the plug from the socket by
pulling the electrical cord. Keep the electrical cord away from heating sources, oil and sharp
edges.
11. Choose a safe working position so that there will be no risk of falling in the hose and cord.
12. Keep the machine and equipment in good repair.
Keep the vacuum cleaner clean and dry and follow the instructions of the chapter about
When using electrical equipment the necessary safety precautions must
be taken in order to avoid
the risk of fire, electrical shock and damage to
persons. The below safety instructions are to be read and followed when
the vacuum cleaner is being used.
Page 9
User Manual
RONDA
â
200H (RONDAâ200H-S) 10 V. BRØNDUM A/S
maintenance.
13. Cut off the electricity supply when the vacuum cleaner is not in use.
Remove the plug from the socket before maintenance, repair and when the vacuum cleaner is not
in use.
14. If extension cords are used out of doors, they must be approved for this. If extension cords are
used, the following guidelines must be observed.
15. Show attention and be rested.
The vacuum cleaner must not be used, if the user is tired, sleepy or sick or under the influence of
alcohol or drugs / medicine.
16. Check for damage.
Check the vacuum cleaner for damage. Check that the shields etc. have been properly fastened.
Check the electrical switches, and have an authorized service mechanic replace them, if they are
damaged. Do not use the vacuum cleaner, if it cannot be started and/or stopped at the switch.
RONDAâ 200H / RONDAâ200H-S is H-classified in accordance with the demands of EN 60335-2-69 Annex AA
for collection of dust hazardous to health.
RONDAâ 200H /RONDAâ200H-S is furthermore in accordance with the Machinery Directive (2006/42/EC).

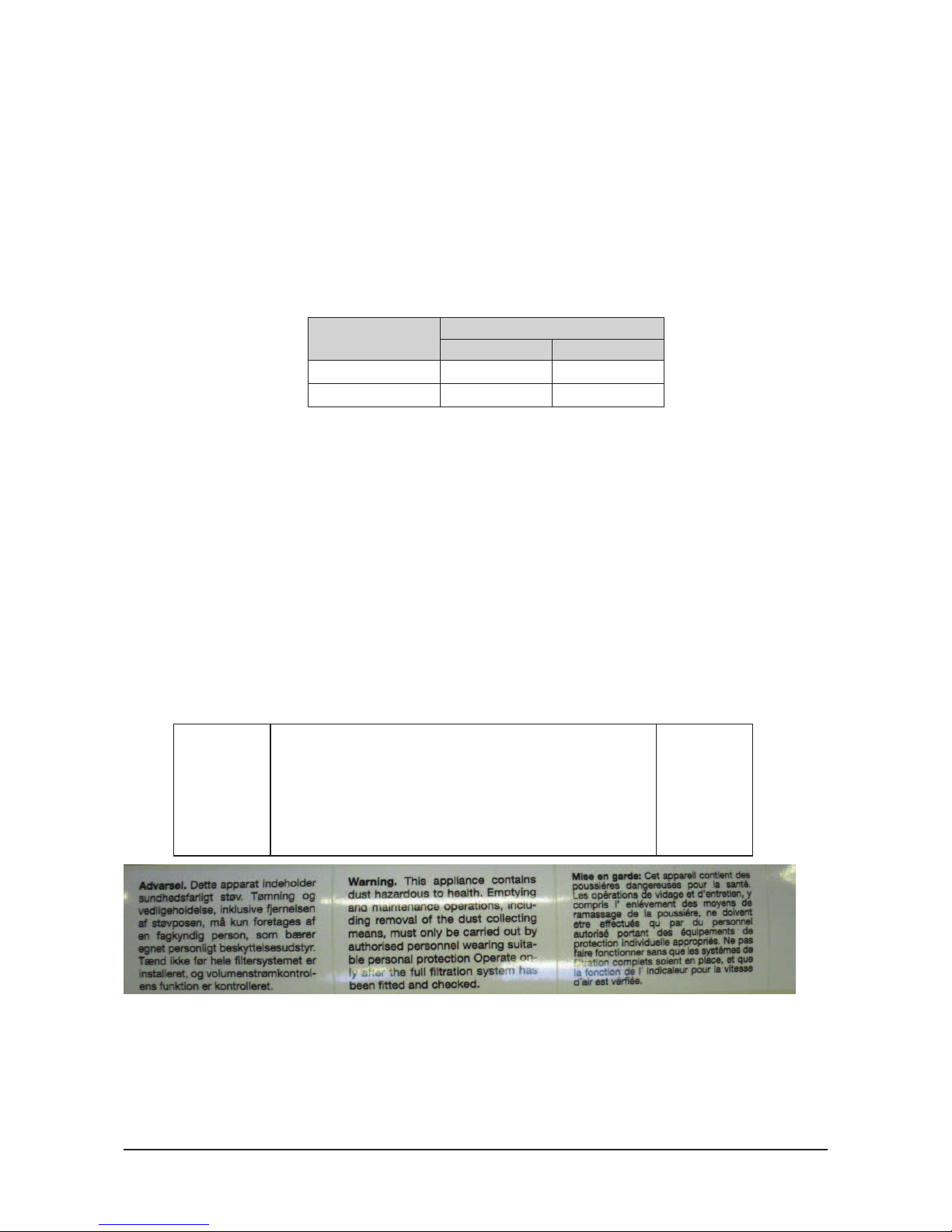

3 labels are enclosed. One in Danish, one in English and one in French.
The standard language of the label on the machine is German. Therefore the label with the language of the
country in question is to be placed on the H-label, with the text as shown above.
Length of cord in
metres
Cross section
<16A
<25A
Up to 20 m
Ø1,5mm²
Ø2,5mm²
20-50 m
Ø2,5mm²
Ø4,0mm²
WARNING: This appliance contains dust hazardous to
health.
Emptying and maintenance operations, including
removal of the dust collecting means, must only be
carried out by authorized personnel wearing suitable
personal protection. Operate only after the full filtration
H
H
Page 10
User Manual
RONDA
â
200H (RONDAâ200H-S) 11 V. BRØNDUM A/S
Make sure that the voltage and fuse of the power
supply correspond with the data of the dat
a plate of the
machine and the data of this manual.
Technical Data
RONDAâ 200H / RONDAâ200H-S is
connected to 230 V power supply.
The survey below shows the technical data of RONDAâ 200H & RONDAâ 200H-S
A169
EU CH
DK
Voltage
Suction motor
Power outlet, max.
Vacuum
Air volume, max.
*Suction power, max. ((P2)based on IEC 60312
)
Filter area, multi-tube filter
Filter area, HEPA
Collection capacity (bag / container)
Height
Length
Width
Weight without accessories
Container coupling
Length of supply cable
Noise
Based on ISO 11201
Machine pressure level : uncertainty K
pA
=3dB
(Measured only as machine)
Based on EN 60704
-1:2010 and EN60704-2-1:2001
Max. Sound
Power Level LWA=
uncertainty KWA=3dB
(Measured with hose,
pipes and floor accessory)
230
1100
2000
2550
25
54
194
345
0.8
1.1
14/16
795
430
450
15
Ø 50
8
<70
<85
230
1100
1200
2550
25
54
194
345
0.8
1.1
14/16
795
430
450
15
Ø 5
0
8
<70
<85
230
1100
1800
2550
25
54
194
345
0.8
1.1
14/16
795
430
450
15
Ø 50
8
<70
<85
Volt
Watt
Watt
mmWc
kPa
l/
sec.
m
3
/h
W
m
2
m²
l
mm
mm
mm
kg
mm
m
dB(A)
dB
*Data of the machine with 4 metres ø 38 hose
In connection with extraction from tools (dust extractor) it is
necessary to ensure a sufficient rate of air renewal (L) in the
room.
According to the instructions from The Danish Working
Environment Service,
recirculation of extracted air is forbidden.
Please refer to national regulations.
Page 11
User Manual
RONDA
â
200H (RONDAâ200H-S) 12 V. BRØNDUM A/S

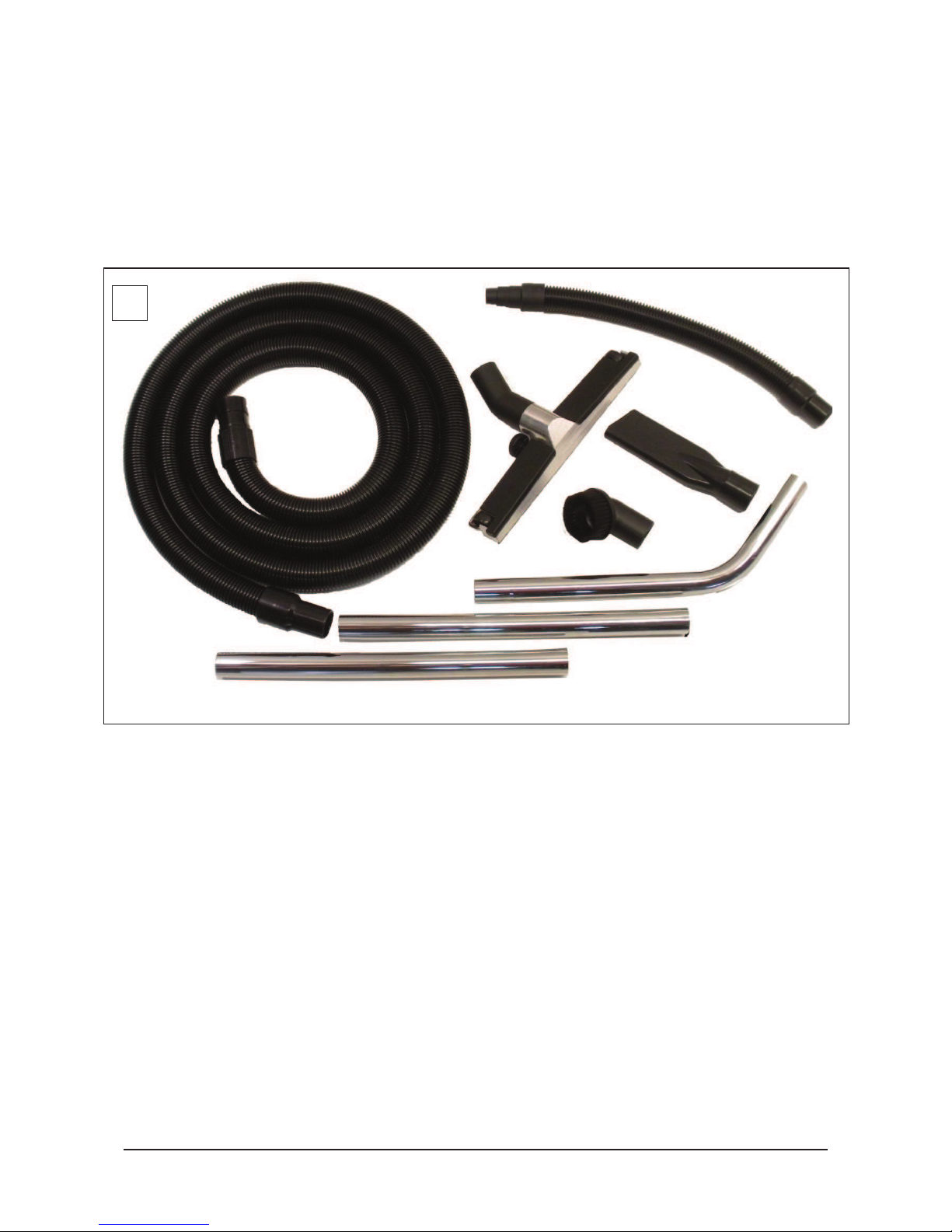

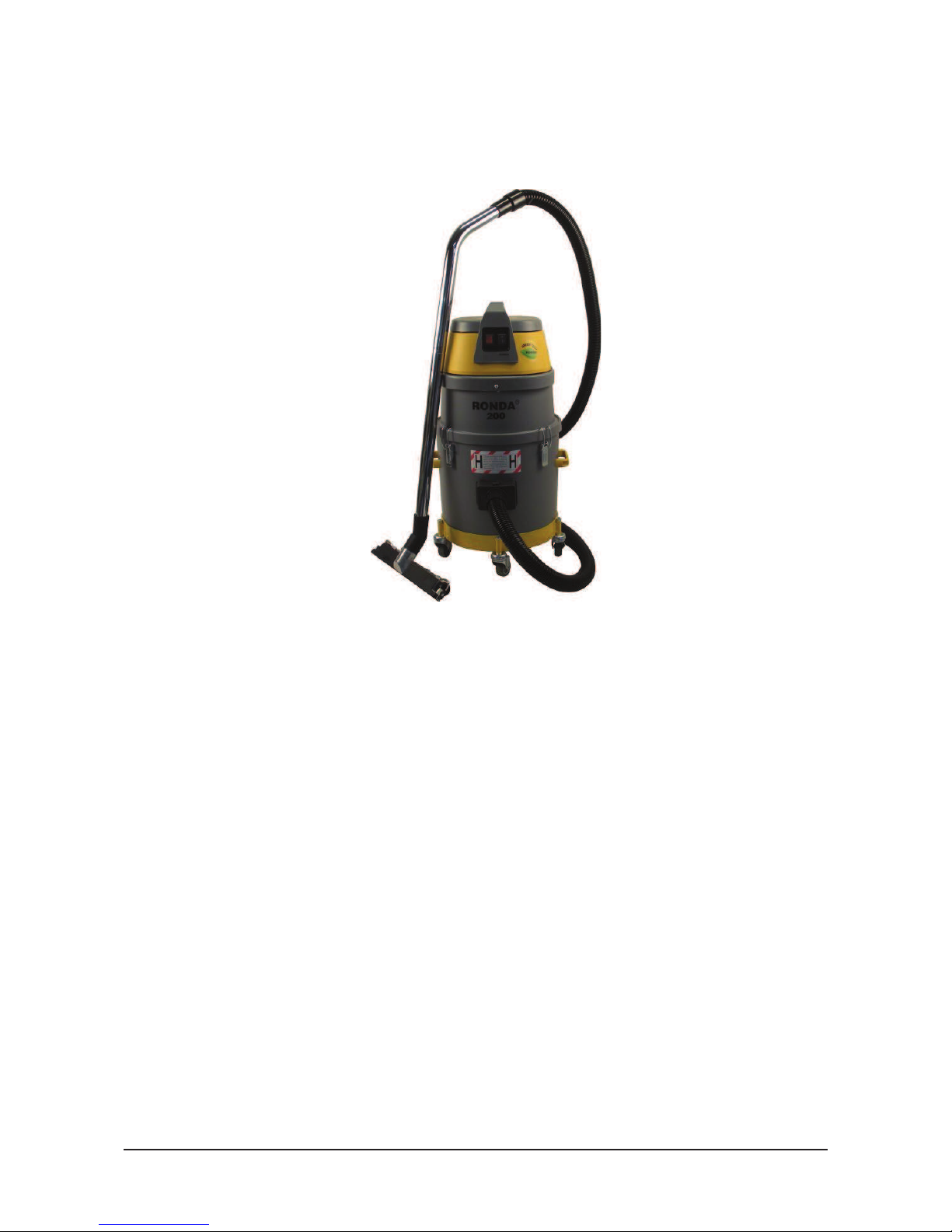

Standard Accessories
RONDAâ 200H / RONDAâ200H-S is delivered with a complete set of accessories including tubes, hose and all
the necessary nozzles.
You can reorder the accessories using the following product numbers:
1. 40 mm professional’s set .......................................................... 80.33.4037
2. Plastic hose, 4 m .......................................................................... 84.54.3809
3. Crevice nozzle .............................................................................. 80.34.4000
4. Round brush ................................................................................. 80.34.4001
5. Floor nozzle B-370 ....................................................................... 84.38.3620
6. Tubes, two straight ones and one curved .................................... 80.52.2160
7. Pyramid shaped cuff (with hose and coupling) ............................. 81.56.3810
2
7
1
2
3
4
6
5
7
Page 12
User Manual
RONDA
â
200H (RONDAâ200H-S) 13 V. BRØNDUM A/S
Applications
RONDAâ 200H / RONDAâ200H-S is a vacuum cleaner in accordance with DS/EN 60335-2-2 and CEI/IEC
60335-2-69 Annex AA class H and may only be used as such.
RONDAâ 200H / RONDAâ200H-S may be used for collection of dust hazardous to health according to CEI/IEC
60335-2-69 Annex AA dust class H.
RONDAâ 200H / RONDAâ200H-S may not be used for collection of fluids or moist dust.
RONDAâ 200H / RONDAâ200H-S may not be used for collection of flammable, explosive, poisonous or other
dust, fluids or gasses hazardous to health.
RONDAâ 200H / RONDAâ200H-S may only be used in dry environments and may not be used or stored
outdoors or indoors under wet conditions.
The capacity of a vacuum cleaner to suck vacuum depends on the air. Theoretical the suction capacity will fall
when the vacuum cleaner is used at altitudes. The suction capacity of the vacuum cleaner will be constant from 0
to approx. 800 m above sea level. From 800 to 2000 m the suction capacity will theoretically fall to approx. 75%.
It is not recommended to use the vacuum cleaner at more than 2000 m above sea level, as the cooling and the
suction capacity will be considerably reduced.
Page 13
User Manual
RONDA
â
200H (RONDAâ200H-S) 14 V. BRØNDUM A/S
Description of the Main Parts
RONDAâ 200H / RONDAâ200H-S is designed as a handy and compact industrial vacuum cleaner for collection
of fine dust and dust hazardous to health.

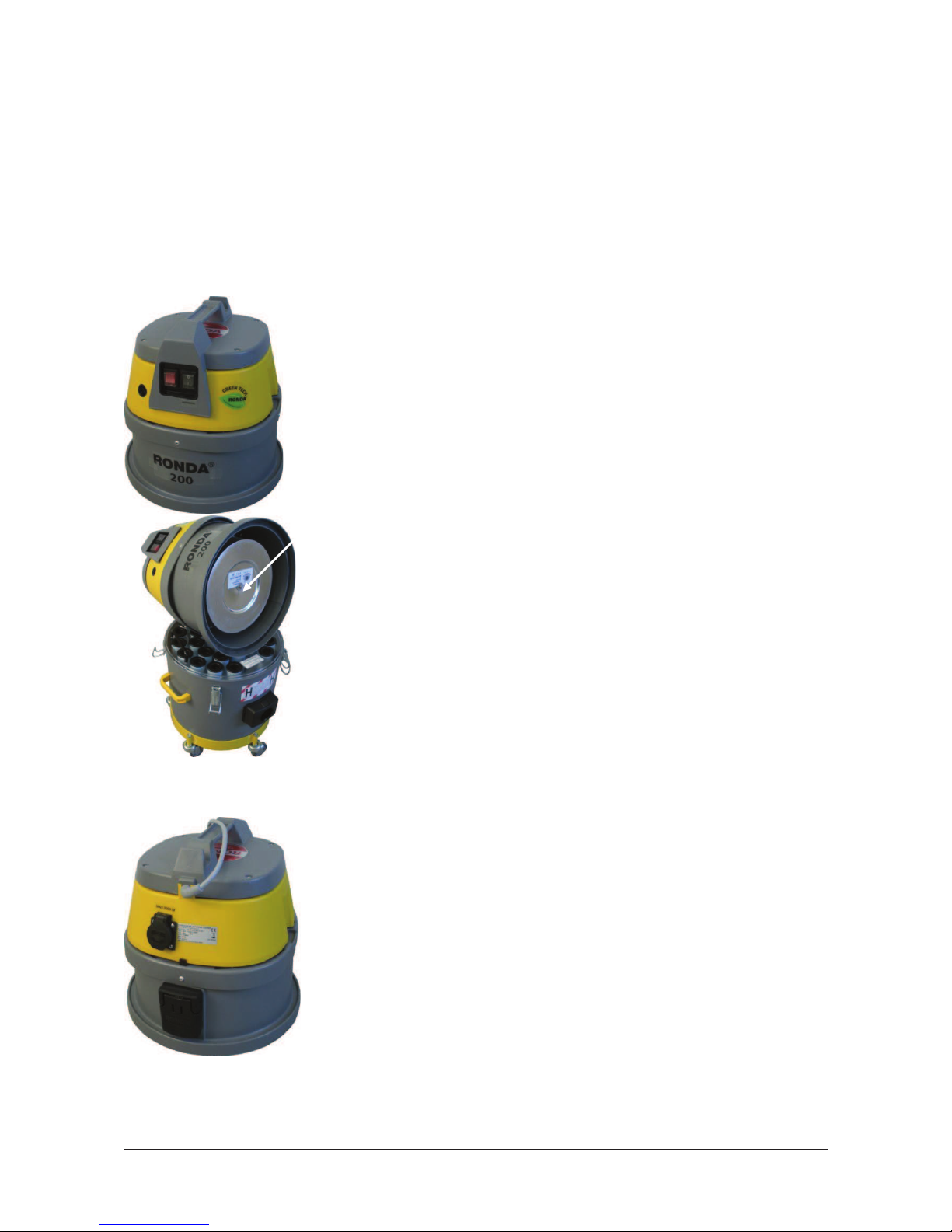

Motor Top with Suction Motor and HEPA Filter
The motor top is equipped with suction motor, an integrated handle, switches for the
suction motor and the built-in automatic start-/stop.
The powerful suction motor of RONDAâ 200H / RONDAâ 200H-S is placed in the
motor top.
The motor top is fitted with a HEPA filter in dust class ”H”.
The filter holds back the fine and smallest dust particles, which have not been held
back by the multi-tube filter. The filter holds back the particles larger than 0.3 mm
(0.0003 mm). The surface of the filter is 1.1 m2 and is protected by a metal grating.
Motor Top with Alarm and Pressure Relief Valve
The motor top is equipped with a pressure relief valve and will beep for alarm when
the air flow is too low (<20 m/sec).
The motor top can be equipped with a separate exhaust coupling. I.e. the air will be
exhausted through a hose coupling in the motor top. It will then be necessary to
use a hose.
Electrical hand tools can be connected directly to the RONDAâ 200H /
RONDAâ200H-S.
Page 14
User Manual
RONDA
â
200H (RONDAâ200H-S) 15 V. BRØNDUM A/S

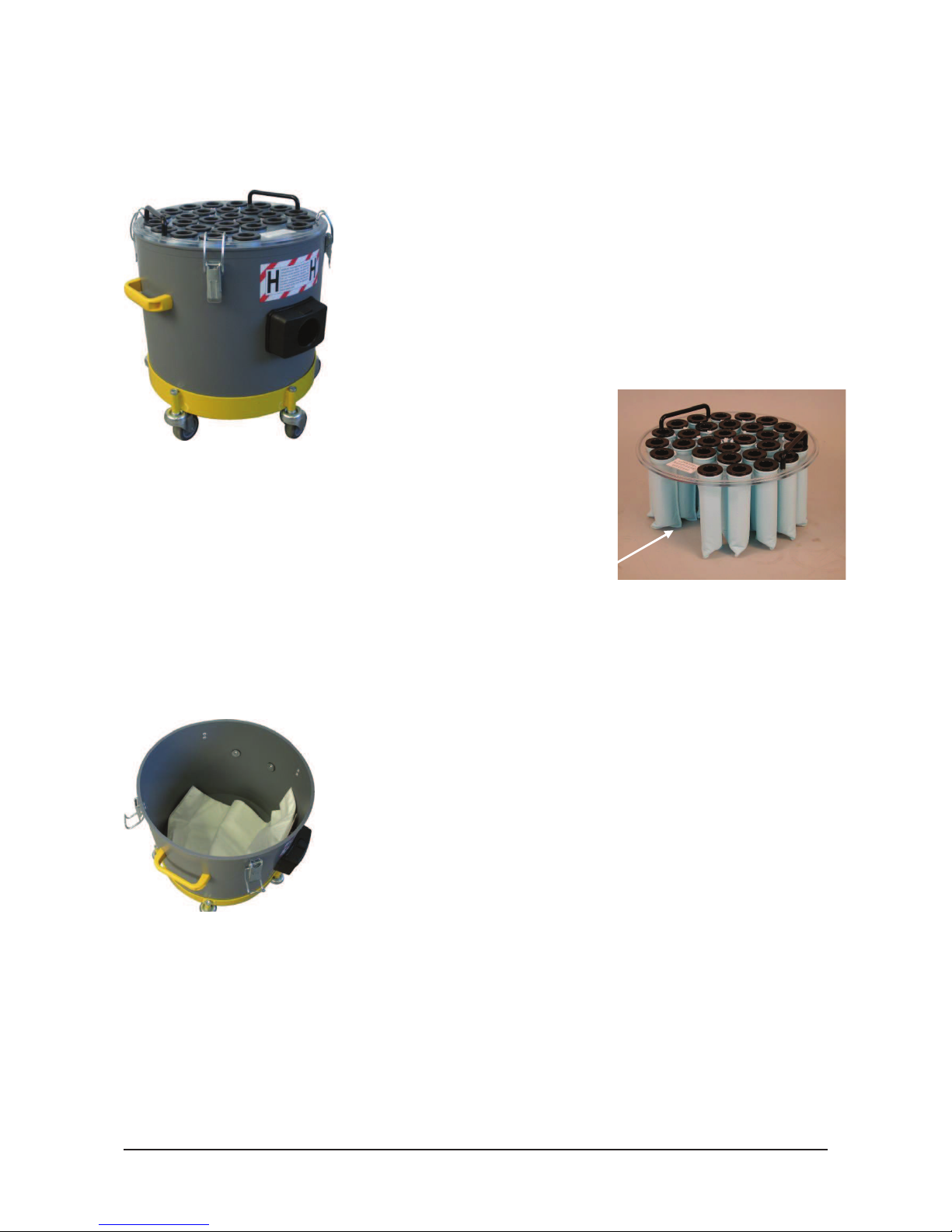

Collection Container with Multi-Tube Filter
The large multi-tube filter of the RONDAâ 200H / RONDA®200H-S is mounted
directly in the collection container.
The surface of the filter of 8000 cm2 is coated with Teflon. The Teflon coating
repels the dust, which will in this way not stick so easily to the filter material.
The multi-tube filter has a self-cleaning effect during operation.
The filter consists of a large number of tubes mounted on springs. During
operation the tubes vibrate a little, and a part of the dust sucked on to the
surface of the filter will fall down into the collection container.
Collection Container and Filter Bag
The collection container is equipped with 5 swivel wheels.
The collection container contains the filter bag where the material is collected, which facilitates the emptying and
disposal of the material collected.
The material can also be collected directly into the collection container.
Furthermore you can use a filter bag for dust-free emptying.
The filter bag cannot be filled up when very fine dust is collected.
When collecting dust hazardous to health you must pay attention to the
requirements as to disposal of the collected material. (Closed container; plastic
bag or container). The demands as to packing of the material collected may vary.
Page 15
User Manual
RONDA
â
200H (RONDAâ200H-S) 16 V. BRØNDUM A/S
Mode of Operation

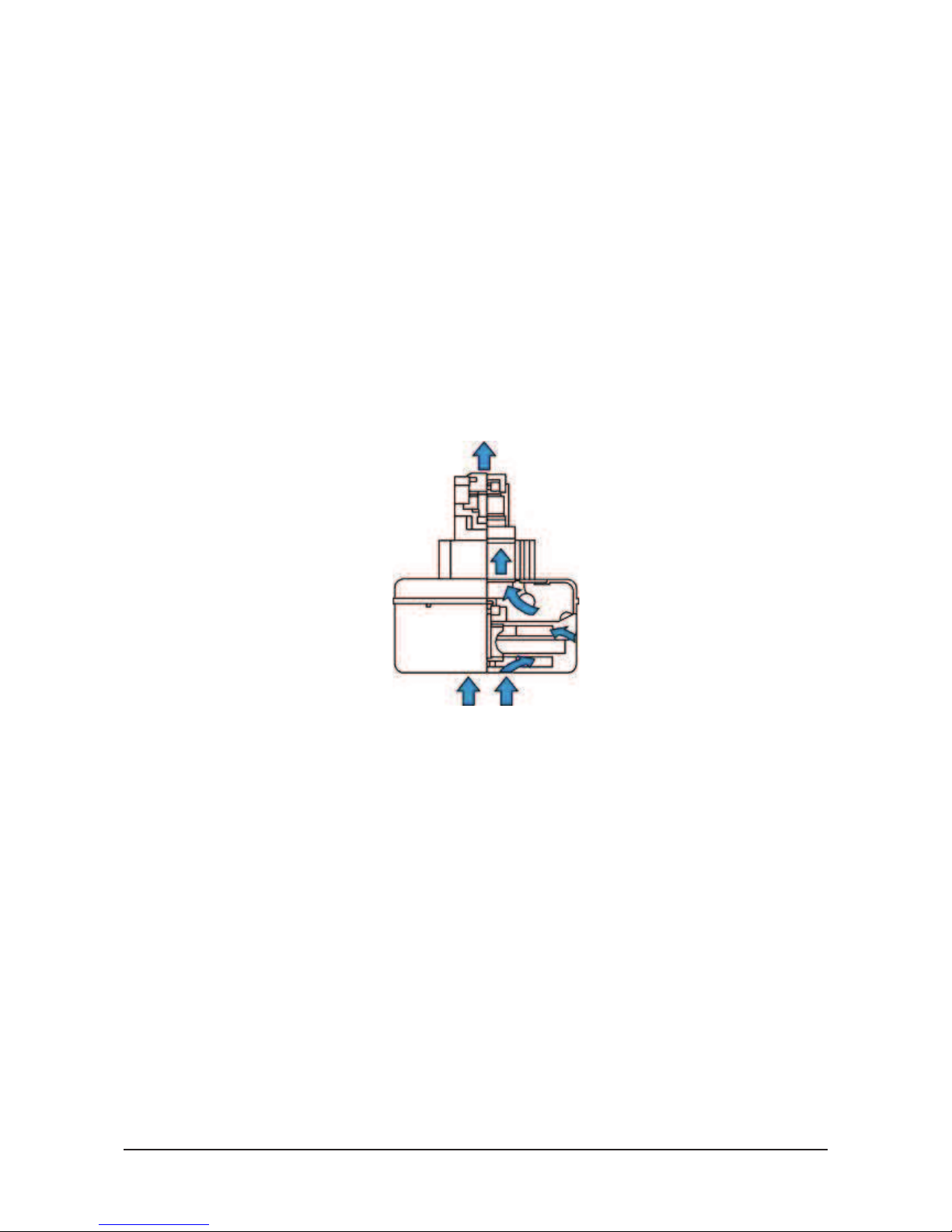

When the suction motor of the machine is on, the air will be led through the machine and will collect the dust
particles near the nozzle mounted.
The dust particles will be sucked through the hose into the collection container, where the majority of the particles
will be held back in the filter bag and/or the multi-tube filter.
The air flow and the remaining particles, which have not fallen to the bottom of the collection container or have
been held back in the filter bag or the multi-tube filter, will be carried forward to the HEPA filter.
From the HEPA filter the purified air flow will continue through the suction pump (blow through) and will be led out
of the vacuum cleaner through the exhaust and noise reduction filters.
IMPORTANT! As the motor leads the cooling air through the machine,
all filters MUST be mounted and intact.
IMPORTANT! Never cover up the motor top when the machine is in use.
IMPORTANT! Never collect warm or glowing materials.
IMPORTANT! Never extract from processes producing sparks.
Page 16
User Manual
RONDA
â
200H (RONDAâ200H-S) 17 V. BRØNDUM A/S

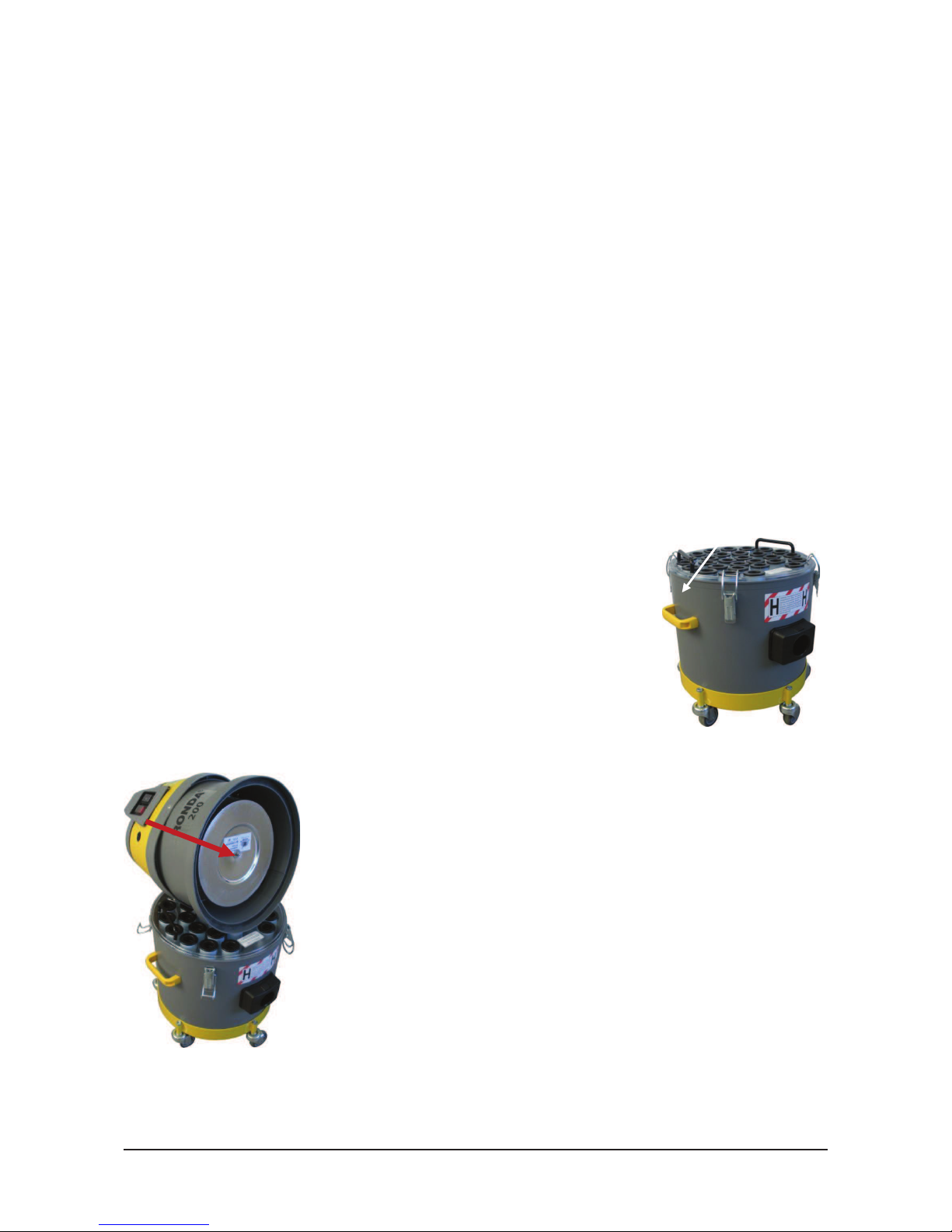

Assembling

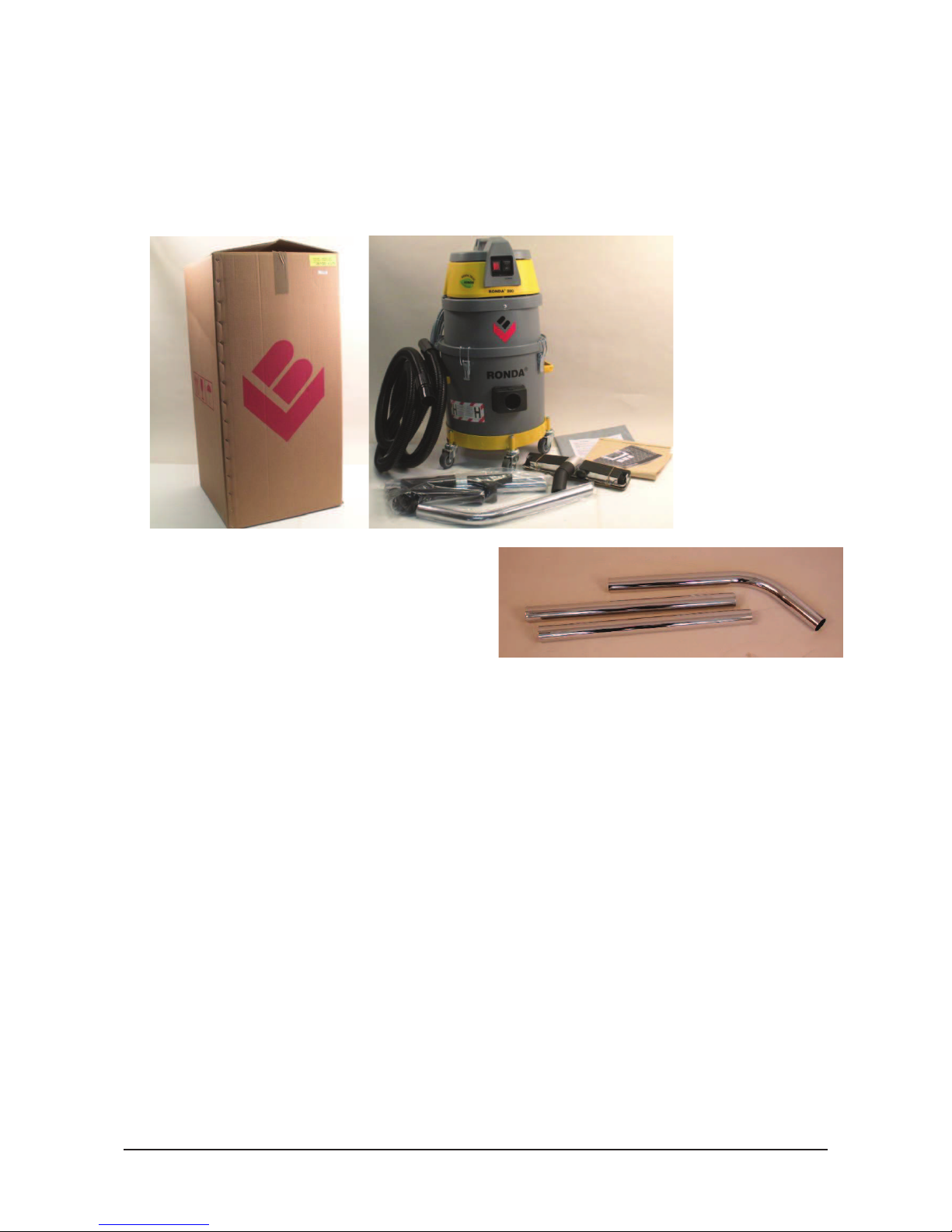

· Check that the packing is intact and has no sign of damage from handling and transport.
· Unpack RONDAâ 200H / RONDAâ200H-S and check that all the parts ordered are there.
· Assemble the three parts of the tube and mount
an appropriate nozzle.
· Fasten the rubber coupling of the suction hose to the tube and mount the other end of the hose in the
coupling of the container of RONDAâ 200H / RONDAâ200H-S.
· Check that the collection container is empty and that the multi-tube filter has been correctly mounted in
the collection container. Check that the filters of the machine are intact and undamaged (see the chapter
“Change of Filters”).
· If dust hazardous to health is to be collected you must use a collection / filter bag.
· Before the plug is connected to the electrical main supply you must make sure that the plug and the cord
are undamaged. If the cord or the plug is damaged, a professional must replace the parts. Only an
original cord may be mounted.
· Connect the machine to 230 V power supply with a reliable earth connection.
· Remember to place the label onto the H-label, if the language of the user is not German.
· RONDAâ 200H / RONDAâ200H-S is now ready for use. The collection is described in details in the
following chapter.
Page 17
User Manual
RONDA
â
200H (RONDAâ200H-S) 18 V. BRØNDUM A/S
NOTE:
If hand tool with a power consumption of more than
1100 W
is connected, the total current consumption will exceed
approx. 10 A, which is often the normal fuse size.
Collection of Dry Dust
When the machine has been correctly assembled and connected, it can be switched on and off at the red
start/stop switch of the motor top. The machine has been equipped with an alarm indicating when the air flow is
too low for collection. This alarm has to be checked before use.
Block the intake at the end of the hose, and the machine will start beeping.
Unblock, and the beeper alarm will stop.
During operation the RONDAâ 200 can be driven around on the 5 swivel
wheels mounted on the collection container.

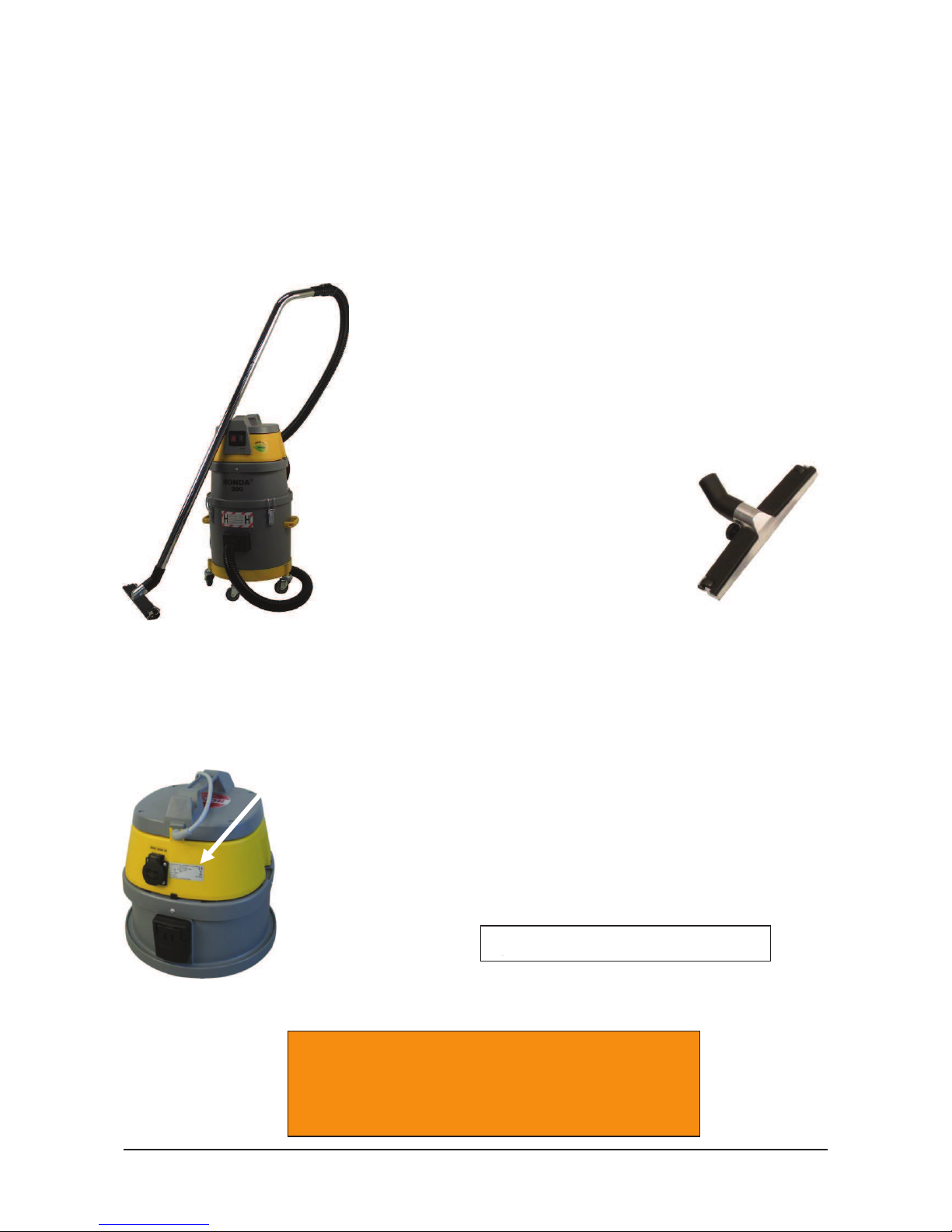

The floor nozzle is perfect for collection of dust and materials from large flat
surfaces. The nozzle is provided with brushes
and wheels to ensure an optimal positioning
of the nozzle on the flat surface.
Gradually the brushes will be worn, and the
nozzle will no longer collect in the optimum
way. Adjust the height of the wheels using the
knob on the nozzle so that the brushes only
just touch the floor.
Electrical Outlet with Automatic Start/Stop
RONDAâ 200H / RONDAâ200H-S is equipped with an automatic start/stop and electrical outlet. If you connect
electrical hand tools directly to the power outlet of the motor top, the RONDAâ 200 will automatically be switched
on and off when the hand tools are switched on and off.
Therefore the suction will continue for some seconds after the hand tools has been
switched off before the machine will stop.
The electrical hand tool is connected to the electrical outlet at the rear of the motor top.
RONDAâ 200H / RONDAâ200H-S can be used with hand tools with a power
consumption of:
Country code EU 2000W
Country code CH 1200W
Country code DK 1800W
1800 W corresponds to a current consumption of approx. 13A.
Information can be found on the data
Page 18
User Manual
RONDA
â
200H (RONDAâ200H-S) 19 V. BRØNDUM A/S

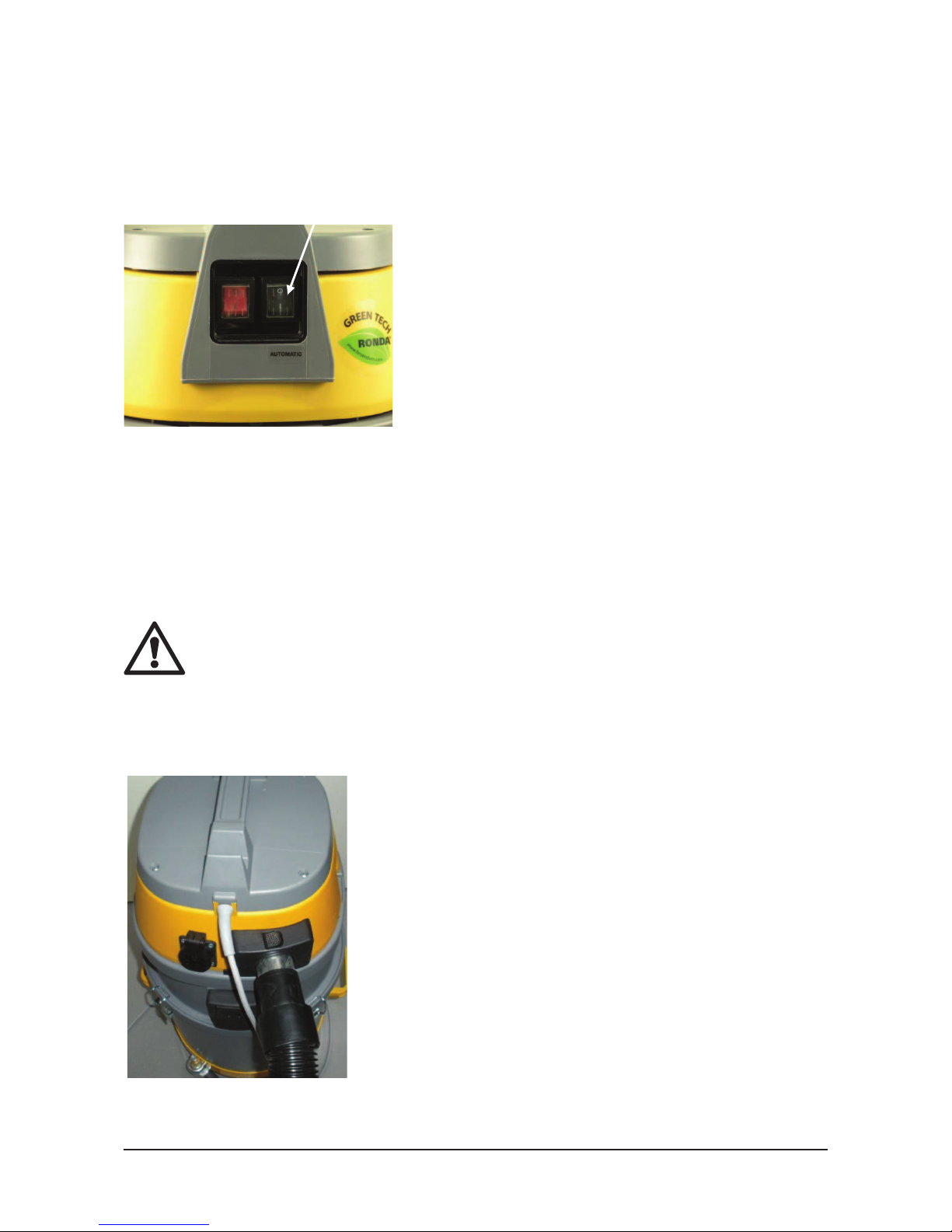

The automatic start/stop is activated with the black switch on the
motor top. When the automatic start/stop is activated, the machine
will not start when you push the red switch. The machine will not start
until the hand tool connected is started.
Set the red switch on “I” to put on the vacuum cleaner.
Automatic start/stop “I” = the automatic start/stop is activated. The vacuum cleaner will start when you use the
hand tool.
Automatic start/stop “O” = the automatic start/stop is not activated. The vacuum cleaner will start when you set
the main switch (red) on “I”.
When the automatic start/stop is activated “1” and hand tool is connected to the electrical outlet, the machine will
start when the hand tool is started.
ALWAYS TURN OFF the hand tool before you turn off the machine on the switch.
Separate extraction (RONDA 200H-S)
If the machine is equipped with a separate exhaust coupling, a hose must
be used for the air exhausted.
WARNING:
If no hose is used, the air exhausted may raise dust from the floor, and
there may also be a risk of dust exposure.
The hoses are available in varying lengths. It is recommended not to use
hoses longer than 10 metres.
Page 19
User Manual
RONDA
â
200H (RONDAâ200H-S) 20 V. BRØNDUM A/S
Cleaning of the Multi-Tube Filter during Operation (as needed or when the alarm beeps)
Block the intake / hose so that full vacuum is made in the machine.
Repeat the steps 1-3 approx. 2-3 times when cleaning.
The difference in pressure / the shock effect will clean the surface of the filter, when air is drawn through the
valve in order to suppress the negative pressure in the collection container and the hose, and will reject possible
deposits from the multi-tube filter.
The pressure release valve will close. This method gives an effective cleaning of the multi-tube filter.
It is recommended always to leave the machine for a few minutes before emptying it, if the machine is being used
without filter bag. The dust will fall to the bottom of the container, and the risk of swirling dust into the
surroundings during the emptying is reduced.
NOTE: Do not ”tap” on the intake as this will swirl up the dust in the container and result in blocking of the multitube filter. Therefore ALWAYS use the shock valve for cleaning of the multi-tube filter during operation.

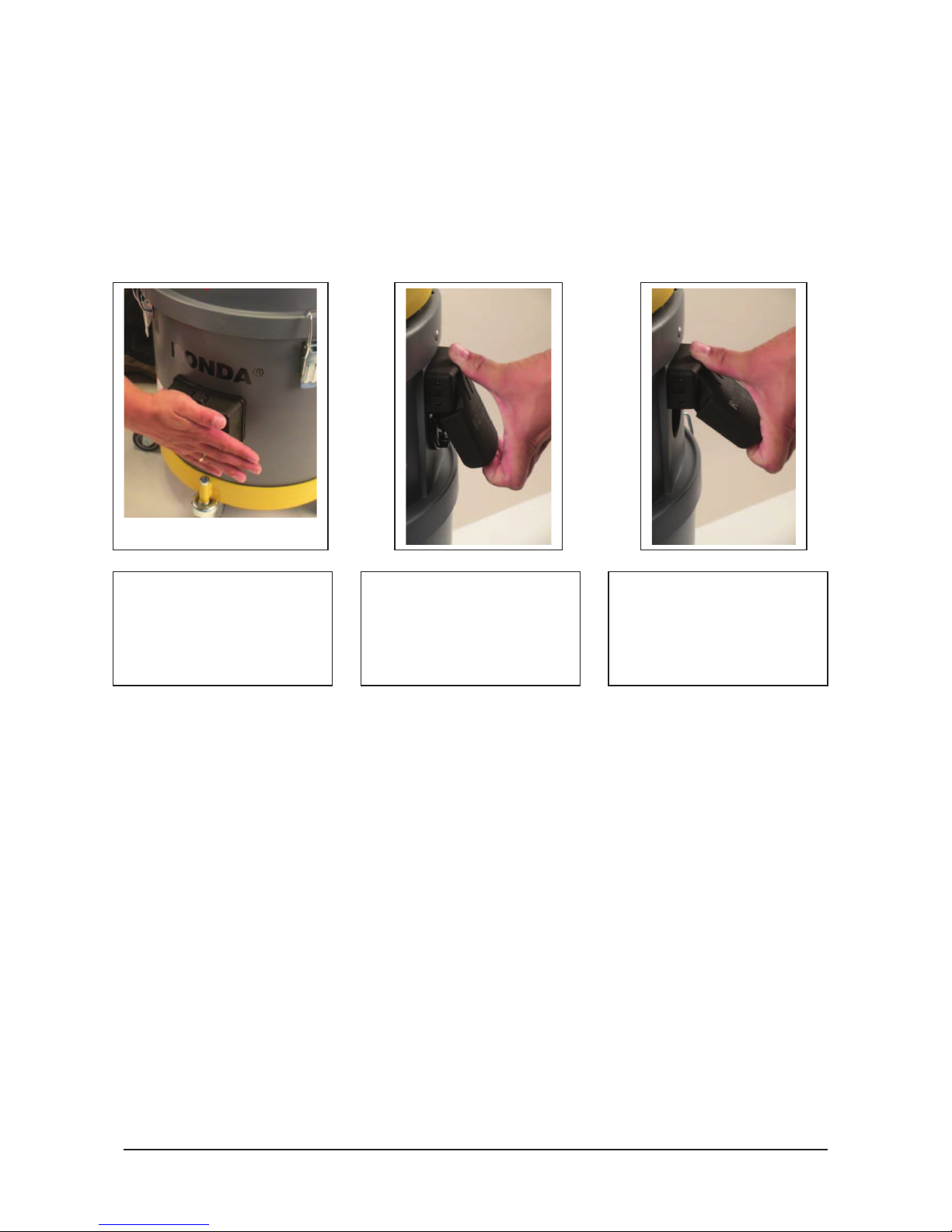

Block the intake /
Block the hose.
Take hold of the flap of the
shock valve.
Pull the flap of the shock valve
while the machine is blocked
and running. (Do not tug the
valve)
When the power grows bigger
than the influence from the
vacuum, the valve will
automatically open with a
”puff”. Let go of the valve.
Page 20
User Manual
RONDA
â
200H (RONDAâ200H-S) 21 V. BRØNDUM A/S
Emptying
The RONDAâ 200H / RONDAâ200H-S can collect the material, depending on the character of the material,
directly in the collection container or in a filter bag (if collecting dust hazardous to health a filter bag must be
used). If the machine has been used without filter bag immediately before the emptying, it is recommended to
wait a few minutes with the emptying to allow the fine dust to fall to the bottom of the collection container.
· Loosen the four container clips attaching the motor top to the collection container and remove the motor
top.
· Place the motor top on a dry and clean surface.
· Carefully lift up the multi-tube filter in the two handles.
· Carefully place the multi-tube filter on a dry, flat surface.
If no filter bag has been used, the collection container can now be emptied.
· If a filter bag has been used, the bag is removed from the container coupling.
· Close the filter bag.
· Now you can dispose of the filter bag.
REMEMBER: Disposal of dust hazardous to health must take place in accordance with the national regulations.
· Put a new filter bag in the collection container.
· Put the multi-tube filter and the motor top in place.
A filter bag must be used when collecting dust hazardous to health.
· Place the collar of the filter bag on the container coupling.
· Filter bags containing dust hazardous to health must always be closed and disposed of in accordance
with the national regulations.
REMEMBER: Always empty the machine after use.
You must make sure that the dust and material collected cannot fall out of the machine during transport.
Page 21
User Manual
RONDA
â
200H (RONDAâ200H-S) 22 V. BRØNDUM A/S
Reordering of Filter Bags
Filter Bag non-woven……………………………………………………………84.64.0033
REMEMBER:
When the machine has been used without filter bag you must take the necessary precautions against
dust exposure.
Has the machine been used for dust hazardous to health you MUST wear personal protection equipment
(PPE) when emptying and handling the machine.
Always empty the machine after use.
Dust hazardous to Health and Asbestos.
Always check up on the local/national regulations in the area where the work is performed.
Always examine how the disposal is to be packed/wrapped up.
It might be different from place to place. Usually the following is mentioned:
Close-fitting packing, Drum/vat with cover
Plastic bag min. 100 μm.
Collection of dust hazardous to health must always take place in collection bag. The collection bag must be
removed from the machine and disposed of in accordance with the national regulations.
Always mark the materials and waste according to the national regulations.
If the machine has been used for asbestos, the machine must be disassembled and cleaned before it is used in a
clean environment.
The machine must be emptied, cleaned and packed before transport. Mark the packing according to the national
regulations.
The machine must be transported in a min. 120 μm plastic bag or other tight-fitting packing.
Page 22
User Manual
RONDA
â
200H (RONDAâ200H-S) 23 V. BRØNDUM A/S
IMPORTANT!
The machine must not be connected to
the power
supply during service and
cleaning.
Cleaning and Maintenance
The machine must always be emptied after use. If the
machine is left with dust, there is a risk of self-ignition.
Read the chapter about safety precautions before cleaning and maintenance.
The easiest way to clean the machine is as follows:
· The multi-tube filter is cleaned as required.
· Wipe the machine on the outside with a dry or damp cloth.
Maintenance of the Motor Top
The motor top is made of maintenance-free parts and needs therefore no daily maintenance, apart from external
cleaning and check that the cords and plugs are undamaged.
The easiest way to clean the motor top is with a damp cloth. Do not aim jets of water directly at the motor top.
In order to avoid stop in operation and also to make sure that the safety of the vacuum cleaner is intact, it is
recommended that the electrical parts are inspected annually by an authorized technician.
It is recommended to have an authorized service centre inspect the brushes of the suction motor after approx.
800 working hours, and if necessary, replace them. In this way the life of the suction motor is prolonged.
If the brushes are not replaced before being completely worn out, the motor may seize up, and this may require a
replacement of the motor.
Check / maintenance of the machine
Description
Before/After use
Month / year
Hours
Check / replacement of brushes
750-800
Check of HEPA filter and machine
yearly
Emptying and cleaning
After use (as required)
Check of filters and machine, generally
Before use
Check of cord, plugs and outlet for tools
Before use
Check of alarm (beeper)
Before use
Reordering of filters and service parts
Brushes
81.73.176B
Multi-tube filter
84.67.1111
HEPA filter
84.67.5006
Collection bags
84.64.0033
Page 23
User Manual
RONDA
â
200H (RONDAâ200H-S) 24 V. BRØNDUM A/S
Change of Filters
In General
When replacing the filters, the necessary precautions to protect the environment and the respiratory passages of
the operator must be taken. The nature and scope of these precautions must be based upon the type of dust or
sludge being on the surface of the filters. Before checking or replacing the filters, you must clean the multi-tube
filter as previously described, and you must empty the machine. The filters are to be handled in a way not
causing any danger, and the safety equipment must be appropriate for the job.
Check and Replacement of the Multi-Tube Filter (Item No. 84.67.1111)
The multi-tube filter is made of a robust filter material and has a very long life. However, the filter will gradually be
worn by the many large and small particles that are held back. Therefore it is necessary regularly to check if the
filter is undamaged and intact. If the filter material is not intact, the multi-tube filter cannot hold back the dust
particles, which will penetrate the filter and be caught by the HEPA filter. The HEPA filter is intended for very fine
dust and will rapidly be blocked, if the multi-tube filter is damaged.
· Loosen the container clips of the motor top and remove the motor top.
· Place the motor top on a dry, clean and flat surface.
· Check the top surface of the multi-tube filter for dust particles. If you can
see dust particles there, it is a sign of a damaged and worn multi-tube
filter.
A damaged or worn multi-tube filter must be replaced.
A replacement of the multi-tube filter should also include a replacement of the
HEPA filter.
Replacement of the HEPA Filter (Item No. 84.67.5006)
· Loosen the four container clips of the motor top and remove the motor top.
Place the motor top so that the filter is easily accessible.
In order to ensure a dust-free emptying when the HEPA filter is replaced, the
following procedure must be followed:
Page 24
User Manual
RONDA
â
200H (RONDAâ200H-S) 25 V. BRØNDUM A/S

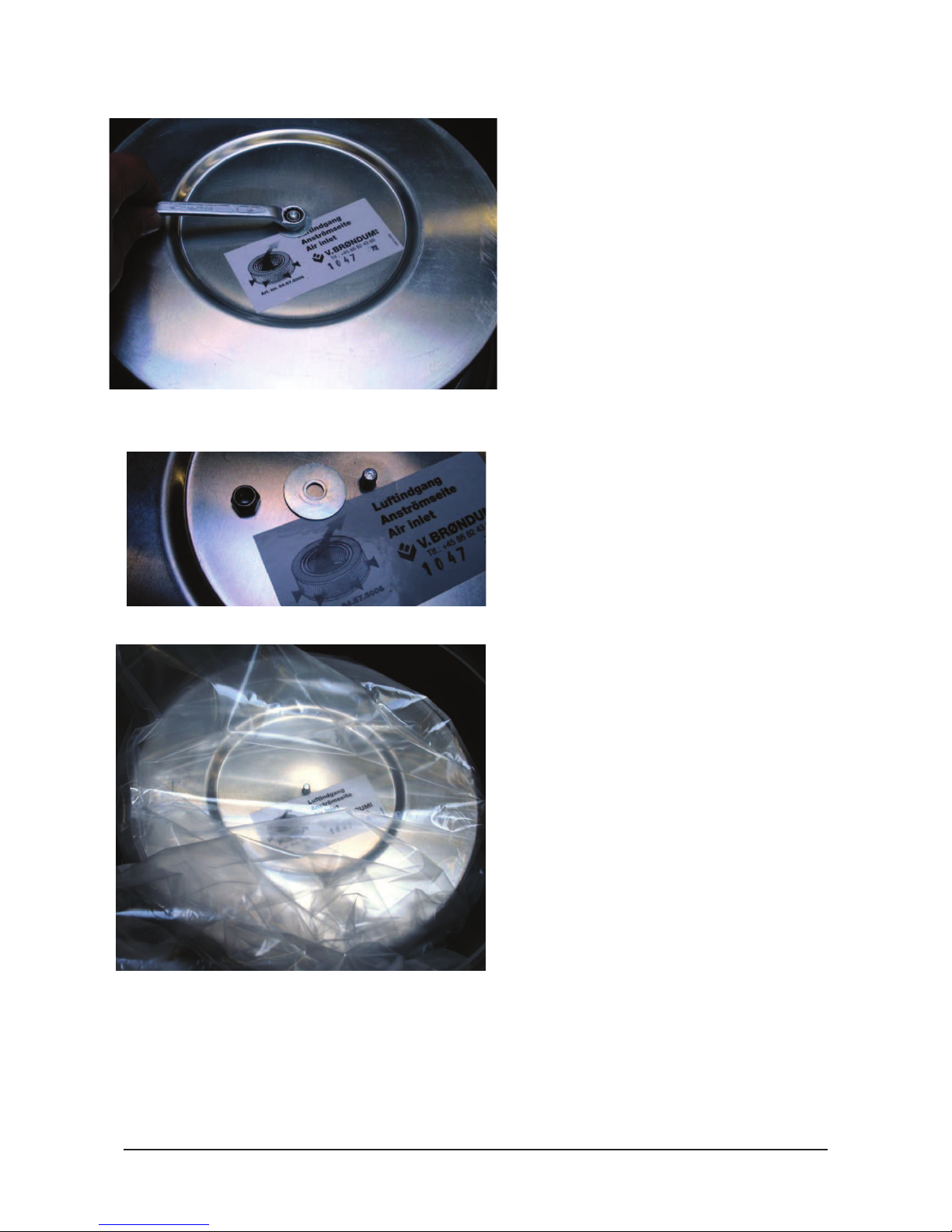

Remove the nut and washer fastening the HEPA
filter. Use a size 10 ring spanner.
BE CAREFUL not to throw away the washer and nut.
These are to be used again.

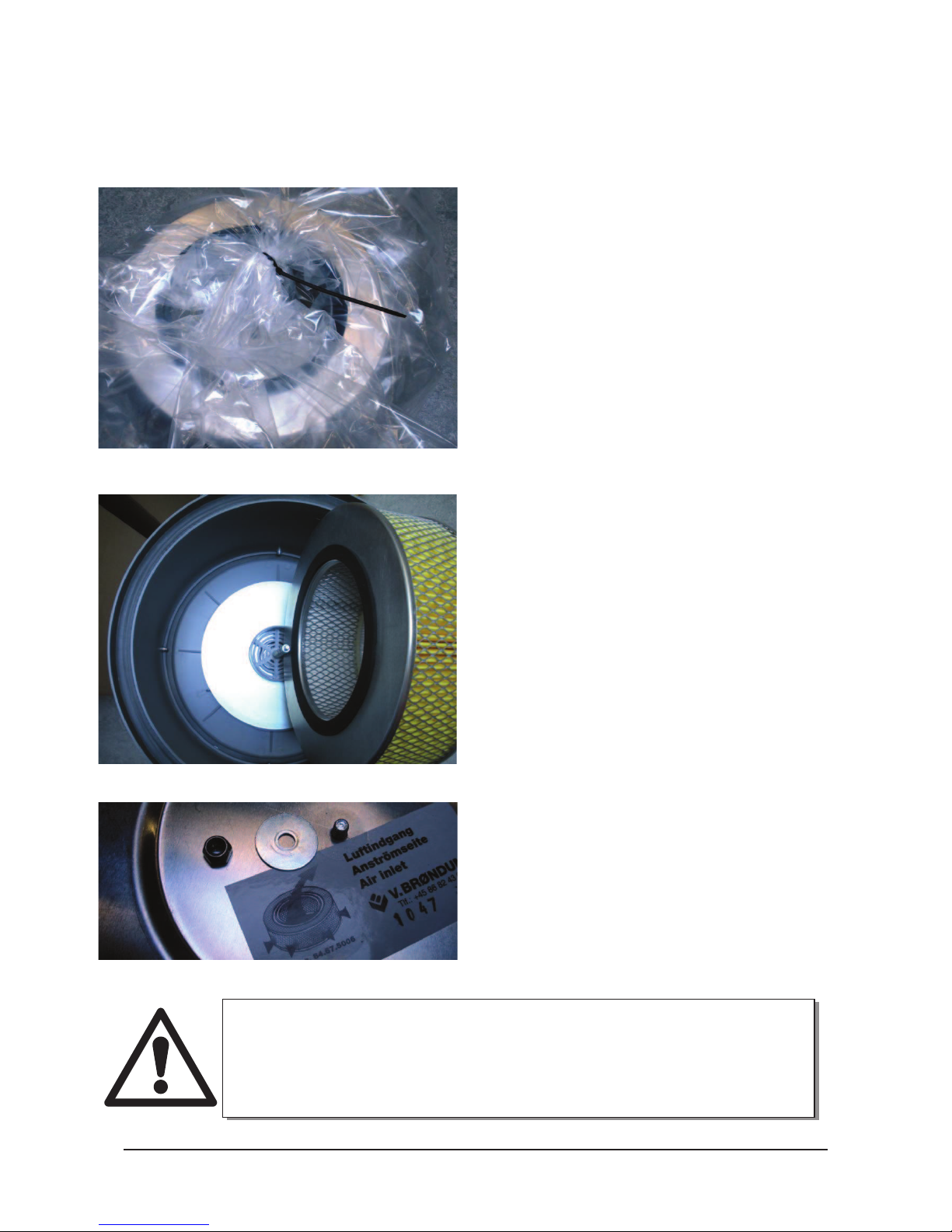

Pull a plastic bag (100 μm or the like) over the filter.
Pull the filter free of the bolt.
Do not TUG or twist the filter as this may damage the
bolt.
Page 25
User Manual
RONDA
â
200H (RONDAâ200H-S) 26 V. BRØNDUM A/S
Close the bag with a cable tie.
Always dispose of the filter in accordance with the
national regulations for the material collected.
Check the surfaces before the filter is mounted.
Then mount the filter.
Mount the washer and the nut.
Tighten with approx. 25nM.
Disposal of Used Filters
When you dispose of the used filters you must make sure that this is done according to
the national regulations.
Page 26
User Manual
RONDA
â
200H (RONDAâ200H-S) 27 V. BRØNDUM A/S
Troubleshooting
If the machine does not collect the material in a satisfactory way (alarm beeps):
· The suction hose, tube or nozzle may be blocked.
Stop the machine, and remove the blocking.
· The collection container or the filter bag may be filled to overflowing.
Stop the machine and empty the container. See the chapter about emptying.
· A leak might have arisen in connection with the mounting of the motor top.
Start the machine and block the suction hose. Normally you can hear a possible leak. Loosen the container
clips of the motor top, place the motor top correctly and lock the clips again.
· The filter bag may be blocked.
If you collect very fine dust, the filter bag may block before it is completely full.
Replace the filter bag.
· The multi-tube filter may be blocked.
Clean the multi-tube filter as described in the chapter about cleaning of filter during operation.
· The HEPA filter may be blocked.
Replace the filter as described in the chapter about change of filters.
If the machine does not start
· The fuses of the control circuit may have melted.
· The hand tool starts but the machine does not start à The fuse may have melted
The replacement must be made by V. BRØNDUM A/S, an authorized V. BRØNDUM A/S dealer or a similarly
qualified person in order to avoid hazards.
Page 27
User Manual
RONDA
â
200H (RONDAâ200H-S) 28 V. BRØNDUM A/S
DECLARATION OF CONFORMITY
V. BRØNDUM A/S
Sadolinsvej 14-16
DK – 8600 Silkeborg
hereby declares that the following product:
Electrically operated industrial vacuum cleaner,
classified for dust class “H” .
Model:
RONDAâ 200H / RONDAâ 200H-S
has been designed and produced in conformity with the basic requirements and other relevant conditions of the
following directives:
The Machinery Directive (Directive 2006/42/EF)
The compliance has been achieved by use of the following standards:
EN 60 335-2-69
Verified compliance with standard and directive by: SLG.
Dust class H verified by technical dust test by: SLG
Silkeborg, June 2011
Kennet Raudszus
Product & Quality Manager
V. BRØNDUM A/S
Page 28
User Manual
RONDA
â
200H (RONDAâ200H-S) 29 V. BRØNDUM A/S
Service and Repair
Service and repair are provided free of charge within the guarantee period (invoice must be presented) provided
that:
· The defect has been caused by a construction defect or defective materials. (Normal wear and tear, misuse
or insufficient maintenance is not covered by the guarantee).
· No repair attempts have been made by others than V. BRØNDUM A/S, or service centres approved by V.
BRØNDUM A/S to carry out guarantee repairs.
Service free of charge includes replacement of defect parts and the cost for related working hours.
The machine is handed in via the V. BRØNDUM A/S dealers or is sent directly, carriage paid, to:
V. BRØNDUM A/S
Sadolinsvej 14-16
DK-8600 Silkeborg
Tlf. (+45) 8682 4366
Fax (+45) 8680 3363
E-mail [email protected]
Subject to changes.
Loading...
