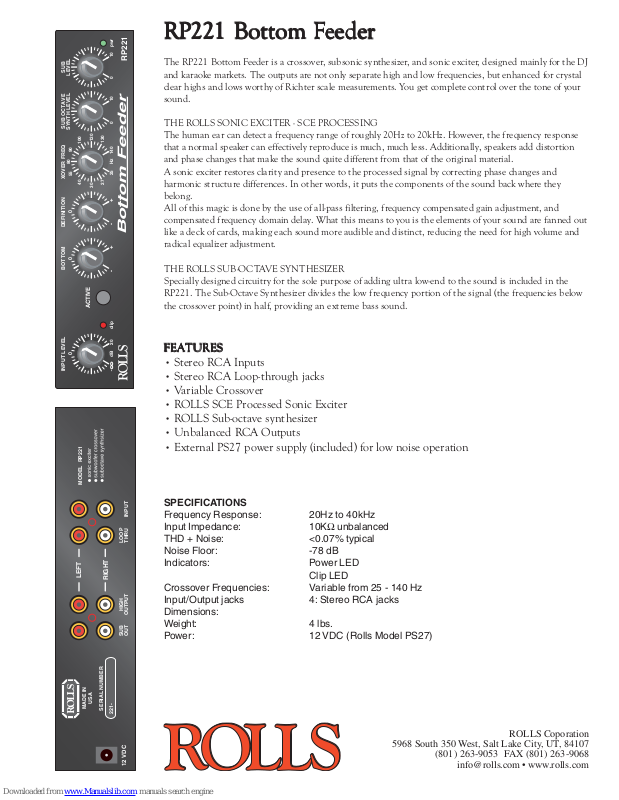

The RP221 Bottom Feeder is a crossover, subsonic synthesizer, and sonic exciter, designed mainly for the DJ
and karaoke markets. The outputs are not only separate high and low frequencies, but enhanced for crystal
clear highs and lows worthy of Richter scale measurements. You get complete control over the tone of your
sound.
tt
om Fom F
t
om F
tt
om Fom F
eeee
ee
eeee
derder
der
derder
120
130
27
30
ACTIVE
0
140
Hz 0
25
- + - +
clip
20
SUB OCTAVE
SYNTH LEVEL
100
90
80
55
40
BOTTOM DEFINITION XOVER FREQ
000
INPUT LEVEL
THE ROLLS SONIC EXCITER - SCE PROCESSING
The human ear can detect a frequency range of roughly 20Hz to 20kHz. However, the frequency response
that a normal speaker can effectively reproduce is much, much less. Additionally, speakers add distortion
and phase changes that make the sound quite different from that of the original material.
A sonic exciter restores clarit y and presence to the processed signal by correcting phase changes and
harmonic structure differences. In other words, it puts the components of the sound back where they
belong.
All of this magic is done by the use of all-pass filtering, frequency compensated gain adjustment, and
compensated frequency domain delay. What this means to you is the elements of your sound are fanned out
like a deck of cards, making each sound more audible and distinct, reducing t he need for high volume and
radical equalizer adjustment.
THE ROLLS SUB-OCTAVE SYNTHESIZER
Specially designed circuitry for the sole purpose of adding ult ra low-end to t he sound is included in t he
RP221. The Sub-Octave Synt hesizer divides t he low frequency portion of t he signal (the frequencies below
the crossover point) in half, providing an ext reme bass sound.
FEFE
AA
TT
URESURES
FE
A
T
URES
FEFE
AA
TT
URESURES
• Stereo RCA Inputs
• Stereo RCA Loop-through jacks
• Variable Crossover
• ROLLS SCE Processed Sonic Exciter
• ROLLS Sub-octave synthesizer
• Unbalanced RCA Outputs
• External PS27 power supply (included) for low noise operation
MODEL RP221
LEFT
RIGHT
USA
MADE IN
SERIAL NUMBER
221-
INPUT
THRU
LOOP
HIGH
OUTPUT
SUB
OUT
12 VDC
SPECIFICATIONS
Frequency Response: 20Hz to 40kHz
Input Impedance: 10KΩ unbalanced
THD + Noise: <0.07% typical
Noise Floor: -78 dB
Indicators: Power LED
Clip LED
Crossover Frequencies: Variable from 25 - 140 Hz
Input/Output jacks 4: Stereo RCA jacks
Dimensions:
Weight: 4 lbs.
Power: 12 VDC (Rolls Model PS27)
ROLLS Coporation
5968 South 350 West, Salt Lake City, UT, 84107
(801) 263-9053 FAX (801) 263-9068
info@rolls.com • www.rolls.com
