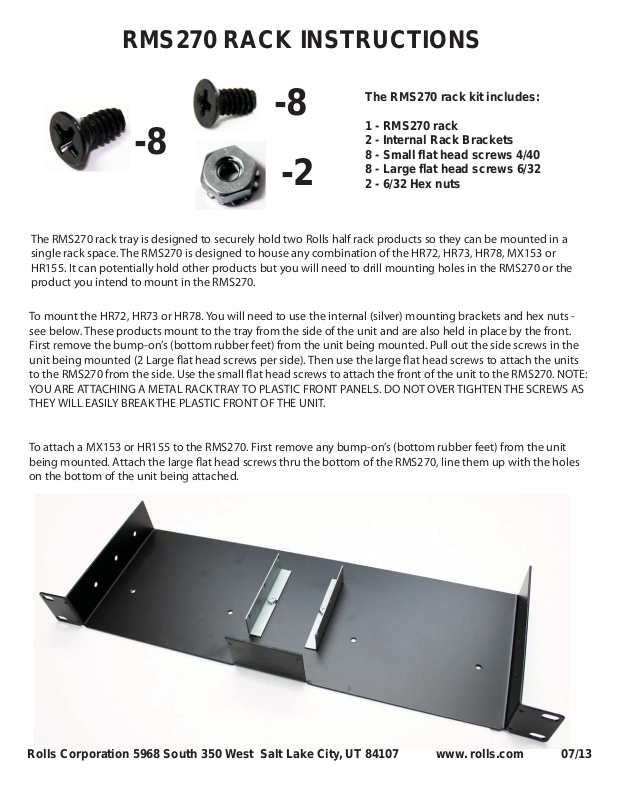

RMS270 RACK INSTRUCTIONS
The RMS270 rack kit includes:
-8
1 - RMS270 rack
-8
-2
The RMS270 rack tray is designed to securely hold two Rolls half rack products so they can be mounted in a
single rack space. The RMS270 is designed to house any combination of the HR72, HR73, HR78, MX153 or
HR155. It can potentially hold other products but you will need to drill mounting holes in the RMS270 or the
product you intend to mount in the RMS270.
To mount the HR72, HR73 or HR78. You will need to use the internal (silver) mounting brackets and hex nuts see below. These products mount to the tray from the side of the unit and are also held in place by the front.
First remove the bump-on’s (bottom rubber feet) from the unit being mounted. Pull out the side screws in the
unit being mounted (2 Large at head screws per side). Then use the large at head screws to attach the units
to the RMS270 from the side. Use the small at head screws to attach the front of the unit to the RMS270. NOTE:
YOU ARE ATTACHING A METAL RACK TRAY TO PLASTIC FRONT PANELS. DO NOT OVER TIGHTEN THE SCREWS AS
THEY WILL EASILY BREAK THE PLASTIC FRONT OF THE UNIT.
2 - Internal Rack Brackets
8 - Small flat head screws 4/40
8 - Large flat head screws 6/32
2 - 6/32 Hex nuts
To attach a MX153 or HR155 to the RMS270. First remove any bump-on’s (bottom rubber feet) from the unit
being mounted. Attach the large at head screws thru the bottom of the RMS270, line them up with the holes
on the bottom of the unit being attached.
Rolls Corporation 5968 South 350 West Salt Lake City, UT 84107 www. rolls.com 07/13
