Rolls RM5C User Manual

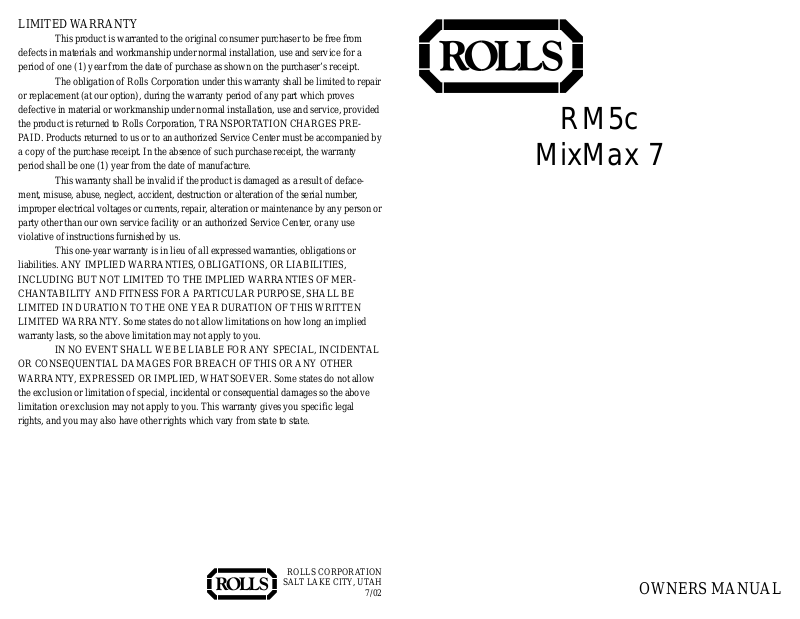

LIMITED W ARRANTY
This product is warranted to the original consumer purchaser to be free from
defects in materials and workmanship under normal installation, use and service for a
period of one (1) year from the date of purchase as shown on the purchaser’s receipt.
The obligation of Rolls Corporation under this warranty shall be limited to repair
or replacement (at our option), during the warranty period of any part which proves
defective in material or workmanship under normal installation, use and service, provided
the product is returned to Rolls Corporation, TRANSPORTATION CHARGES PREPAID. Products returned to us or to an authorized Service Center must be accompanied by
a copy of the purchase receipt. In the absence of such purchase receipt, the warranty
period shall be one (1) year from the date of manufacture.
This warranty shall be invalid if the product is damaged as a result of defacement, misuse, abuse, neglect, accident, destruction or alteration of the serial number,
improper electrical voltages or currents, repair, alteration or maintenance by any person or
party other than our own service facility or an authorized Service Center, or any use
violative of instructions furnished by us.
This one-year warranty is in lieu of all expressed warranties, obligations or
liabilities. ANY IMPLIED WARRANTIES, OBLIGA TIONS, OR LIABILITIES,
INCLUDING BUT NOT LIMITED TO THE IMPLIED WARRANTIES OF MERCHANT ABILITY AND FITNESS FOR A PARTICULAR PURPOSE, SHALL BE
LIMITED IN DURATION TO THE ONE YEAR DURATION OF THIS WRITTEN
LIMITED WARRANTY. Some states do not allow limitations on how long an implied
warranty lasts, so the above limitation may not apply to you.
IN NO EVENT SHALL WE BE LIABLE FOR ANY SPECIAL, INCIDENTAL
OR CONSEQUENTIAL DAMAGES FOR BREACH OF THIS OR ANY OTHER
WARRANTY, EXPRESSED OR IMPLIED, WHA TSOEVER. Some states do not allow
the exclusion or limitation of special, incidental or consequential damages so the above
limitation or exclusion may not apply to you. This warranty gives you specific legal
rights, and you may also have other rights which vary from state to state.
RM5c
MixMax 7
ROLLS CORPORATION
SAL T LAKE CITY, UTAH
7/02
OWNERS MANUAL
Introduction
Microphone Phantom P ower
The MIX MAX 7 is designed to be used as a middle component of a sound
system. Such a system might be comprised of sound sources such as microphones , tape deck, tuner or CD player, preamplifier (such as the RM5C), power
amplifier (such as the ROLLS RA2110) and speaker system.
Features
¨ Three XLR balanced Mic inputs with phantom power.
¨ Bass and treble tone controls.
¨ Stereo effects loop on Mics for sound effects
¨ FX loop may also be used as fourth source input.
¨ 3 Stereo source inputs for tape play er, compact disk, radio, etc..
¨ Master level out f or o v erall v olume adjustment.
¨ RCA and 1/4" stereo outputs for amp, tape , monitors , etc..
¨ Professional design for hard use and/or permanent installations.
¨ Three y ear limited warr anty
Applications
The ROLLS MIX MAX 7 is intended for mixing up to three microphones with up to
three stereo source signals as in aerobics studios, Karoake lounges, or audio
visual applications. Its v ersatile inputs and outputs as well as commercial gr ade
design make it an important problem solver in many audio situations. The FX loop
may also be used as a fourth source input, but this may disable the Mics unless
the unit is modified.
Front panel controls
Mic 1 - 3, These are the channel v olume controls and adjust the v olume sent to
the tone controls and FX send
SOURCE 1-3 are the level controls f or the RCA source inputs on the rear.
FX IN OUT switch is for engaging the e xternal sound effects in the FX loop .
FX LEVEL sets the level of the FX return jack inputs on the rear.
BASS - controls the boost or cut of frequencies below 400 Hz.
TREBLE - controls the boost or cut of frequencies above 400 Hz .
MASTER VOLUME f or adjusting the main stereo output level for the unit.
Rear Panel Jacks
MIC 1 - 3 - are the inputs for dynamic or phantom power microphones
PHANTOM POWER - are the jumpers for turning on the microphone power for the
XLR inputs, and are numbered for the channel the y are assigned to .
FX SEND - is the output to external effects units.
FX RETURN R & L - Are the inputs from the external sound effects units, EQ,
Etc.
SOURCE 1 - 3 are the inputs from tuner, tape , CD player, Etc.
LEFT & RIGHT OUT are the main outputs to the power amp, EQ, Etc.
Phantom power is a means of powering condenser microphones through the
microphone cable. The RM5C has individually switchable phantom po wer f or each
of it’s 3 Mic channels through the XLR connectors. Phantom power is turned on
and off by using the shorting clips on the header pin strip on the rear of the unit.
To enable phantom power connect shorting jumper across pins 1 & 2 for Mic 3,
pins 3 & 4 for Mic 2 and pins 5 & 6 for Mic 1. To turn off the phantom power simply
insert the jumper so it is verticle on only one pin, this will store the jumper and
disconnect phantom power . If phantom power is not needed it should be switched
off to avoid damage or degraded sound quality.
Installation
The MIX MAX 7 will mount in a single space of a standard 19" relay rack or an y
suitable location. It requires no special ventilation b ut should be properly grounded
and kept dry for safety reasons. The RM5C has plenty of level to drive most any
power amplifier , the 1/4" and RCA output jac ks are par allelled, if both are used the
units they are driving will have to match the same le v el.
Specifications
Input impedance
Mic 600 Ohm XLR balanced
Source 22K Ohm gold plated RCA
FX Loop 22K Ohm 1/4"
Max input level
Mic -14 dBV balanced
Source 24 dBV
Input Connectors XLR with switched 12VDC phantom power
Phantom Power +12V
Output +17 dBV max, 1/4" phone and RCA
Output impedance 50 ohm
Max Gain 60 dB mic
26 dB source
Phase Shift < 10 deg. 20 Hz - 20K Hz
Tone control 12 dB treb, bass cut/boost, 400 Hz center
Max S/N Ratio 106 dB
THD <.003 %
IMD (SMPTE) <.003 %
CMRR 52 dB (Mic)
Size 19" X 1.75" X 6" (48.3 X 4.5 X 15 CM)
Weight 7 lbs (2.3 kg)
