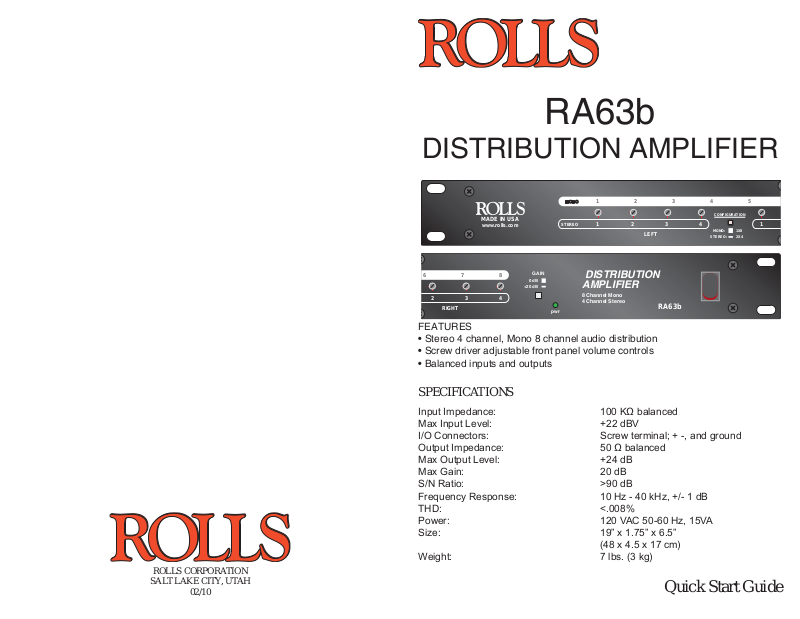

Rolls RA63B User Manual

RA63b

DISTRIBUTION AMPLIFIER

ROLLS CORPORATION

SALT LAKE CITY, UTAH

02/10

MADE IN USA

www.rolls.com

678

234

RIGHT

0 dB

+20 dB

MONO

STEREO

GAIN

pwr

12345

1234 1

LEFT

CONFIGURATION

MONO:

STEREO:

DISTRIBUTION
AMPLIFIER

8 Channel Mono
4 Channel Stereo

RA63b

FEATURES

• Stereo 4 channel, Mono 8 channel audio distribution

• Screw driver adjustable front panel volume controls

• Balanced inputs and outputs

SPECIFICATIONS

Input Impedance: 100 KΩ balanced
Max Input Level: +22 dBV
I/O Connectors: Screw terminal; + -, and ground
Output Impedance: 50 Ω balanced
Max Output Level: +24 dB
Max Gain: 20 dB
S/N Ratio: >90 dB
Frequency Response: 10 Hz - 40 kHz, +/- 1 dB
THD: <.008%
Power: 120 VAC 50-60 Hz, 15VA
Size: 19” x 1.75” x 6.5”
(48 x 4.5 x 17 cm)
Weight: 7 lbs. (3 kg)

Quick Start Guide

1X8
2X4

INTRODUCTION

INSTALLATION

Thank you for your purchase of the ROLLS RA63b Distribution Amplifi er. This
unit will distribute a mono signal to eight outputs, or a stereo signal to four right
and four left outputs. The outputs are designed to drive high-level balanced lines
in a sound distribution system. The screw terminals on the rear panel are for
input and output, and each output may power more than one line.

NOTE: THIS MANUAL ASSUMES THE USER HAS A BASIC WORKING
KNOWLEDGE OF AUDIO ELECTRONICS, BALANCED AND UNBALANCED
CONNECTIONS, AND PROPER SIGNAL LEVEL SETTING.

DESCRIPTION

FRONT PANEL

MADE IN USA

www.rolls.com

MONO

12345678

12 34 1234

STEREO

LEFT RIGHT

CONFIGURATION

MONO:

STEREO:

1X8
2X4

+20 dB

GAIN

0 dB

DISTRIBUTION
AMPLIFIER

8 Channel Mono
4 Channel Stereo

pwr

RA63b

Mono 1 - 8 / Stereo 1 - 4: These screwdriver-adjustable controls vary the level of
signal for each indicated output.
+20dB/0dB Gain switch: Pressing this switch in provides 20 dB of gain to the
input signal.
pwr: LED indicating the unit’s power status.
STEREO/MONO CONFIGURATION
To change the stereo/mono confi guration of the RA63b, use the switch on the
front panel to select the desired confi guration.

REAR PANEL

MADE IN USA

www.rolls.com

MODEL RA63b

INPUTS

right/

left

SERIAL NUMBER

120 VAC

MADE IN U.S.A.

50/60 Hz 15 VA

mono

-+ -+-+-+-+-+-+

OUTPUTS

RIGHT LEFT

-+-+ -+

12345678

MONO

12341234

STEREO

WARNING:

TO REDUCE THE RISK OF ELECTRIC SHOCK DO NOT REMOVE COVER.
NO USER SERVICABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL

RISQUE DE CHOC - NE PAS ENLEVER

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT EXPOSE THIS EQUIPMENT TO RAIN OR MOISTURE.

DO NOT OPEN

120 VAC 50/60 HZ 15 VA: Power Cord. Connect to a properly grounded AC
source.

INPUTS Right/Mono and Left: These fi ve terminals, labeled + for the positive
or “hot” connection, - for the negative connection, and the ground symbol for
earth ground connection are for connection to the balanced or unbalanced input
signal(s) to be distributed.

MONO 1 - 8, STEREO 1 - 4: For each channel; the two terminals labeled + for
the positive or “hot” portion of the output signal, and the - for negative or neutral
portion. The ground signal indicates the terminal to be connected to ground.

-+

+ = In-phase or "Hot"

- = Out-of-phase or "Negative"

(NOTE: This is NOT a ground connection)
= Ground

Install the RA63b in a standard 19” rack. The unit is intended for installations
where several zones or areas need to be controlled and a high level balanced
signal is required to drive the input lines.
