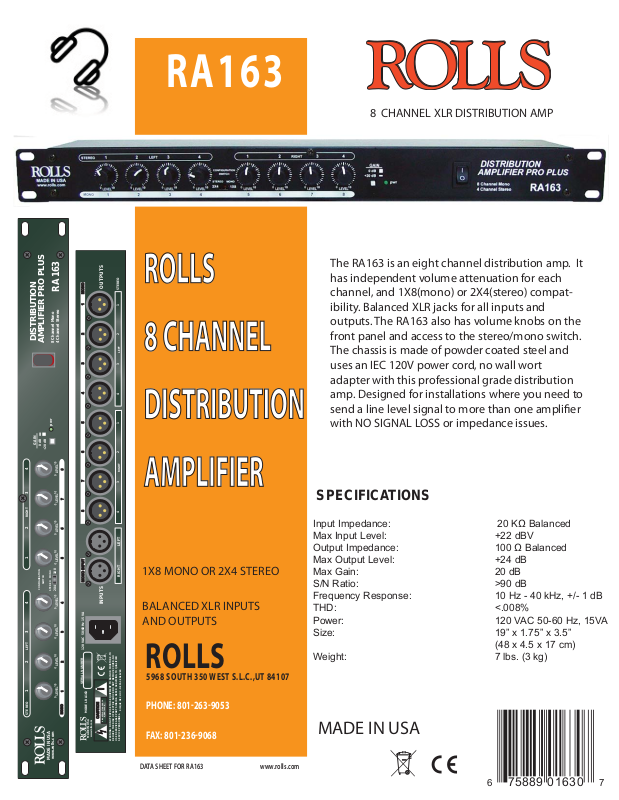

Rolls RA163 Datasheet

ROLLS

8 CHANNEL

DISTRIBUTION

AMPLIFIER

MONO

12345678

OUTPUTS

RA163

DISTRIBUTION

AMPLIFIER PRO PLUS

8 Channel Mono

4 Channel Stereo

pwr

RA163

8 CHANNEL XLR DISTRIBUTION AMP

The RA163 is an eight channel distribution amp. It

ROLLS

STEREO

12341234

8 CHANNEL

DISTRIBUTION

has independent volume attenuation for each
channel, and 1X8(mono) or 2X4(stereo) compat­ibility. Balanced XLR jacks for all inputs and
outputs. The RA163 also has volume knobs on the
front panel and access to the stereo/mono switch.
The chassis is made of powder coated steel and
uses an IEC 120V power cord, no wall wort
adapter with this professional grade distribution
amp. Designed for installations where you need to
send a line level signal to more than one amplier
with NO SIGNAL LOSS or impedance issues.

GAIN

0 dB

+20 dB

RIGHT

12 34

SWITCH

CONFIGURATION

LEFT

1234

STEREO

MONO

STEREO

RIGHT LEFT

AMPLIFIER

SPECIFICATIONS

Input Impedance: 20 KΩ Balanced

LEFT

1X8

MONO INPUT

2X4

INPUTS

1X8 MONO OR 2X4 STEREO

RIGHT

BALANCED XLR INPUTS
AND OUTPUTS

120 VAC 50/60 Hz 15 VA

ROLLS

5968 SOUTH 350 WEST S.L.C.,UT 84107

PHONE: [phone]

RISQUE DE CHOC - NE PAS ENLEVER

FAX: [phone]

USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED

SERVICE PERSONNEL.

1 2 3 4 5 6 7 8

MONO

SERIAL NUMBER

MODEL RA163

CAUTION

www.rolls.com

MADE IN USA

DO NOT OPEN

RISK OF ELECTRIC SHOCK

WARNING: DO NOT EXPOSE THIS EQUIPMENT TO RAIN OR MOISTURE. TO

REDUCE THE RISK OF ELECTRIC SHOCK DO NOT REMOVE COVER. NO

Max Input Level: +22 dBV
Output Impedance: 100 Ω Balanced
Max Output Level: +24 dB
Max Gain: 20 dB
S/N Ratio: >90 dB
Frequency Response: 10 Hz - 40 kHz, +/- 1 dB
THD: <.008%
Power: 120 VAC 50-60 Hz, 15VA
Size: 19” x 1.75” x 3.5”
(48 x 4.5 x 17 cm)
Weight: 7 lbs. (3 kg)

MADE IN USA

www.rolls.com

MADE IN USA

DATA SHEET FOR RA163 www.rolls.com
