LEVEL
MONITOR
power supply
the included Rolls PS27s
DC jack for connection to
for 1/4” monitor input
Mono or Stereo switch
VDC
9-15
mon
ster
Level controls for headphone outputs
pwr
LEVEL
MIC
HEADPHONES
PM50se
MONITOR AMP
PERSONAL
lift
gnd
1/4” and 1/8” headphone outputs
Ground lift for XLR thru
INPUT
MONITOR
1/4” monitor Input
Switch sets XLR input level to MIC or LINE
What's in the box?
1 - Made in USA PM50se
1 - 15V power supply PN PS27s
1 - This owners manual
1 - Love for audio and decades of experience with building and design.
MIC
LINE
LEVEL
INPUT
MIC
THRU
MIC
Pass thru & XLR input
via headphones.
or mono 1/4” signal, and hear them
mic or line, XLR signal with a stereo
The PM50se allows you to mix a
PM50se Personal Monitor Amp
- Studio
- Live
- Broadcast
Anywhere you need to mix a mic with a
stereo or mono signal.
Rolls Corporation
Salt Lake City, UT
9/18
SPECIFICATIONS:
Gain: 10 dB 1/4”
48 dB XLR “MIC”
20 dB XLR “LINE”
Input Impedance: 600 Ohms XLR
22K 1/4”
Output Impedance: 10 Ohms
Frequency Response: 3Hz to 100kHz
THD: .05% @ 1KHz
S/N Ratio: 90 dB
PWR: 9-15 VDC
Size: 3" x 2.5” x 1.25"
Weight: .8 lbs
Indicator: 1 Power LED

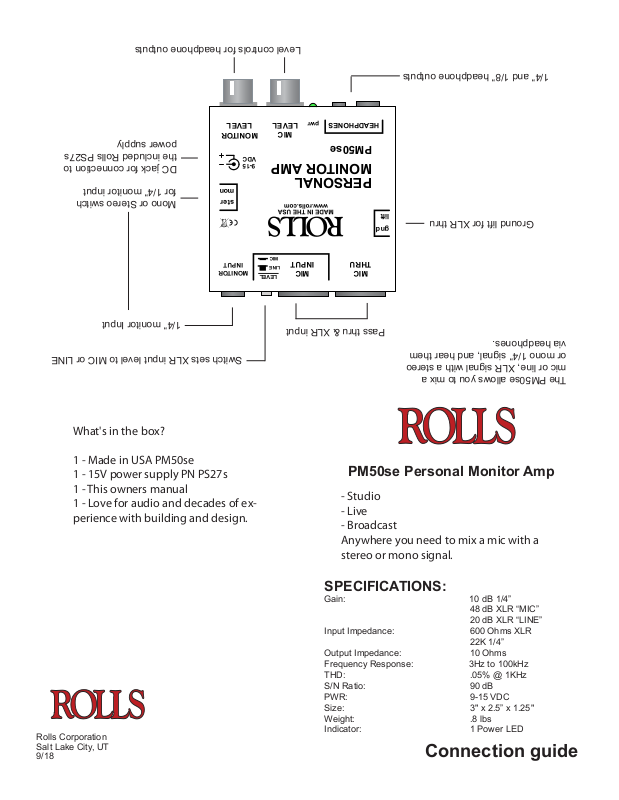

Connection guide
