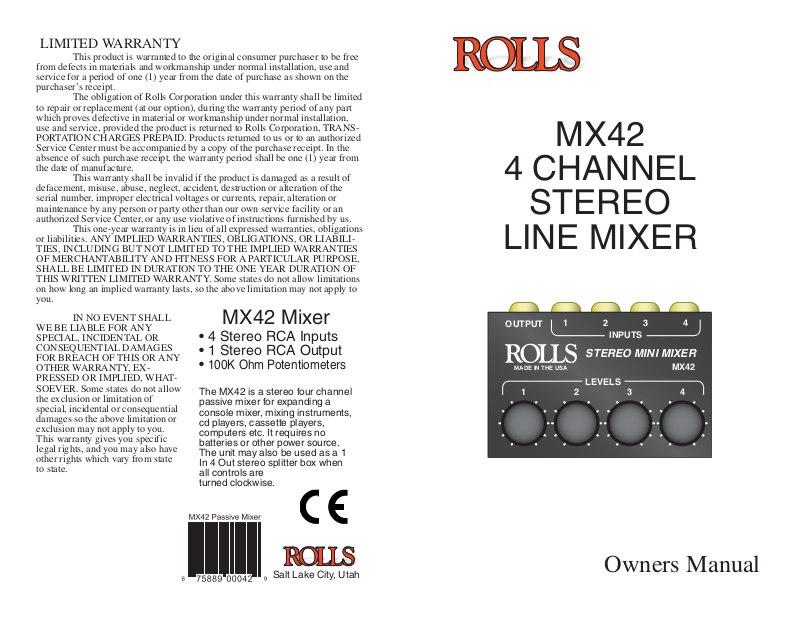

LIMITED WARRANTY
This product is warranted to the original consumer purchaser to be free
from defects in materials and workmanship under normal installation, use and
service for a period of one (1) year from the date of purchase as shown on the
purchaser’s receipt.
The obligation of Rolls Corporation under this warranty shall be limited
to repair or replacement (at our option), during the warranty period of any part
which proves defective in material or workmanship under normal installation,
use and service, provided the product is returned to Rolls Corporation, TRANSPORTATION CHARGES PREPAID. Products returned to us or to an authorized
Service Center must be accompanied by a copy of the purchase receipt. In the
absence of such purchase receipt, the warranty period shall be one (1) year from
the date of manufacture.
This warranty shall be invalid if the product is damaged as a result of
defacement, misuse, abuse, neglect, accident, destruction or alteration of the
serial number, improper electrical voltages or currents, repair, alteration or
maintenance by any person or party other than our own service facility or an
authorized Service Center, or any use violative of instructions furnished by us.
This one-year warranty is in lieu of all expressed warranties, obligations
or liabilities. ANY IMPLIED WARRANTIES, OBLIGATIONS, OR LIABILITIES, INCLUDING BUT NOT LIMITED TO THE IMPLIED WARRANTIES
OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE,
SHALL BE LIMITED IN DURATION TO THE ONE YEAR DURATION OF
THIS WRITTEN LIMITED WARRANTY. Some states do not allow limitations
on how long an implied warranty lasts, so the above limitation may not apply to
you.
MX42
4 CHANNEL
STEREO
LINE MIXER
IN NO EVENT SHALL
WE BE LIABLE FOR ANY
SPECIAL, INCIDENTAL OR
CONSEQUENTIAL DAMAGES
FOR BREACH OF THIS OR ANY
OTHER WARRANTY, EXPRESSED OR IMPLIED, WHATSOEVER. Some states do not allow
the exclusion or limitation of
special, incidental or consequential
damages so the above limitation or
exclusion may not apply to you.
This warranty gives you specific
legal rights, and you may also have
other rights which vary from state
to state.
MX42 Mixer
• 4 Stereo RCA Inputs
• 1 Stereo RCA Output
100K Ohm Potentiometers
•
The MX42 is a stereo four channel
passive mixer for expanding a
console mixer, mixing instruments,
cd players, cassette players,
computers etc. It requires no
batteries or other power source.
The unit may also be used as a 1
In 4 Out stereo splitter box when
all controls are
turned clockwise.
Salt Lake City, Utah
OUTPUT
MADE IN THE USA
1234
1234
INPUTS
STEREO MINI MIXER
MX42
LEVELS
Owners Manual
INTRODUCTION
Congratulations and thank you for your purchase of the
MX42. This unit is a stereo, four channel passive mixer for
expanding a console mixer, mixing instruments, cd or cassette players, or other signal sources. It requires no batteries
or other power source. The unit may be used as a stereo 1-in
4-out box when all controls are turned completely clockwise.
DESCRIPTION
OUTPUT: Stereo RCA jack for connection to a mixer input or
other input device.
IN 1 - 4: Stereo RCA jacks for connection to line, instrument,
or consumer level devices.
VOLUME 1 - 4: Control the level of the signals coming from
Inputs 1 - 4.
SPECIFICATIONS
Input Impedance: 10K to 47K Ω
Output Impedance: 2.5K to 10K Ω
Gain: -12 dB MAX
Dimensions: 3" x 2" x 1.42" (W x H x D)
Weight: 1 lb.
SCHEMATIC
OUTPUT
1234
INPUTS
STEREO MINI MIXER
MADE IN THE USA
LEVELS
1234
MX42
