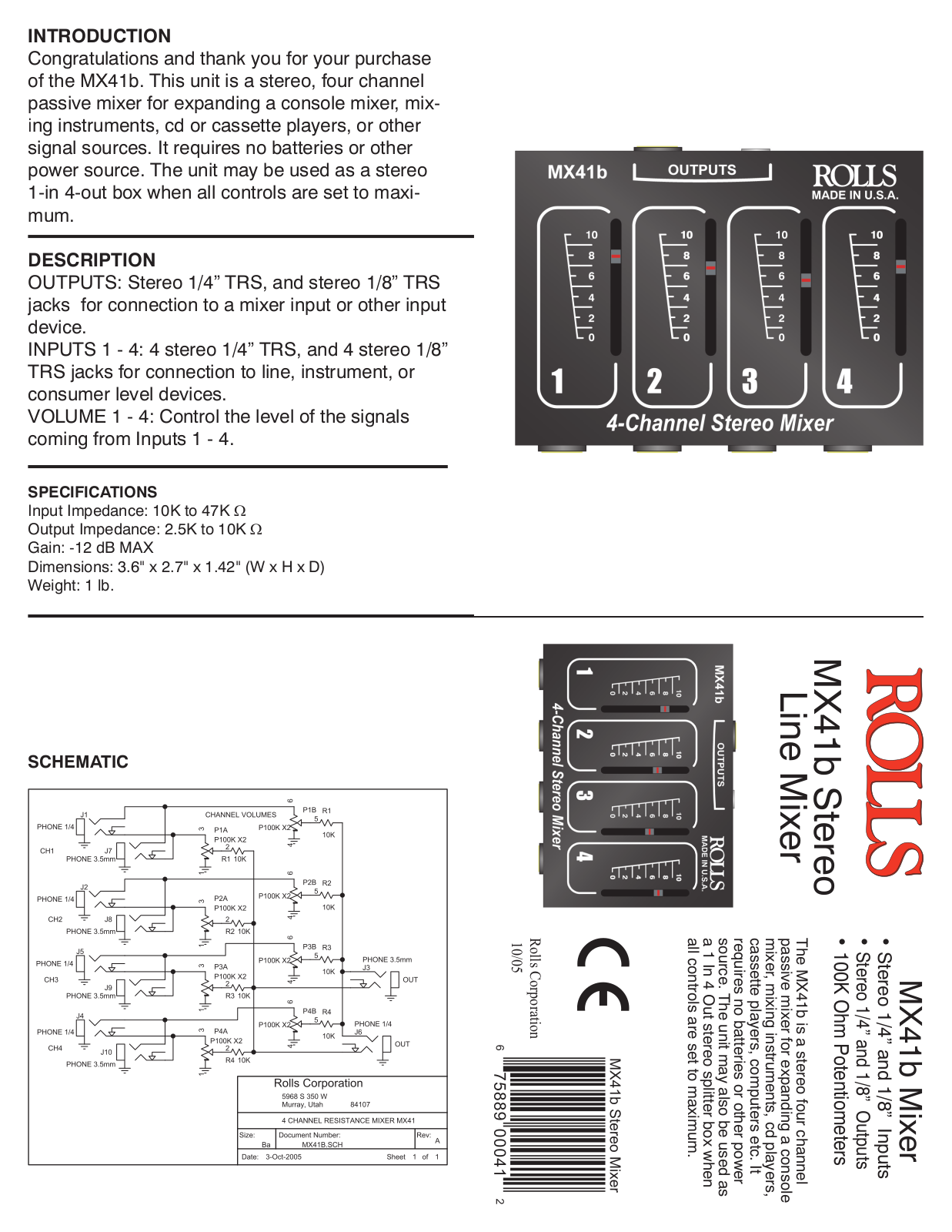

Rolls MX41b User Manual

MX41b Stereo

Line Mixer

SCHEMATIC

Rolls Corporation

10/05

MX41b Mixer

•

Stereo 1/4” and 1/8” Inputs

•

Stereo 1/4” and 1/8” Outputs

•

100K Ohm Potentiometers

The MX41b is a stereo four channel

passive mixer for expanding a console
mixer, mixing instruments, cd players,

cassette players, computers etc. It

requires no batteries or other power

source. The unit may also be used as
a 1 In 4 Out stereo splitter box when

all controls are set to maximum.

SPECIFICATIONS

Weight: 1 lb.

jacks for connection to a mixer input or other input

TRS jacks for connection to line, instrument, or

VOLUME 1 - 4: Control the level of the signals
