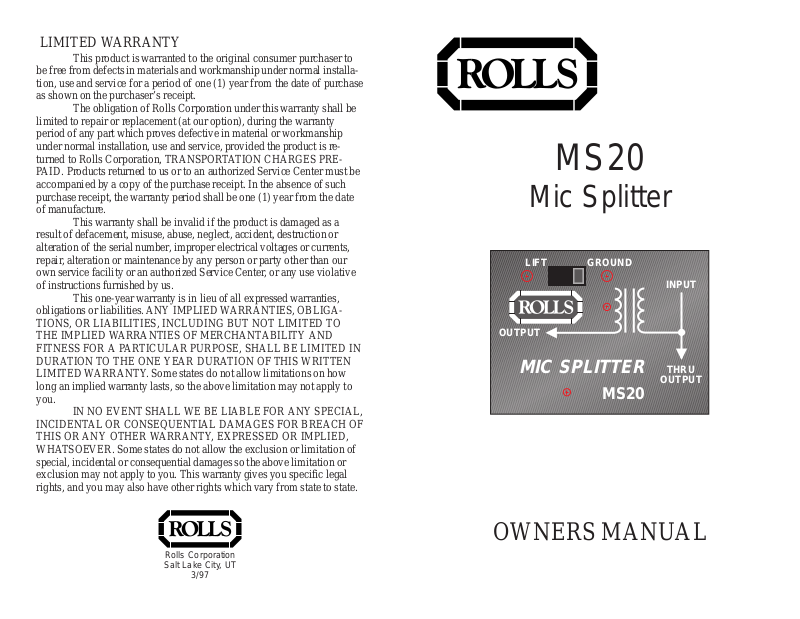

Rolls MS20 User Manual
LIMITED WARRANTY
This product is warranted to the original consumer purchaser to
be free from defects in materials and workmanship under normal installation, use and service for a period of one (1) year from the date of purchase
as shown on the purchaser’s receipt.
The obligation of Rolls Corporation under this warranty shall be
limited to repair or replacement (at our option), during the warranty
period of any part which proves defective in material or workmanship
under normal installation, use and service, provided the product is returned to Rolls Corporation, TRANSPORTATION CHARGES PREPAID. Products returned to us or to an authorized Service Center must be
accompanied by a copy of the purchase receipt. In the absence of such
purchase receipt, the warranty period shall be one (1) year from the date
of manufacture.
This warranty shall be invalid if the product is damaged as a
result of defacement, misuse, abuse, neglect, accident, destruction or
alteration of the serial number, improper electrical voltages or currents,
repair, alteration or maintenance by any person or party other than our
own service facility or an authorized Service Center, or any use violative
of instructions furnished by us.
This one-year warranty is in lieu of all expressed warranties,
obligations or liabilities. ANY IMPLIED W ARRANTIES, OBLIGATIONS, OR LIABILITIES, INCLUDING BUT NOT LIMITED TO
THE IMPLIED WARRANTIES OF MERCHANTABILITY AND
FITNESS FOR A PA RTICULAR PURPOSE, SHALL BE LIMITED IN
DURATION TO THE ONE YEAR DURATION OF THIS WRITTEN
LIMITED W ARRANTY. Some states do not allow limitations on how
long an implied warranty lasts, so the above limitation may not apply to
you.
IN NO EVENT SHALL WE BE LIABLE FOR ANY SPECIAL,
INCIDENTAL OR CONSEQUENTIAL DAMAGES FOR BREACH OF
THIS OR ANY OTHER WARRANTY, EXPRESSED OR IMPLIED,
WHATSOEVER. Some states do not allow the exclusion or limitation of
special, incidental or consequential damages so the above limitation or
exclusion may not apply to you. This warranty gives you specific legal
rights, and you may also have other rights which vary from state to state.
MS20
Mic Splitter
LIFT
OUTPUT
MIC SPLITTER
GROUND
MS20
INPUT
THRU
OUTPUT
Rolls Corporation
Salt Lake City, UT
3/97
OWNERS MANUAL
Thank you for your purchase of the MS20 Mic Splitter. This unit was
designed to produce two balanced XLR signals, one direct - one transformer isolated, from one single XLR input signal. A ground lift switch has
been provided to elliminate some cases of hum caused by ground loops.
INSPECTION
1. Unpack and Inspect the MS20 package
Your MS20 was carefully packed at the factory in a protective carton.
Nonetheless, be sure to examine the unit and the carton for any signs of
damage that may have occurred during shipping. If obvious physical
damage is noticed, contact the carrier immediately to make a damage
claim. We suggest saving the shipping carton and packing materials for
safely transporting the unit in the future.
OPERATION
Shown below is an example of how to connect your MS20.
2. Please complete the Warranty Registration Card and return it to the
factory.
DESCRIPTION
INPUT: Male XLR jack for connection to the microphone or other signal
to be split.
THRU OUTPUT: Female XLR jack for connection to a mixing console or
signal processing device.
OUTPUT: Female XLR jack for connection to a mixing console or other
signal processing device.
GROUND LIFT: Switch when in "GROUND" position, indicates that pins
1 of the INPUT and OUTPUT jacks are connected. In the "LIFT" position,
the grounds have been separated.
LIFT
OUTPUT
MIC SPLITTER
GROUND
INPUT
THRU
OUTPUT
MS20
TO MONITOR
BOARD
LIFT
OUTPUT
GROUND
MIC SPLITTER
MS20
INPUT
THRU
OUTPUT
TO MIXER
SPECIFICATIONS
Input Impedance: 600 Ω
Output Impedance: 600 Ω
Dimensions: 3 x 2.25 x 1.2 inches
Weight: 8 Ounces
