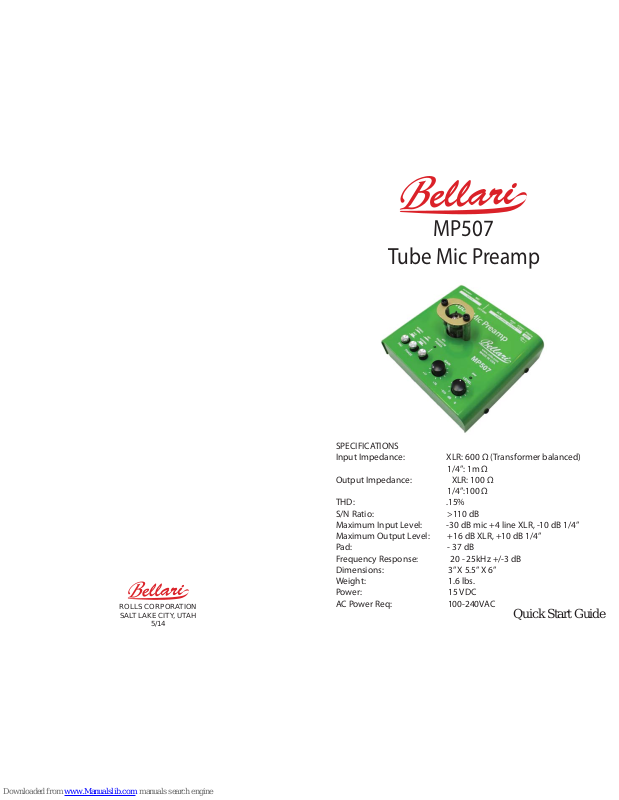

MP507
Tube Mic Preamp
Quick Start Guide
ROLLS CORPORATION
SALT LAKE CITY, UTAH
5/14
SPECIFICATIONS
Input Impedance: XLR: 600 Ω (Transformer balanced)
1/4”: 1m Ω
Output Impedance: XLR: 100 Ω
1/4”:100 Ω
THD: .15%
S/N Ratio: >110 dB
Maximum Input Level: -30 dB mic +4 line XLR, -10 dB 1/4”
Maximum Output Level: +16 dB XLR, +10 dB 1/4”
Pad: - 37 dB
Frequency Response: 20 - 25kHz +/-3 dB
Dimensions: 3” X 5.5” X 6”
Weight: 1.6 lbs.
Power: 15 VDC
AC Power Req: 100-240VAC
Page 2
TOP PANEL DESCRIPTION
NORM/PAD: When this switch is OUT, the XLR input signal is decreased
by 37dB, when IN the signal is una ected (NORMAL).
48V PHANTOM POWER: When this switch is pressed IN, 48 volts of microphone phantom power is applied to the XLR Input jack.
PHASE: When this switch is pressed in, the phase of the Output signal is
reversed 180 degrees.
PWR LED: Indicates the MP507 is receiving power.
GAIN CONTROL: Adjusts the amount of gain or drive in the MP507 tube
circuitry.
LEVEL CONTROL: Adjusts the amount of output volume.
---Start out with the GAIN and LEVEL controls set at the middle position.
This will be the most optimal way to begin the set up process---
REAR PANEL
INPUTS: 1/4” TS unbalanced instrument level, and XLR balanced input
jacks.
OUTPUTS: 1/4” TS unbalanced, 1/8” (3.5mm) Stereo (left, right and
ground). XLR balanced jack all outputs are at line level.
LIFT-GND: This is for lifting or grounding the input XLR jack to the rest of
the circuit ground. This can help with noise from ground loops.
--- Adjust the switch to the position that sounds best --VDC: Connects to the supplied Rolls/Bellari PS27s adapter.
The MP507 ampli es your microphone signal to a professional line level.
That signal may then be sent to a digital recorder, mixing console, or
signal processor.
- If you connect the MP507 XLR Output jack to an XLR input on a mixer
(THAT IS MIC LEVEL), you may be using the mixer channel’s mic preamps. This will result in distortion. If this happens, use the MP507 1/4”
Output to a 1/4” line level input on the mixer. Speak or sing into the
microphone at the volume level used during performance. Set the GAIN
control to the desired level. Adjust the MP507 output LEVEL control
so the input level indicators on the recorder or mixer show a desirable
amount. If your microphone puts out a high level of power, or if you are
connecting a XLR balanced line-level signal to the MP507 input section, set the NORM/PAD switch to the out or PAD position. The Phase
Reverse (REV) switch is used to change the phase of the output signal
180 degrees from that of the input. This is for correcting possible wiring
mismatches, or microphone phase mismatches.
INSTRUMENT PREAMP
The MP507 may be used as an instrument preamp or direct box. Connect your instrument to the 1/4” unbalanced (mono) input.
- If using the MP507 as a direct box, use the XLR output of the MP507
and connect to the mixer. Set the MP507 LEVEL control fully counterclockwise (OFF) to begin with. Set the GAIN control to half, then slowly
bring up the LEVEL control to avoid over driving the next device.
- If the MP507 is used as an instrument preamp, connect the 1/4” (mono)
output of the MP507 to your ampli er or mixer and set the levels as
desired.
NOTE:
The MP507 is designed to clip the tube before the output
section actually distorts. This a ords you the ability to drive the tube
harder providing a warmer, more natural sound.
CONNECTION
First, make sure the MP507 power supply is connected to an AC outlet.
Connect a microphone to the MP507 input XLR jack, press in the PHANTOM POWER switch if the microphone is a condenser type and requires
phantom power. Connect the MP507 Output to the line level Input of
the equipment you are going into, using either the XLR, 1/4” (mono) or
3.5mm (stereo) .
