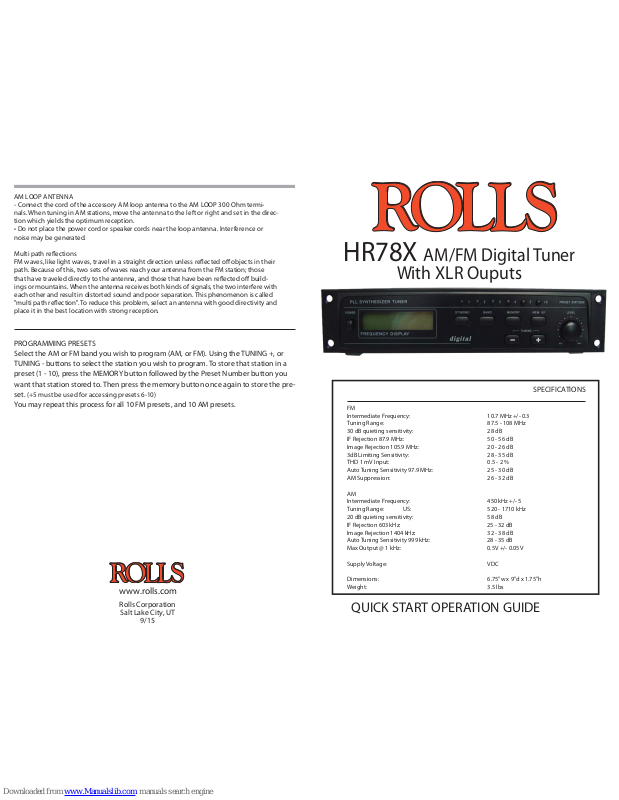

HR78X AM/FM Digital Tuner
With XLR Ouputs
Rolls Corporation
Salt Lake City, UT
9/15
PROGRAMMING PRESETS
Select the AM or FM band you wish to program (AM, or FM). Using the TUNING +, or
TUNING - buttons to select the station you wish to program. To store that station in a
preset (1 - 10), press the MEMORY button followed by the Preset Number button you
want that station stored to. Then press the memory button once again to store the preset. (+5 must be used for accessing presets 6-10)
You may repeat this process for all 10 FM presets, and 10 AM presets.
SPECIFICATIONS
FM
Intermediate Frequency: 10.7 MHz +/- 0.3
Tuning Range: 87.5 - 108 MHz
30 dB quieting sensitivity: 28 dB
IF Rejection 87.9 MHz: 50 - 56 dB
Image Rejection 105.9 MHz: 20 - 26 dB
3dB Limiting Sensitivity: 28 - 35 dB
THD 1 mV Input: 0.5 - 2 %
Auto Tuning Sensitivity 97.9 MHz: 25 - 30 dB
AM Suppression: 26 - 32 dB
AM
Intermediate Frequency: 450 kHz +/- 5
Tuning Range: US: 520 - 1710 kHz
20 dB quieting sensitivity: 58 dB
IF Rejection 603 kHz: 25 - 32 dB
Image Rejection 1404 kHz: 32 - 38 dB
Auto Tuning Sensitivity 999 kHz: 28 - 35 dB
Max Output @ 1 kHz: 0.5V +/- 0.05V
Supply Voltage: VDC
Dimensions: 6.75"w x 9"d x 1.75"h
Weight: 3.5 lbs
www.rolls.com
AM LOOP ANTENNA
- Connect the cord of the accessory AM loop antenna to the AM LOOP 300 Ohm terminals. When tuning in AM stations, move the antenna to the left or right and set in the direction which yields the optimum reception.
• Do not place the power cord or speaker cords near the loop antenna. Interference or
noise may be generated.
Multi path re ections
FM waves, like light waves, travel in a straight direction unless re ected o objects in their
path. Because of this, two sets of waves reach your antenna from the FM station; those
that have traveled directly to the antenna, and those that have been re ected o buildings or mountains. When the antenna receives both kinds of signals, the two interfere with
each other and result in distorted sound and poor separation. This phenomenon is called
"multi path re ection". To reduce this problem, select an antenna with good directivity and
place it in the best location with strong reception.
QUICK START OPERATION GUIDE
INTRODUCTION
Thank you for your purchase of the Rolls HR78X AM/FM Digital Tuner. This unit has been carefully
designed and assembled to provide years of reliable AM/FM reception. Please read this manual
carefully as it contains important information regarding the proper setup and operation of the
HR78X.
FEATURES:
• 10 FM and 10 AM presets • Retains presets when power is o
• Large LCD digital display • 1 space EIA 1/2 rack chassis
• Output Level control • RCA and XLR balanced line level outputs.
INSPECTION
Unpack and Inspect the package. Your HR78X was carefully packed at the factory in a protective
carton. Nonetheless, be sure to examine the unit and the carton for any signs of damage that
may have occurred during shipping. If obvious physical damage is noticed, contact the carrier immediately to make a damage claim. We suggest saving the shipping carton and packing
materials for safely transporting the unit in the future.
WARRANTY
For complete Warranty information and registration, please visit our web site; www.rolls.
com. Click on the REGISTER YOUR WARRANTY HERE line. Or, complete the Warranty
Registration Card and return it to the factory.
DESCRIPTION
FRONT PANEL
• POWER: When pressed in, applies power to the HR78X.
• FREQUENCY DISPLAY: LCD display showing the active information relevant to the current
operation of the HR78X.
• 1 - 10 PRESET STATIONS: Selects and Stores the Preset stations. (+5 must be used for accessing
presets 6-10)
• FM ST: Selects between Stereo and Mono FM operation.
• BAND: Selects between the FM preset, and the AM preset band.
• MEMORY: When the desired station is selected, this button is pressed, followed by the
desired Preset Station number to Store the preset.
• LEVEL: Adjusts the output level of both the RCA and XLR balanced line level outputs. PLEASE
NOTE: FOR A LINE LEVEL OUTPUT, SET THE LEVEL CONTROL AT APPROXIMATELY 3 O'CLOCK.
• TUNING (- and +): Selects the stations that the HR78X is receiving. Pressing and holding the +
or - buttons will auto search for the next station.
DESCRIPTION CONTINUED
HR78X DISPLAY
-Band indicator and number.
-Stereo / Mono indicators. Indicates whether the HR78X FM Mode is operating in Stereo or
Mono.
-Mhz/Khz - indicates Megahertz (FM), or Kilohertz (AM) reception.
-Preset number - indicates which preset has been selected within the selected band.
-Station frequency indicator
CONNECTION
- Connect the Rolls supplied adapter to the VDC power jack of the HR78X, and to an AC outlet
with the proper voltage.
- Connect the HR78X Left and Right outputs to a mixer, ampli er, or other audio device.
FM Antenna
INDOOR FM ANTENNA
- Connect the antenna to its corresponding input on the rear panel of the HR78X. While listening to a broadcast, move around until the antenna is facing a direction where the signal comes
in the strongest. Secure the antenna in this position.
OUTDOOR FM ANTENNA
- Installation of an outdoor FM antenna is recommended for a very high quality FM reception.
• The lead-in antenna cable should be of the 75-ohm coaxial type as it suppresses intrusion of
noise more e ectively than the 300 ohm twin lead type.
• The cable should be straight and as far away from power lines as possible. Cut o any extra
length.
REAR PANEL
• VDC USE ROLLS SUPPLIED ADAPTER ONLY!!!
• Stereo Outputs RCA: RCA outputs.
• XLR balanced line level outputs.
• FM ANT. 75 Ohm: Connects to the included 75 ohm FM antenna.
• AM LOOP ANT. 300 Ohm Connects to the included 300 ohm AM Loop antenna.
+
-
15 VDC
